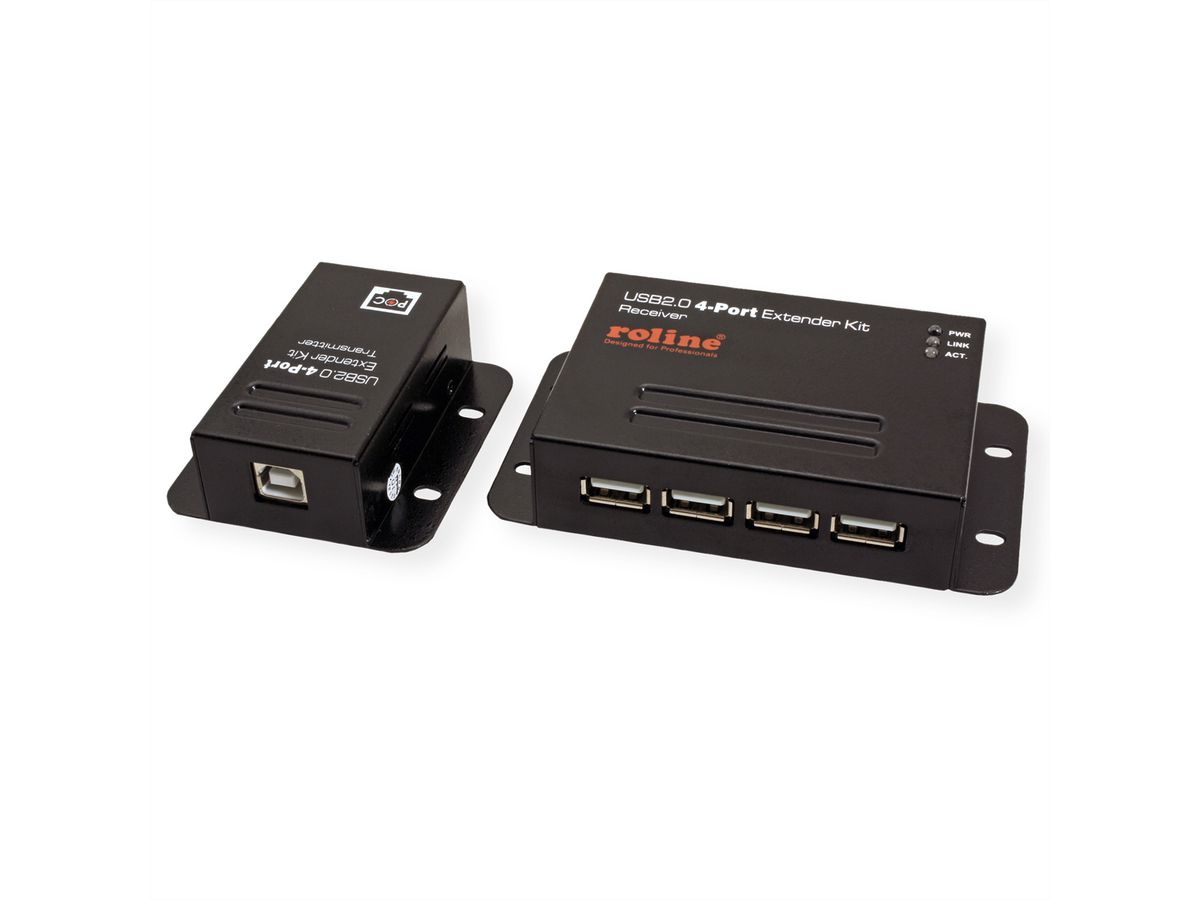

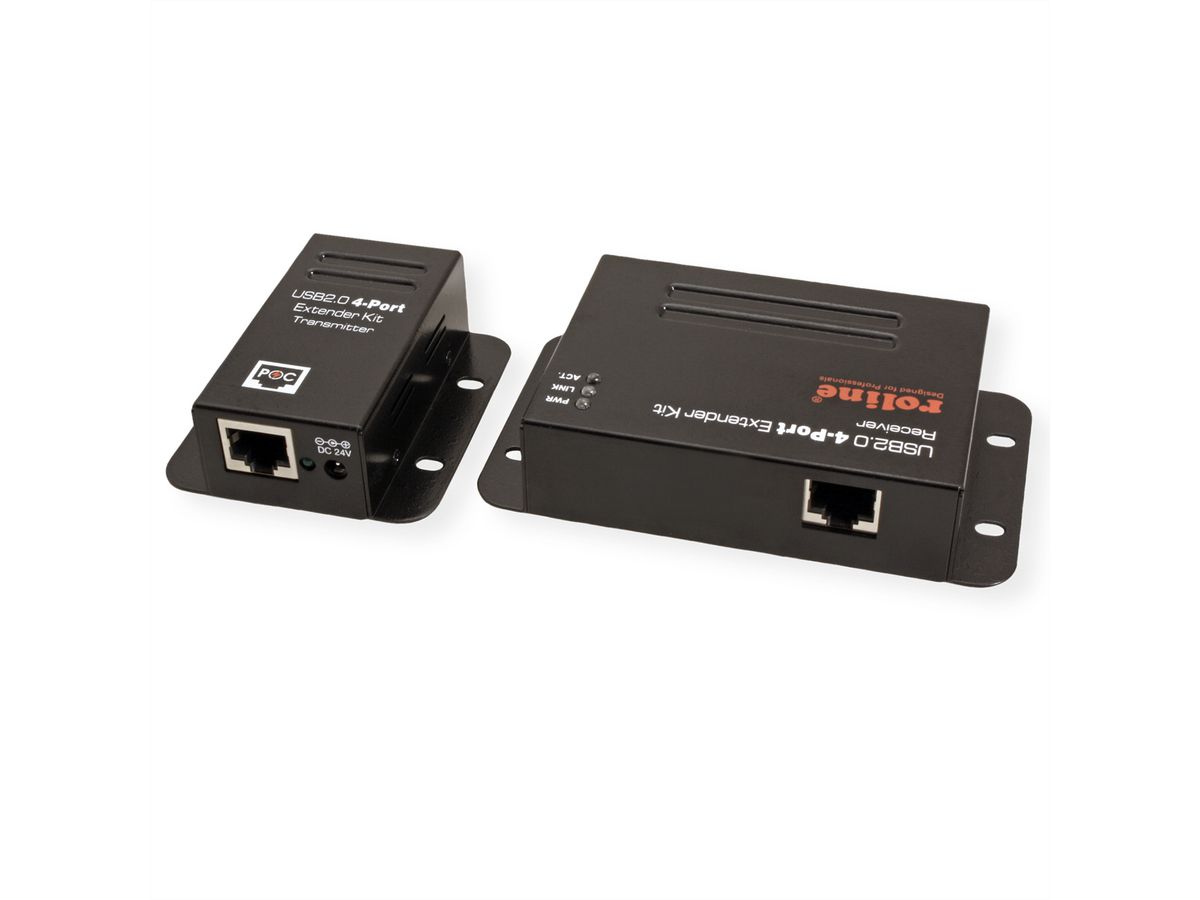

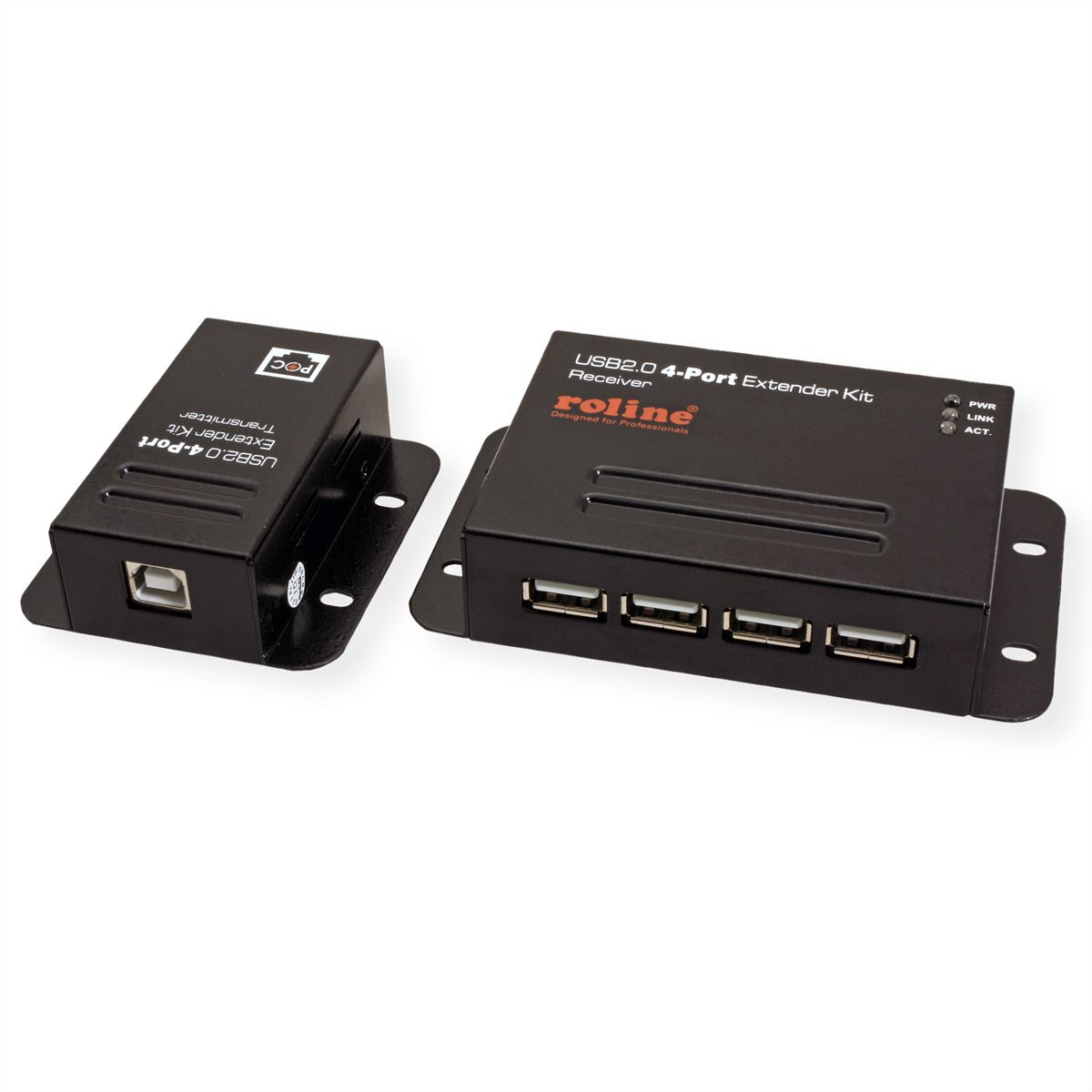

ROLINE USB 2.0 Extender over RJ-45, PoC, 4x USB, max. 50m
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 12.04.1101-4 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 12.04.1101 |
| EAN | 7611990938261 |
| Package weight | 0.6 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

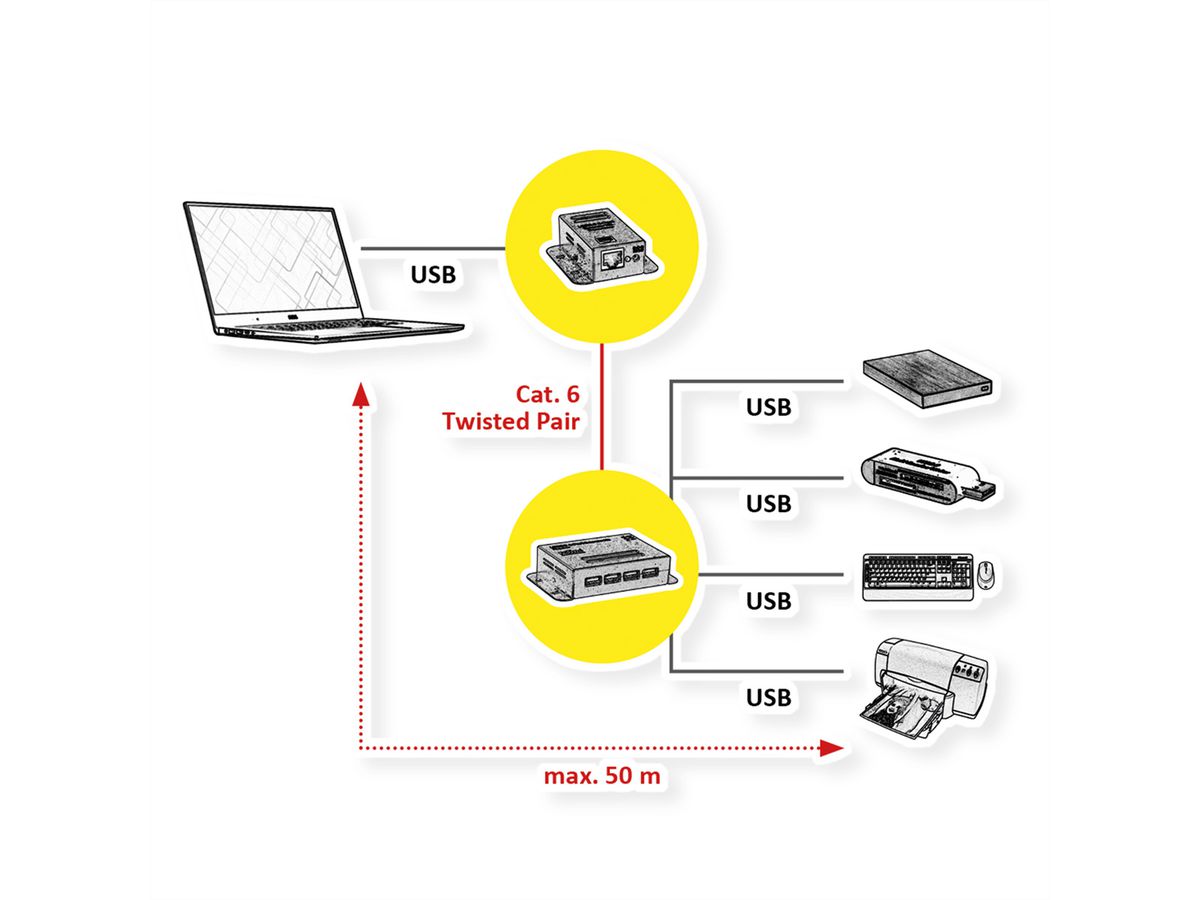

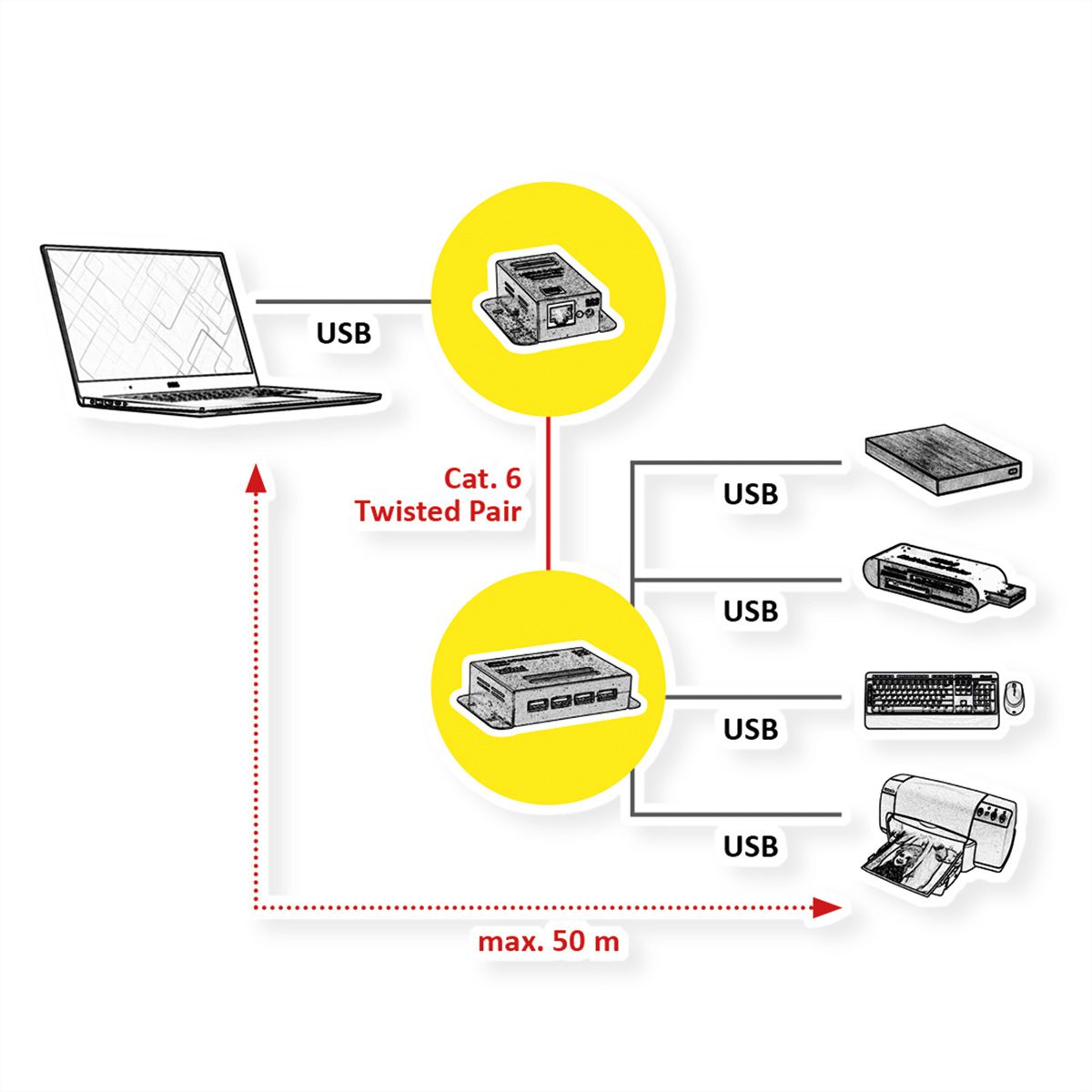

- Extends your USB Port over RJ45 (up to 50 meters) and allows the connection of up to four (4x) USB2.0 devices (hub functionality)
- For example to connect an USB printer in another room with your PC
- Supports USB 2.0, downwards compatible with USB 1.1/1.0
- Hot plug
- No additional software for extender required
- Connection via Cat.5e/Cat. 6 Twisted Pair cable
- Supports data rates up to 480Mbit/s

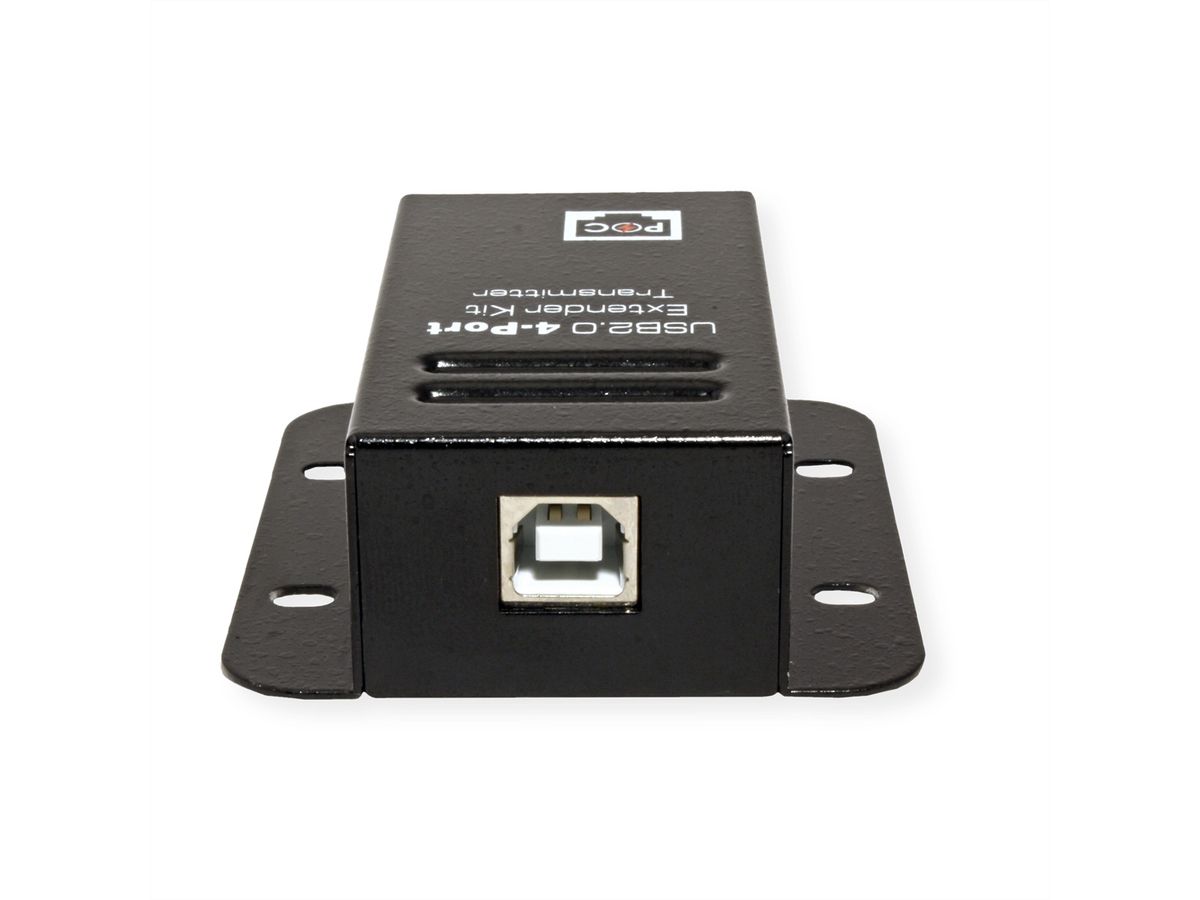

- Transmitter: USB A Male connector / RJ45

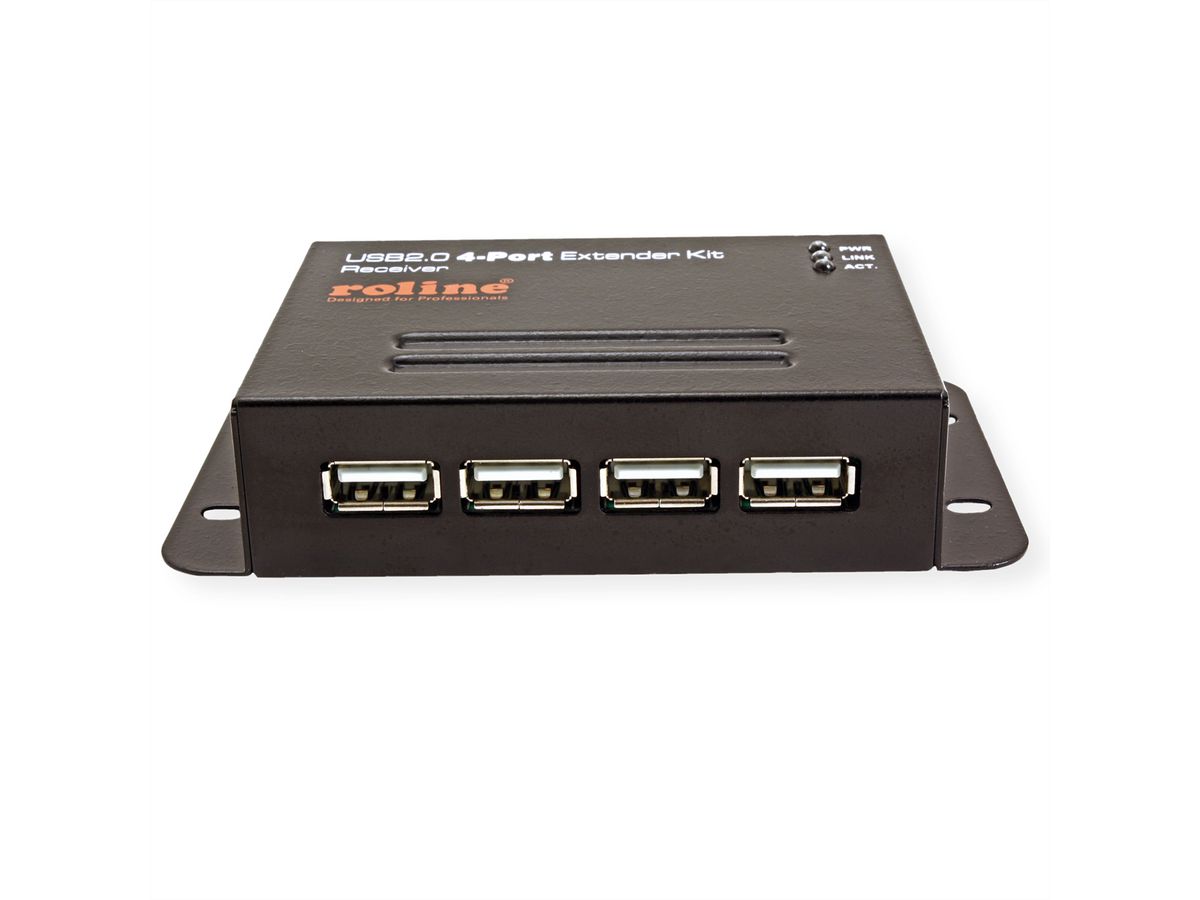

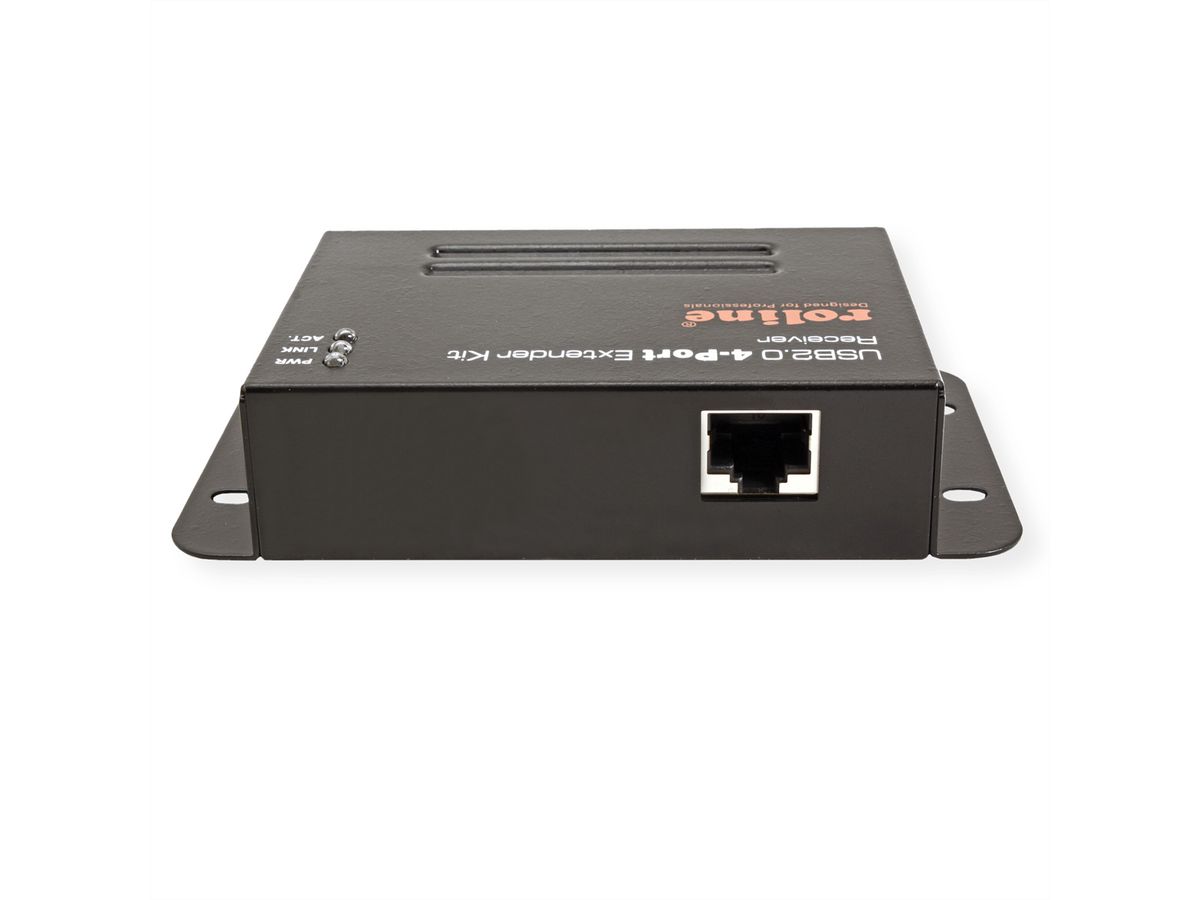

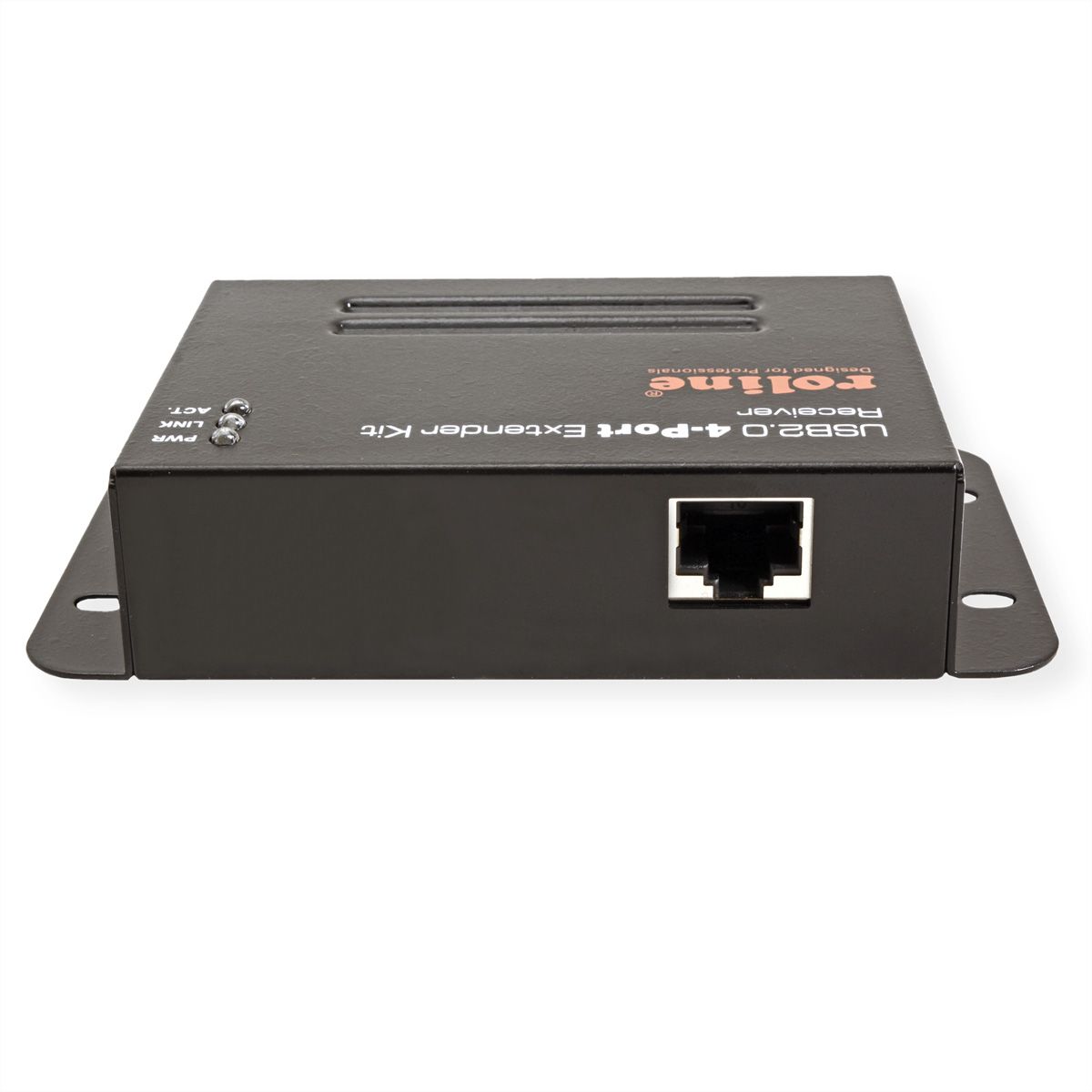

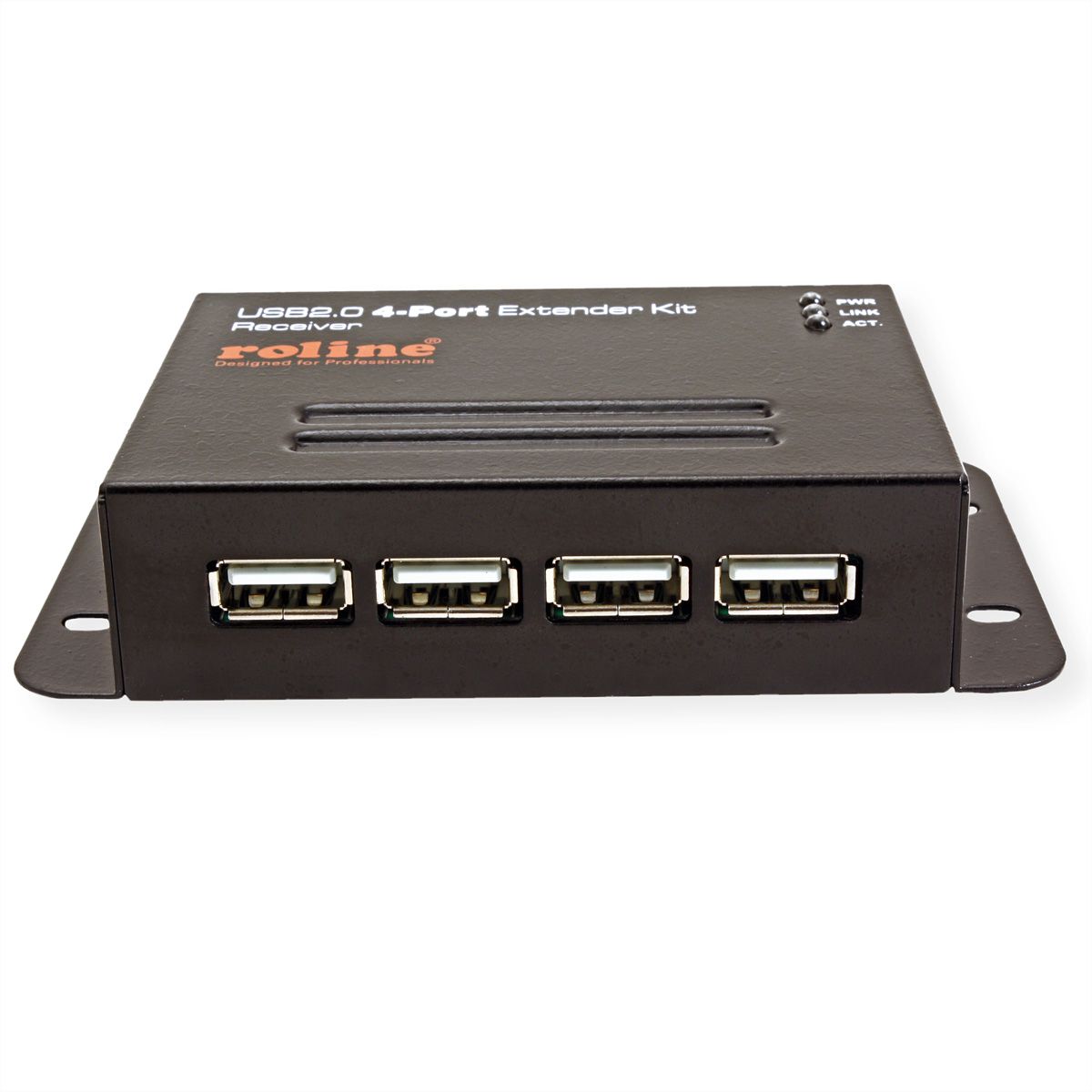

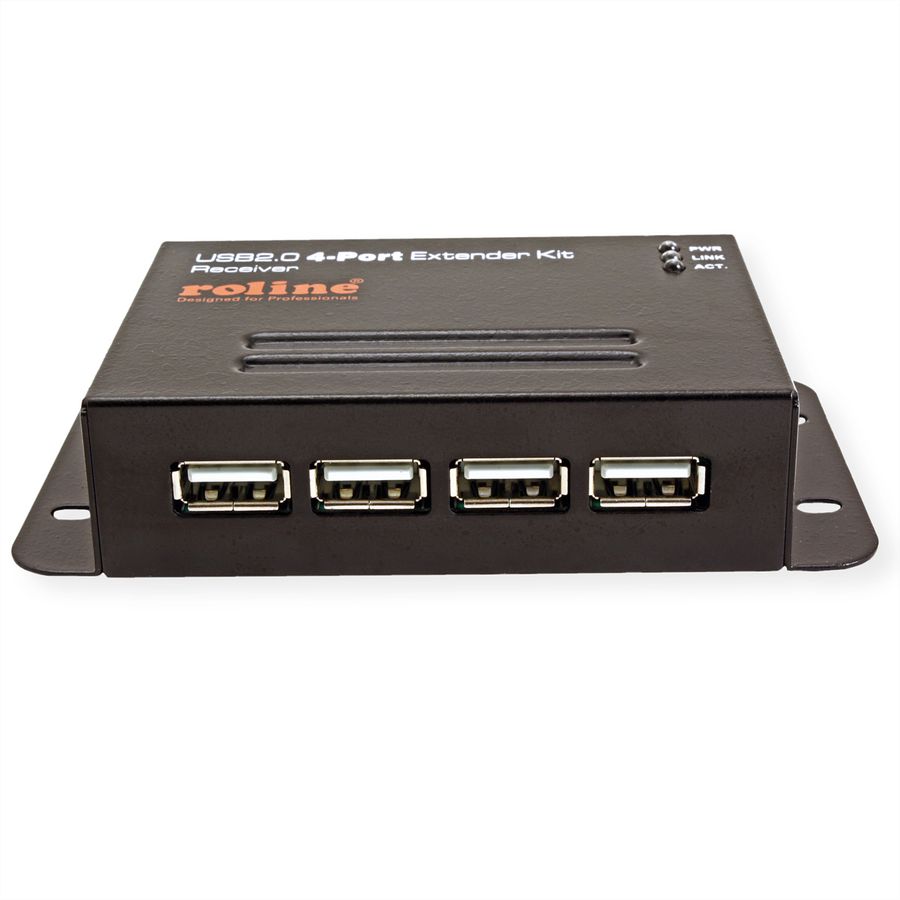

- Receiver: 4x USB A Female connector / RJ45
- Supports PoC (Power over Cable)

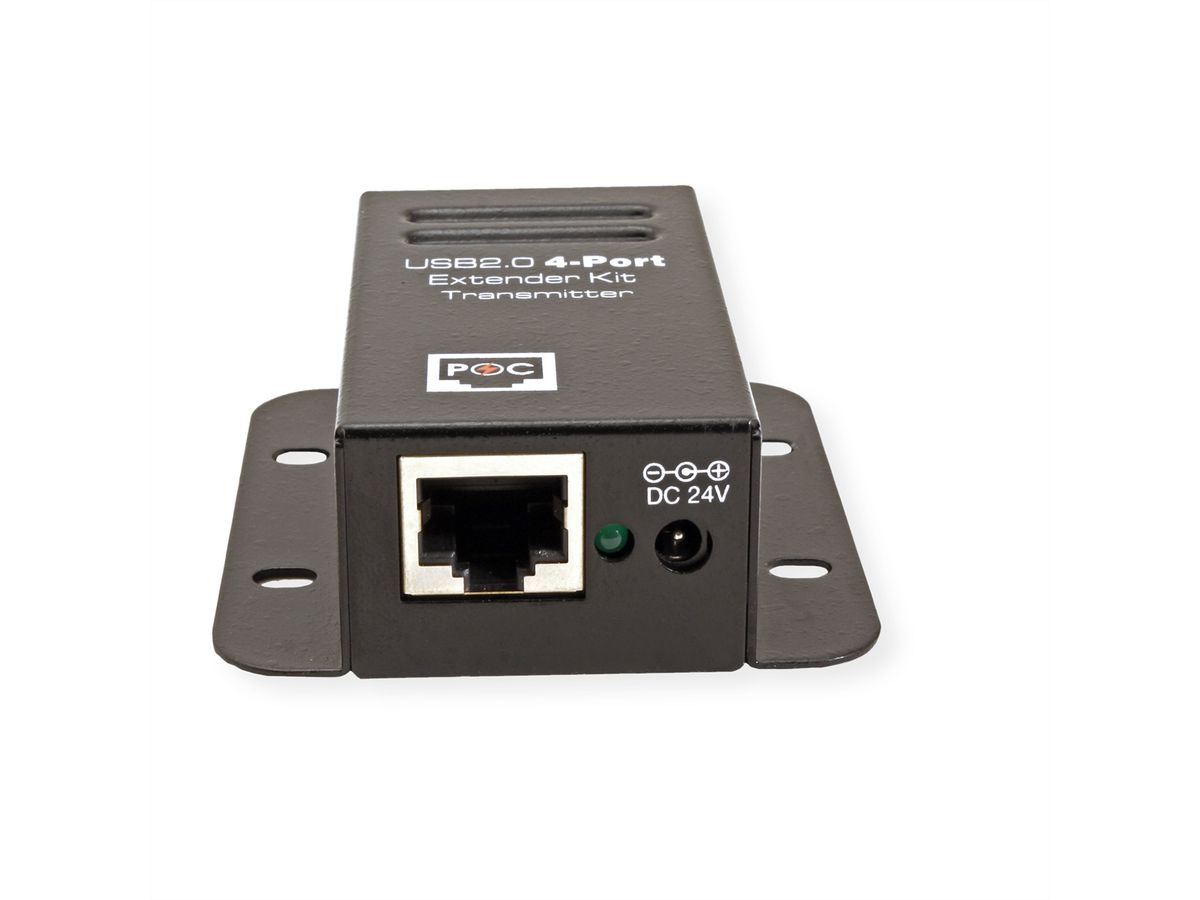

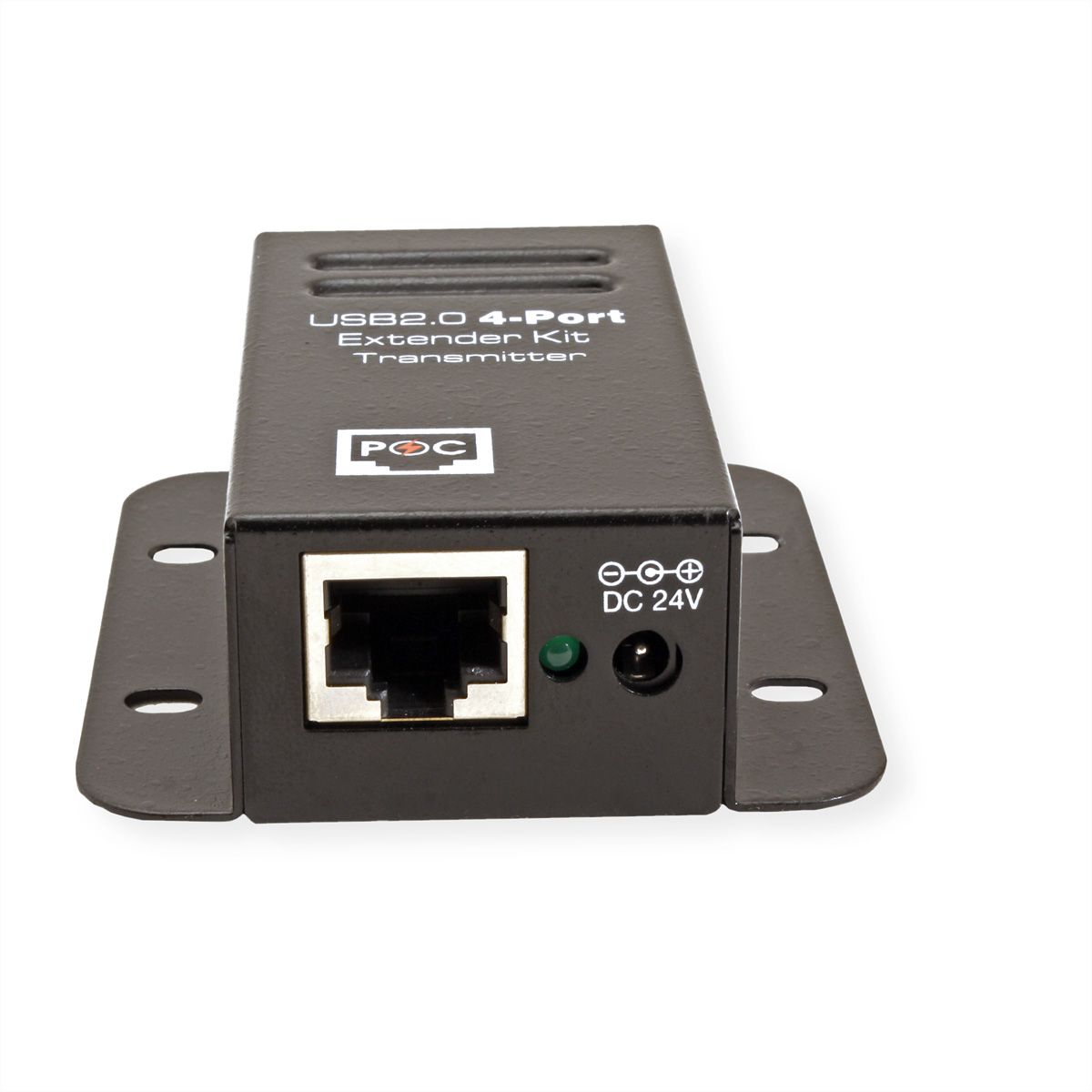

- External power supply is needed for transmitter (included, 24 VDC, 0.5A)
- Metal case, wall mounting option

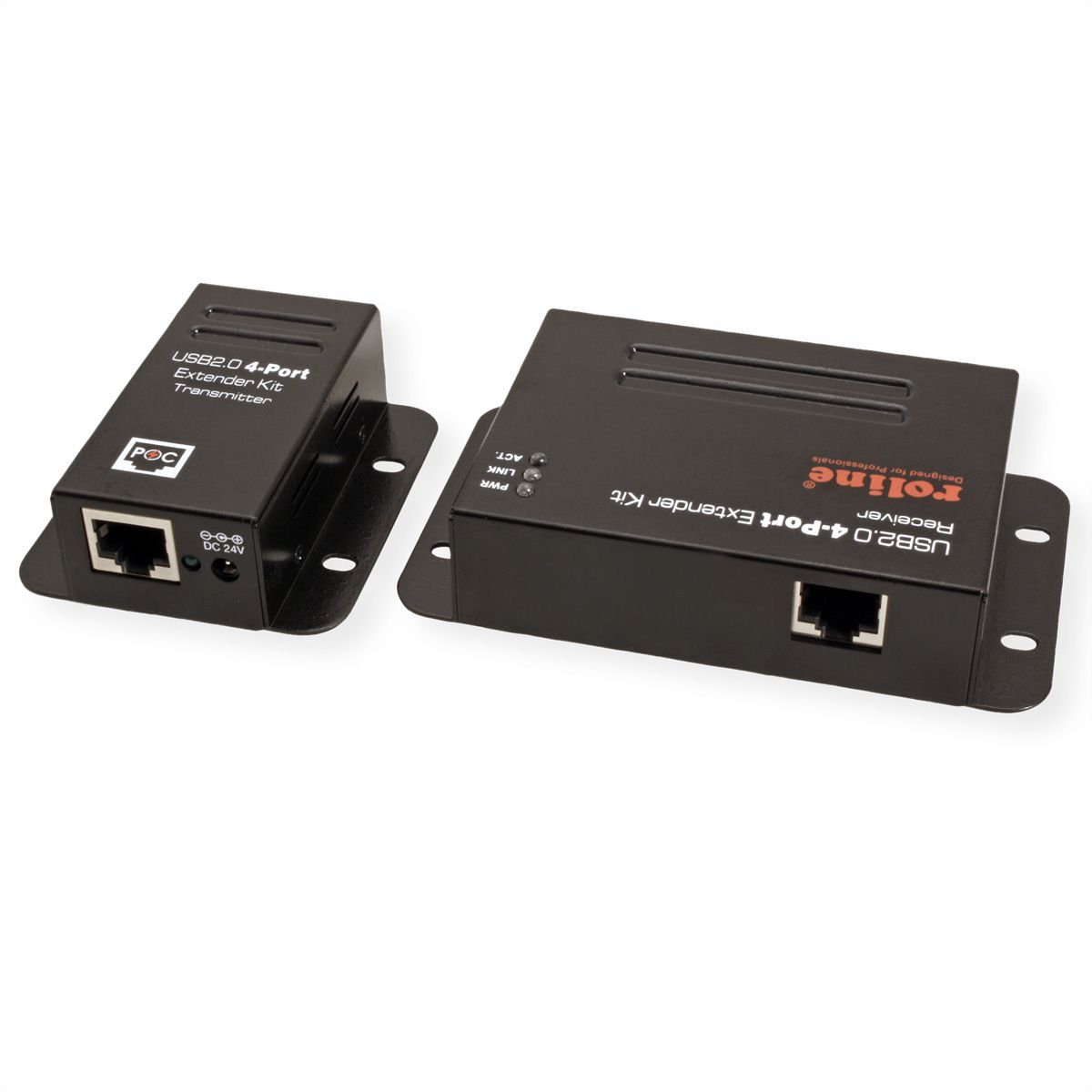

- Contents: Master unit (RJ45 Female; USB Type A Male), remote unit (RJ45 Female; USB Type A Female), power supply (24 VDC, 0.5A)
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Adapters, Terminators, Converters |
| Product type | USB extension |
| Colour | black |
| Scope of delivery | Master unit (RJ45F, USB Type A M with 28cm cable), Remote unit (RJ45F, USB Type A F) |
| Transfer quality | USB 2.0 Hi-Speed 480 Mbit/s |
| Side 1 connection (PC) | USB A Male |
| Side 2 connection (Peripherals) | USB A Female |

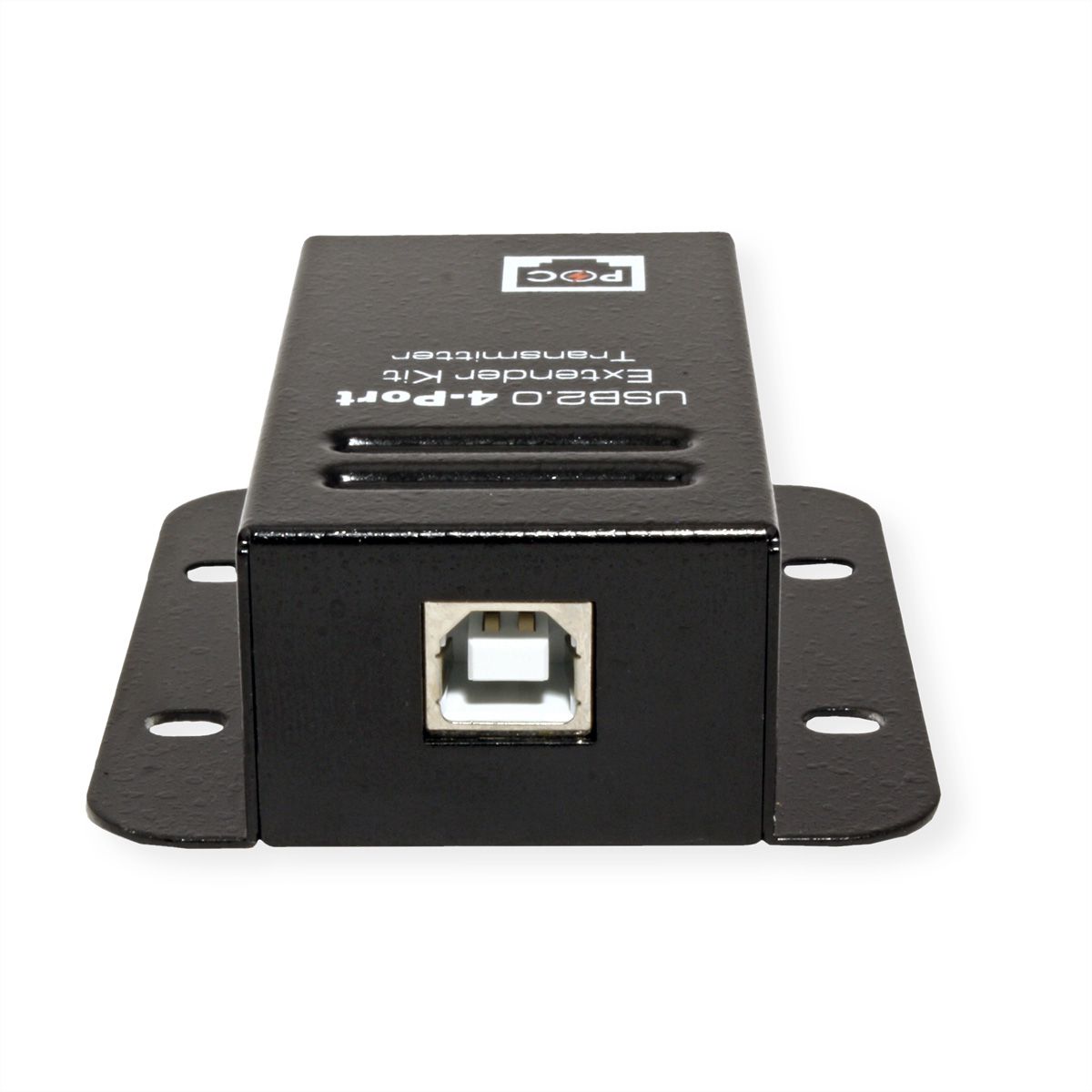

| Side 1 Connector Type | USB 2.0 Type B |
| Side 1 Connector Gender | Female |
| Side 2 Connector Type | USB 2.0 Type A |
| Side 2 Connector Gender | Female |
| Conversion direction | USB - TP - USB |
| Area of application | External |
| Technical particularity | Connection over Twisted Pair Cable |
| Weight | 255.4 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 200 mm |
| Depth of packaging (single piece) | 230 mm |
| Package weight (single piece) | 0.6 kg |
