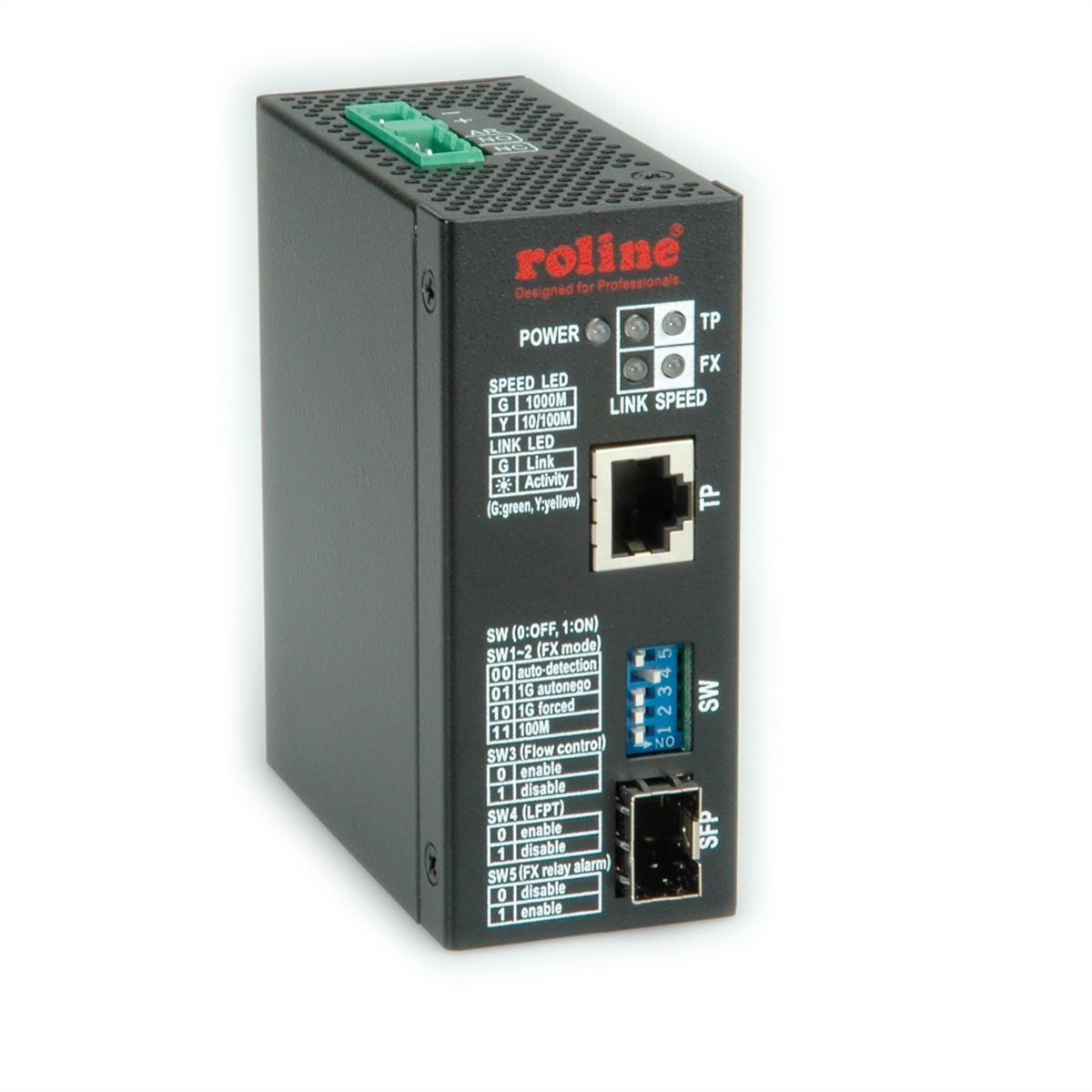

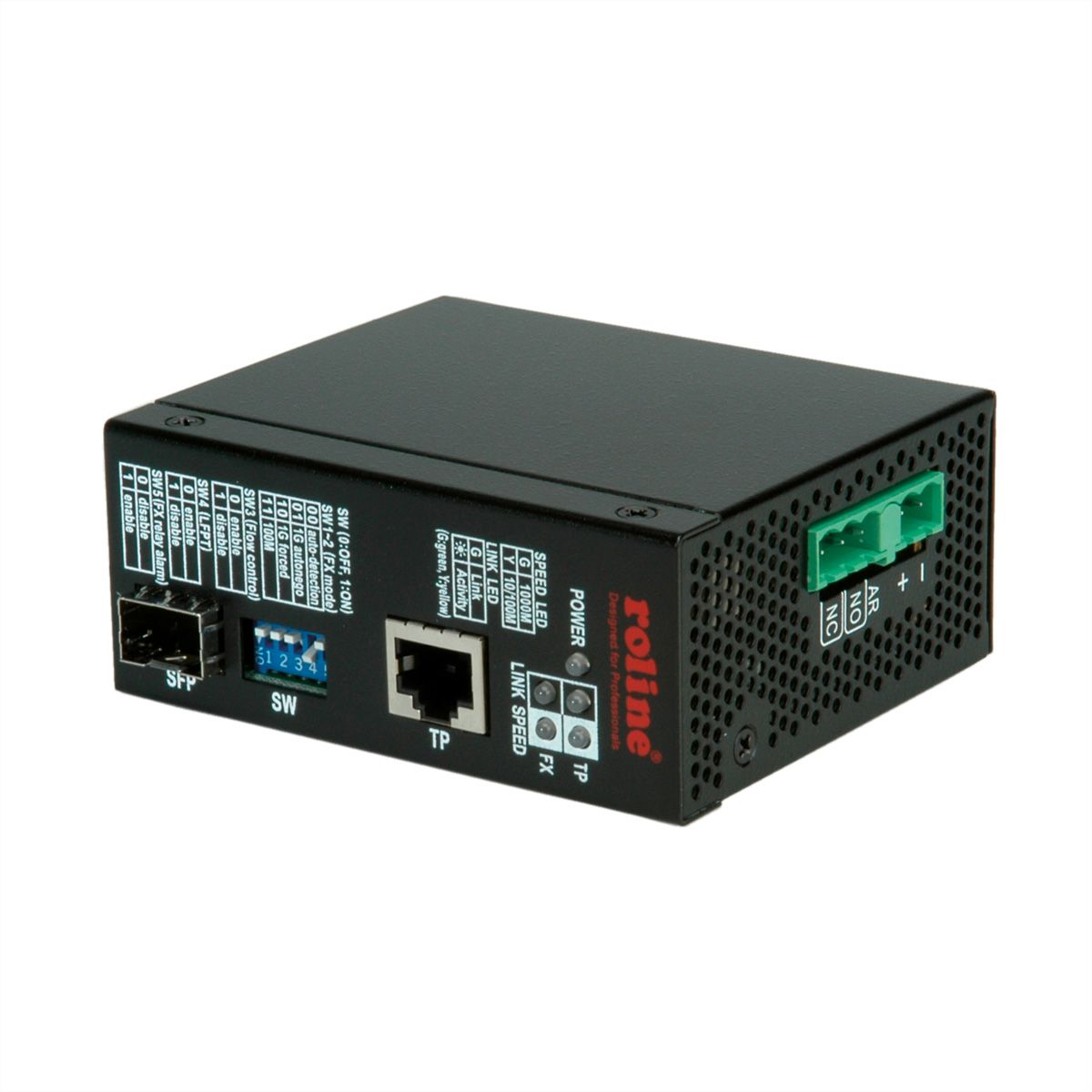

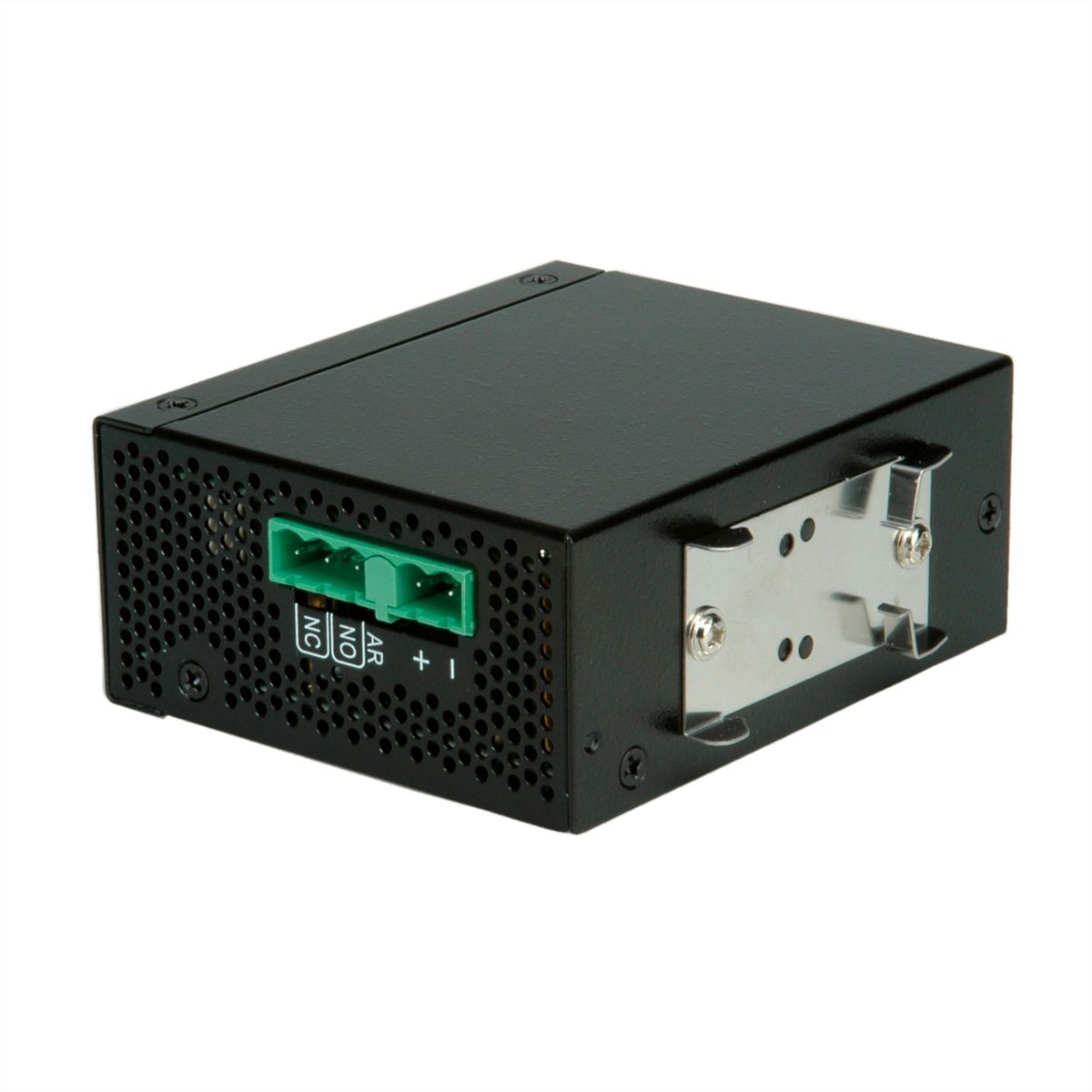

ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber - SECOMP International AG
ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber

ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber

Product No. 21.13.1149-1
Brand / Manufacturer ROLINE
Manufacturer No. 21.13.1149
EAN 7611990124695
Ordered until 3pm - usually dispatched on the same day

  • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
  • Tri-speed 10/100M/1Gbit/s copper to dual-speed 100M/1Gbit/s fiber conversion
  • Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z standard
  • Choice for SFPs for 100Base-FX (21.14.3499) or for Gigabit Ethernet (Mini-GBICs: 21.14.3500, 21.14.3501, 21.14.3502)
  • Support full wire speed conversion for Gigabit copper to Gigabit fiber SFP port
  • Support auto-negotiation with link partners
  • Supports auto-negotiation 10/100Mbps or forced mode on the copper port
  • Auto-MDI/MDIX on the copper port
  • Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di applications
  • Provide dual-speed SFP on fiber port for mounting variety of fiber options
  • Provide important LFPT (Link Fault Pass Through) media converter function
  • Support Jumbo frame conversion
  • Energy efficient ethernet (EEE) support
  • Alarm events relay output
  • Operation temp. : - 20 ºC - +70 ºC
  • Supports DIN rail mounting
  • DC Input via terminal block
  • As PSU u order : 21.13.1226

Manufacturer ROLINE
Product group Network converters
Product type Media Converter
Colour black
Operating temperature min. -40 °C
Operating temperature max. 75 °C
Height 95 mm
Width 40 mm
Depth 80 mm
Weight 314.4 g
Height of packaging (single piece) 70 mm
Width of packaging (single piece) 130 mm
Depth of packaging (single piece) 190 mm
Package weight (single piece) 0.428 kg
Product data sheet - English (PDF)
Manufacturer data sheet - DATA SHEET - English (PDF)

The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year guarantee we stand for our performance promise.
ROLINE quality makes the difference.
