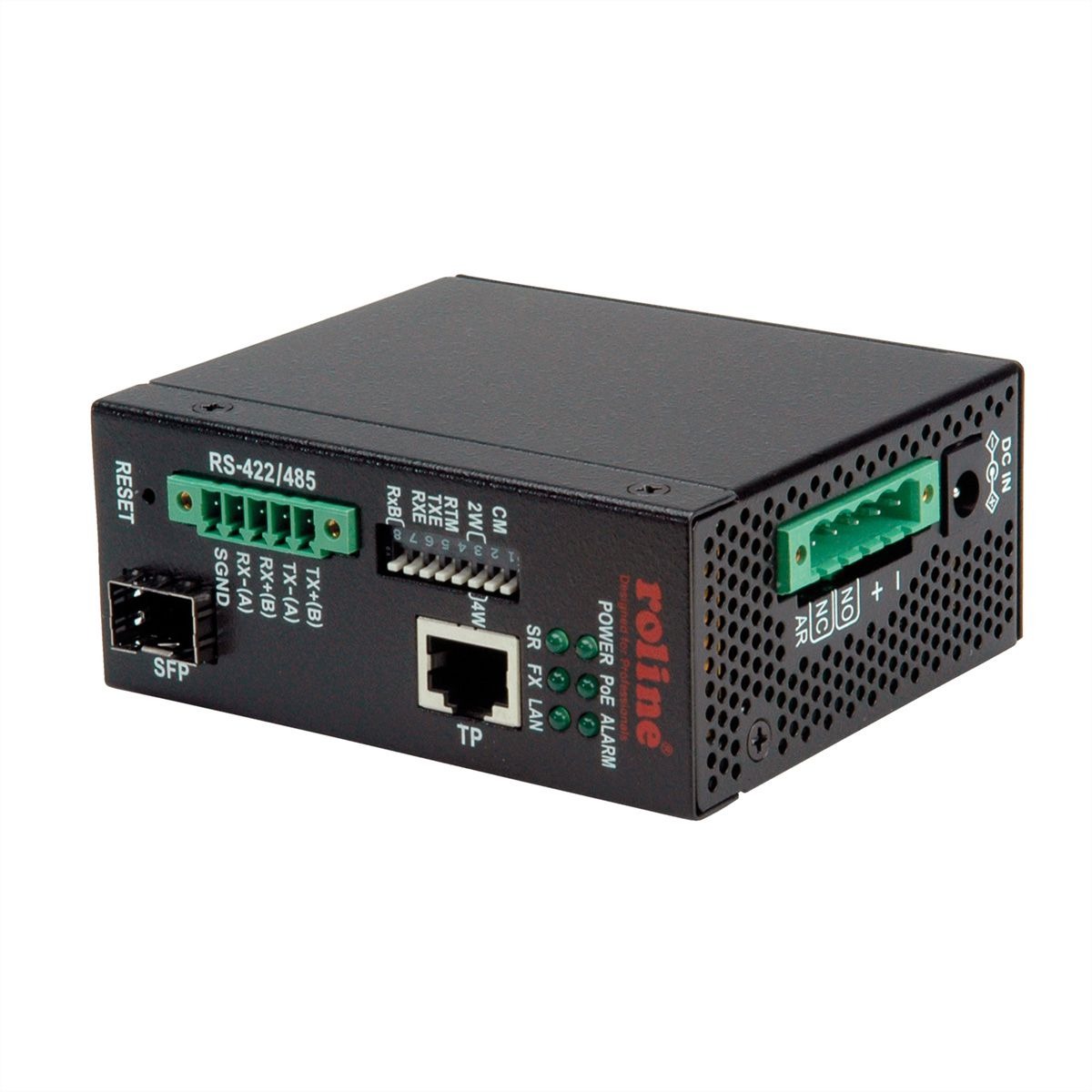

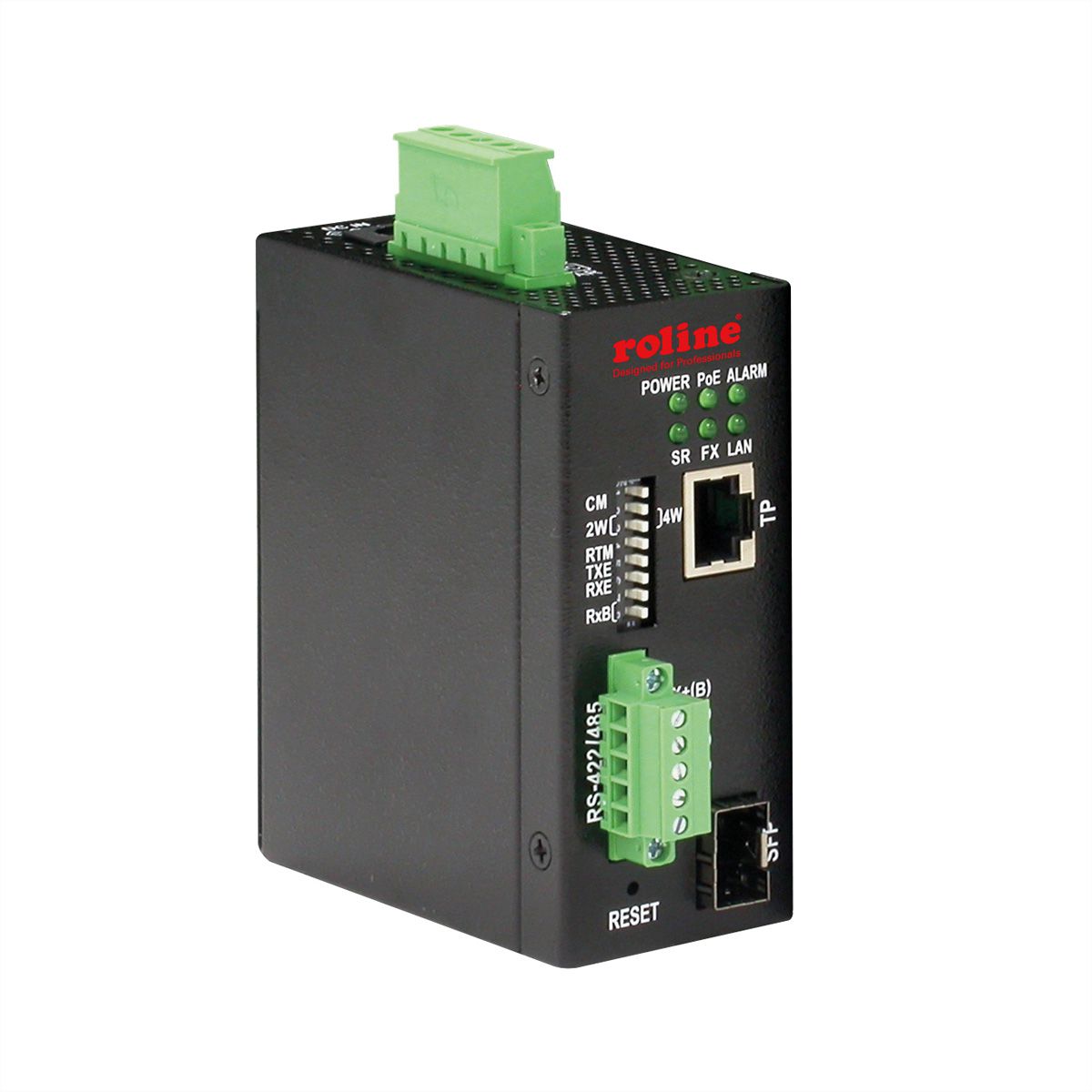

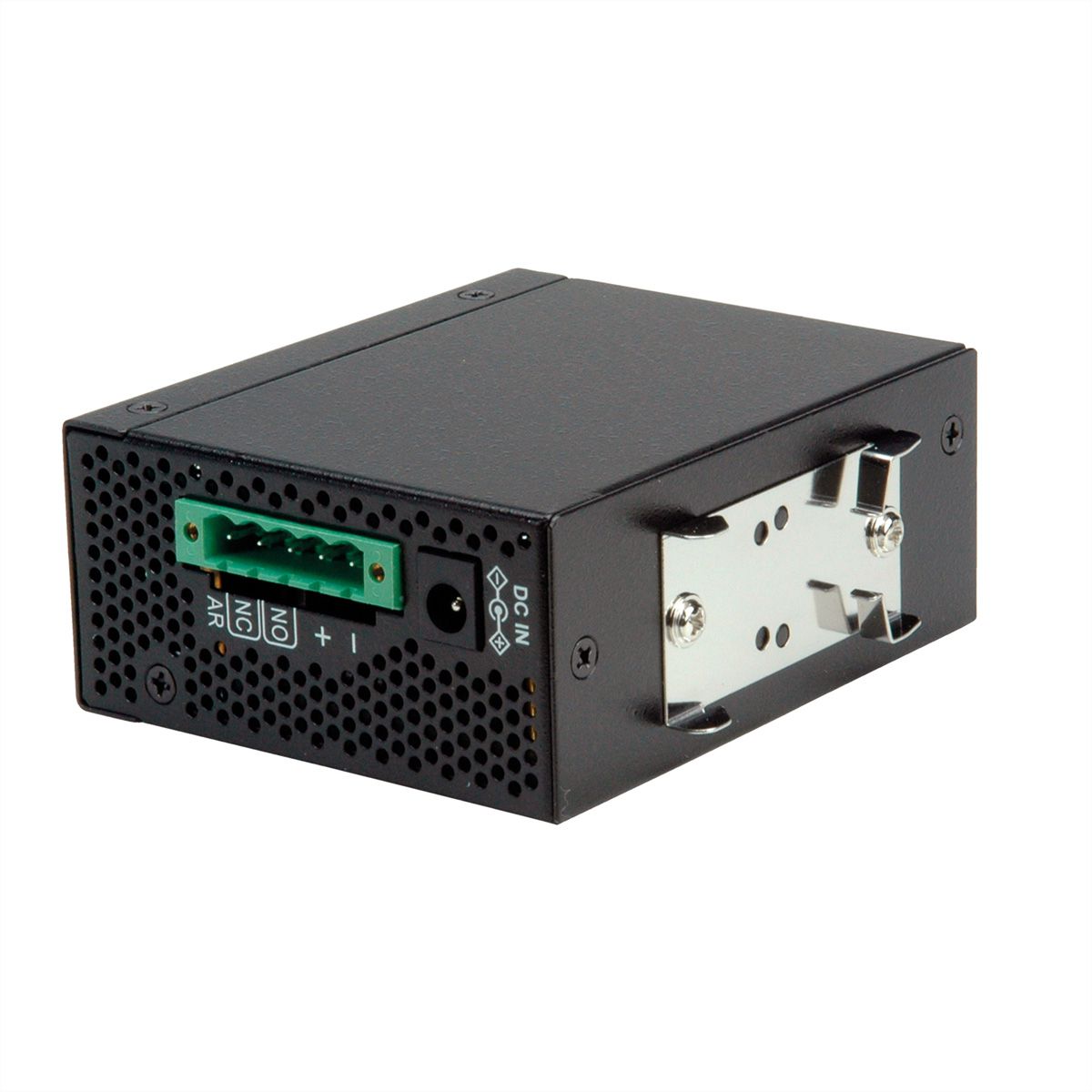

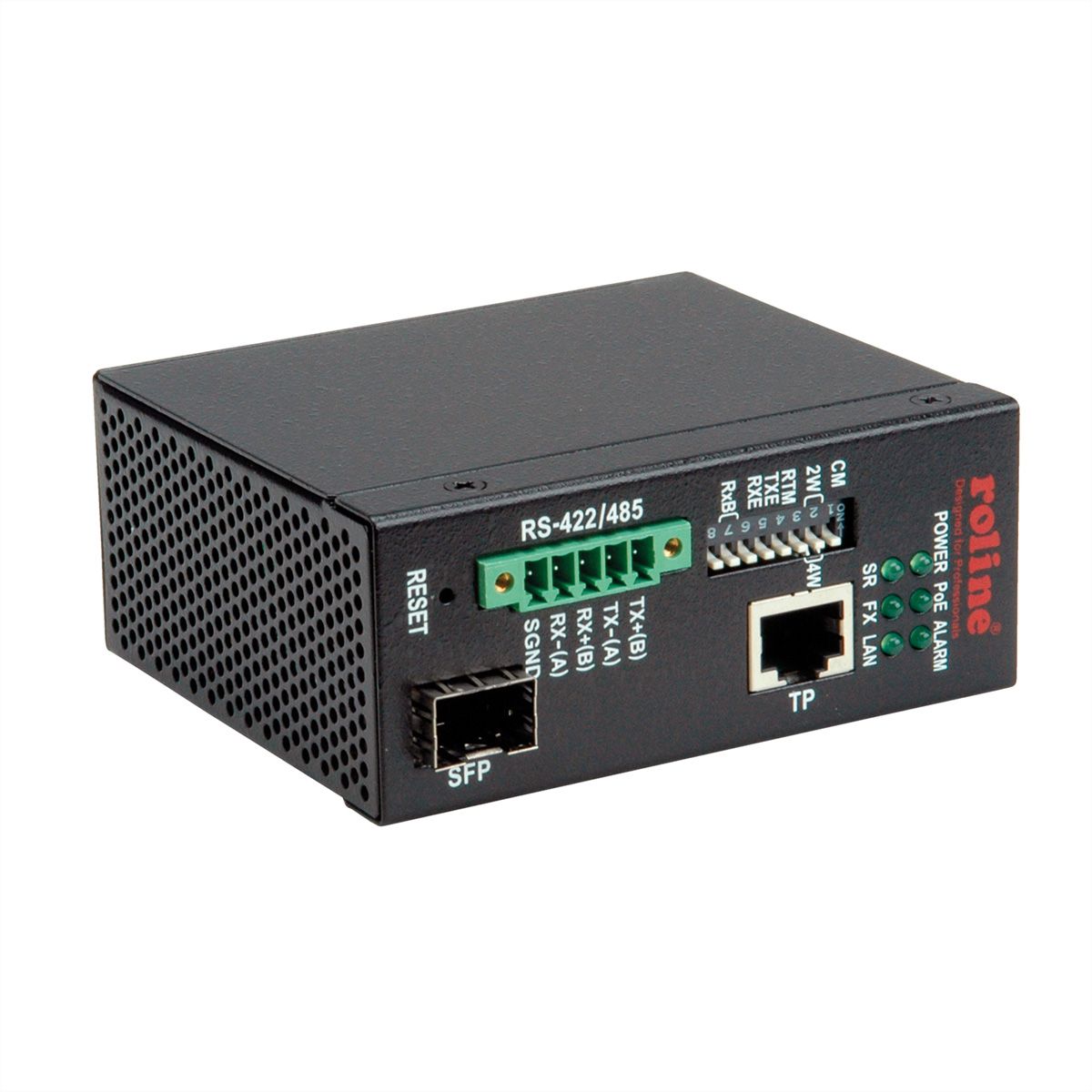

ROLINE Industrial Converter RS422/485 - Multimode Optical Fiber, 1x SFP

Network media converter from Ethernet (RJ-45) to serial (RS-422/RS-485), for use in industrial environments - with an additional SFP port!

• Ethernet interface provides combo port of 10/100Mbps copper RJ-45 and 100M fiber SFP slot
• Serial interface RS-422/485
• Serial port supports baud-rate up to 230400bps
• Galvanic isolation on serial interface
• Data conversion throughput up to 230Kbps
• Wide range of direct power voltage support, DC 8V-60V
• Powered over Ethernet through RJ-45 interface (PoE-enabled)
• Alarm relay output for power failure, port link down and failure in connecting to server
• Application support for remote COM port, serial server over TCP, reverse telnet, pair connection, and serial broadcast
• Remote COM driver support for Windows PC
• Web-based and serial-based console configuration

• Event notification over SMTP and SNMP traps
• Designed for industrial environments with:

- Terminal block and DC plug (6.3 mm/2.0 mm) power connectors
- Fanless, rugged metal housing

• Power: Input: 8 - 60 VDC
• Power over Ethernet:

- IEEE 802.3af, voltage input range: +36 - +57VDC

• Operating Temperature: - 30 °C - +70 °C

Manufacturer	ROLINE
Product group	Network converters
Product type	Media Converter
Colour	black
Quantity of fibre SC ports	1
Fibre	Multimode
Managed	No
Technical particularity	- 30 ºC - +70 ºC
