VALUE is standing for attractive prices and proven tested quality. For our VALUE products we give you the best possible price in terms of quality and product characteristics.

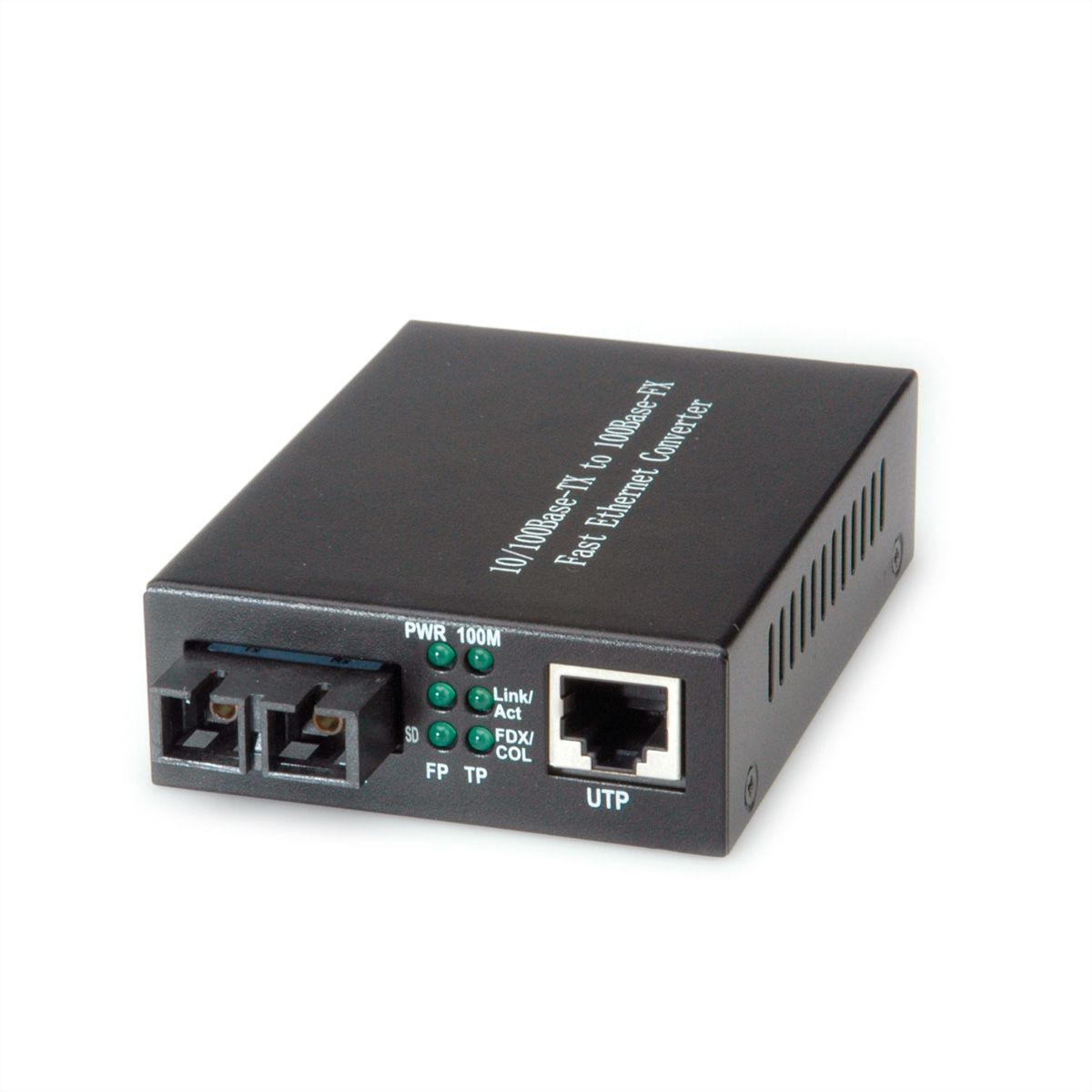

VALUE Fast Ethernet Converter, RJ-45 to SC
| Product No. | 21.99.1069-5 |
|
| Brand / Manufacturer | VALUE | |
| Manufacturer No. | 21.99.1069 | |
| EAN | 7630049690790 | |
| Pieces per Packing Unit | 5 |
Login now to see the prices and your shopping basket or get in contact with us.
Converter from Fast Ethernet TP port to multimode fiber
- Supports full wire speed conversion for 10/100Mbit/s speed and media types
- Transparent conversion to 802.1Q VLAN tagged packets
- TP port:
- Shielded RJ-45 jacks with auto MDI/MDI-X detection
- Auto-negotiation for speed and duplex auto detection
- Speed for 10/100 Mbit/s, Full/half-duplex support
- FX port: Duplex SC
- Forced 100Mbit/s, Full-duplex
- For multimode fibre cable: 62.5/125µm and 50/125µm
- Low power consumption: 2.5W
- Power over included power supply (5VDC, 1A)
- Remark: The converters do not offer a repeater function!
- Contents: Converter, power supply, manual
| Manufacturer | VALUE |
| Product group | Network converters |
| Product type | Media Converter |
| Colour | grey |
| Scope of delivery | Converter, power supply (5V DC, 1000mA), manual |
| RJ-45 Port (Mbps/s) | 10/100 |
| Fibre Ports (Mbps) | 100 |
| Quantity of RJ45 ports | 1 |
| Quantity of fibre SC ports | 1 |
| Converts to | RJ-45/SC |
| Fibre | Multimode |
| Ethernet fibre standard | 100Base-FX |
| Max. range 50 µm fibre | 2km |
| Max. range 62,5 µm fibre | 2km |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 40 °C |
| Height | 21 mm |
| Width | 64 mm |
| Depth | 59 mm |
| Weight | 181.2 g |
| Height of packaging (single piece) | 40 mm |
| Width of packaging (single piece) | 120 mm |
| Depth of packaging (single piece) | 220 mm |
| Package weight (single piece) | 0.4 kg |
