ROLINE Menu Board TV Wall Mount Sytem, 3x Displays, up to 127cm (50")

ROLINE Menu Board TV Wall Mount Sytem, 3x Displays, up to 127cm (50")

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 04/24/2025
Item no. 17.03.1253-1
Brand / Manufacturer ROLINE
Manuf. no. 17.03.1253
EAN 7630049610439
Package weight 17.7 kg

Description

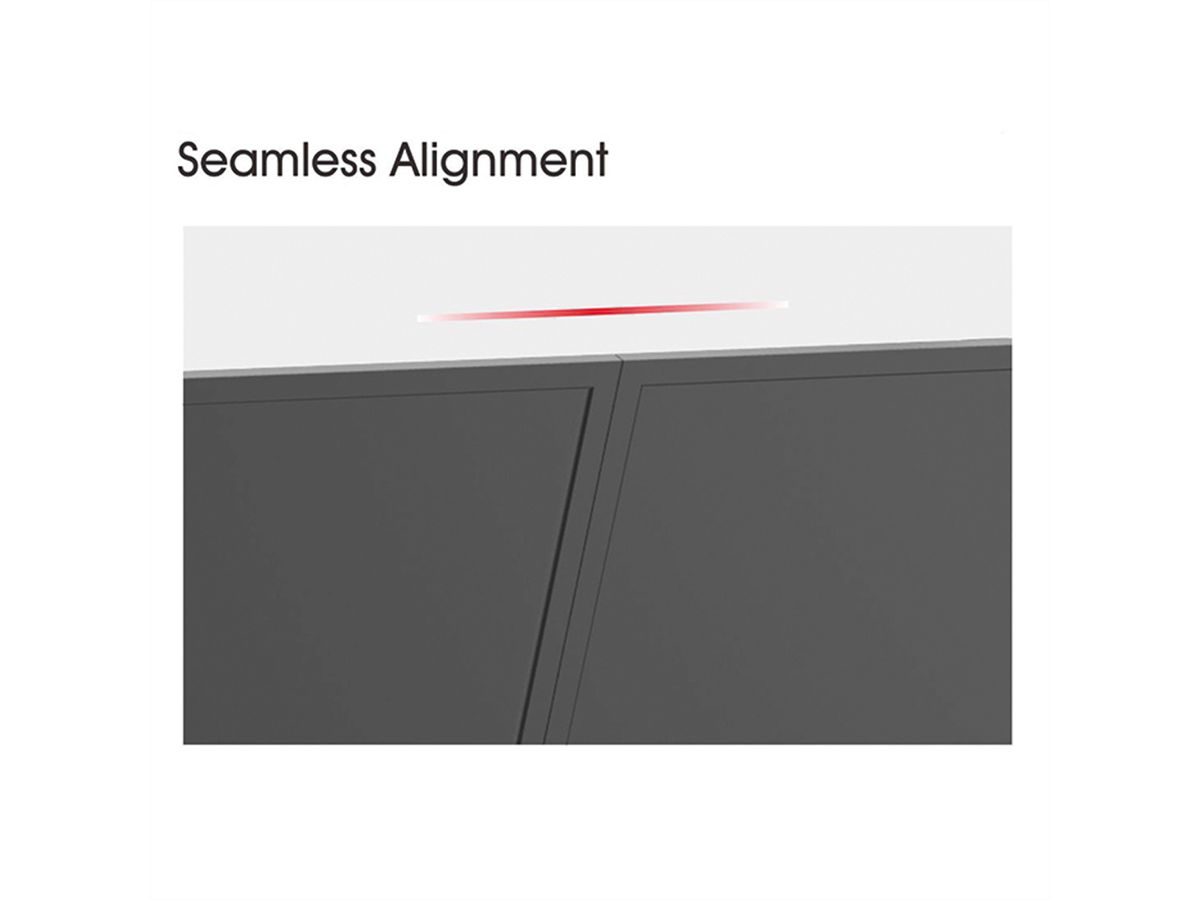

Install a new or expand an existing linear display installation with this Menu Board TV wall mount for up to three monitors (max. 127cm 50") - the adjustments are easily achieved through levels in the holders, so the alignment is as easy and the installation time is as short as it gets!

  • Supports maximum VESA 600x400 (VESA: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400)
  • Versatile use for customer information and communication - directly at the point of sale or point of interest:
- Display information films on the attached monitors (e.g. at trade fairs, in museums or in shops)
- Use advertisements for the orientation of visitors (e.g. in conference rooms)

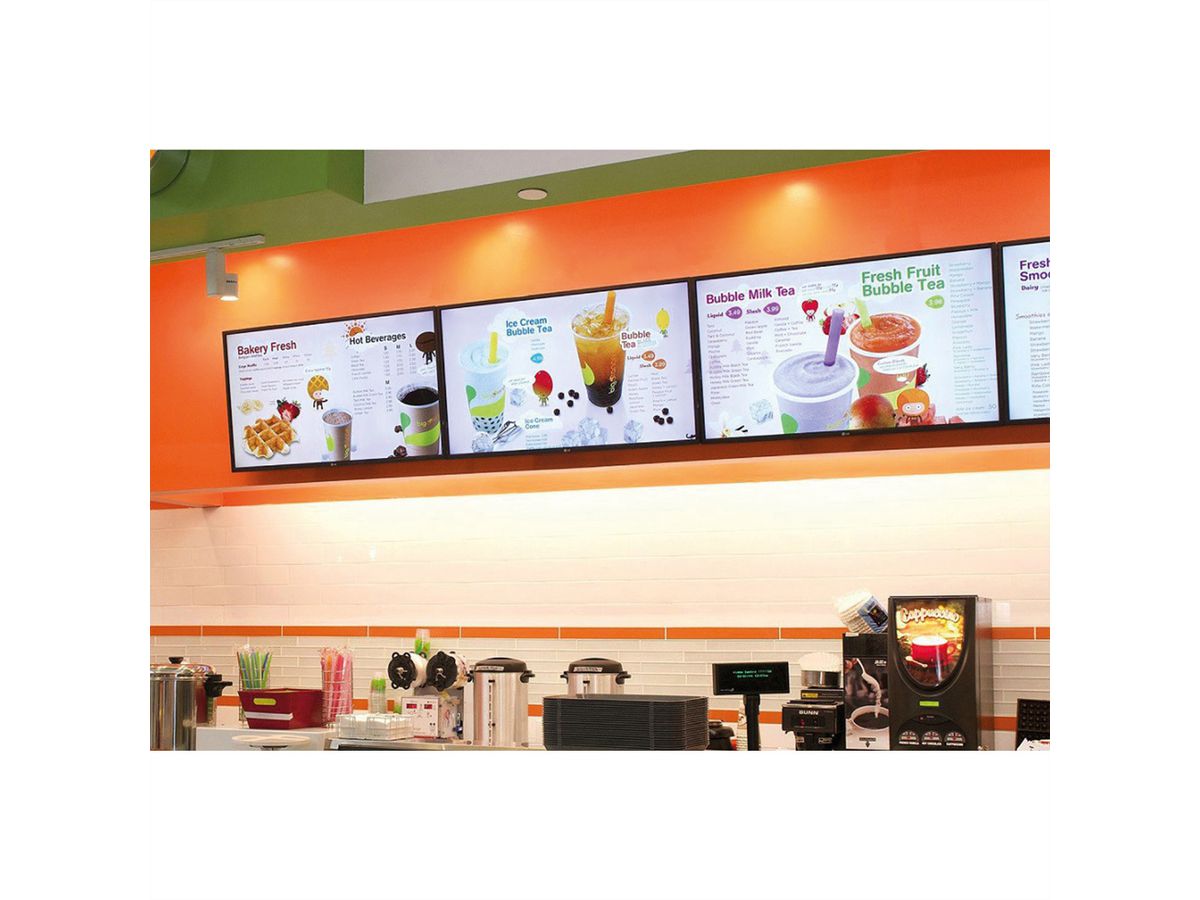

- Show current offers or menus digitally in your shop

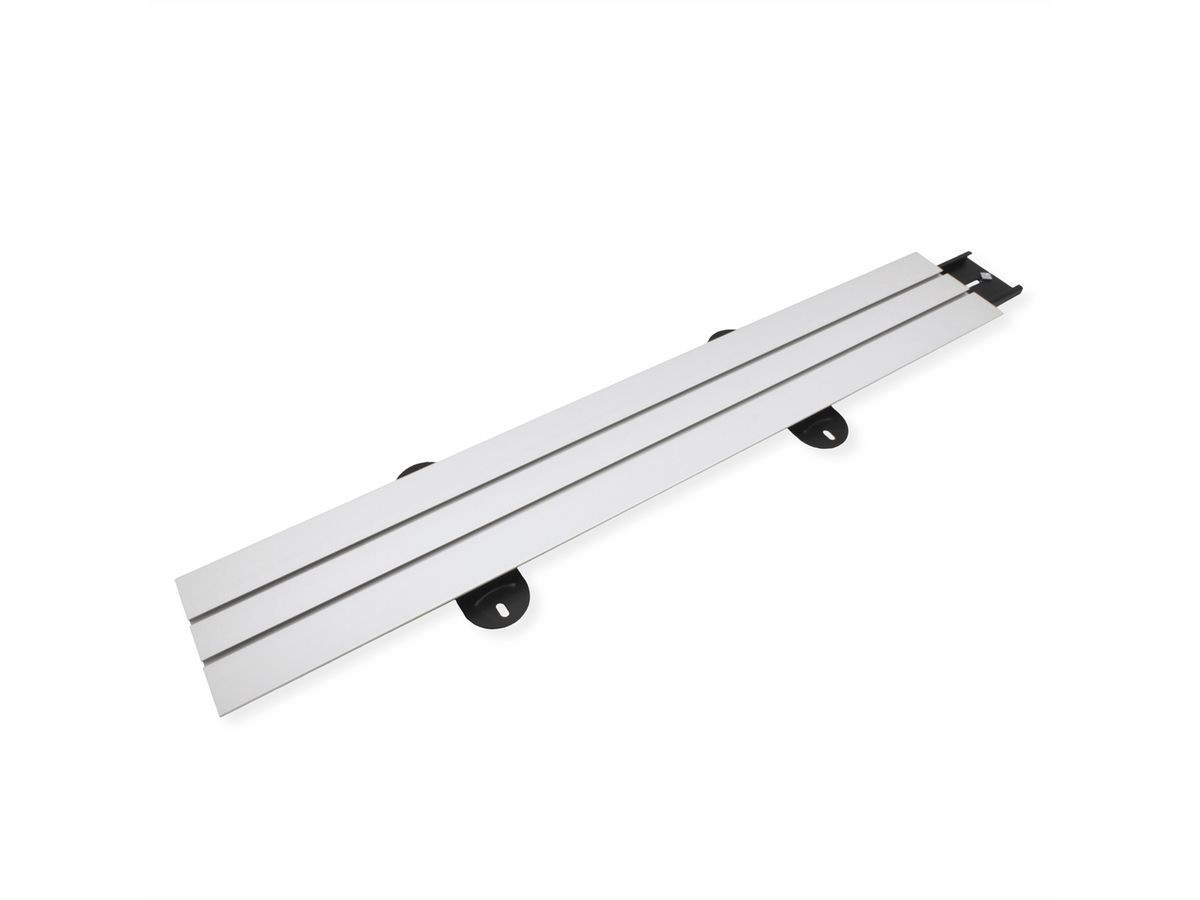

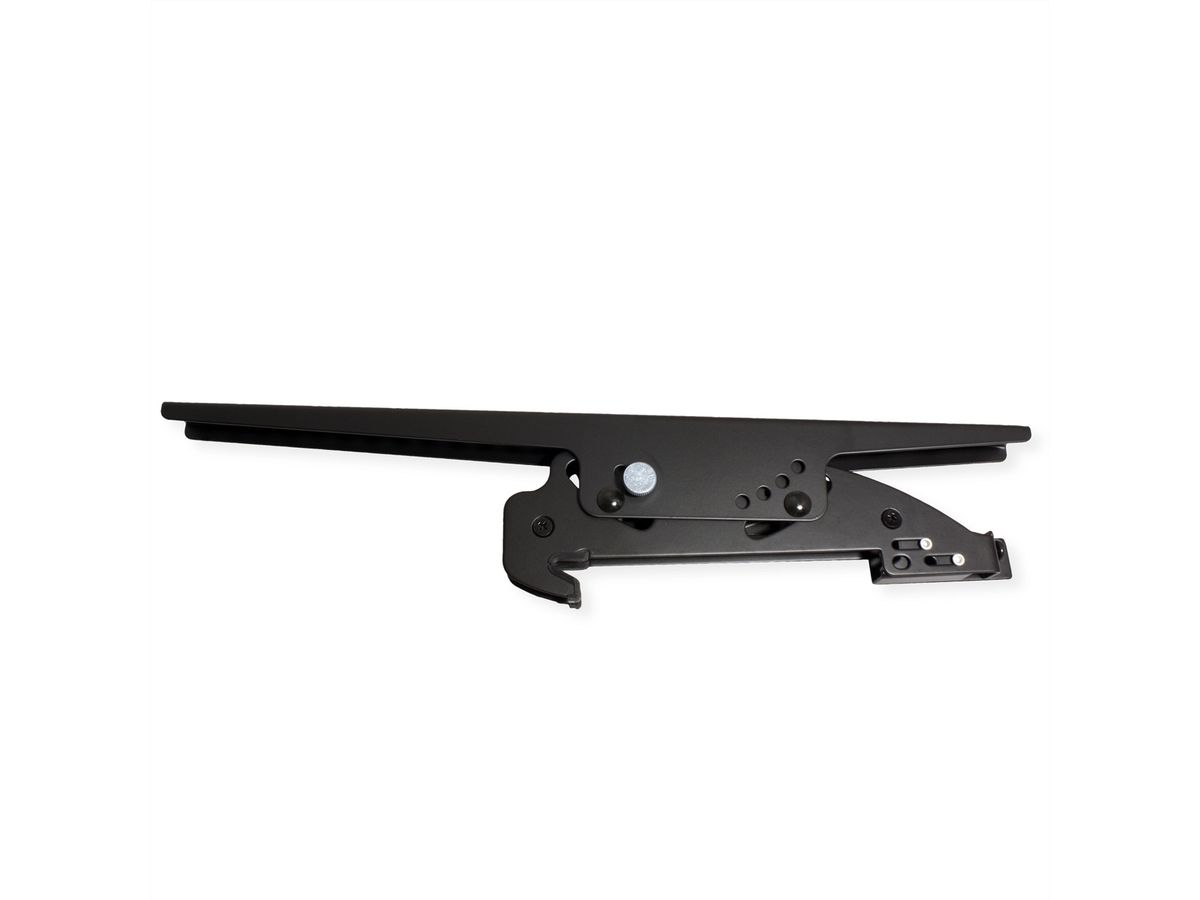

  • Heavy quality: the fixing rod is made of light, durable aluminium, the VESA holders are made of solid steel

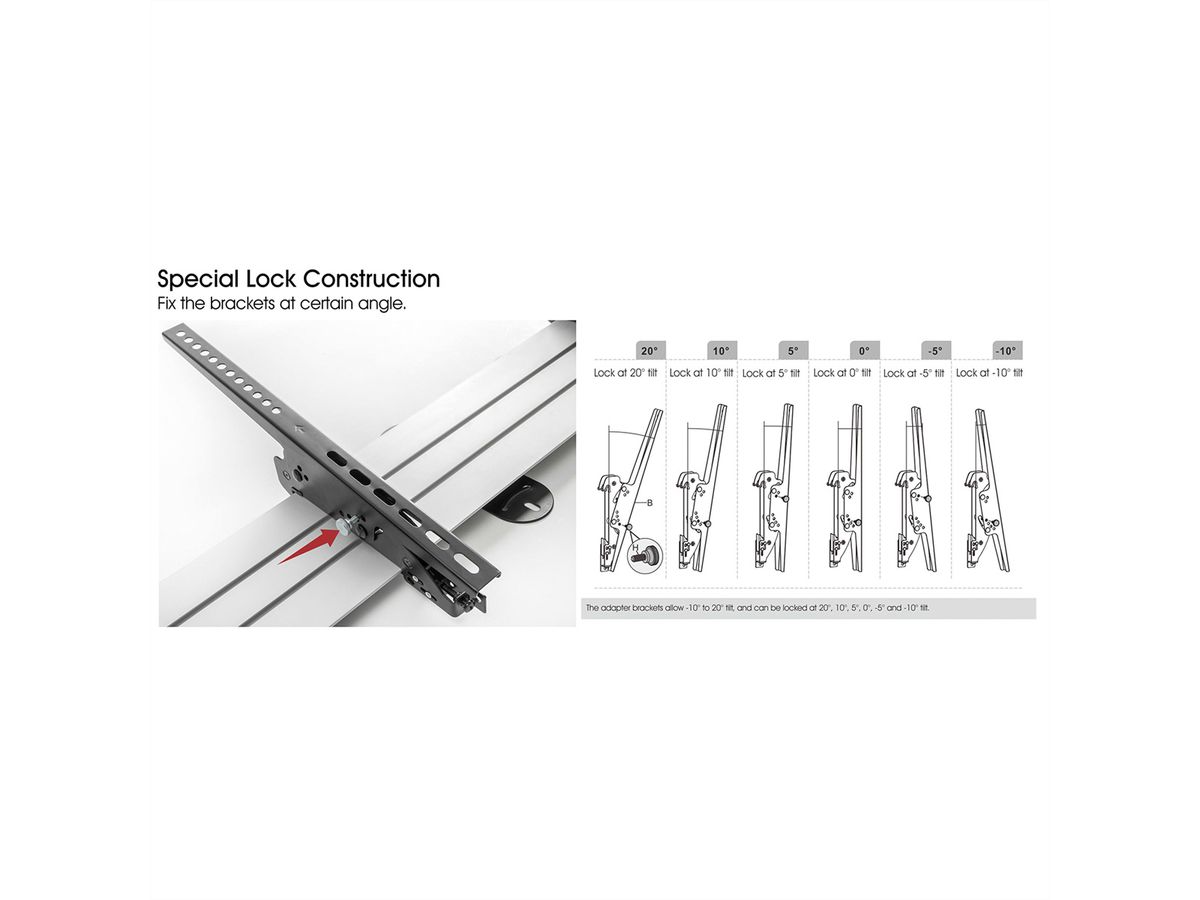

  • Angle of inclination adjustable via steps from -10° to approximately +20°, the orientation can be fixed in the desired position for quick and easy installation
  • Suitable for indoor use
  • Load capacity up to 50kg

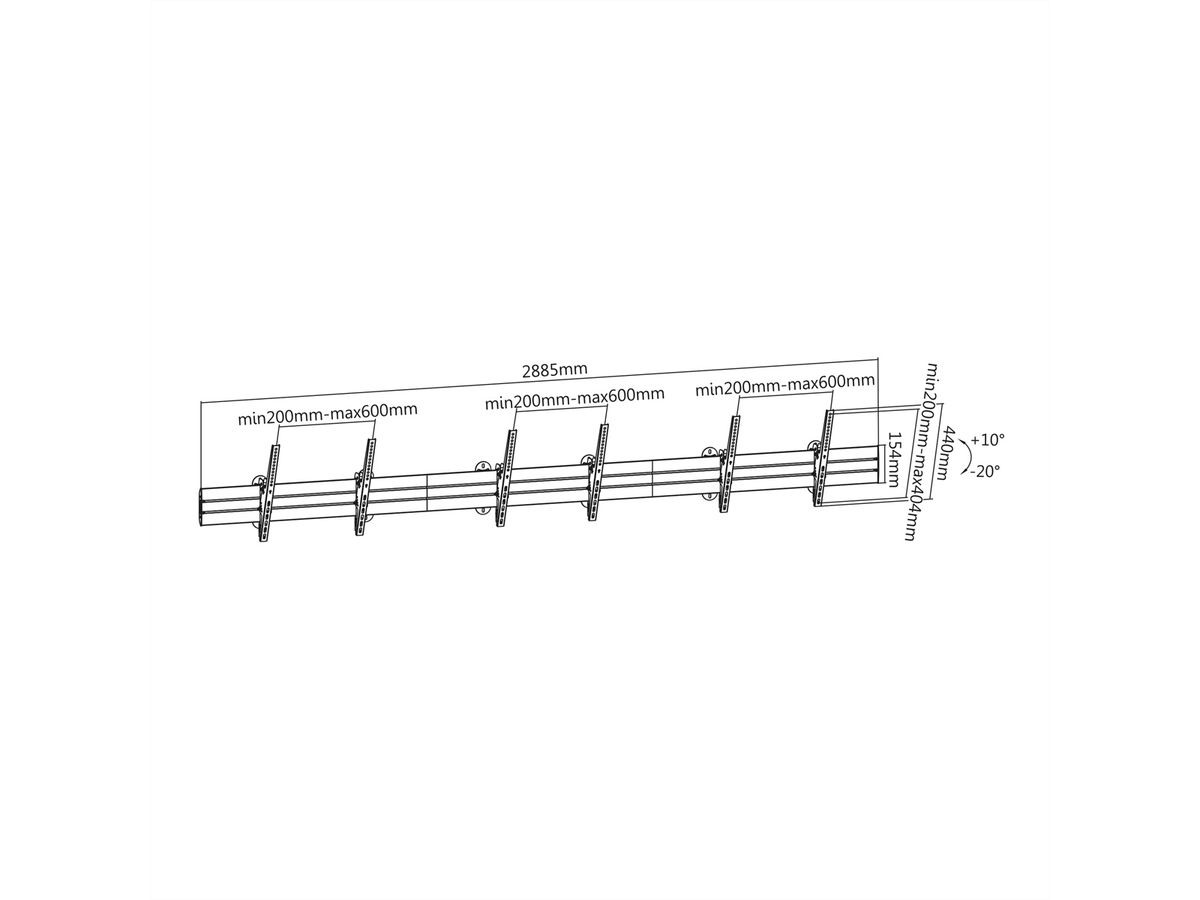

  • Dimensions: 2885x440x102mm (WxHxD)

Specifications

Manufacturer ROLINE
Product group LCD-Monitor arms
Product type TV Wall Mount
Colour grey
Maximum weight capacity 50 kg
Quantity of pivots 1
Adjustments Adjustable spring gauge
Number of monitors 3
VESA 200 x 200 mm yes
VESA 300 x 200 mm yes
VESA 300 x 300 mm yes
VESA 400 x 200 mm yes
VESA 400 x 300 mm yes
VESA 400 x 400 mm yes
VESA 600 x 400 mm yes
Material group metal
Height 440 mm
Width 2885 mm
Depth 102 mm
Weight 9531.4 g
Height of packaging (single piece) 250 mm
Width of packaging (single piece) 400 mm
Depth of packaging (single piece) 1040 mm
Package weight (single piece) 17.7 kg

Downloads

Product data sheet - English (43.4 KB)

Download

Manufacturer data sheet - English (98.7 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
