Description

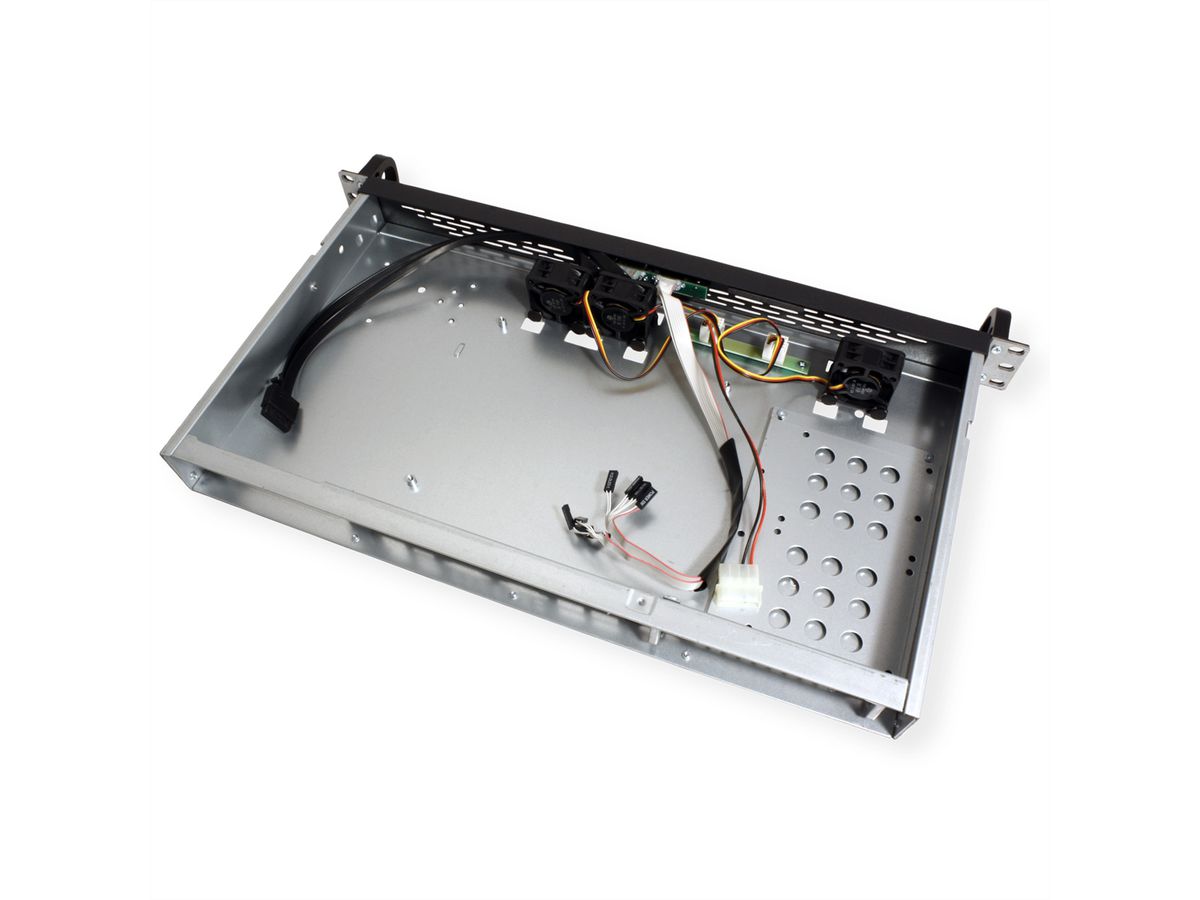

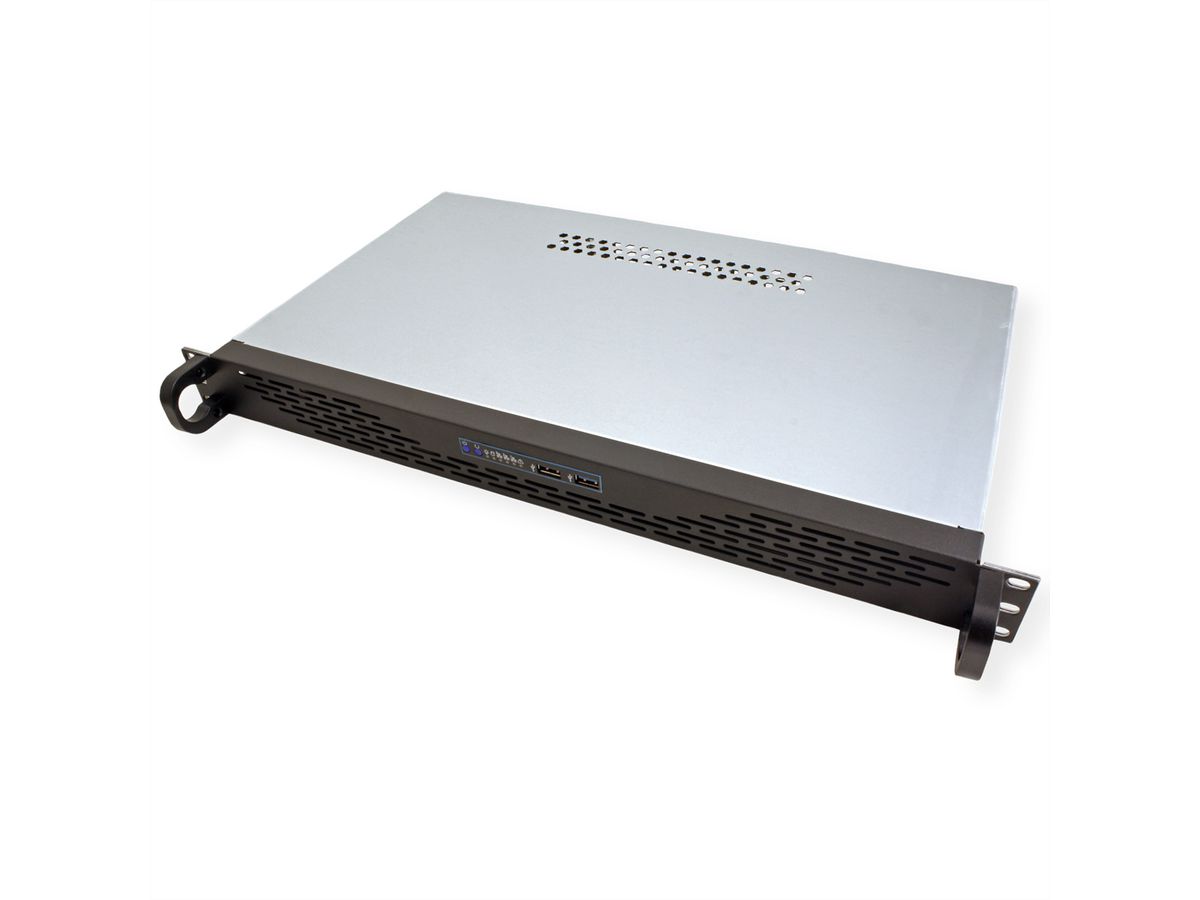

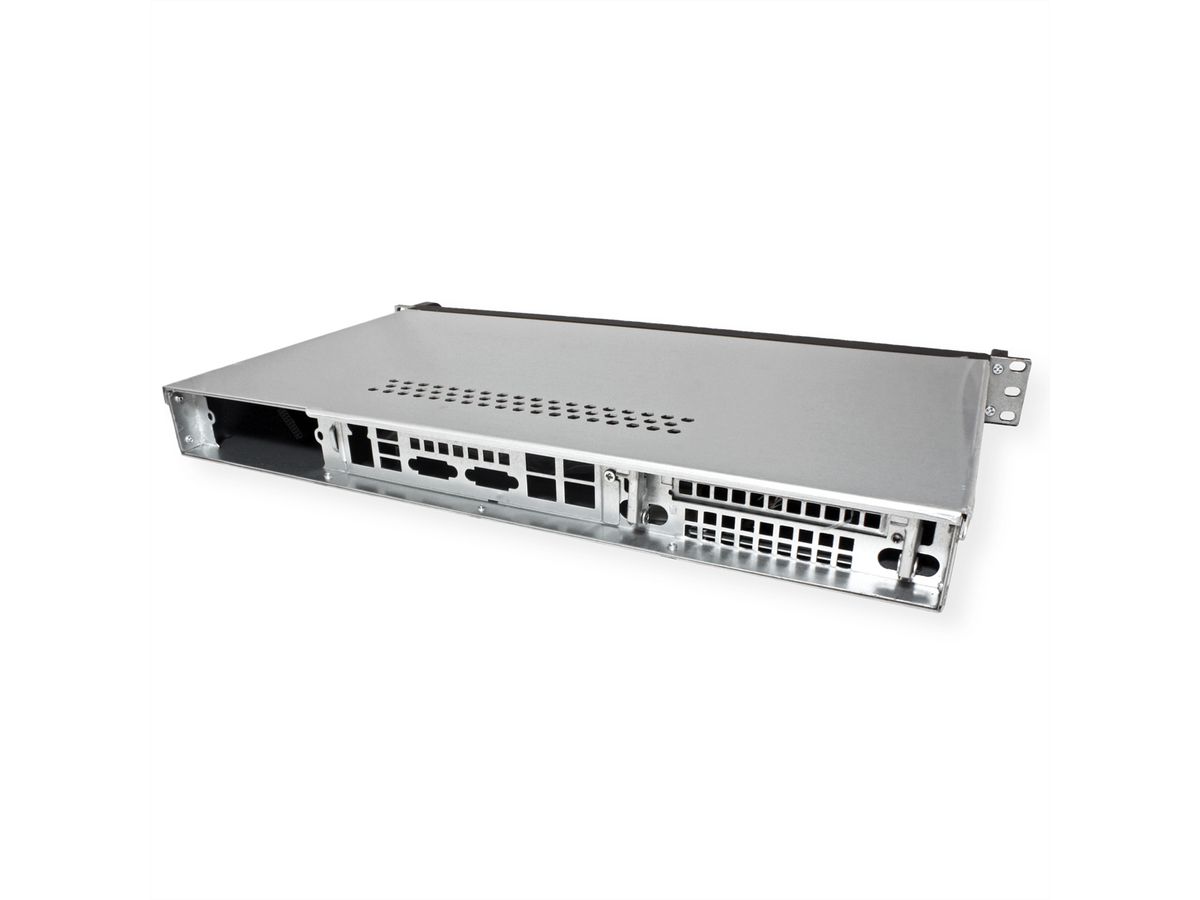

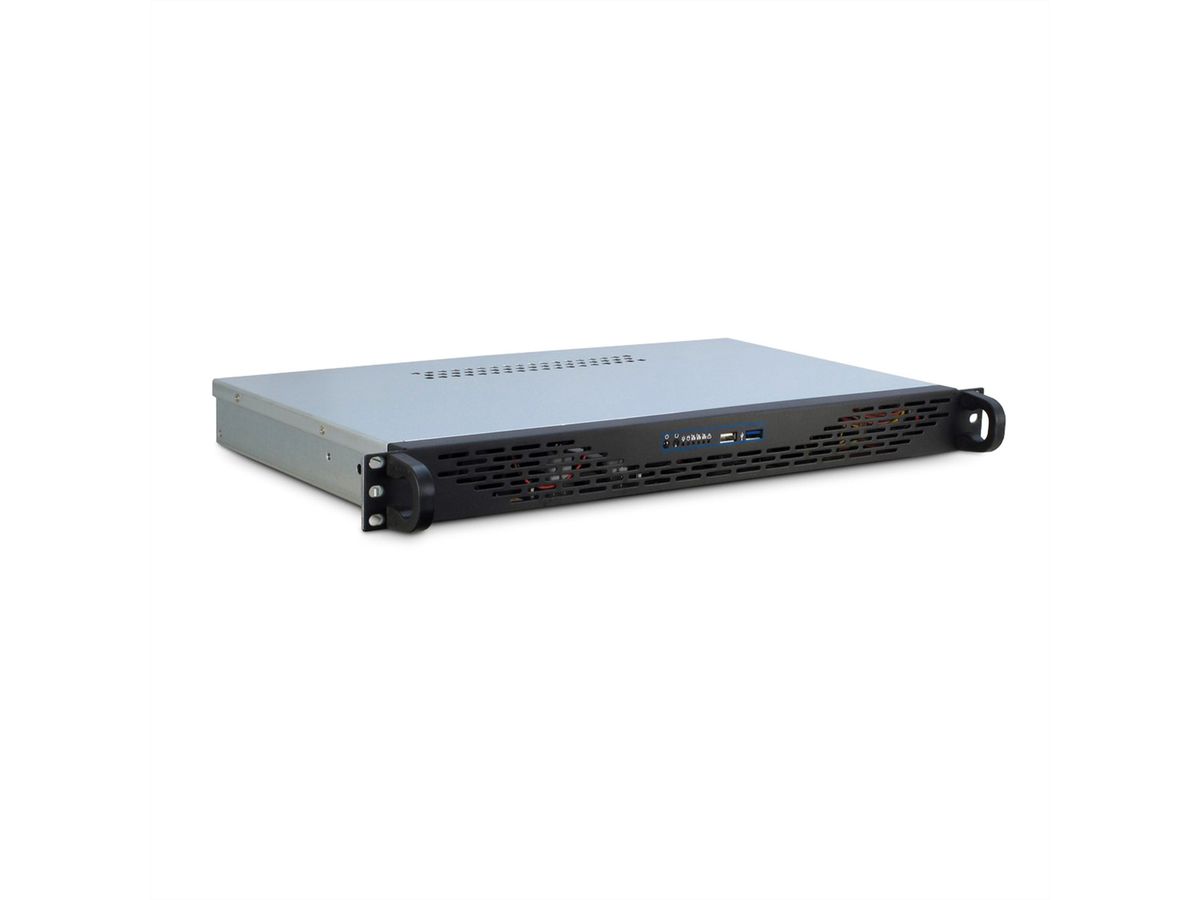

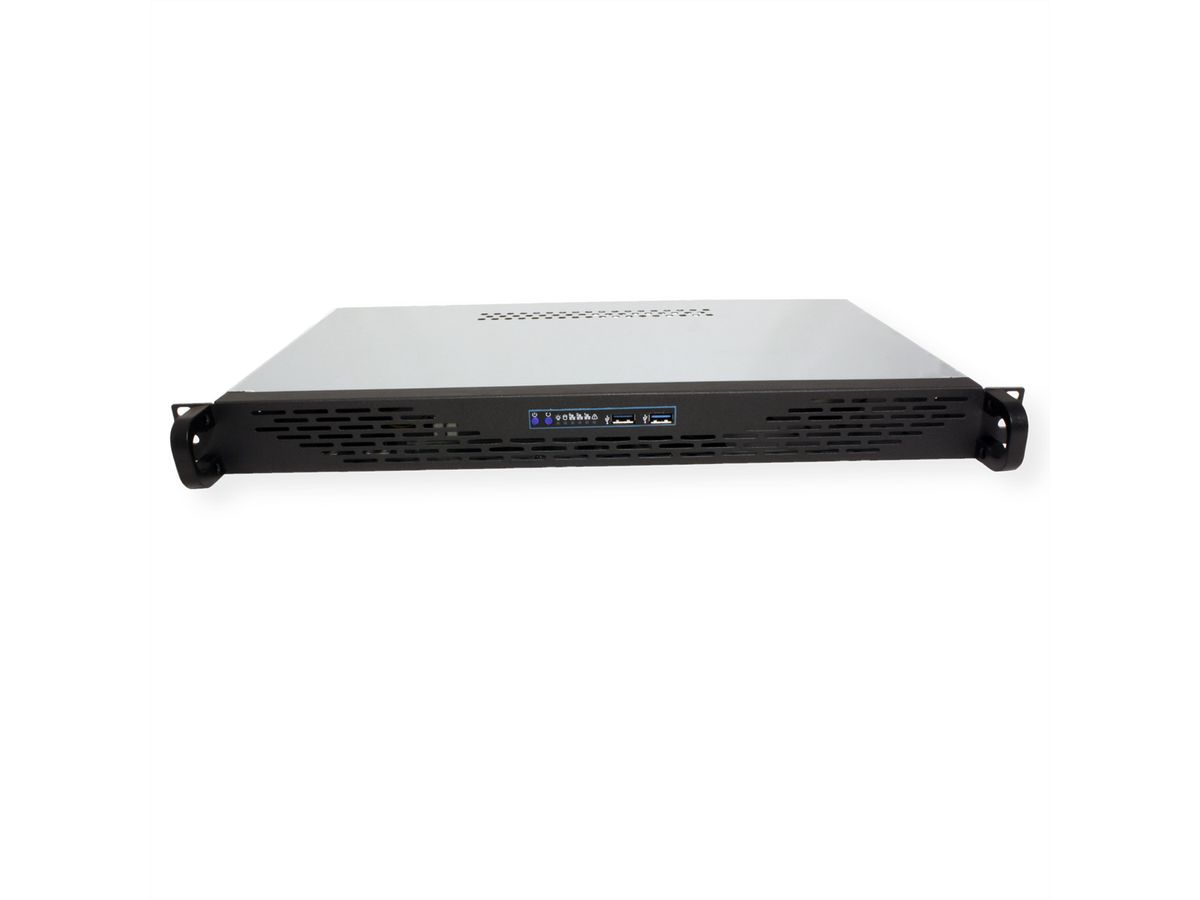

Classic, versatile 19-inch housing with one height unit (1U) for harsh industrial environments

• Versatile 1U 19" industrial
• Rugged construction and design for harsh industrial environments
• Installation depth: 250mm
• Supports ITX motherboard

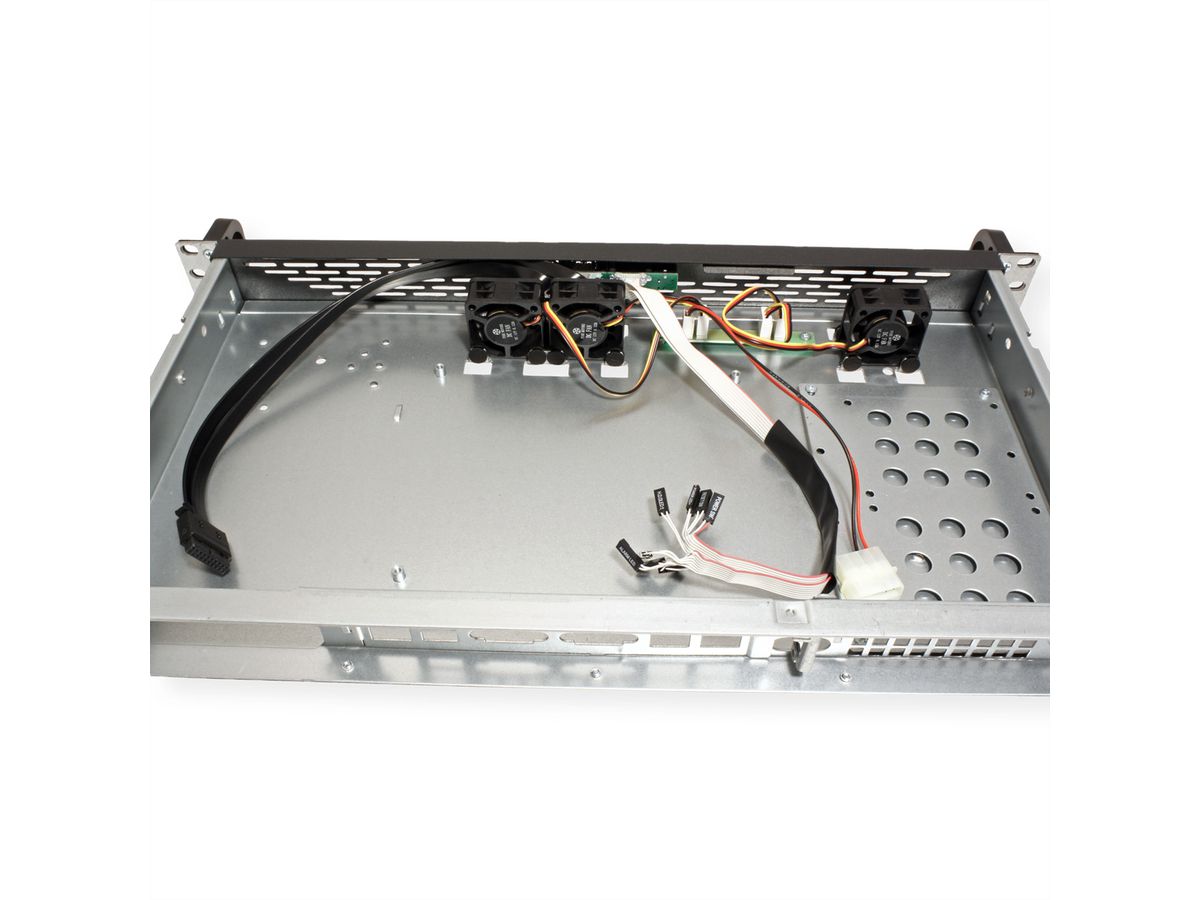

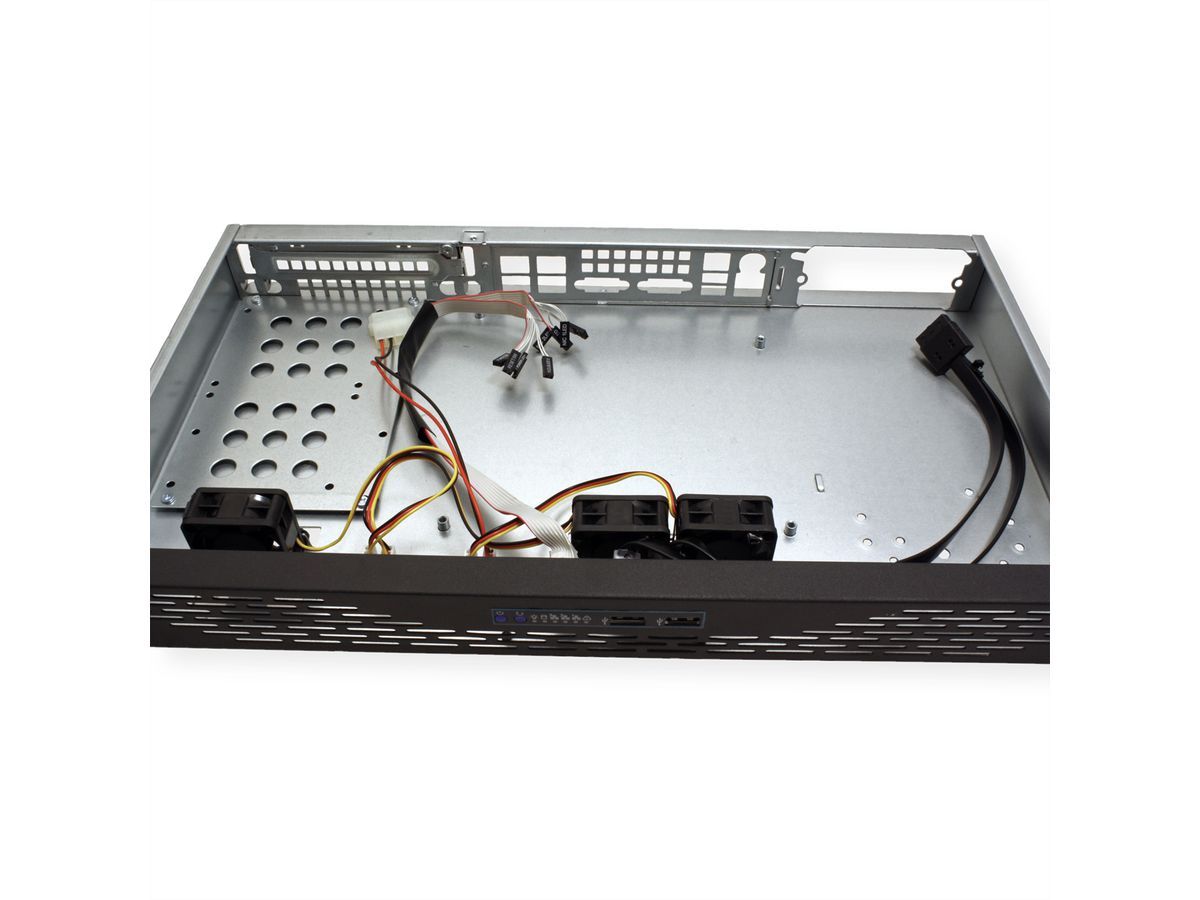

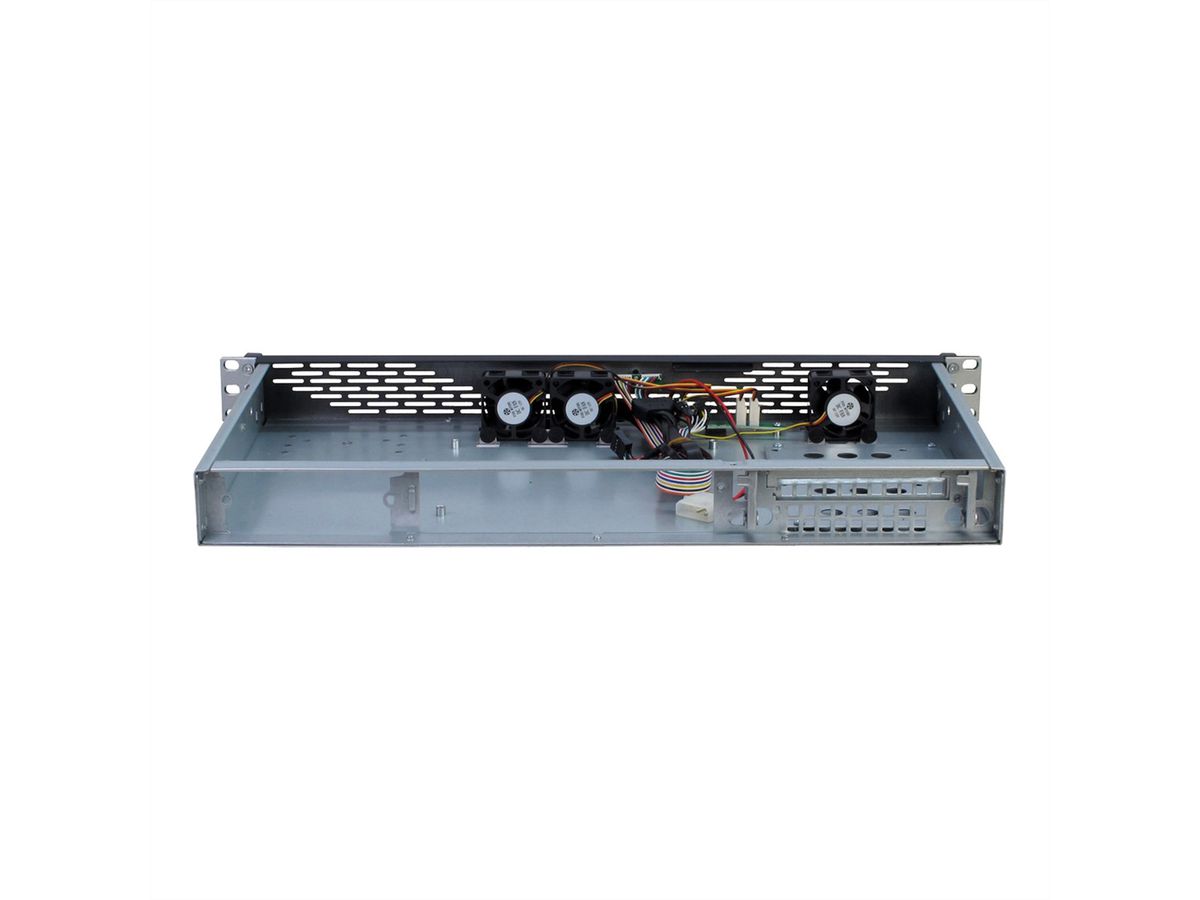

• Three 40x40mm fans at the front for better ventilation

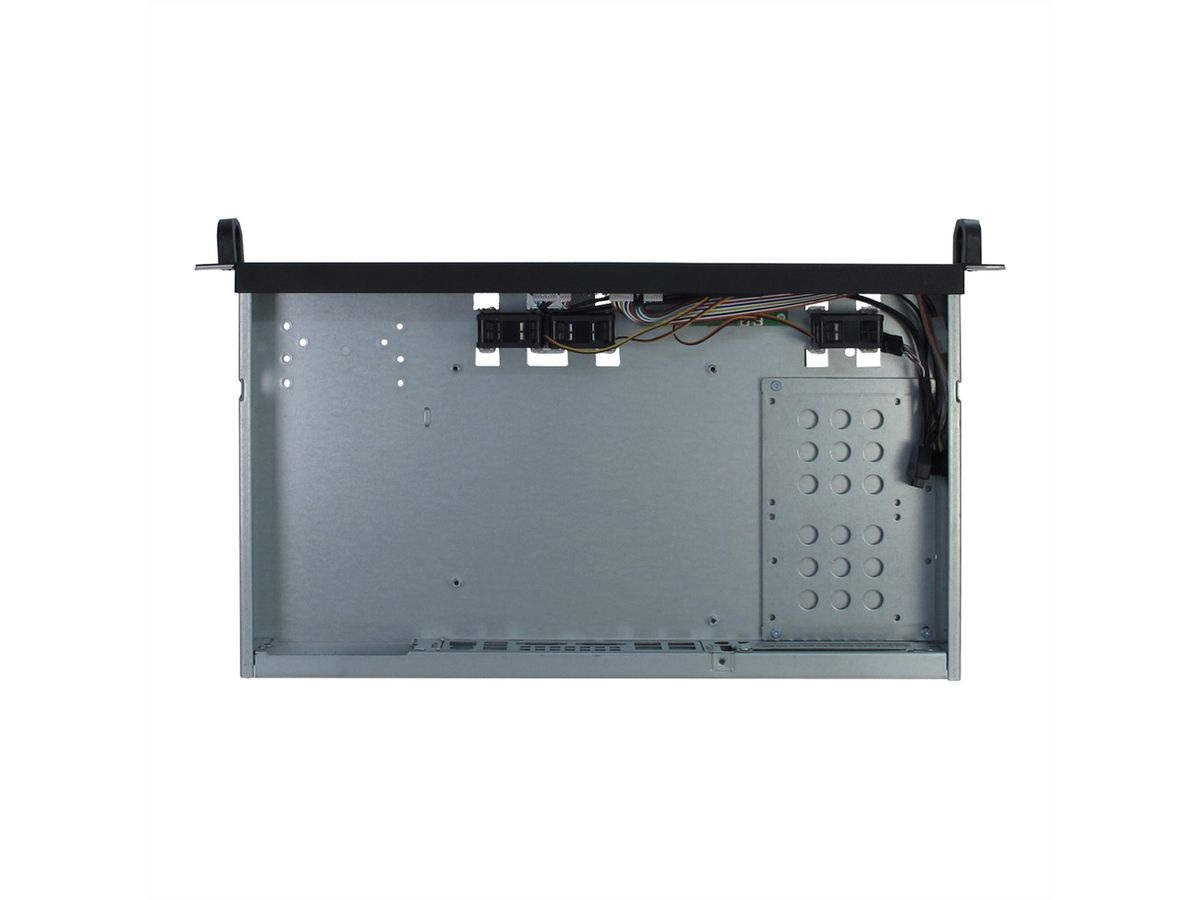

• Space for either 1x 3.5 or 2x 2.5 HDD
• Space for the installation of a FLEX-ATX power supply (not included)
• Controls: Power button / Reset button
• LED: power supply / hard disk activity / network activity / overheating alarm / power failure
• Front connector: 2x USB3.0
• Colour: Black

Specifications

Manufacturer	DIVERS
Product group	PC casing
Product type	Industrial PC casing
Colour	black

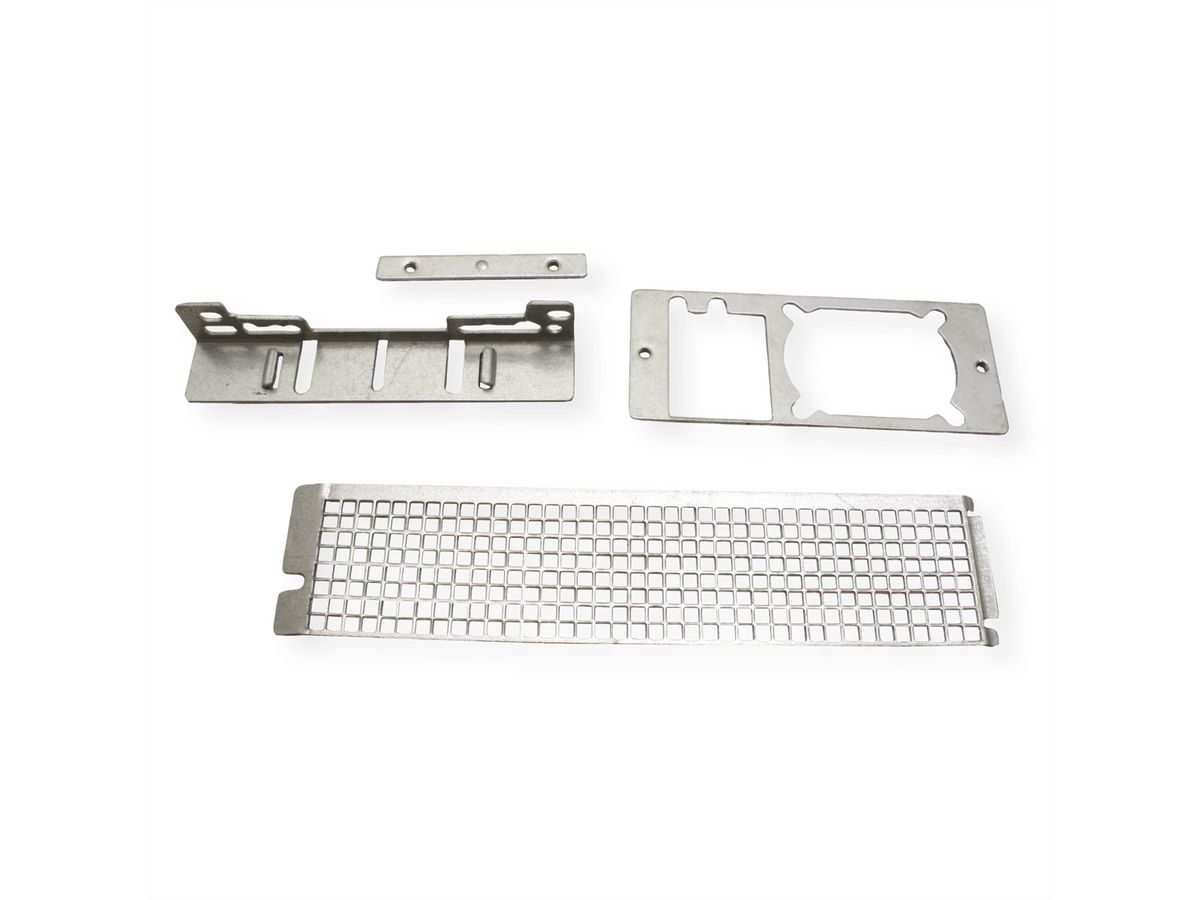

Scope of delivery	Housing, screw assortment, mounting bracket for optional 1U PSU
5.25 slots	3
3.5 slots	1x internal (HDD), 1x external (FDD)
Dimensions (HxWxD)	44,5 x 482 x 278 mm
Front connectors	2x USB 3.0
Power supply unit	without PSU (Flex ATX standard)
Fan front	3x 40 mm, built-in
Height	44.5 mm
Width	482 mm
Depth	278 mm
Weight	3.6 kg
Height of packaging (single piece)	120 mm
Width of packaging (single piece)	390 mm
Depth of packaging (single piece)	570 mm
Package weight (single piece)	3.894 kg

Downloads

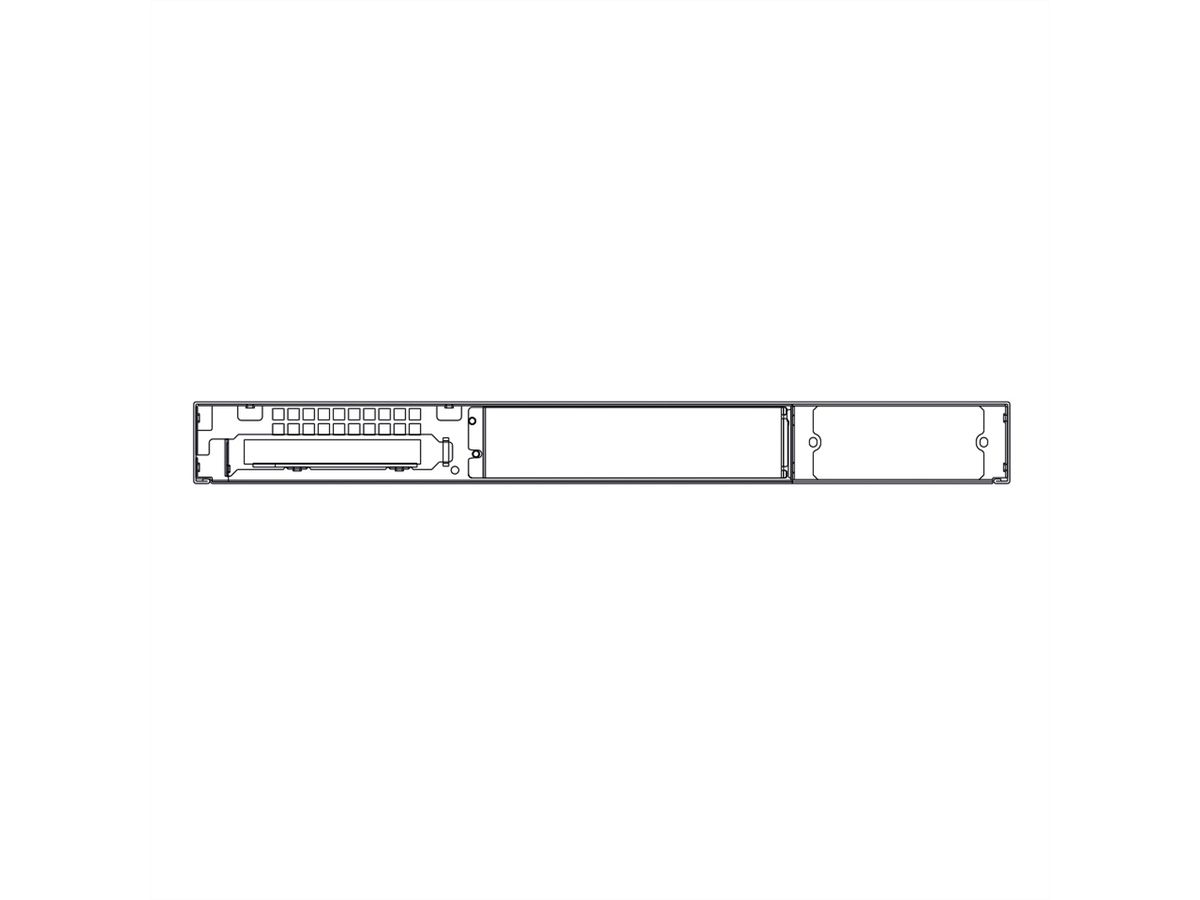

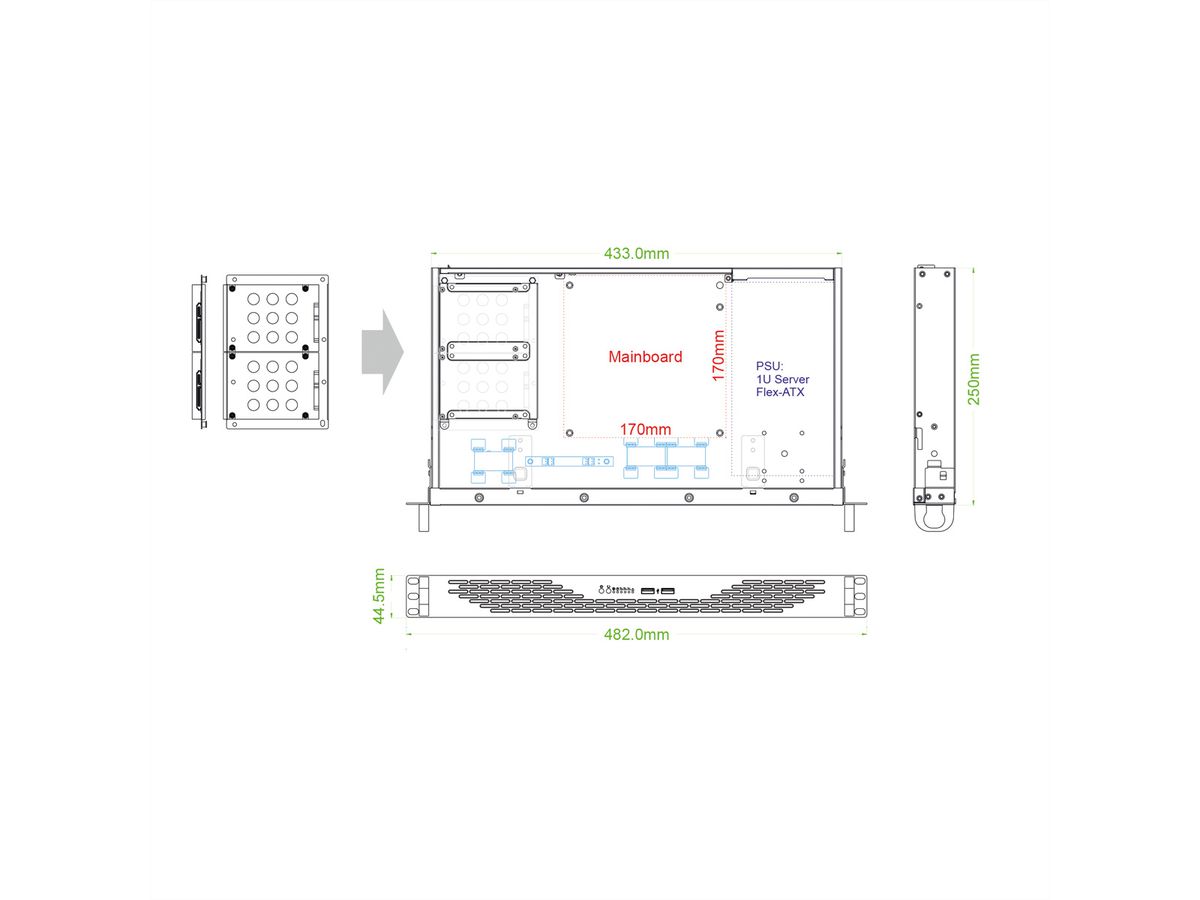

Technical drawing - English (993.2 KB)

Download
