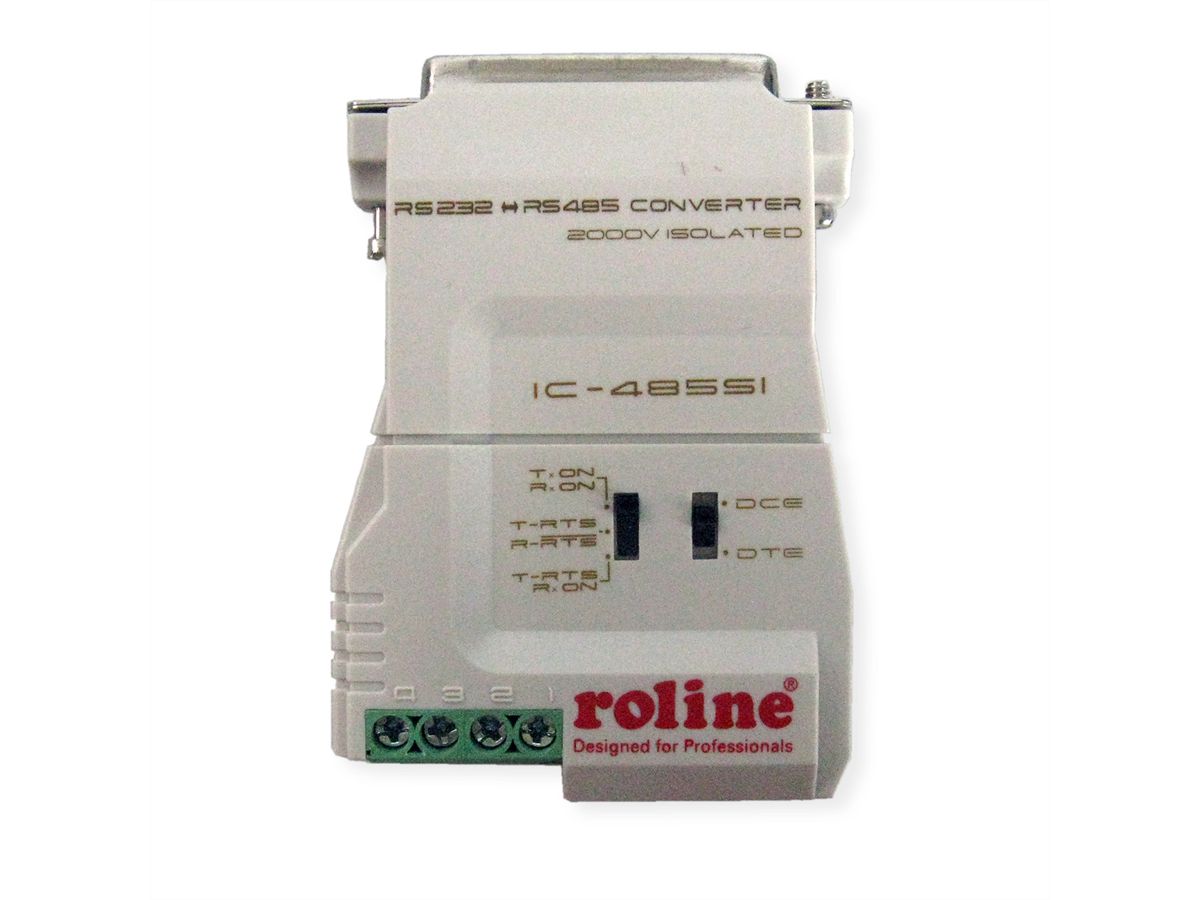

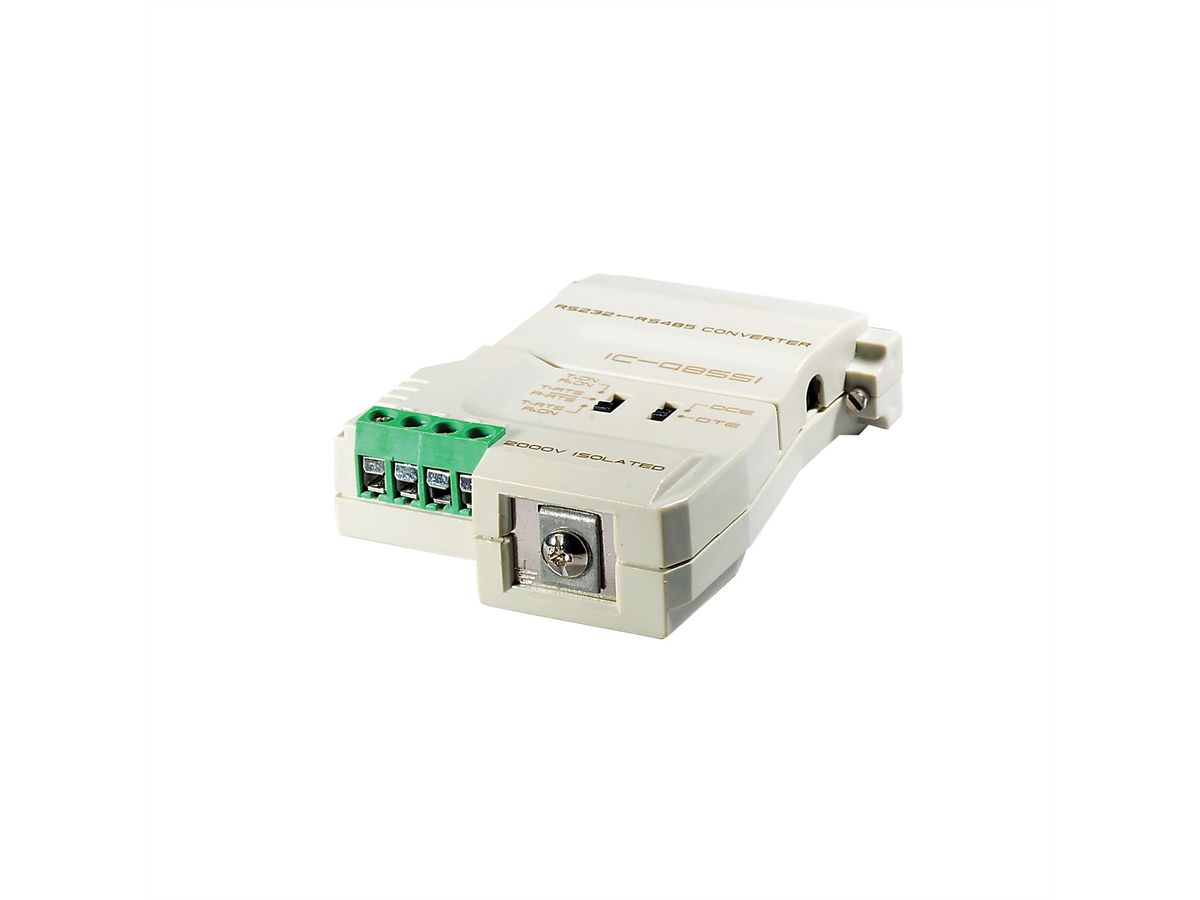

Converter RS232-RS485, with Galvanic Isolation

Converter RS232-RS485, with Galvanic Isolation

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1029-10
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1029
EAN 7611990914784
Package weight 0.4 kg


  • Point to point or multiple connection possible
  • DCE/DTE adjustable
  • Full duplex transfer over 4 lines
  • Only the data lines are converted

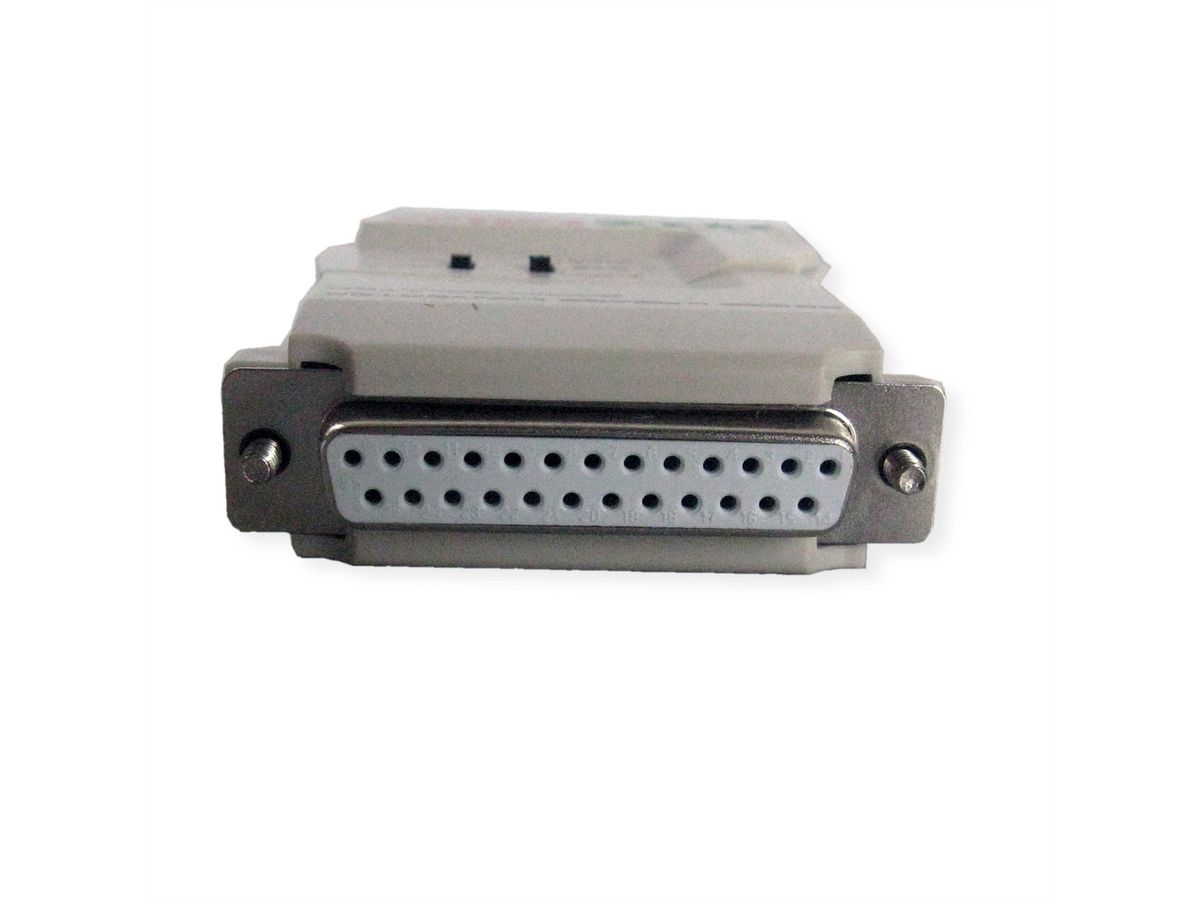

  • 25 pin socket on the RS232 side
  • Power supply via supplied mains adapter
  • Robust plastic casing


Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Serial interface converter
Colour grey
Scope of delivery converter, power cupply unit (9V DC, 300mA), manual

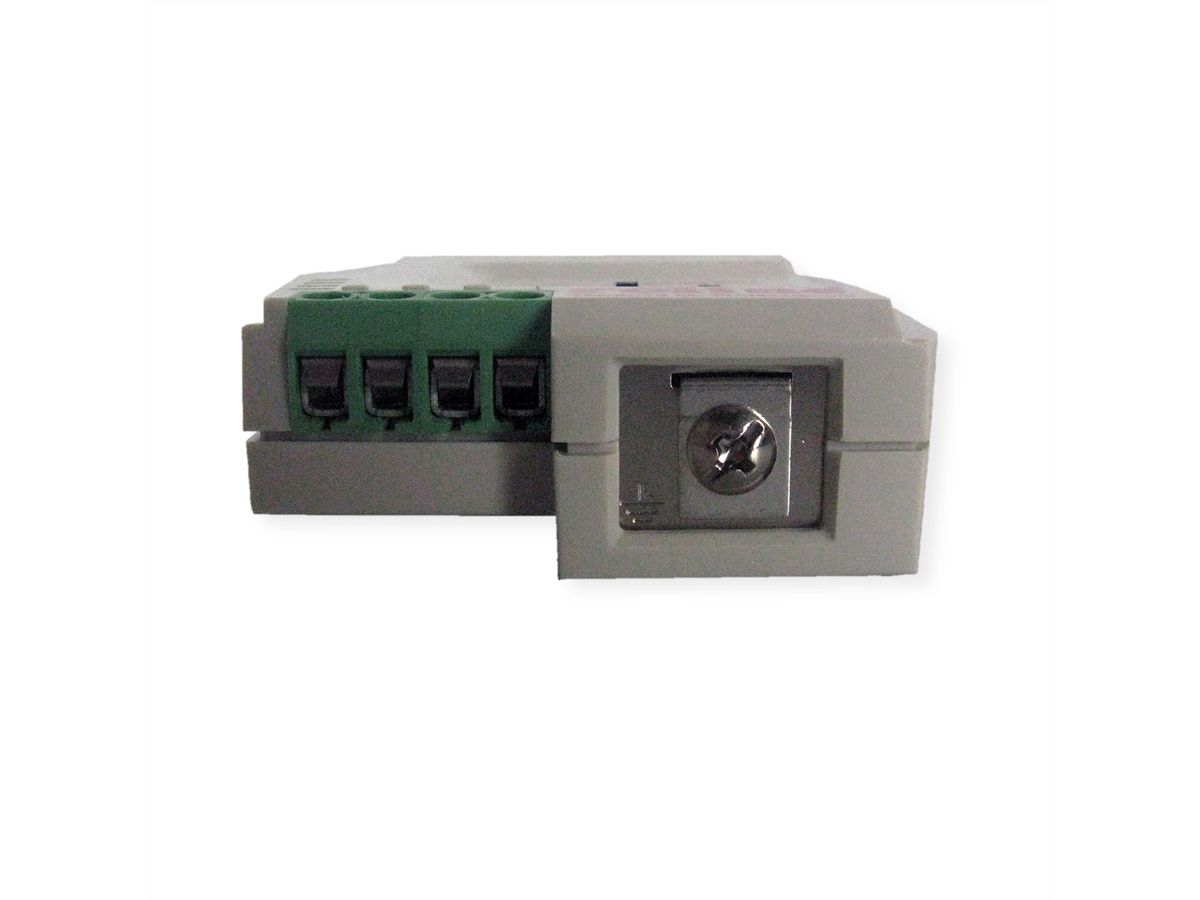

Side 1 connection (PC) Terminal Block 4 pin
Side 2 connection (Peripherals) DB25 Female
Side 1 Connector Type Terminal block
Side 1 Connector Gender Female
Side 2 Connector Type D-Sub 25-pin (DB-25)
Side 2 Connector Gender Female
Conversion direction RS232, RS485
Area of application External
Dimensions (HxWxD) 19 x 75 x 54 mm

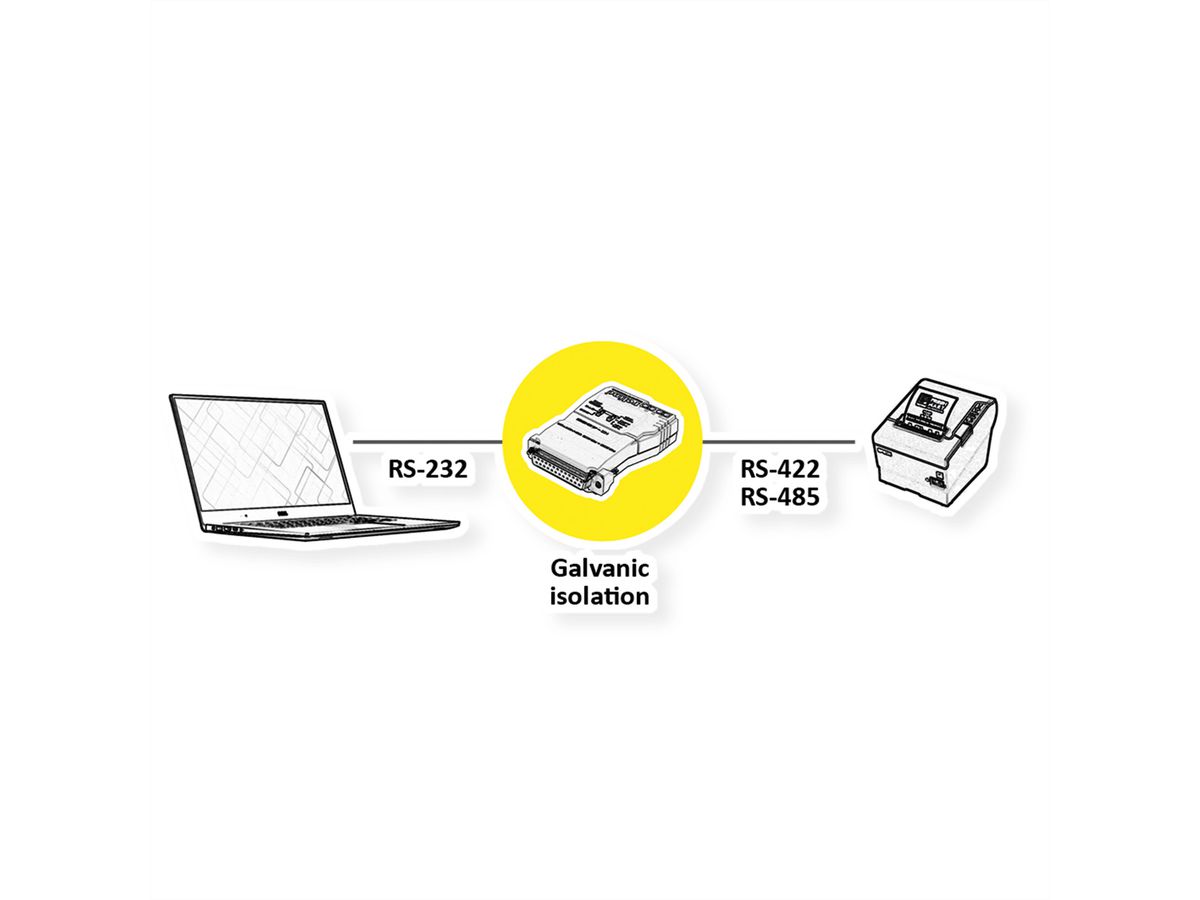

Technical particularity with galvanic isolation
Height 19 mm
Width 75 mm
Depth 54 mm
Weight 57.1 g
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 160 mm
Depth of packaging (single piece) 240 mm
Package weight (single piece) 0.4 kg


Product data sheet - English (43.8 KB)


Manufacturer data sheet - English (337.5 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
