Description

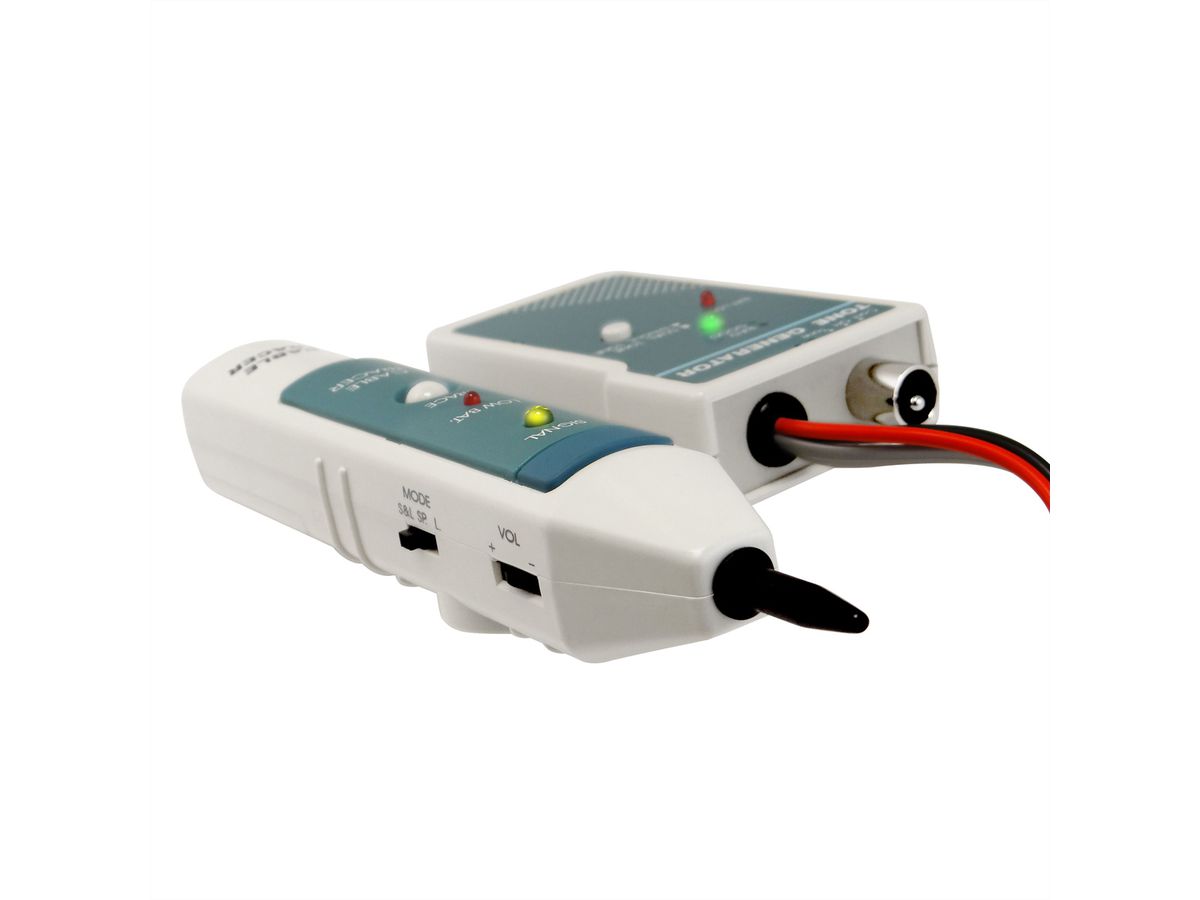

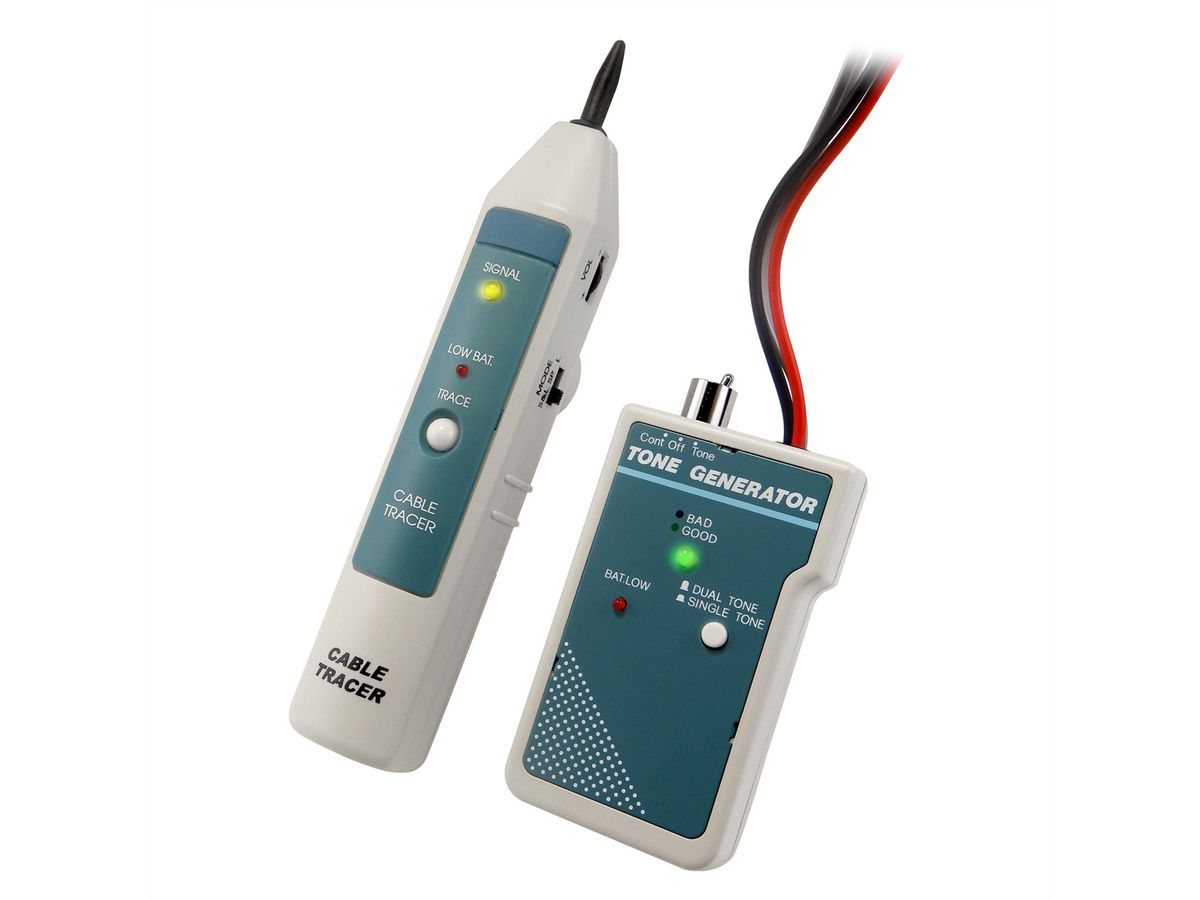

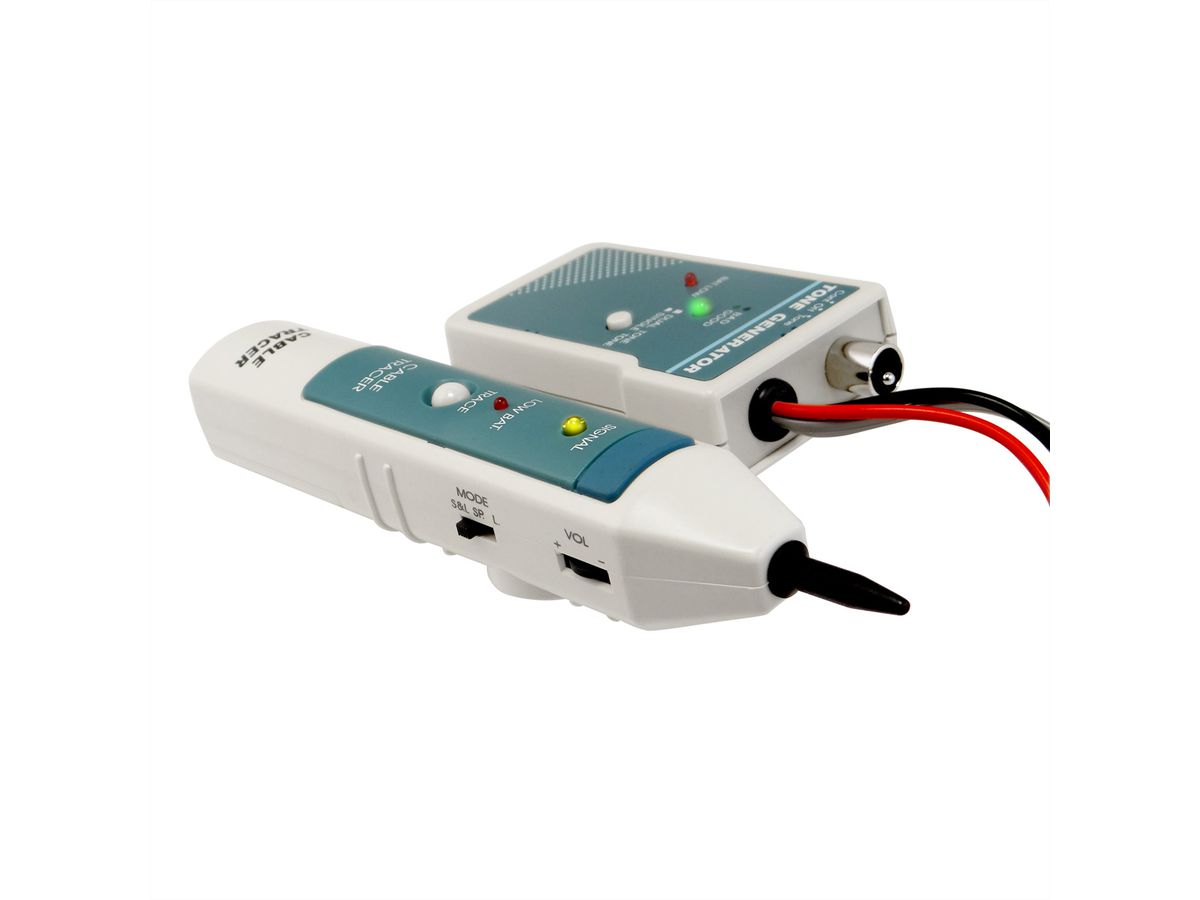

This cable detection and testing device, consisting of a tone generator and a probe (cable detector), is a very practical aid for cable installation and troubleshooting.

• The probe tests for continuity and assignment or determines line polarity and voltage for network / telephone cables.
• The Tone Generator sends a signal to the connected line, the probe searches for the corresponding line at the other end; indication both by LED and acoustically.

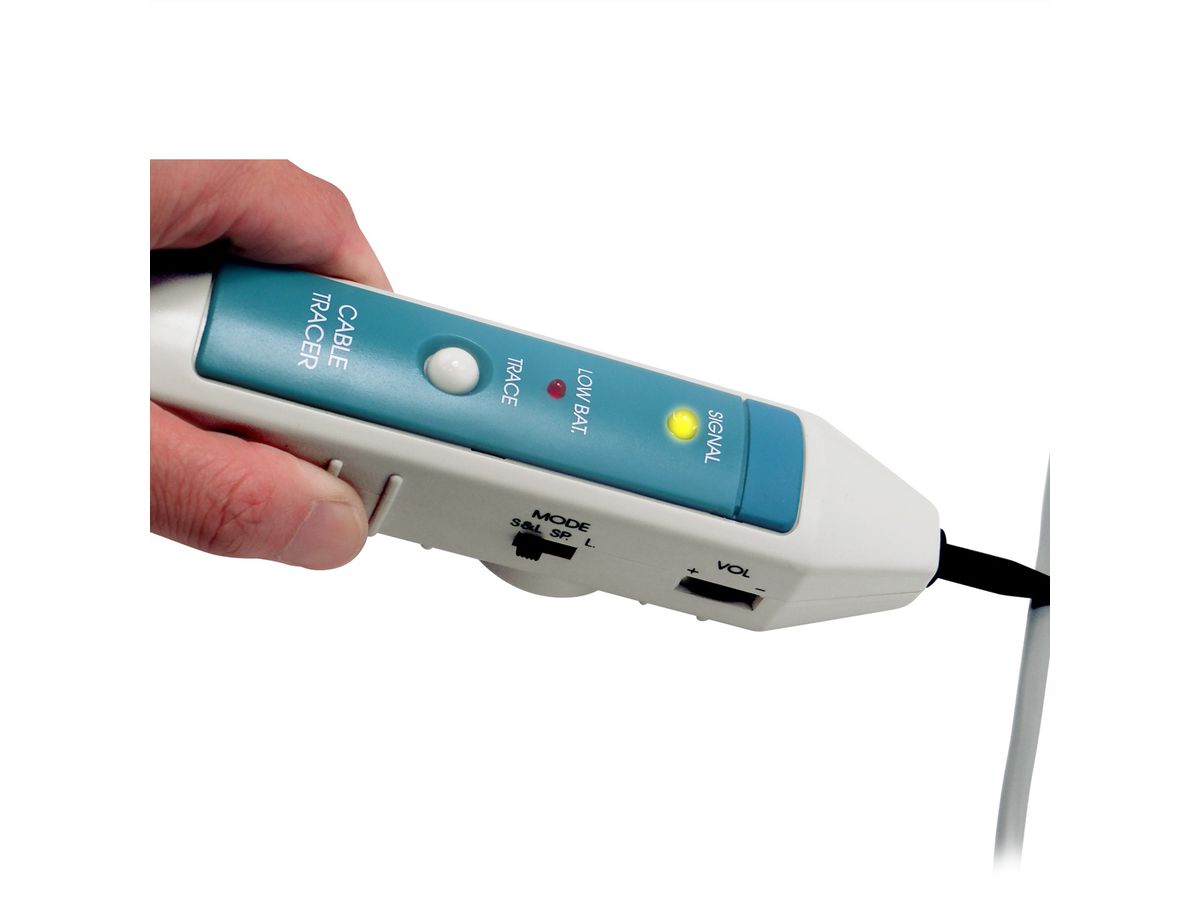

• The probe (cable locator) has a special inductive plastic tip to prevent unintentional short circuits in the vicinity of high voltage equipment
• The Tone Generator can send single tone and multiple tone signals
• Battery for the cable detector: 1x 9V block (6LR61 / AM-6)
• Battery for the tone generator: 1x 9V block (6LR61 / AM-6)
• Contents: Tone Generator, sample, bag, operating instructions

REMARK: Do not connect cable tester to devices during operation

Specifications

Manufacturer	HOBBES
Product group	Tester
Product type	Cable tester
Accessories: Rechargeable battery/battery required	9 V block battery, 2x
Weight	219.9 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	120 mm
Depth of packaging (single piece)	280 mm
Package weight (single piece)	0.399 kg
