Hobbes GIGA-X Netzwerk Status Tester

Please log in to be able to use the shopping cart and then complete orders.

Available

Ordered until 3 pm - usually dispatched on the same day

Item no.	13.01.3345-2
Brand / Manufacturer	HOBBES
Manuf. no.	256800
EAN	7630049697867
Package weight	0.235 kg

Description

It helps network administratorsand installers to layout 10/100/1000 BASE–T network environments GIGA–X also allows for trouble–free development of new switch/NIC Ethernet network devices for business expansion. Network installers and administrators will find that GIGA–X is the fastest yet simplest unit to detect, identify, and maintain their network environments. GIGA–X complies with existing IEEE standards.

Maps any existing network layout quickly
Identifies 10/100/1000 BASE–T or BASE–Tx
Testing while network is online or offline
Measures cable length by each pair
Tests cable faults at the same time

Specifications

Max test length: Offline 150 meters (492.13 ft.)/Online 110 meters (360.89ft.)

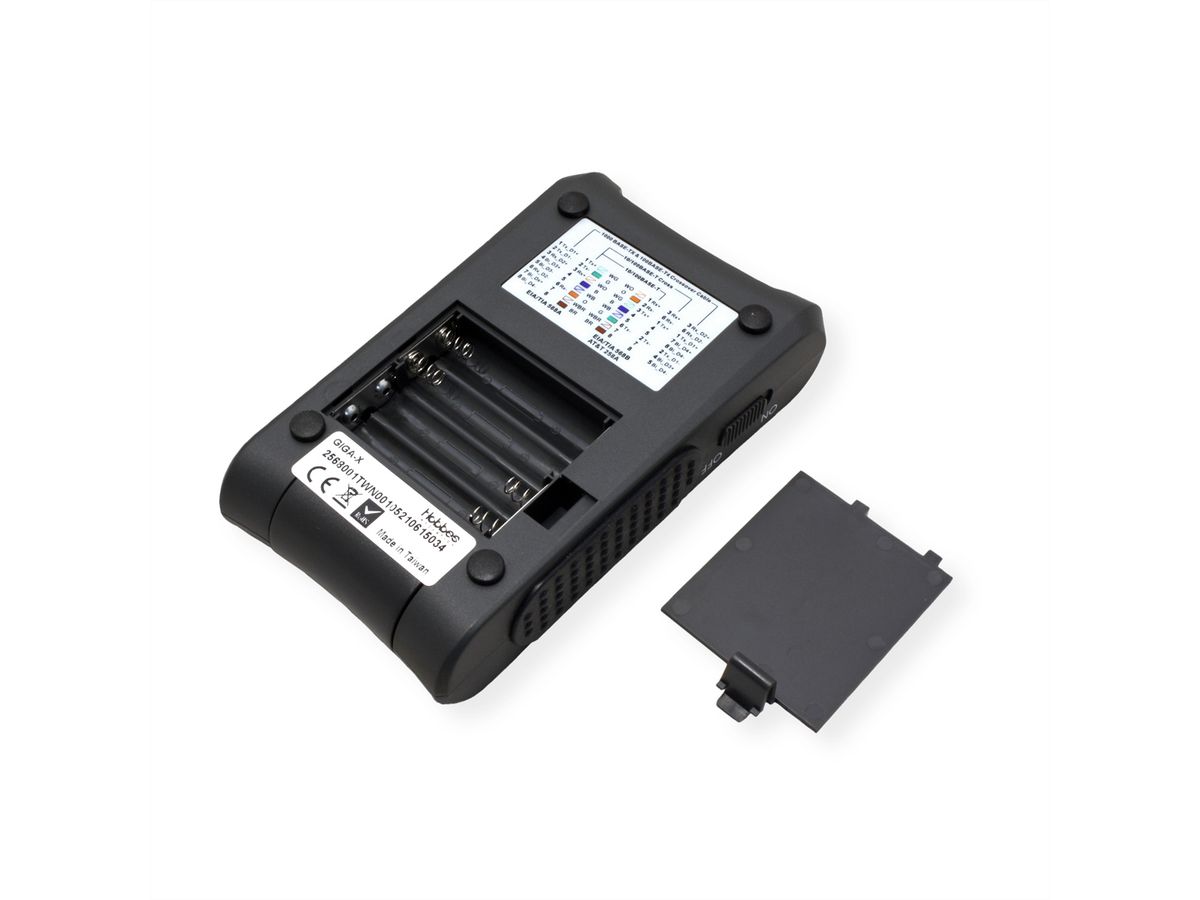

Power source: 4 x AAA 1.5V Alkaline batteries
Operating temp.: 0ºC to 50ºC
Storage temp. : –10ºC to 50ºC
Humidity: 10% to 90%
Dimensions: 138 x 82 x 32mm
Weight: 125 g

Specifications

Manufacturer	HOBBES
Product group	Tester
Product type	Cable tester / network tester
Weight	124.2 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.235 kg

Downloads

Manufacturer data sheet - English (349.9 KB)

Download

User manual - Deutsch (313.6 KB)

Download

User manual - English (310.1 KB)

Download

User manual - English (175.1 KB)

Download
