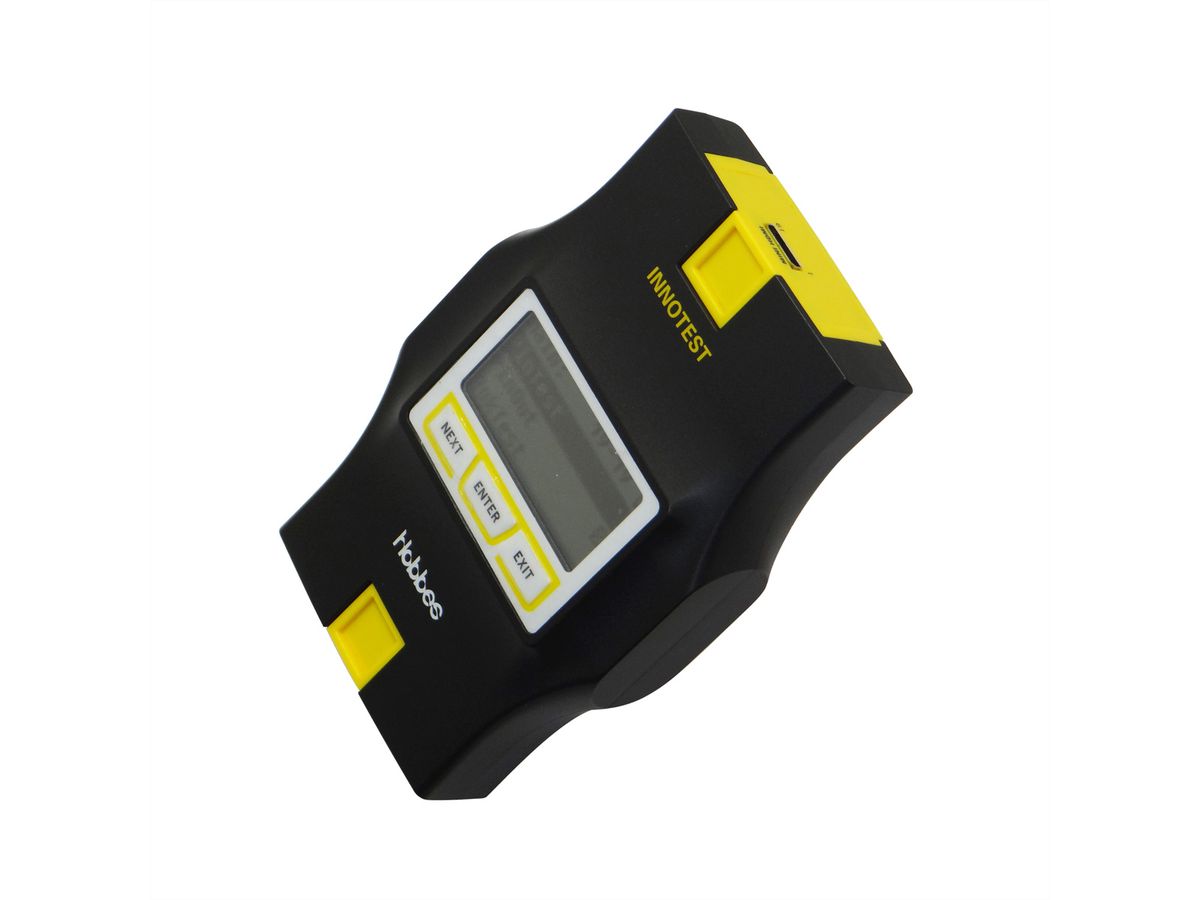

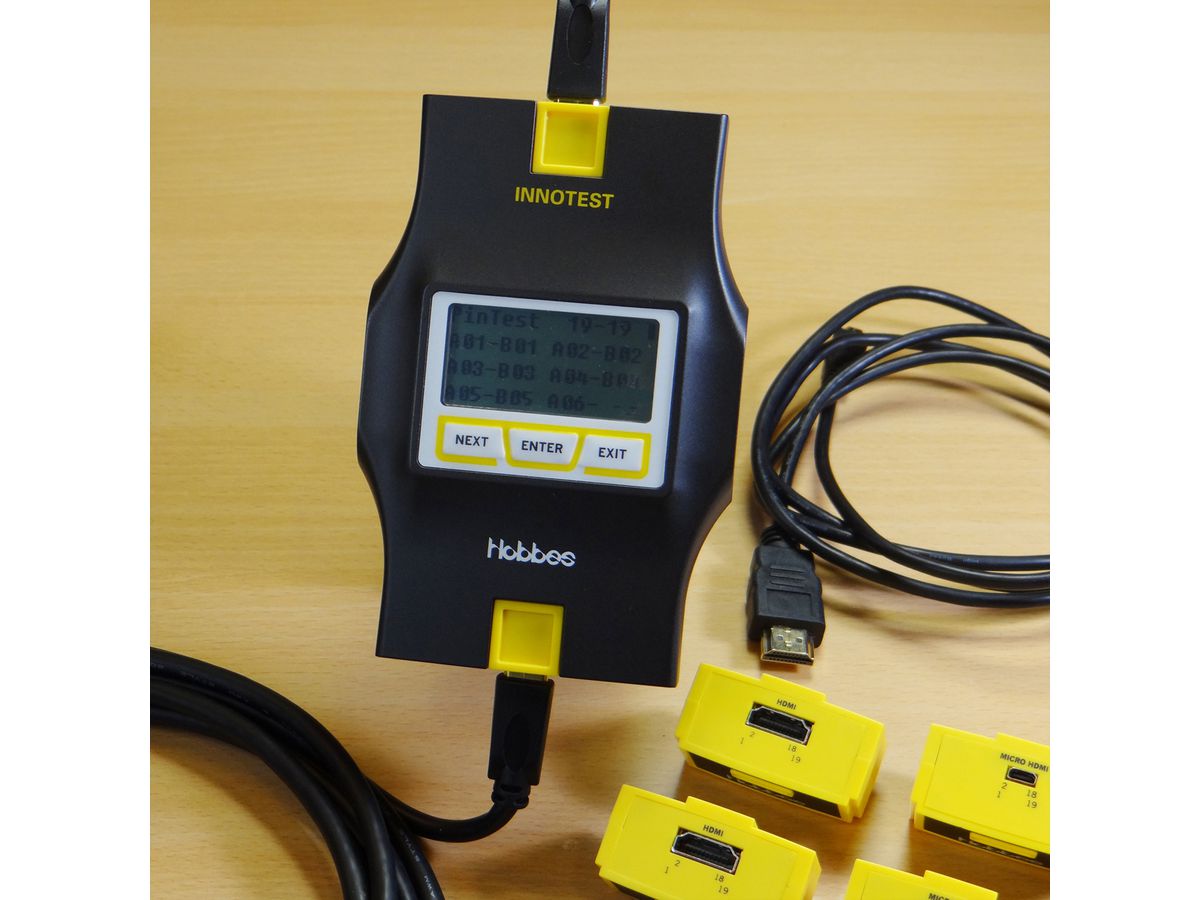

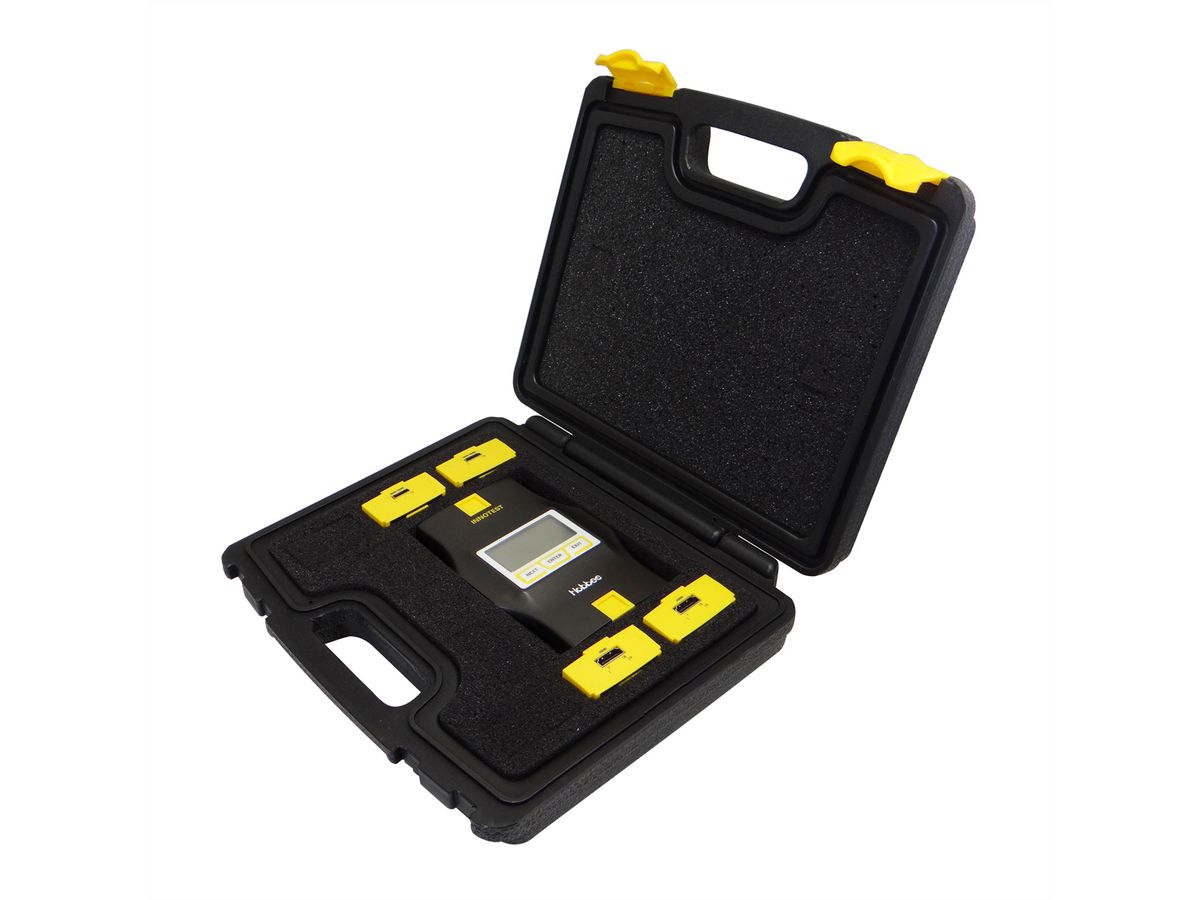

HOBBES INNOTEST Module Cable Tester, HDMI Module Kit, Case
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 13.01.3278-2 |
|---|---|
| Brand / Manufacturer | HOBBES |
| Manuf. no. | 258012IM-004 |
| EAN | 7630049698109 |
| Package weight | 0.681 kg |
:strip_icc():strip_exif()/logos/hobbes.png "HOBBES")
Description
It is the first module design economic tester. The module of INNOTEST can be removed and replace with the connector type that you need. INNOTEST not only test each pins connection to identify open wires, shorted wires, cross wires, and mis–wires. It also shows pin–to–pin connectivity of your cable.- Removable module design, easy for connector repair and update in the future
- Auto pins detect and connector identify
- Identify open wires, shorted wires, cross wires, and mis–wires connectivity

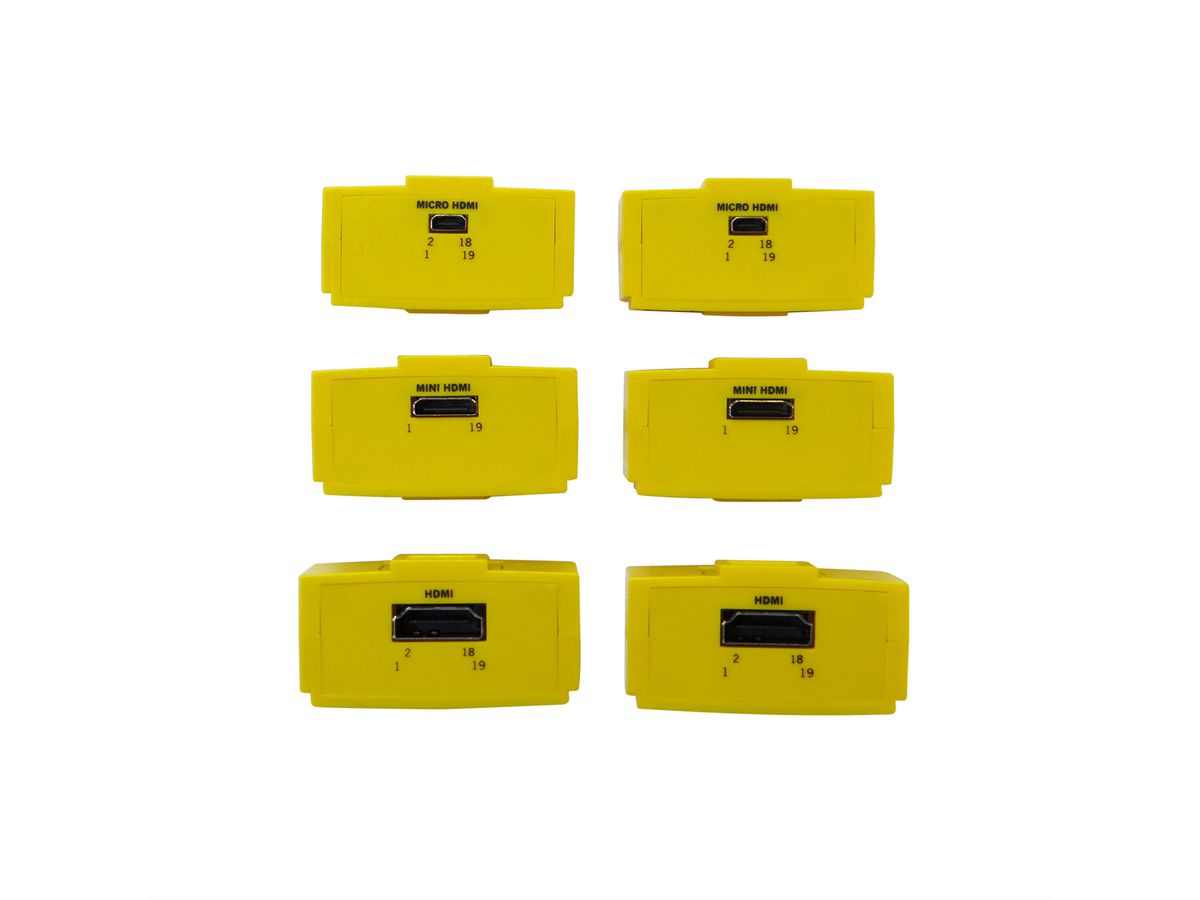

- Support HDMI connectors
- Alphanumeric LCD display
- Power Consumption: Operating current is 3.5mA when buzzer is off and 15mA when buzzer is on.
Control switch: NEXT, ENTER, EXIT
Display: LCD size, 4 rows–16 characters
Battery: AAA 1.5V X 3
Specifications
| Manufacturer | HOBBES |
|---|---|
| Product group | Tester |
| Product type | Cable tester |
| Accessories: Rechargeable battery/battery required | Micro battery (AAA), 03x |
| Weight | 203.53 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 220 mm |
| Depth of packaging (single piece) | 240 mm |
| Package weight (single piece) | 0.681 kg |
