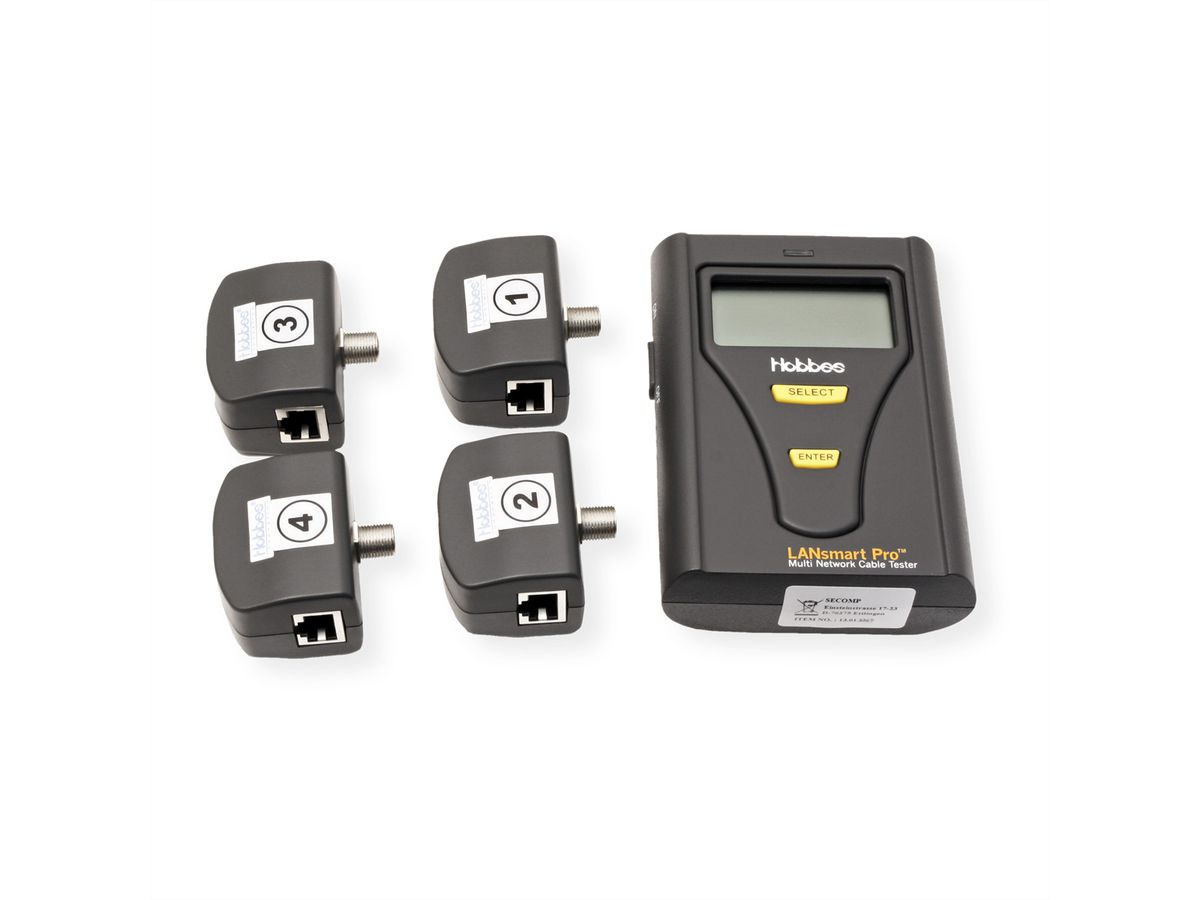

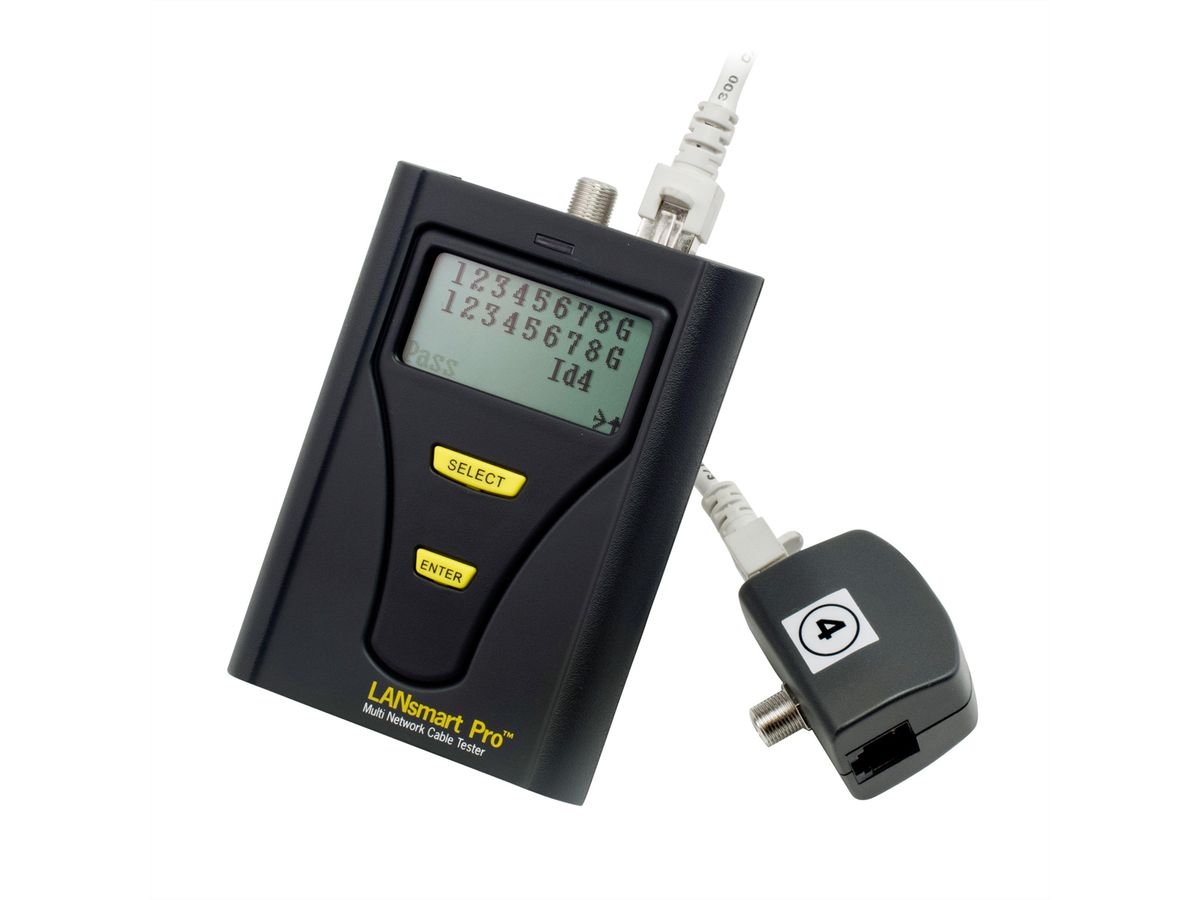

HOBBES LANsmart Pro, Network Cable Tester

HOBBES LANsmart Pro, Network Cable Tester

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 13.01.3267-5
Brand / Manufacturer HOBBES
Manuf. no. 256003PRO
EAN 7630049697997
Package weight 0.519 kg

Description

The LANSmart Pro version is the next generation of LANSmart, the most popular and versatile cable tester for technicians on the market. It has all the same great functions as the original LANsmart (hand–held size, cable length meter, port–finder, etc) but it now also tests not only for LAN cables but also for telephone and coaxial cables. The LANSmart Pro also incorporates both digital & analog tone generators and remote identifier functions.

The LANSmart Pro displays cable map results in a pin–to–pin format and shows all cable faults including split pairs. It provides a great degree of accuracy when measuring cable length and locating problems from either end of a cable.

SPECIFICATIONS

  • All in–one tester: wire map, twisted mapping, short location, quicktest, cable lengthtest, tone generator and port–finder
  • Wiremap for opened, short, reversed, crossed, split pairs, mis–wire and shield continuity
  • Wiremap results are displayed in pin–to–pin format
  • Indicates the I.D number of the remote identification
  • Short location: locates short position whether short is in the near end or far end of the cable
  • Measures twisted pairs, map, and length of Cat5, Cat5e, Cat6 and Cat7 cables without remotes
  • Measures 2/4/6 pins telephone cable length and faults
  • Self–calibrating function allows for increased measuring accuracy when testing length of non–standard cables
  • Displays measurements in both meter and ft
  • Quick test function: memorizes a cable’s pin out
  • Port–finder function: locates corresponding socket on 10/100M hub/switch
  • With LCD and beeper indicator
  • RJ–45/RJ–11 tort protection from damage due to high voltage from telephone line

Specifications

Manufacturer HOBBES
Product group Meters
Product type Network Cable Testers
Weight 252.1 g
Height of packaging (single piece) 80 mm
Width of packaging (single piece) 160 mm
Depth of packaging (single piece) 220 mm
Package weight (single piece) 0.519 kg

Downloads

Manufacturer data sheet - English (261.9 KB)

Download

User manual - English (3.8 MB)

Download
