Description

• Continuity testing of coax cables with BNC connectors and 8-pole data lines w. fitted RJ-45 connectors
• The device recognises open and short-circuited (wire/wire or wire/shield) connections

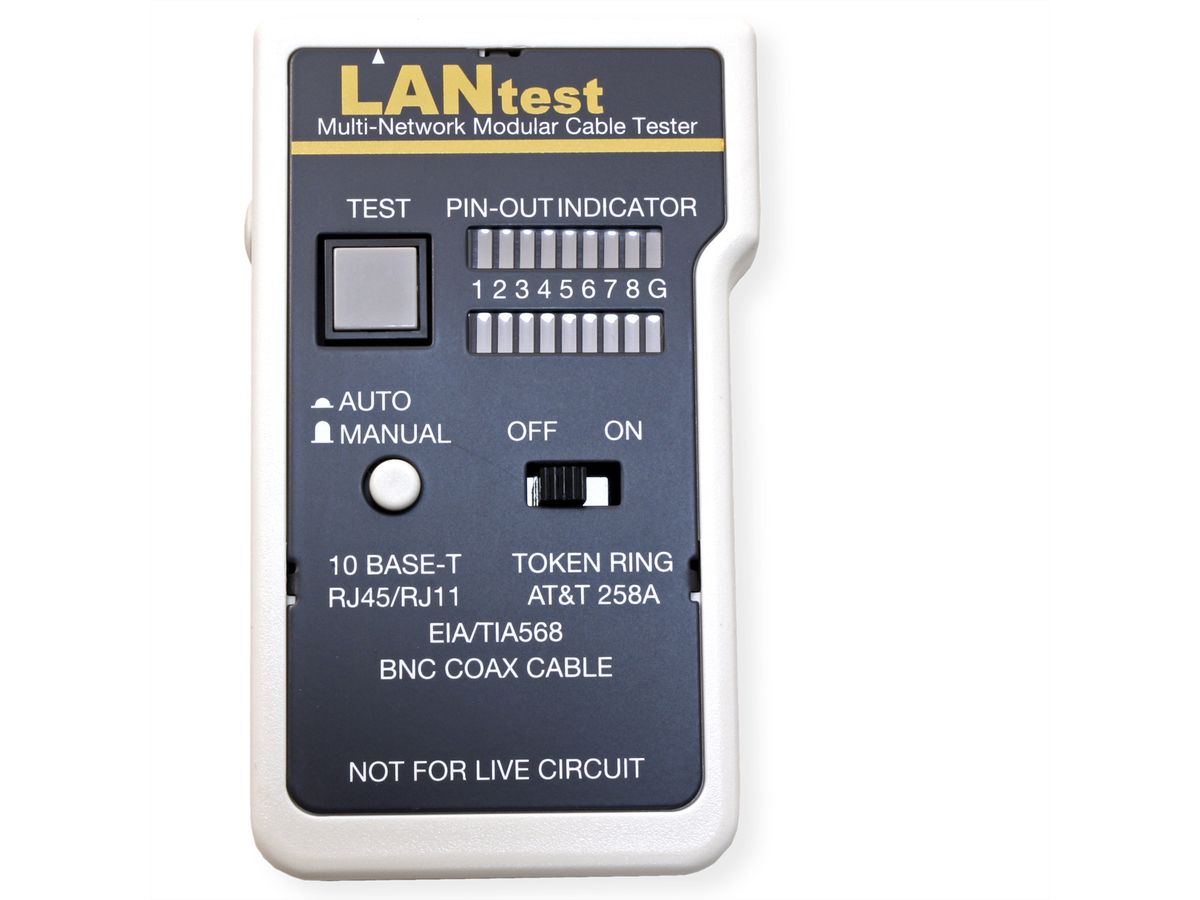

• A two-line display (LEDs) indicates sequentially which pin of the RJ-45 connector at cable end A is connected with which pin at cable end B and manual or automatic switch advancing is possible; in the case of a short-circuit more than two LEDs light up simultaneously

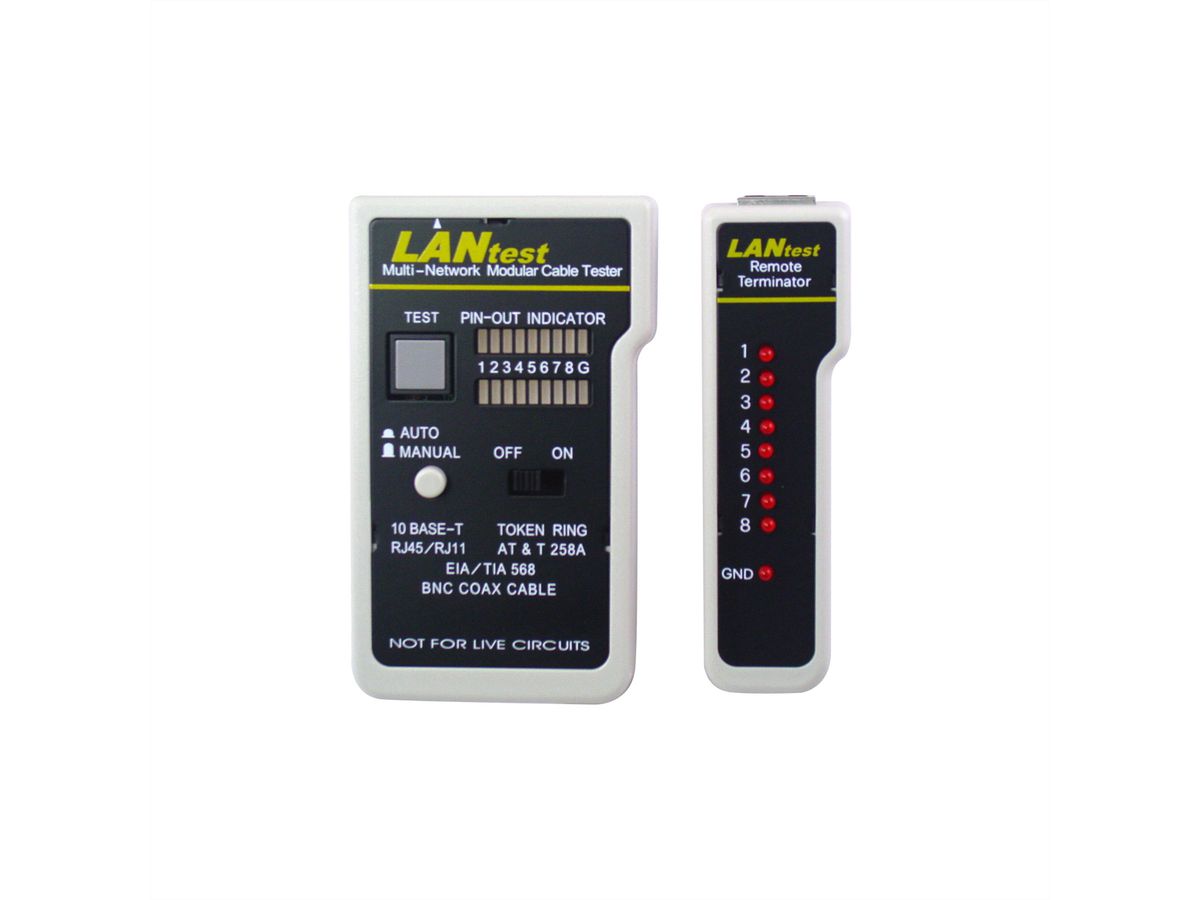

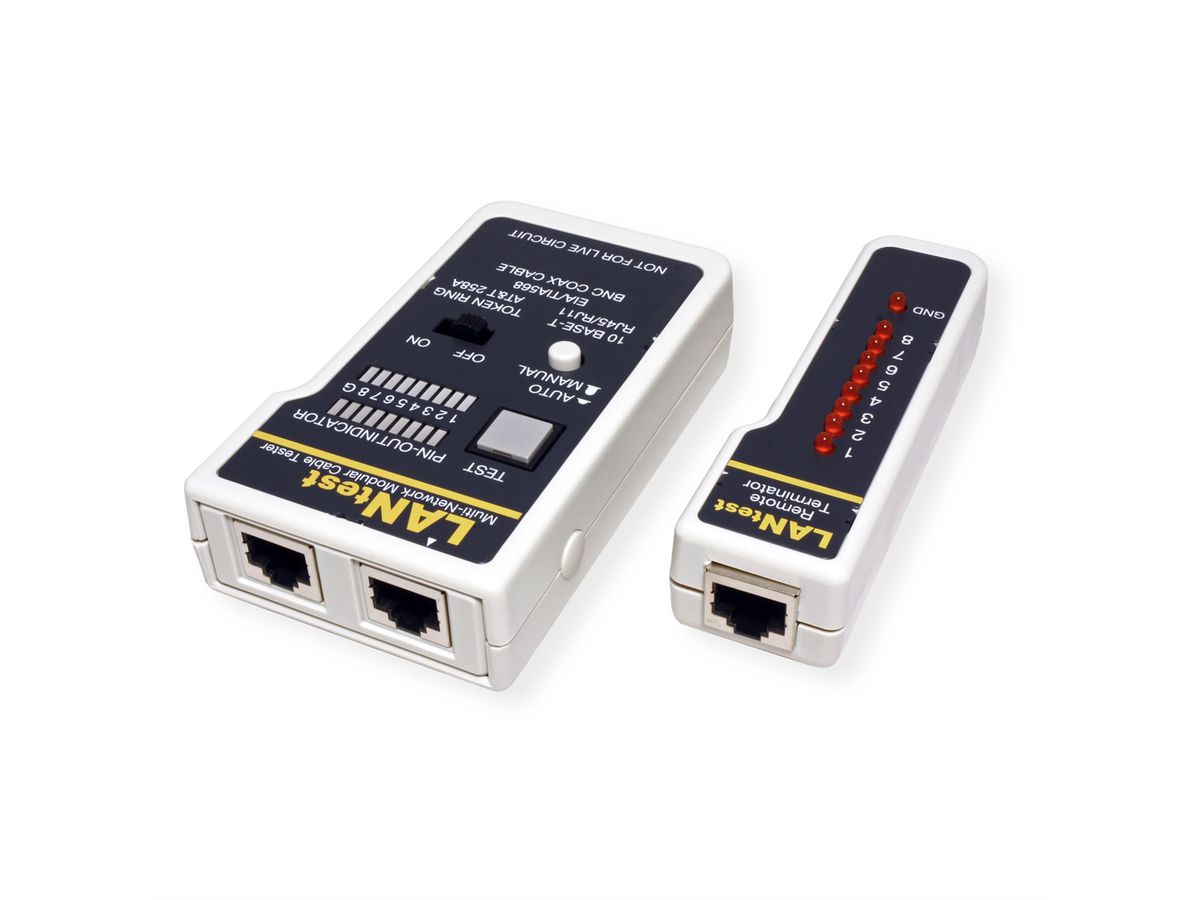

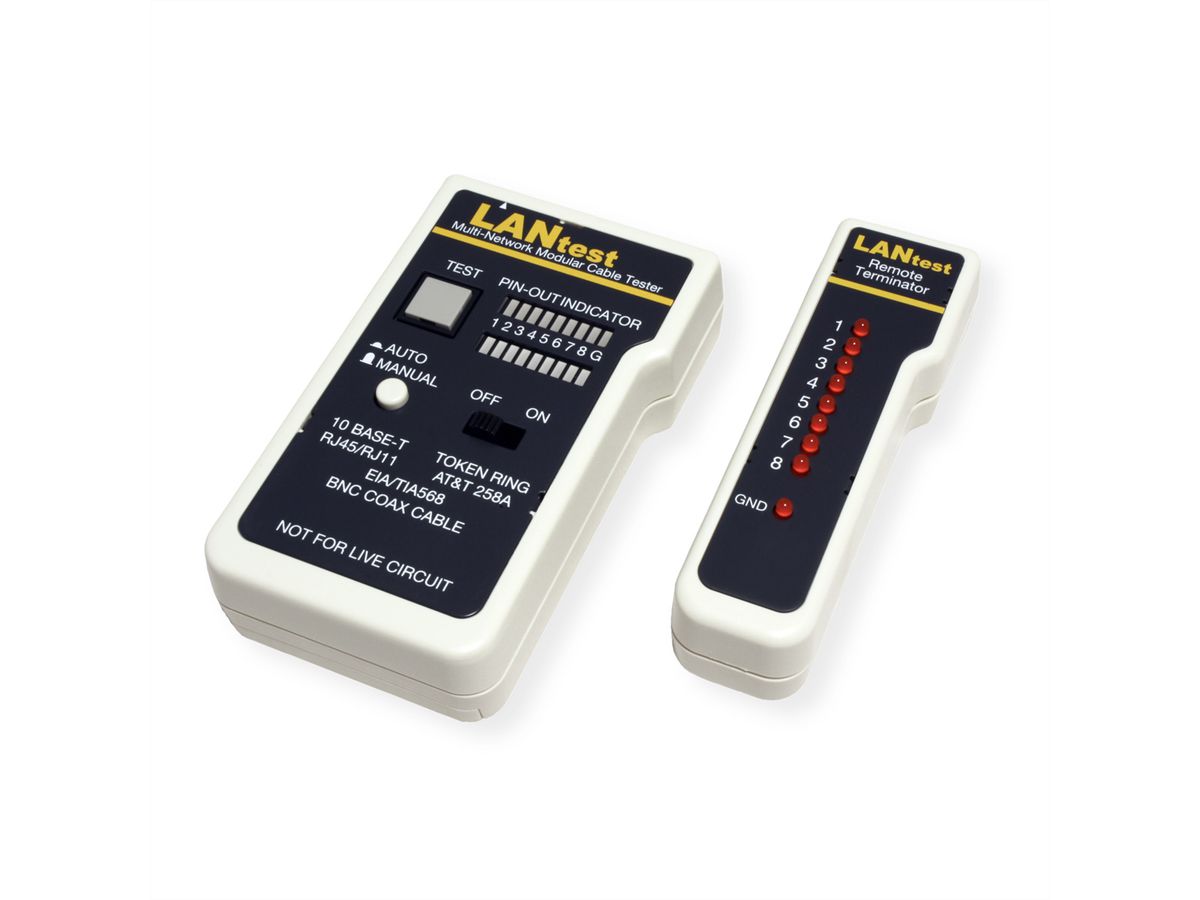

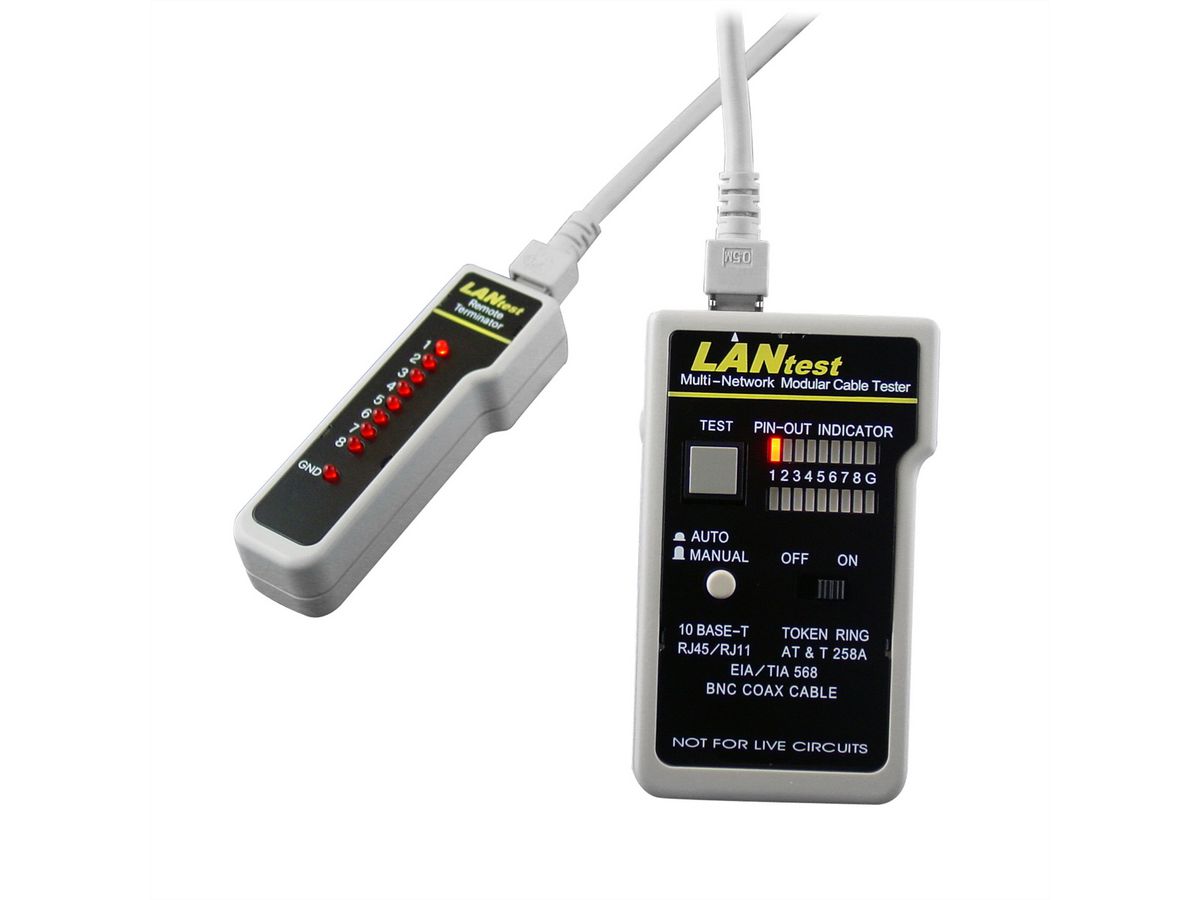

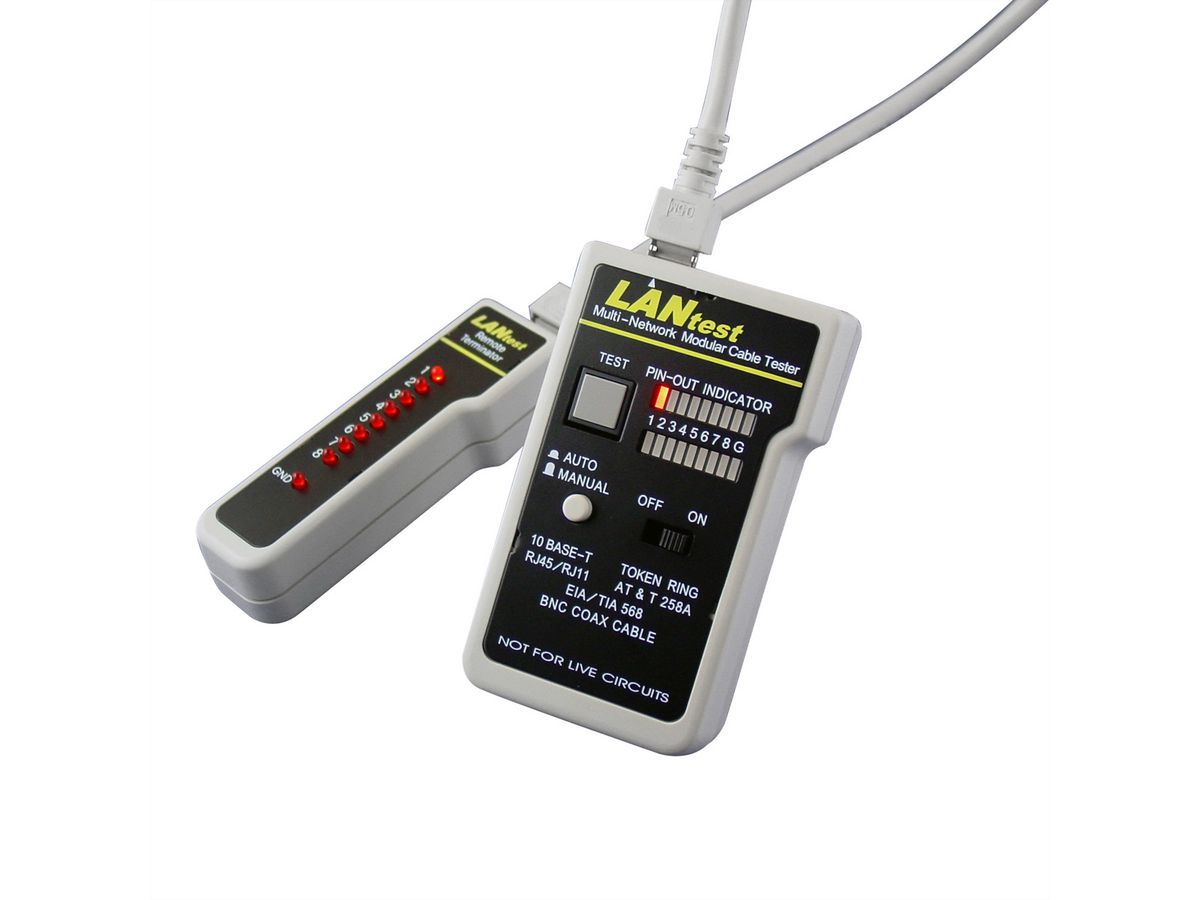

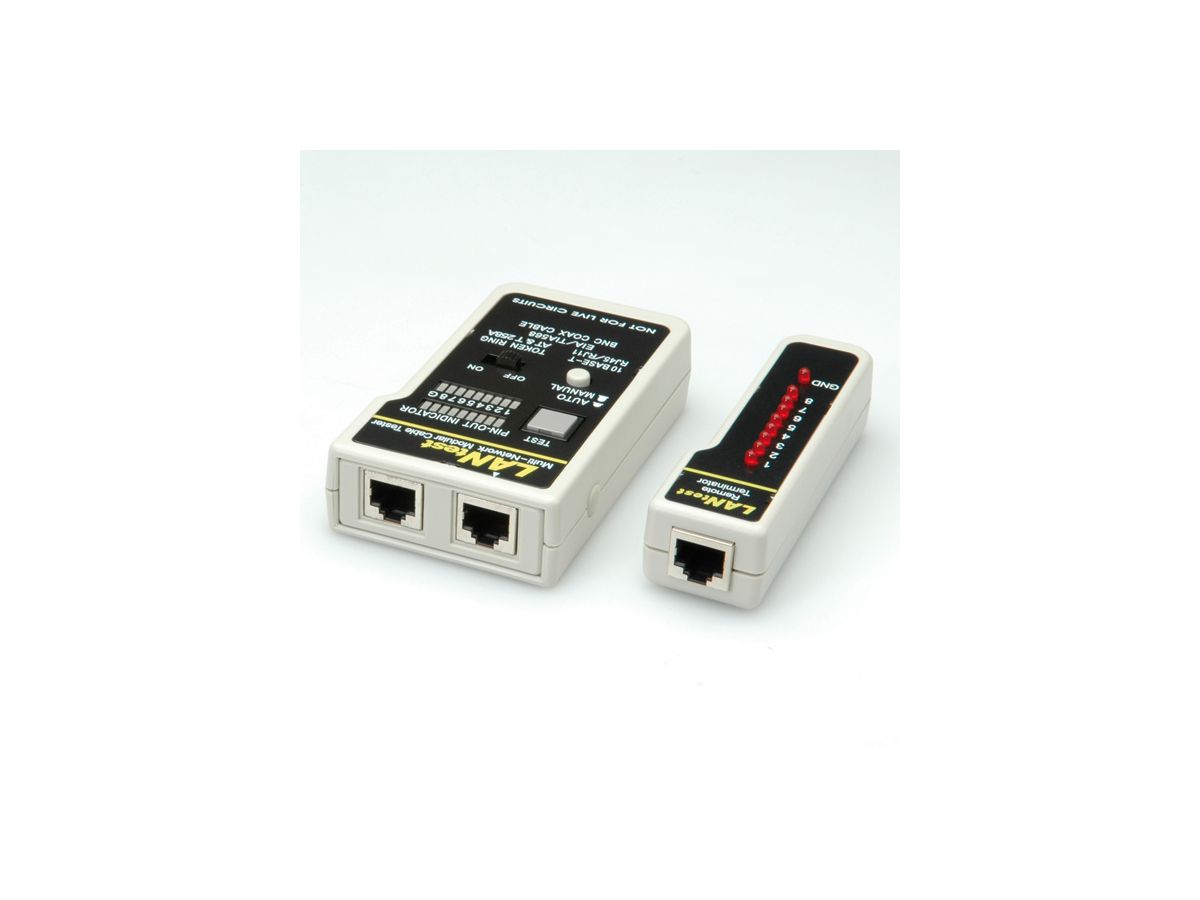

• The device has 2 RJ-45 sockets; with the supplied Remote Kit cables laid in the wall can also be tested

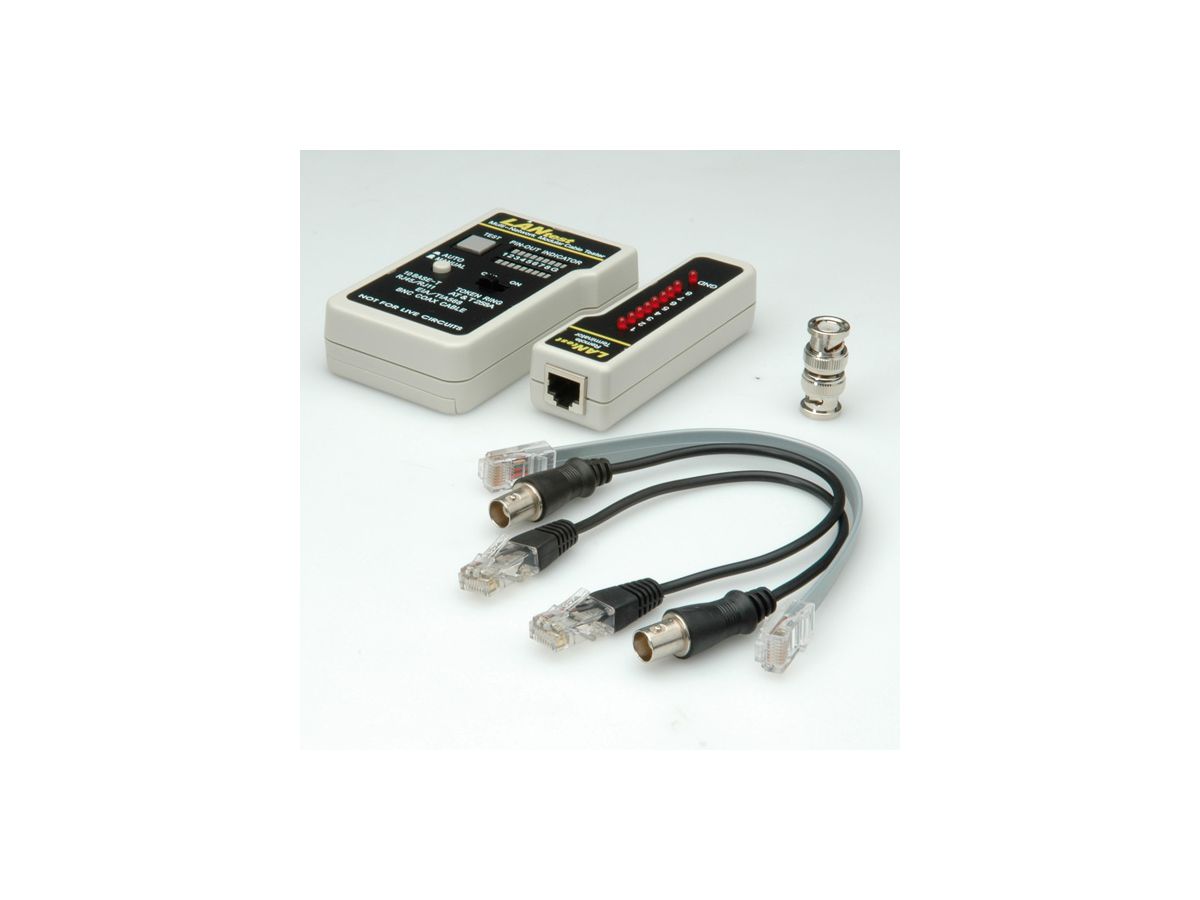

• Two adapter cables (BNC/RJ-45) are supplied for testing coax cables
• Caution: Do not test the cable in the connected state! Under certain circumstances, the tester may be damaged

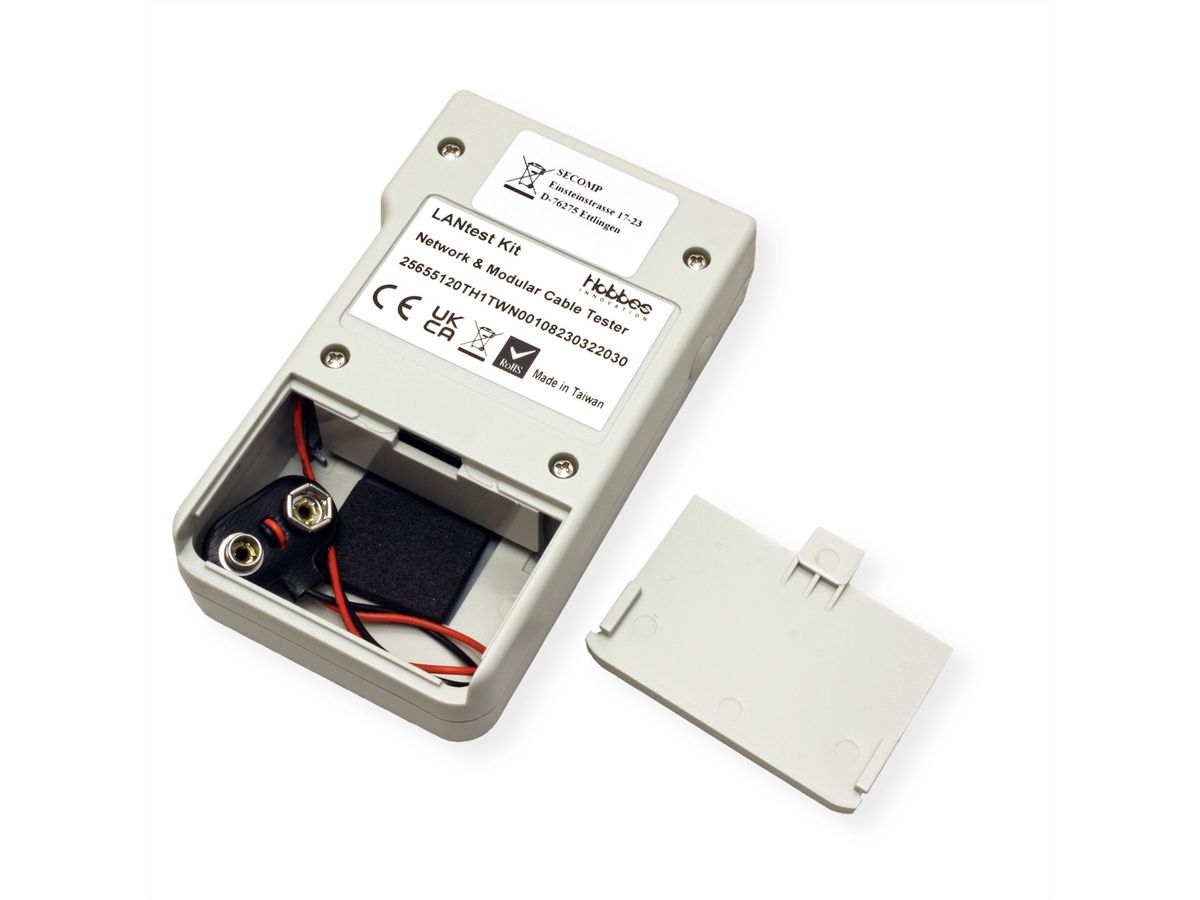

• Battery (not included in delivery): 1x E-block 9V (6LR61/AM-6)

Caution: Do not connect cable testers to devices during operation

Specifications

Manufacturer	HOBBES
Product group	Tester
Product type	Cable tester
Weight	225.2 g
Height of packaging (single piece)	50 mm
Width of packaging (single piece)	110 mm
Depth of packaging (single piece)	160 mm
Package weight (single piece)	0.312 kg
