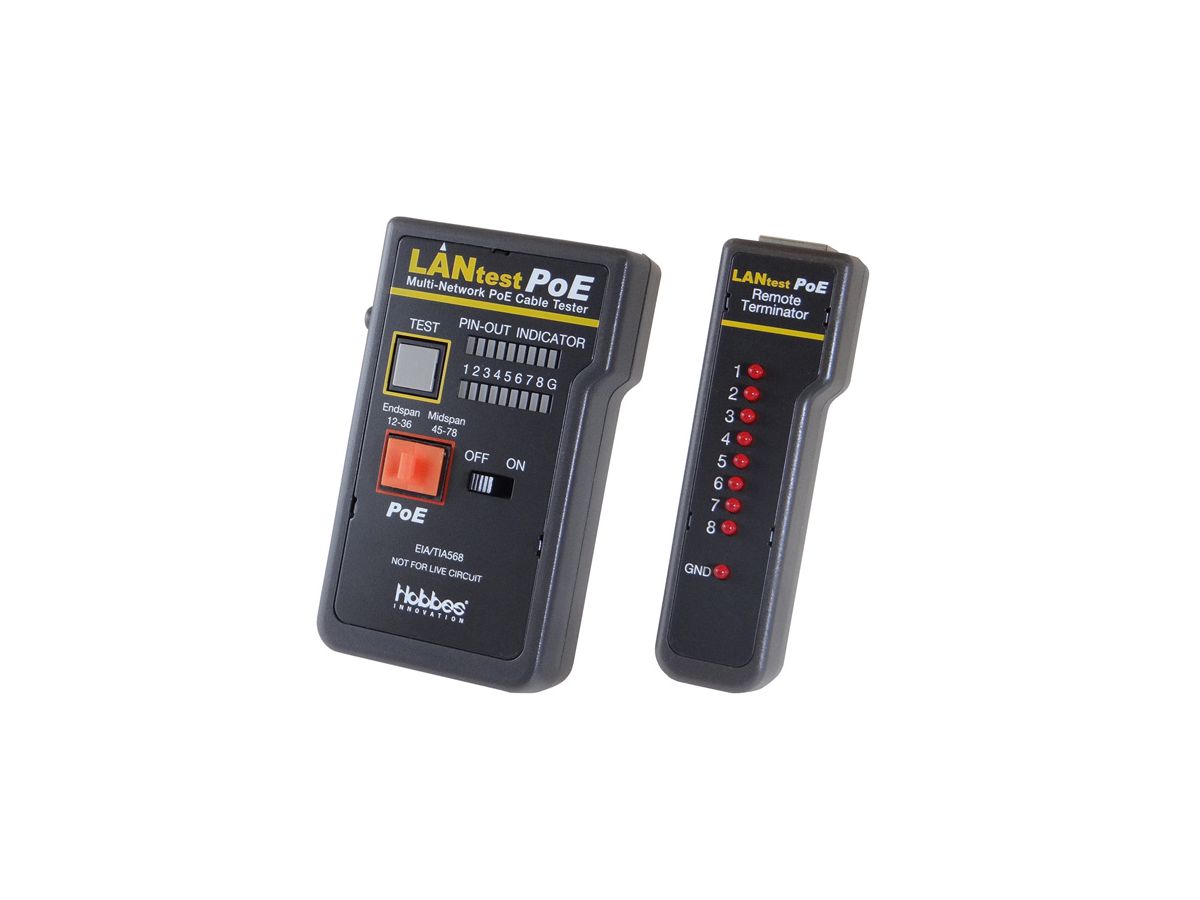

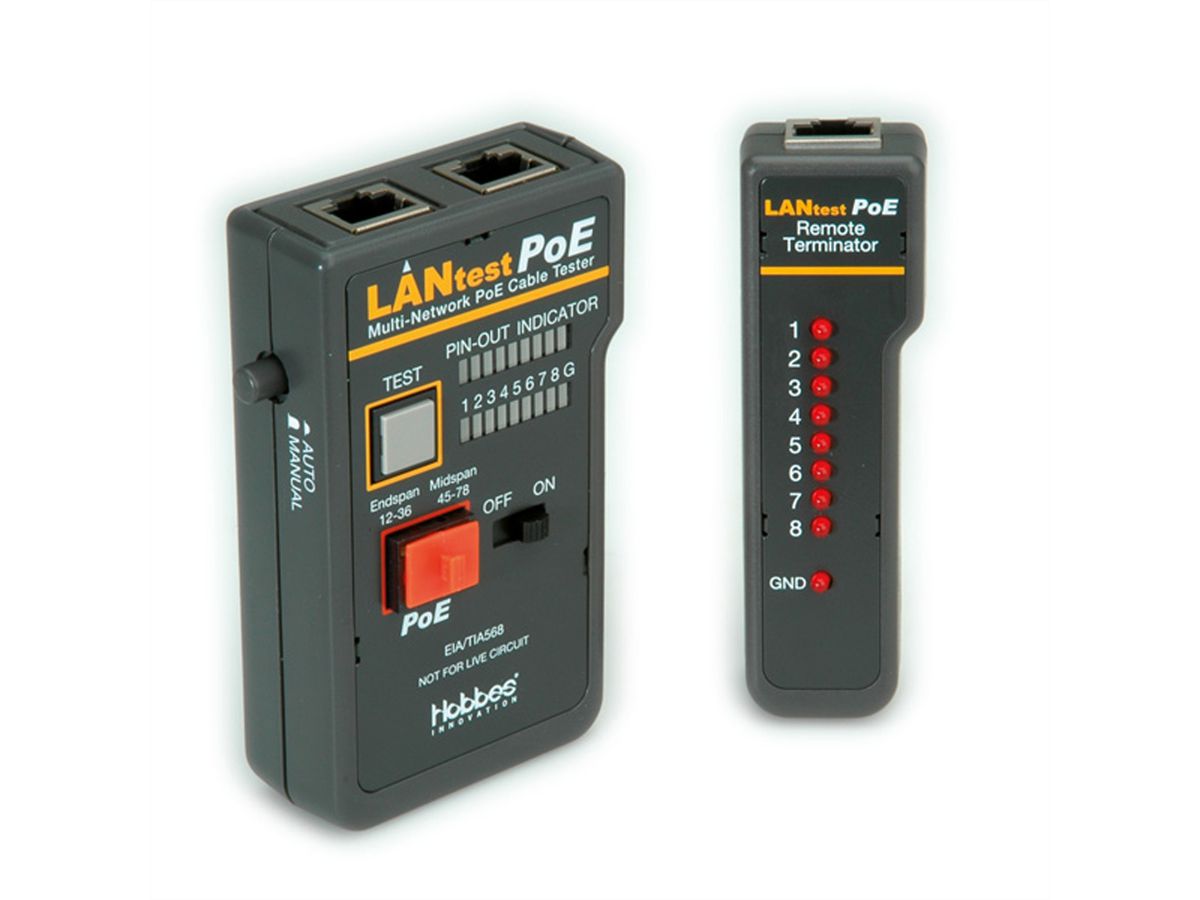

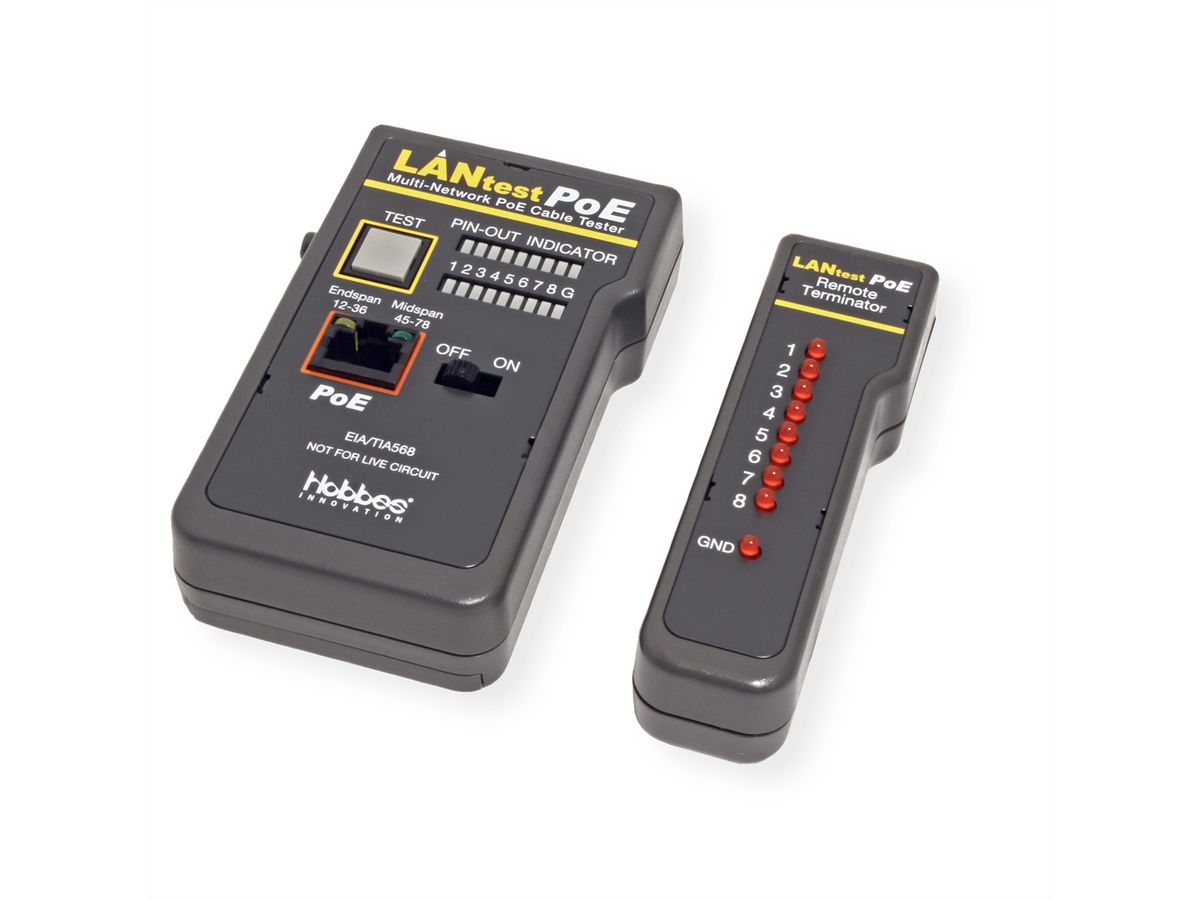

HOBBES LANtest Multinetwork PoE Cable Tester

HOBBES LANtest Multinetwork PoE Cable Tester

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 13.01.3371-4
Brand / Manufacturer HOBBES
Manuf. no. 256551P
EAN 7630049698130
Package weight 0.33 kg

Description

  • Easy verification for cabling faults including discontinuity, open wires, shorts (short-circuited - wire/wire or wire/shield - connections), miswiring and crossed pairs is quickly detected with the LANtest’s unique LED display
  • Wiring configuration for Cat5, coaxial and modular telephone cables by comparing one transmitting end to another receiving end
  • Continuity testing of coax cables with BNC connectors and 8-pole data lines w. fitted RJ-45 connectors

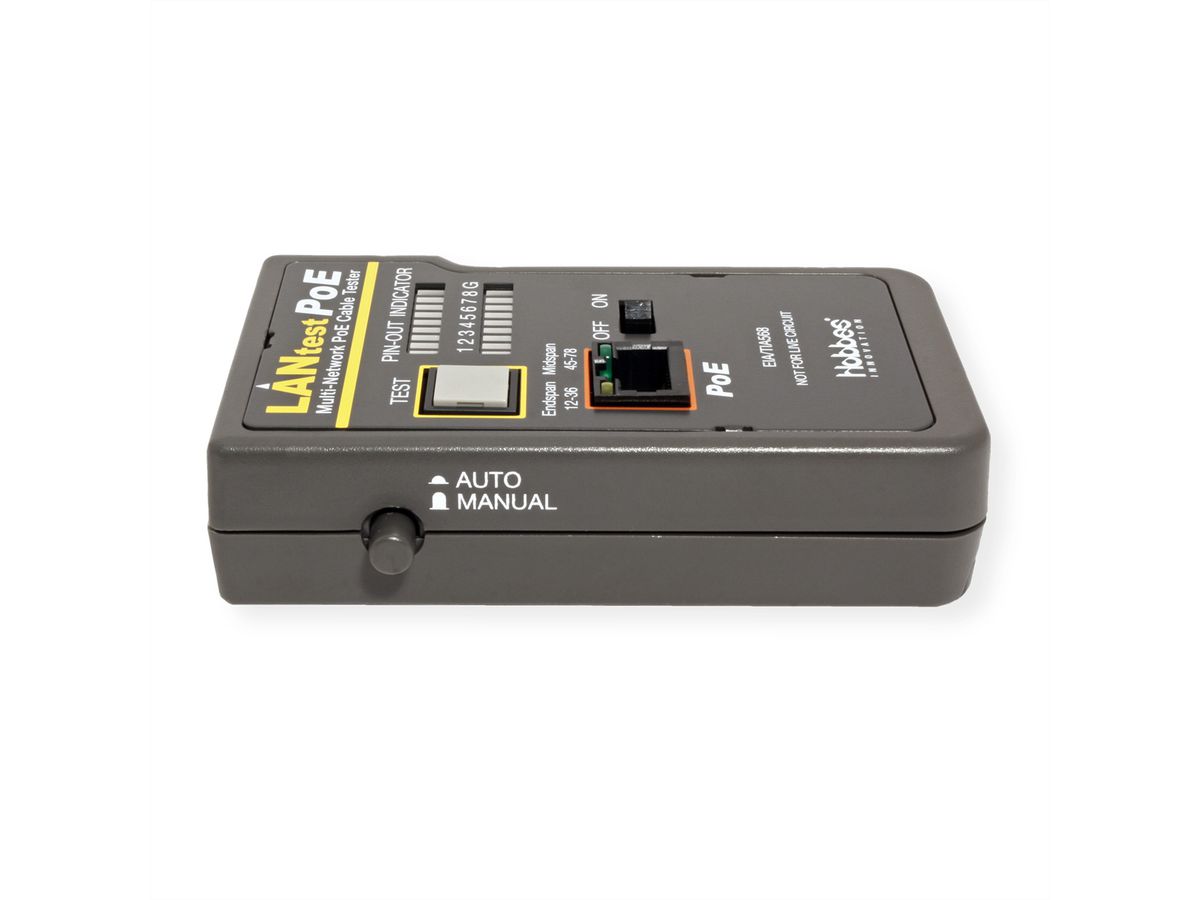

  • A two-line display (LEDs) indicates sequentially which pin of the RJ-45 connector at cable end A is connected with which pin at cable end B and manual or automatic switch advancing is possible; in the case of a short-circuit more than two LEDs light up simultaneously

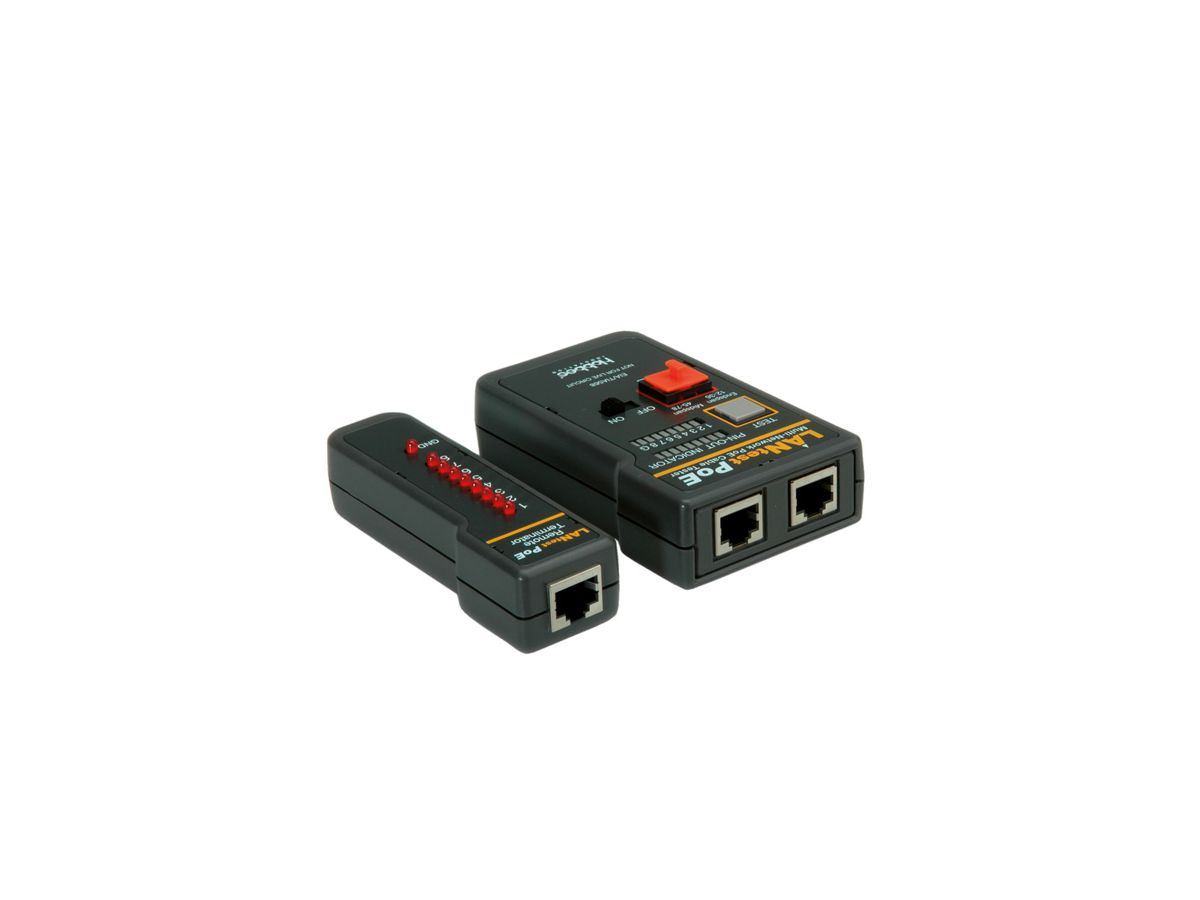

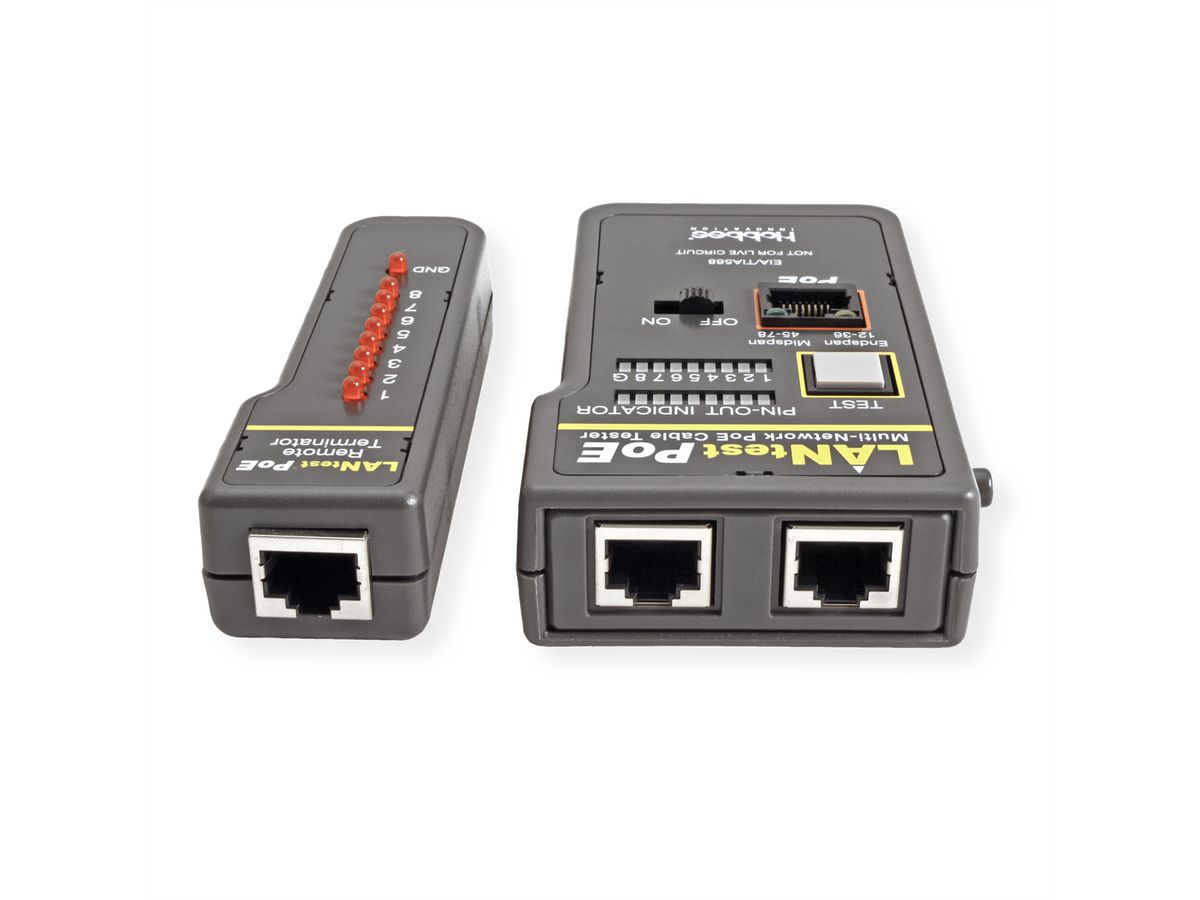

  • The device has 2 RJ-45 sockets; with the supplied Remote Kit cables laid in the wall can also be tested

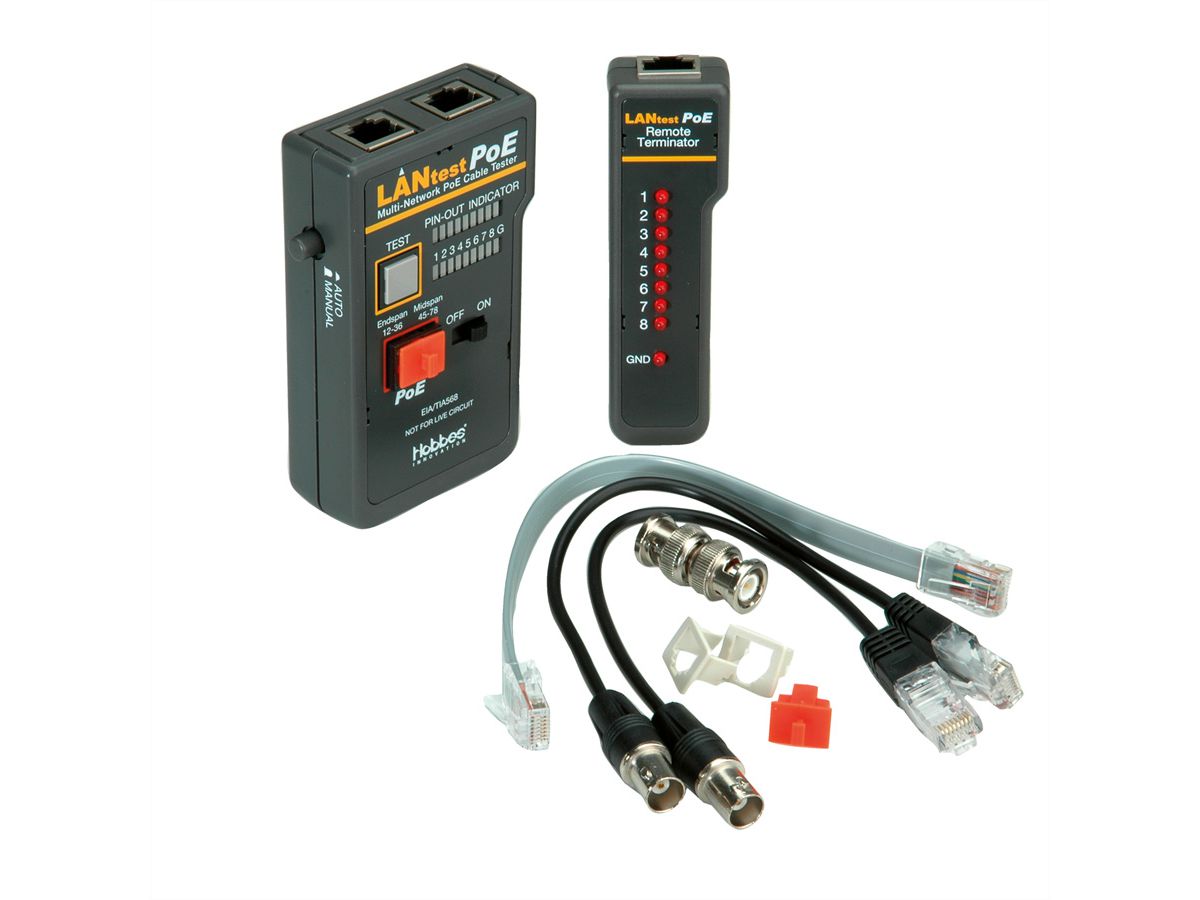

  • Two adapter cables (BNC/RJ-45) are supplied for testing coax cables
  • Check the existence of PoE in a second
  • Identifies the type of PSE, whether the PoE voltage is detected on the pair 12-36 (Endspan), or on the 45-78 (Midspan)
  • Compliant with IEEE802.3af and IEEE802.3at standard
  • Battery (not included in delivery): 1x E-block 9V (6LR61/AM-6)

Caution: Do not connect cable testers to devices during operation

Specifications

Manufacturer HOBBES
Product group Tester
Product type Cable tester
Weight 274.9 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 100 mm
Depth of packaging (single piece) 190 mm
Package weight (single piece) 0.33 kg

Downloads

Manufacturer data sheet - English (334.7 KB)

Download

User manual - English (211.1 KB)

Download
