Description

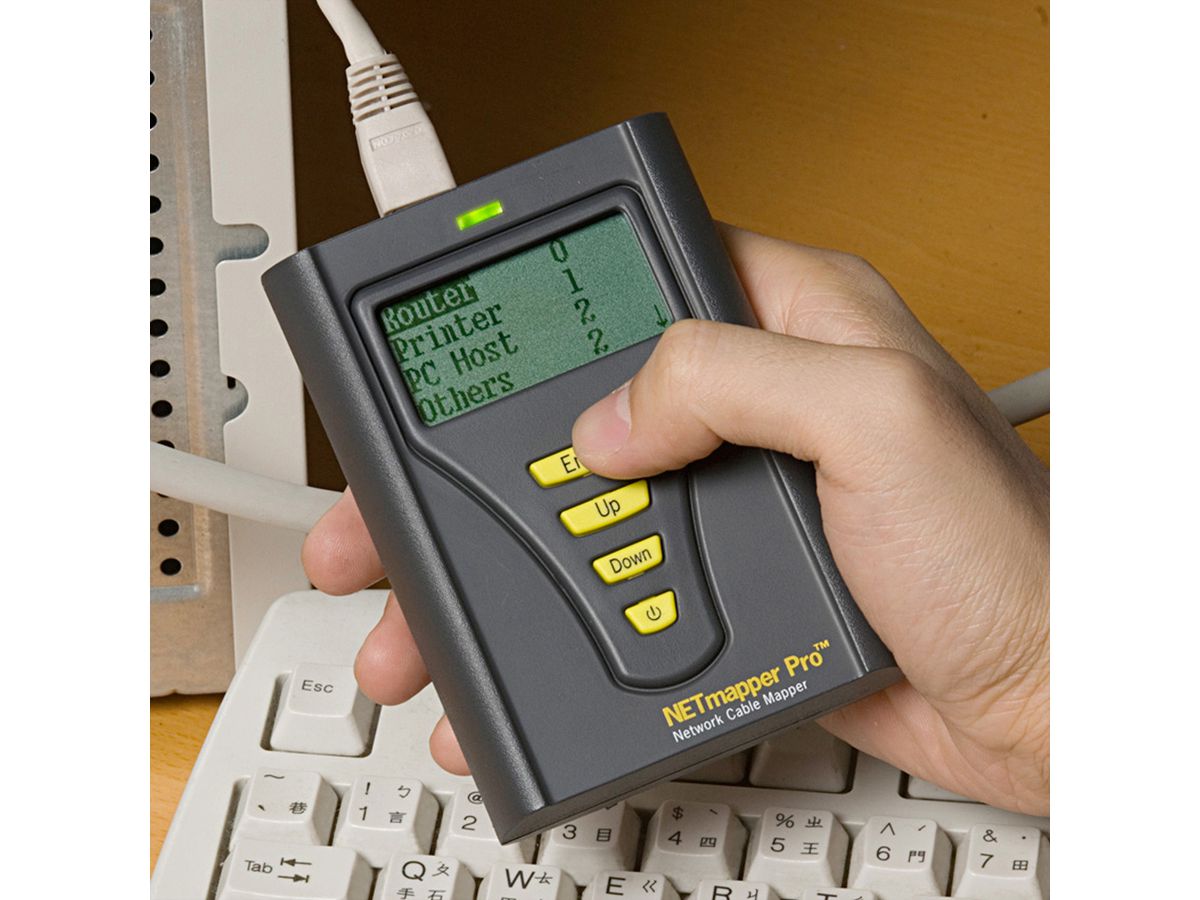

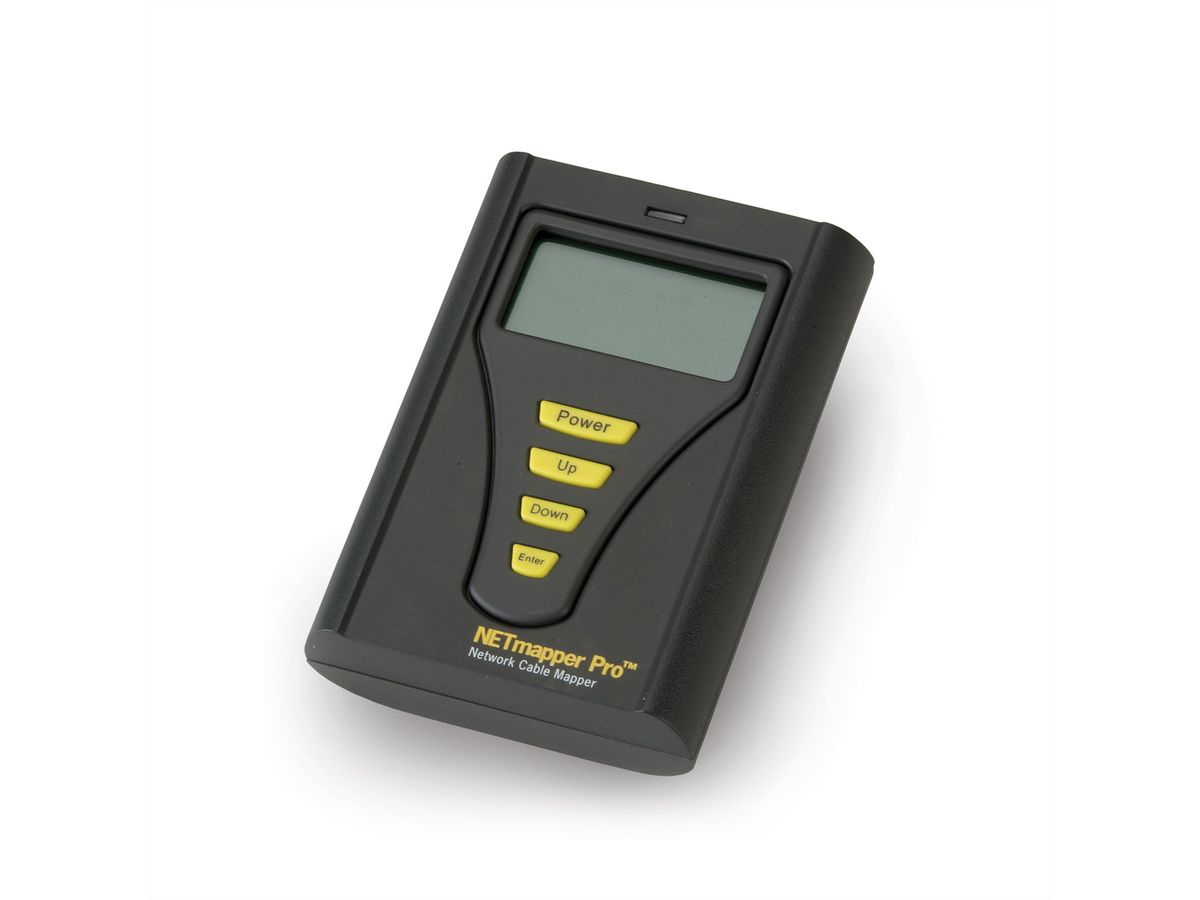

NETmapper Pro is a hand–held multifunctional network–testing device that integrates all On–line/Off–line and telephone line test functions in one tester. For On–line testing, it operates as a workstation; ping network devices and illustrates the machine name/IP address/MAC address and identifies all the network devices including Router, Printer and PC Host..etc. For Off–line testing, it operates as a professional cable checker.

Furthermore, the NETmapper Pro has integrated Digital Tone Generator and port-finder functions to trace and identify cables with precision. The NETmapper Pro works as an all in one full functional tester and a very useful tool for all professional network administrators to quickly verify network connectivity and obtain essential information from the entire networks for trouble shooting and maintenance.

SPECIFICATIONS

• Displays the Ethernet port status: Identifies Speed up to giga (10/100/1000)
• Ping default router, DNS Server and user defined device
• Scans and lists all the PC Host with IP address and computer host name or MAC address
• PC Host service detects: HTTP/Telnet/DHCP/FTP and SNMP services
• Incorporates port-finder function: locate corresponding socket on 10/100M or giga hub/switch
• Wire map results are displayed in a pin–to–pin format

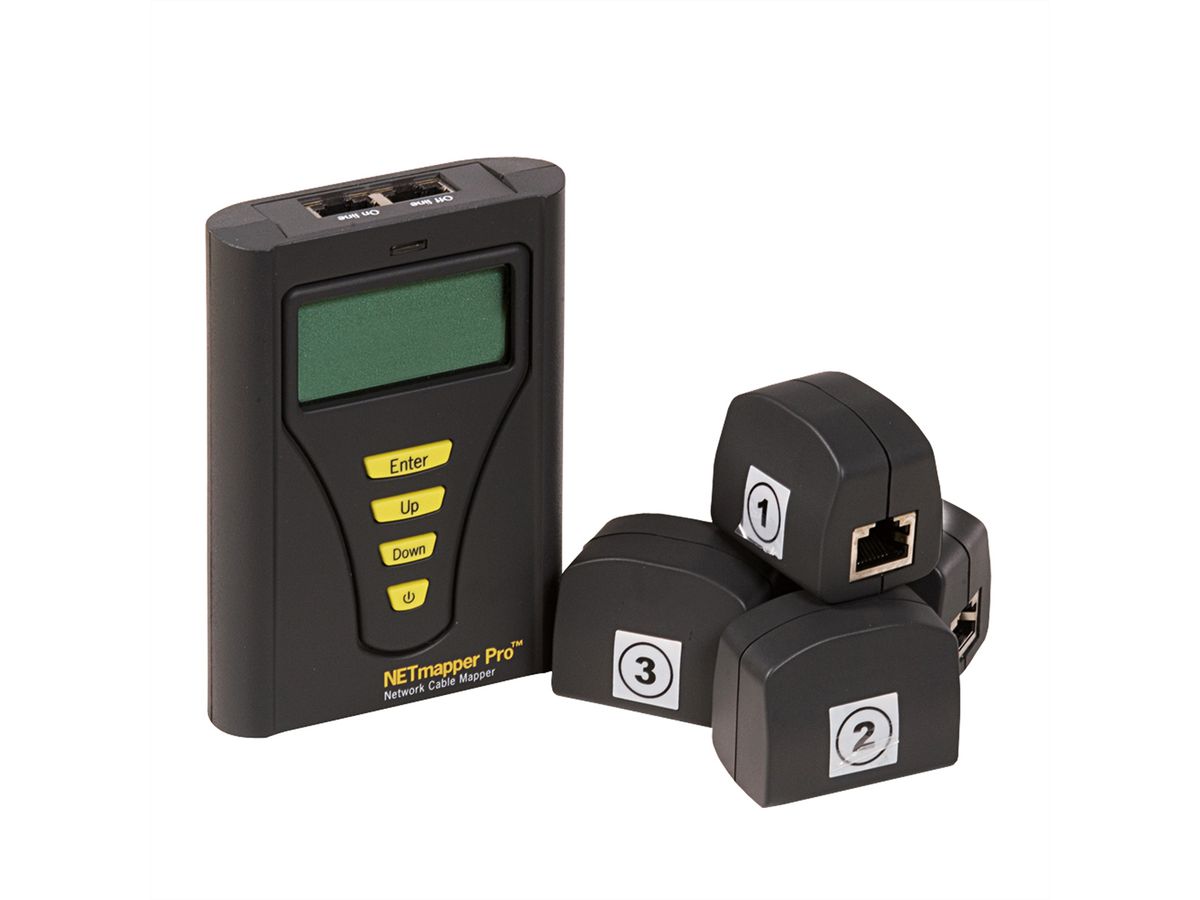

• Remote ID number indication for recognition on workstations
• RJ-45 ports on main unit for either On–line or Off–line Test
• Measures cable length without remote of Cat5, Cat5e, Cat6 and Cat7 cables
• Self–calibrating ability for non–standard cable tester (length test) and/or to increase measuring accuracy
• User define unit of measurement in meter or feet for cable length tests
• The Tone Generator function sends 1kHz tone on all pins with 4 special tonalities (The Digital generator function sends single tone and dual tone)
• Automatically detects POE devices and voltage

Display: LCD
Connector type: RJ-45
Accuracy: ±2m less than 10m, ±5% over 10m
Test range for cable length: 1 to 300m
Split pairs detection: minimum 1.5m
Tone generator: Single/dual digital tone
Operating temp. : 0ºC to 50ºC
Storage temp. : -30℃ to 50℃
Humidity: 10% to 90%
Master Dimensions: 110 x 78 x 31mm
Remote Dimensions: 44 x 32 x 28.5mm
Weight: 145g
Battery: 4 x AAA battery
