HOBBES OPTISource 850-1300-1310-1550 nm

HOBBES OPTISource 850-1300-1310-1550 nm

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 13.01.3264-2
Brand / Manufacturer HOBBES
Manuf. no. 257823
EAN 7630049697966
Package weight 0.782 kg

Description

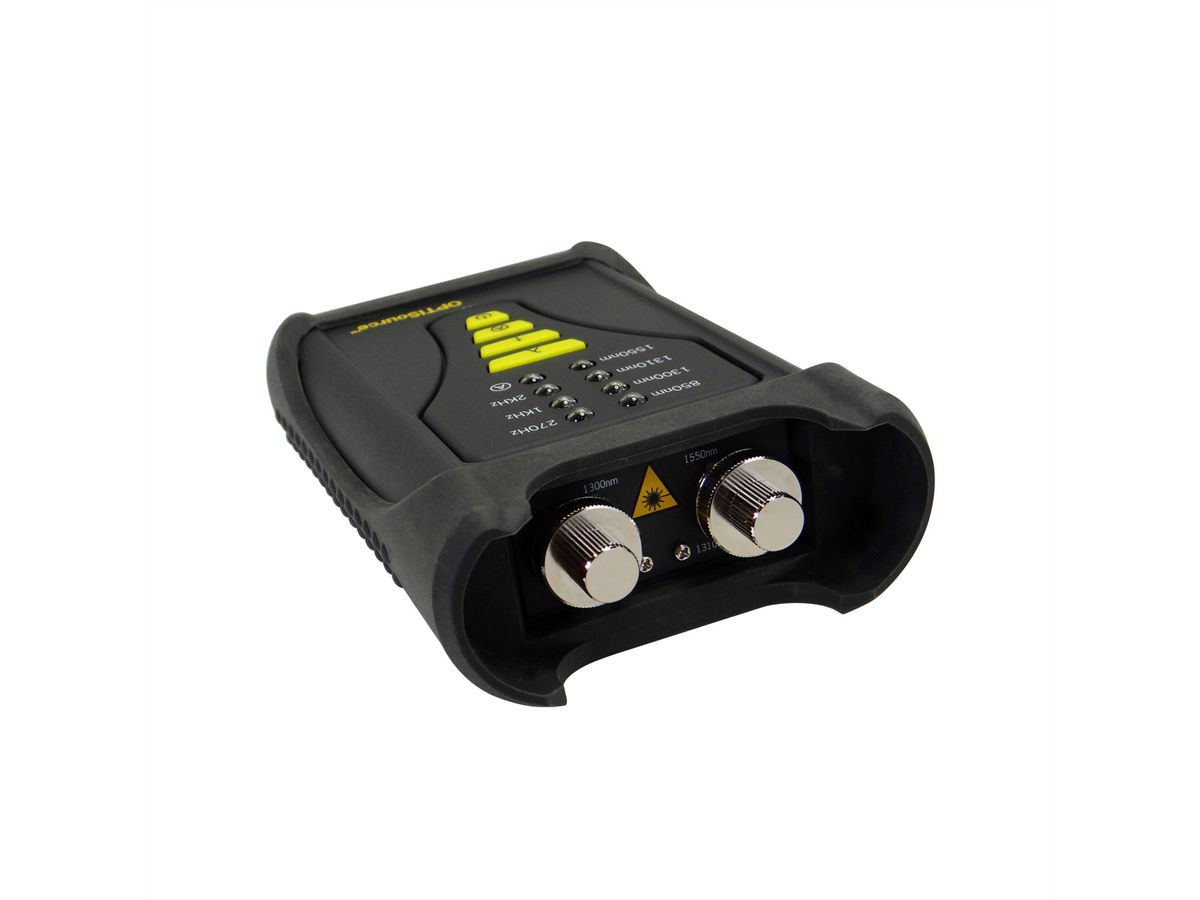

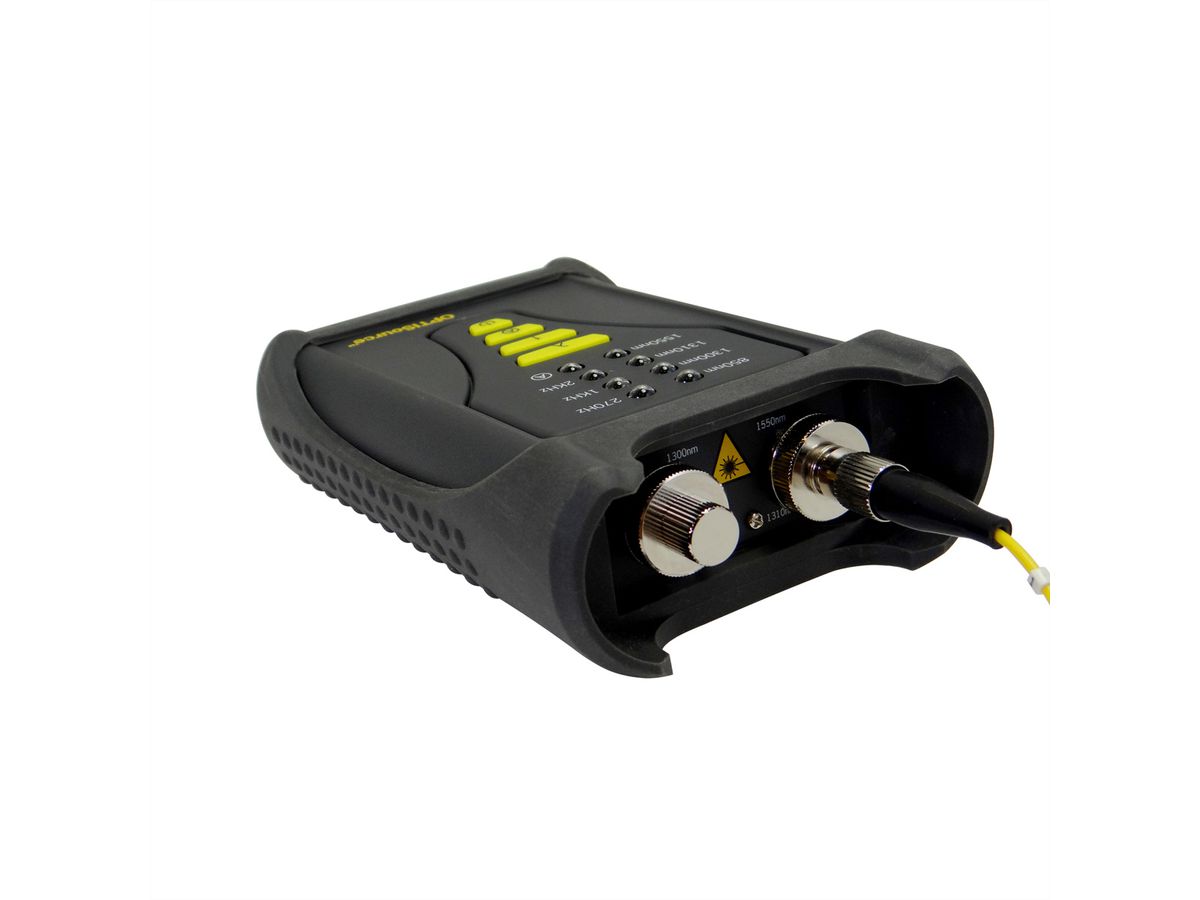

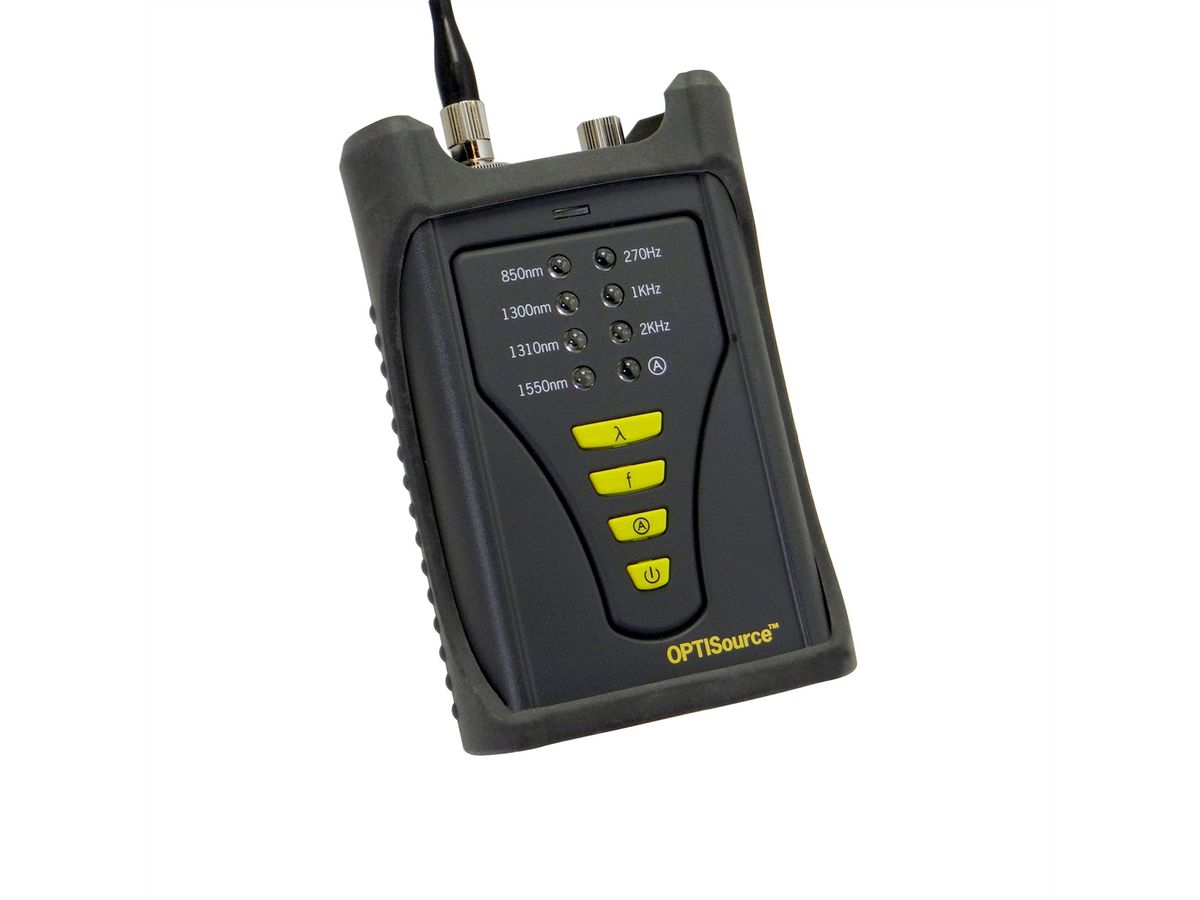

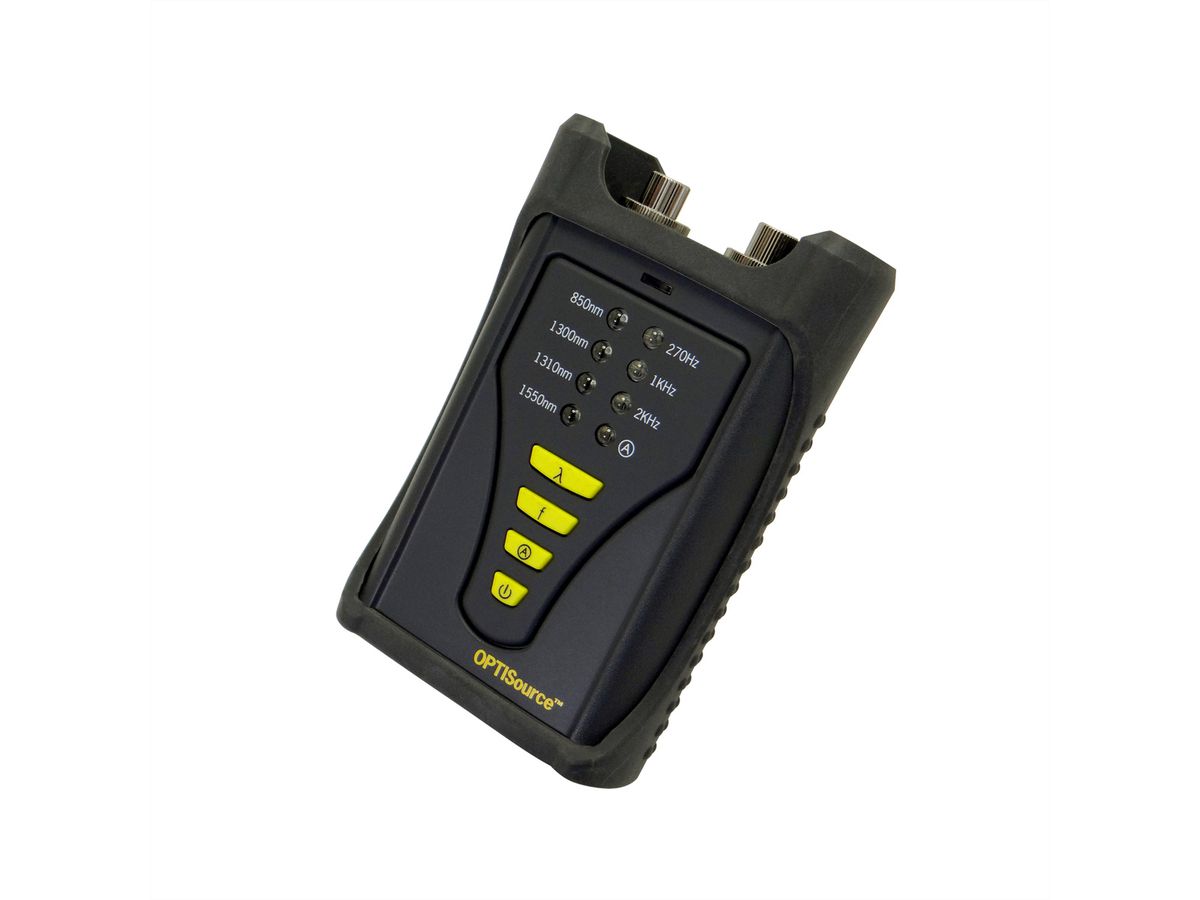

The OPTISource – Quad Wavelength SM/MM 850/1300/1310/1550nm Fiber Optic Light Source is a high performance stabilized source that is widely used in fiber network installation and maintenance.
New version OPTISource - Fiber Optic Light Source can provide the single wavelength output according to specific requirements including 1310/1490/1550/1625nm wavelength for the single–mode and 850/1300nm wavelength for the multi–mode.
With replaceable FC, SC, ST connectors and SMARTFiber - Optical Power Meter or SMARTFiber Pro - Optical Power Meter With Data Storage, this choice brings you an economic a

  • There are three output modes for each wavelength: CW/MOD/AUTO-IDENTIFY
  • CW and 270Hz, 1kHz, 2kHz modulated signals
  • Auto–identify wavelength indicator (Full compatibility with Hobbes Optical Power Meter to be use as a complete set)
  • LED indicators
  • Auto power off for power saving

SPECIFICATIONS

- Wavelength: 850nm, 1300nm, 1310nm, 1550nm
- Spectral width: ≤5nm
- Output power: ≥–13dBm@850/1300nm; ≥–5dBm@1310/1550nm
- Stability: ±0.15dB/8hr@1310/1550nm; ±0.25dB/8hr@ 850nm/1300nm
- Connector type: With replaceable FC, SC, ST connectors
- Auto power off: 30 min. without key pressed
- Frequency: 270Hz, 1kHz, 2kHz
- Battery: 4 x AAA
- Dimensions: 125 x 78 x 31mm
- Weight: 145g

Specifications

Manufacturer HOBBES
Product group Meters
Product type Fiber tester
Accessories: Rechargeable battery/battery required Micro battery (AAA), 04x
Height of packaging (single piece) 90 mm
Width of packaging (single piece) 220 mm
Depth of packaging (single piece) 250 mm
Package weight (single piece) 0.782 kg

Downloads

Manufacturer data sheet - English (454.9 KB)

Download

User manual - English (937.5 KB)

Download
