HOBBES OPTISource 850-1300-1310-1550 nm

Item no. 13.01.3264-2 Brand / Manufacturer HOBBES Manuf. no. 257823 EAN 7630049697966 Package weight 0.782 kg
HOBBES

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

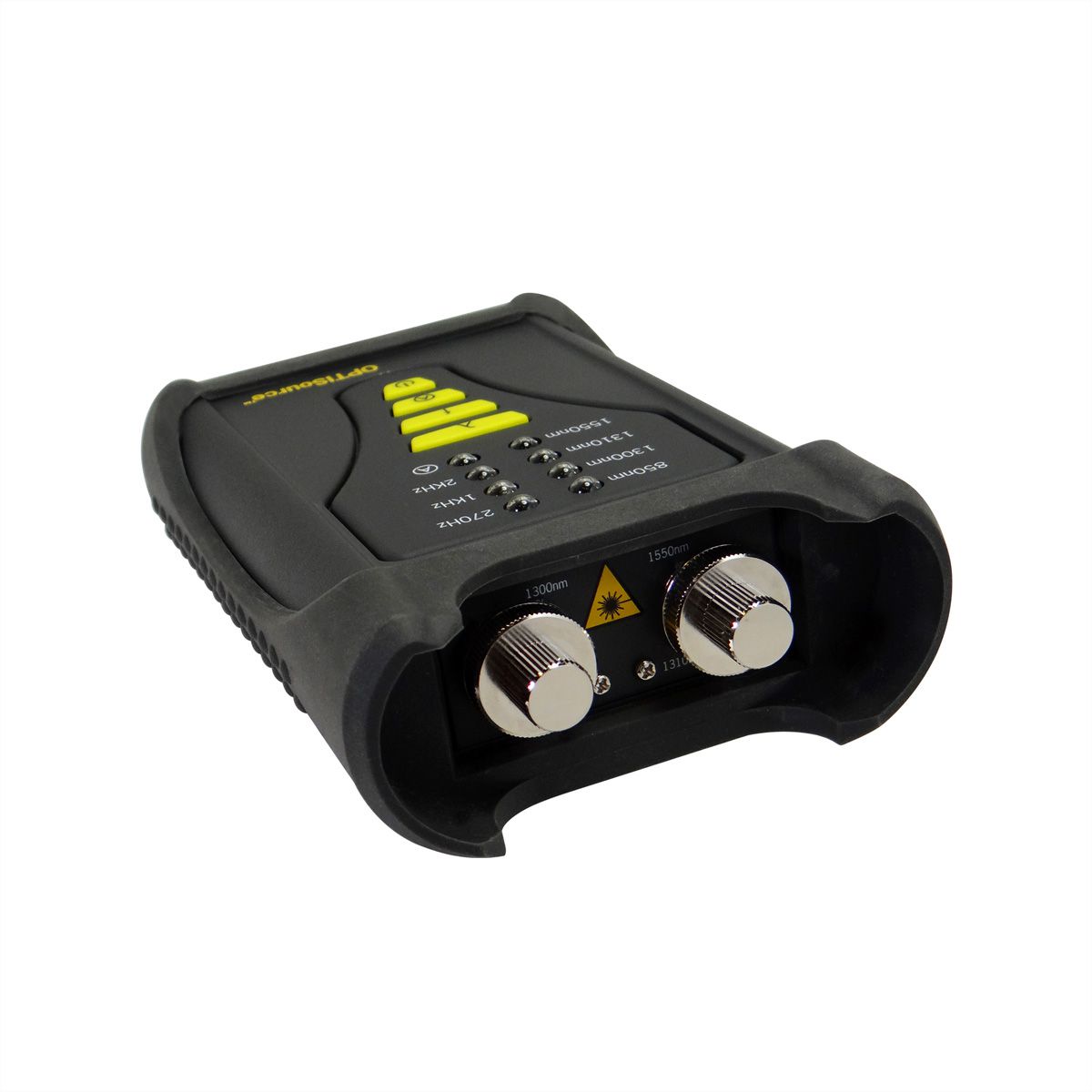

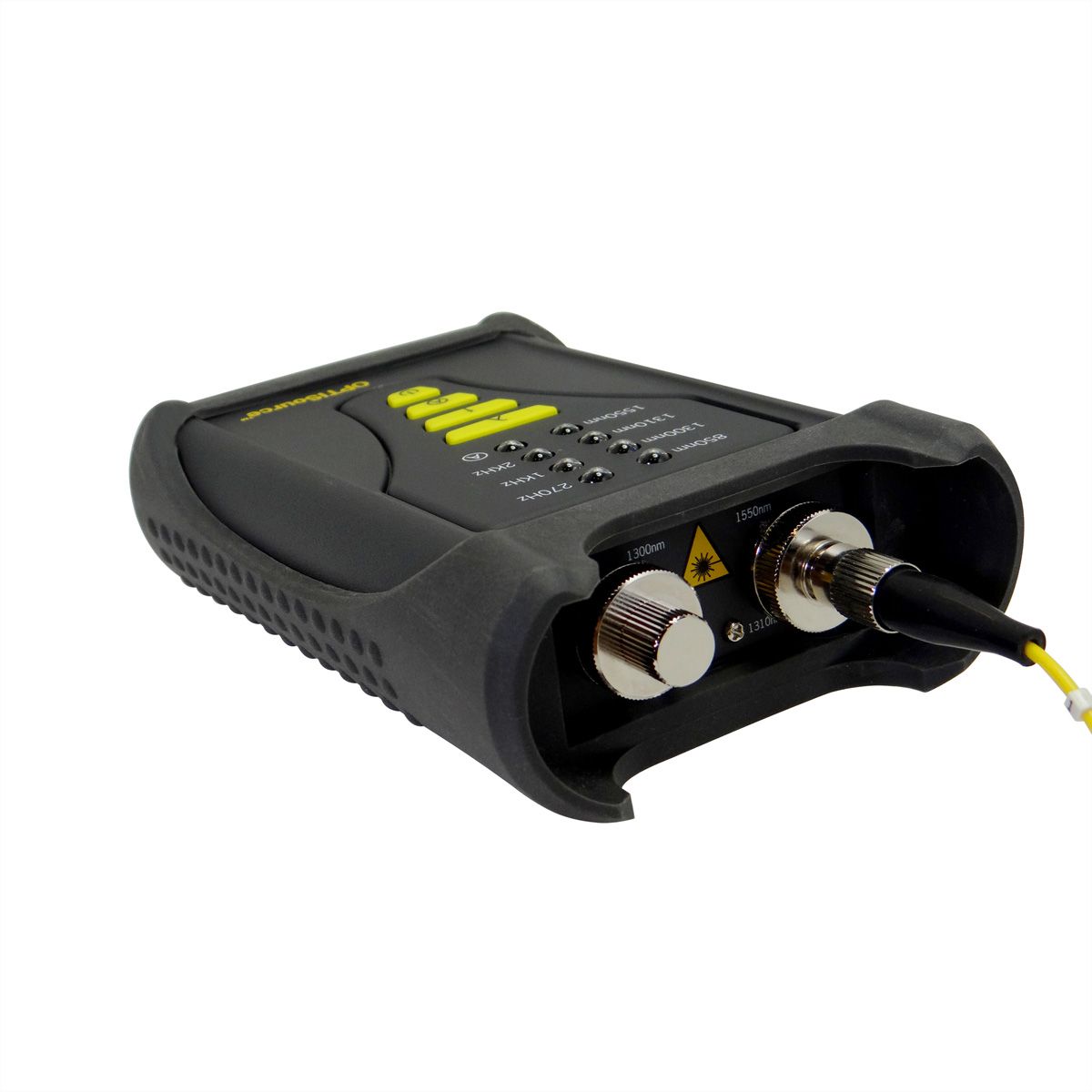

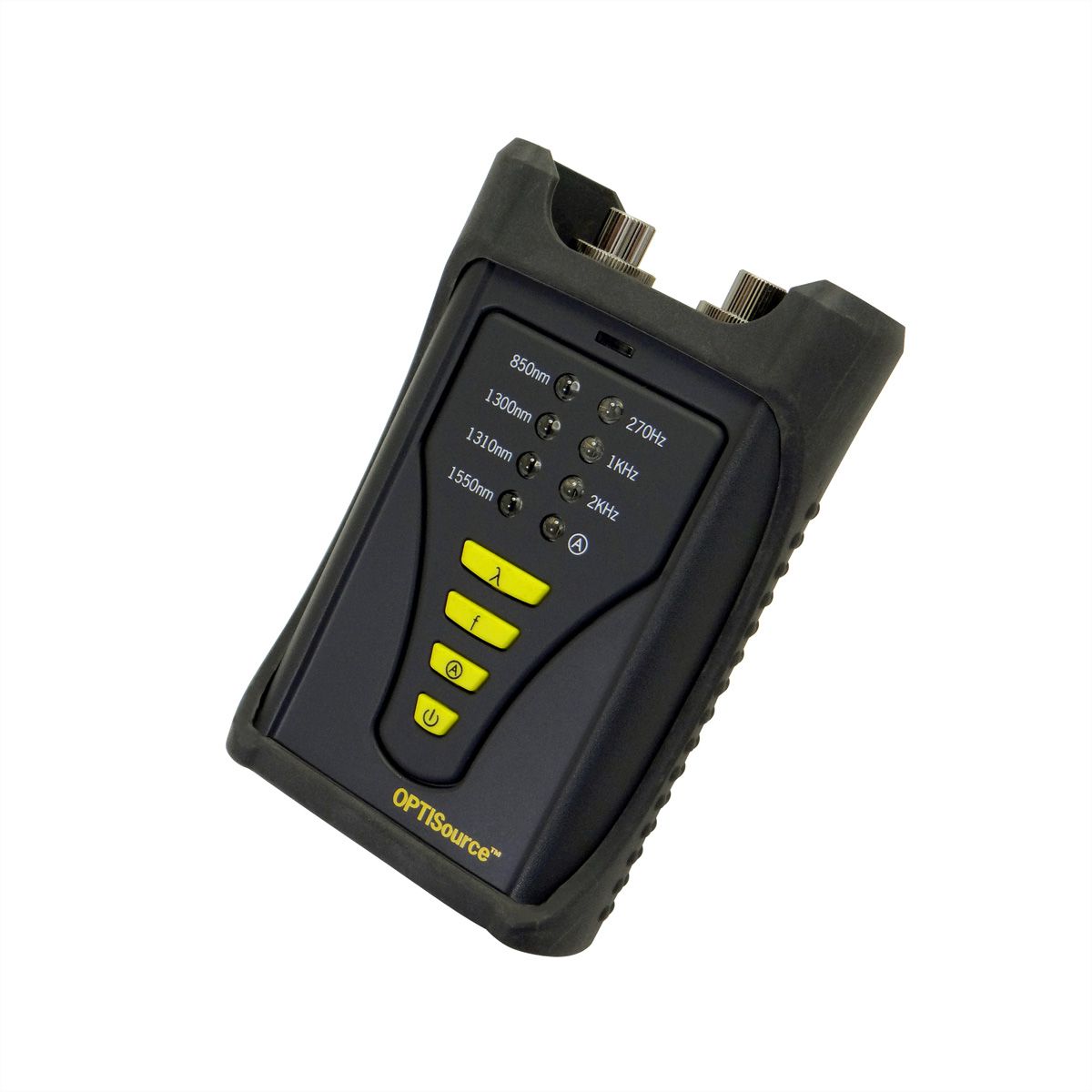

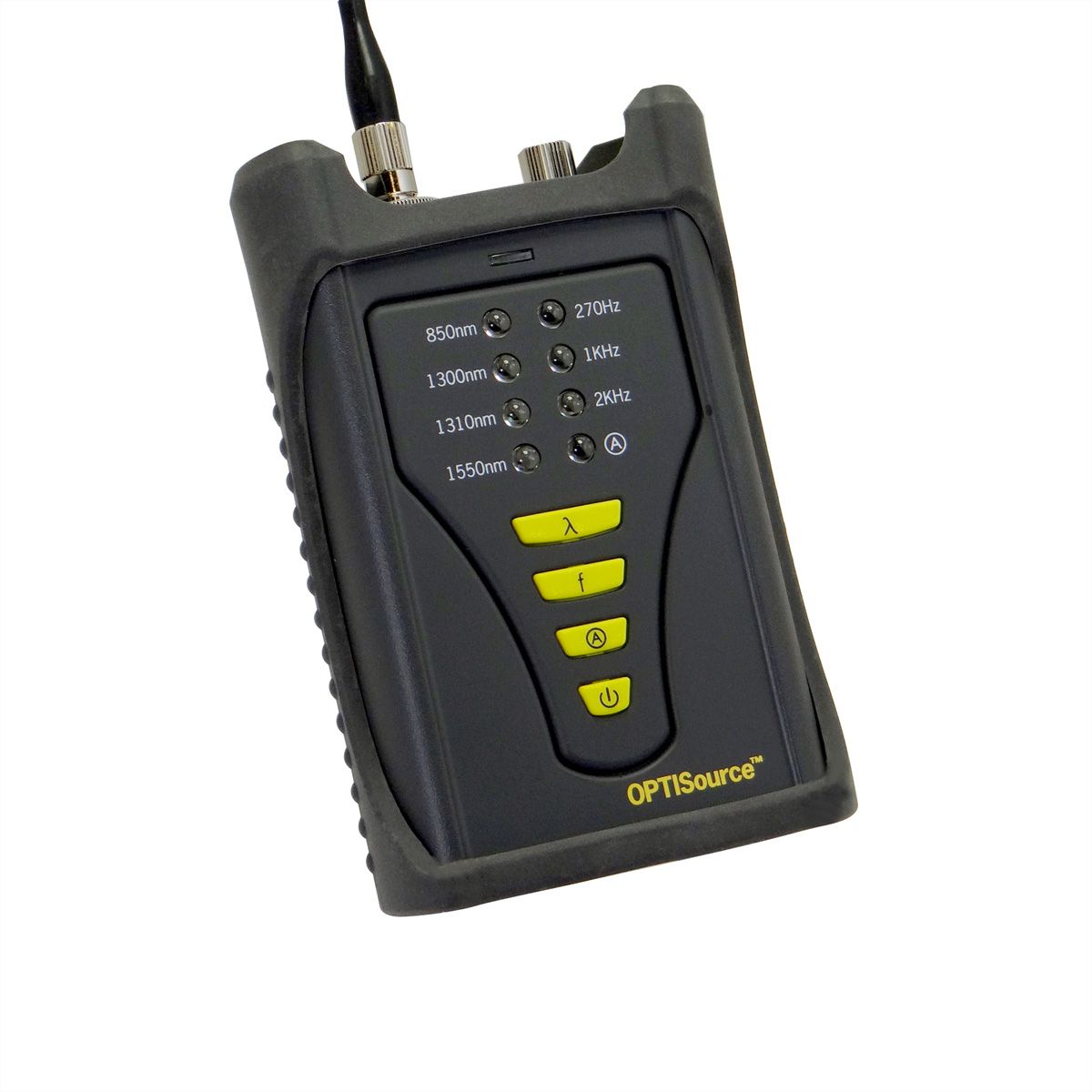

The OPTISource – Quad Wavelength SM/MM 850/1300/1310/1550nm Fiber Optic Light Source is a high performance stabilized source that is widely used in fiber network installation and maintenance. New version OPTISource - Fiber Optic Light Source can provide the single wavelength output according to specific requirements including 1310/1490/1550/1625nm wavelength for the single–mode and 850/1300nm wavelength for the multi–mode.

  • There are three output modes for each wavelength: CW/MOD/AUTO-IDENTIFY
  • CW and 270Hz, 1kHz, 2kHz modulated signals
  • Auto–identify wavelength indicator (Full compatibility with Hobbes Optical Power Meter to be use as a complete set)
  • LED indicators
  • Auto power off for power saving
- Wavelength: 850nm, 1300nm, 1310nm, 1550nm
- Spectral width: ≤5nm
- Output power: ≥–13dBm@850/1300nm; ≥–5dBm@1310/1550nm
- Stability: ±0.15dB/8hr@1310/1550nm; ±0.25dB/8hr@ 850nm/1300nm
- Connector type: With replaceable FC, SC, ST connectors
- Auto power off: 30 min. without key pressed
- Frequency: 270Hz, 1kHz, 2kHz
- Battery: 4 x AAA
- Dimensions: 125 x 78 x 31mm
- Weight: 145g

This device is classified as a CLASS 1 LASER product!
  • Avoid any exposure to eyes!
  • This device must only be used for its intended purpose. Any improper use of this
product may result in serious damage. Use with caution!
  • Keep the device safely stored and away from children!
  • NEVER LOOK INTO THE LASER BEAM!

Specifications

Manufacturer
HOBBES
Product group
Meters
Product type
Fiber tester
Battery category
Portable battery
Number of batteries
4 pieces
Battery type
AAA
Battery
required, not included
Height of packaging (single piece)
90 mm
Width of packaging (single piece)
220 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
0.782 kg

Downloads

Manufacturer data sheet - English (454.9 KB) User manual - English (937.5 KB) Safety instructions - Deutsch (196.6 KB) Safety instructions - English (196.6 KB) Safety instructions - Français (196.6 KB)
