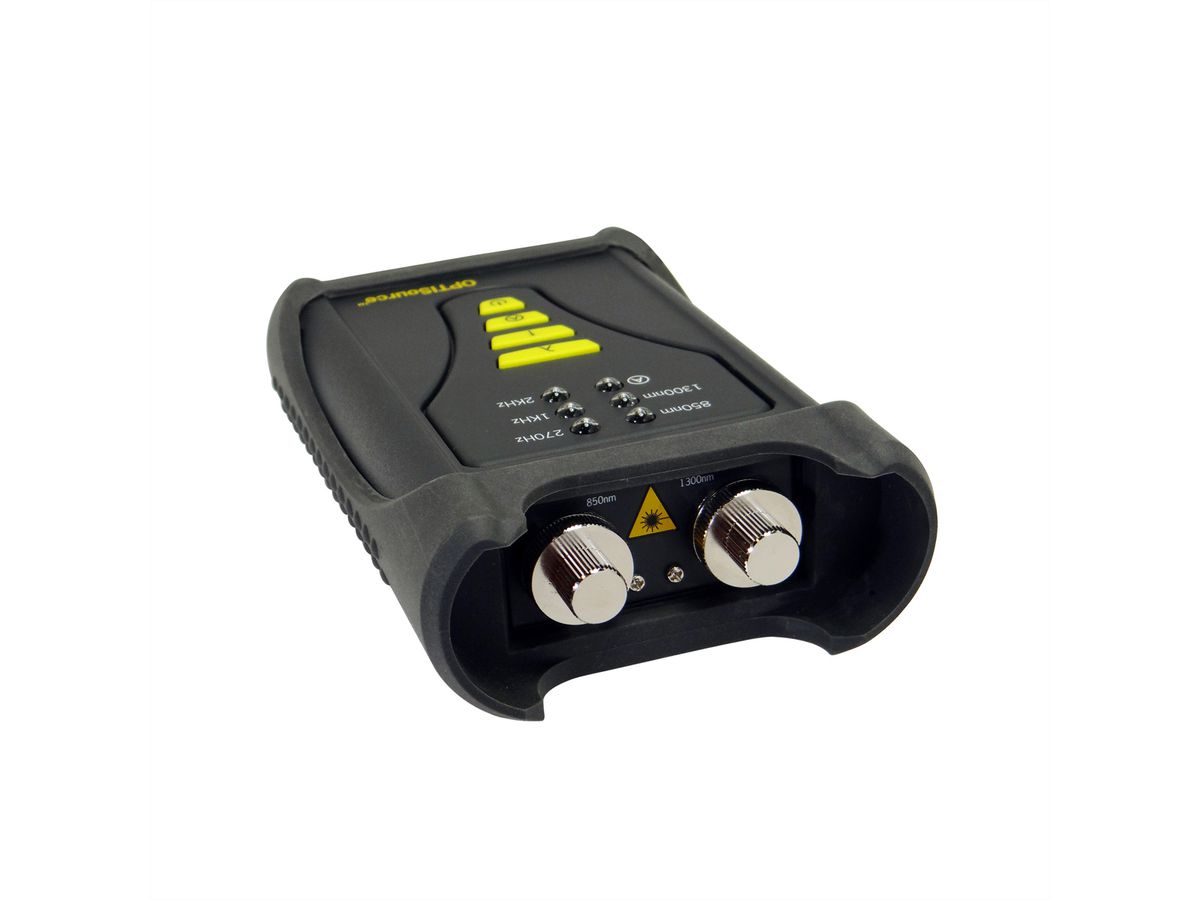

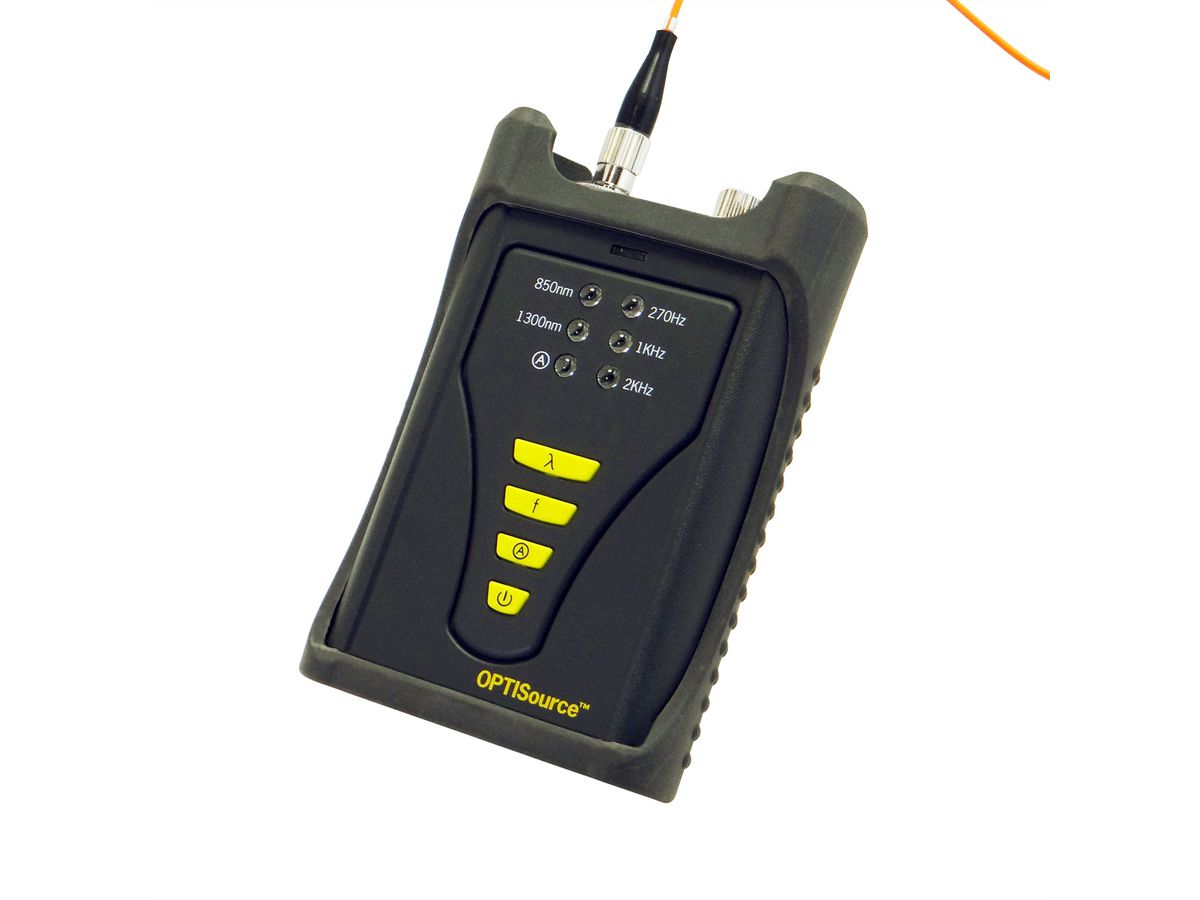

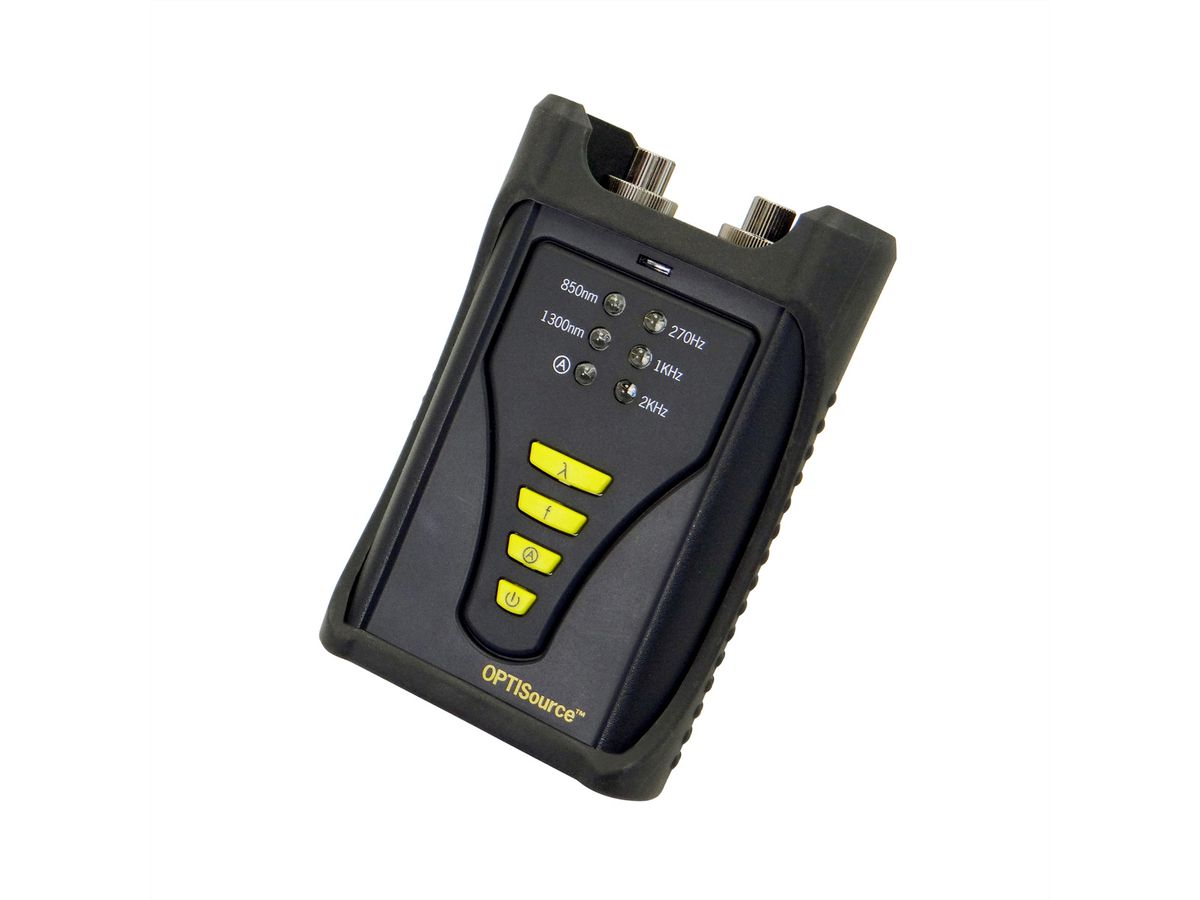

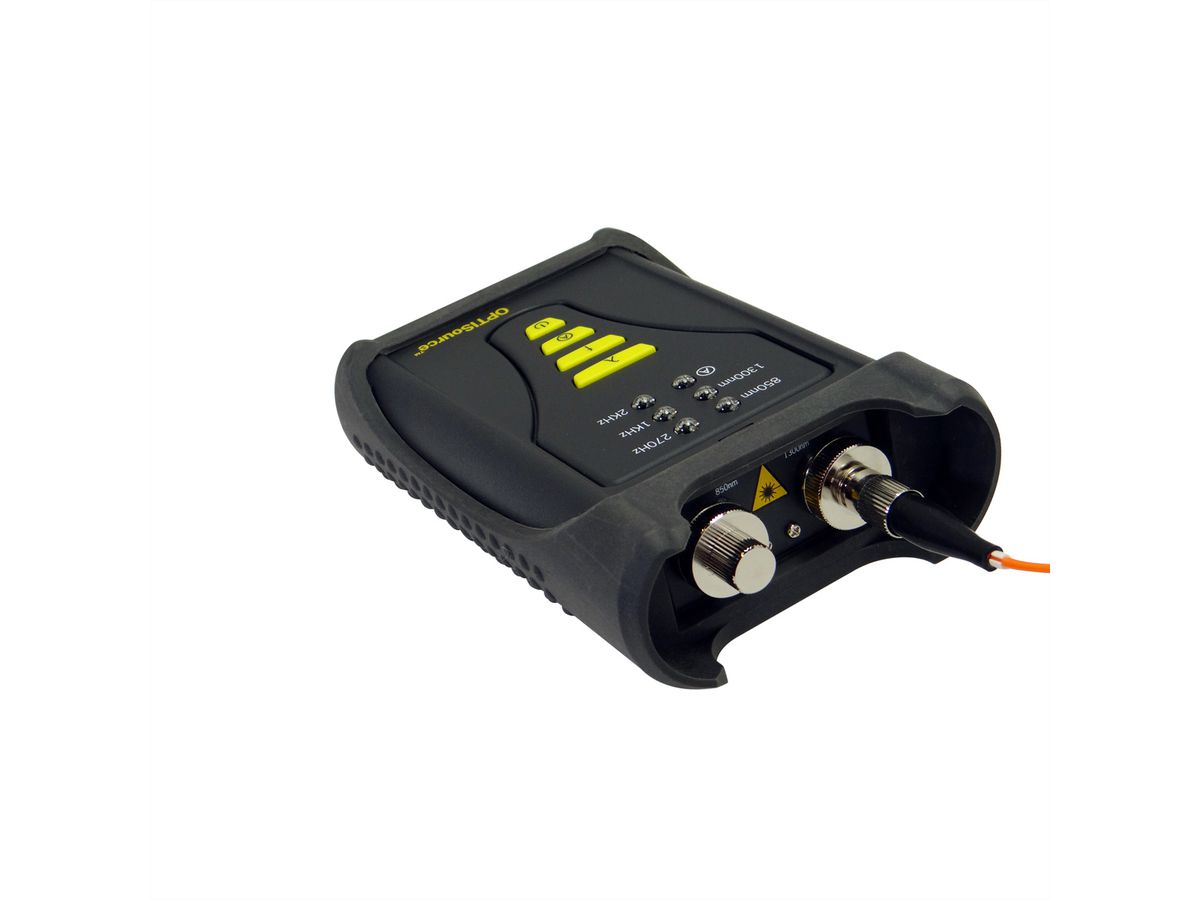

HOBBES OPTISource 850-1300 nm
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 13.01.3263-2 |
|---|---|
| Brand / Manufacturer | HOBBES |
| Manuf. no. | 257821 |
| EAN | 7630049697959 |
| Package weight | 0.502 kg |
:strip_icc():strip_exif()/logos/hobbes.png "HOBBES")
Description
The OPTISource is a high performance stabilized source that is widely used in fiber network installation and maintenance. New version of OPTISource can provide the single wavelength output according to specific requirements including 1310/1490/1550/1625nm wavelength for the single–mode and 850/1300nm wavelength for the multi–mode. With replaceable FC, SC, ST connectors and Hobbes’ power meter (SMARTFiber or SMARTFiber Pro), this choice brings you an economic and efficient solution for the fiber optic network tasks.
- There are three output modes for each wavelength: CW/MOD/AUTO–IDENTIFY
- CW and 270Hz, 1kHz, 2kHz modulated signals
- Auto–identify wavelength indicator (Full compatibility with Hobbes Optical Power Meter to be use as a complete set)
- LED indicators
- Auto power off for power saving
- Spectral width: ≤5nm
- Output power: ≥–13dBm@850/1300nm
- Stability: ±0.25dB/8hr@850nm/1300nm
- Connector type: With replaceable FC, SC, ST connectors
- Auto power off: 30 min. without key pressed
- Frequency: 270Hz, 1kHz, 2kHz
- Battery: 4 x AAA
- Dimensions: 125 x 78 x 31mm
- Weight: 145g
- This device is classified as a CLASS 2 LASER product!
- Avoid any exposure to eyes!
- This device must only be used for its intended purpose. Any improper use of this
- Keep the device safely stored and away from children!
- NEVER LOOK INTO THE LASER BEAM!
Specifications
| Manufacturer | HOBBES |
|---|---|
| Product group | Meters |
| Product type | Fiber tester |
| Accessories: Rechargeable battery/battery required | Micro battery (AAA), 04x |
| Weight | 173.5 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 160 mm |
| Depth of packaging (single piece) | 210 mm |
| Package weight (single piece) | 0.502 kg |
