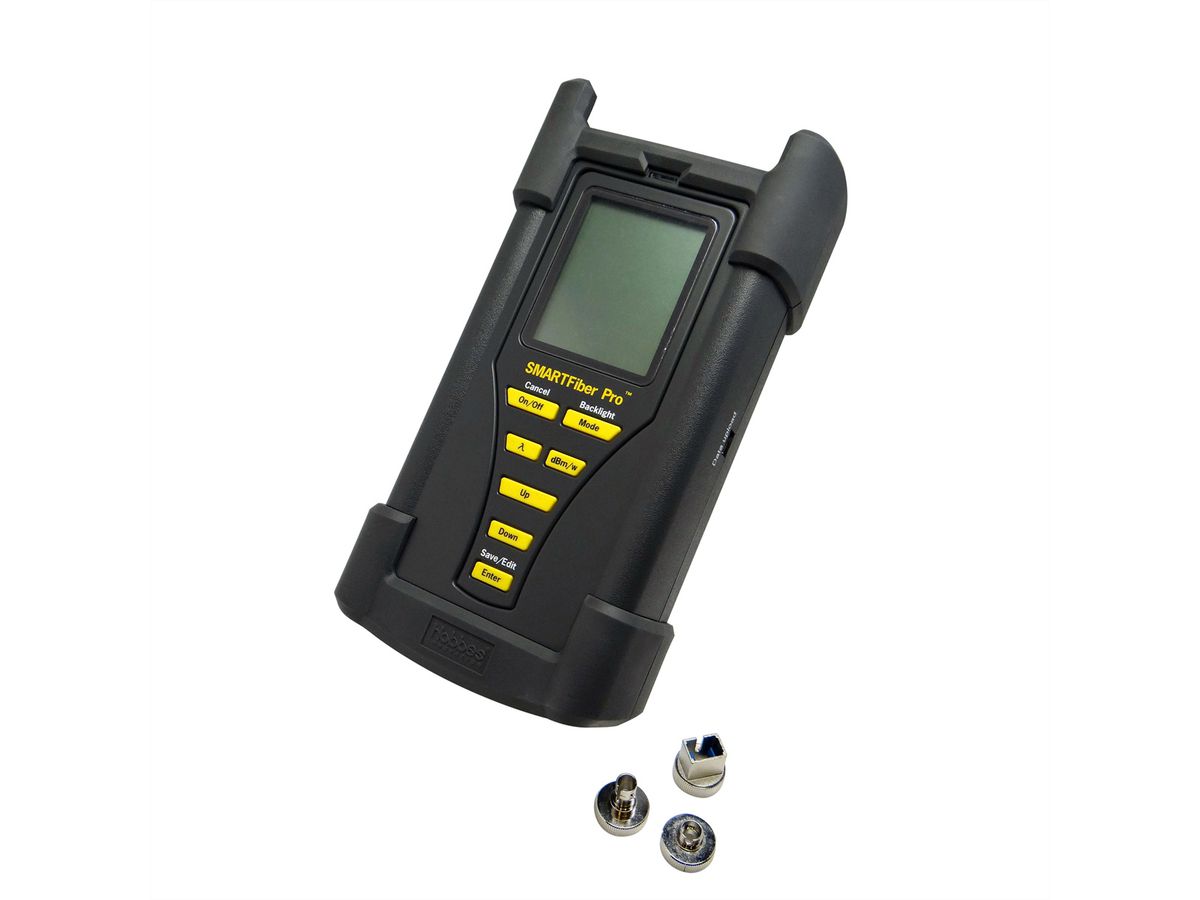

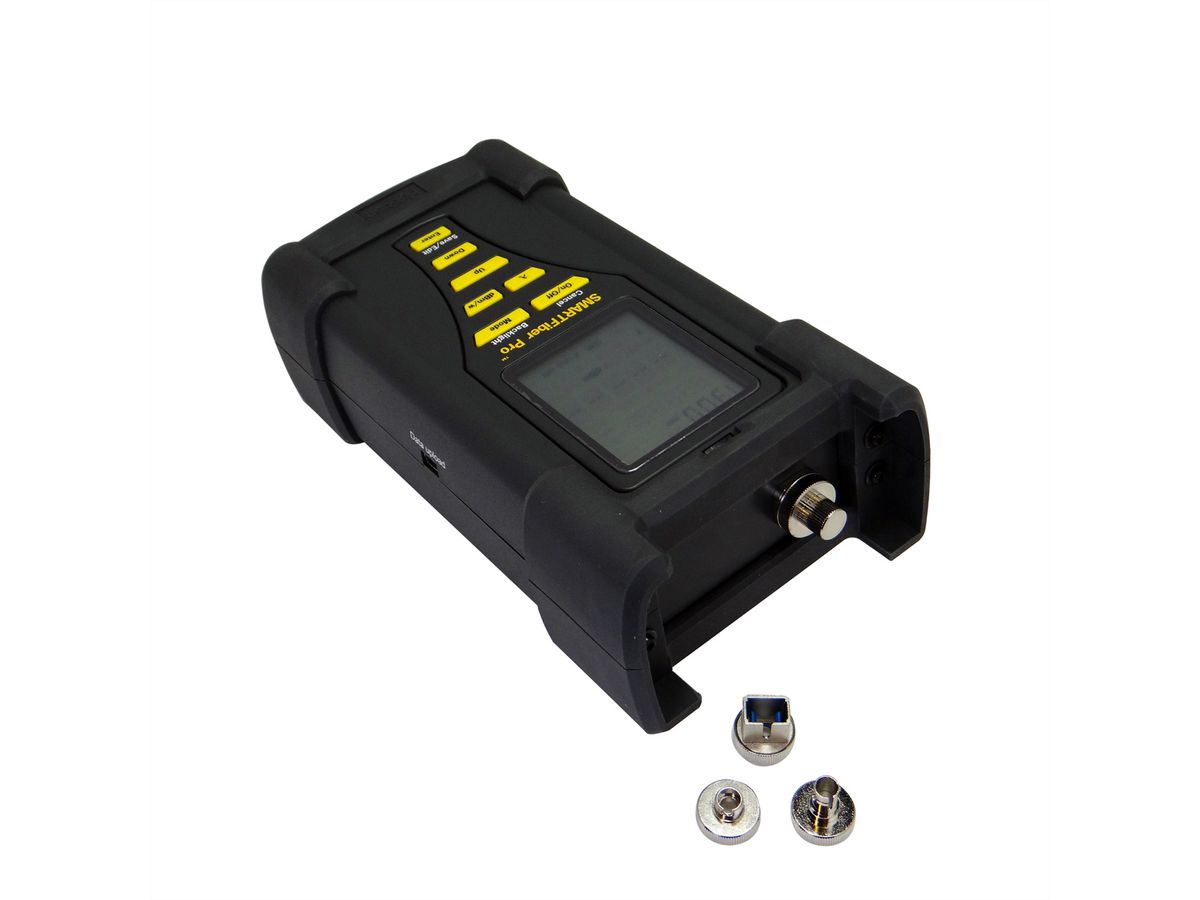

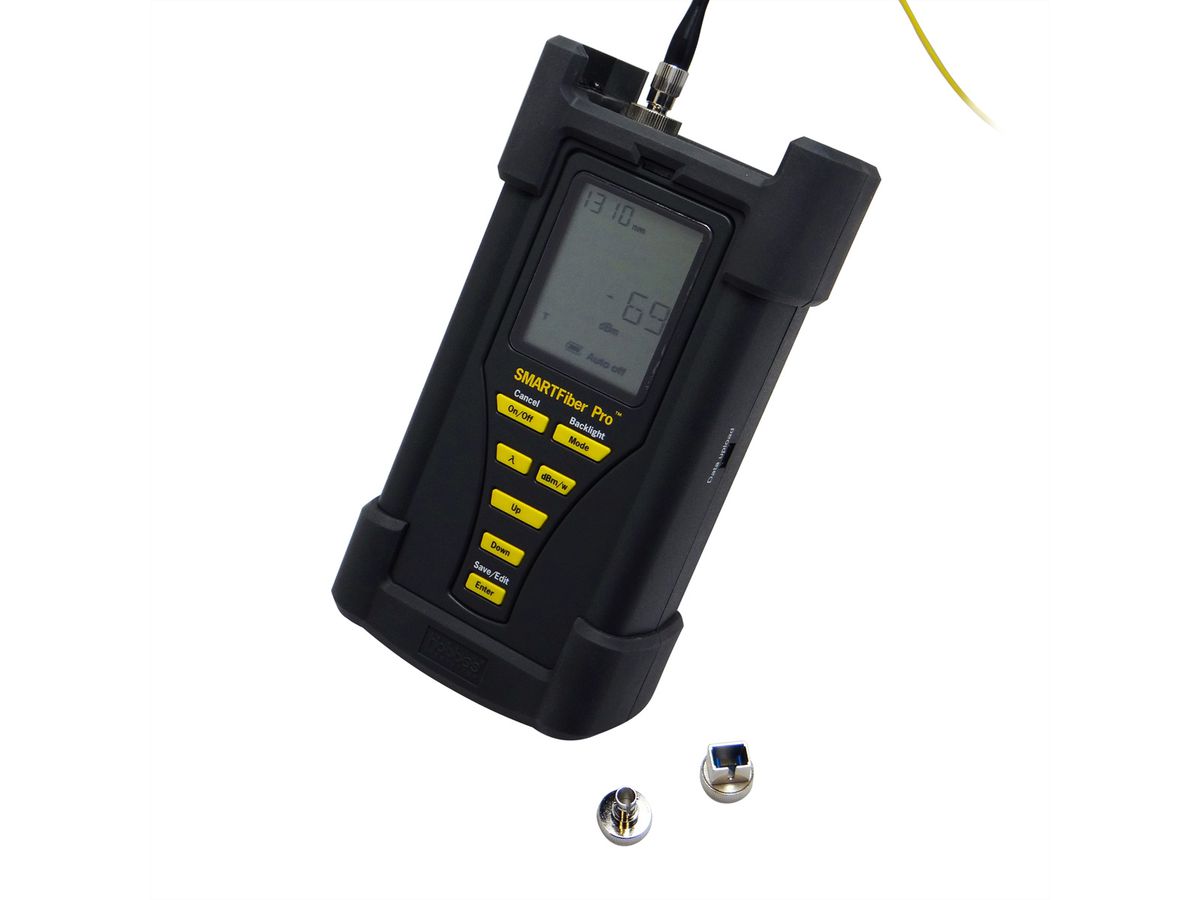

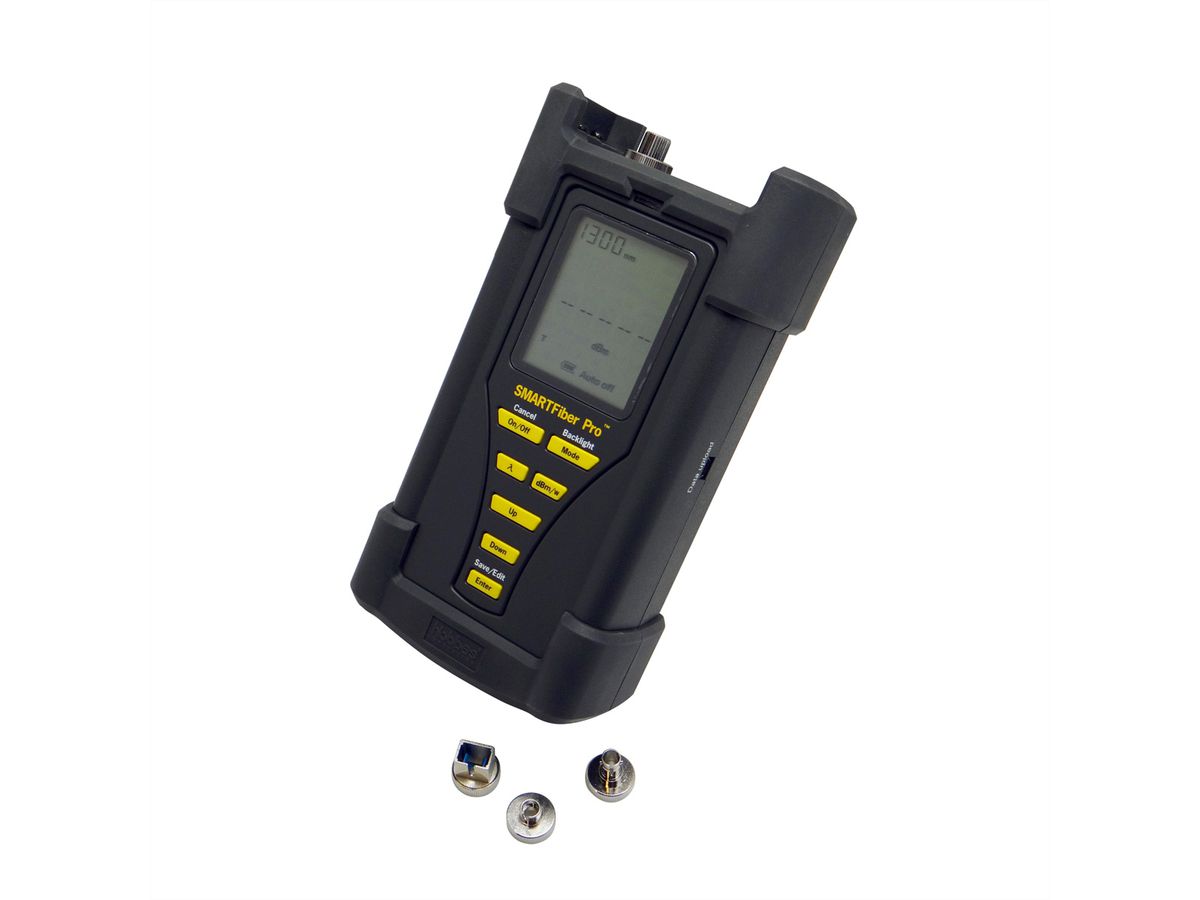

HOBBES SMARTFiber Pro

HOBBES SMARTFiber Pro

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 13.01.3276-1
Brand / Manufacturer HOBBES
Manuf. no. 257835PRO
EAN 7630049698086
Package weight 1.288 kg

Description

The Optical Power Meter is a high accuracy optical power measurement tool. It tests dynamic range of optical power from +3 to –60dBm with six calibrated wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.

With Hobbes Optical Power Meter, it displays a pass or fail result according to the threshold the user has defined. It also has the capability to identify modulate signals (270Hz, 1kHz, 2kHz) simultaneously by the power source for identification purposes. For fast and easy operation in testing the corresponding wavelengths, we recommend the Hobbes optical light source (OPTIsource) as a complete instrument in auto–identifying wavelength of optical power source.

It utilizes an InGaAs detector for an improved sensitivity and temperature stability. It also has the capacity to record up to 1000 test data that is up–loadable to a PC via USB connection for easy and convenient report purposes.

SPECIFICATIONS

  • Portable, high accuracy and dynamic power meter
  • Calibrated at 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm
  • Relative and absolute power display
  • With self–calibrated ZERO function
  • Ideal for both multi–mode and single–mode optical fibers
  • Identify modulate signals (270Hz, 1kHz, 2kHz) for identification purposes
  • Automatic wavelength switching
  • Optional adapter to test both 2.5mm/1.25mm fiber cables
  • Battery low indicator and auto power shut off
  • 1000 data item storing and uploading
  • Pass/fail indication by user–defined threshold

Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Sensor type: InGaAs
Dynamic range: +3 to –60dBm
Accuracy: ±0.15dB±1nW@1300nm/1310nm/1490nm/1550nm; ±0.25dB±1nW@850nm/1625nm
Resolution: 0.01dB
Unit: dBm, Watt, dB
Fiber connector: interchangeable adaptor for FC, ST and SC
2.5mm to 1.25mm adapter spec.: Insertion Loss: ≤0.3dB Pull strength test 100~300g, 2.5mm and 1.25mm universal
Operating temp.: -10°C to 50°C
Storage temp.: -40°C to 70°C
Battery: AA battery x 4 (6V)
Dimensions: 202.8 x 107 x 64.5mm
Weight: 550g (without battery)

Specifications

Manufacturer HOBBES
Product group Meters
Product type Fiber tester
Accessories: Rechargeable battery/battery required Mignon battery (AA), 04x
Weight 546.5 g
Height of packaging (single piece) 140 mm
Width of packaging (single piece) 170 mm
Depth of packaging (single piece) 300 mm
Package weight (single piece) 1.288 kg

Downloads

Manufacturer data sheet - English (306.1 KB)

Download

User manual - Deutsch (4.0 MB)

Download

User manual - English (4.0 MB)

Download
