Description

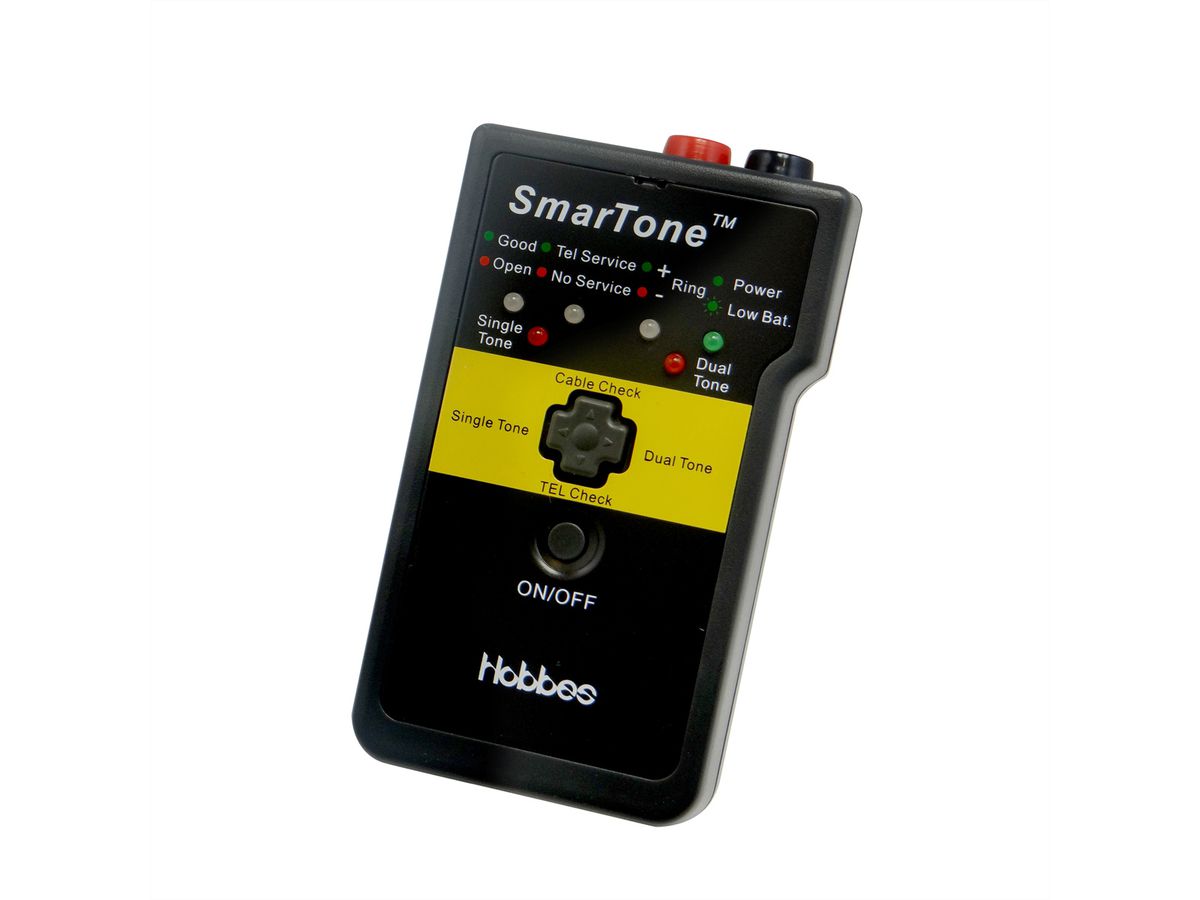

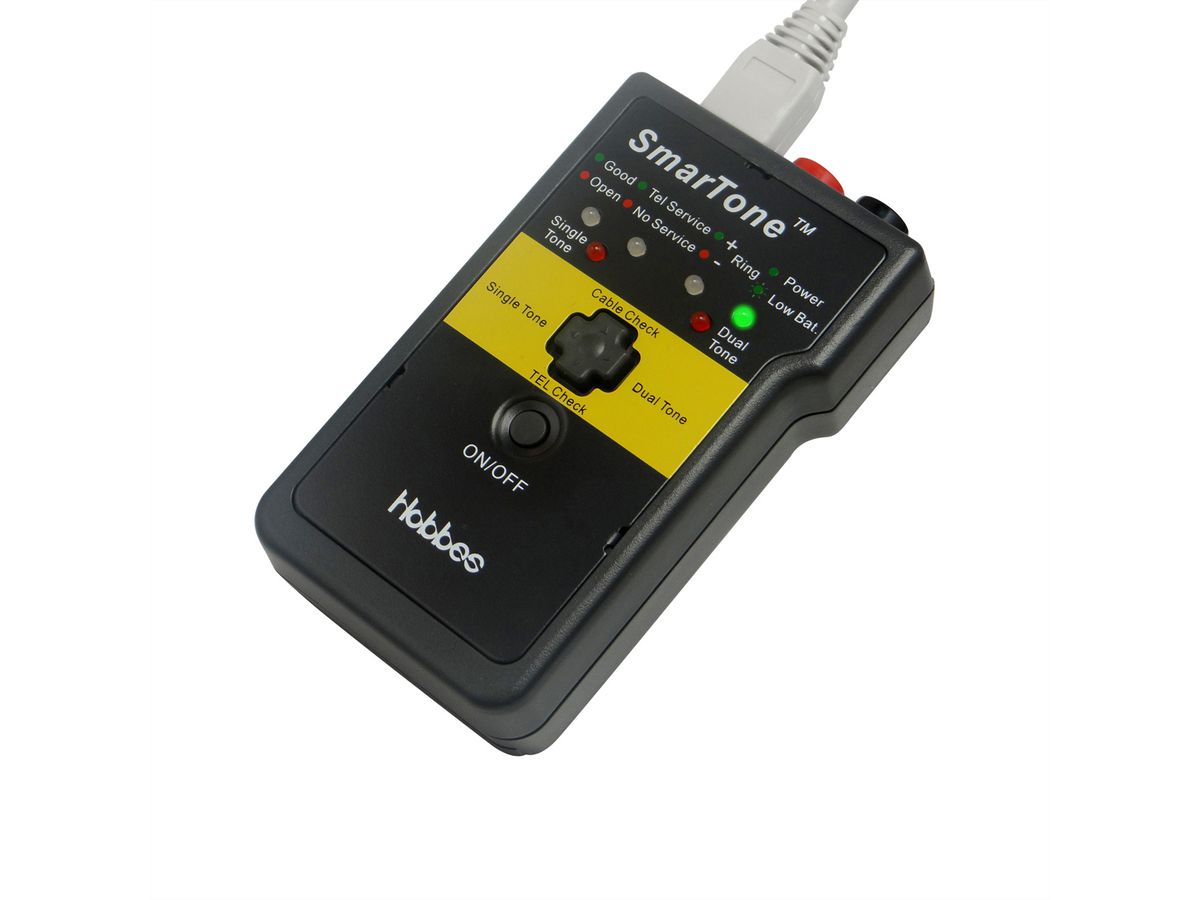

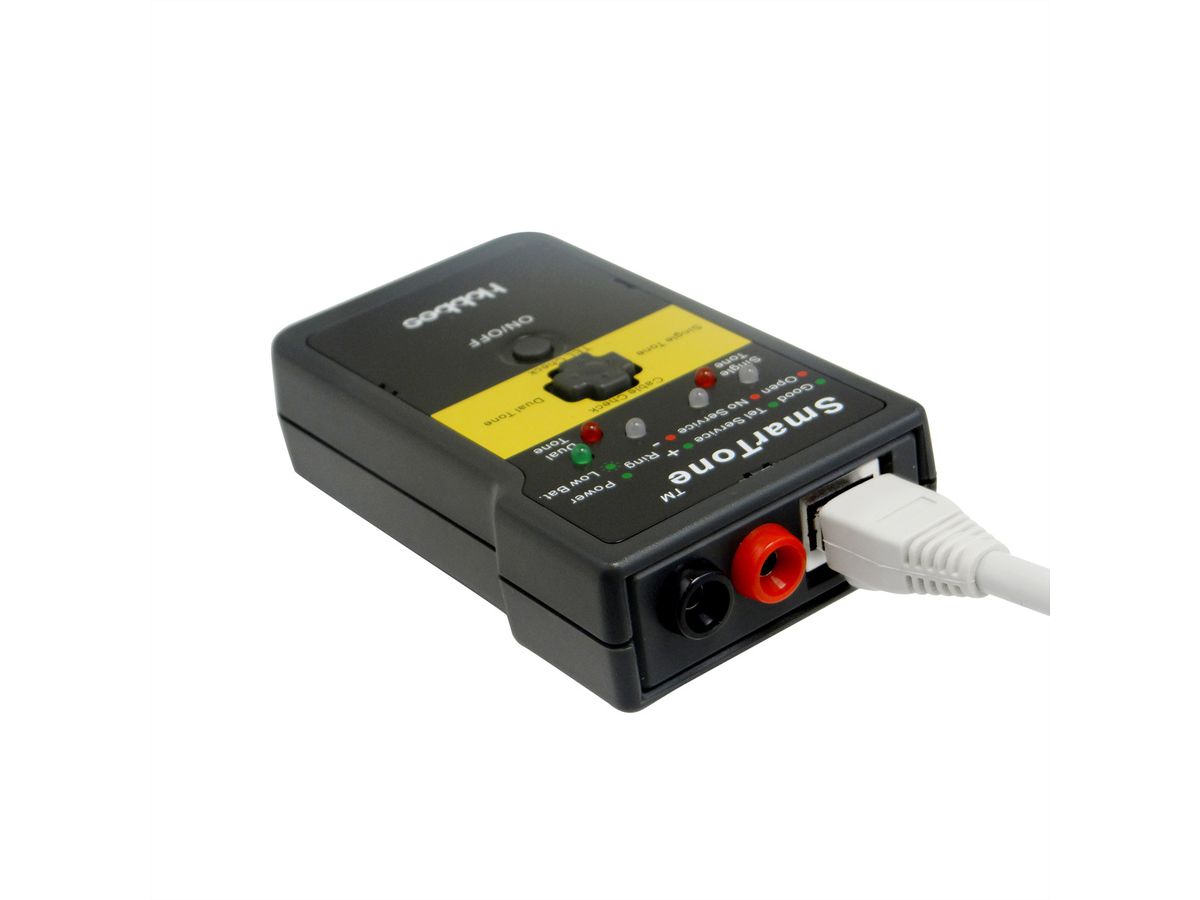

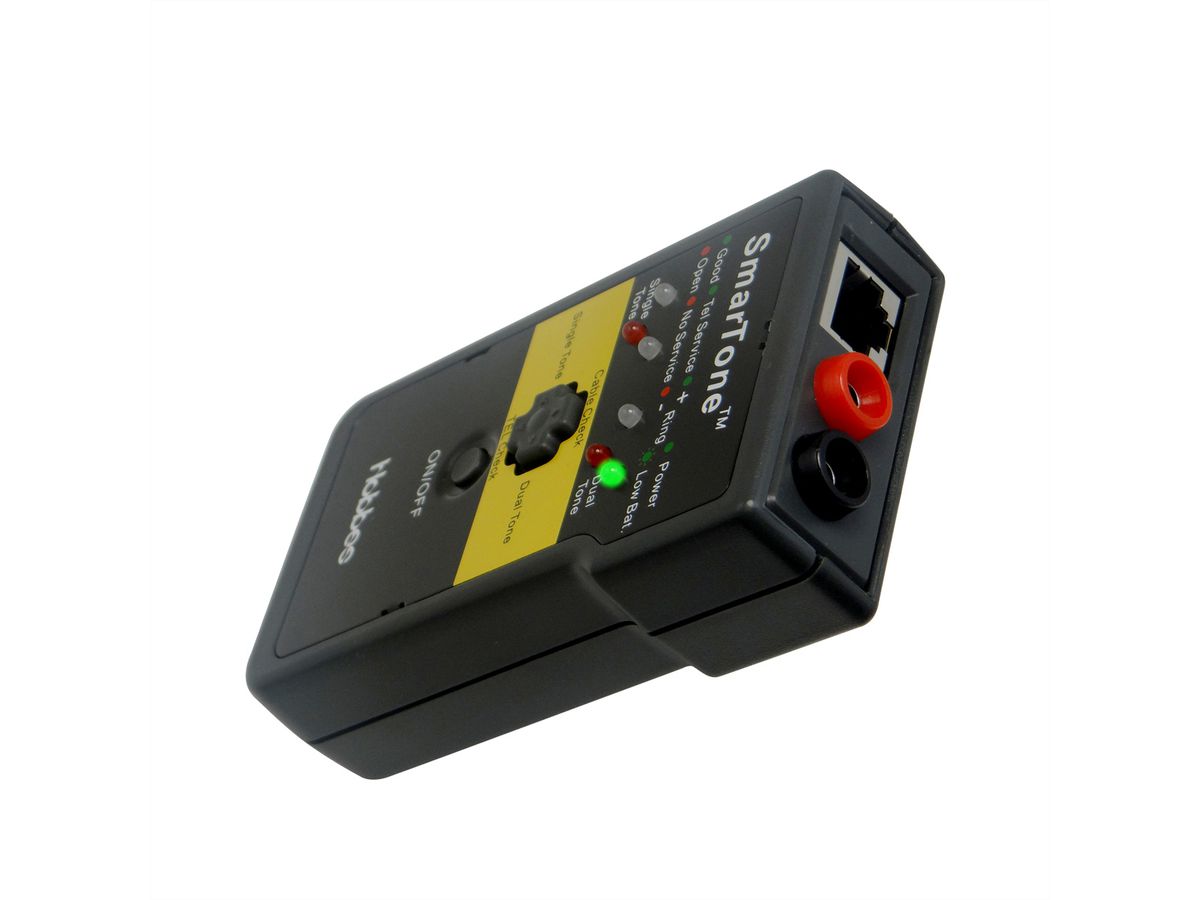

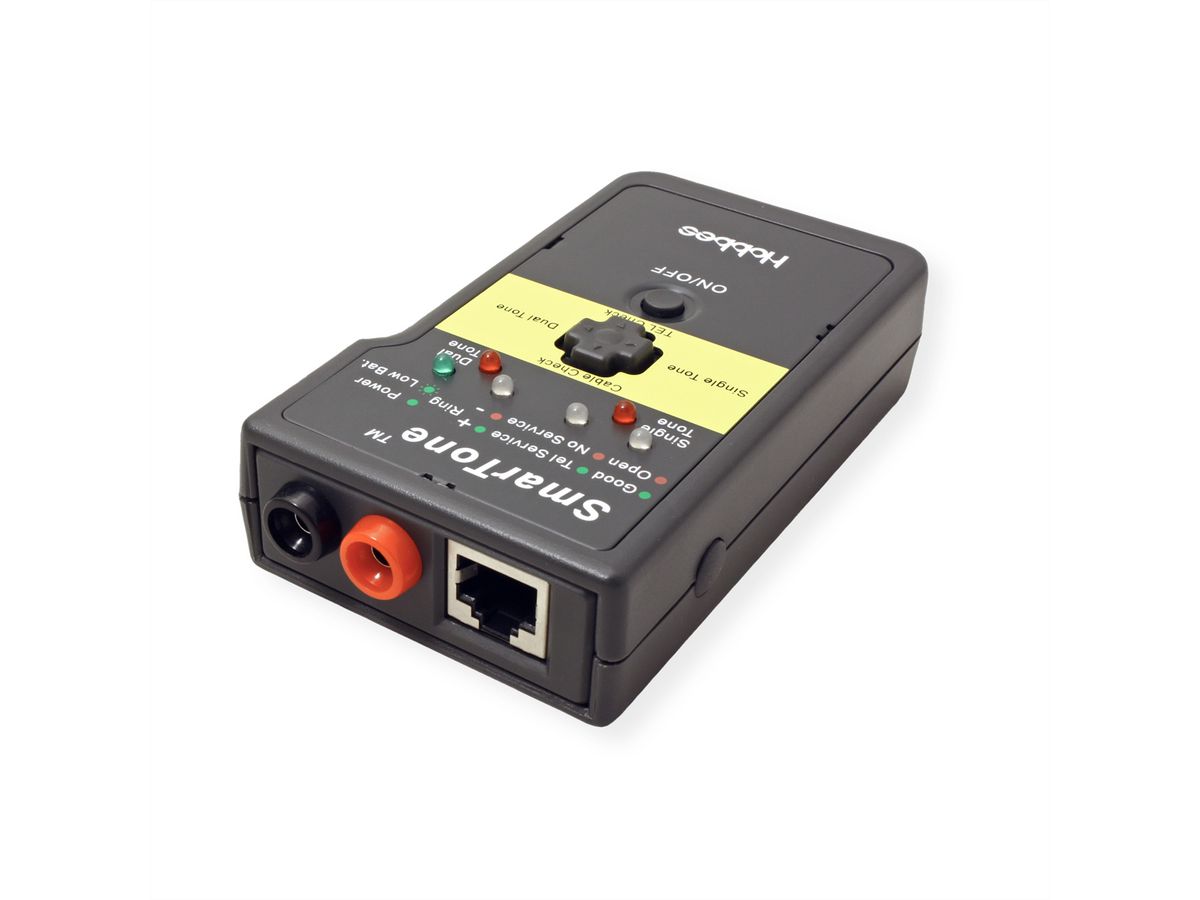

The SMARTone is a revolutionary network installation and trouble shooting tool, it goes entirely above and beyond the traditional methods to trace and identify cables.

• Uses digital signal technology, avoiding noise and false signals
• Traces and identifies cables quickly and accurately
• Traces cables at a distance
• Identifies cables in bundles or at patch panels
• Sends digital/analogue tones in two distinct modes: one note–tone and two note–tone
• Receiving tone sensitivity level: 9 levels
• LED Bar and speaker are used as indicators
• Can use probe to trace traditional 1kHz analogue tone
• Cable map: pin–to–pin test for cable opened/shorted/reversed/crossed/mis–wired

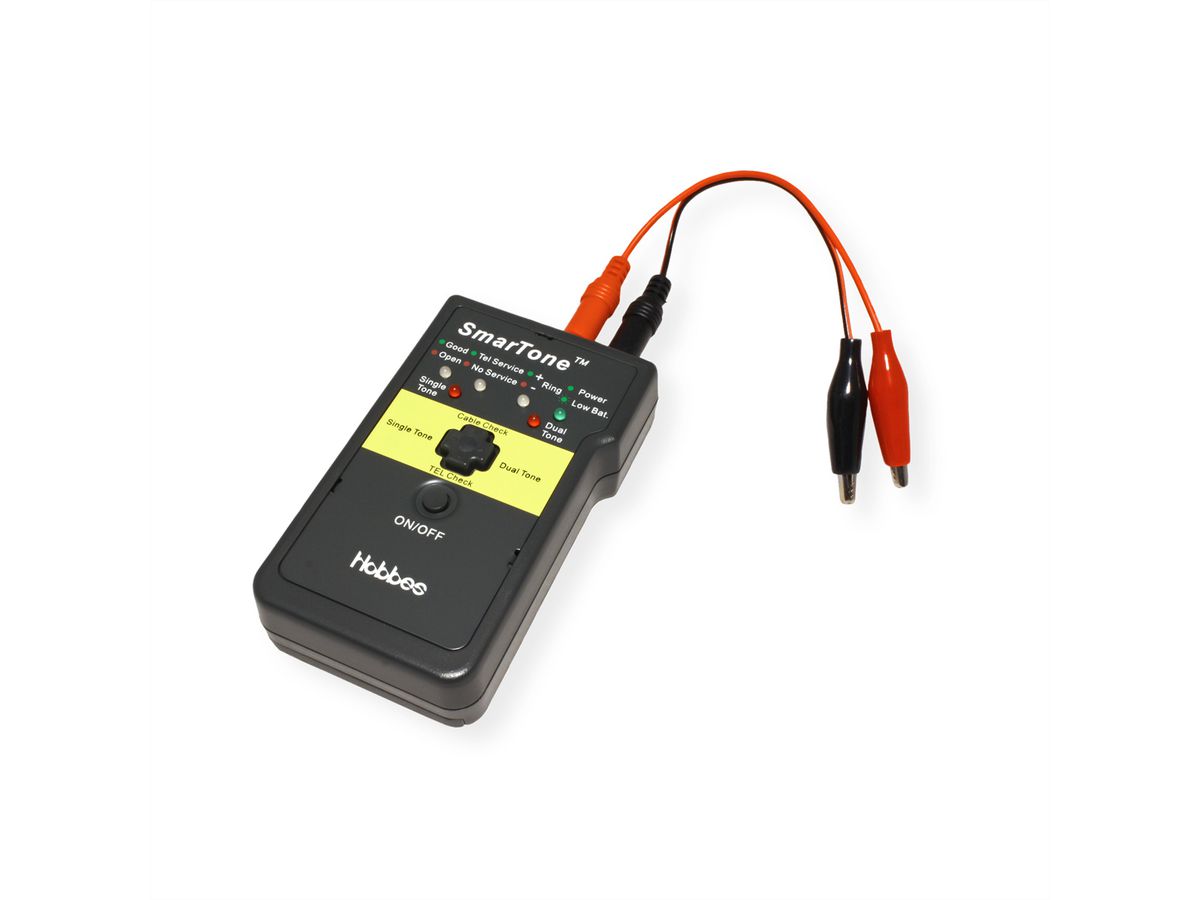

• Telephone service and polarity test: +polarity; –polarity; ringing
• Probe has an adjustable speaker volume level suitable for various work environments
• Auto Power–off and low battery indicator
• Complied with IEEE802.3af standard

Output power: 5V
Voltage protection: 100V (TEL Check)
Tone frequency: Encoded digital tone signal; Legacy 1KHz analogue tone signal
Power supply and life: 9V square battery; the power consumption is less than 15mA
Auto power off: Auto power off after 30 min. without using.
Dimension: 104 x 63 x 25mm
Weight: 108g
