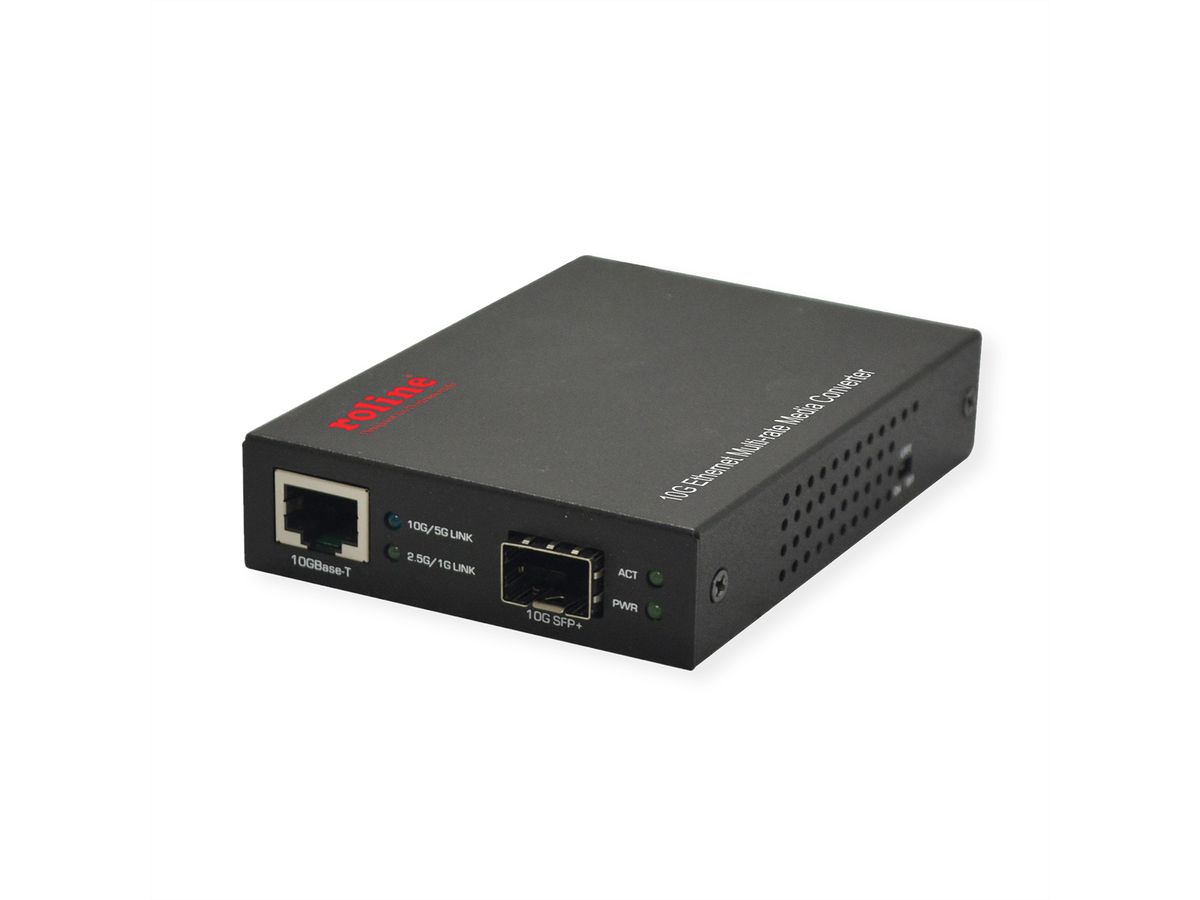

ROLINE 10G Ethernet Multi-rate Media Converter, Industrial Converter RJ45, Fiber Optic

ROLINE 10G Ethernet Multi-rate Media Converter, Industrial Converter RJ45, Fiber Optic

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.13.1133-5
Brand / Manufacturer ROLINE
Manuf. no. 21.13.1133
EAN 7630049688926

Description

This Ethernet Multi-rate Media Converter enables the conversion from copper to fiber at 1G, 2.5G, 5G and 10G.

  • The device supports the following multi-rate and media conversion:
- 10GBASE-T to 10GBASE-R conversion
- 5GBASE-T to 5GBASE-R conversion
- 2.5GBASE-T to 2500BASE-X conversion
- 1000BASE-T copper to 1000BASE-X (without auto-negotiation support) fiber conversion
  • Supports auto-negotiation and Auto-MDI/MDI-X detection
  • Supports full wire speed conversion
  • Supports transparent conversion for any packet types with no packet length limitation
  • Provides link fault pass through function
  • LED Indication Power status, Activity, Speed link status
  • Copper port:
- Shielded RJ-45,
- Auto-negotiation capable
- Auto-MDI/MDI-X 10G/5G/2.5G/1Gbps, Full/Half duplex
  • Fiber port:
- SFP+ slot for SFP or SFP+ fiber transceiver
- 10G/5G/2.5G/1Gbps, Full duplex
- LFPT function
  • Power: Input: 5VDC 1.5A, consumption: 3.8W (max.)
  • Operating Temperature: - 20 °C - +70 °C
  • Dimensions: 75 x 102 x 22.2 mm (WxDxH)

Specifications

Manufacturer ROLINE
Product group Network converters
Product type Media Converter
Colour black
Scope of delivery Multi-Rate Media Converter, Power supply, Installation Instructions
RJ-45 Port (Mbps/s) 10G/5G/2.5G/1Gbps
Fibre Ports (Mbps) 10G/5G/2.5G/1Gbps
Quantity of RJ45 ports 1
Quantity of fibre LC ports 1
Managed no
Operating temperature min. 0 °C
Operating temperature max. 50 °C
Height 22.2 mm
Width 75 mm
Depth 102 mm
Weight 279.55 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 130 mm
Depth of packaging (single piece) 170 mm
Package weight (single piece) 0.4 kg

Downloads

Product data sheet - English (30.1 KB)

Download

User manual - Deutsch (431.3 KB)

Download

User manual - English (346.4 KB)

Download

User manual - Français (428.8 KB)

Download
