ROLINE 19" Fan unit with 4 fans, ON/OFF grey

Item no. 26.21.0305 Brand / Manufacturer ROLINE Manuf. no. 26.21.0305 EAN 7630049603196 Package weight 7 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

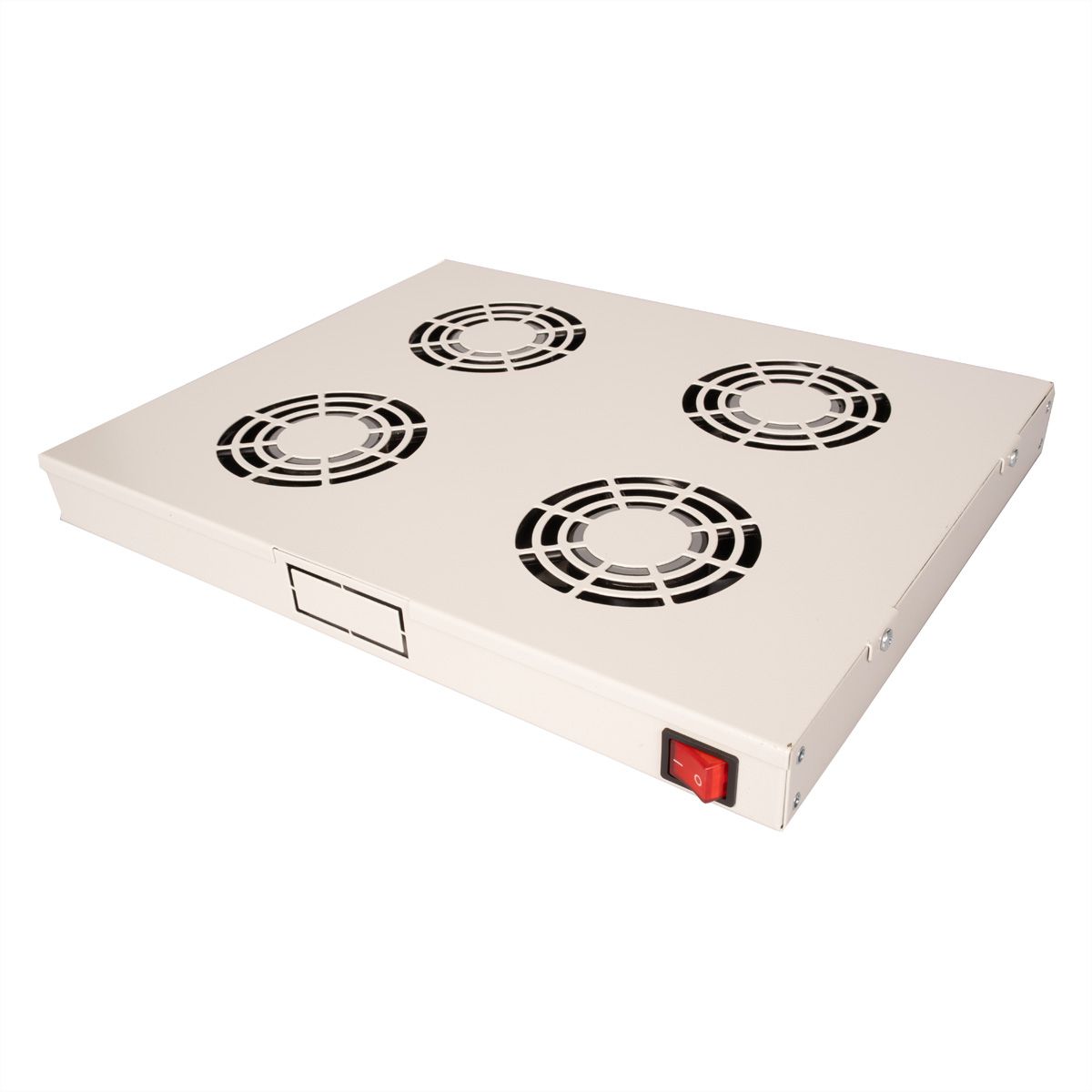

ROLINE 19 inch rackmount fan unit

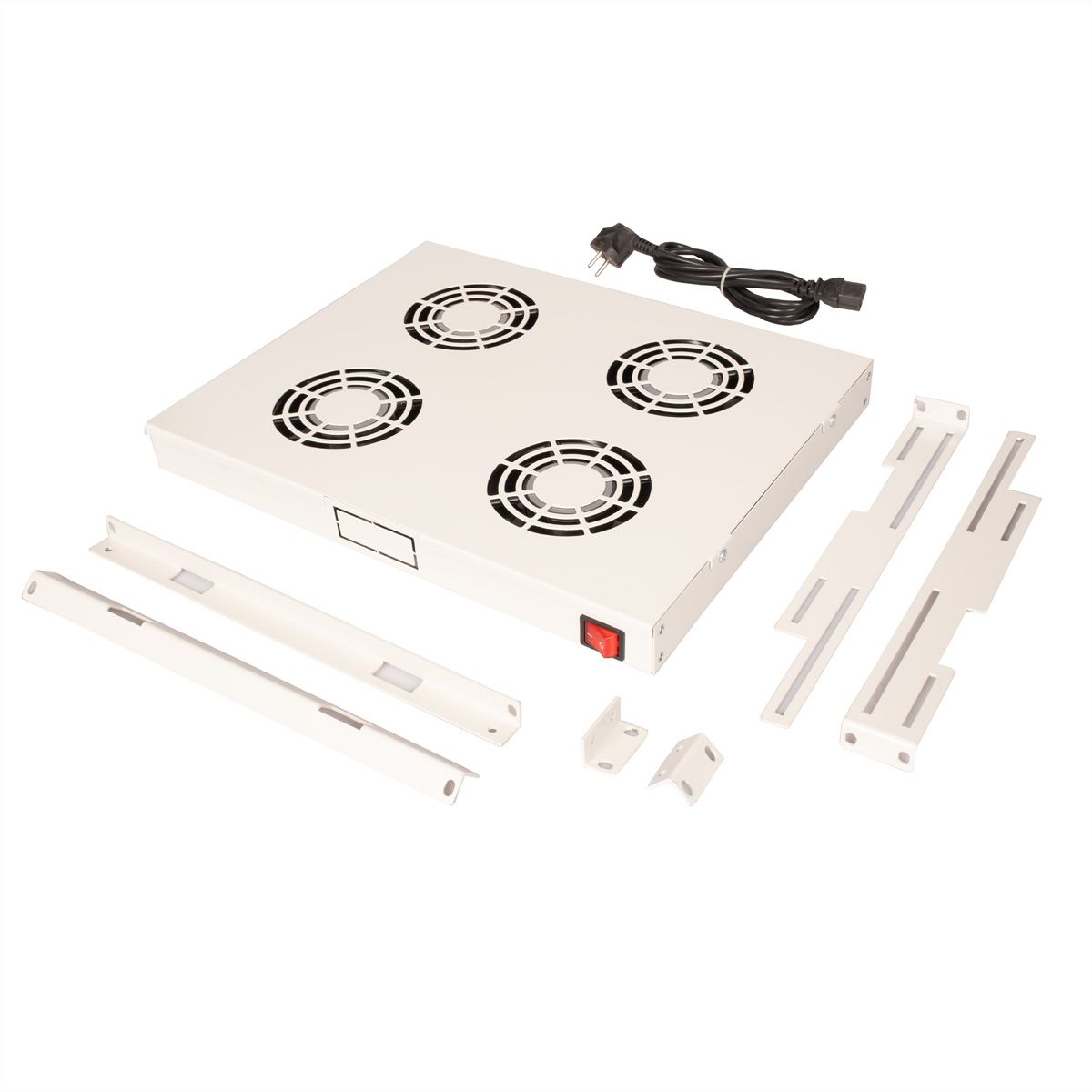

The ROLINE rackmount fan units can be used flexibly in any 19’ rack. Each fan unit is supplied with two sets of mounting brackets. The first set allows you to mount the fan unit vertically on any height unit of your network enclosure. The second set allows you to install it horizontally. An additional ON/OFF switch offers additional application options. The model is available in the standard colours grey (RAL 7035) and black (RAL 9005) and can be equipped with either two or four fans.

Specifications

Manufacturer
ROLINE
Product group
19"- / 10" technology
Product type
19"-Cabinet ventilation
Colour
grey
Scope of delivery
fan unit, mounting material
Modular spacing
482.6 mm (19 inch)
Material group
Steel
Ventilation
Active
Number of integrated fans
4
Fan power consumption
per fan: 18 W ± 10%
RAL colour
RAL 7035 Light grey
Mains connection
Protective contact plug, Type-E/F
Height
44 mm
Width
482 mm
Depth
354 mm
Weight
6125 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
390 mm
Depth of packaging (single piece)
500 mm
Package weight (single piece)
7 kg

Downloads

Product data sheet - English (36.7 KB)

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
