ROLINE 19-inch Network Cabinet Pro 47 U, 600x600 WxD glass door grey

ROLINE 19-inch Network Cabinet Pro 47 U, 600x600 WxD glass door grey

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 26.21.0068
Brand / Manufacturer ROLINE
Manuf. no. 26.21.0068
EAN 7630049600690
Package weight 85.1 kg

Description

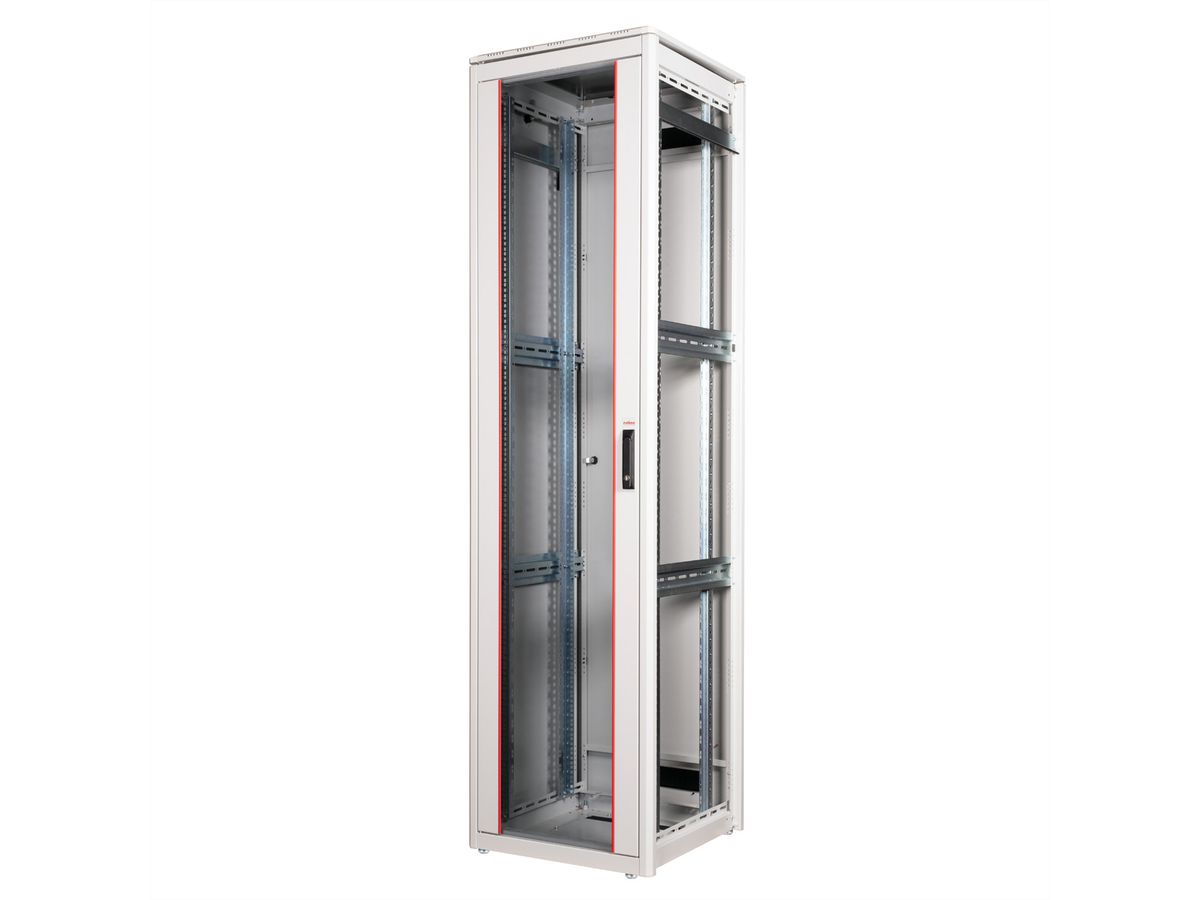

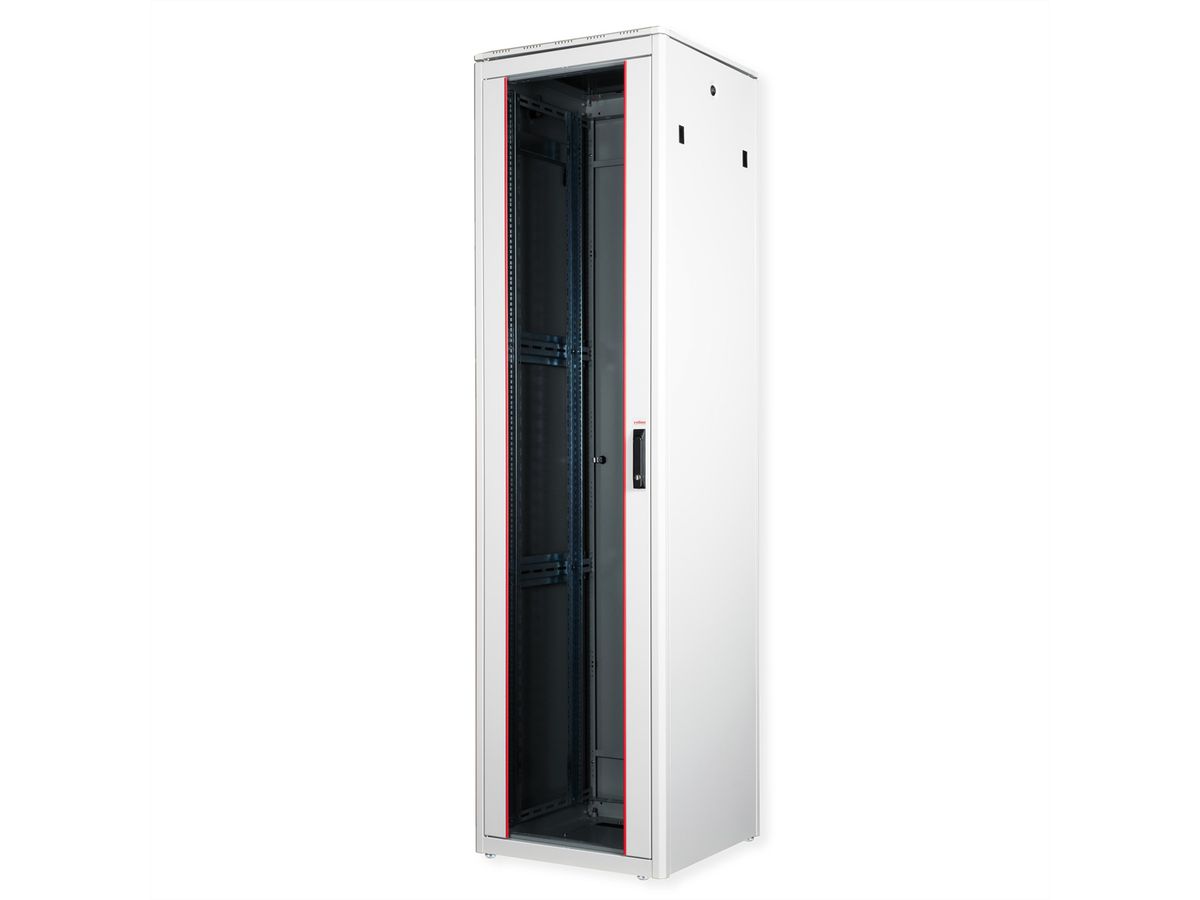

ROLINE 19 inch network cabinet Pro 47 U 600x600 WxD glass door grey

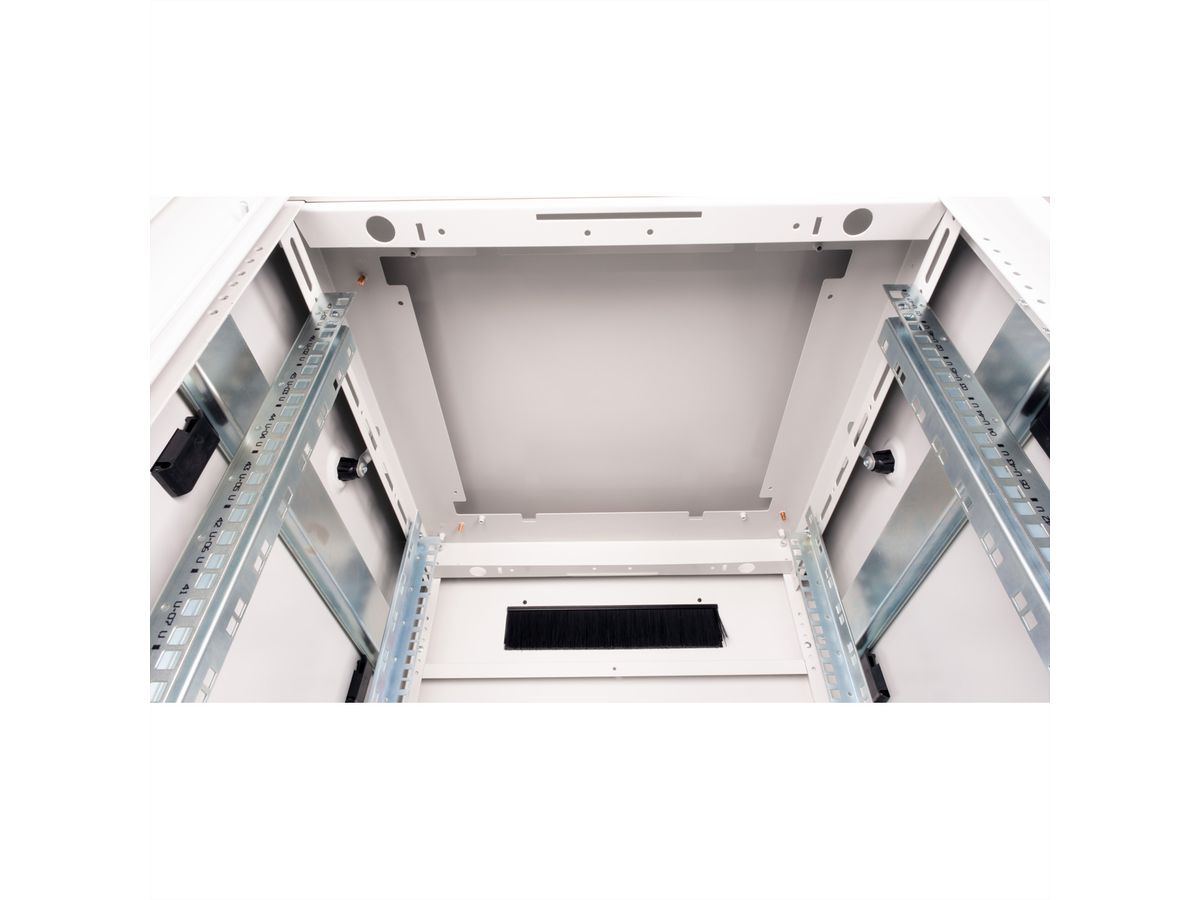

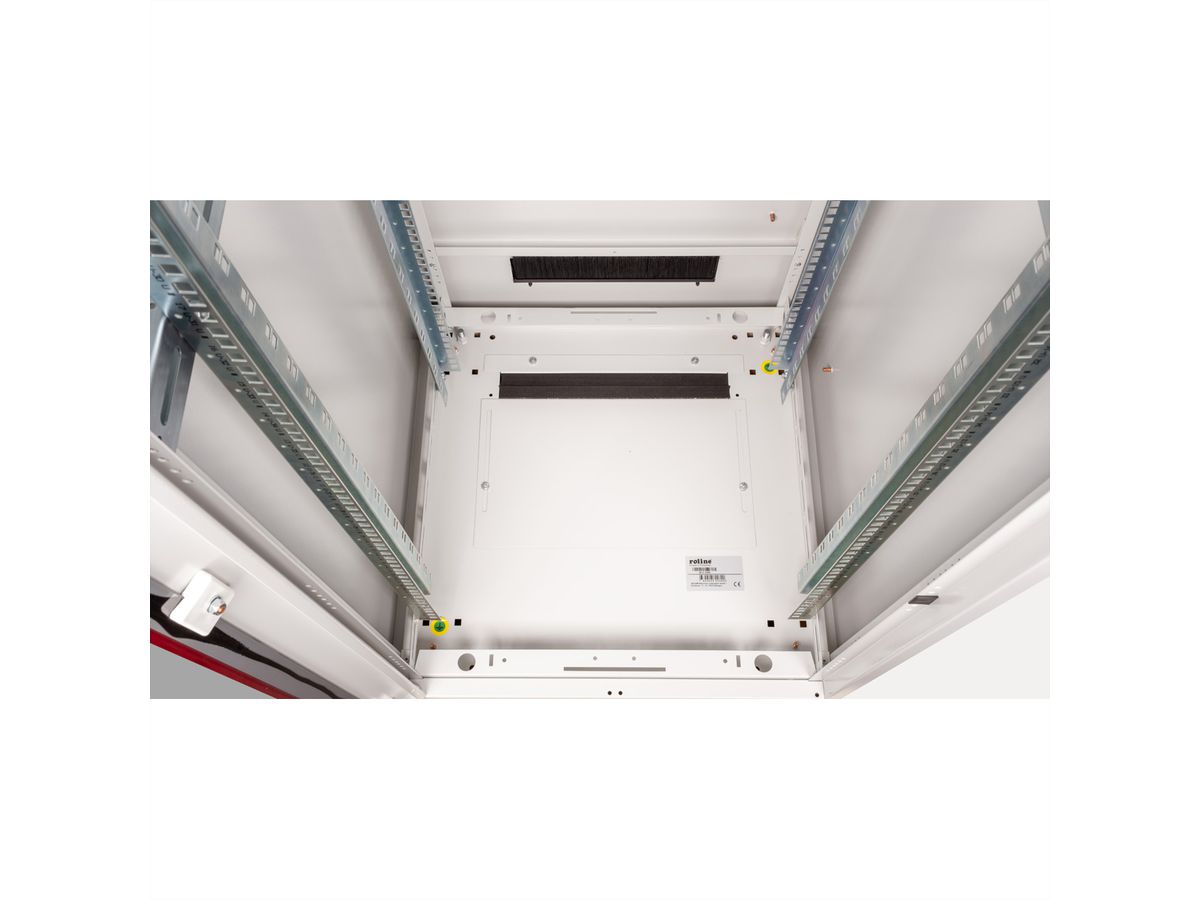

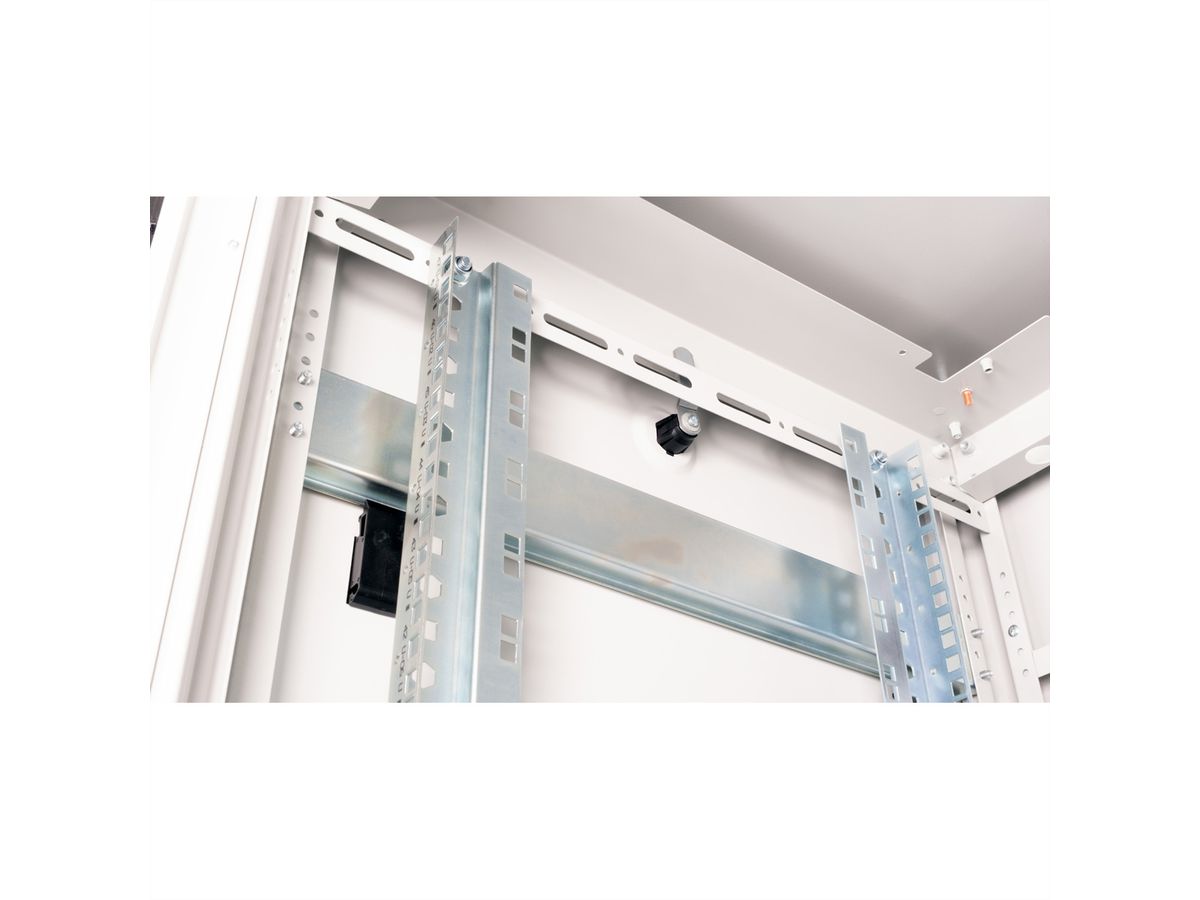

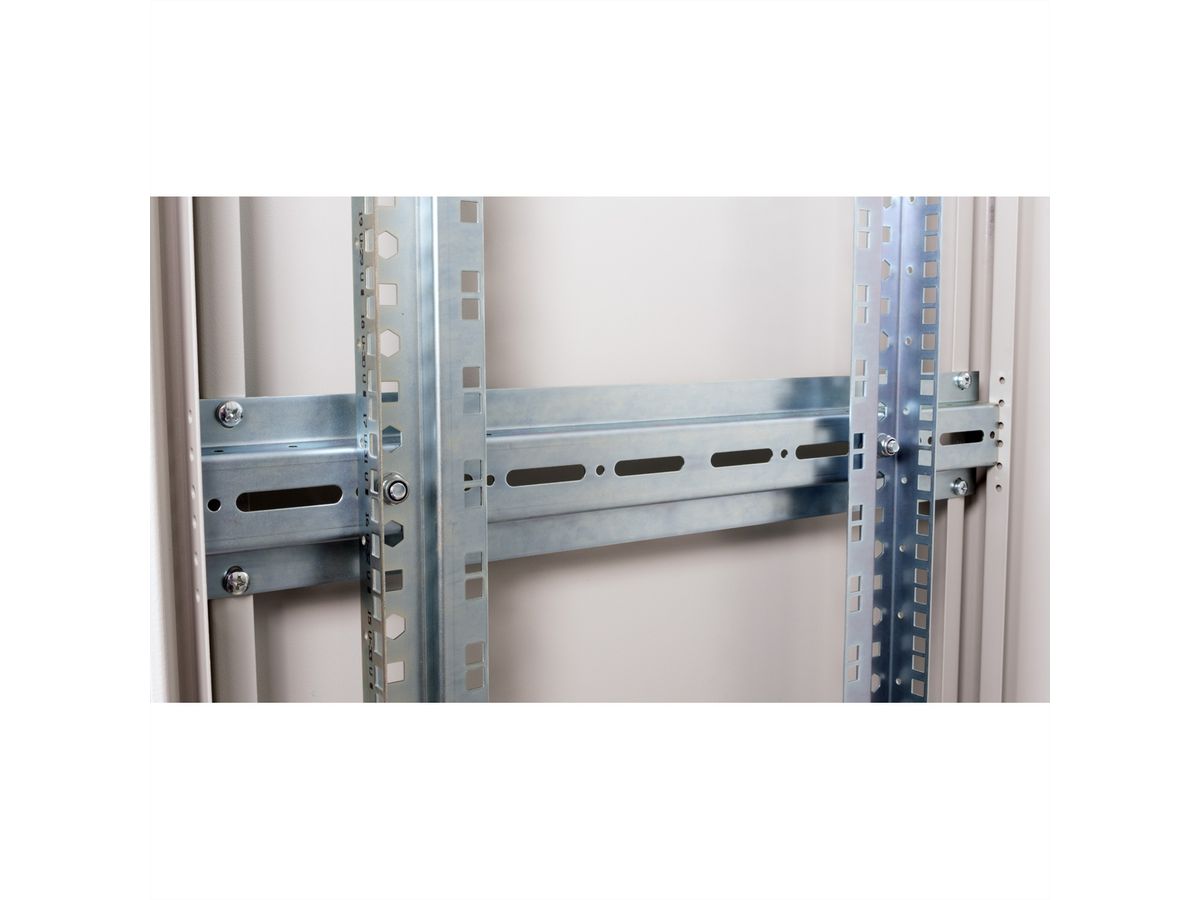

The network cabinets in the ROLINE Pro series have been developed to enable particularly convenient and flexible network cabling. With brush inlets in the roof and base area (from 26U and 800 mm cabinet width), a slide-on inlet in the base chassis with foam rubber seal and brush strips above and below the rear door (from 26U), they offer a wide range of possible uses for various application scenarios. Vertical cable ducts with cover, installed next to the profile rails (from 800 mm enclosure width), complete the design. A stepped, removable cover with ventilation slots improves air circulation and allows easy installation of a fan module. Two pairs of galvanised 19" profile rails are installed inside, which can be read in both directions and are adjustable in depth. They are also connected to additional depth struts in the enclosure. Each cabinet consists of a robust steel construction with a material thickness of up to 1.5 mm sheet steel.

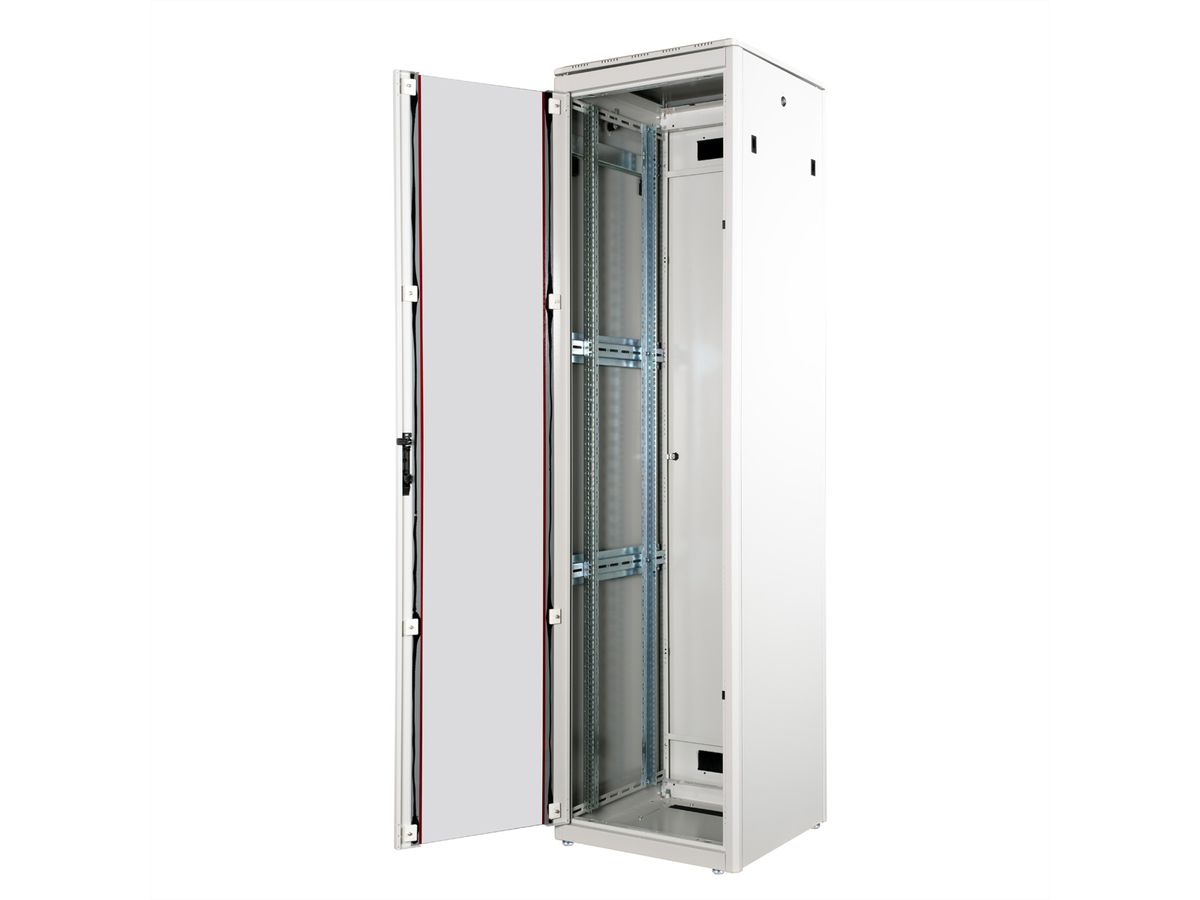

The colouring is carried out using electrostatic powder coating in the standard colours grey (RAL 7035) and black (RAL 9005). Modular removable side panels and doors improve accessibility. It is possible to change the door hinge. The cabinets can also be completely dismantled if required.

Specifications

Manufacturer ROLINE
Product group 19"-/10"-Cabinet
Product type 19"-Floor cabinet
Colour grey
Scope of delivery 19-inch network enclosure Pro 47 U, earthing cable set, installation kit for profile half cylinder, 2x spanners, installation set (screws, cage nuts, washers), instructions
Height units 47 U
Minimum rack depth supported 360 mm
Maximum rack depth supported 540 mm
delivery condition fully assembled
Material group Steel
Wall mountable no
Adjustable feets yes
Maximum weight capacity 600 kg
Protection class (IP Code) IP20
Soundproof no
Front Glass door
Rack rails yes
Roof Removable roof
Side panels included yes
Removeable side panels yes
Removable front door yes
Removable back door yes
Floor Sliding base plate
Ventilation Passive
RAL colour RAL 7035 Light grey
Height 2276 mm
Width 600 mm
Depth 600 mm
Weight 81.3 kg
Height of packaging (single piece) 2416 mm
Width of packaging (single piece) 680 mm
Depth of packaging (single piece) 680 mm
Package weight (single piece) 85.1 kg

Downloads

Product data sheet - English (47.6 KB)

Download

Manufacturer data sheet - English (1.7 MB)

Download

Accesories

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
