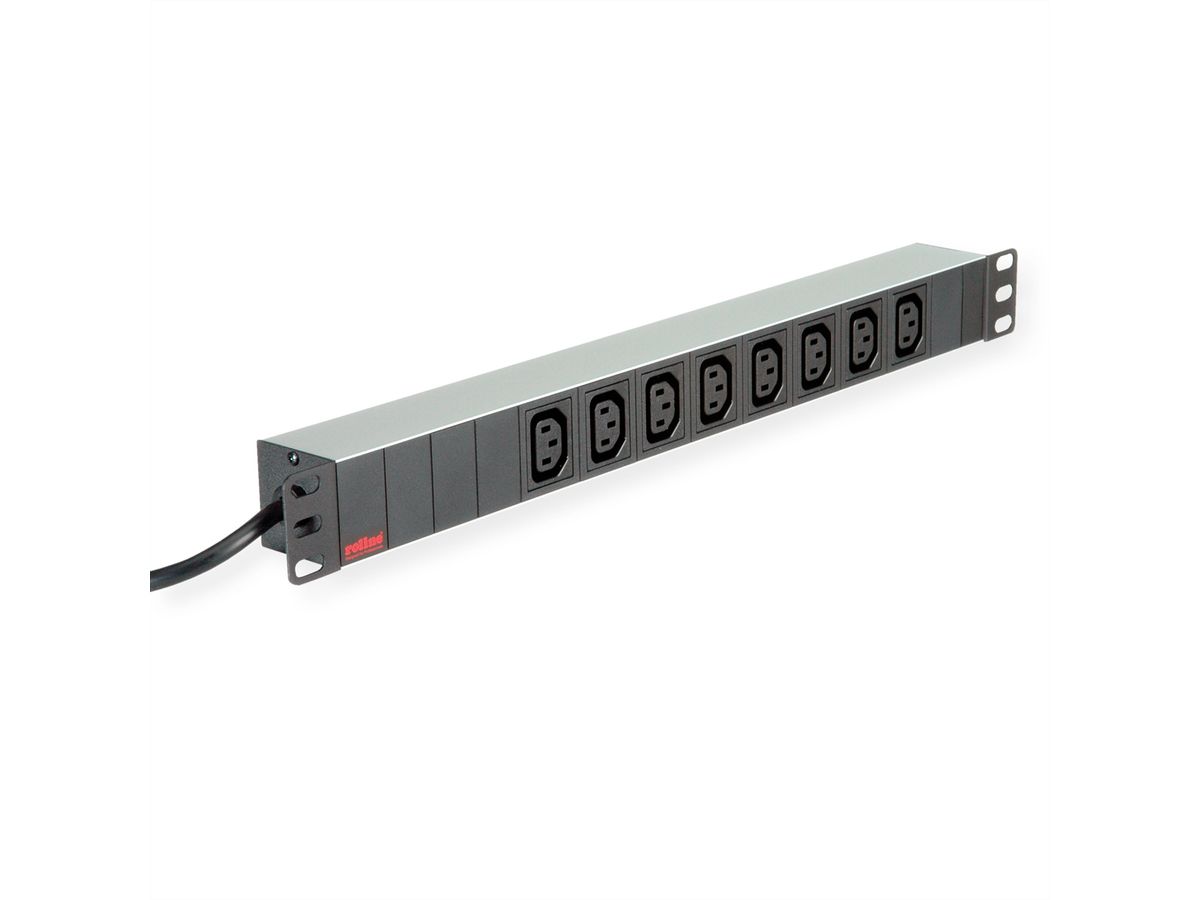

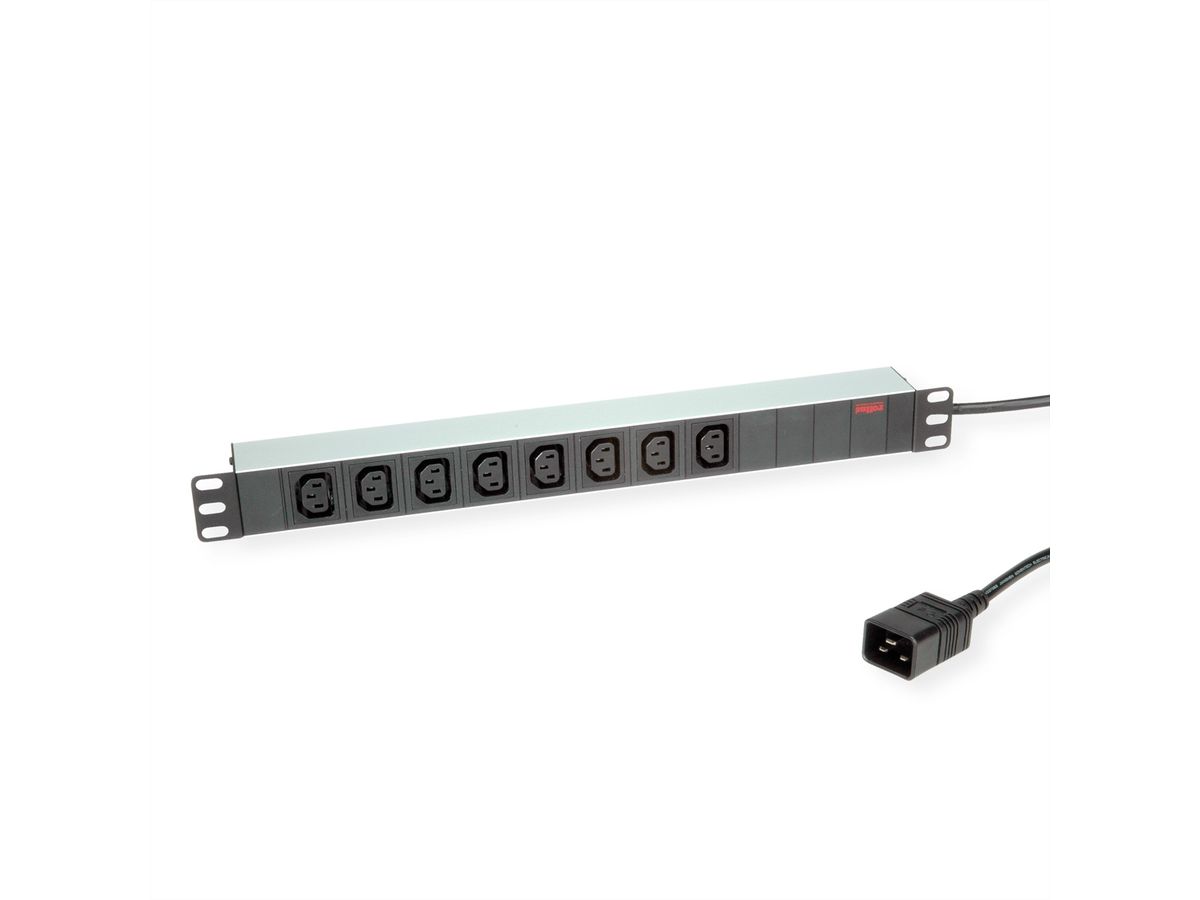

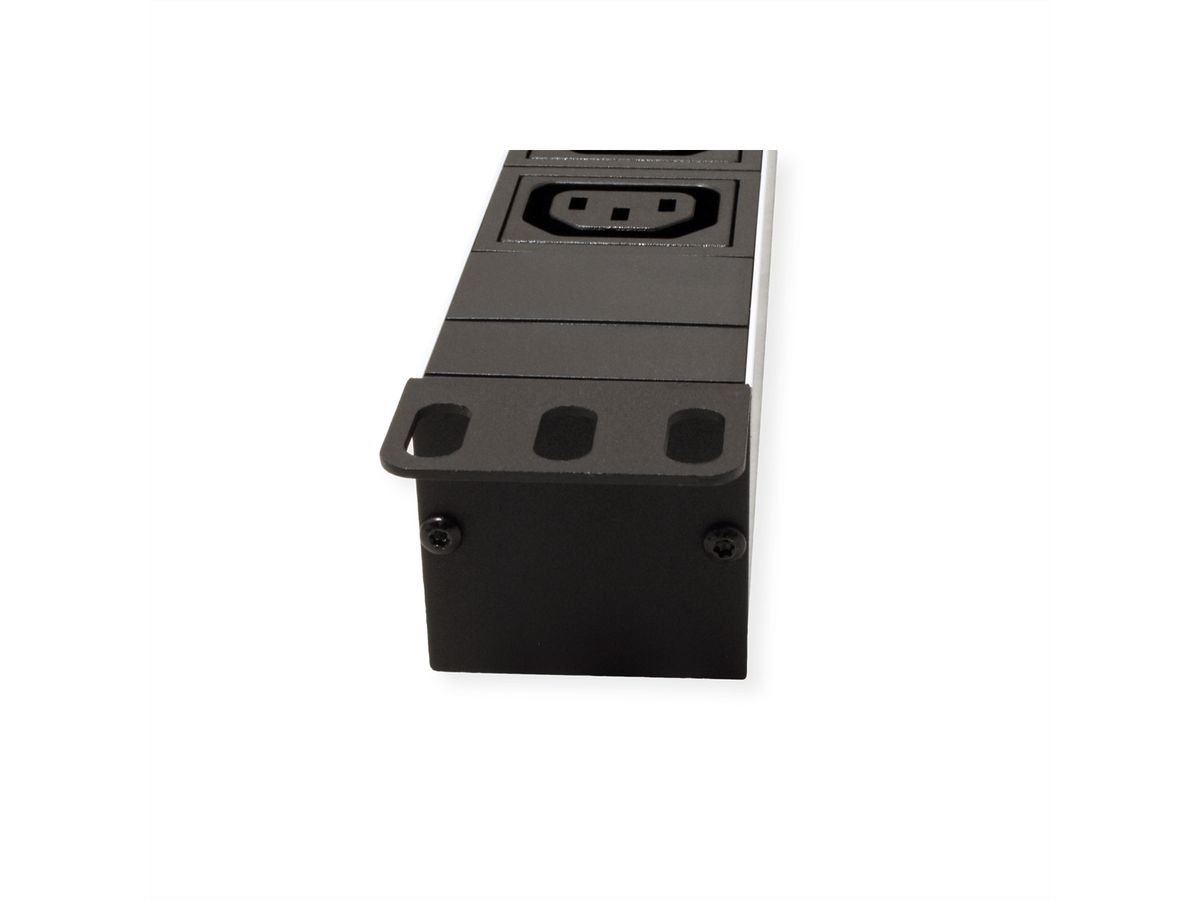

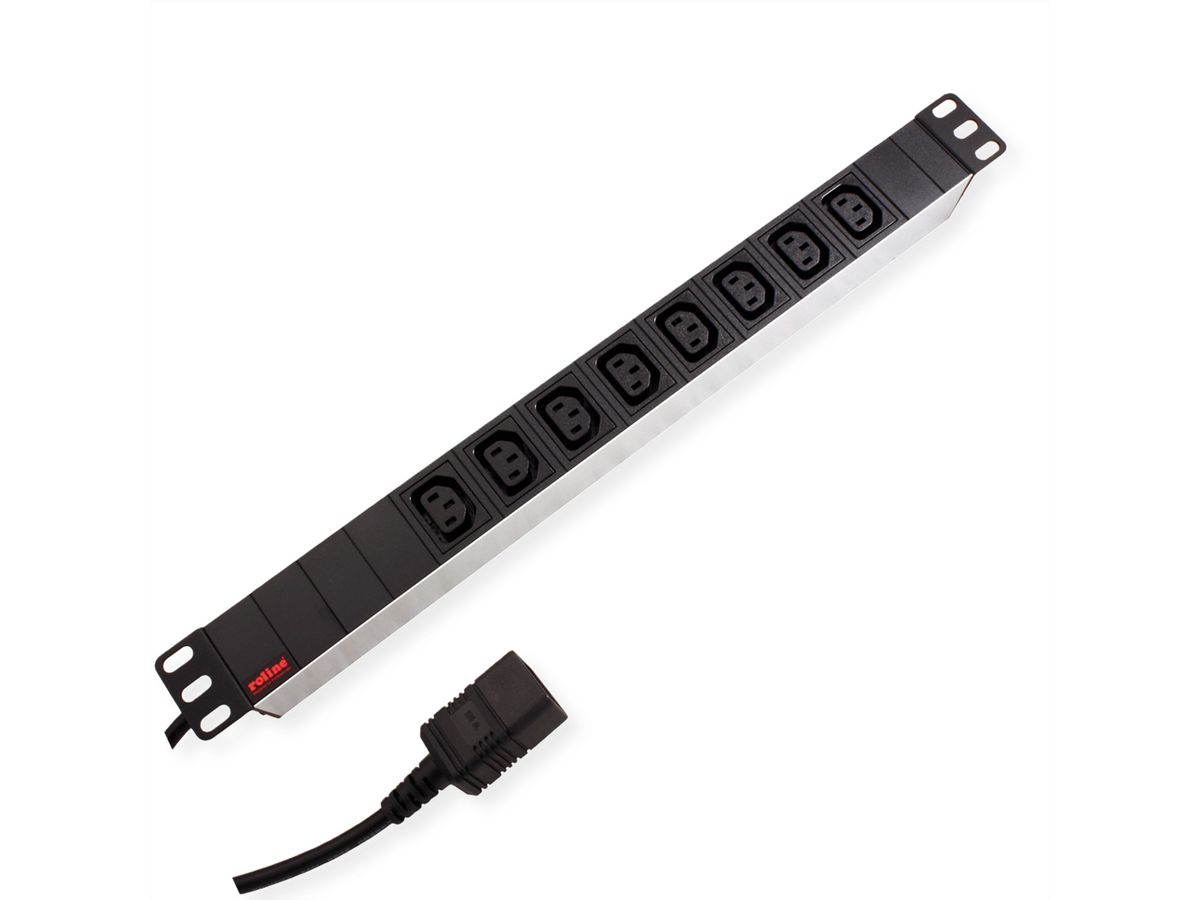

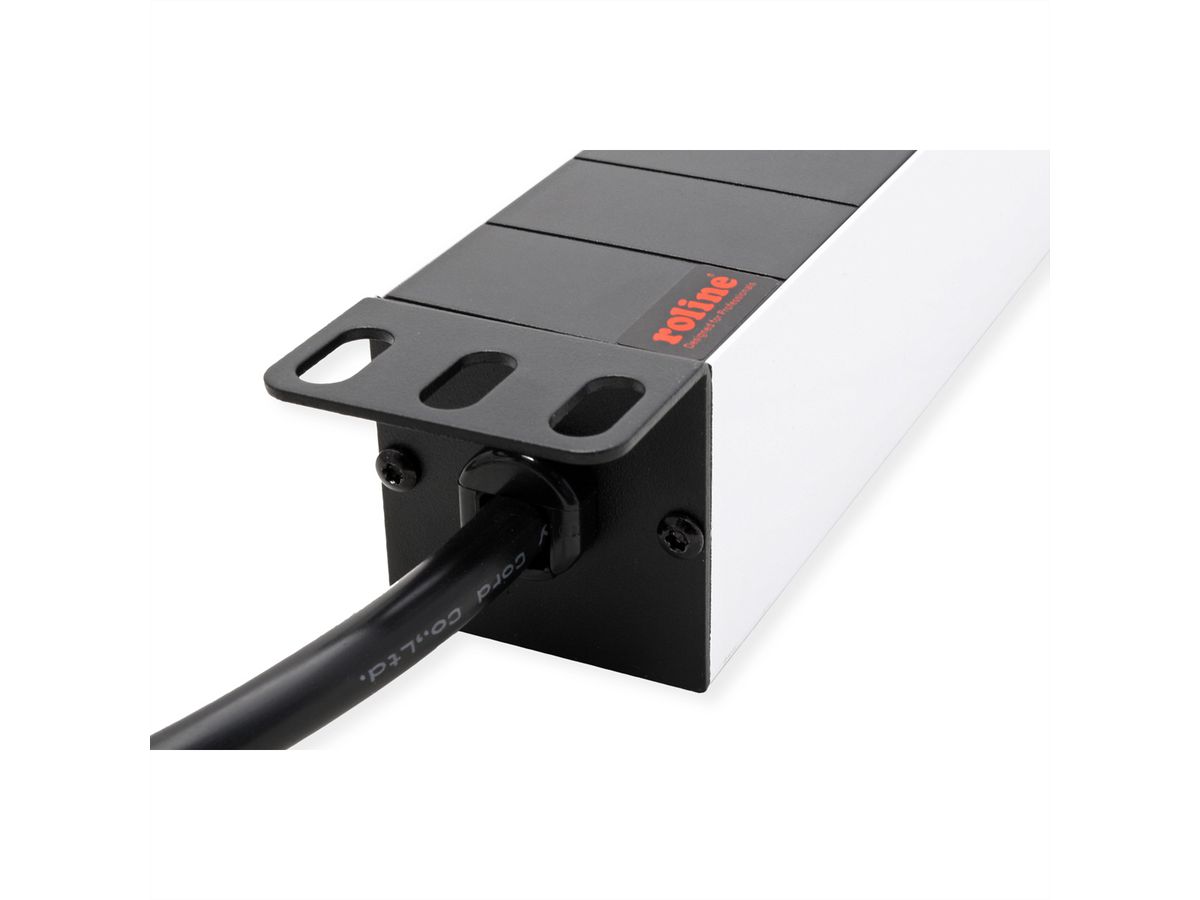

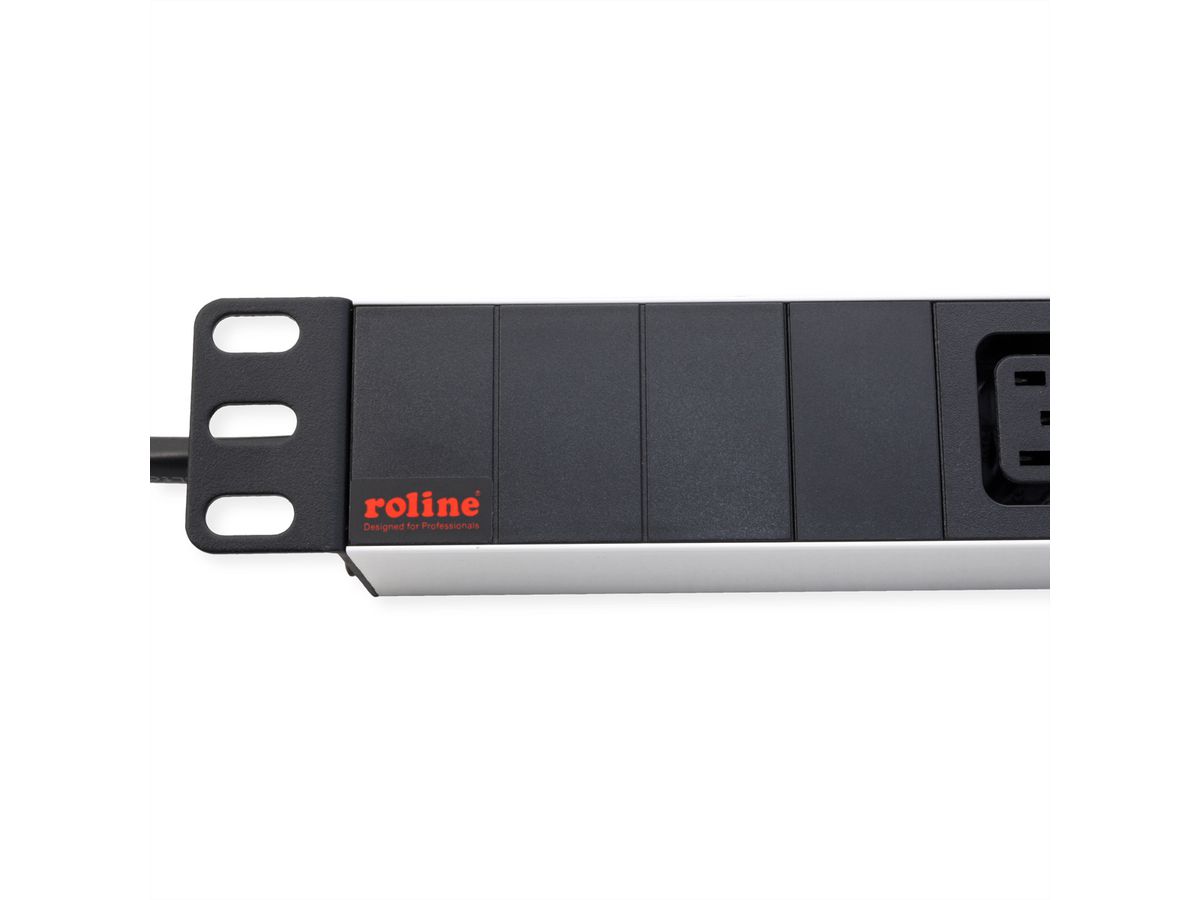

ROLINE 19" PDU for Cabinets 8x 3600W, IEC320 C13 - C20 M, Aluminium, 2 m

ROLINE 19" PDU for Cabinets 8x 3600W, IEC320 C13 - C20 M, Aluminium, 2 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 08/29/2024
Item no. 19.07.1627-10
Brand / Manufacturer ROLINE
Manuf. no. 19.07.1627
EAN 7630049690899
Package weight 0.95 kg

Description

19" socket strip with 8x C13 connection and C20 supply cable, 1U, for installation in 19" cabinets, incl. mounting brackets.

  • 19 "socket (1UH) for installation in 19" cabinets, incl. installation angles.
  • Arrangement of sockets: 90°
  • Profile of anodized aluminium.

  • Cable type: 2.0m H05VV-F 3G 1,5mm², black
  • Max load/power: 16A 3600W
  • Color: ALU / light gray RAL 7035
  • Width: 440mm

Specifications

Manufacturer ROLINE
Product group Power Bars
Product type 19" power strip
Colour Aluminium
Length 2 m
Function 19'' PDU for Cabinets
Mounting form 19" Rackmount
Max. capacitance 3600W
Max. voltage 250V AC
ON/OFF Switch no
Number of socket pots 8
Quantity of outputs/angles 8 / 90°
Output alignment Line
Socket type
  • IEC320 C13, 10A
  • IEC320 C13, 10A
Material (casing) Aluminium
Colour (Design profile) Aluminium
Connection cable H05VV-F 3G 1.5mm²
Connector plug IEC320 C20
Plug type IEC320 C20, 16A
Regional use Without restriction
Height 44 mm
Width 440 mm
Depth 44 mm
Weight 769.2 g
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 120 mm
Depth of packaging (single piece) 500 mm
Package weight (single piece) 0.95 kg

Downloads

Product data sheet - English (42.2 KB)

Download

Manufacturer data sheet - English (151.7 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download
