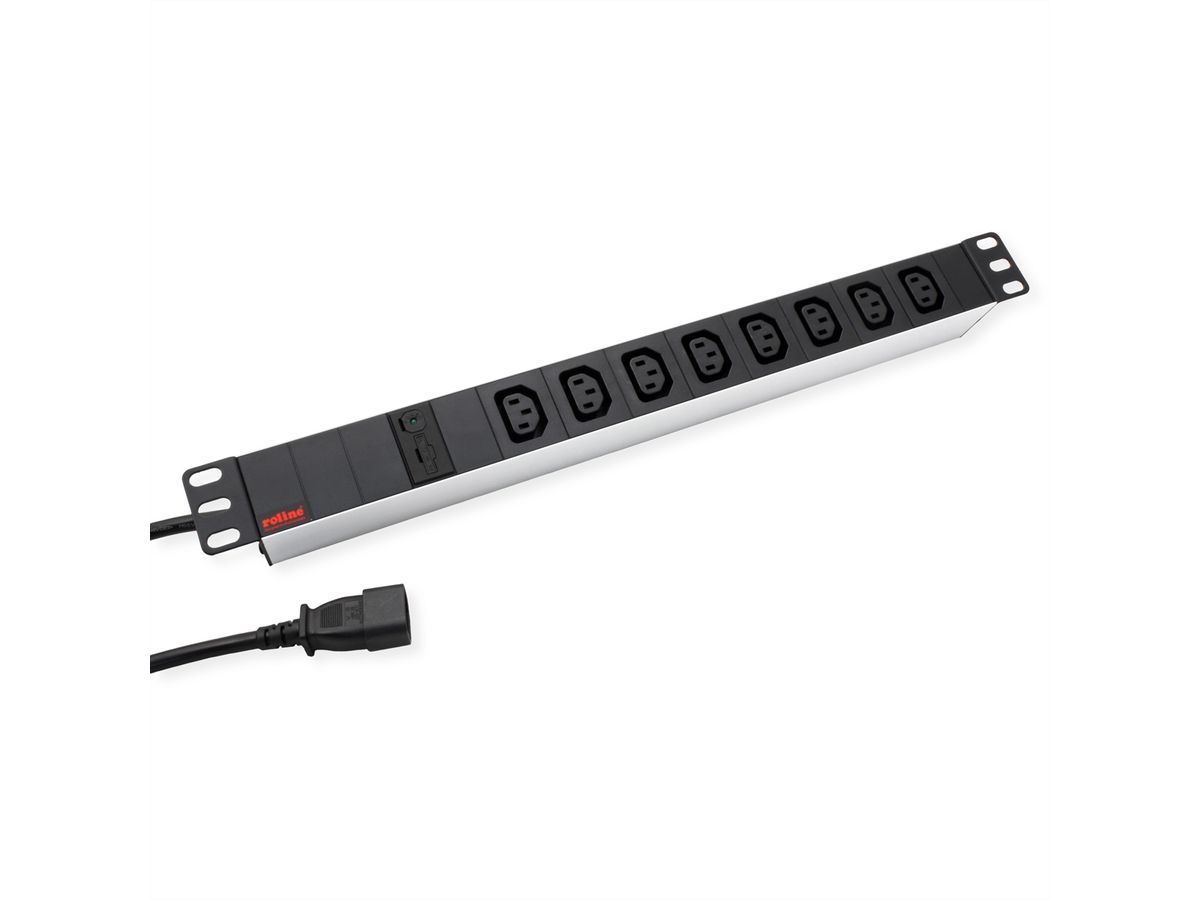

ROLINE 19" PDU for Cabinets 8x IEC320 C13 - C14 M, 10A fused, Aluminium, 2 m

ROLINE 19" PDU for Cabinets 8x IEC320 C13 - C14 M, 10A fused, Aluminium, 2 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 19.07.1629-10
Brand / Manufacturer ROLINE
Manuf. no. 19.07.1629
EAN 7630049690912
Package weight 0.838 kg

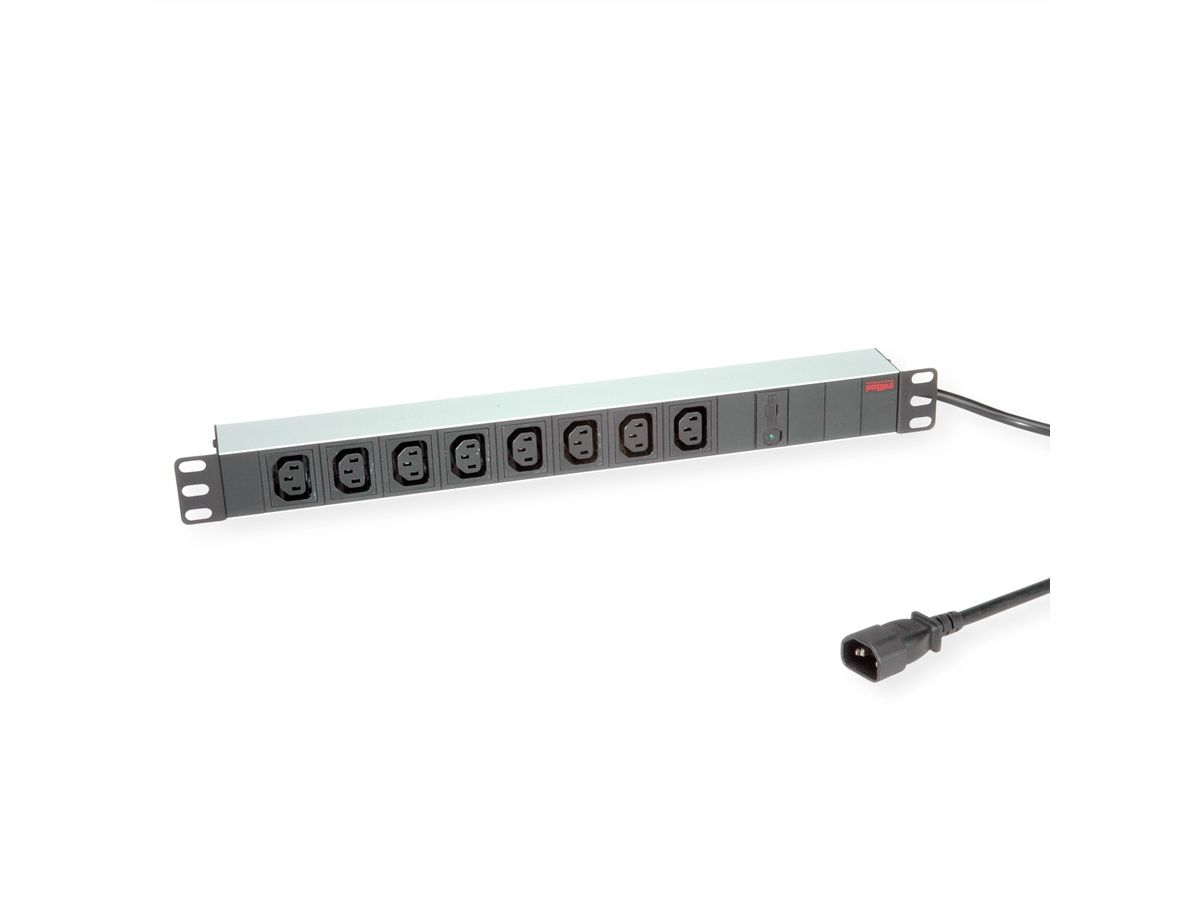

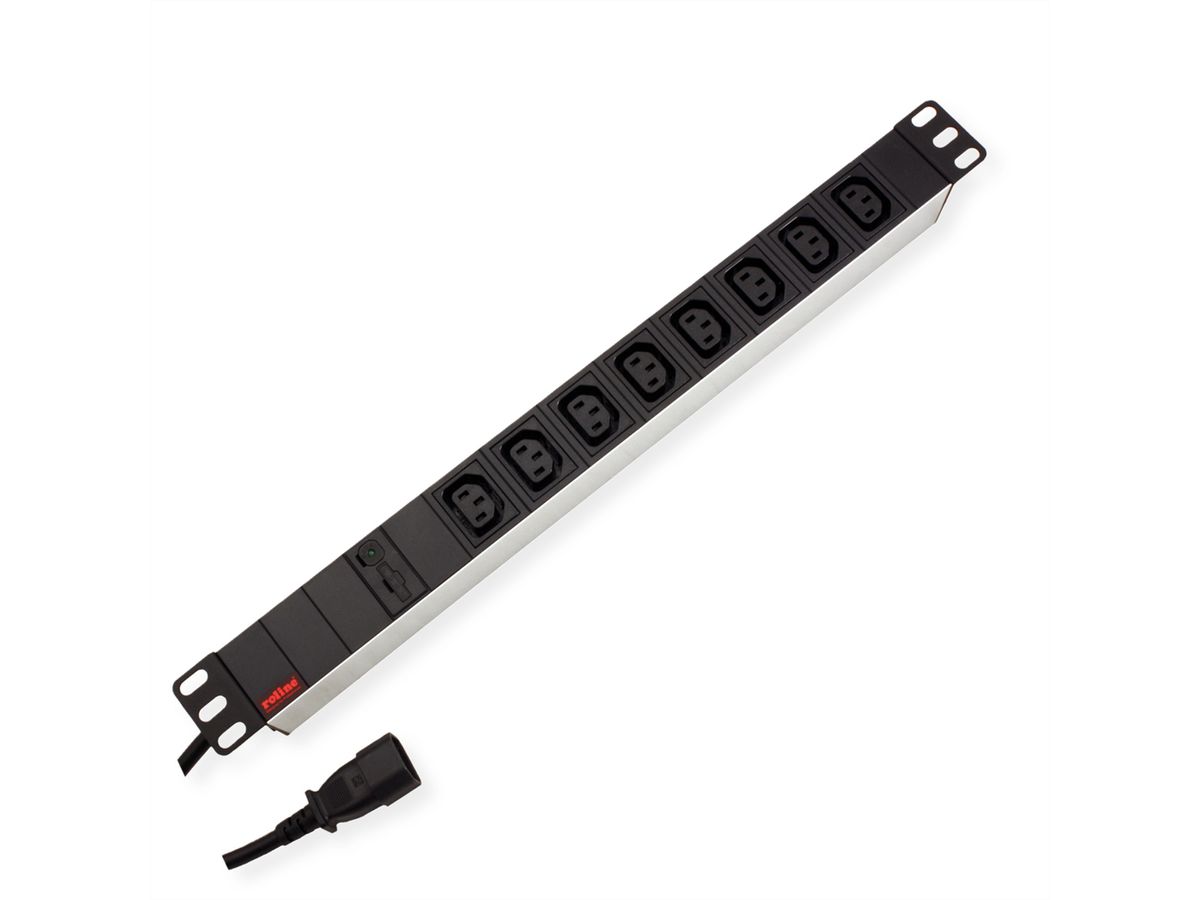

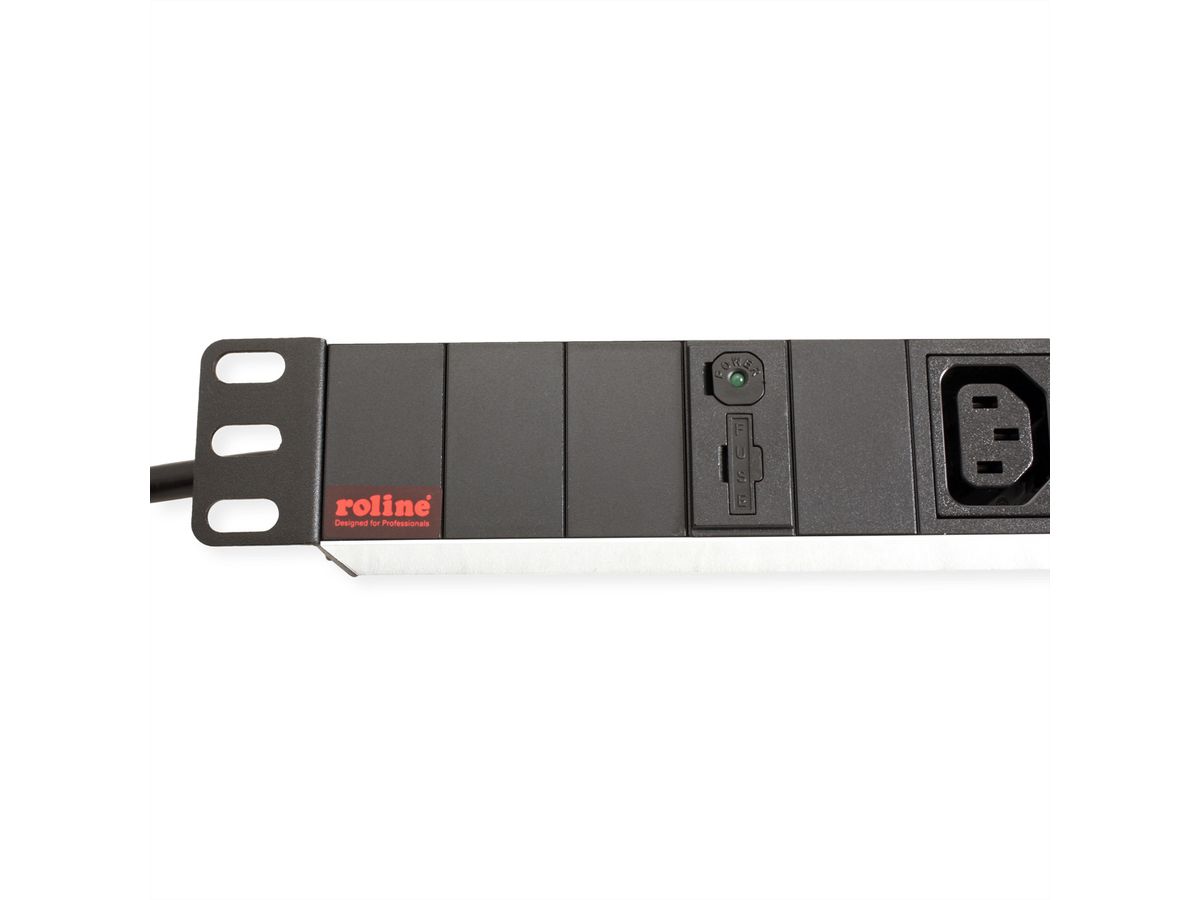

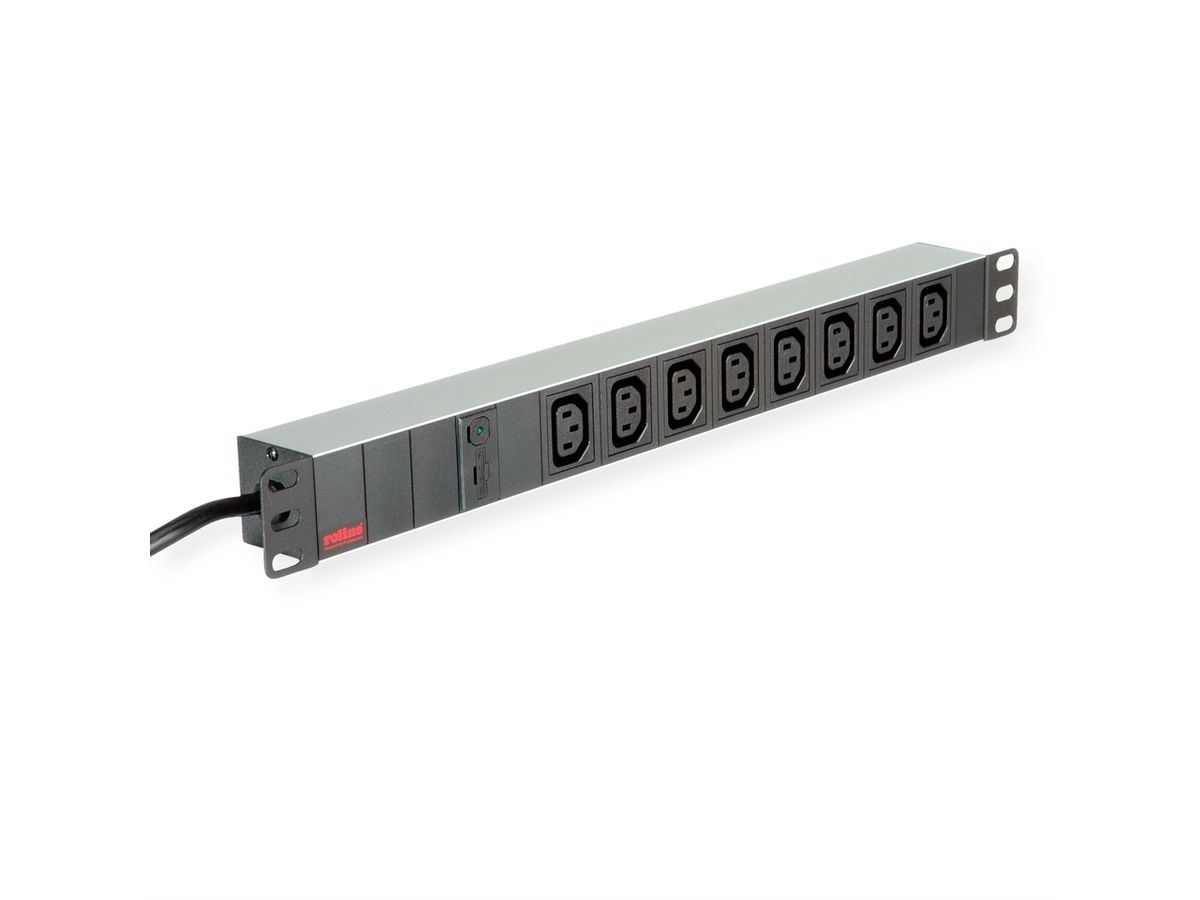

19" socket strip with 8x C13 connection and C14 supply cable, 10A fused, 1U, for installation in 19" cabinets, incl. mounting brackets.

  • 19 "socket (1UH) for installation in 19" cabinets, incl. installation angle
  • Arrangement of sockets: 90°
  • Profile of anodized aluminium

  • Cable type: 2.0m H05VV-F 3G 1mm², black
  • Max load/power: 10A 2300W
  • Color: ALU / light gray RAL 7035
  • Width: 440mm


Manufacturer ROLINE
Product group Power Bars
Product type 19" power strip
Colour Aluminium
Length 2 m
Function 19'' PDU for Cabinets
Mounting form 19" Rackmount
Max. capacitance 2300W
Max. voltage 250V AC
ON/OFF Switch no
Number of socket pots 8
Quantity of outputs/angles 8 / 90°
Output alignment Line
Socket type IEC320 C13, 10A
Material (casing) Aluminium
Colour (Design profile) Aluminium
Connection cable H05VV-F 3G 1mm²
Connector plug IEC320 C14
Plug type IEC320 C14, 10A
Regional use Without restriction
Height 44 mm
Width 440 mm
Depth 44 mm
Weight 752.3 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 100 mm
Depth of packaging (single piece) 490 mm
Package weight (single piece) 0.838 kg


Product data sheet - English (41.9 KB)


Manufacturer data sheet - English (158.2 KB)


More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
