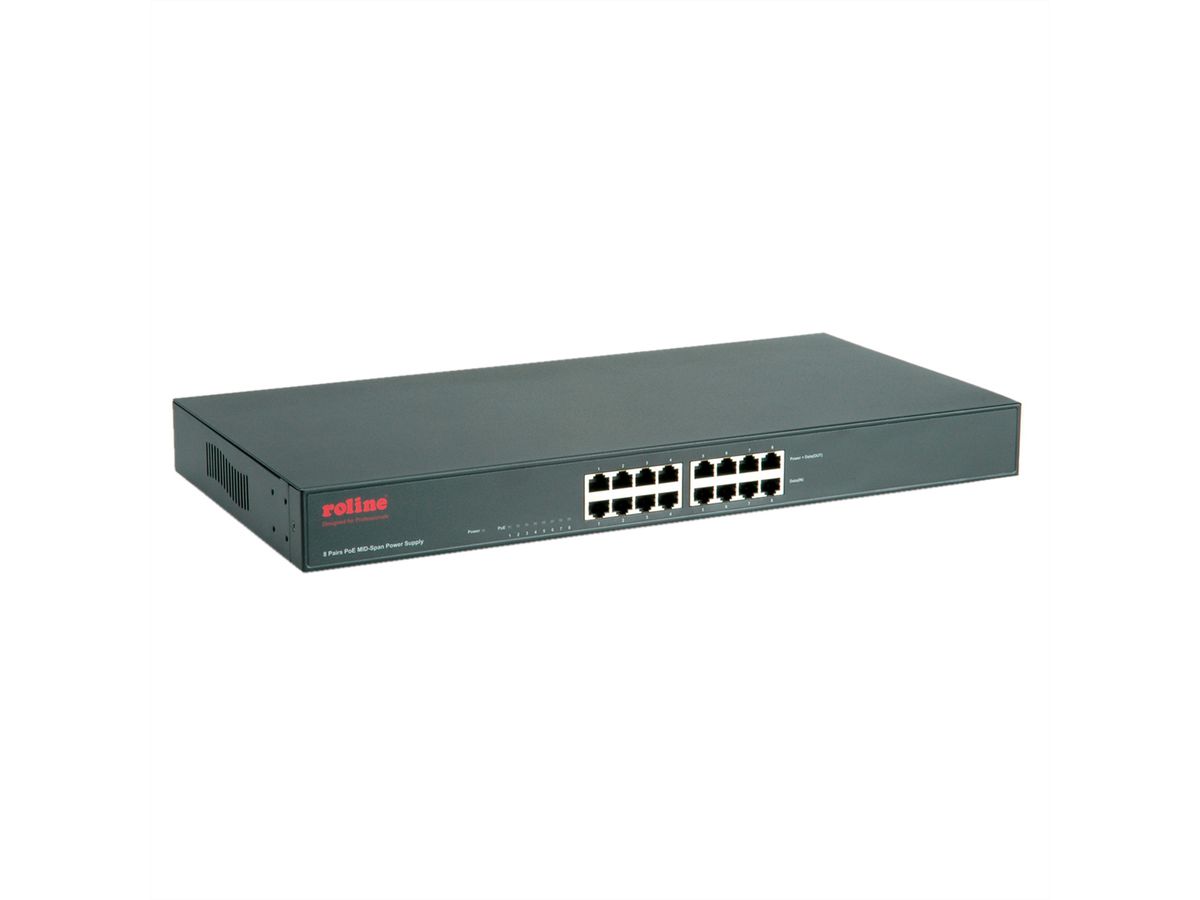

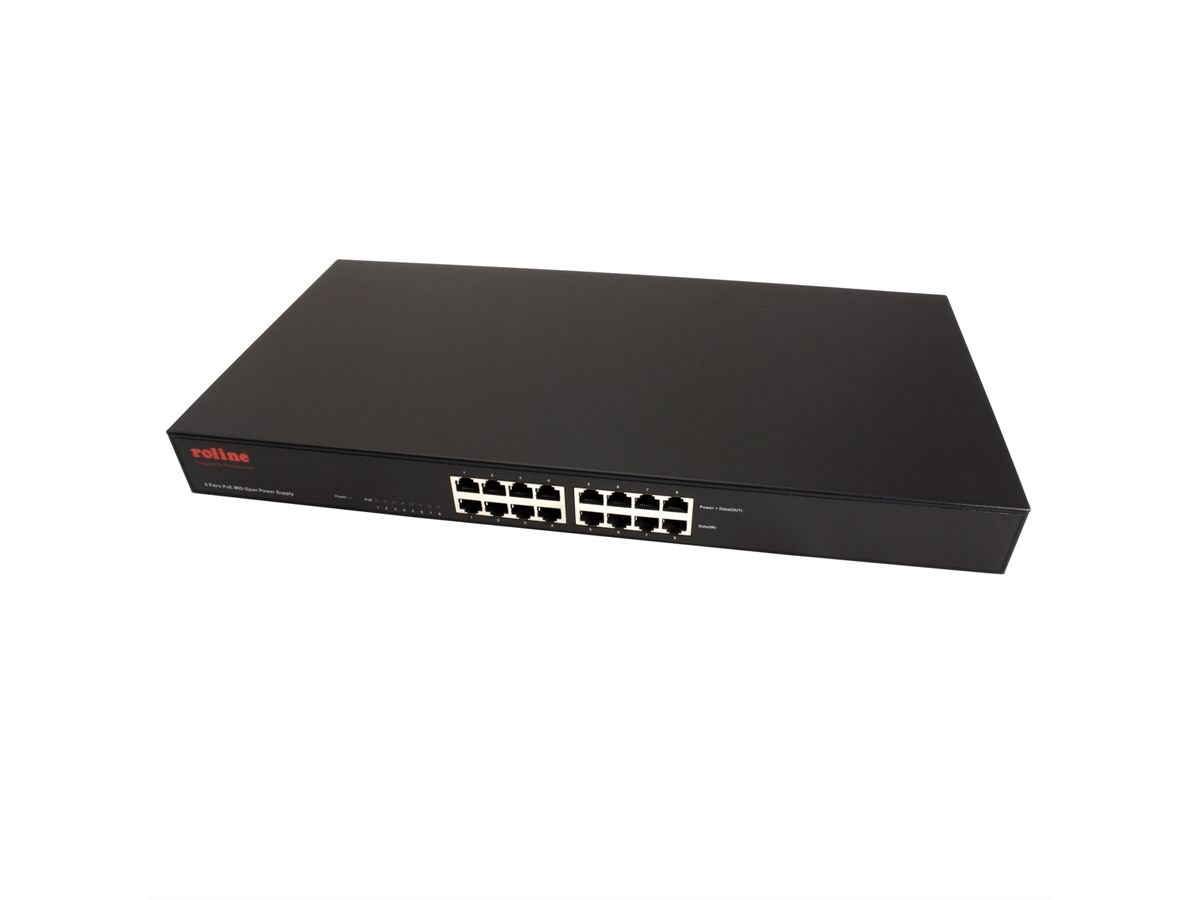

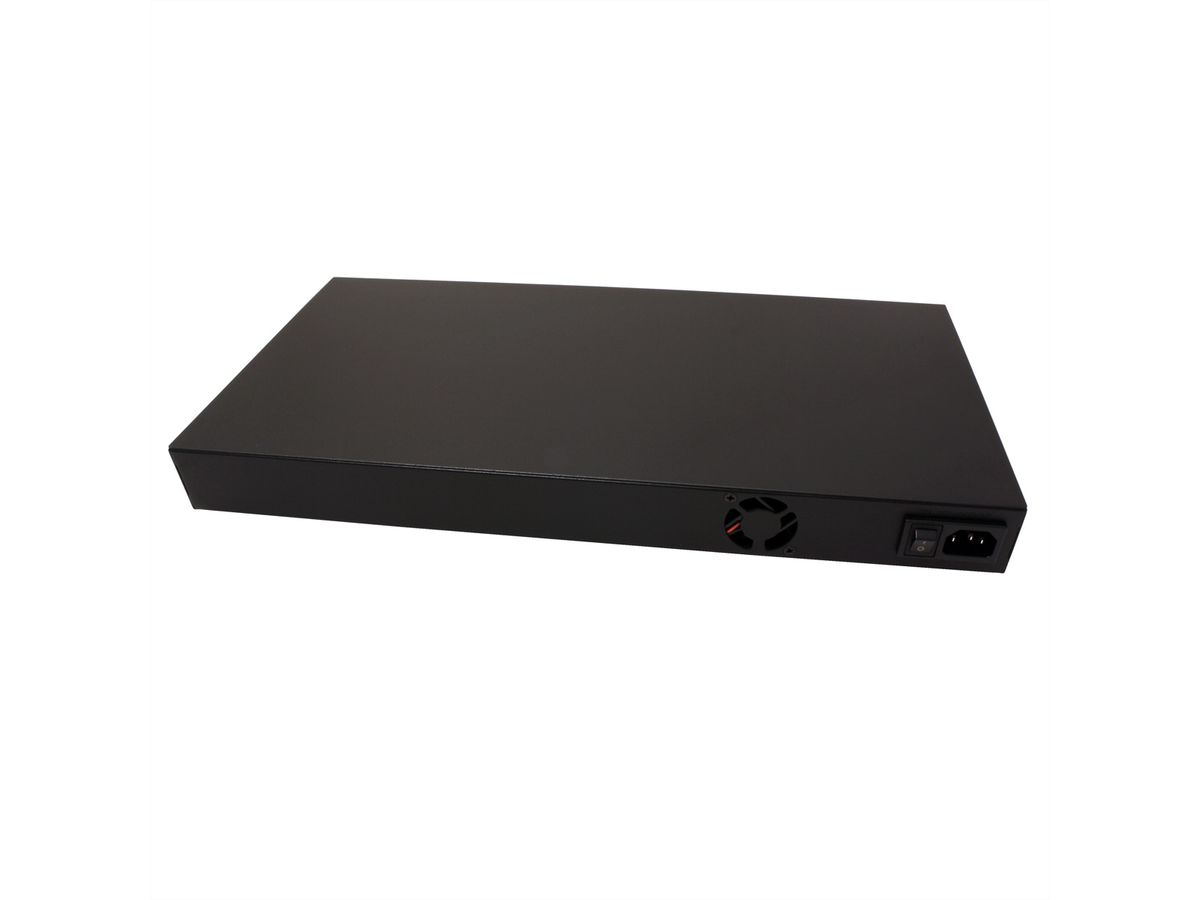

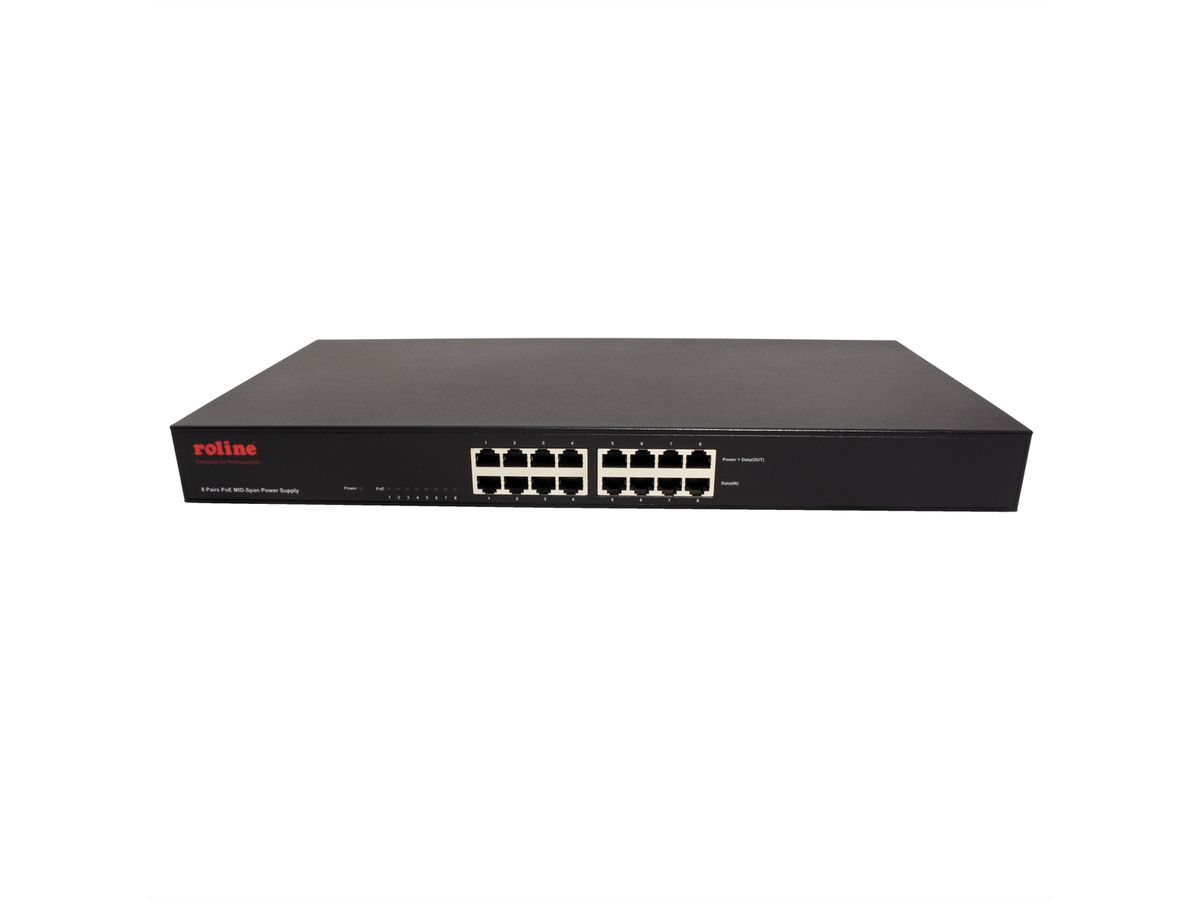

ROLINE 19" PoE MID-Span Power Supply, 8 Midspanports
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.13.1181-1 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.13.1181 |
| EAN | 7611990998692 |
| Package weight | 3.407 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

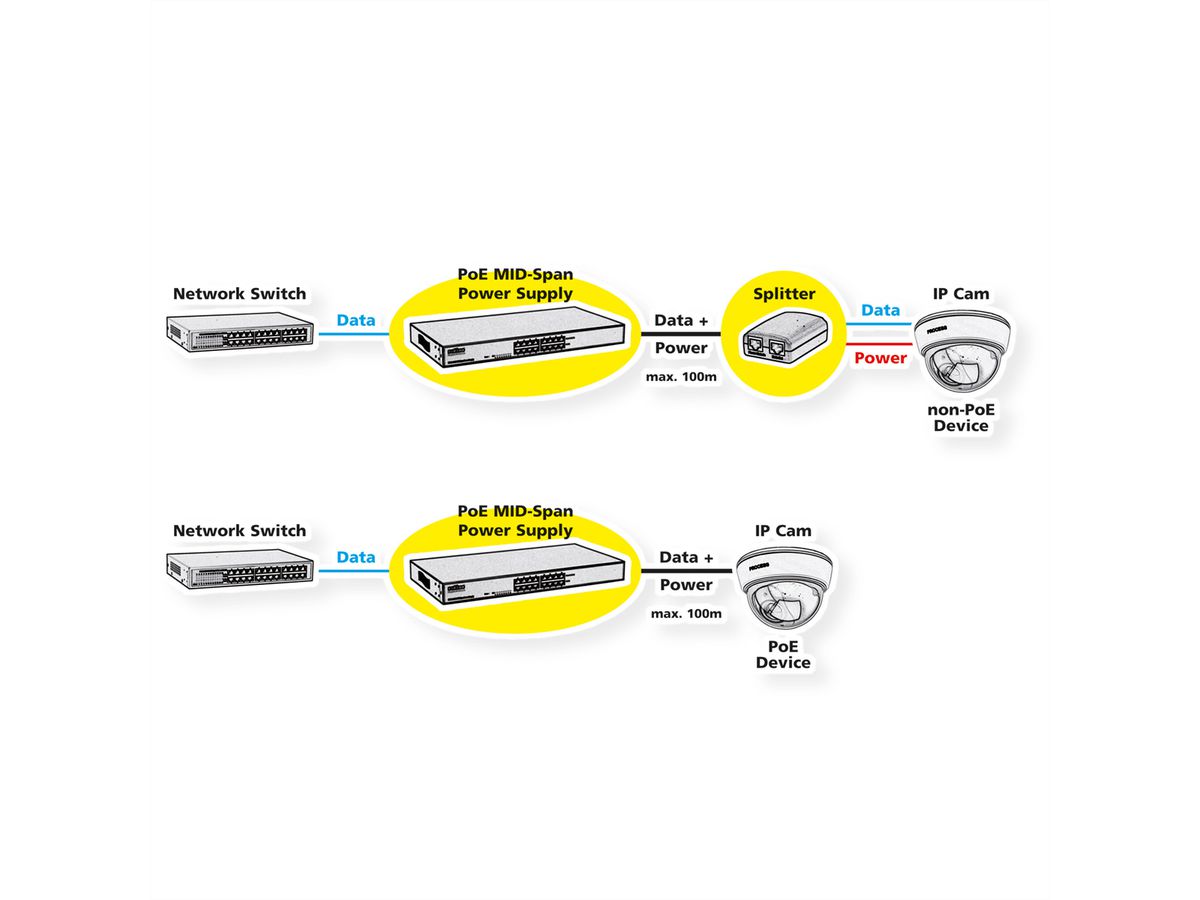

8-way injector that supplies IEEE 802.3af Power over Ethernet (PoE) compliant network accessories like e. g. workgroup switches, network cameras, access points, IP-phones with data and power over one LAN cable.- Data-in Ports: 8x 10/100BaseTX, Data + Power-out Ports: 8x 10/100BaseTX
- Standards: IEEE 802.3 10BaseT , IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control, IEEE 802.3af PoE
- Max. power output: 48 VDC / 15.4 W per port
- PoE capable ports: Port 1-8 up to 15.4 W per port
- PoE power budget: 110 W
- Max. power consumption (without PoE): 122 W (12 W)
- Status LEDs
- Metal casing, 19" rack-mountable (rack-mount kit included)
- Active cooling with integrated fan
- Internal power supply
- Dimensions (WxDxH): 440 x 220 x 44 mm
- Contents: Switch, power cord, rack mount kit, manual
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | PoE adapter |
| Product type | PoE-Injector |
| Colour | black |
| Network standard | Fast Ethernet |
| LAN (Mbps) | 10/100 |
| Quantity of ports | 8 |
| Power over Ethernet (PoE) | PoE (IEEE 802.3af) |
| Quantity of PoE ports | 8 |
| Max. PoE output power per port | 15.4 W |
| Max. PoE output power (total) | 110 W |
| Mounting form | 19" Rackmount |
| Mounting angle | 2 |
| Mains connection | Cold appliance connection |
| Height | 44 mm |
| Width | 440 mm |
| Depth | 220 mm |
| Weight | 2.7 kg |
| Height of packaging (single piece) | 90 mm |
| Width of packaging (single piece) | 310 mm |
| Depth of packaging (single piece) | 500 mm |
| Package weight (single piece) | 3.407 kg |
