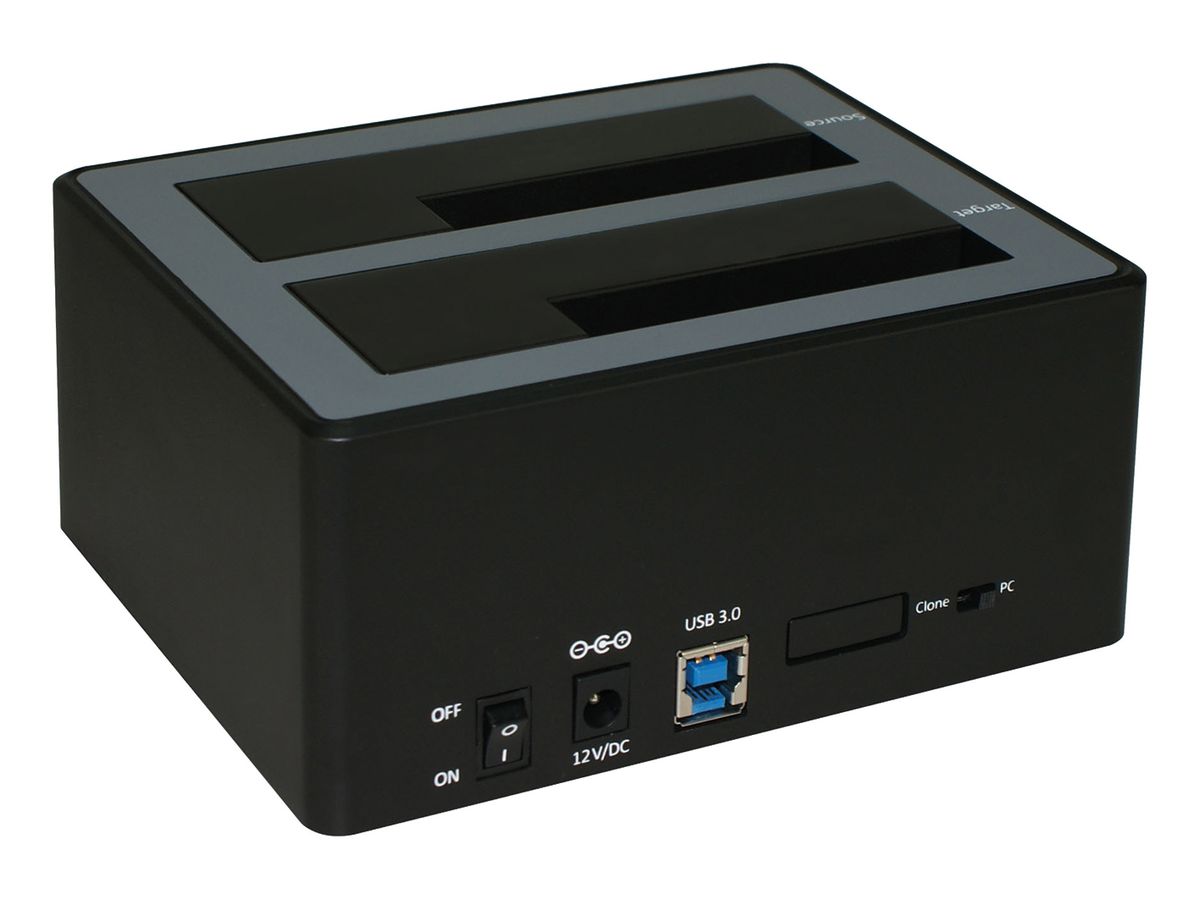

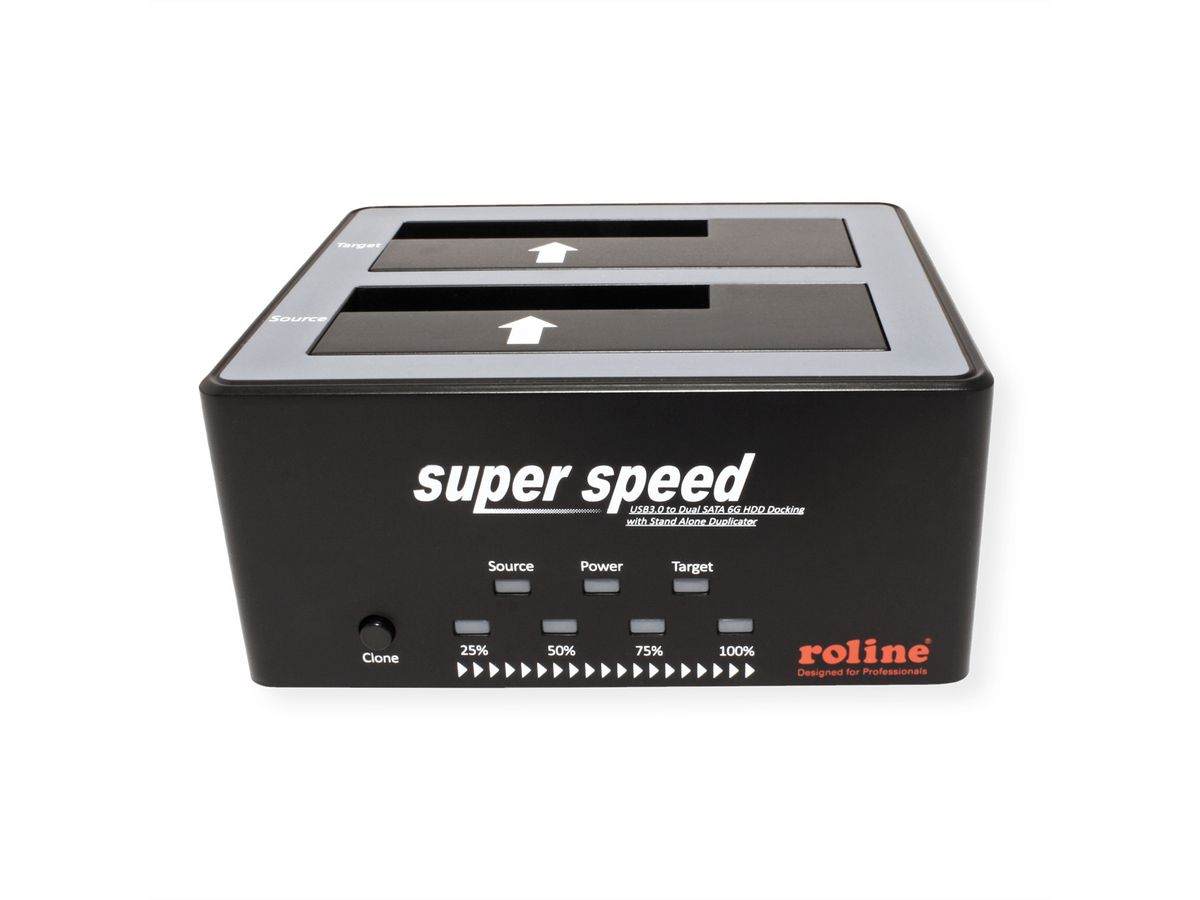

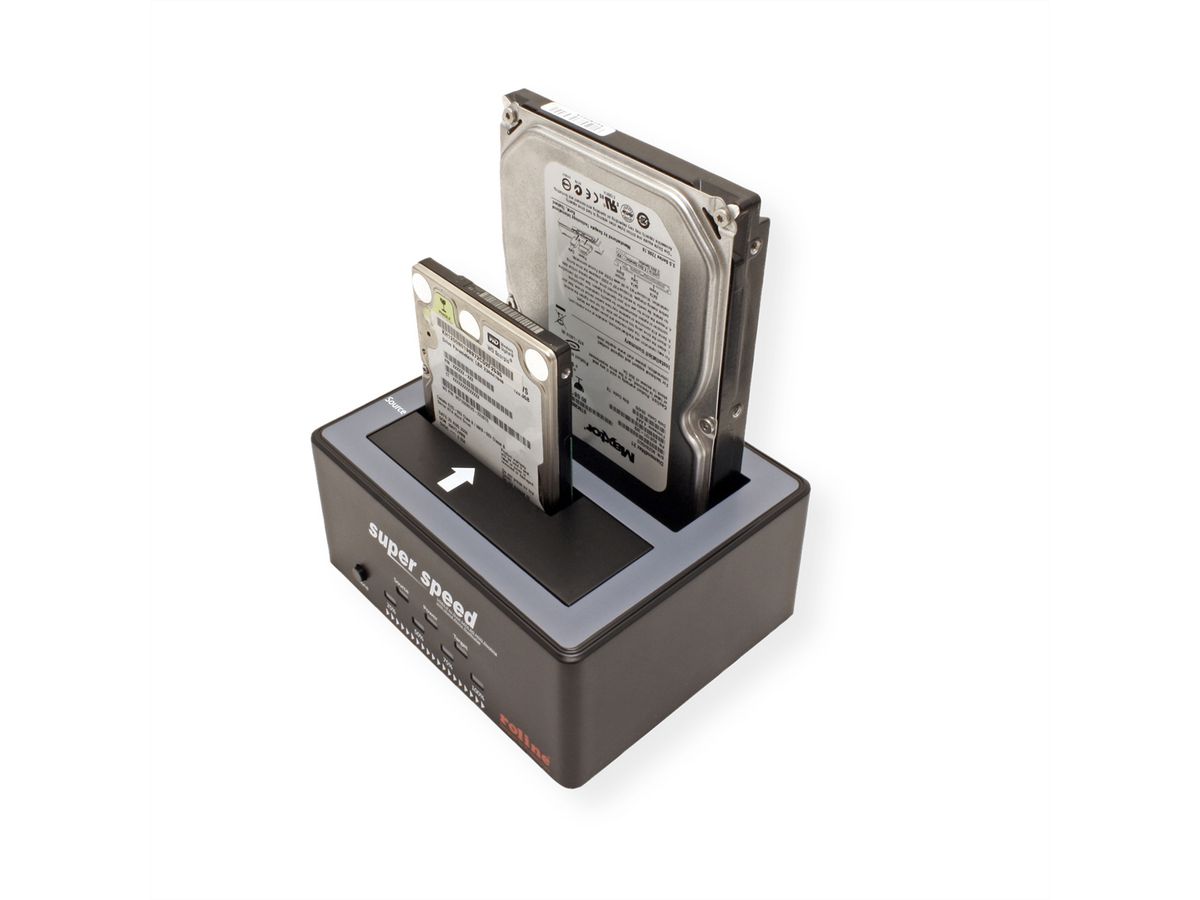

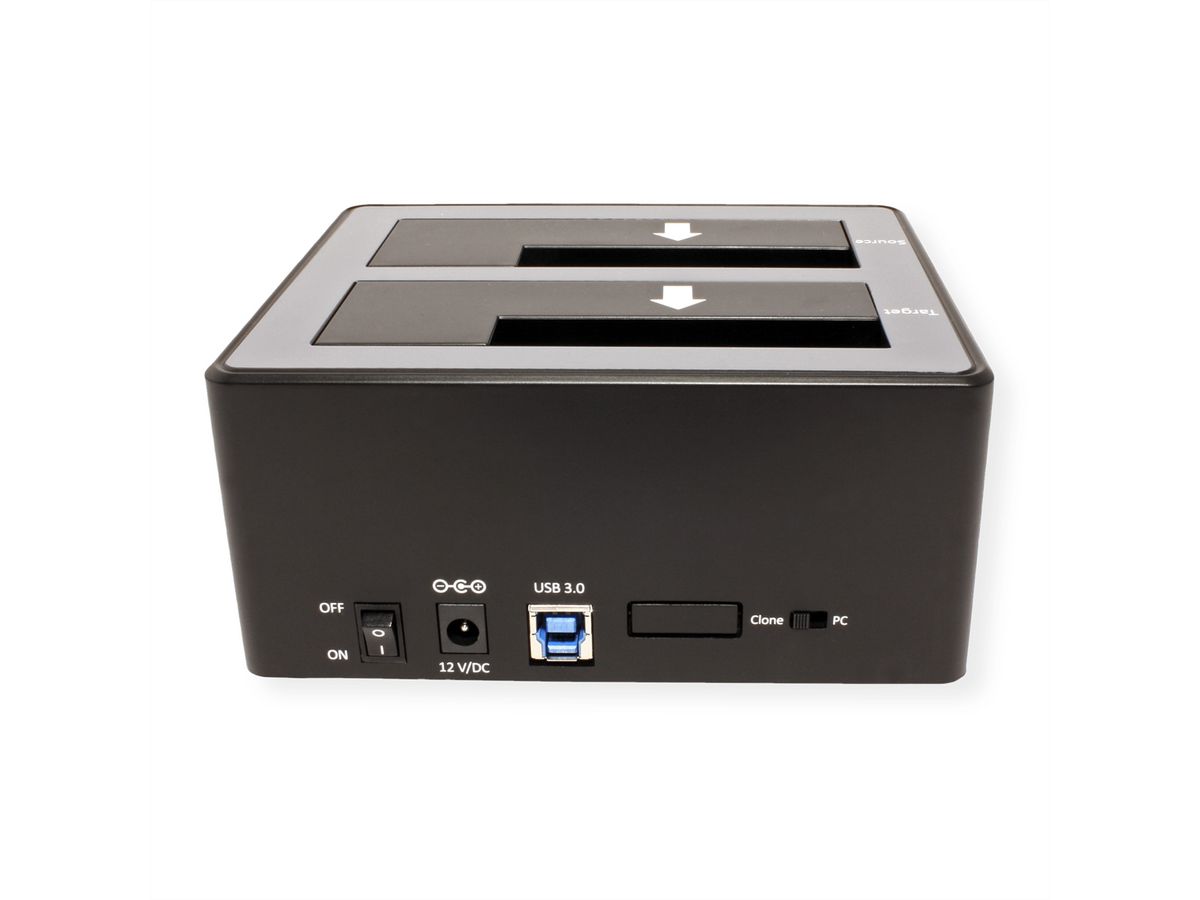

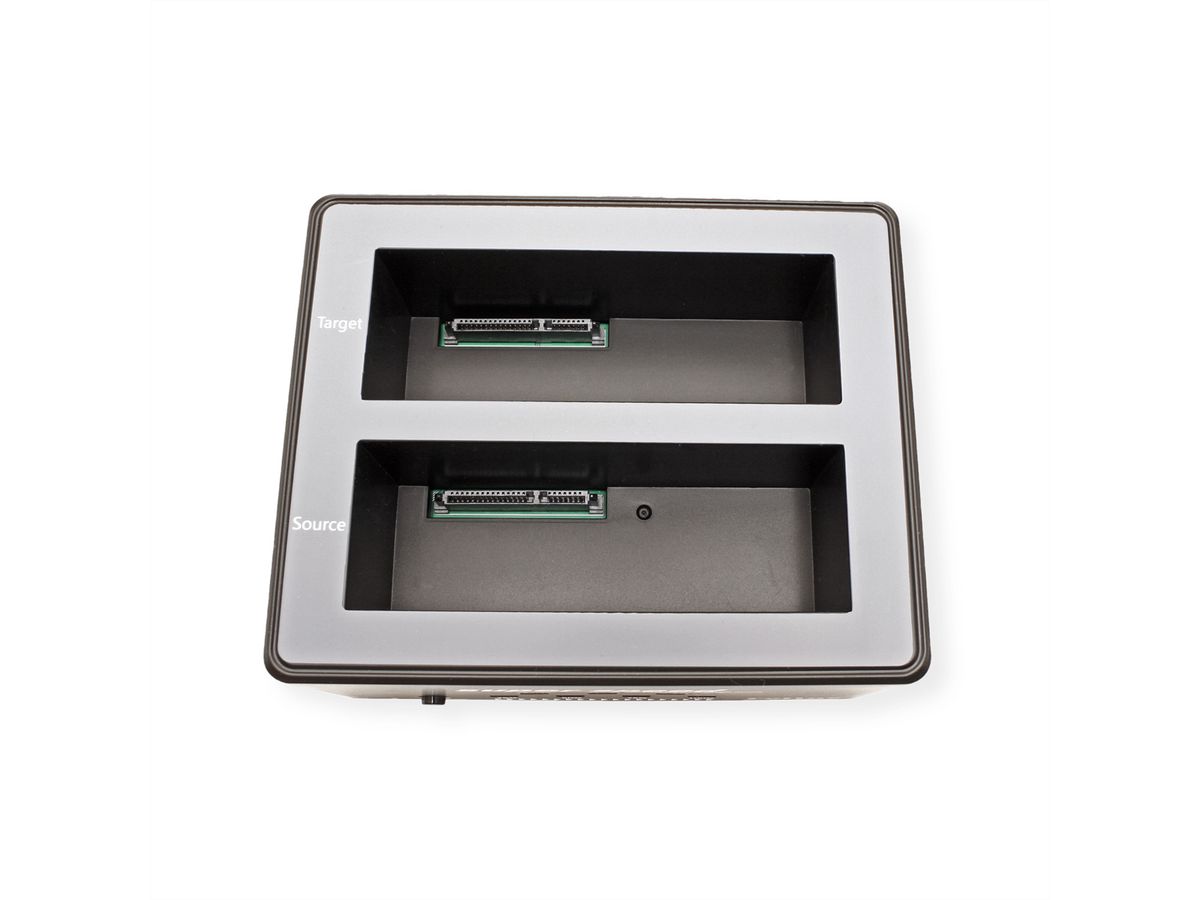

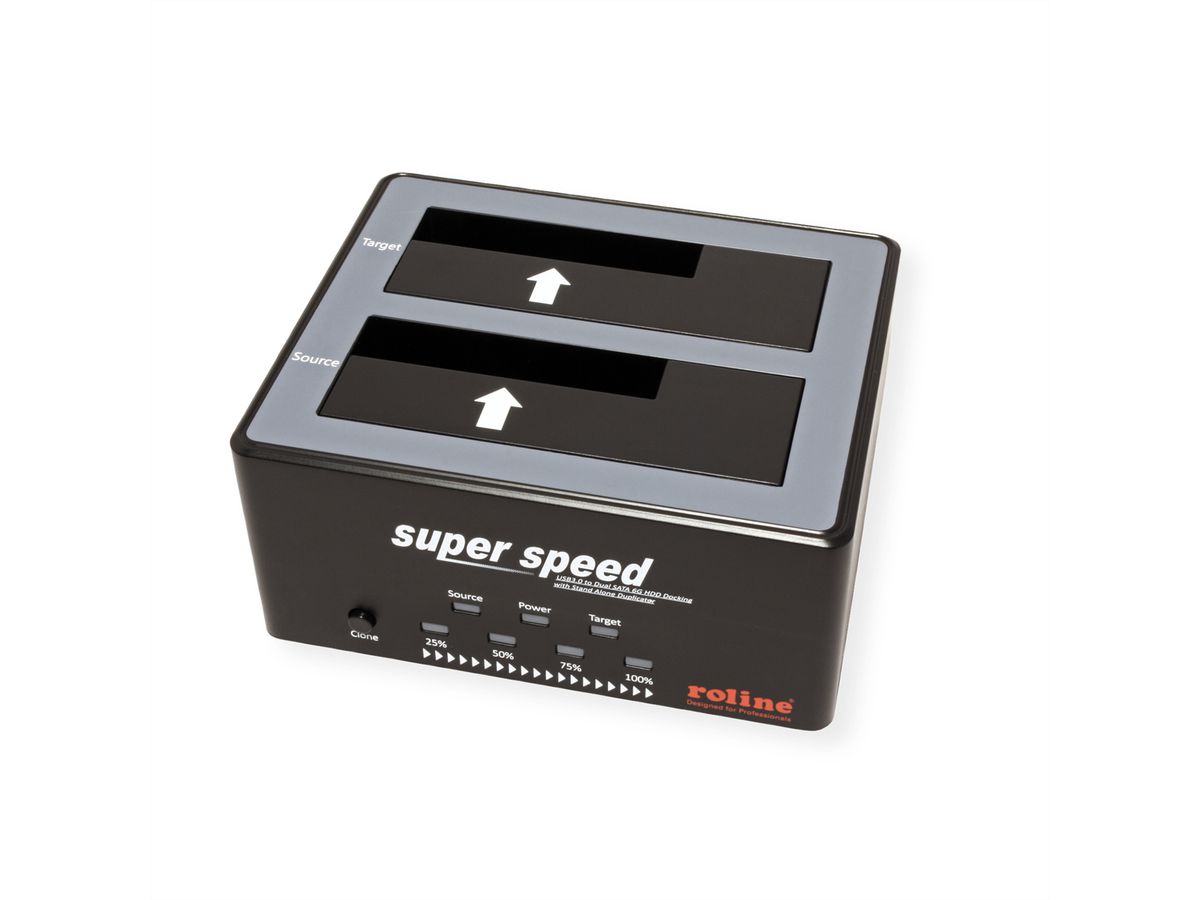

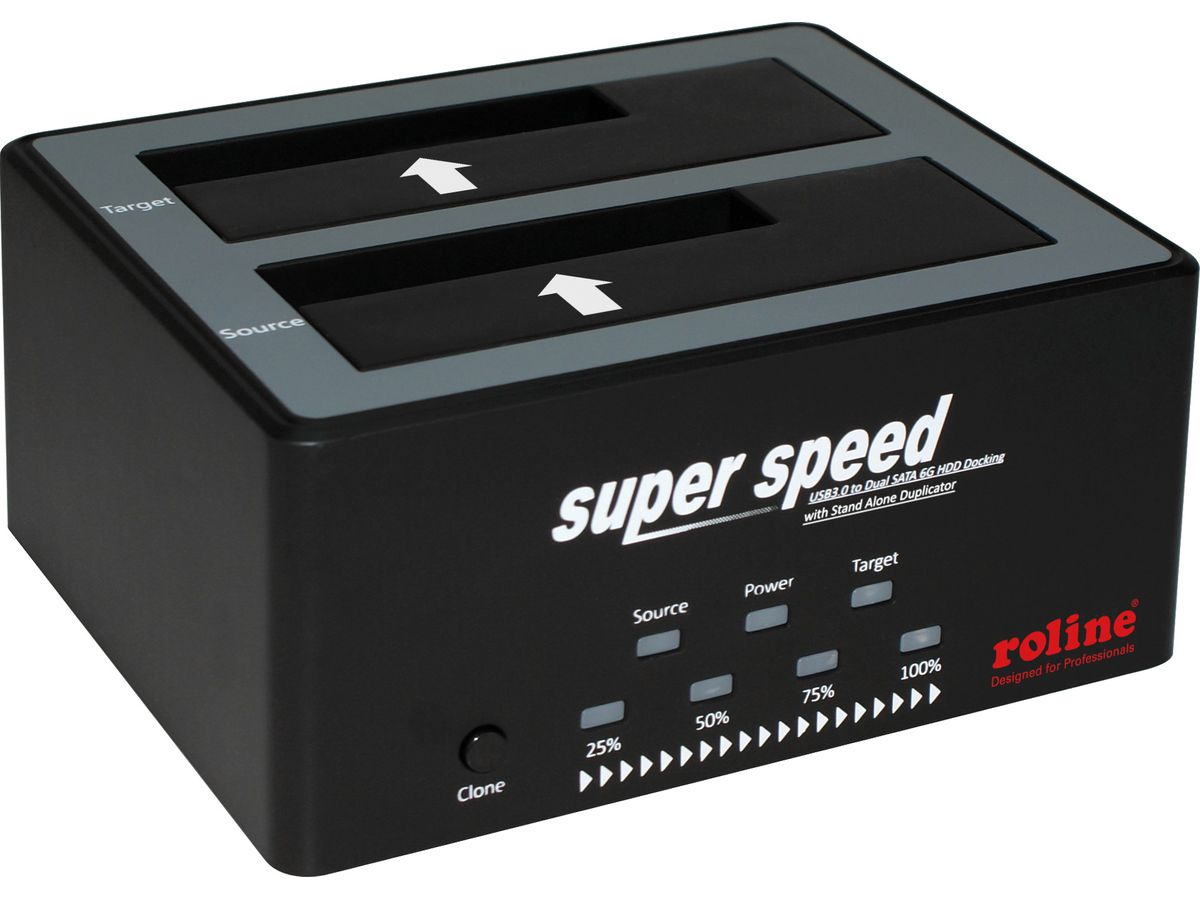

ROLINE 2.5" / 3.5" SATA HDD/SSD Docking Station, USB 3.2 Gen 1, HDD Clone-Function

Item no. 16.01.4122-5 Brand / Manufacturer ROLINE Manuf. no. 16.01.4122 EAN 7611990948895 Package weight 0.82 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

HDD/SSD docking station with two SATA ports for 2.5" and 3.5" hard drives - for connection to a PC via USB 3.0 / USB 3.2 Gen 1 with data transfer rates of up to 5Gbit/s or for cloning a hard drive!

  • Suitable for 2.5" or 3.5" SATA HDDs/SSDs (up to 4 TB)
  • Compatible with USB 3.0 / USB 3.2 Gen 1
  • Compatible with SATA 6.0 Gbit/s
  • Supports data transfer rates up to 5.0 Gbps
  • Connection to hard disk: 15-pin SATA Power + 7-pin SATA data
  • USB 3.0 / USB 3.2 Gen 1 Type B Dock connector
  • Hot-Swappable, Plug & Play
  • Clone function - to duplicate data from one hard disk to another
  • Length USB cable: 1m
  • External power supply included (12V 3A)

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
HDD-Docking-Station
Colour
black
Scope of delivery
HDD/SSD Docking station, USB cable, power supply, manual
Dimensions (HxWxD)
140 x 65 x 115 mm
Technical particularity
Clone function
Mains connection
Appliance Europlug, Type-C
Height
140 mm
Width
65 mm
Depth
115 mm
Weight
306.7 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
180 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
0.82 kg

Downloads

Product data sheet - English (49.7 KB) Manufacturer data sheet - English (302.4 KB) User manual - Deutsch (238.7 KB) User manual - English (234.7 KB) User manual - Français (234.0 KB)
