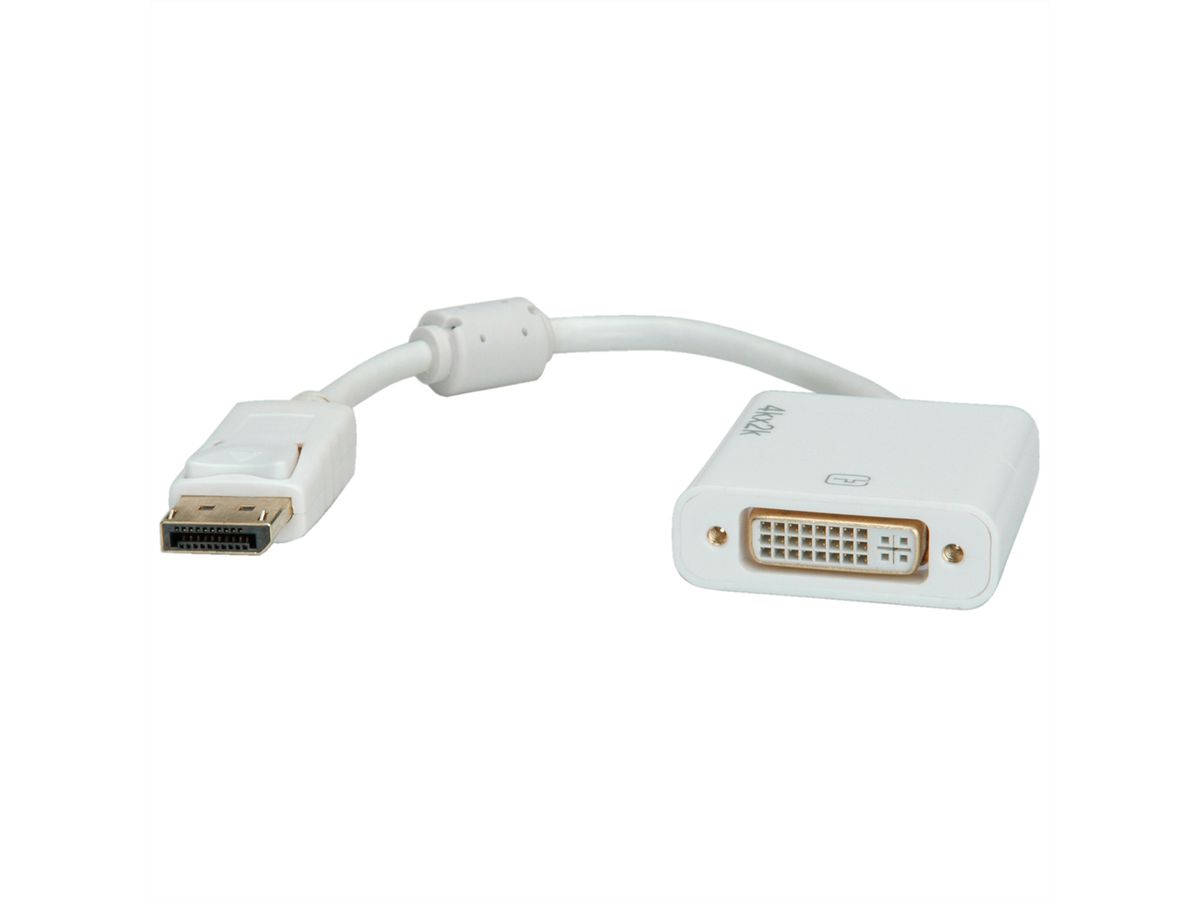

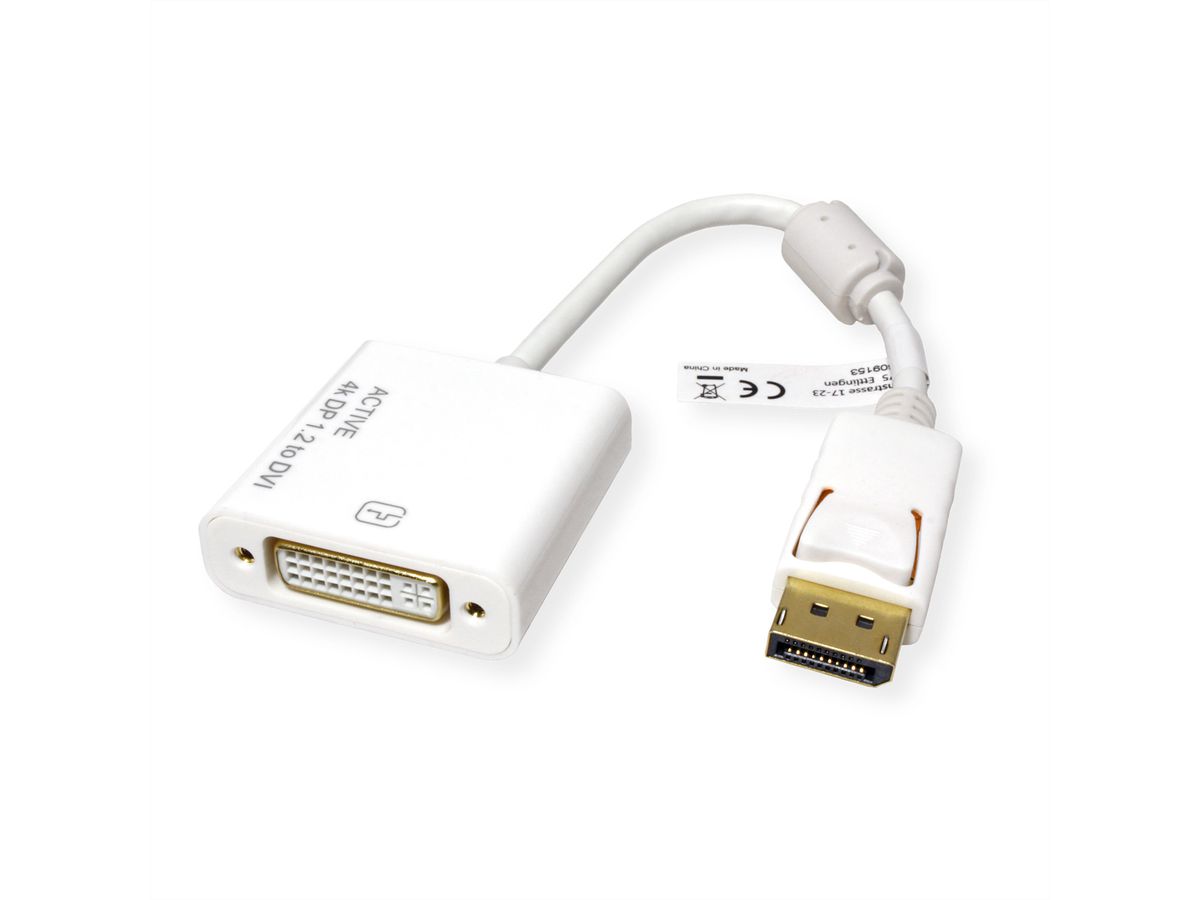

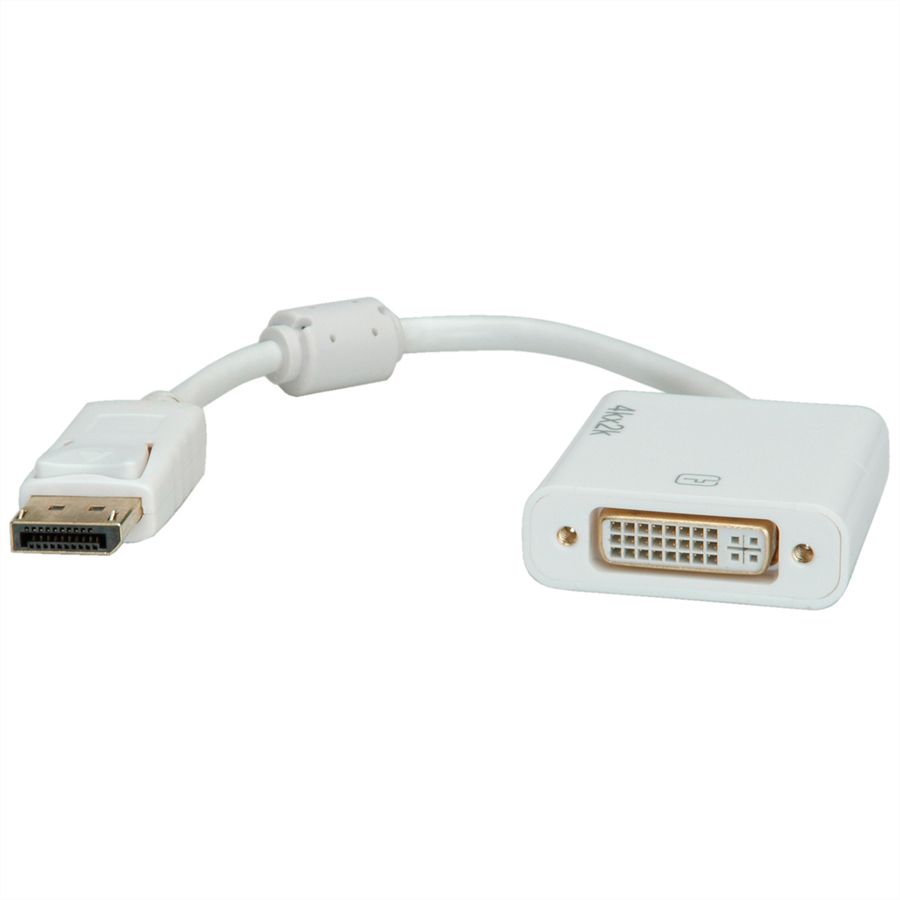

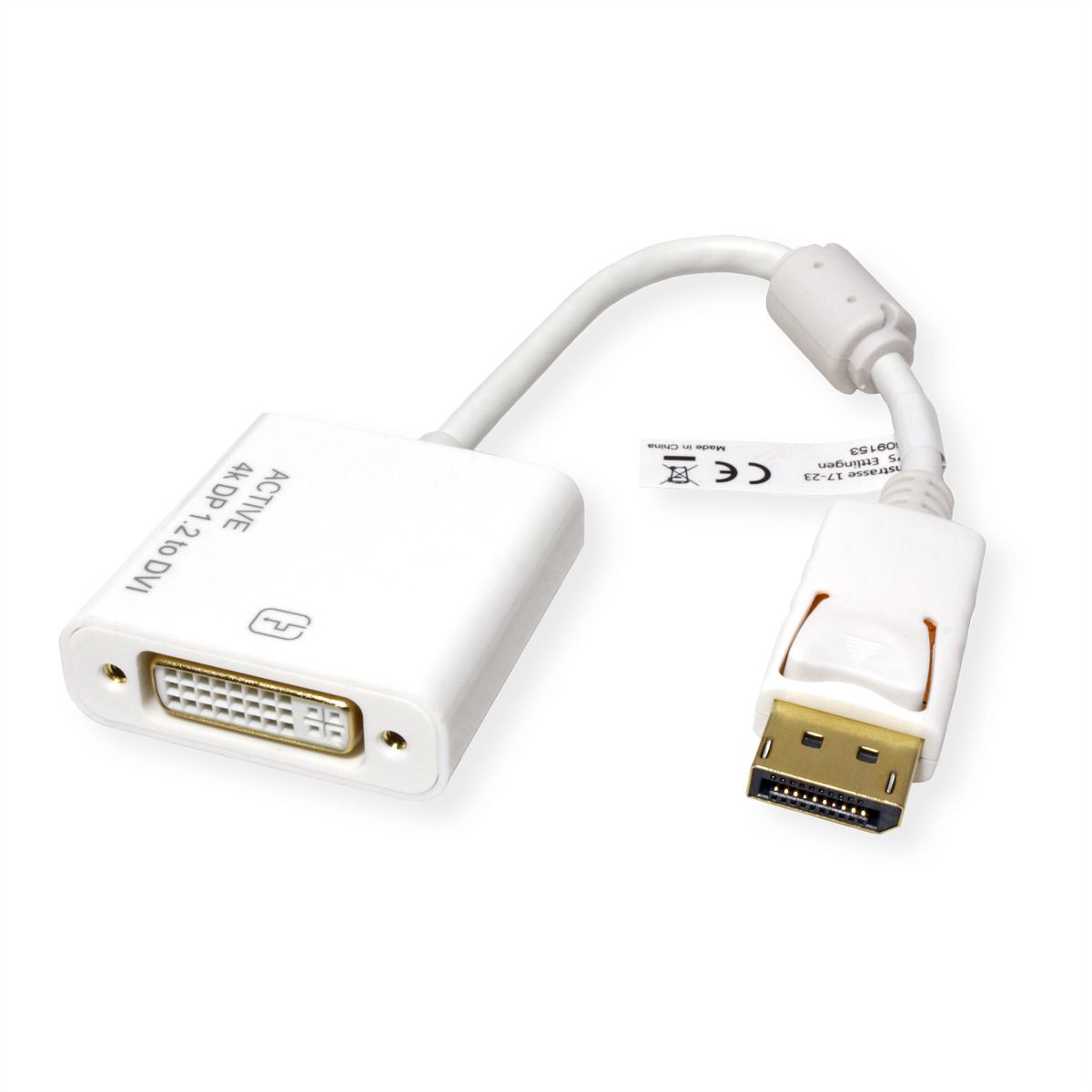

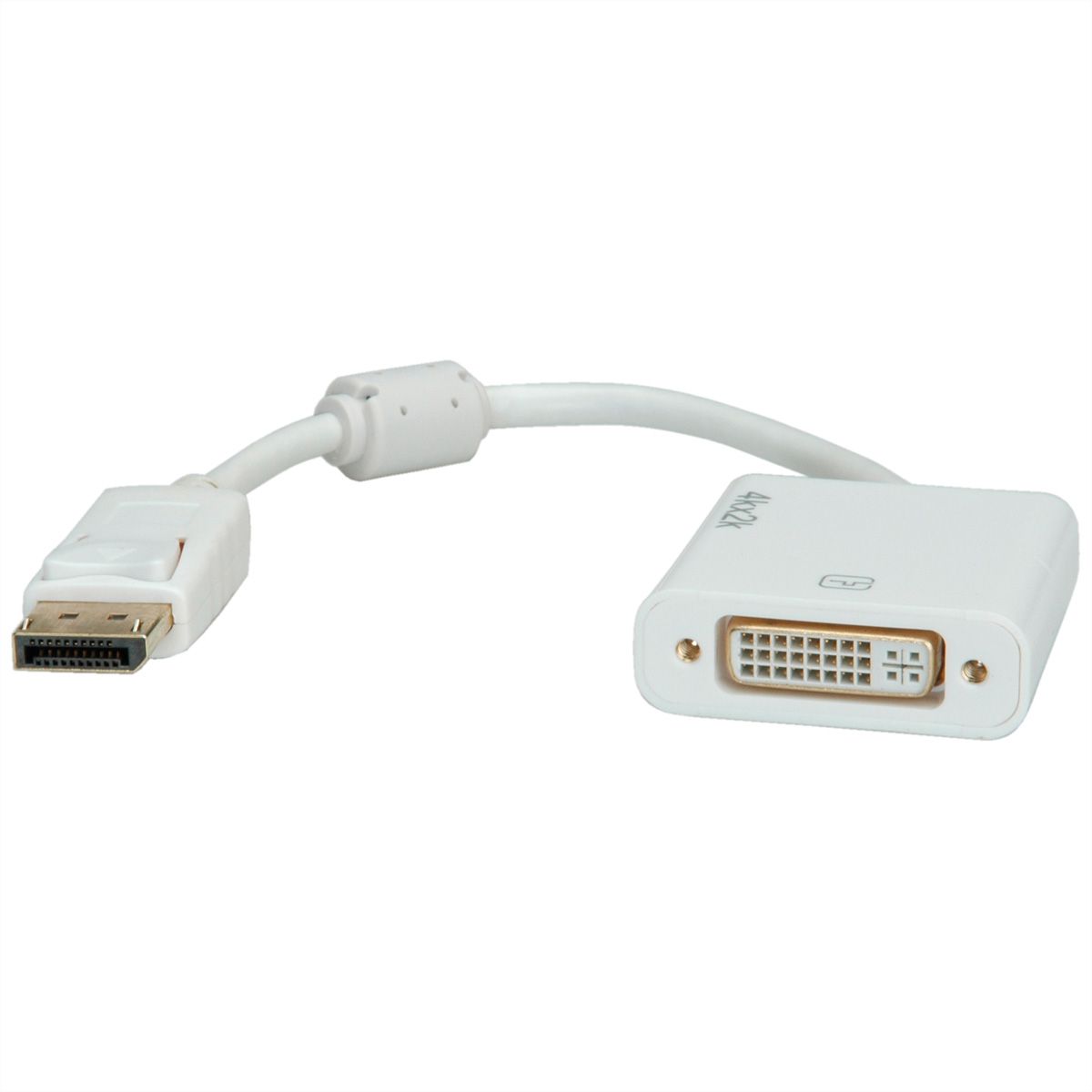

ROLINE 4K DisplayPort-DVI Adapter, DP M - DVI F

ROLINE 4K DisplayPort-DVI Adapter, DP M - DVI F

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.03.3136-10
Brand / Manufacturer ROLINE
Manuf. no. 12.03.3136
EAN 7611990950249
Package weight 0.043 kg

Description

DisplayPort to DVI cable adapter for connecting a graphics card with DP to a monitor with DVI connection - with a resolution of up to 3840x2160 @30Hz!

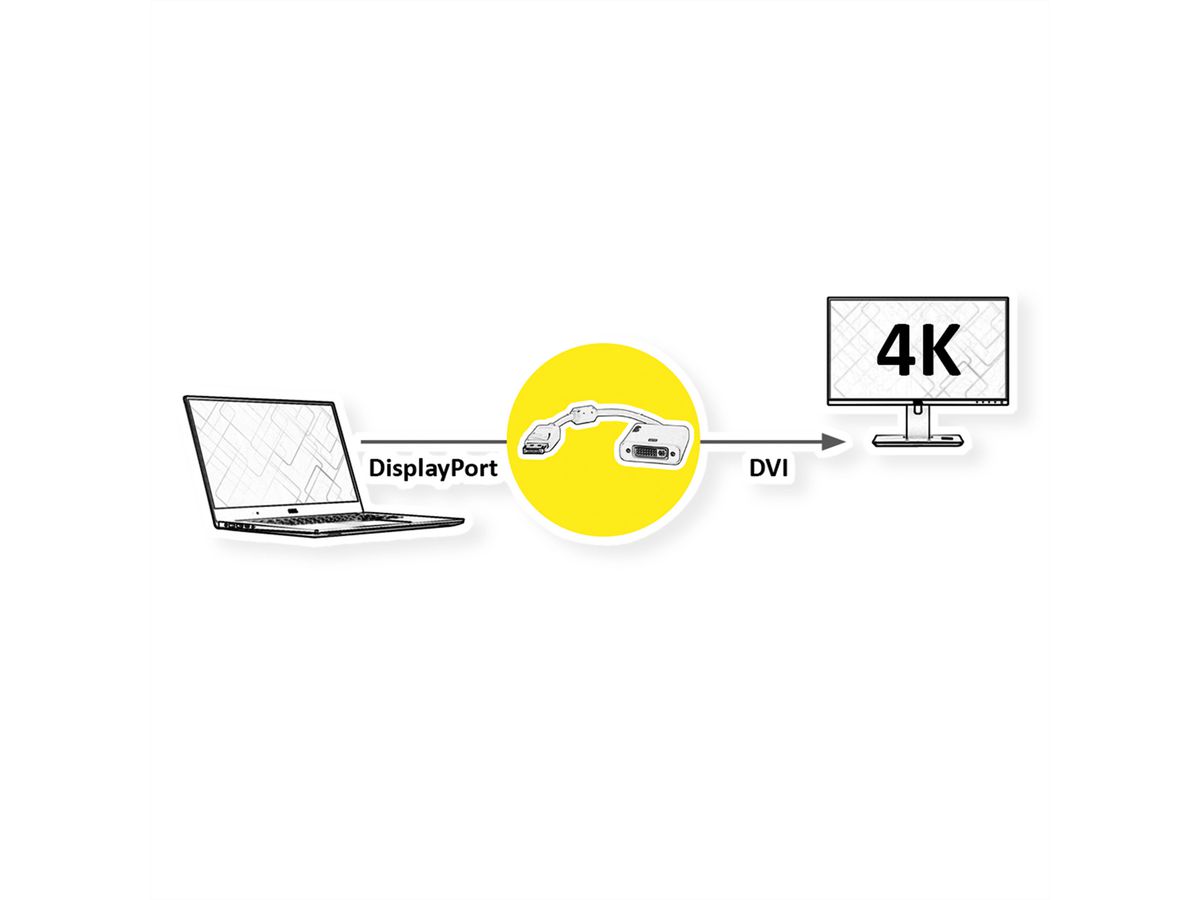

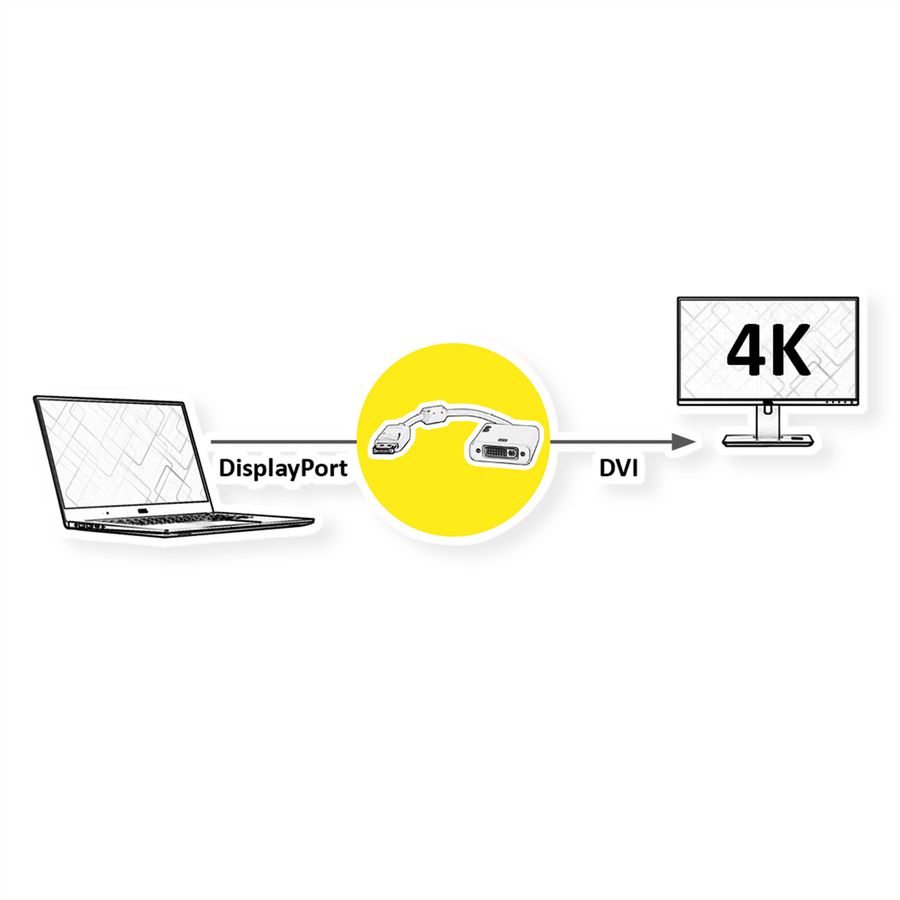

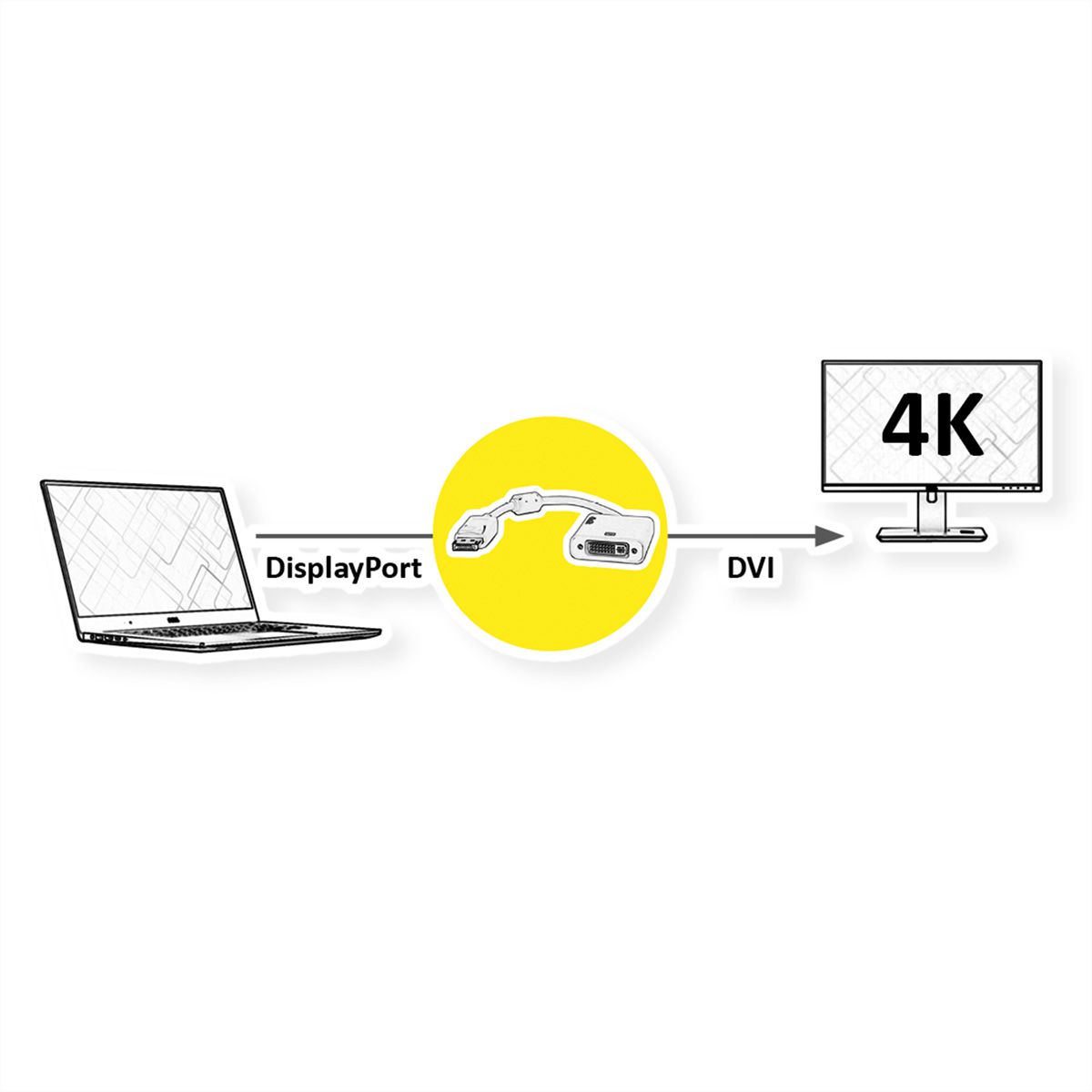

  • If you want to connect a graphic card with DisplayPort Female to a monitor by using a DVI cable, you need this DisplayPort to DVI adapter
  • Connectors: DisplayPort Male, DVI Female
  • Max. resolution: 3840 x 2160 (@30Hz)
  • Remark: The DisplayPort-DVI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type DisplayPort-DVI Adapter
Colour grey
Length 0.15 m
Max. resolution 3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC) DisplayPort Stecker
Side 2 connection (Peripherals) DVI F
Side 1 Connector Type DisplayPort
Side 1 Connector Gender Male
Side 2 Connector Type DVI-D 24+1, Dual-Link
Side 2 Connector Gender Female
Active / Passive Active
Area of application External
Weight 45.8 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 110 mm
Depth of packaging (single piece) 140 mm
Package weight (single piece) 0.043 kg

Downloads

Product data sheet - English (47.1 KB)

Download

Manufacturer data sheet - English (365.6 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
