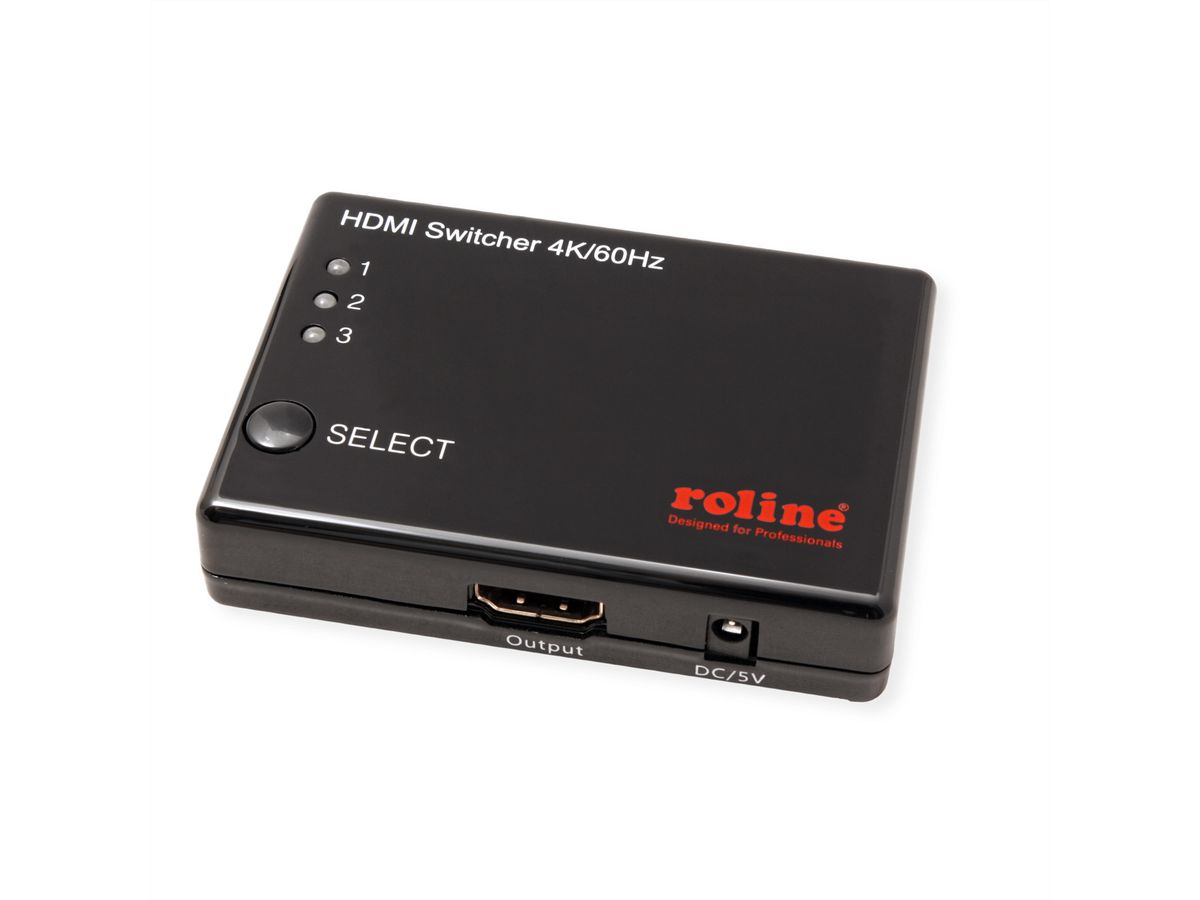

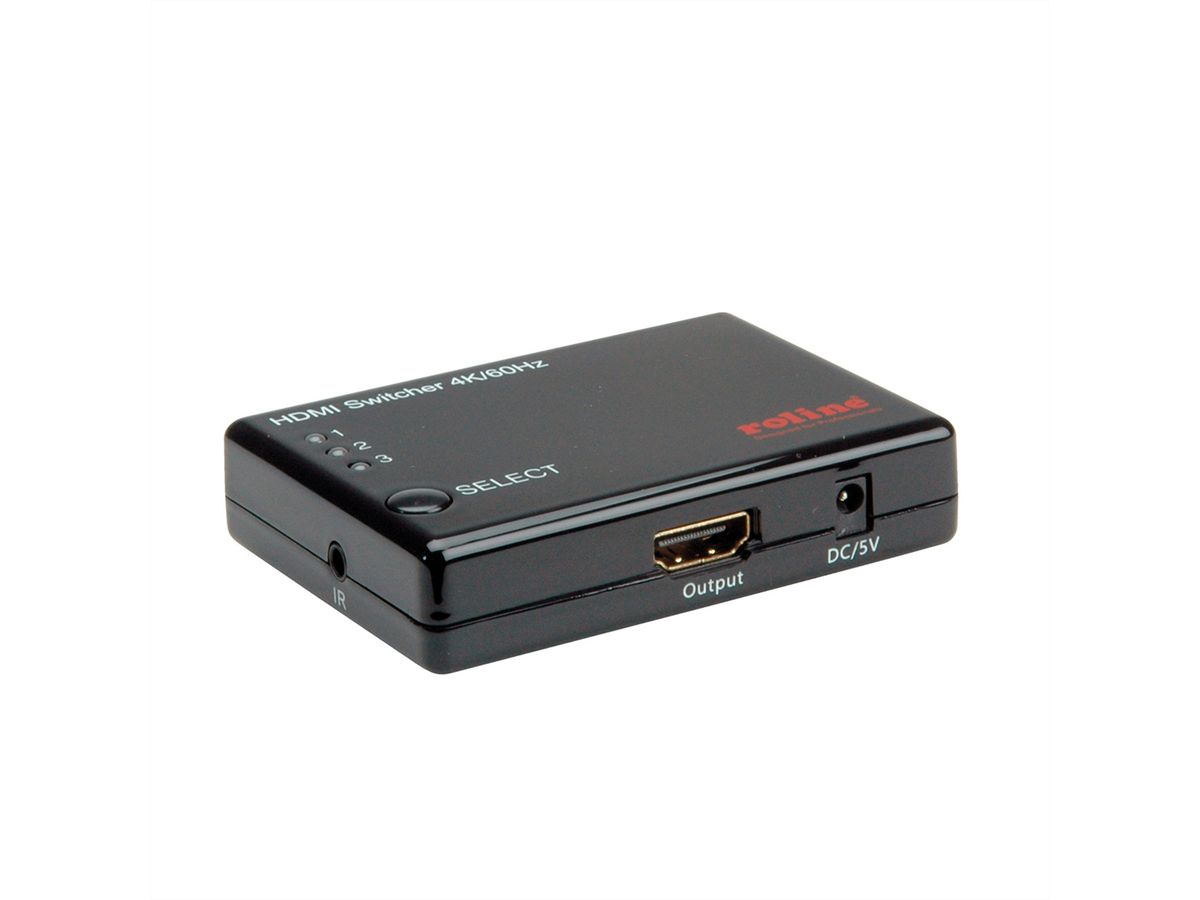

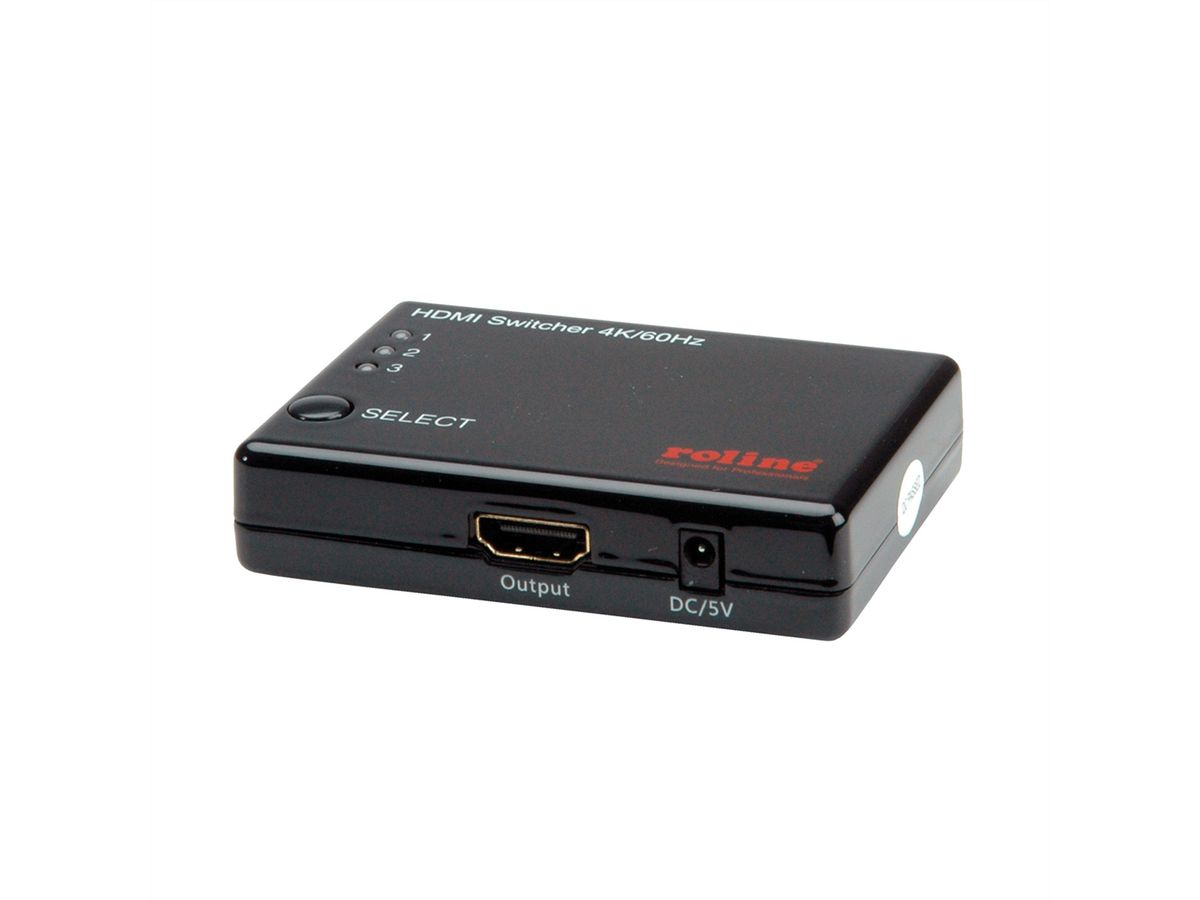

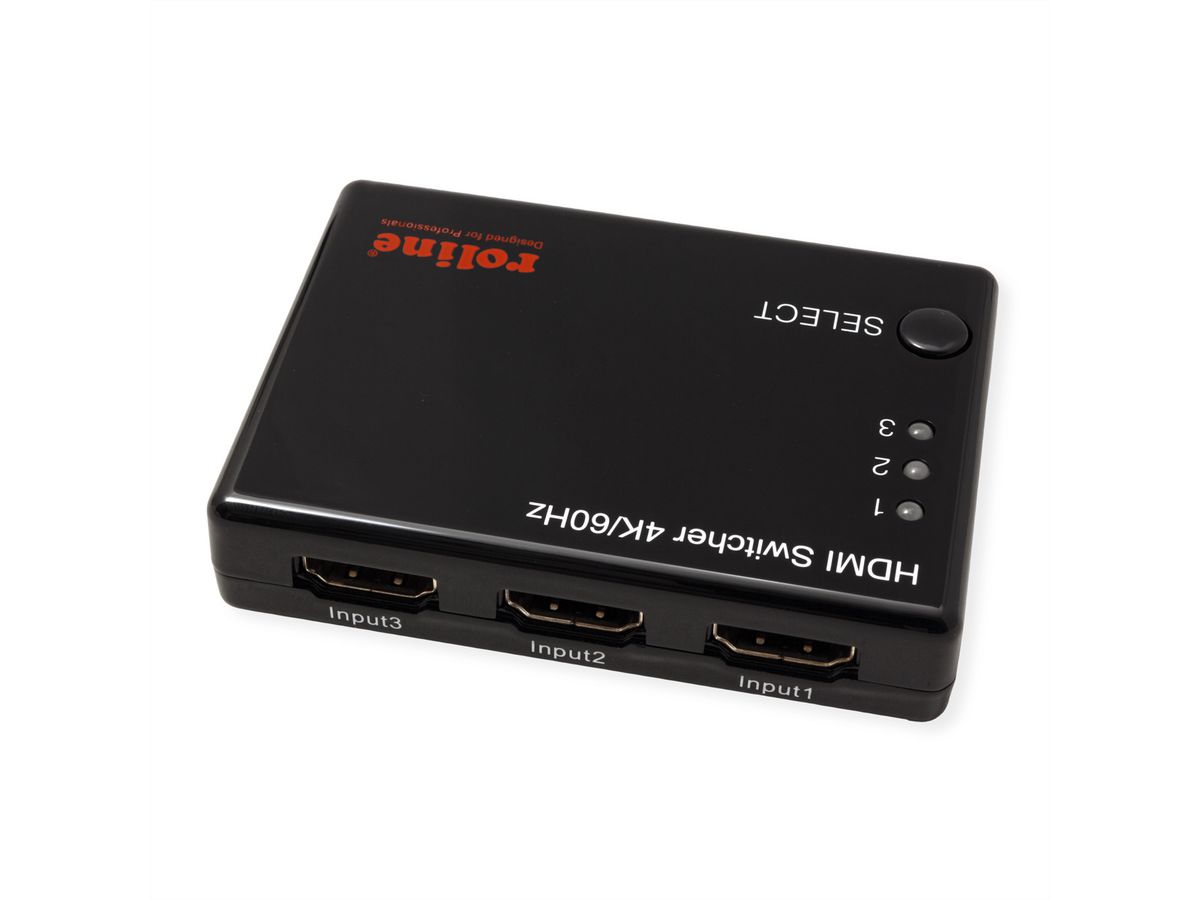

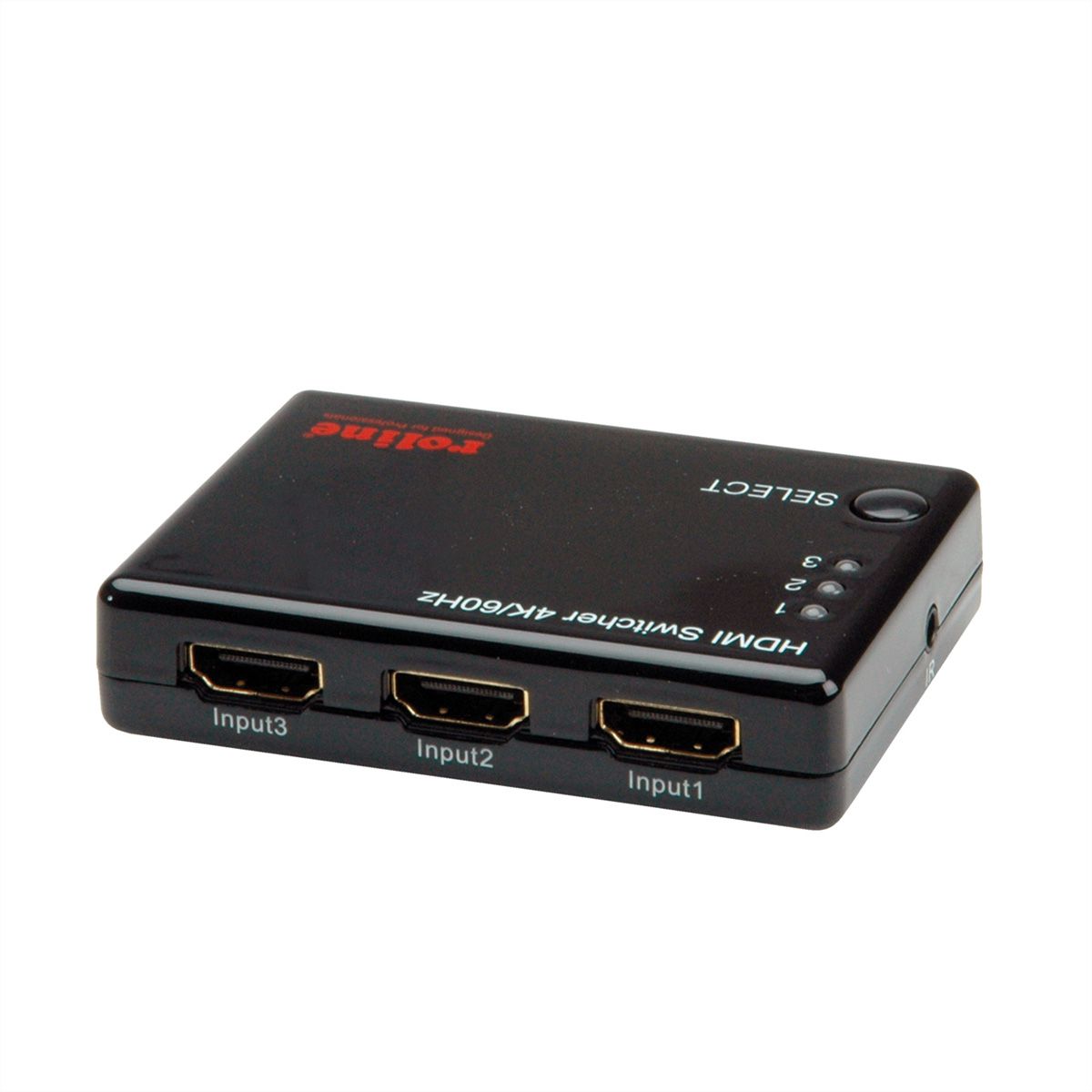

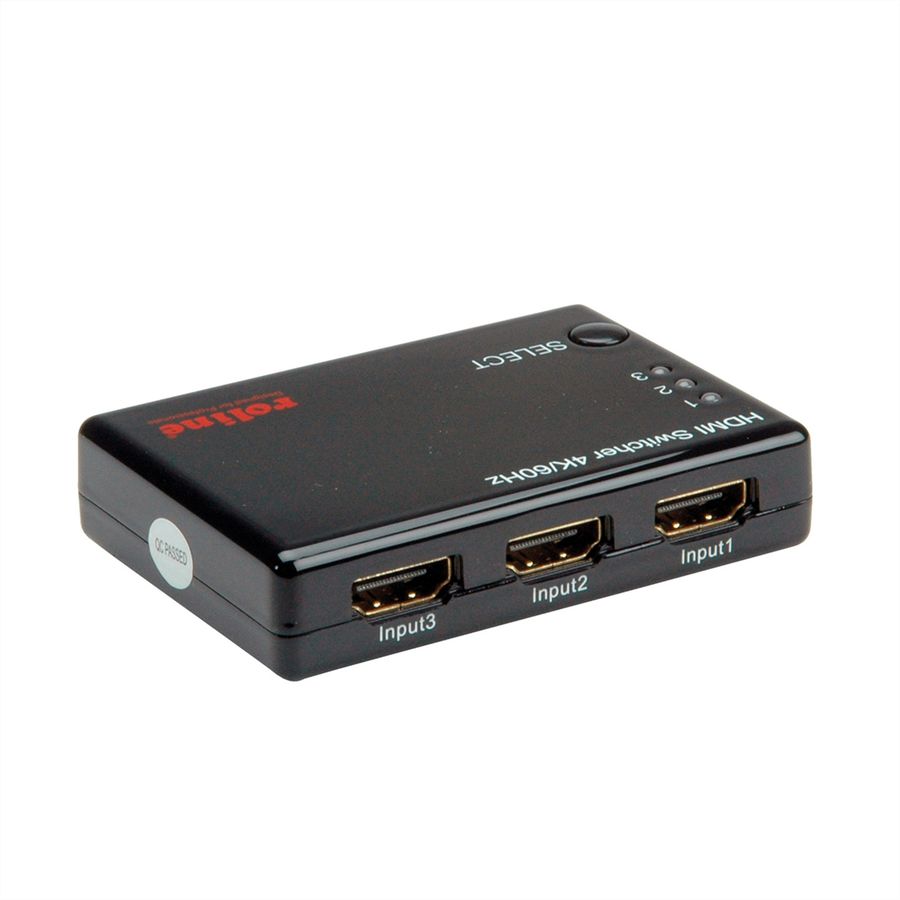

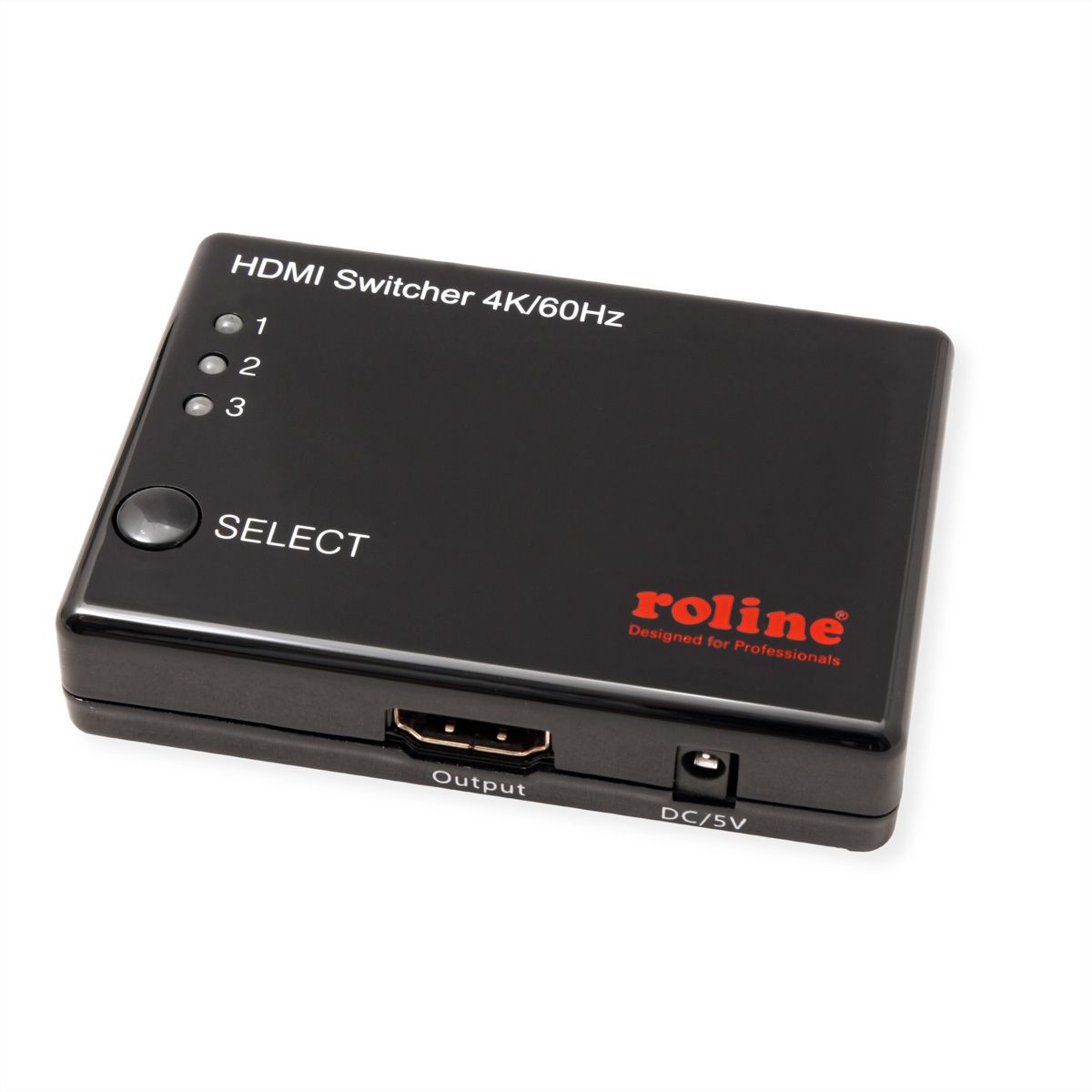

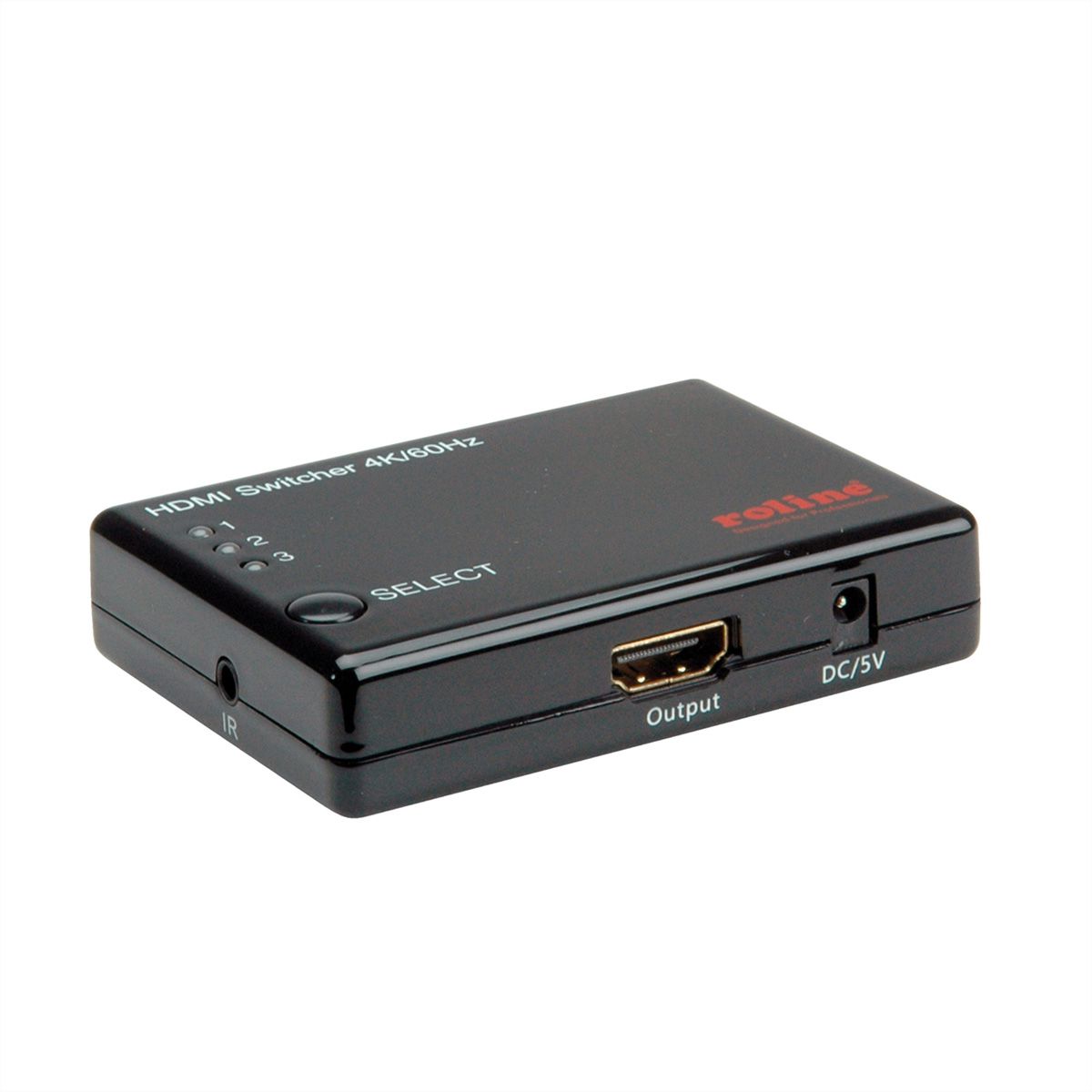

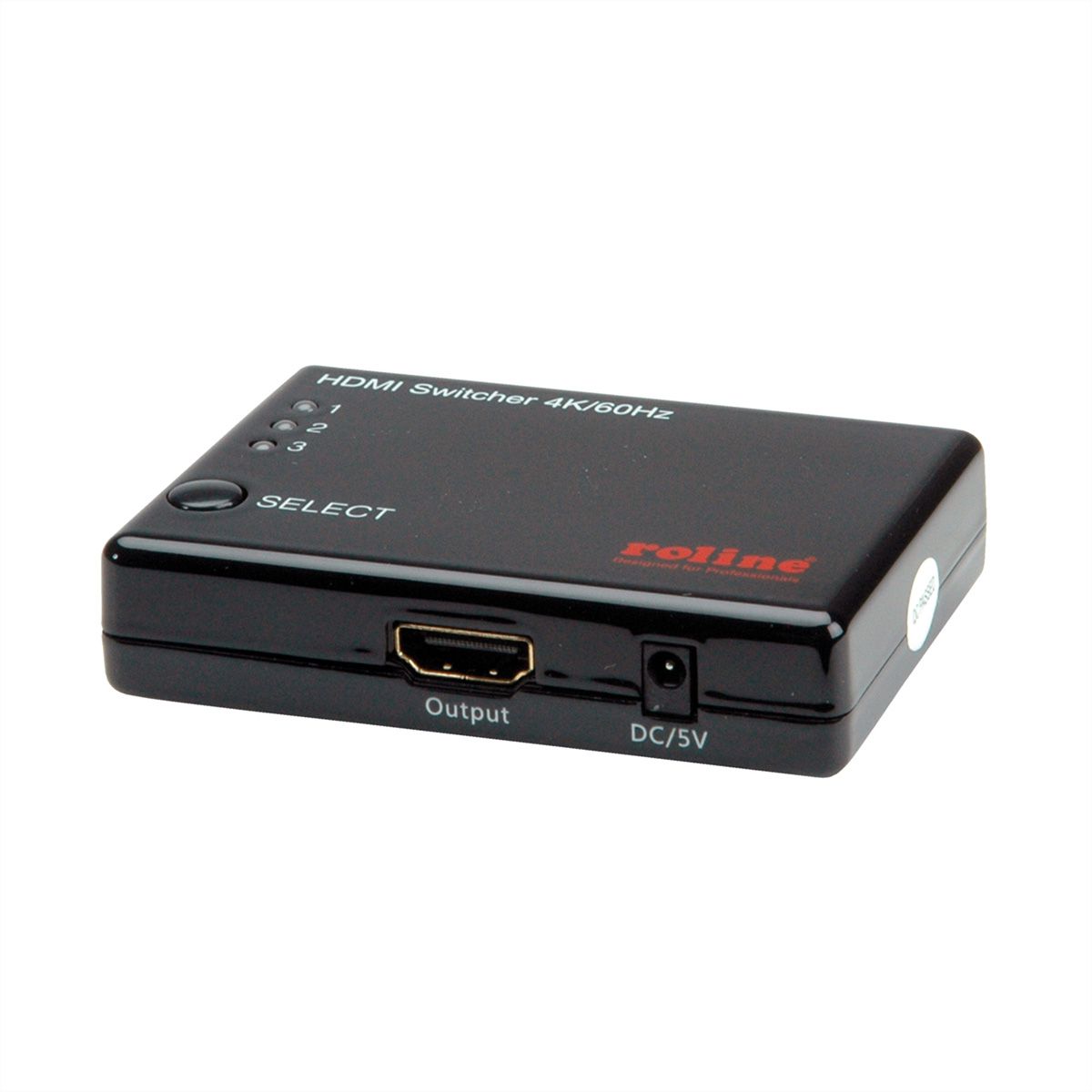

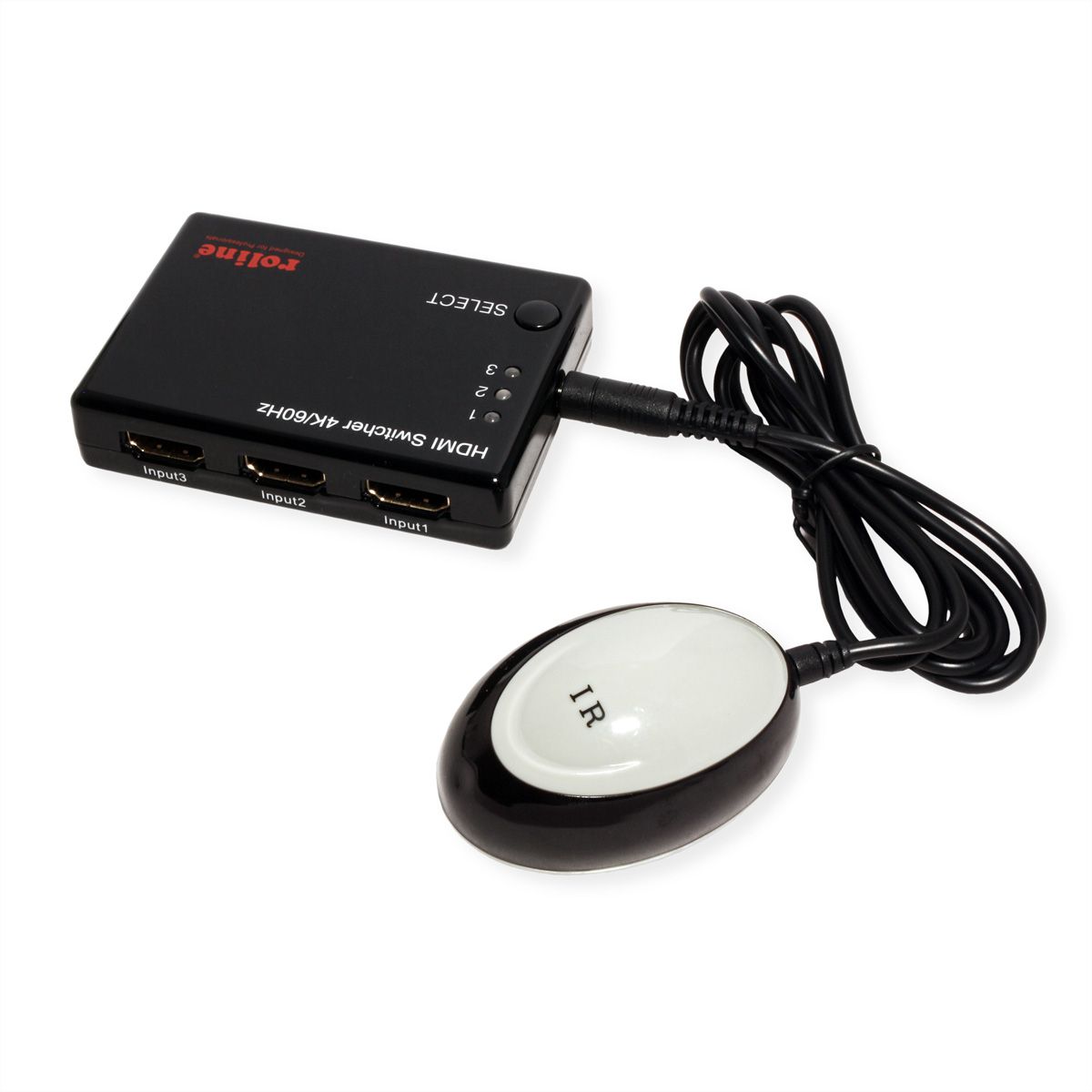

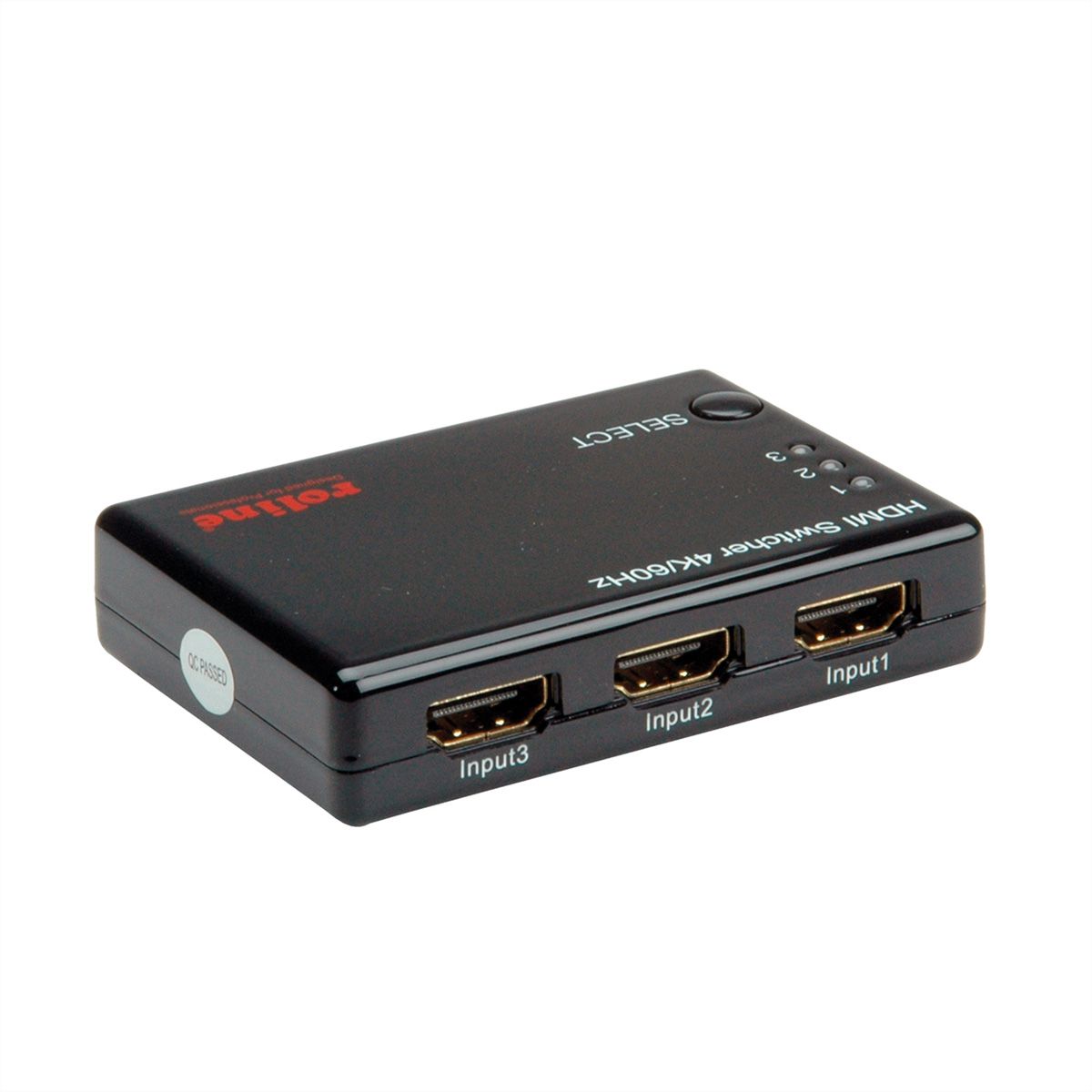

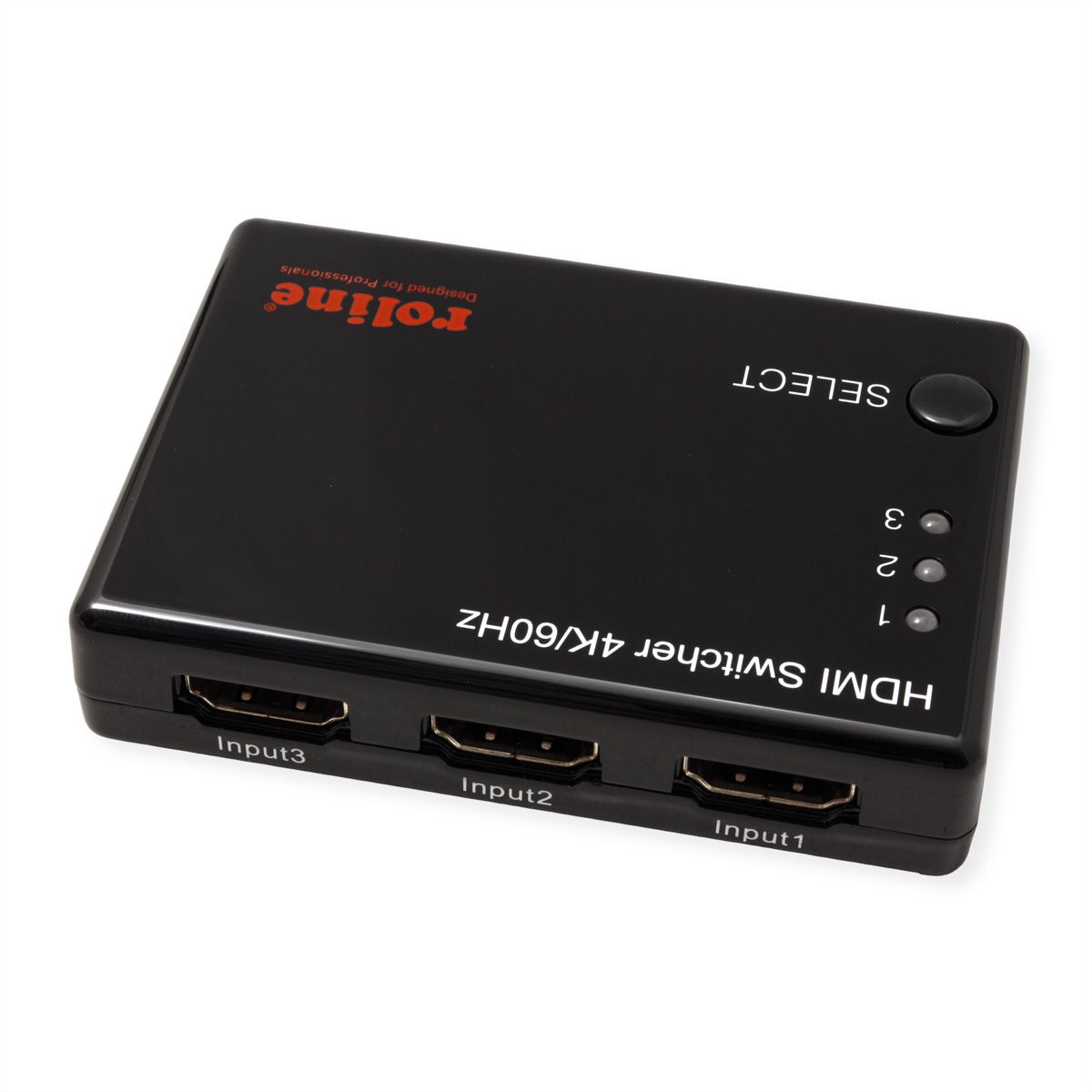

ROLINE 4K HDMI Switch, 3-way
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription

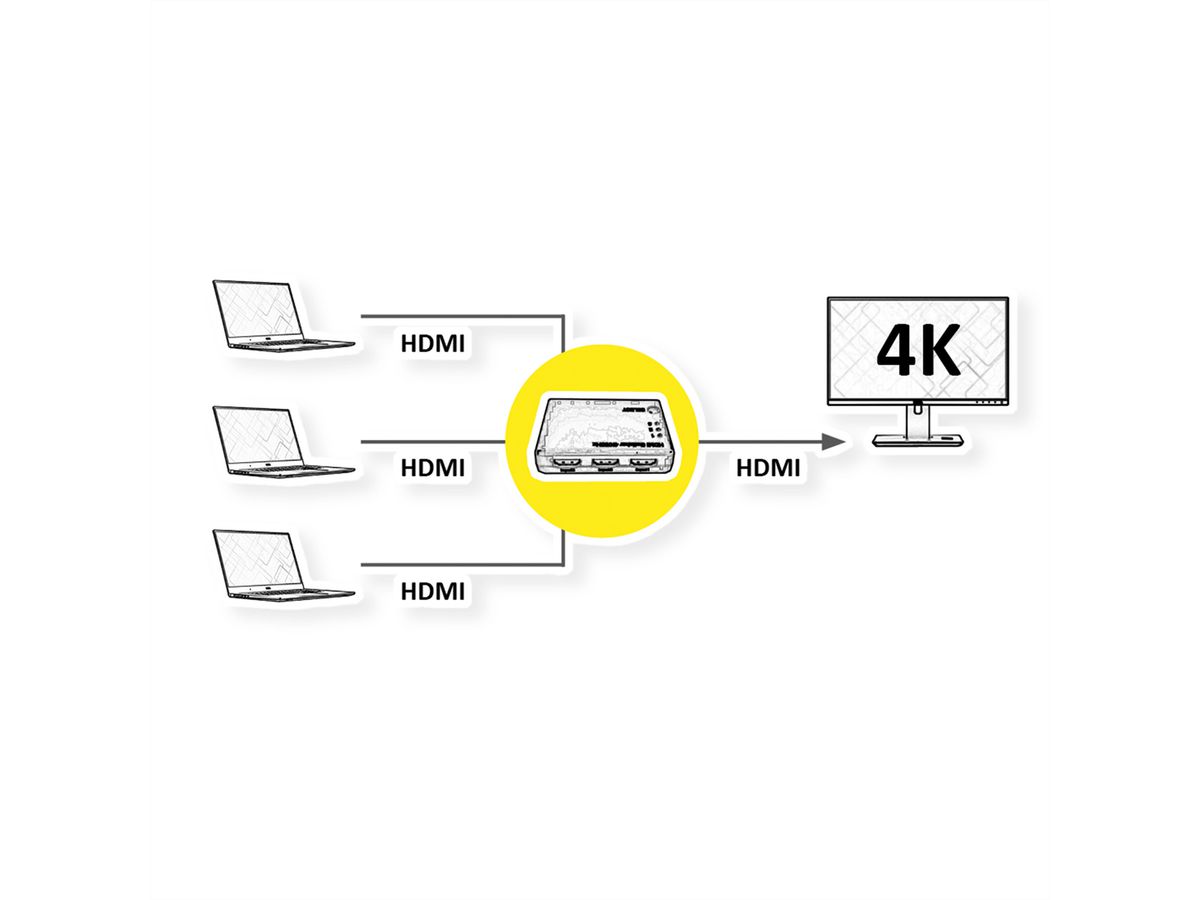

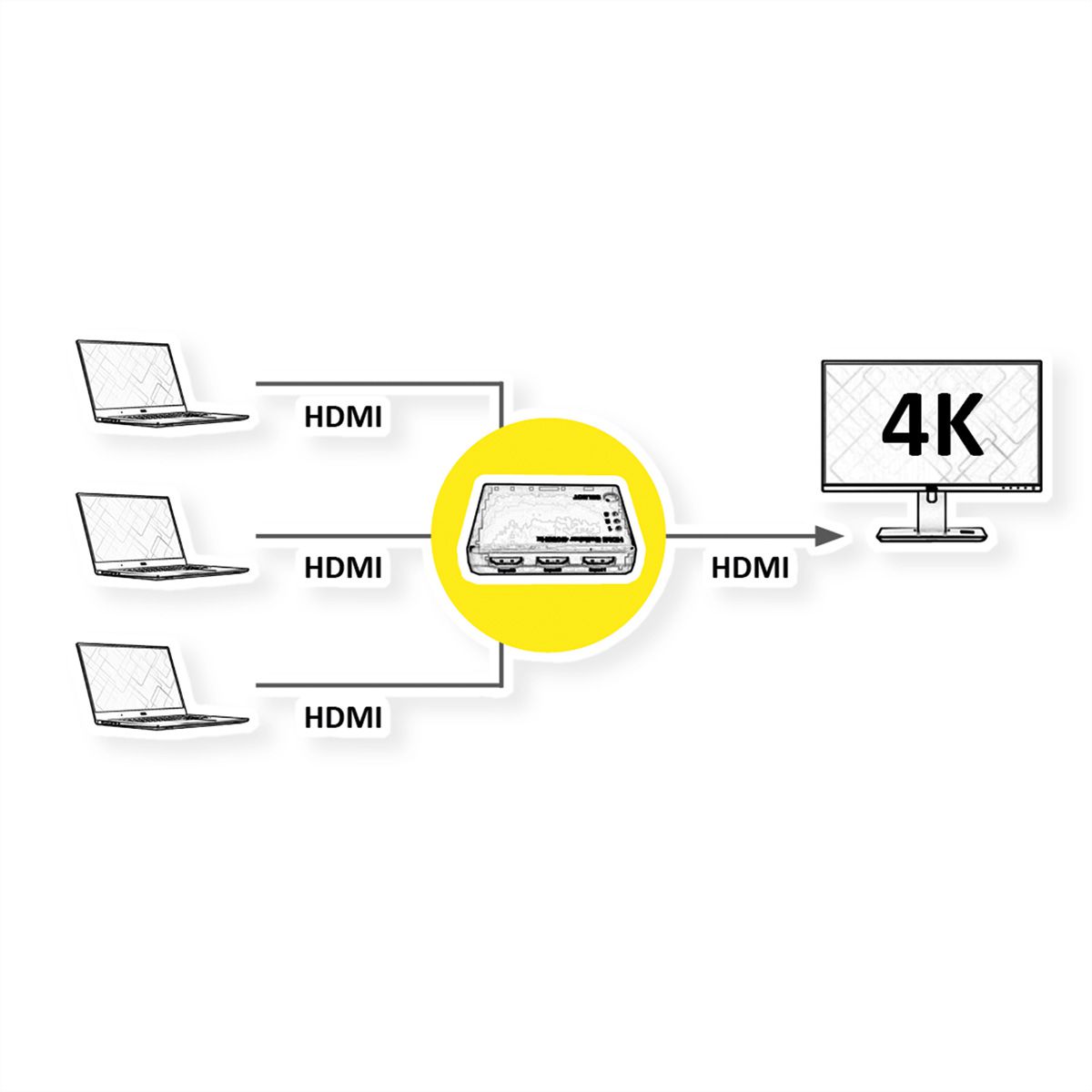

Displays the video output of up to 3 HDMI sources on a monitor or projector.
- Shows the Video output of 3 HDMI devices like e.g. DVD player, video camera or game console on one monitor
- Supports HDMI High Speed

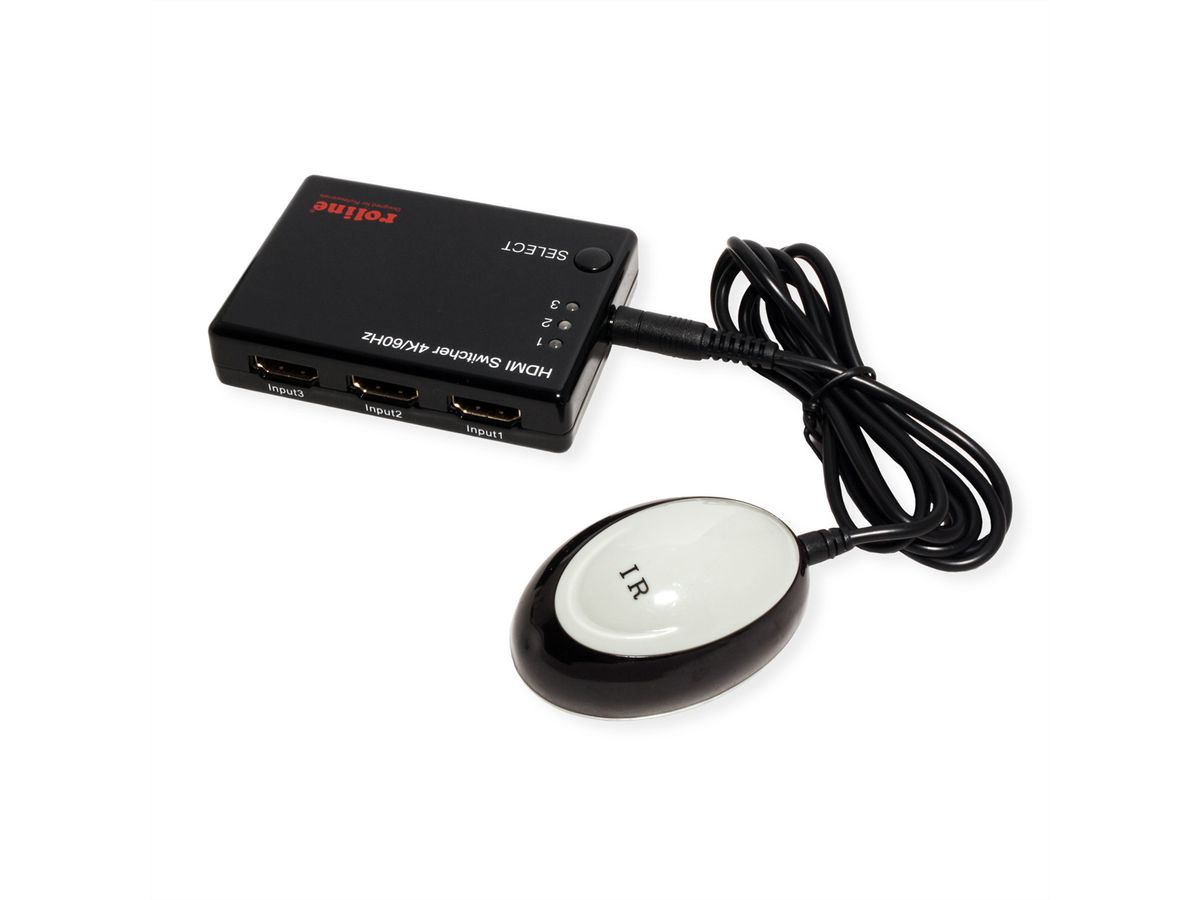

- Video input can be switched by button on the switch or remote control
- Supports nominal resolution of up to 3840 x 2160 @60Hz
- Supports high-resolution display of up to 480p, 576p, 720p, 1080i, 1080p, 2160p
- Supports uncompressed audio such as LPCM
- Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
- Power supply needed (5VDC, 1A)
- Colour: Black

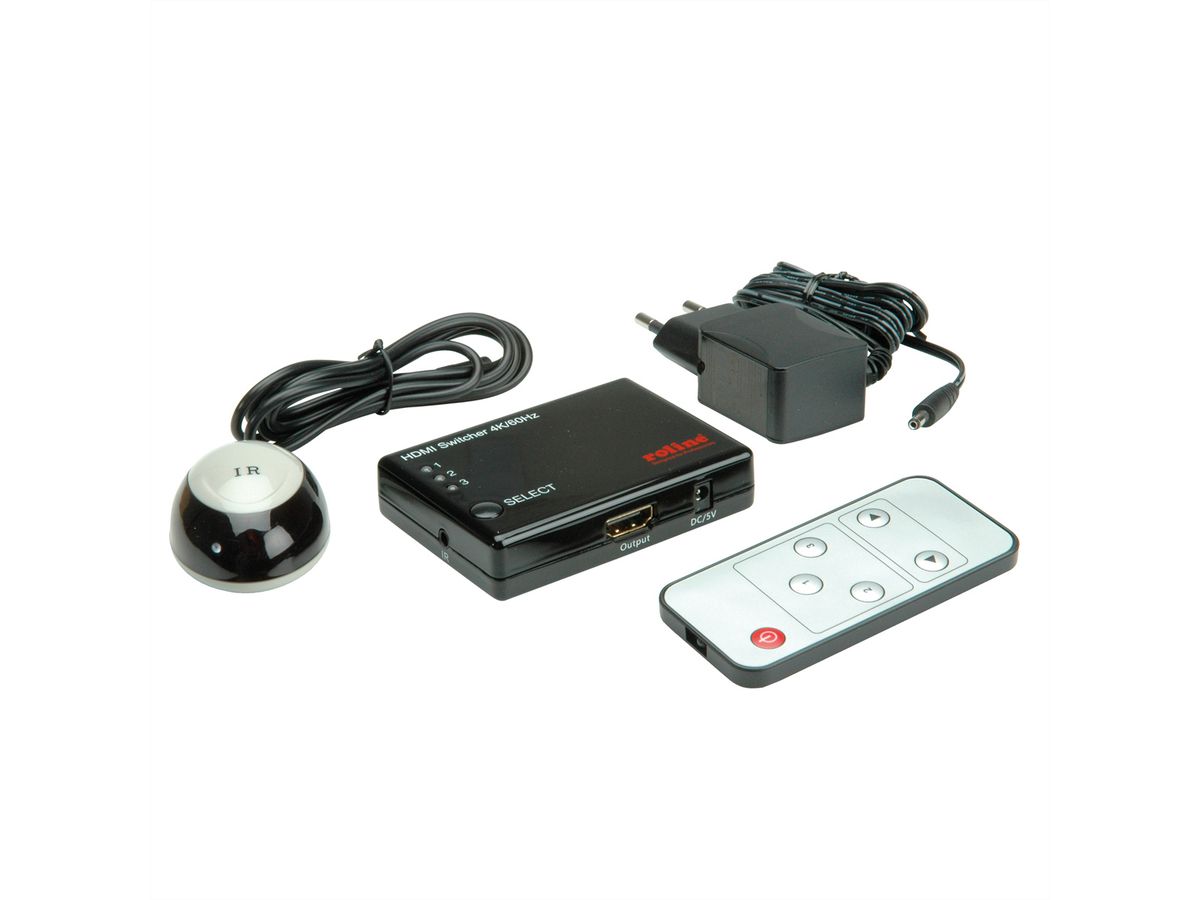

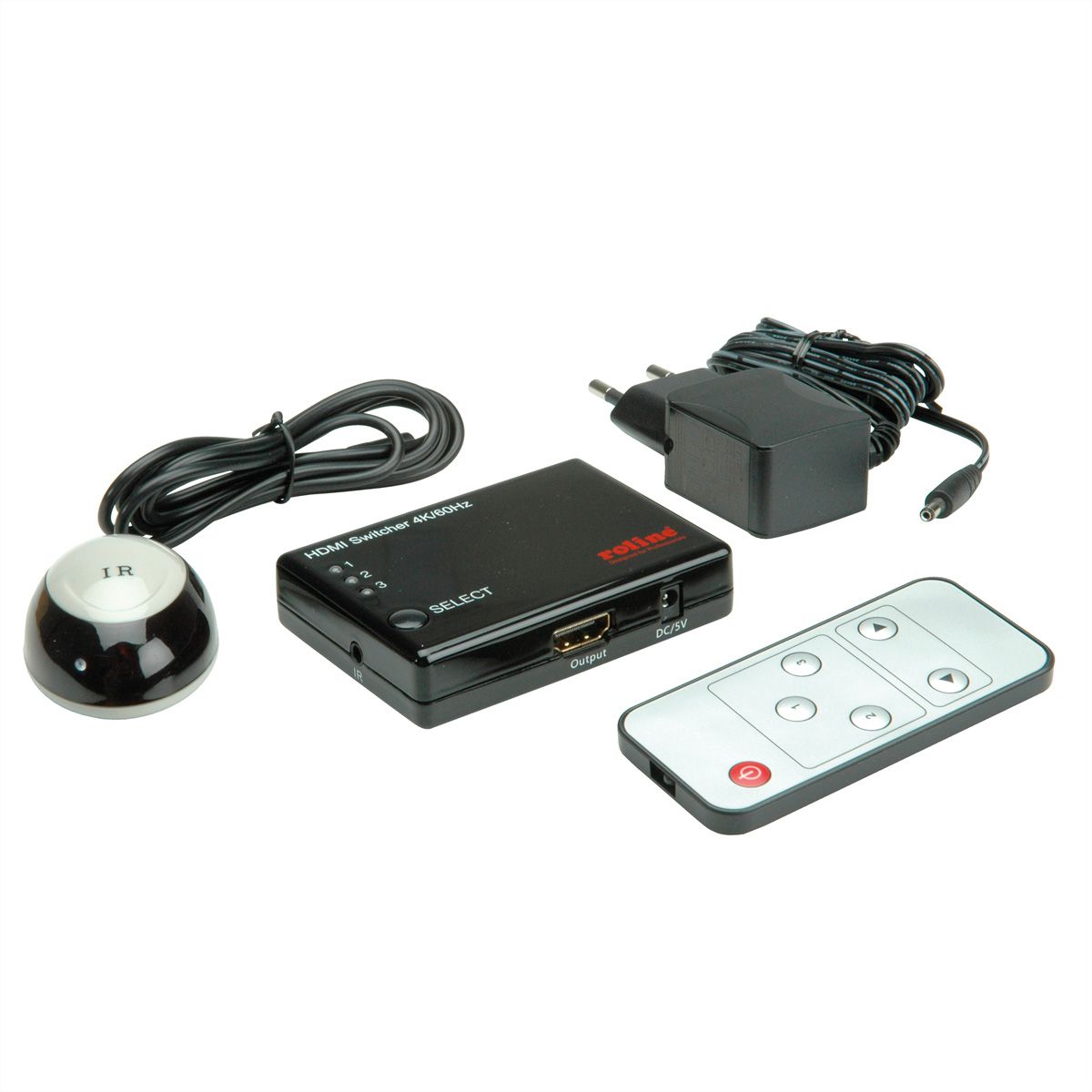

- Contents: HDMI switch, power adapter, remote control
Specifications
Manufacturer | ROLINE |
---|---|
Product group | Splitters and selectors |
Product type | HDMI-Video-Switch |
Colour | black |
Scope of delivery | HDMI Switch, main adapter, remote control |
Interface | HDMI |
Inputs | 3 |
Outputs | 1 |

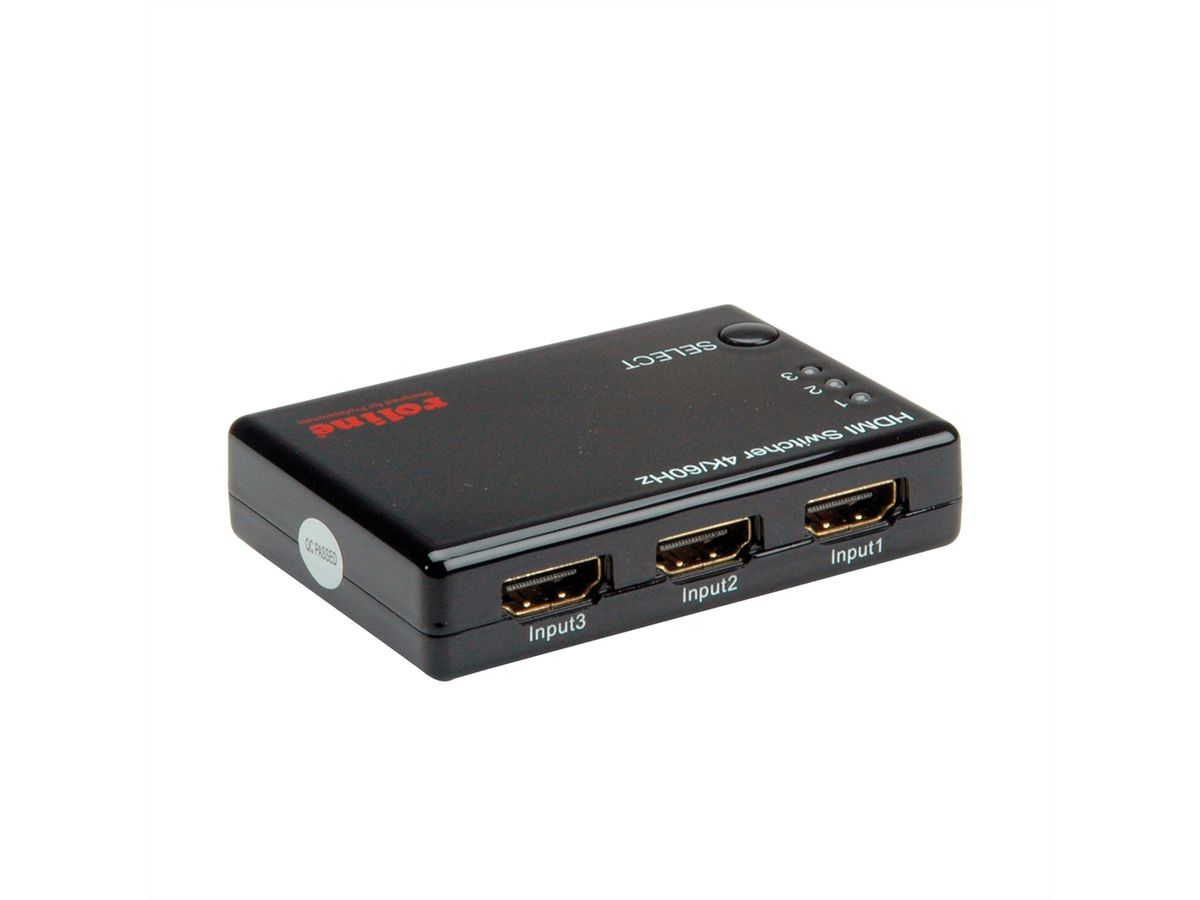

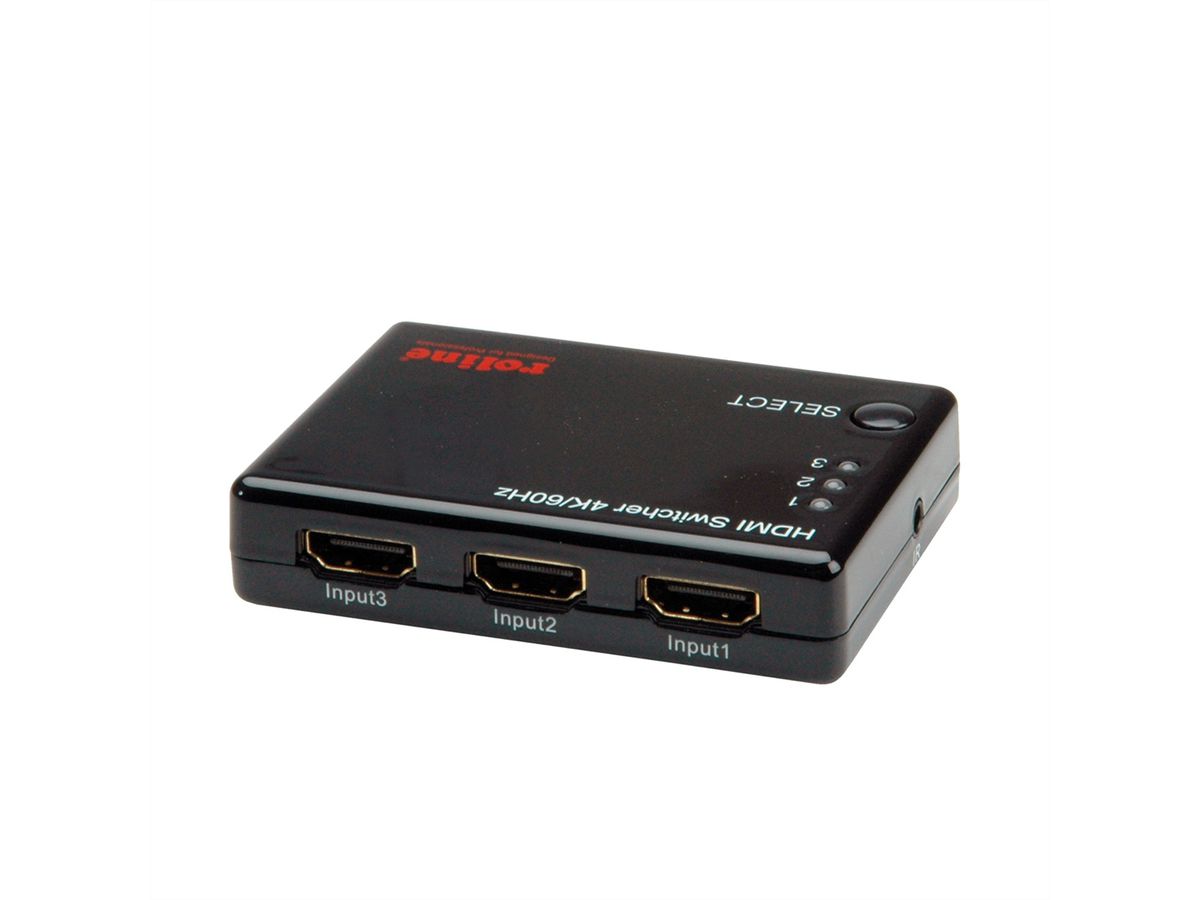

Video input | 3x HDMI Female |
Video output | 1x HDMI Female |
Max. resolution (nom.) | max. 3840x2160 |
Dimensions (HxWxD) | 18 x 80 x 58 mm |
Power supply output | 5 VDC, 1A |
Technical particularity | Switching by push bottons / remote control |
Height | 18 mm |
Width | 80 mm |
Depth | 58 mm |
Weight | 47 g |
Height of packaging (single piece) | 60 mm |
Width of packaging (single piece) | 80 mm |
Depth of packaging (single piece) | 180 mm |
Package weight (single piece) | 0.25 kg |
