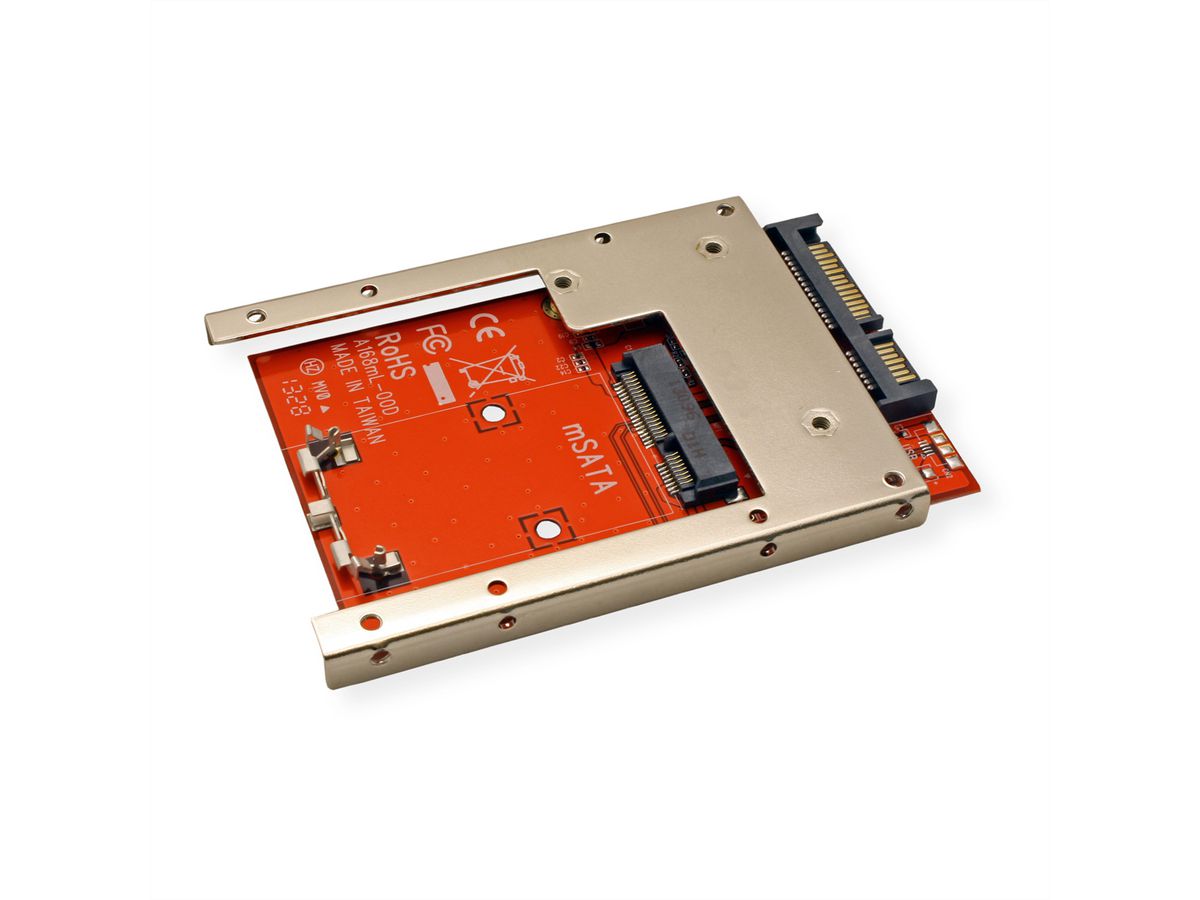

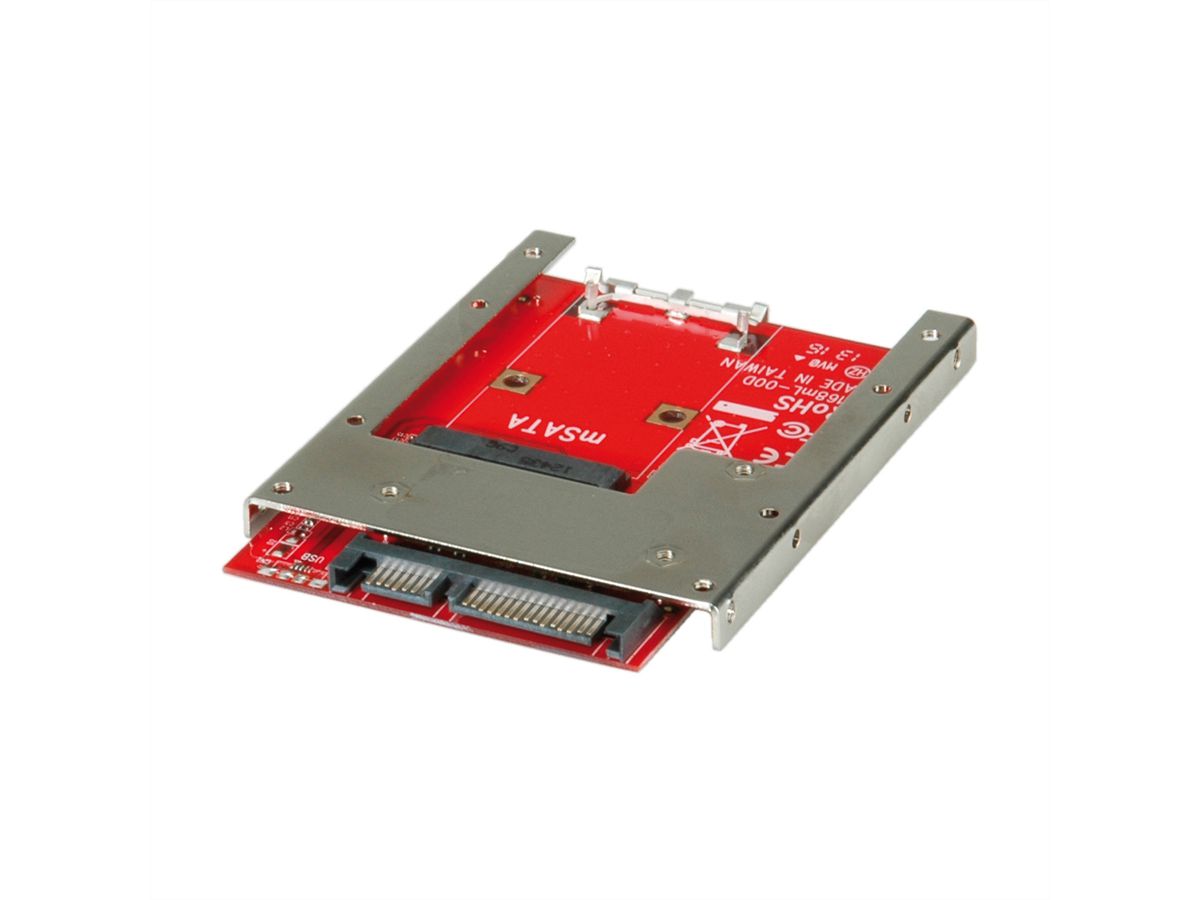

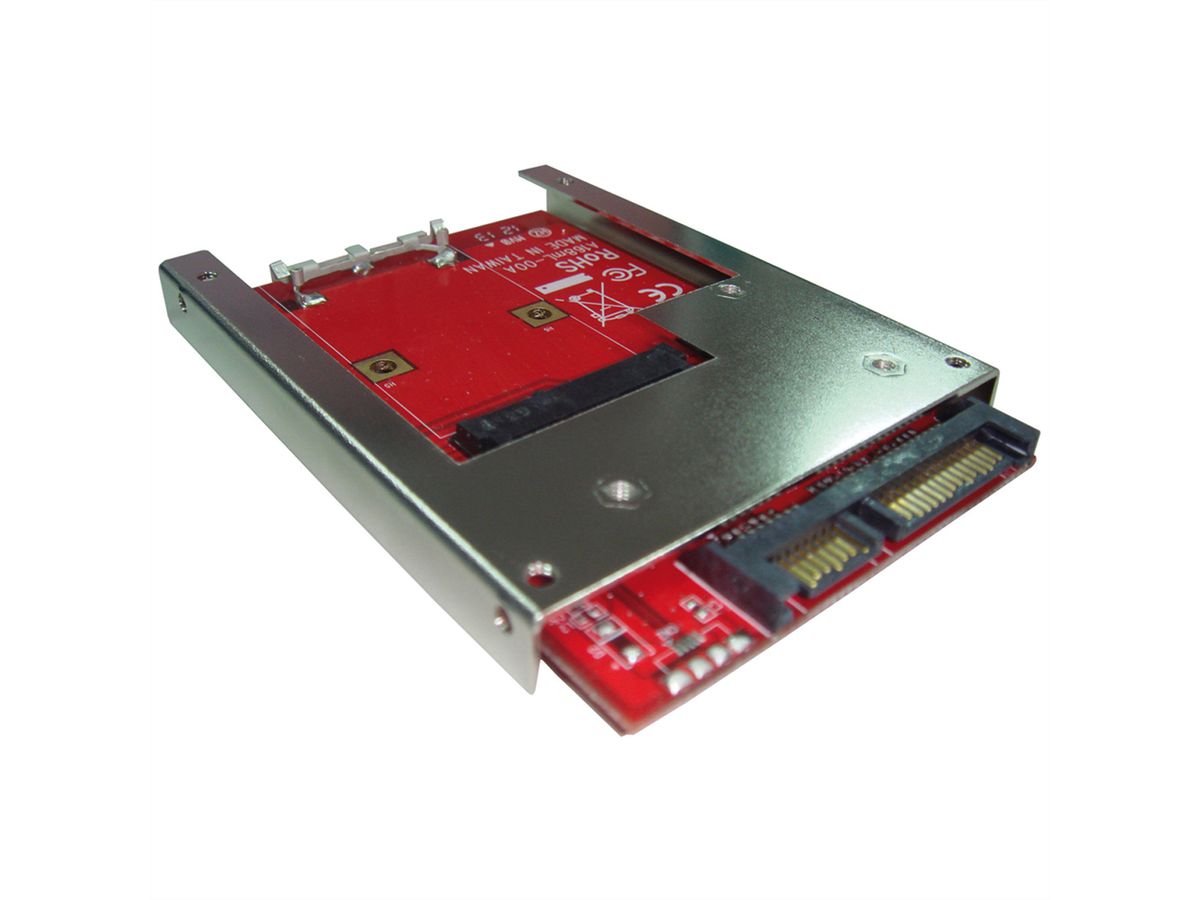

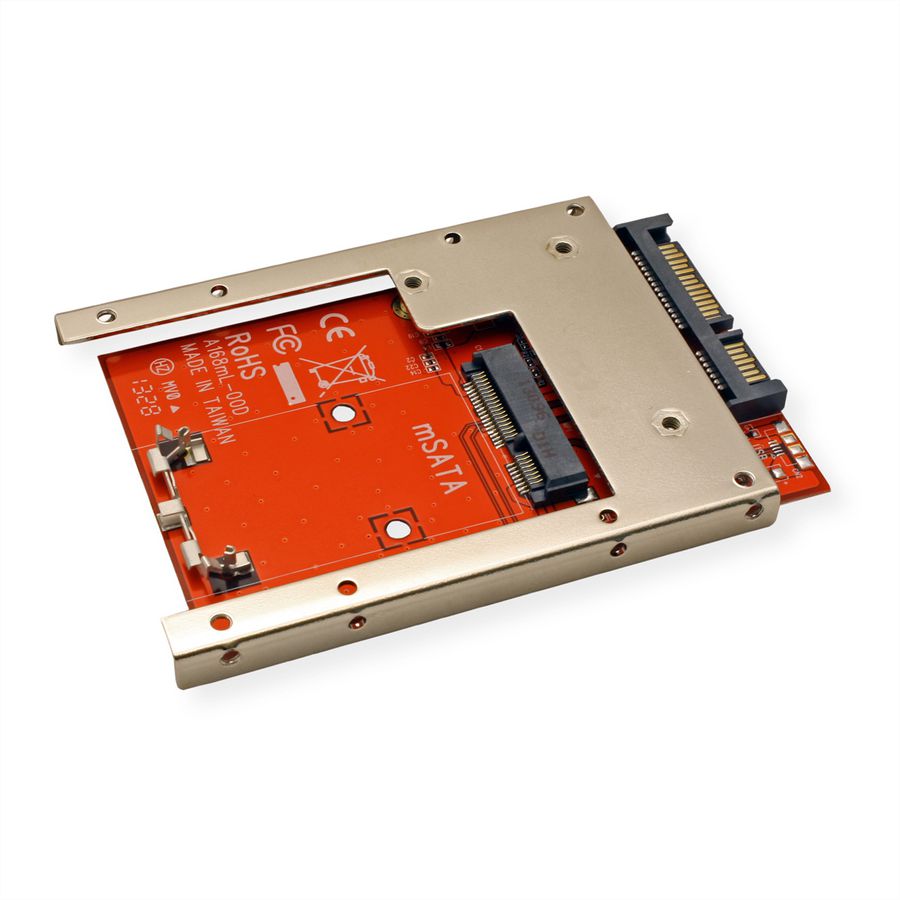

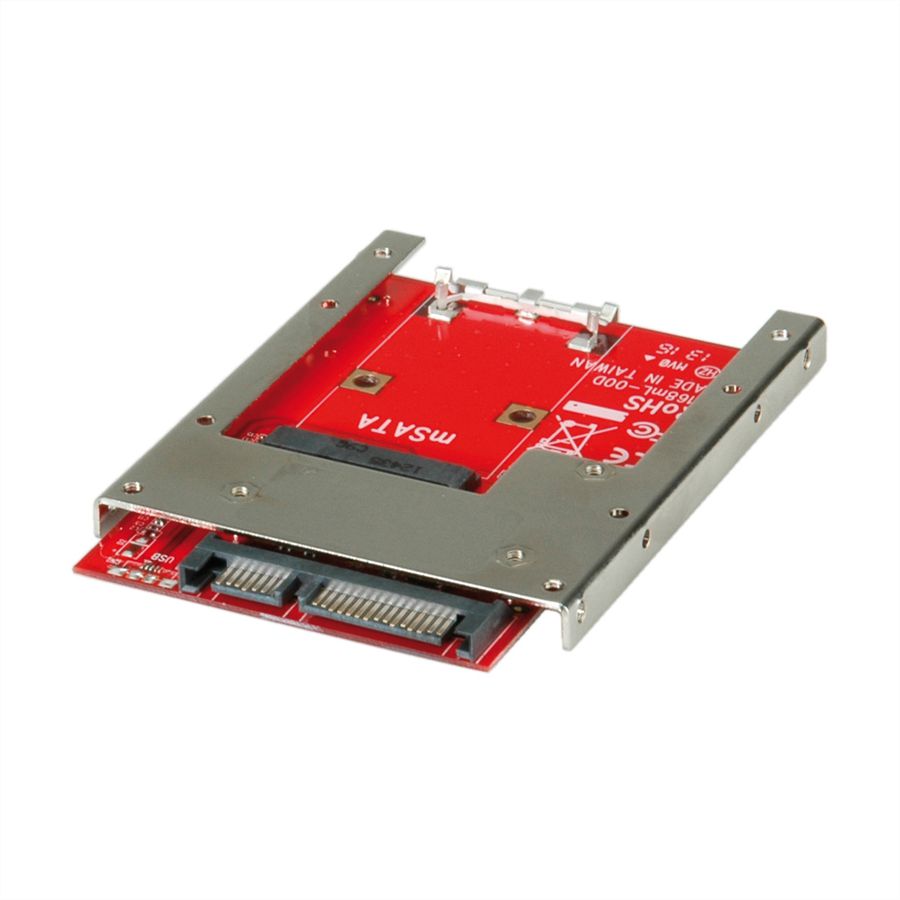

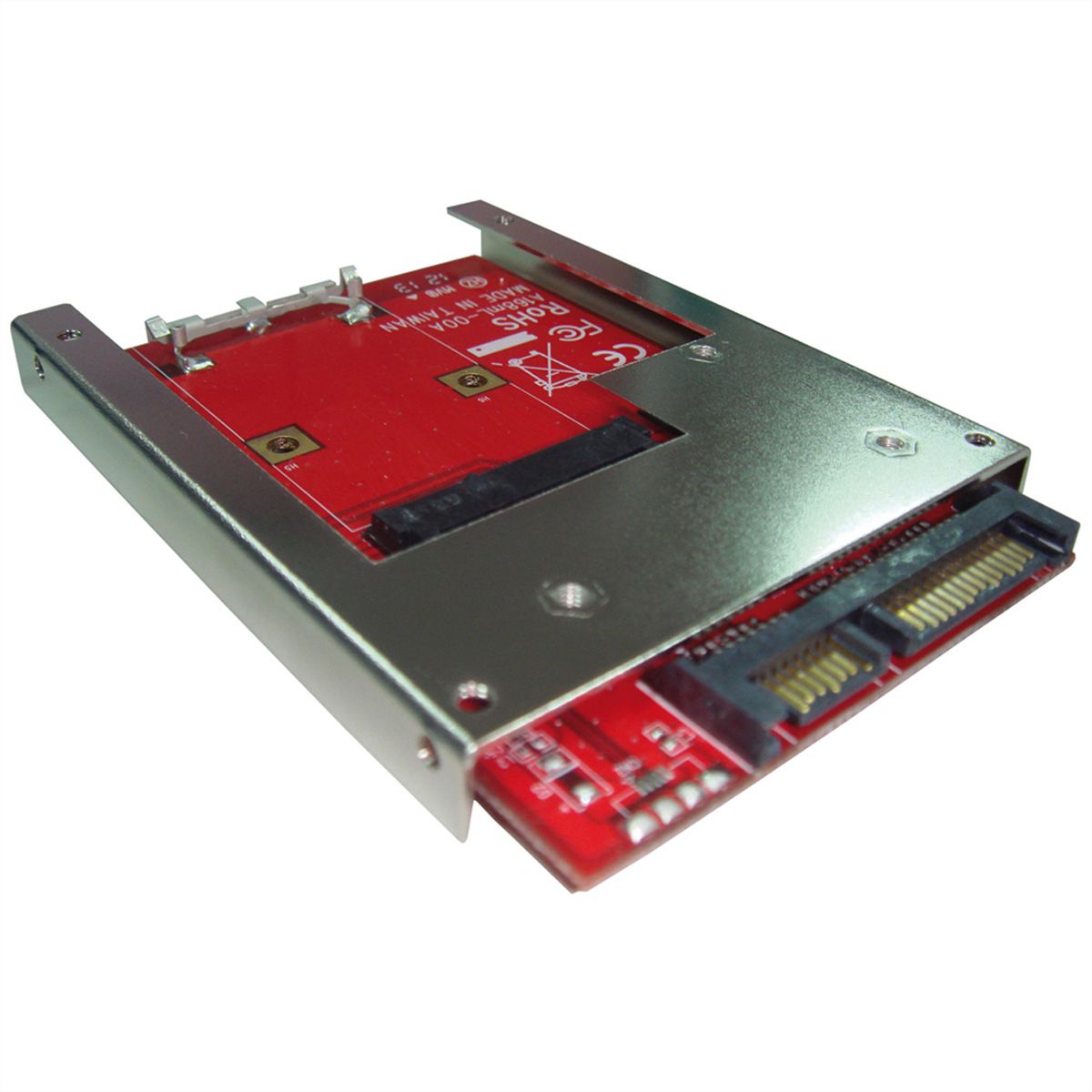

ROLINE Adapter, mSATA SSD to 2.5 SATA 22pin

ROLINE Adapter, mSATA SSD to 2.5 SATA 22pin

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.03.1567-10
Brand / Manufacturer ROLINE
Manuf. no. 11.03.1567
EAN 7611990928149

Description

Best Solution that convert and easily retain mSATA SSD as normally standard 2.5 SATA SSD

  • Convert Full Size mSATA SSD to 2.5 Form Factor
  • Supports up to SATA 6Gb/s
  • Compatible with 2.5 SATA drive mechanical specifications
  • 22 pin SATA (signals and power) male connector on board
  • Transparent to the operating system and no driver required
  • Latch mSATA connector on board, no need the screw for the retention of mSATA module

Specifications

Manufacturer ROLINE
Product group Cable
Product type SATA-Adapter
Colour red

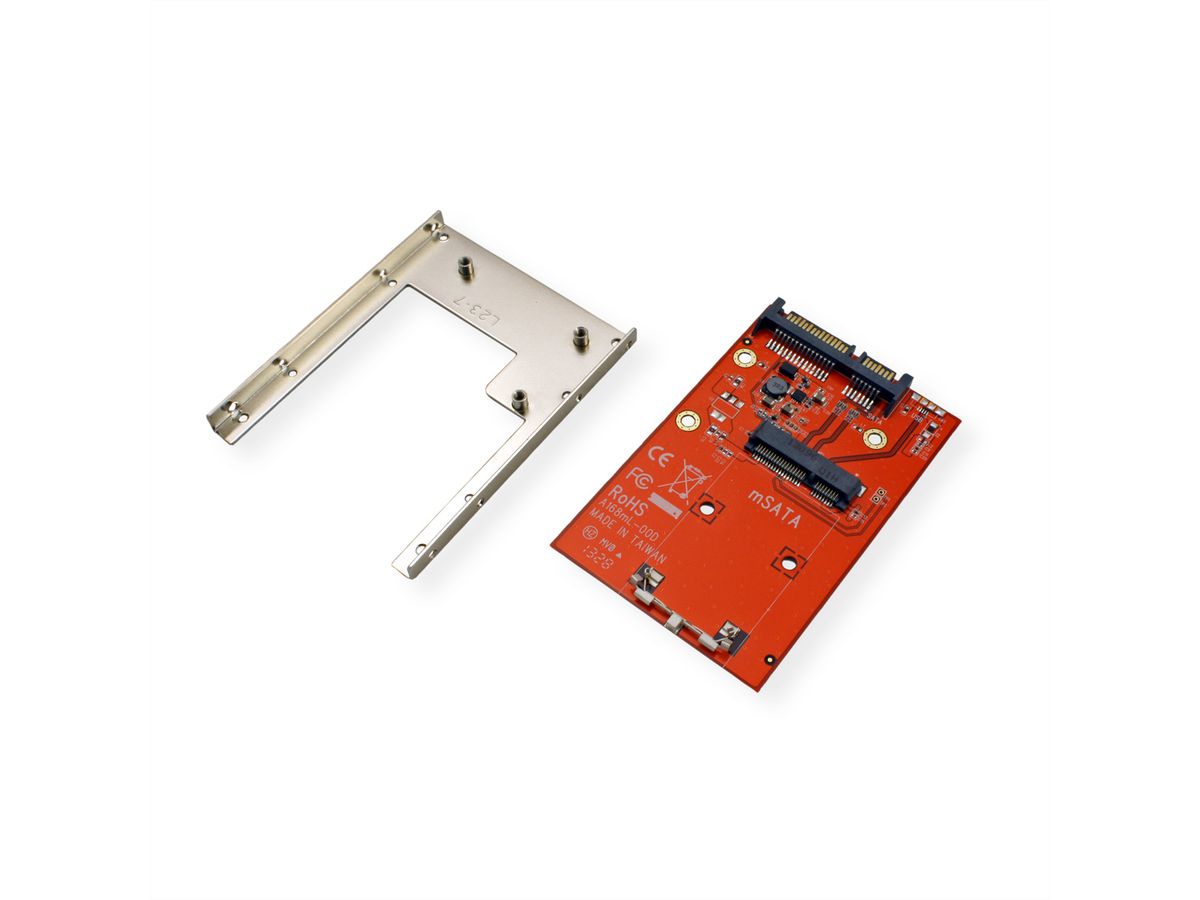

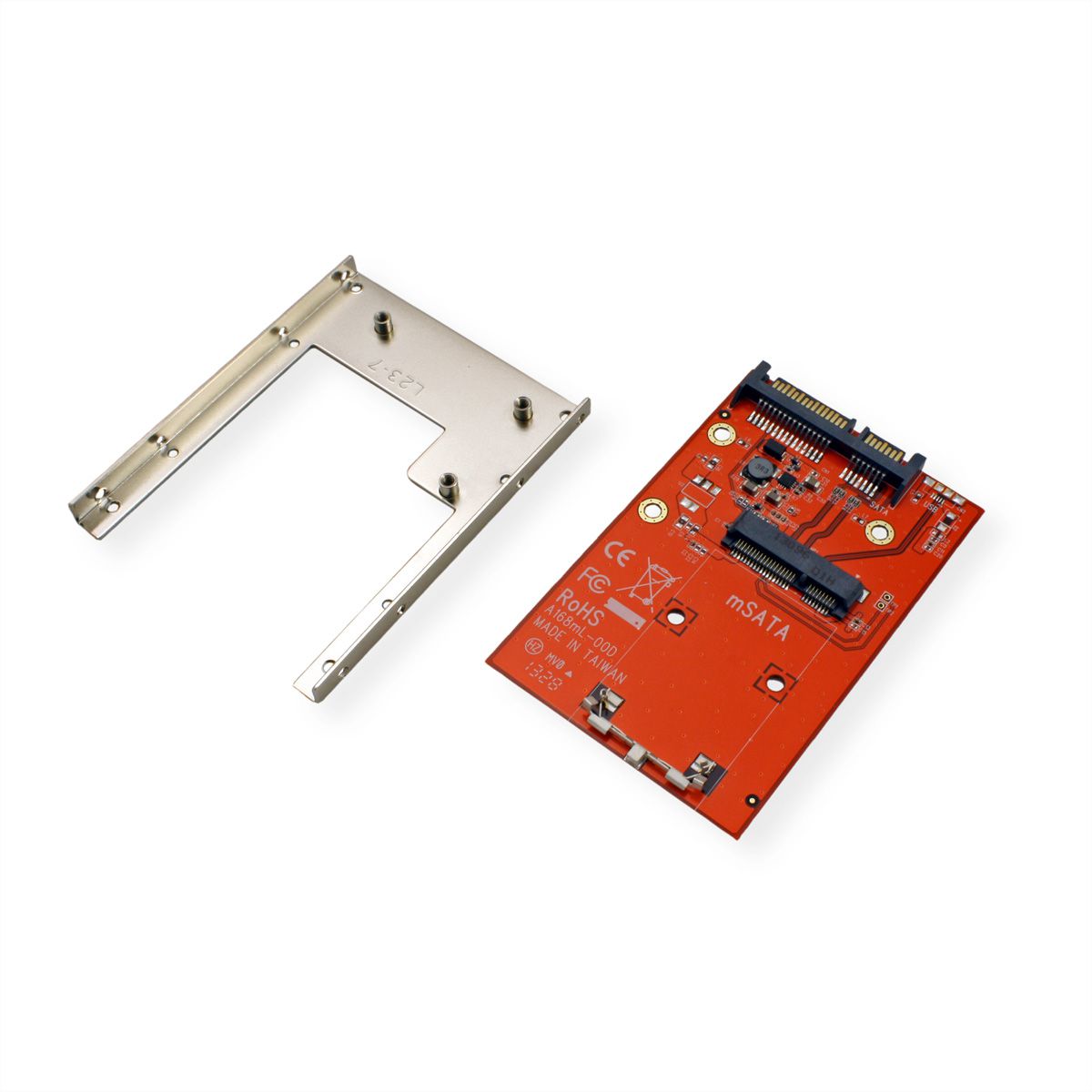

Scope of delivery adapter, 2.5 drive metal frame (with 8 mounting holes and 4 HDD screws), manual
Connection ports SATA 22-pin (Data+Power) Male / Micro SATA 16-pin Male
Side 1 Connector Type SATA 22-pin (Data+Power)
Side 1 Connector Gender Male
Side 2 Connector Type Micro SATA 16-pin
Side 2 Connector Gender Male
Area of application Internal
Hand locking screws no
Height 7 mm
Width 69.85 mm
Depth 100.45 mm
Weight 48.3 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 160 mm
Depth of packaging (single piece) 220 mm
Package weight (single piece) 0.1 kg
