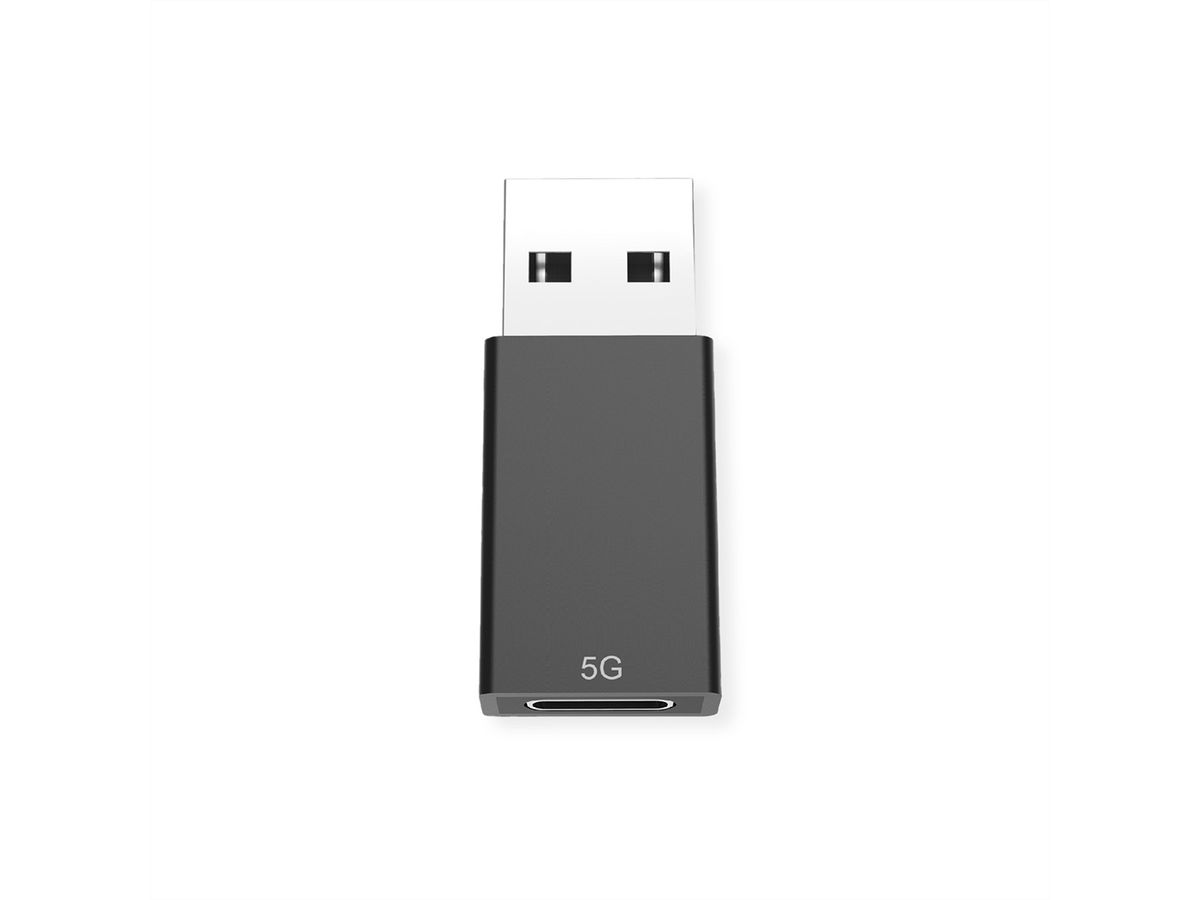

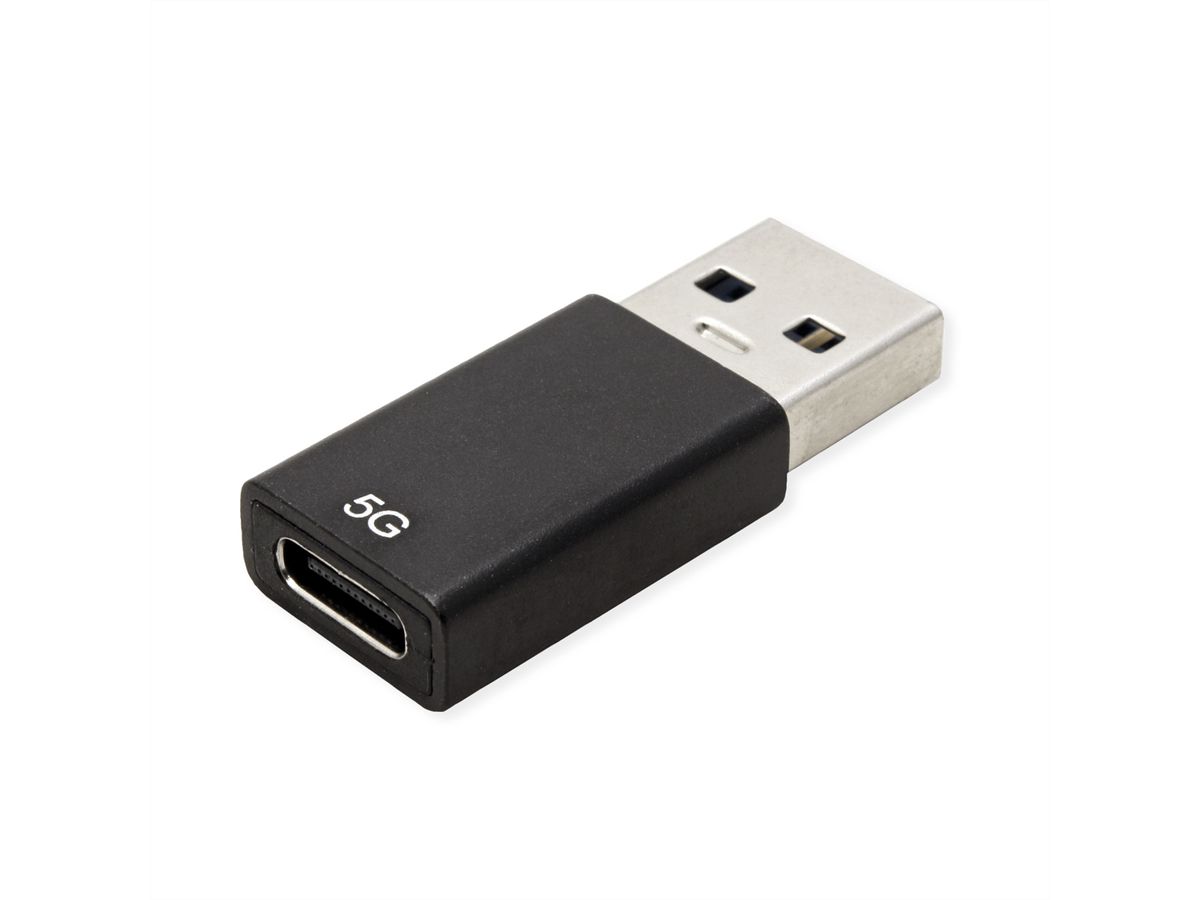

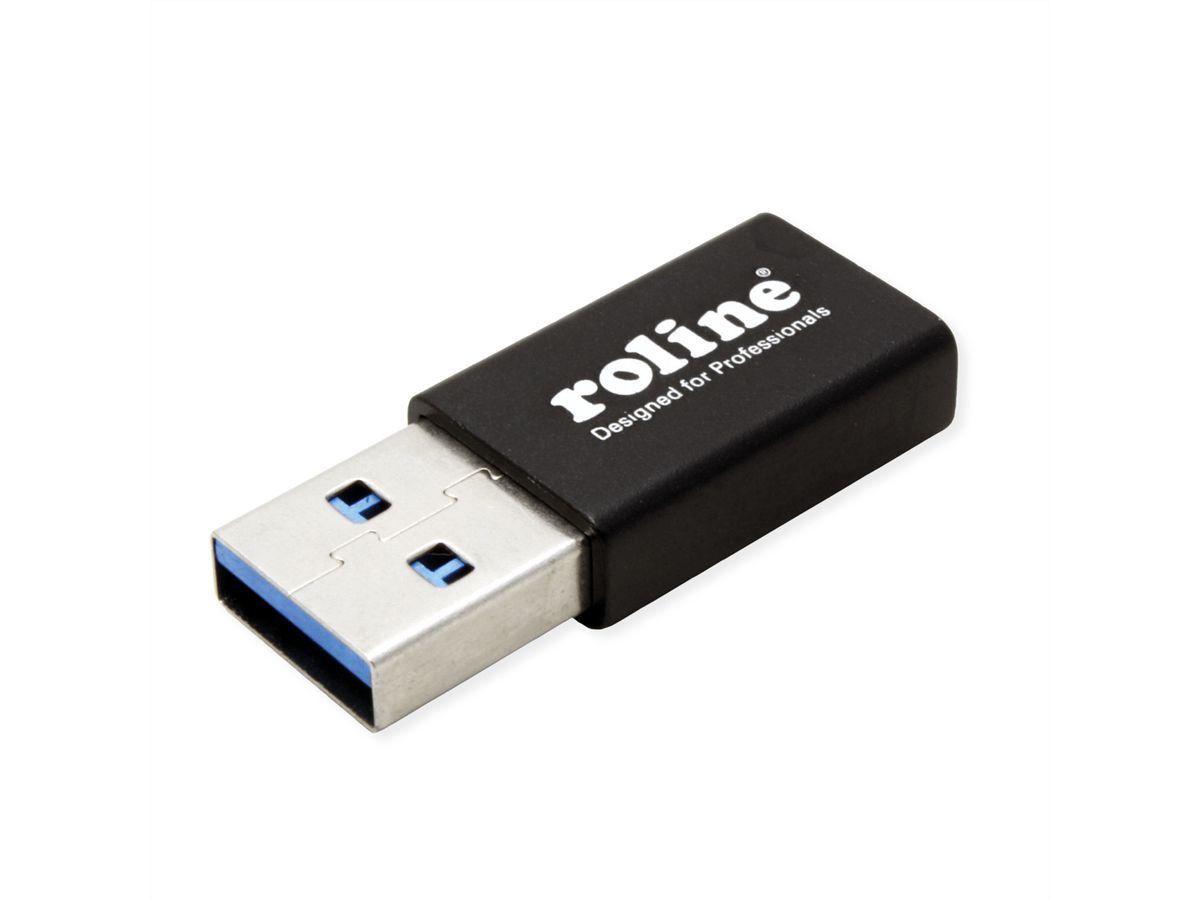

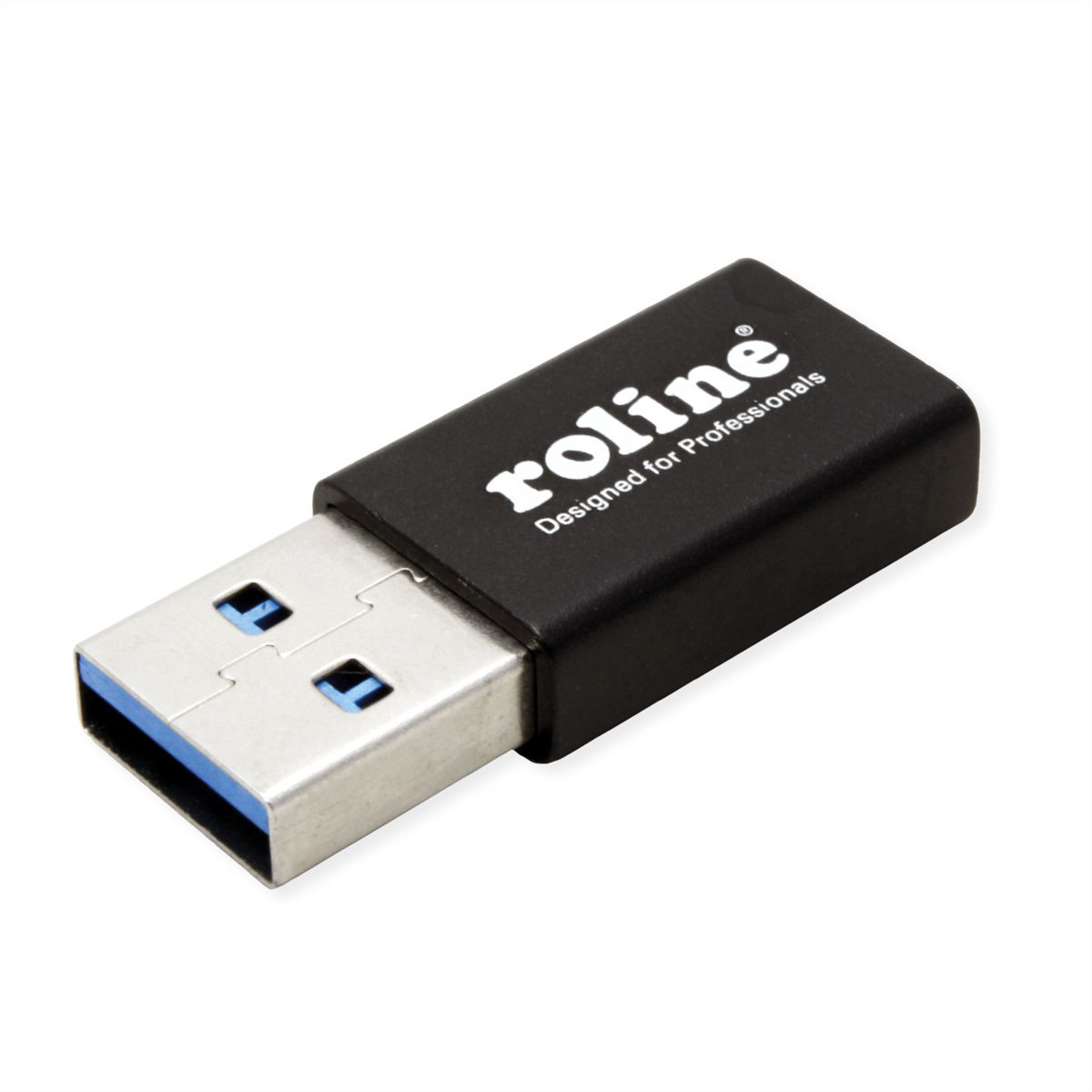

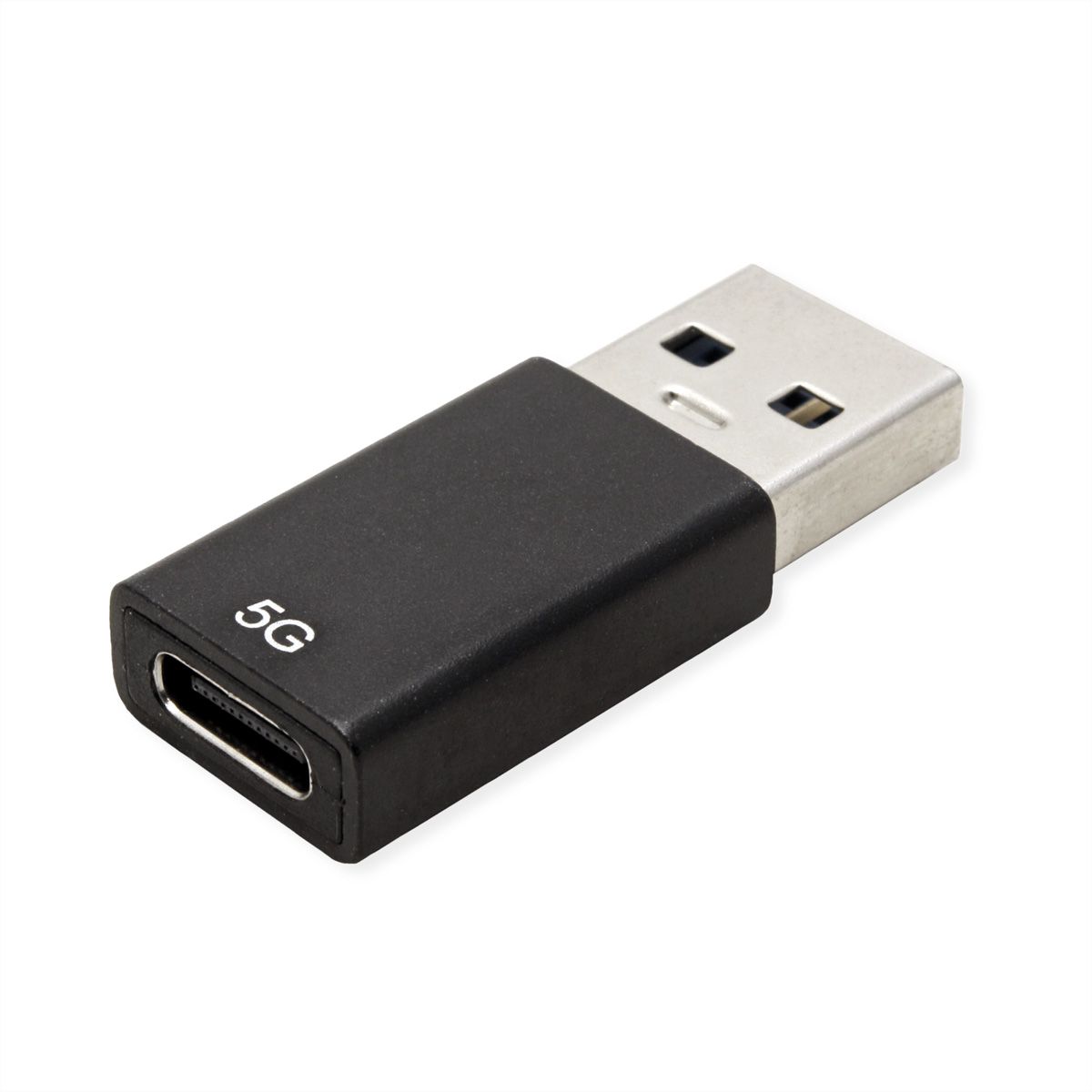

ROLINE Adapter, USB 3.2 Gen 1, Type C - A, F/M

Item no. 12.03.2998-10 Brand / Manufacturer ROLINE Manuf. no. 12.03.2998 EAN 7630049675575 Package weight 0.005 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

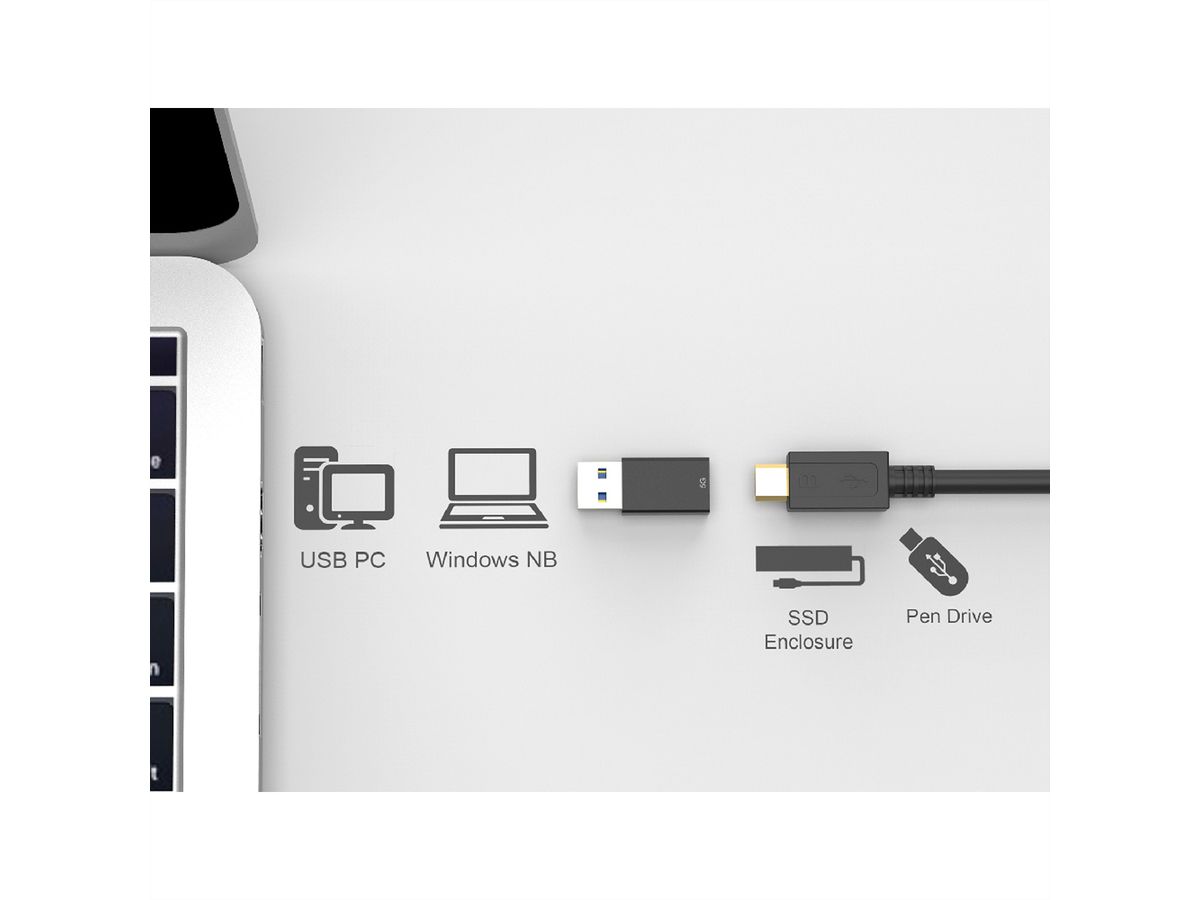

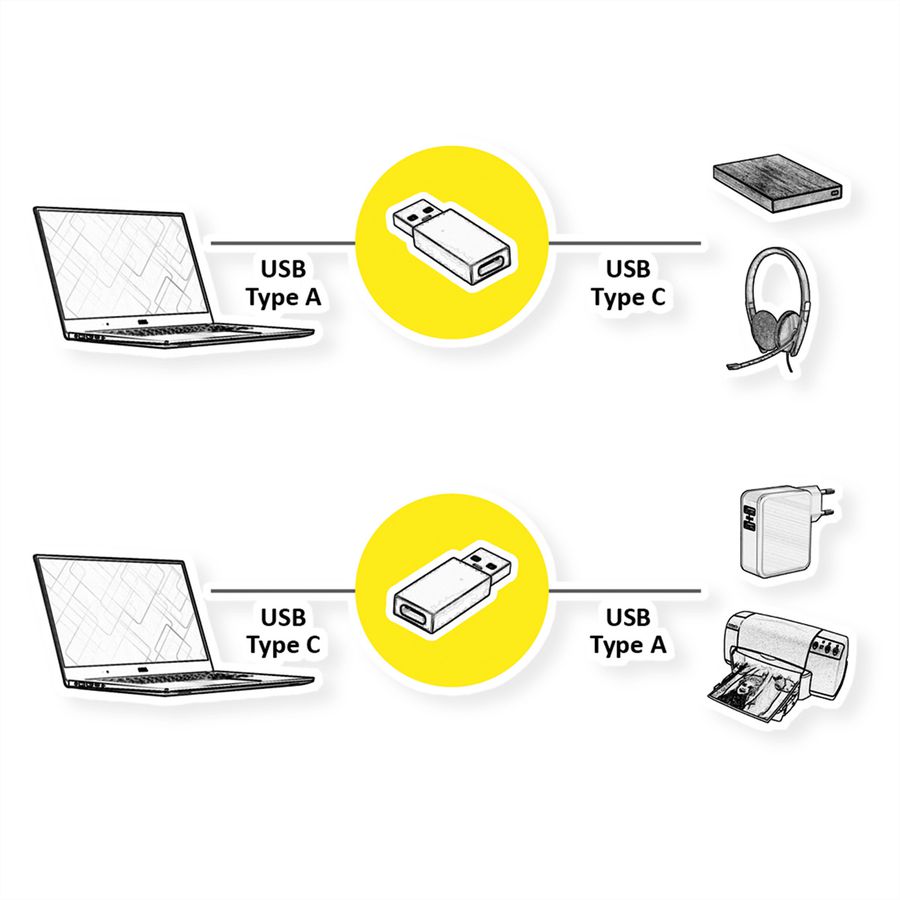

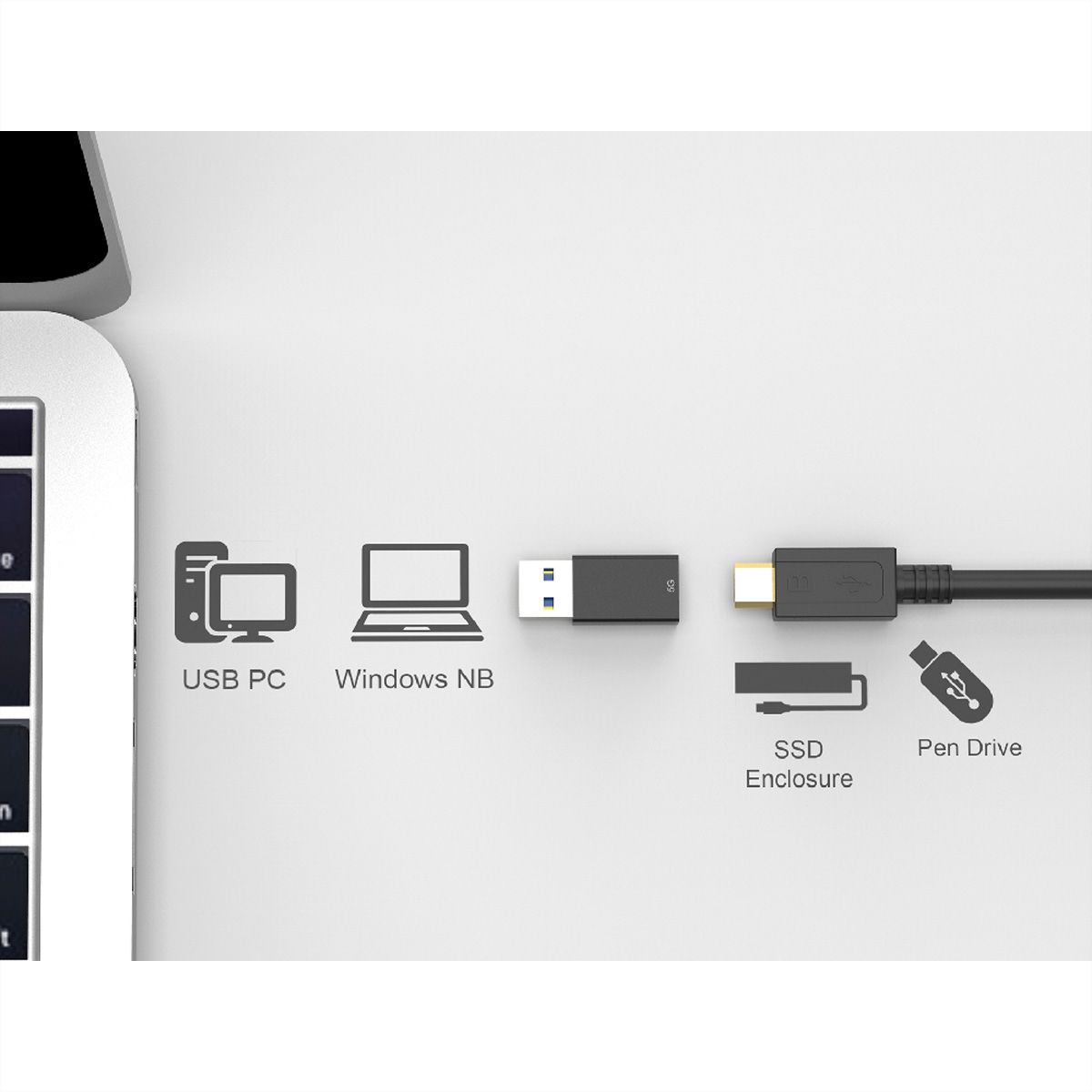

For connecting devices with USB Type-C plug to a USB Type-A port.

  • USB adapter with one USB type A plug and one USB type C socket
  • For connecting devices with USB Type C plug to an existing PC/laptop with USB 3.1 Gen 1 Type A connection
  • Complies with USB 3.2 Gen1 (transmission up to 5 Gbit/s)
  • Backward compatible with USB 2.0
  • Colour: black

  • NOTE: This USB adapter only supports USB 3.2 Gen1 on one side. If it works with USB 2.0, simply rotate the Type-C connector of the cable 180 degrees and try again.
This adapter supports both USB data and charging functions, but does NOT support USB Type C DisplayPort Alternate Mode for video devices.

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
USB Adapter
Colour
black
Scope of delivery
1x Adapter
Transfer quality
USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Max. resolution
no video
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Female
Side 2 Connector Type
USB 3 Type A
Side 2 Connector Gender
Male
Area of application
External
Height
6 mm
Width
14 mm
Depth
34 mm
Weight
5.6 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.005 kg

Downloads

Product data sheet - English (45.1 KB)

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
