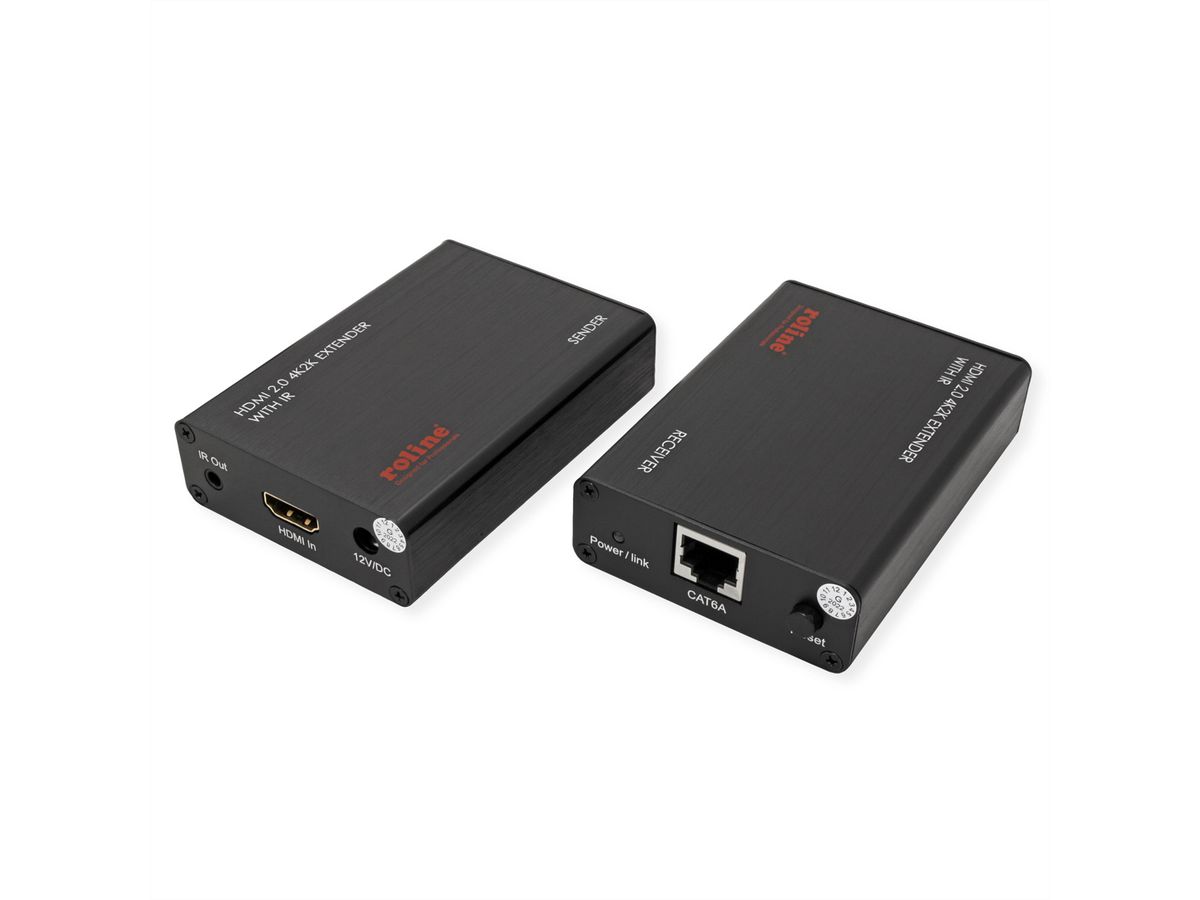

ROLINE Audio/Video System, HDMI, via Cat.6A, 4K@60Hz, 30m/45m

ROLINE Audio/Video System, HDMI, via Cat.6A, 4K@60Hz, 30m/45m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 14.01.3417-5
Brand / Manufacturer ROLINE
Manuf. no. 14.01.3417
EAN 7630049695382
Package weight 0.25 kg

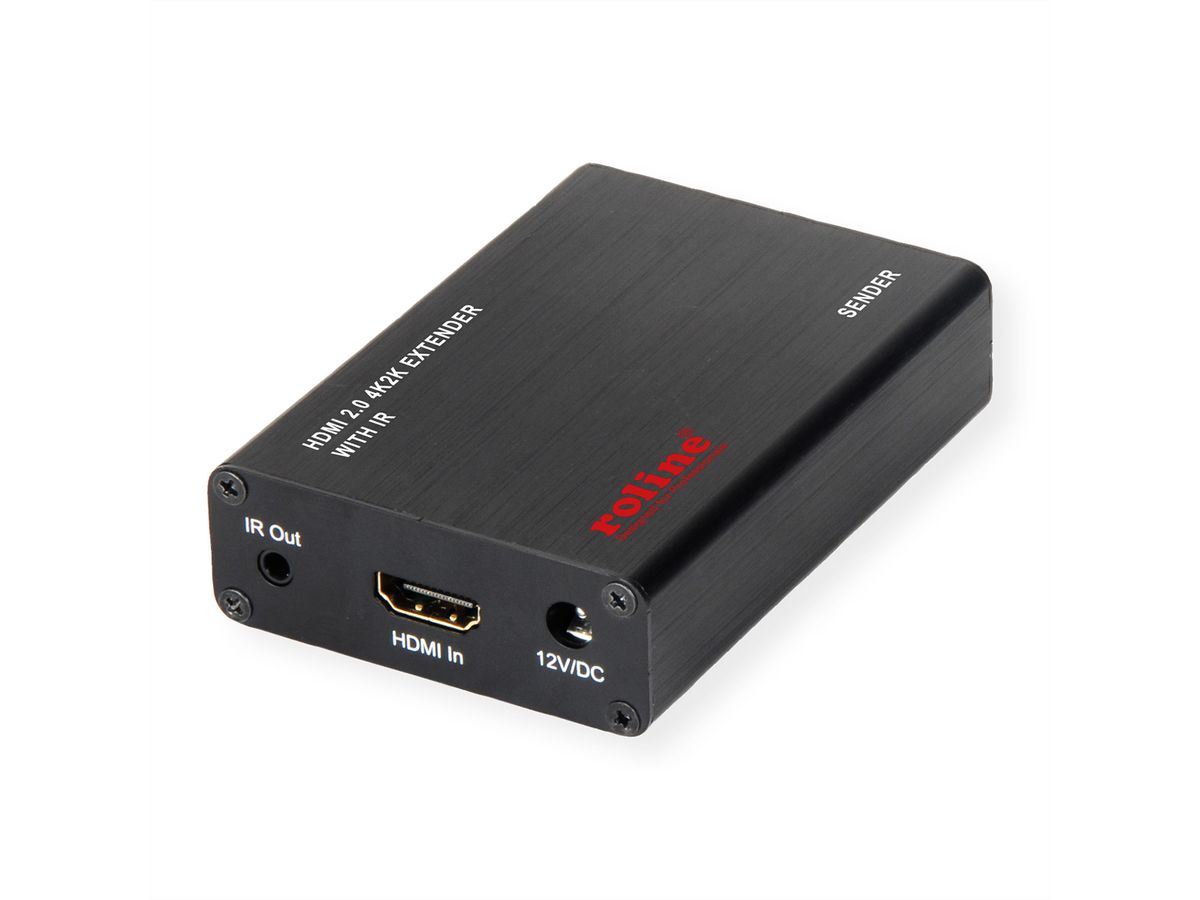

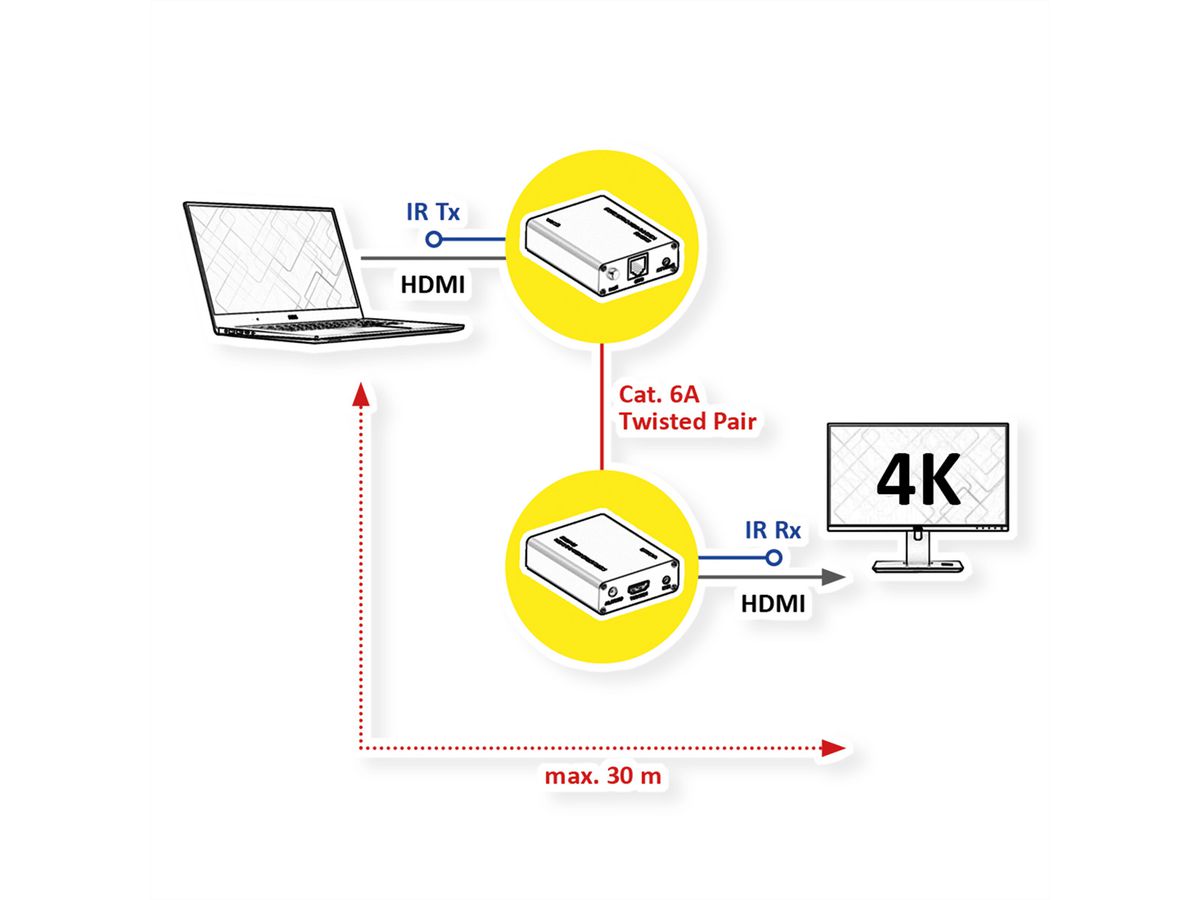

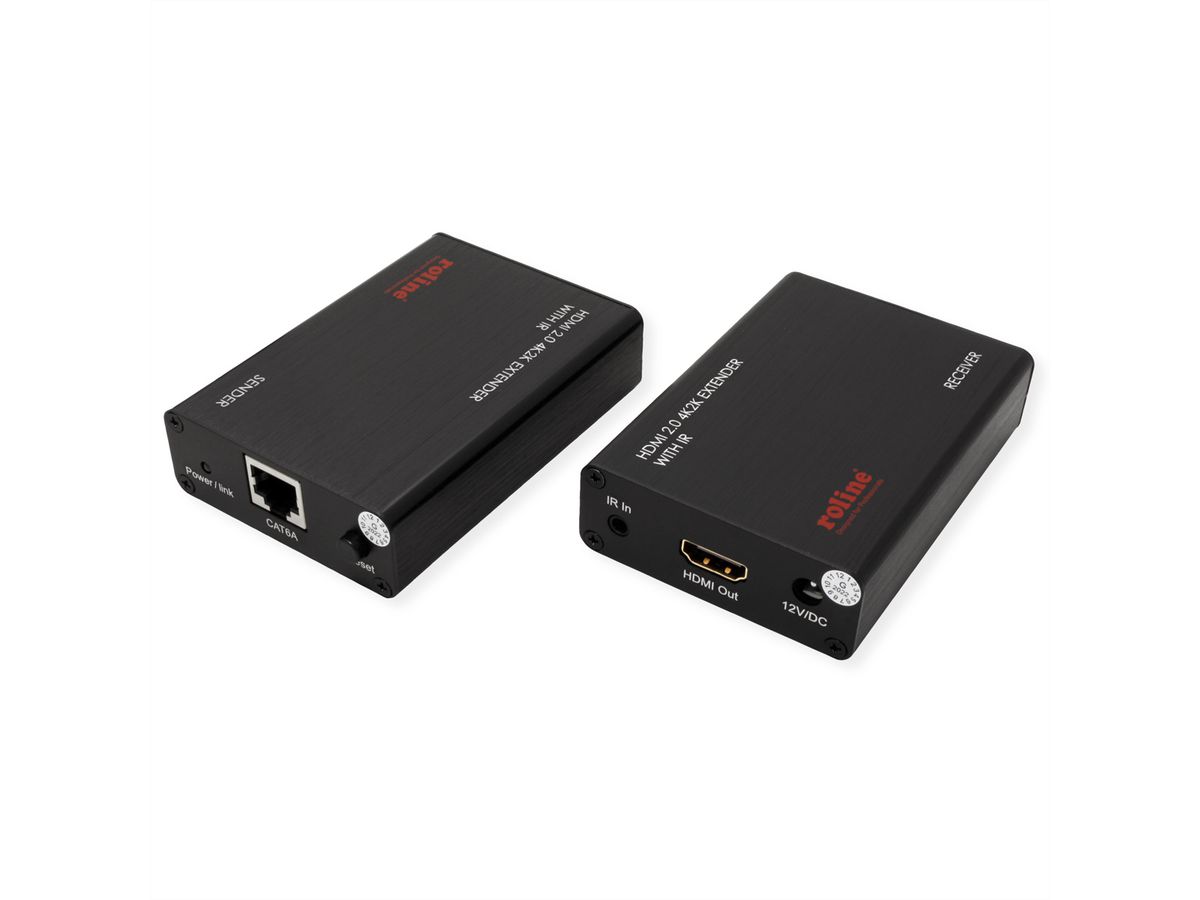

The ROLINE HDMI A/V system transmits an HDMI signal from a source device like a DVD player, a PC/laptop or a console via Cat.6A cable to a display device like a TV, monitor or beamer/projector - with a resolution of up to 3840x2160 @60Hz (max. 30m) or 1920x1080 @60Hz (max. 45m)!

Audio / video transmission is via HDMI and CAT. 6a cable. Up to 4k (3840x2160) @60Hz at a distance of up to 30m can be achieved. At longer distances of up to 45m the resolution is reduced to Full HD (1920x1080) @60Hz.

  • Transmits HDMI signals from source devices such as DVD players, PCs/laptops or consoles to a TV, monitor or beamer/projector.
  • Resolution: 4k (3840x2160) @60Hz at up to 30m; Full HD (1920x1080) @60Hz at up to 45m
  • HDCP compatible
  • Supports 3D video transmission
  • Black metal housing


Manufacturer ROLINE
Product group Splitters and selectors
Product type HDMI Extender
Colour black

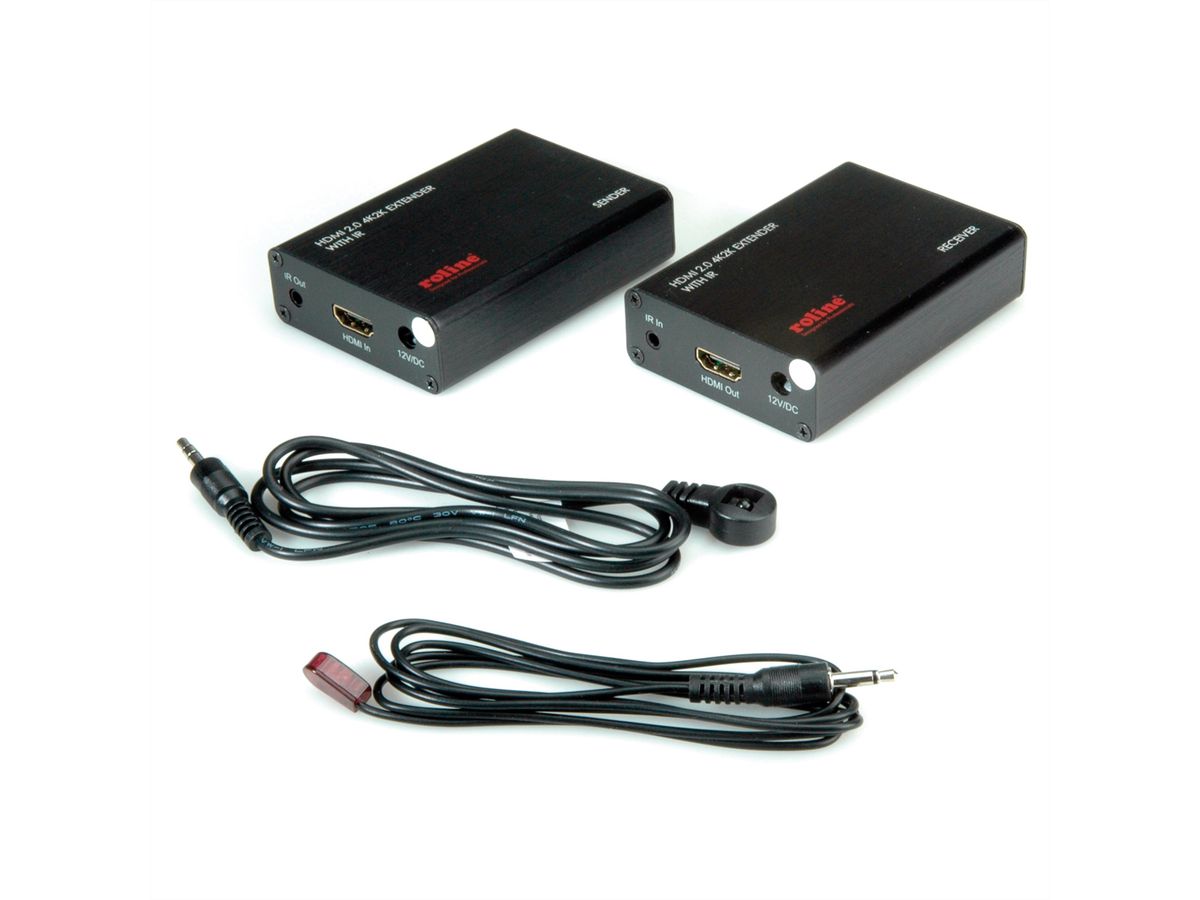

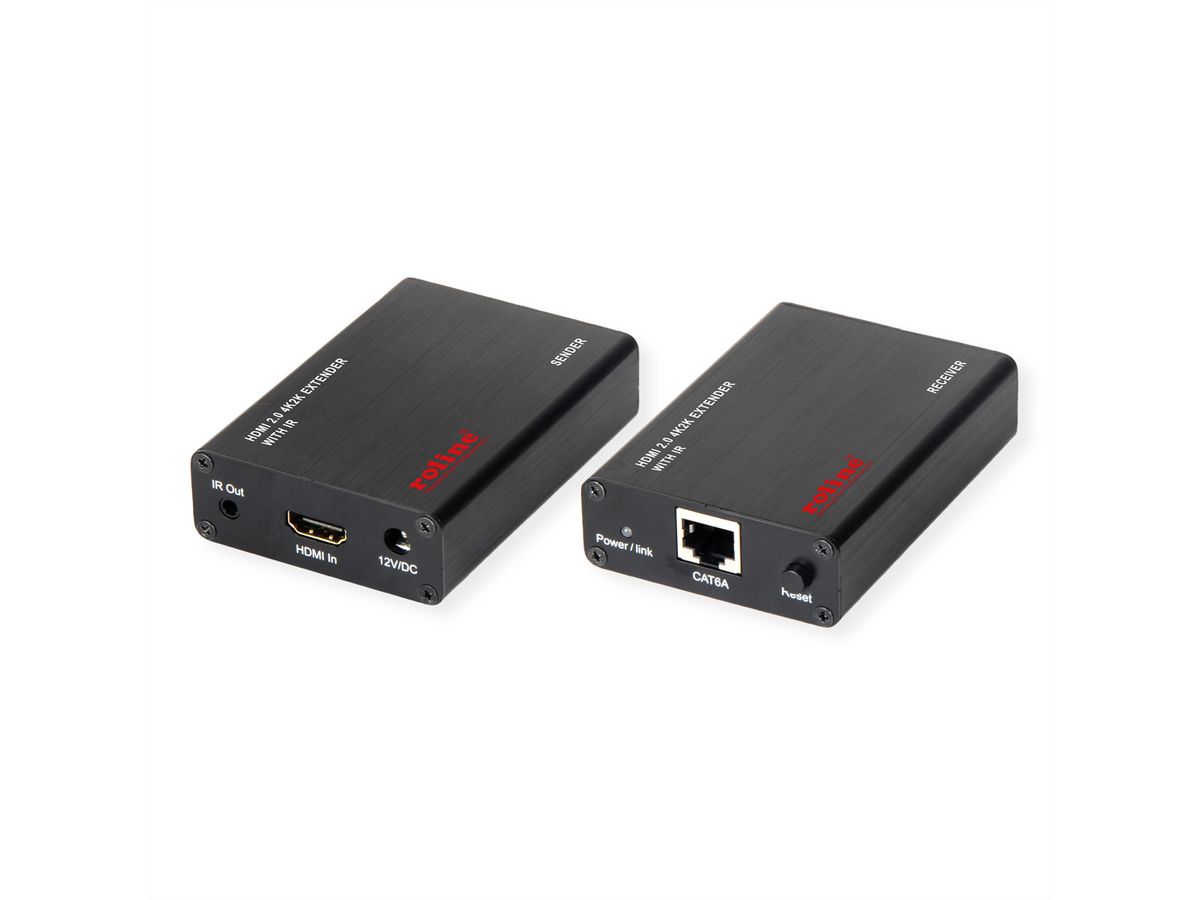

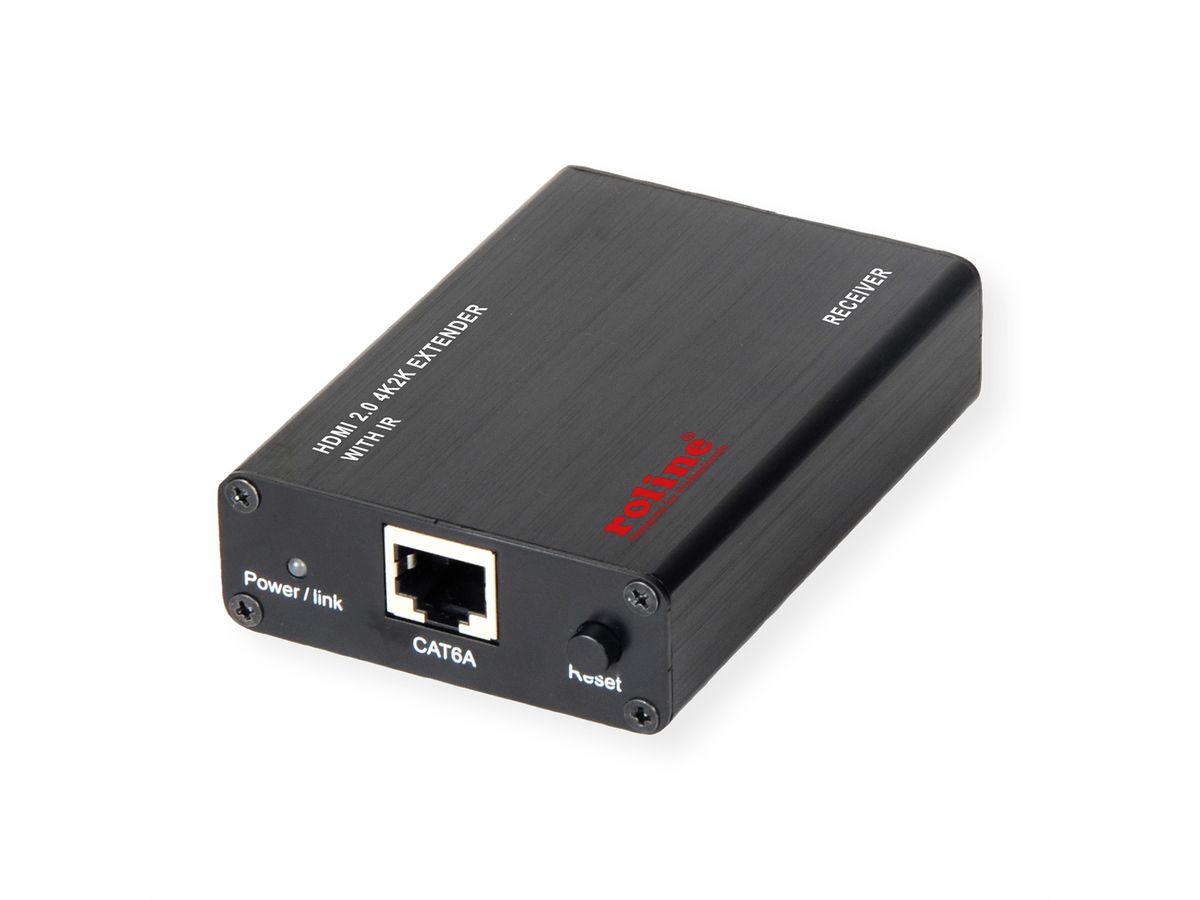

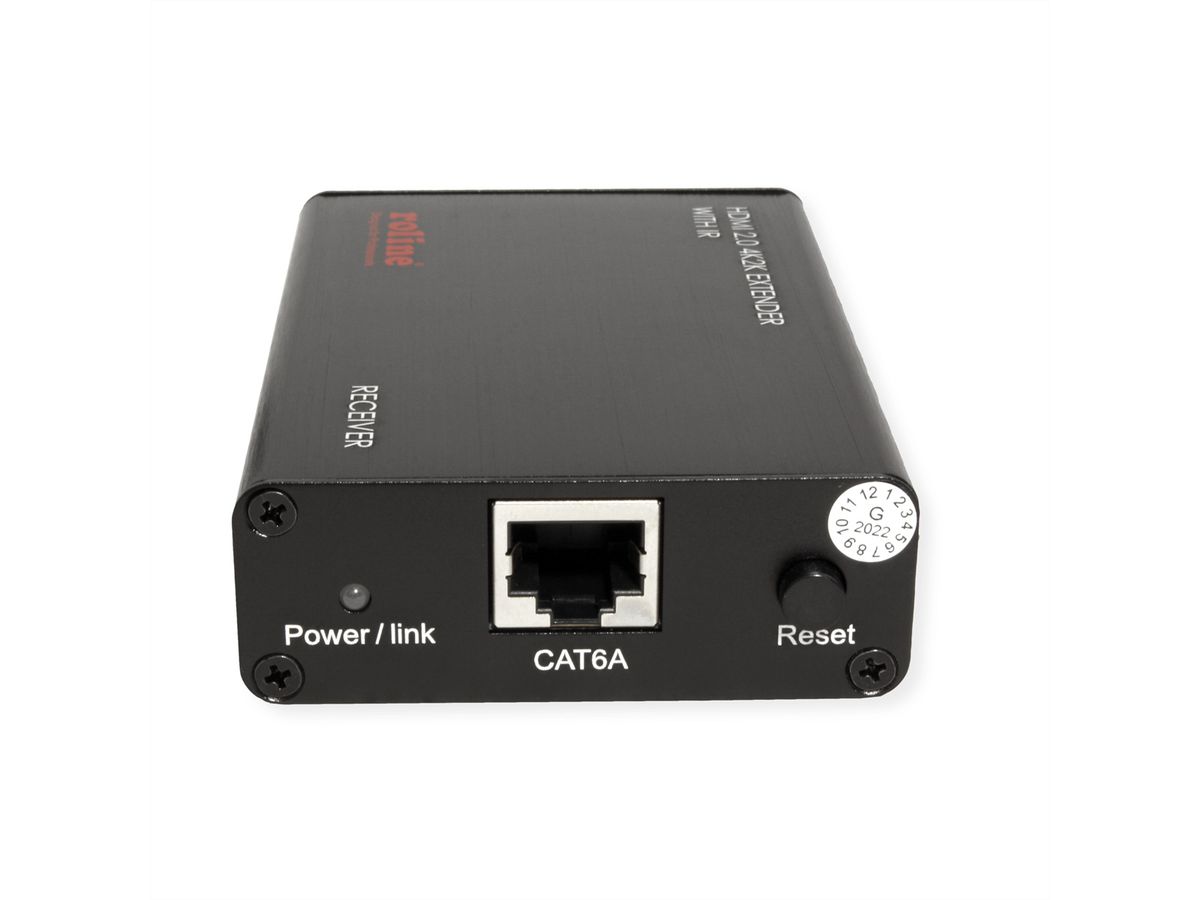

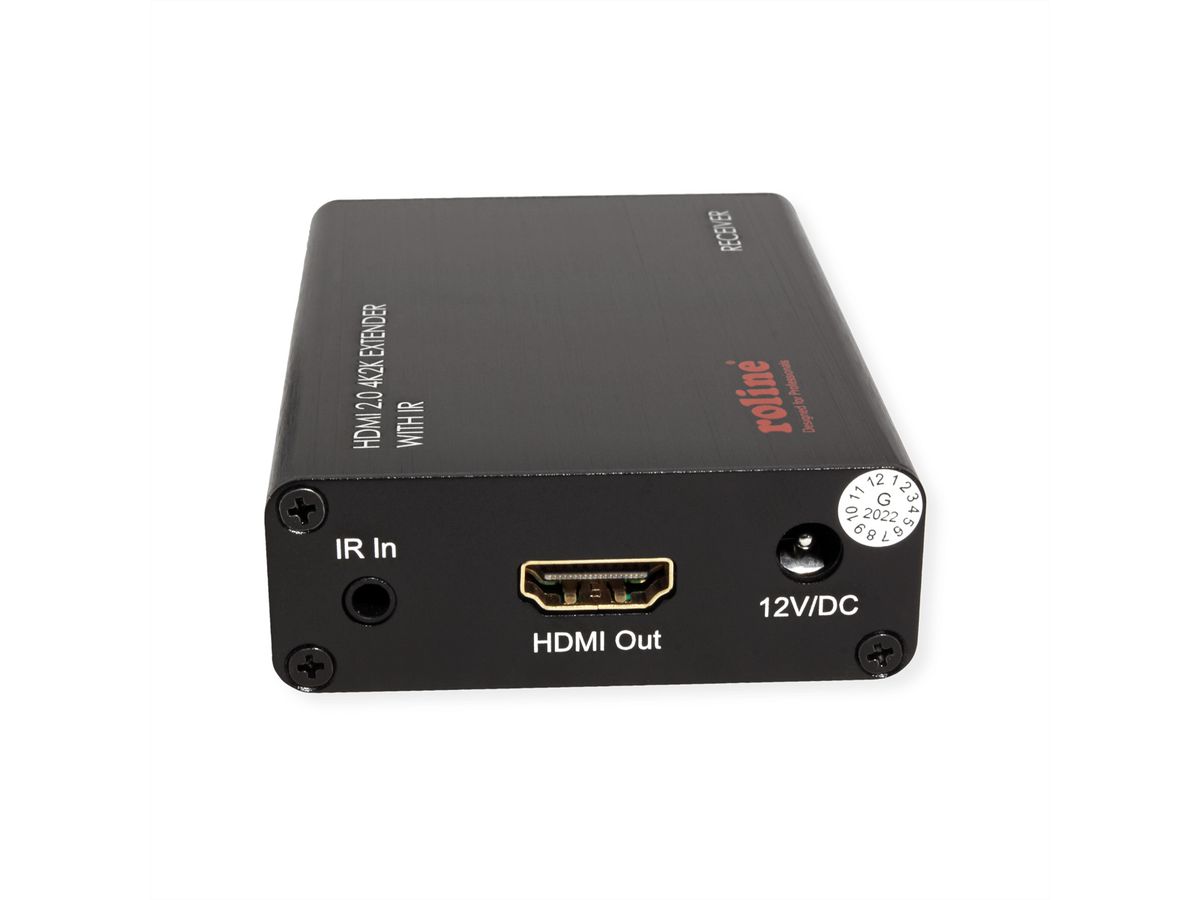

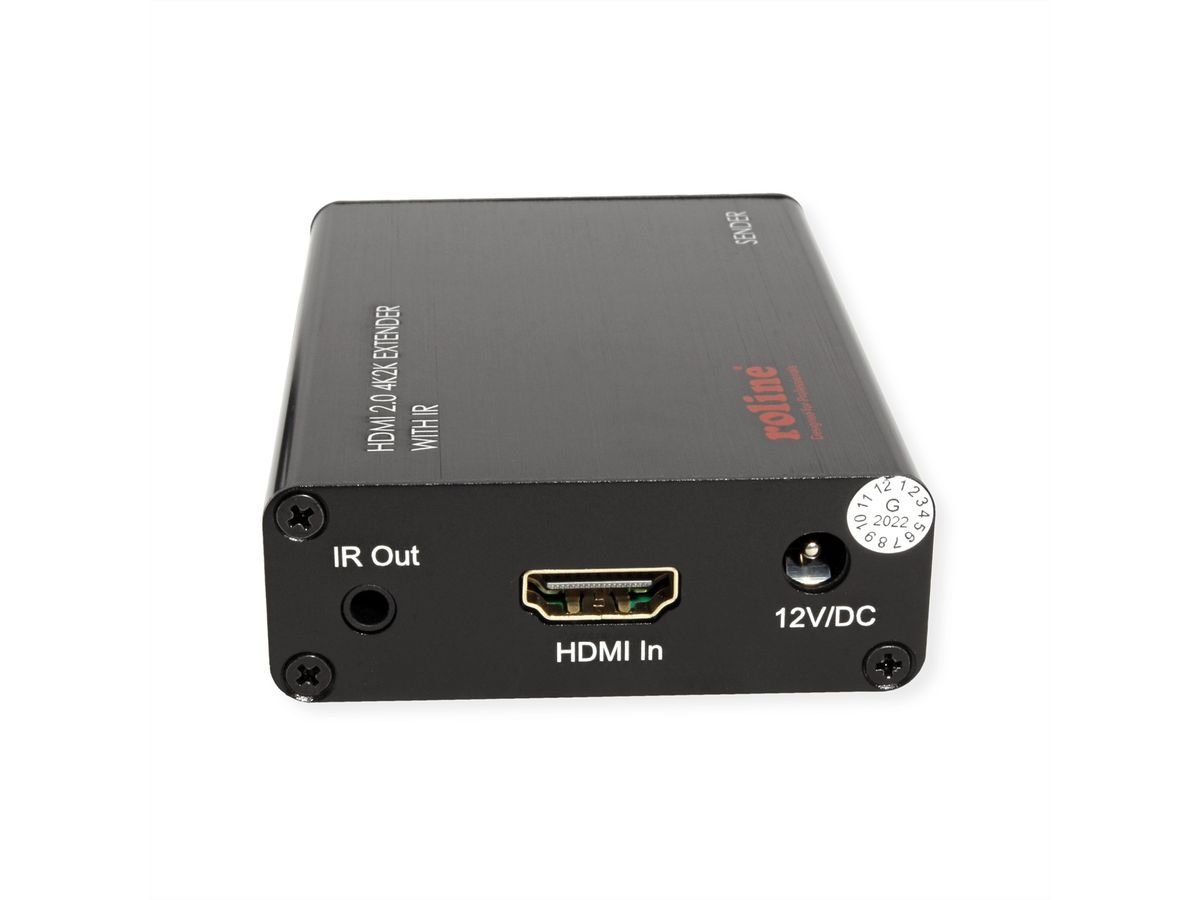

Scope of delivery transmitter, receiver, 1 power supply, manual
Interface HDMI
Max. distance 45 m
Video input HDMI
Video output HDMI
Max. resolution (nom.) 2160p
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Dimensions (HxWxD) 92 x 23 x 63 mm
Power supply unit Wallmount socket
Power supply output 12VDC, 2A
Technical particularity VGA / HDMI signal over WLAN or LAN
Operating temperature min. 0 °C
Operating temperature max. 40 °C
Height 92 mm
Width 23 mm
Depth 63 mm
Weight 219.9 g
Height of packaging (single piece) 100 mm
Width of packaging (single piece) 200 mm
Depth of packaging (single piece) 300 mm
Package weight (single piece) 0.25 kg


Product data sheet - English (60.4 KB)


Manufacturer data sheet - English (91.8 KB)


User manual - Français (501.5 KB)


User manual - Deutsch (501.7 KB)


User manual - English (454.4 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
