ROLINE Bi-Directional HDMI Switch 4K60, 2-way

ROLINE Bi-Directional HDMI Switch 4K60, 2-way

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 14.01.3573-5
Brand / Manufacturer ROLINE
Manuf. no. 14.01.3573
EAN 7630049681989
Package weight 0.08 kg

Description

  • Manual bidirectional HDMI switch for connecting different devices (e.g. DVD, Blu-ray player) with HDMI port.
  • Manual select push button to alternate between application modes

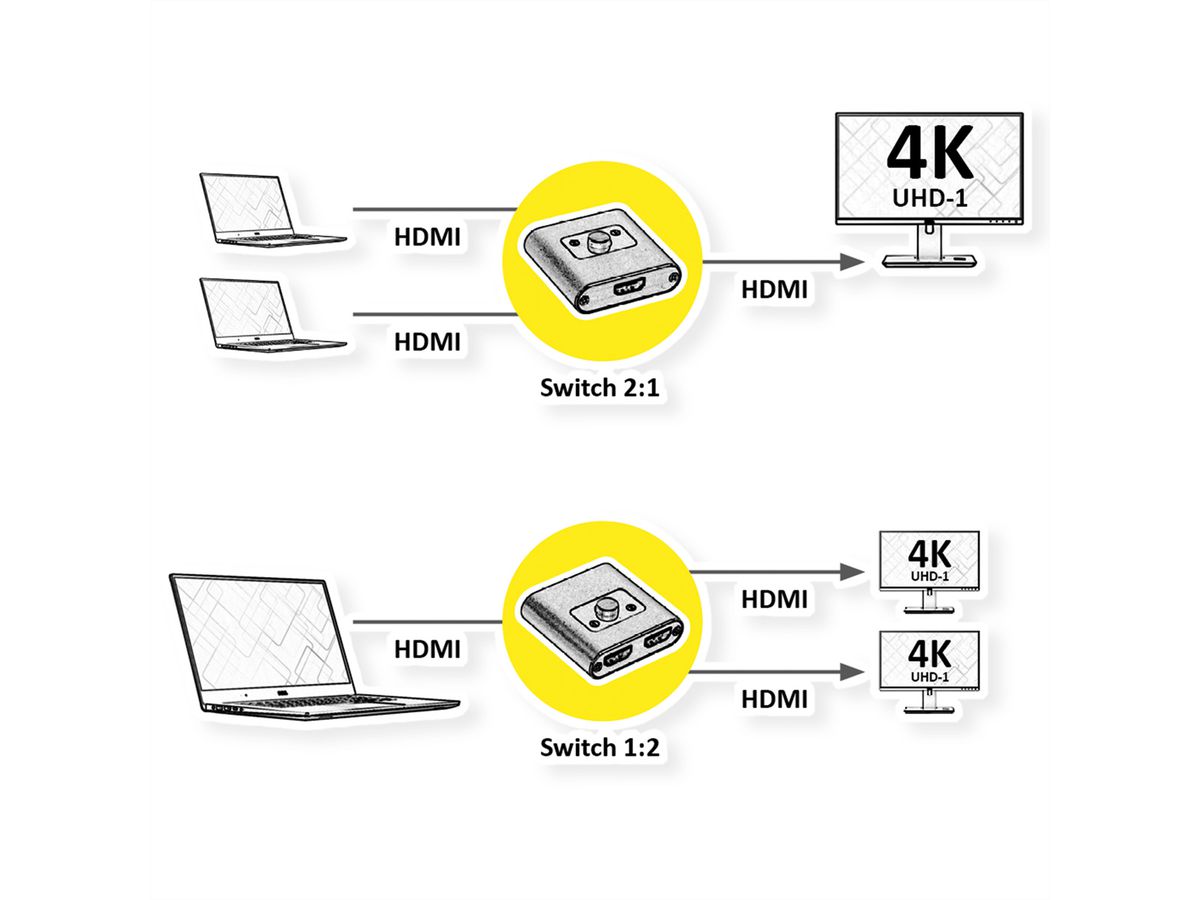

  • Possible applications:
- 2x inputs to one output (2 to 1): Up to 2 different HDMI devices can be connected to a monitor, TV or projector, by pushing the button.
- 1x input to two outputs (1 to 2): One HDMI device can be connected to up to 2 screens.

  • A simultaneous output to multiple screens is not possible.

  • Connectors:
Application 1
Input: 2 x HDMI
Output: 1 x HDMI

Application 2
Input: 1 x HDMI
Output: 2 x HDMI

  • Supports HDR
  • HDMI port selection by button
  • Resolution up to 3840 x 2160 (4K) 60 Hz (depending on the system and the connected hardware)
  • No external power supply needed
  • Plastic housing
  • Colour: black
  • Dual LEDs to display status
  • Dimensions (LxWxH): 82 x 62 x 17 mm

Specifications

Manufacturer ROLINE
Product group Splitters and selectors
Product type HDMI-Video-Switch
Colour black
Scope of delivery HDMI Switch
Interface HDMI
Inputs 2
Outputs 1
Video input 2x HDMI F
Video output 1x HDMI F
Max. resolution (nom.) 3840x2160@60Hz (4K2K)
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Weight 46.6 g
Height of packaging (single piece) 10 mm
Width of packaging (single piece) 50 mm
Depth of packaging (single piece) 50 mm
Package weight (single piece) 0.08 kg
