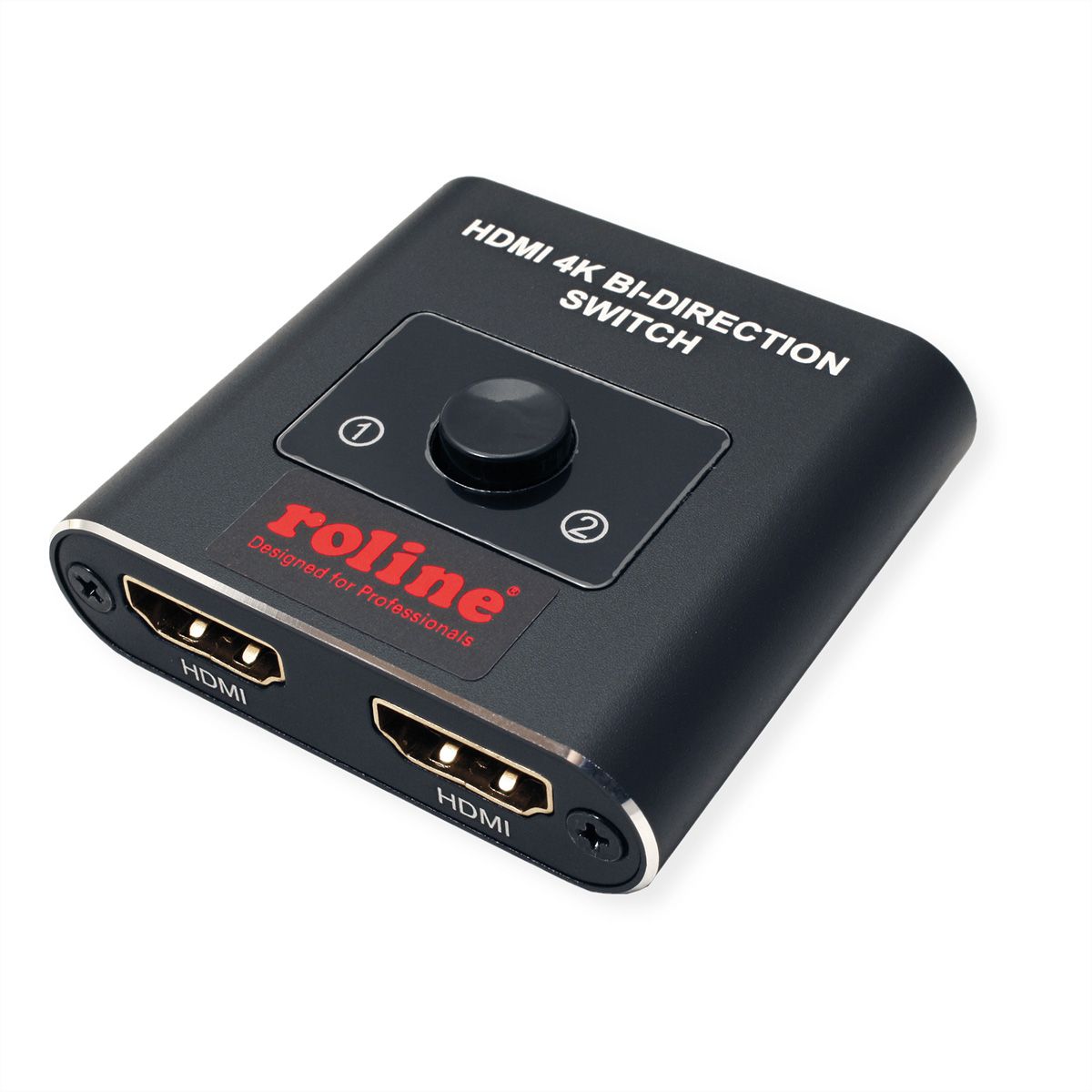

ROLINE Bi-Directional HDMI Switch 4K60, 2-way

Item no. 14.01.3573-5 Brand / Manufacturer ROLINE Manuf. no. 14.01.3573 EAN 7630049681989 Package weight 0.08 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

  • Manual bidirectional HDMI switch for connecting different devices (e.g. DVD, Blu-ray player) with HDMI port.
  • Manual select push button to alternate between application modes

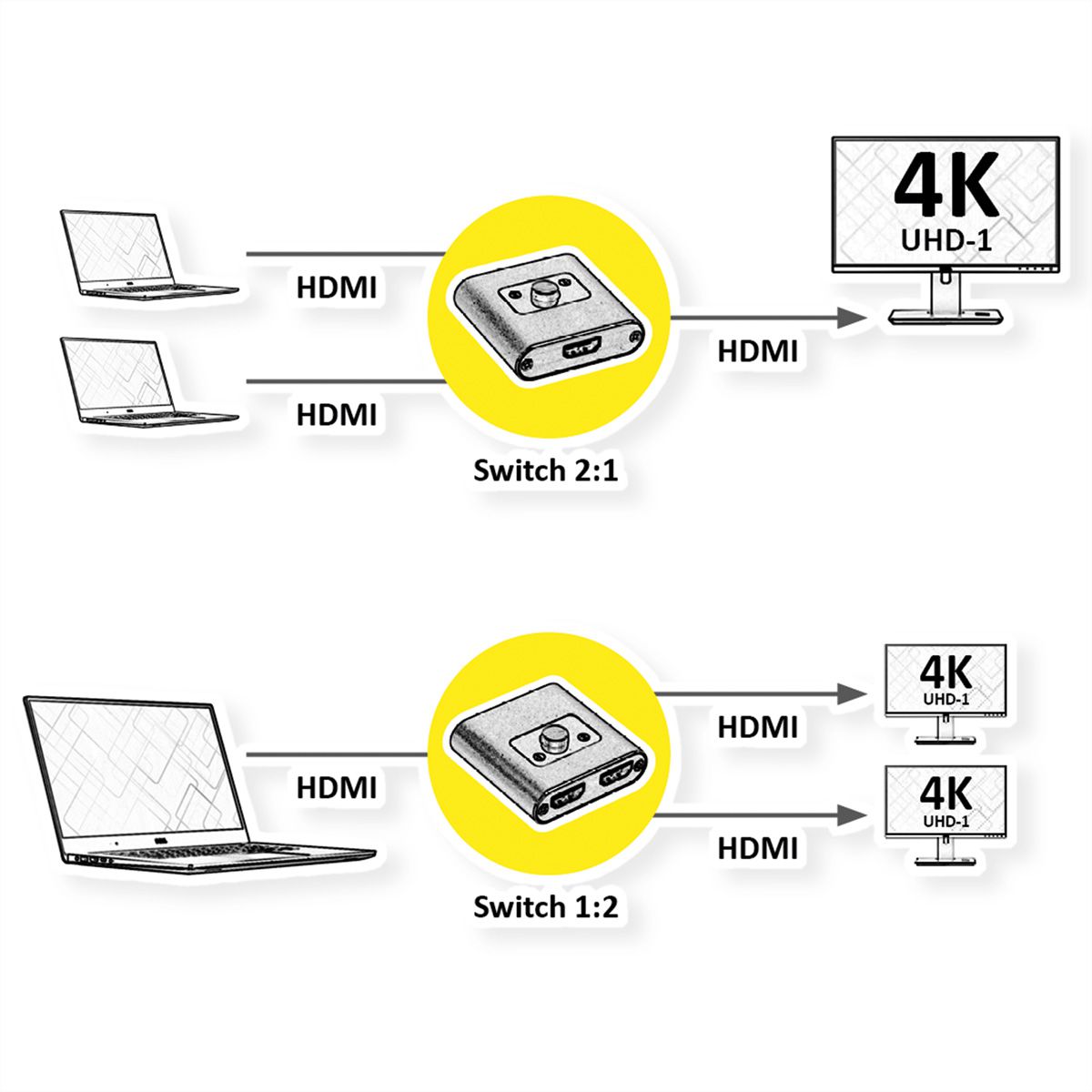

  • Possible applications:
- 2x inputs to one output (2 to 1): Up to 2 different HDMI devices can be connected to a monitor, TV or projector, by pushing the button.
- 1x input to two outputs (1 to 2): One HDMI device can be connected to up to 2 screens.

  • A simultaneous output to multiple screens is not possible.

  • Connectors:
Application 1
Input: 2 x HDMI
Output: 1 x HDMI

Application 2
Input: 1 x HDMI
Output: 2 x HDMI

  • Supports HDR
  • HDMI port selection by button
  • Resolution up to 3840 x 2160 (4K) 60 Hz (depending on the system and the connected hardware)
  • No external power supply needed
  • Plastic housing
  • Colour: black
  • Dual LEDs to display status
  • Dimensions (LxWxH): 82 x 62 x 17 mm

Specifications

Manufacturer
ROLINE
Product group
Splitters and selectors
Product type
HDMI-Video-Switch
Colour
black
Scope of delivery
HDMI Switch
Interface
HDMI
Inputs
2
Outputs
1
Video input
2x HDMI F
Video output
1x HDMI F
Max. resolution (nom.)
3840x2160@60Hz (4K2K)
Max. resolution
3840 x 2160 @60Hz (4K, UHD-1)
Weight
46.6 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
50 mm
Depth of packaging (single piece)
50 mm
Package weight (single piece)
0.08 kg

Downloads

Product data sheet - English (61.7 KB) User manual - Deutsch (438.6 KB) User manual - English (435.6 KB) User manual - Français (300.9 KB)
