The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s26/26110382_2025_m_0_hi.jpg "ROLINE Cat. 8.1 (Class I) Keystone, RJ-45, shielded, slim, tool-free, silver")
:strip_icc():strip_exif()/bilder/s26/26110382_2025_d_0_hi.jpg "ROLINE Cat. 8.1 (Class I) Keystone, RJ-45, shielded, slim, tool-free, silver")
:strip_icc():strip_exif()/bilder/s26/26110382_2025_p_0_hi.jpg "ROLINE Cat. 8.1 (Class I) Keystone, RJ-45, shielded, slim, tool-free, silver")

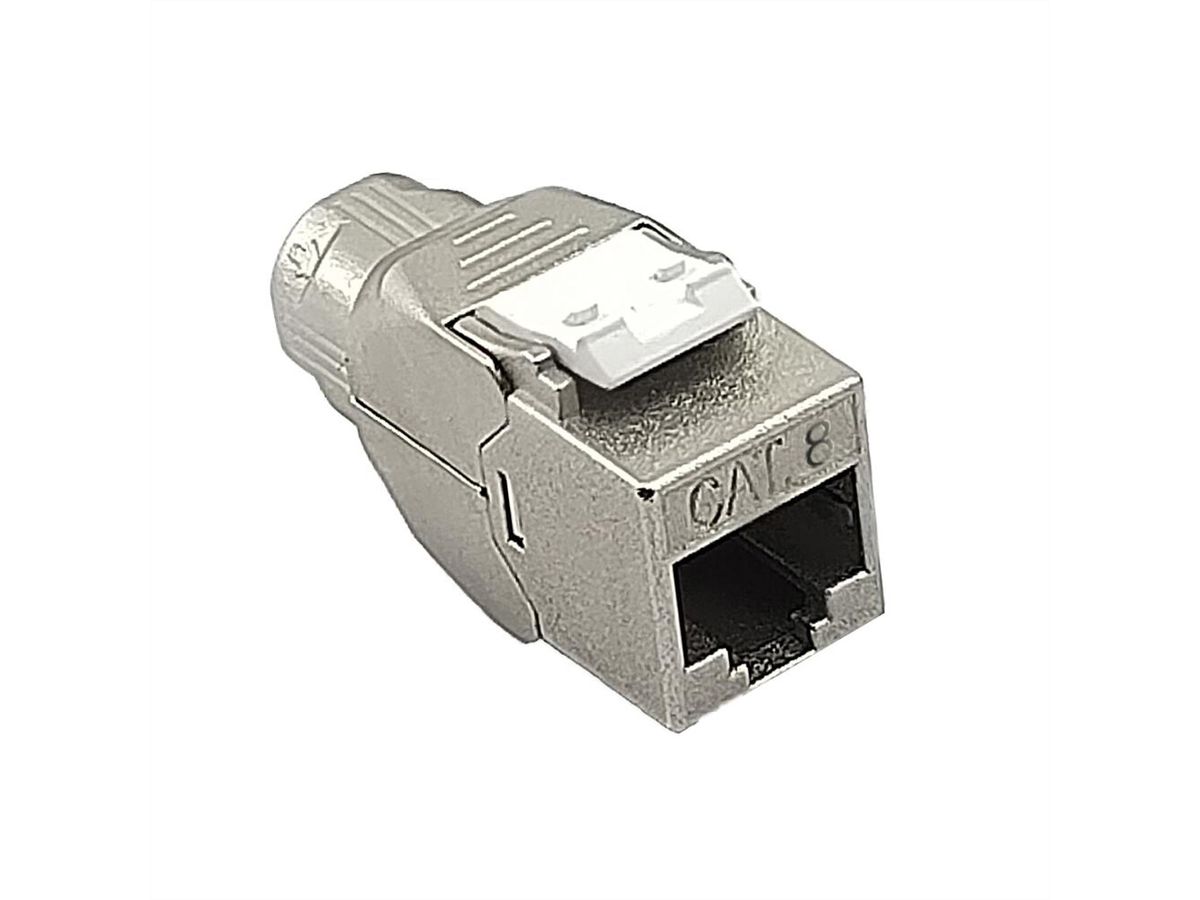

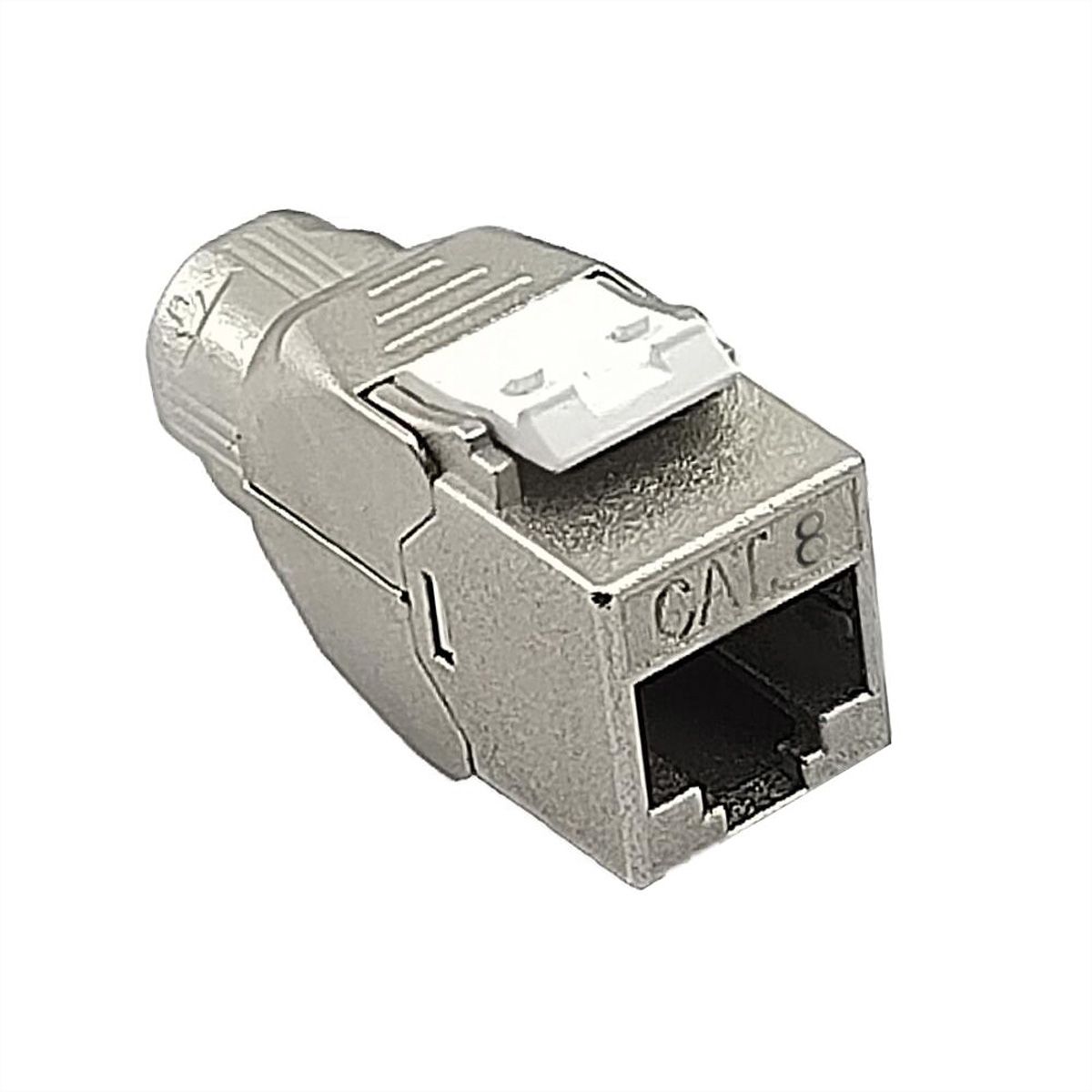

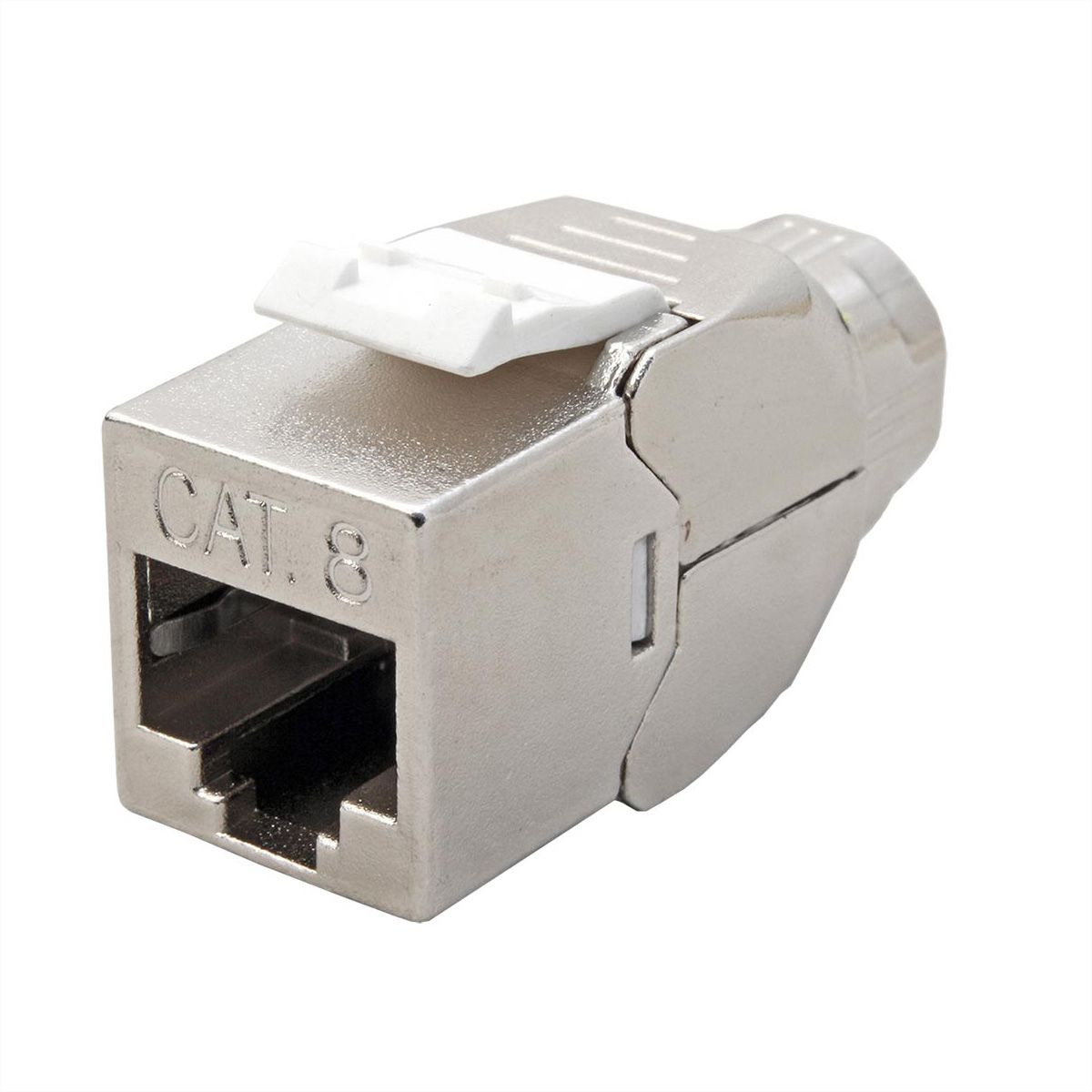

ROLINE Cat. 8.1 (Class I) Keystone, RJ-45, shielded, slim, tool-free, silver
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 26.11.0382-10 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 26.11.0382 |
| EAN | 7630049660823 |
| Package weight | 0.01 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
This ROLINE Cat. 8.1 (Class I) Slim Shielded RJ-45 Keystone supports data transfer rates of up to 40 Gbps with a bandwidth of 2000 MHz and can easily be installed tool-free.
- This ROLINE Cat. 8.1 (Class I) Keystone supports data transfer rates up to 10/25/40 Gbps with a bandwidth of 2000 MHz

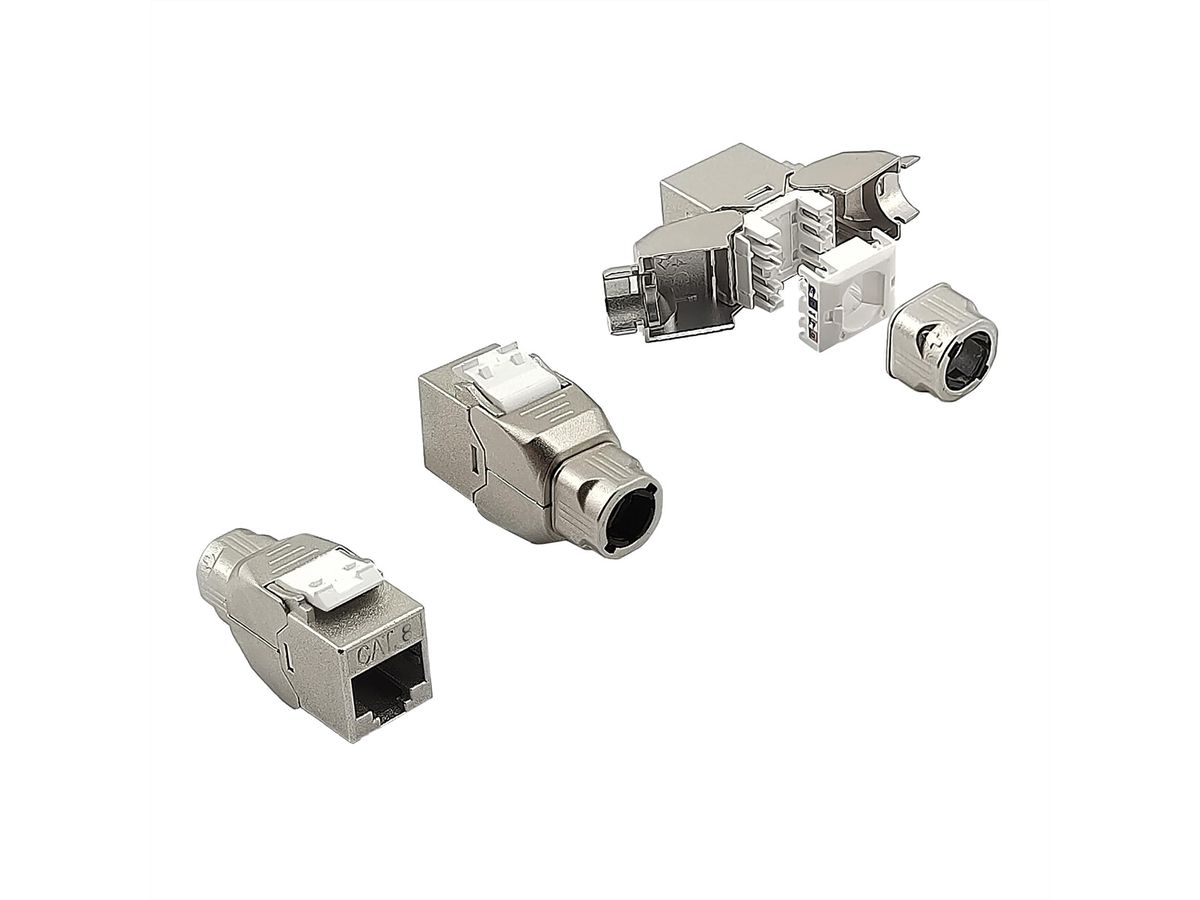

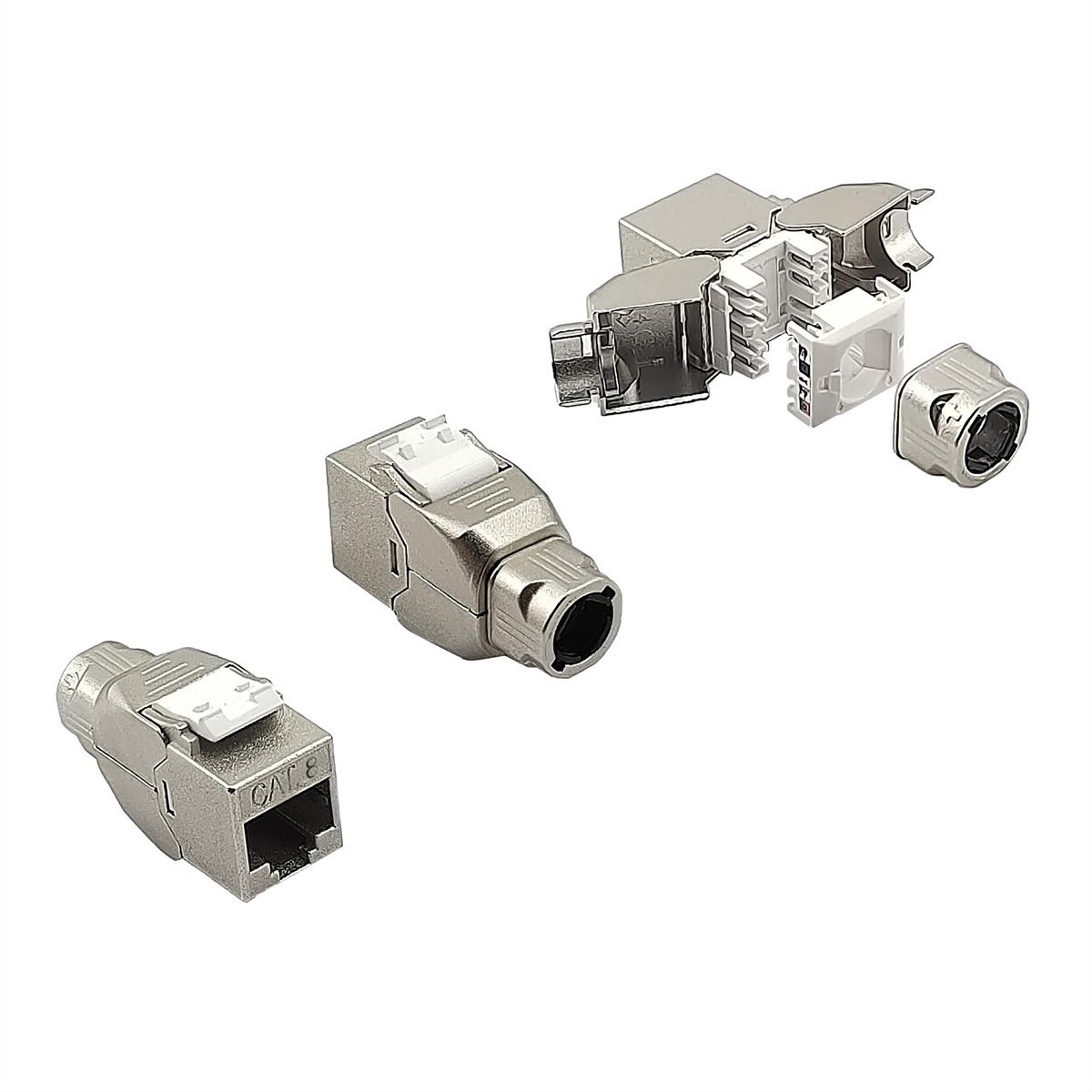

- Tool-free: Connect the cable to the keystone without special tools – place the cable ends simply into the guides (with color coding), close and compress the module – the connection is ready for use
- The Keystone module can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.0360) or light gray (26.11.0359).
- Suitable for cables wih outer diameter of 6.0 mm - 8.5 mm
- For solid and stranded cables with 22 AWG - 26 AWG
- Compliant with PoE per IEEE 802.3af, PoE+ per IEEE 802.3at and PoE++ per IEEE 802.3bt
- Wire coded scheme: EIA/TIA 568
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | silver |
| Scope of delivery | Keystone |
| Shield type | Screened |
| Transfer quality | Cat8.1 / Class I |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A & 568B |
| Material (casing) | Zinc alloy |
| Connection direction | Straight |

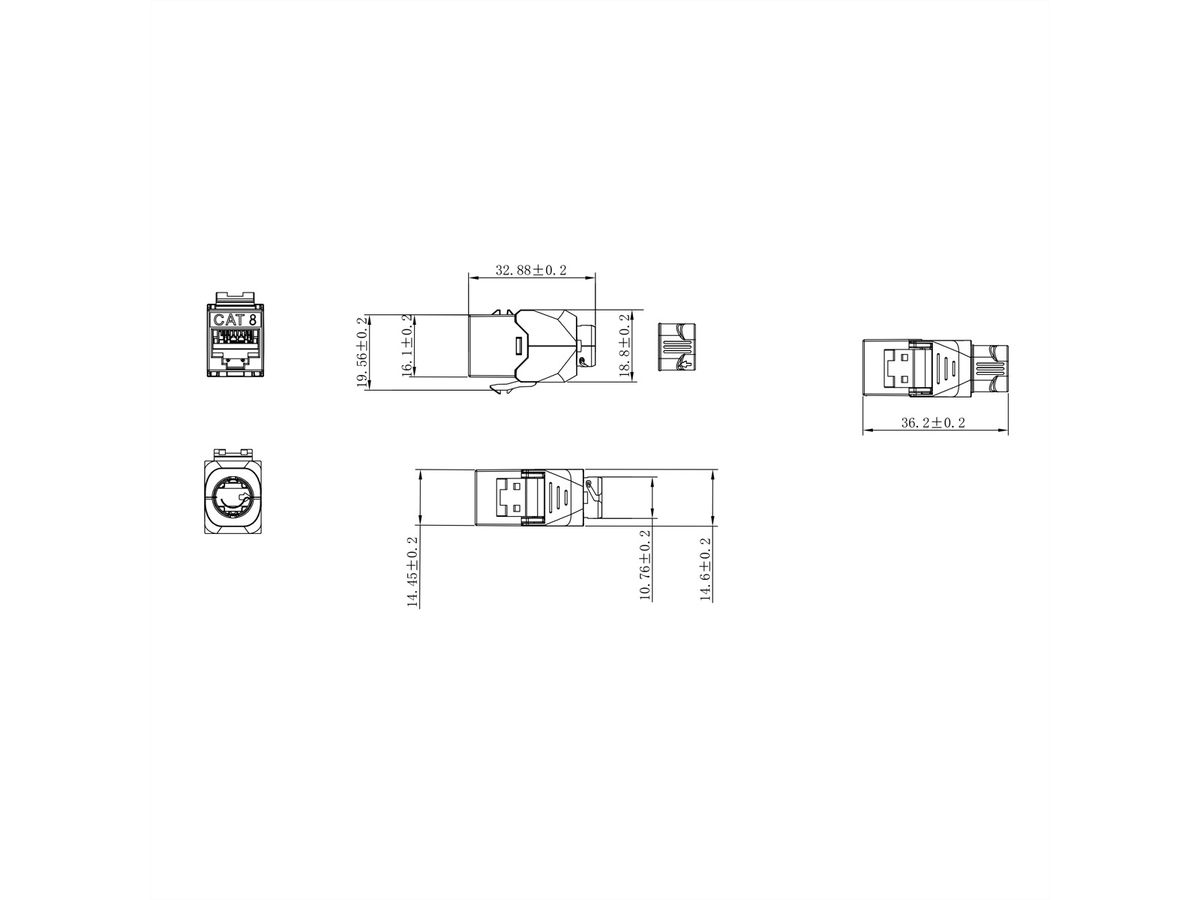

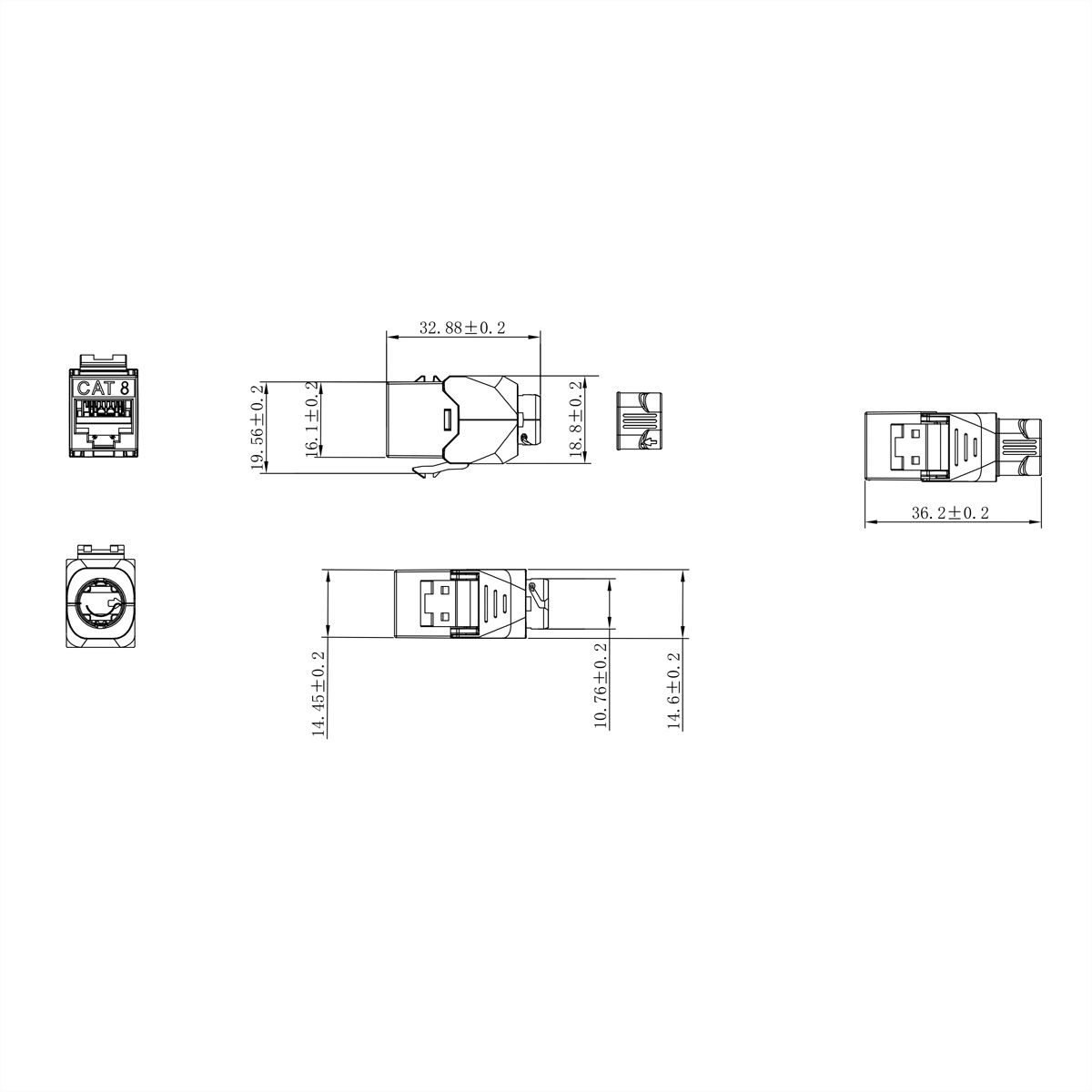

| Dimensions (HxWxD) | 18.8 x 14.6 x 36.2 mm |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 70 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 85 °C |
| Height | 18.8 mm |
| Width | 14.6 mm |
| Depth | 36.2 mm |
| Weight | 18 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 20 mm |
| Package weight (single piece) | 0.01 kg |
