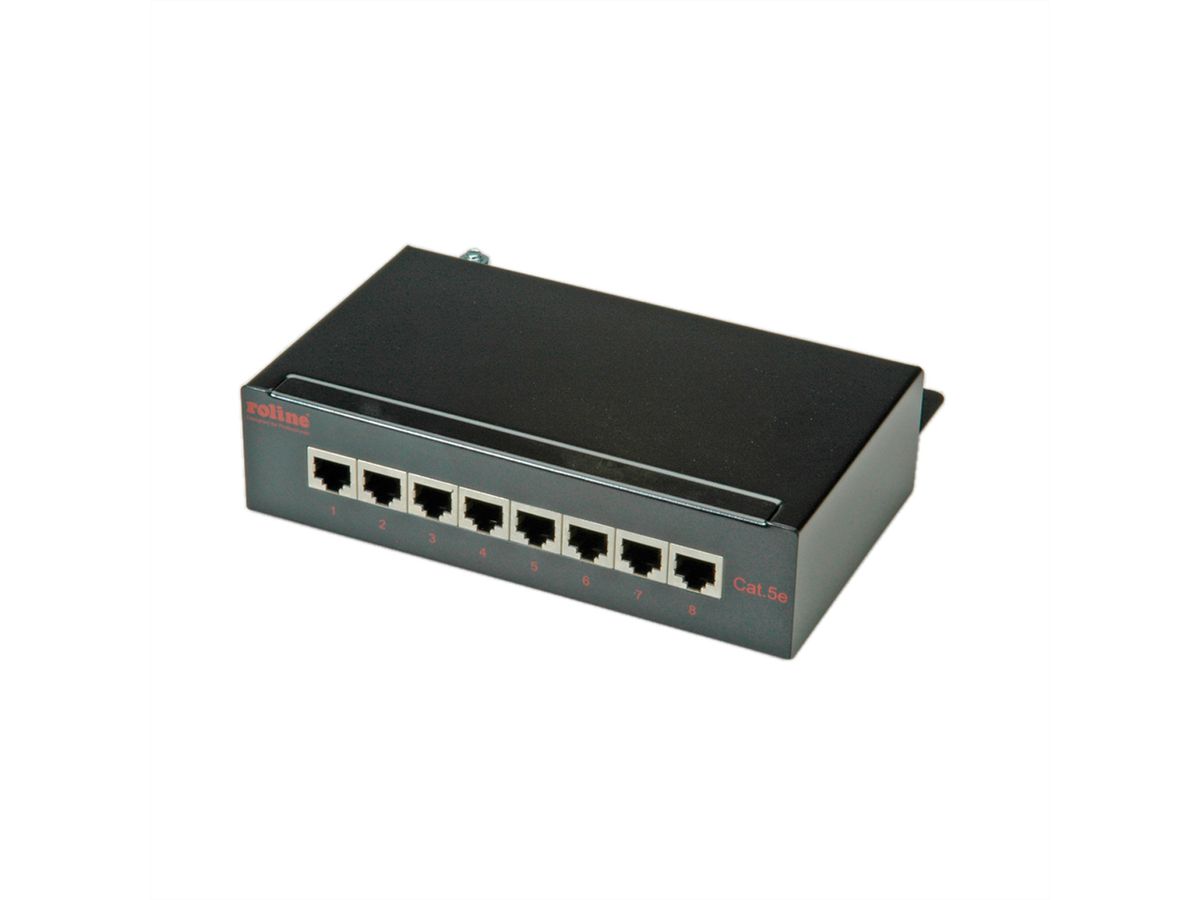

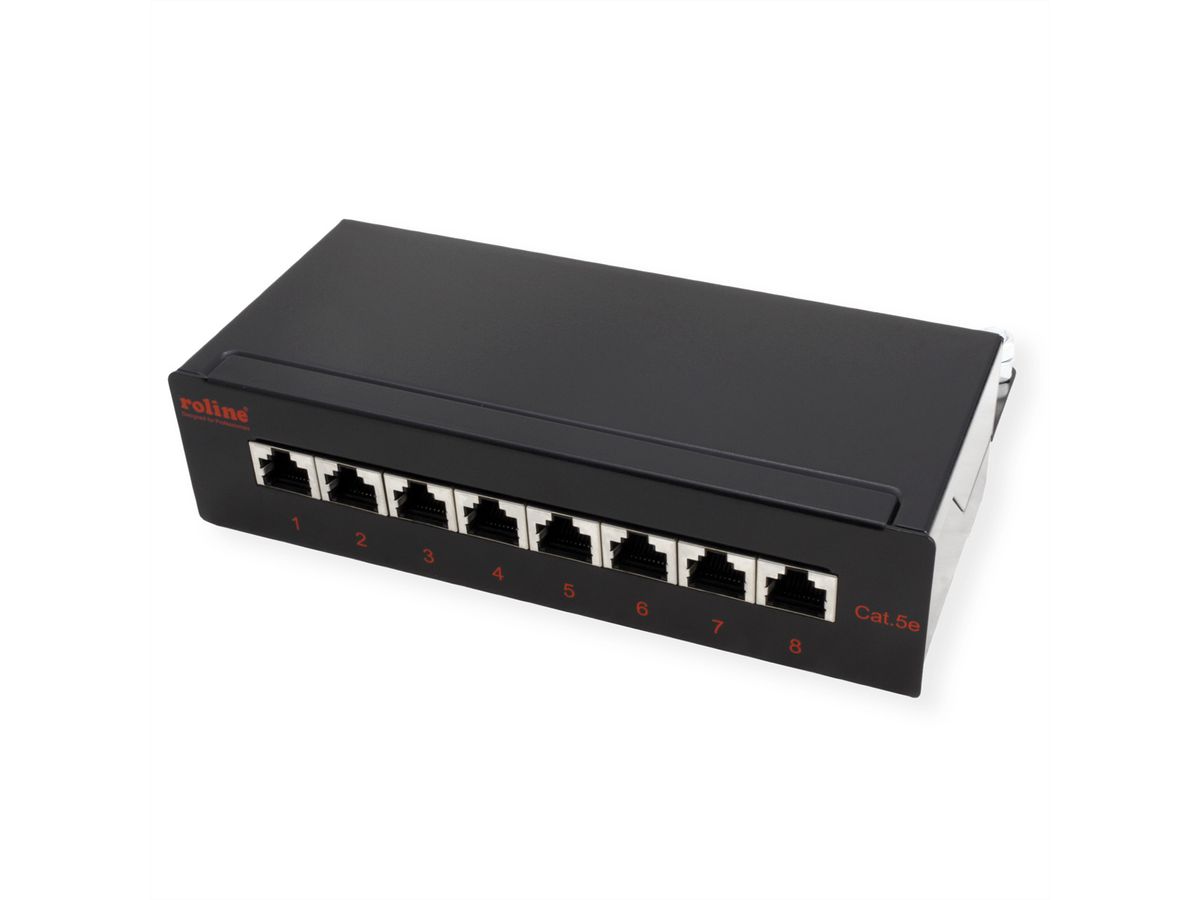

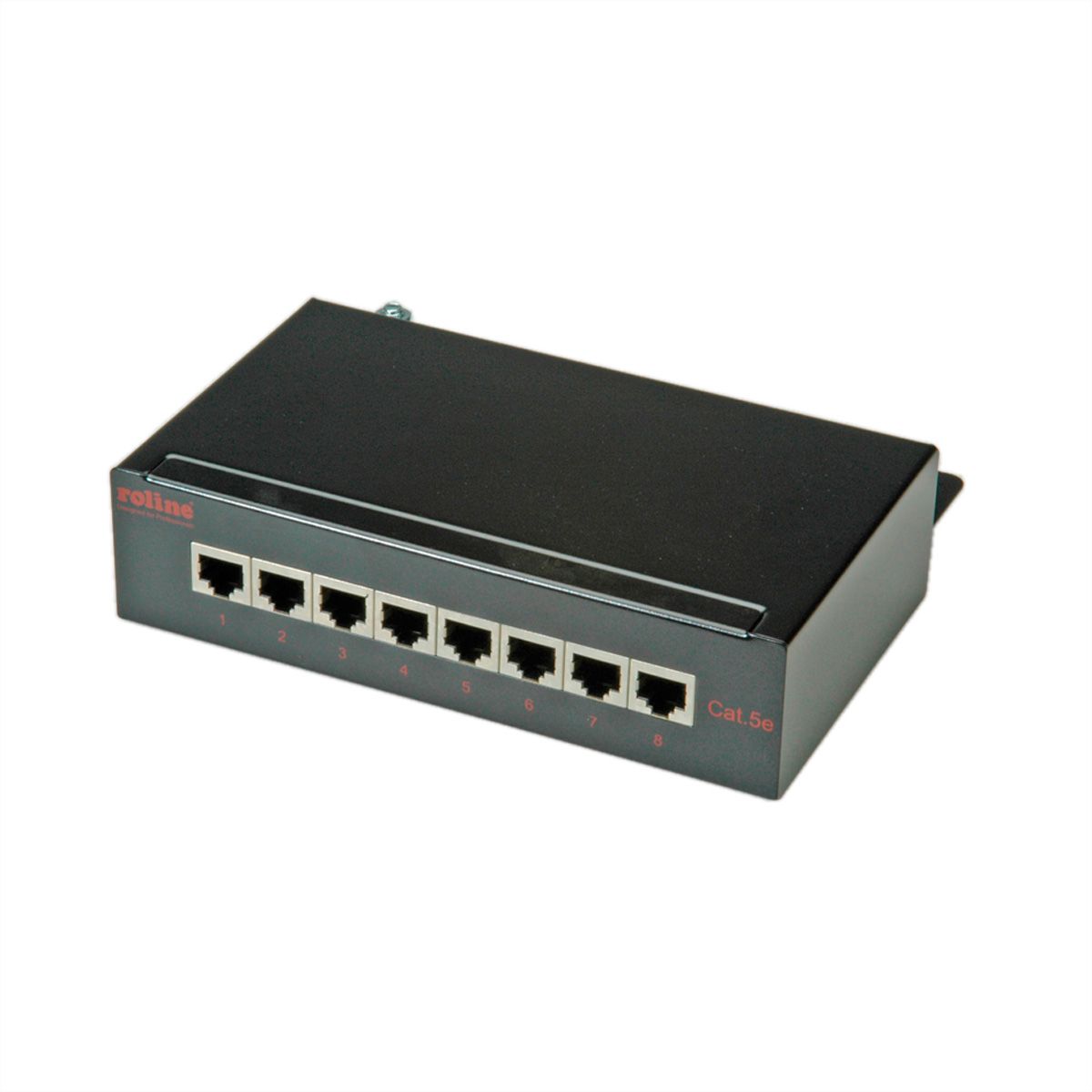

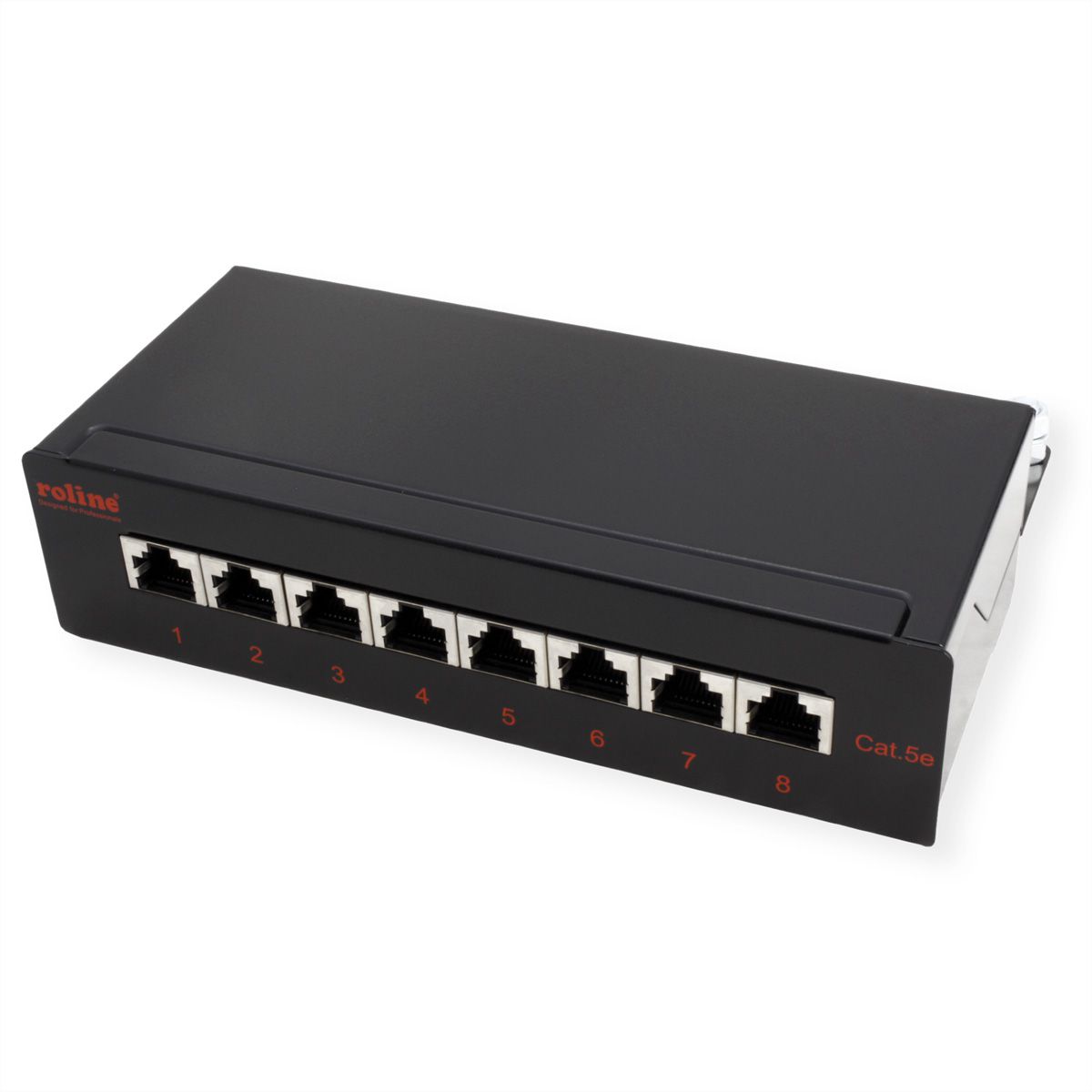

ROLINE Cat.5e (Class D) Wall Mount Patch Panel, 8 Ports, STP, black

Item no. 26.11.0310-10 Brand / Manufacturer ROLINE Manuf. no. 26.11.0310 EAN 7611990947744 Package weight 0.95 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

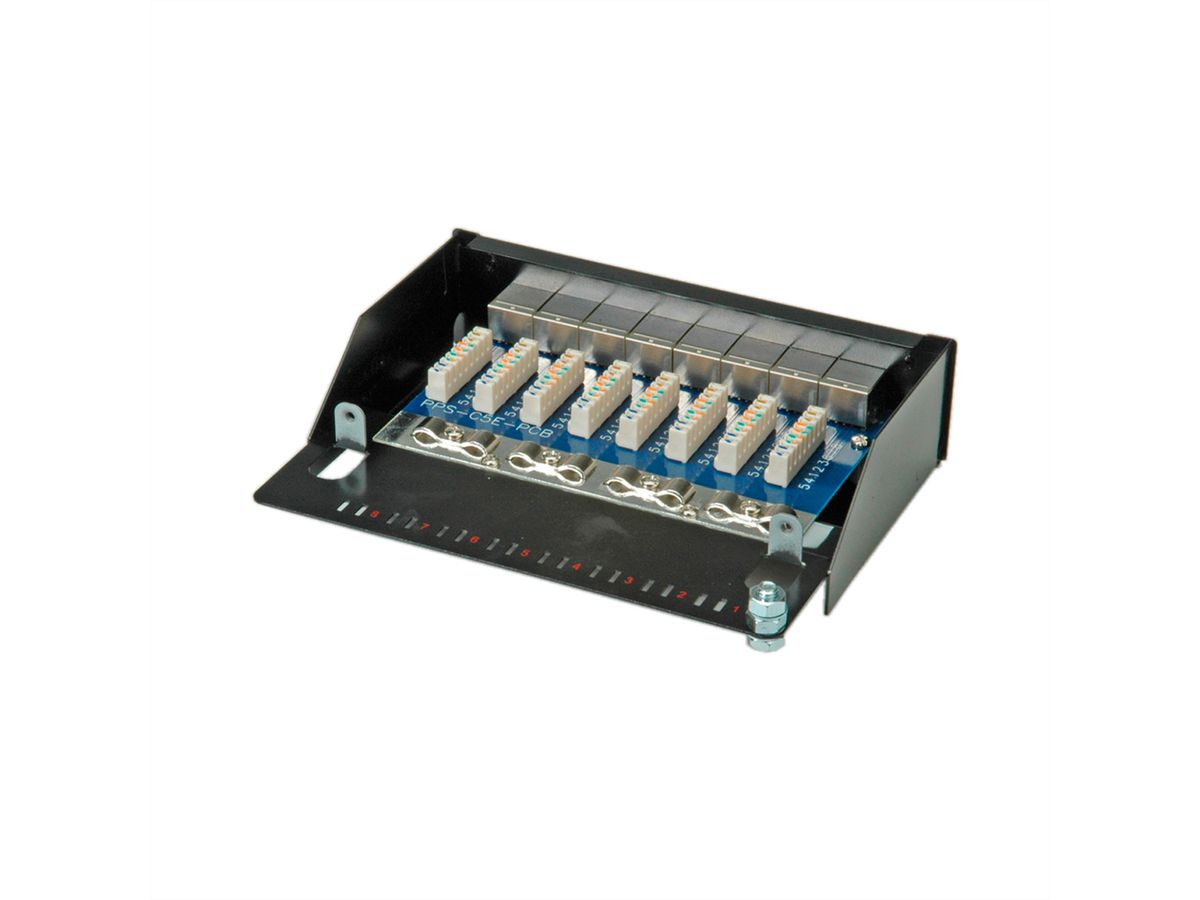

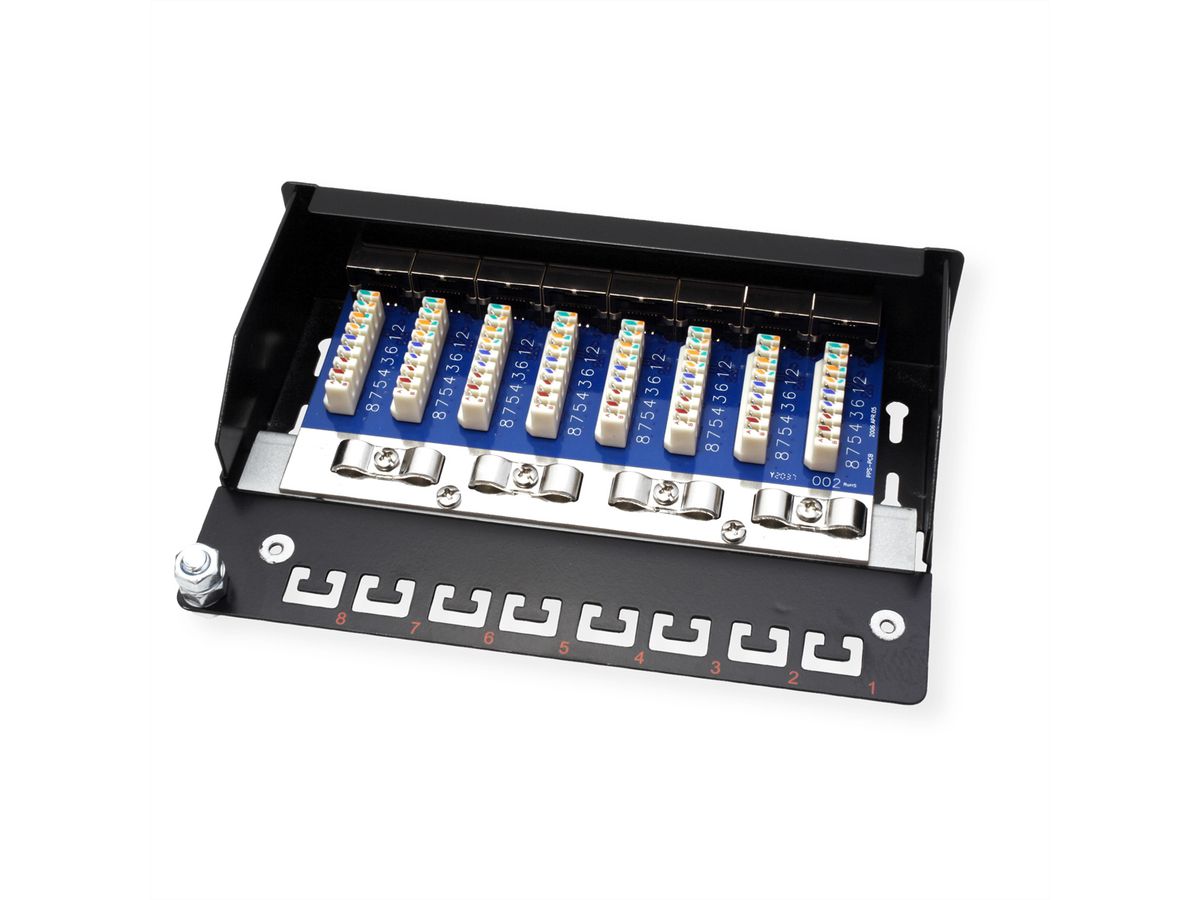

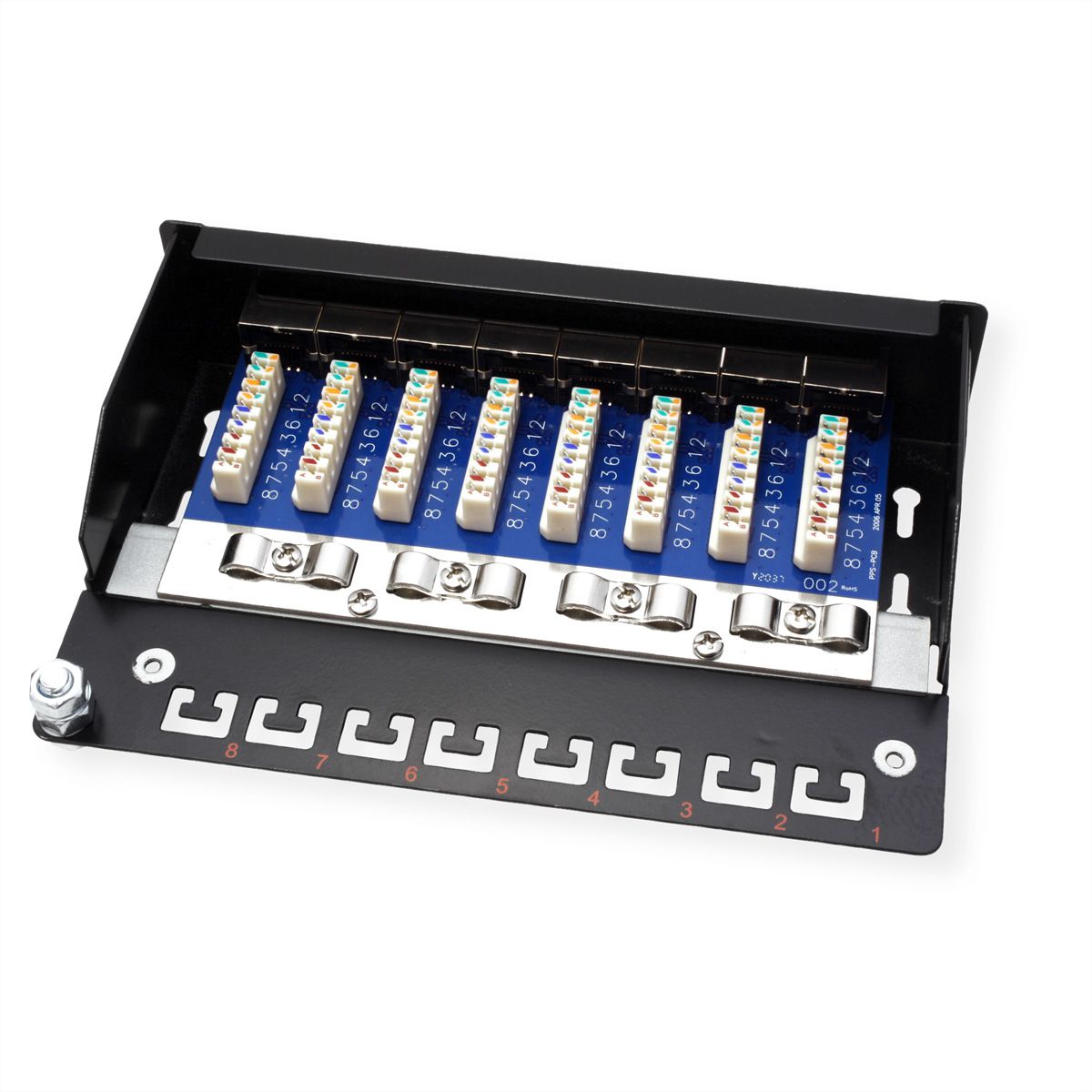

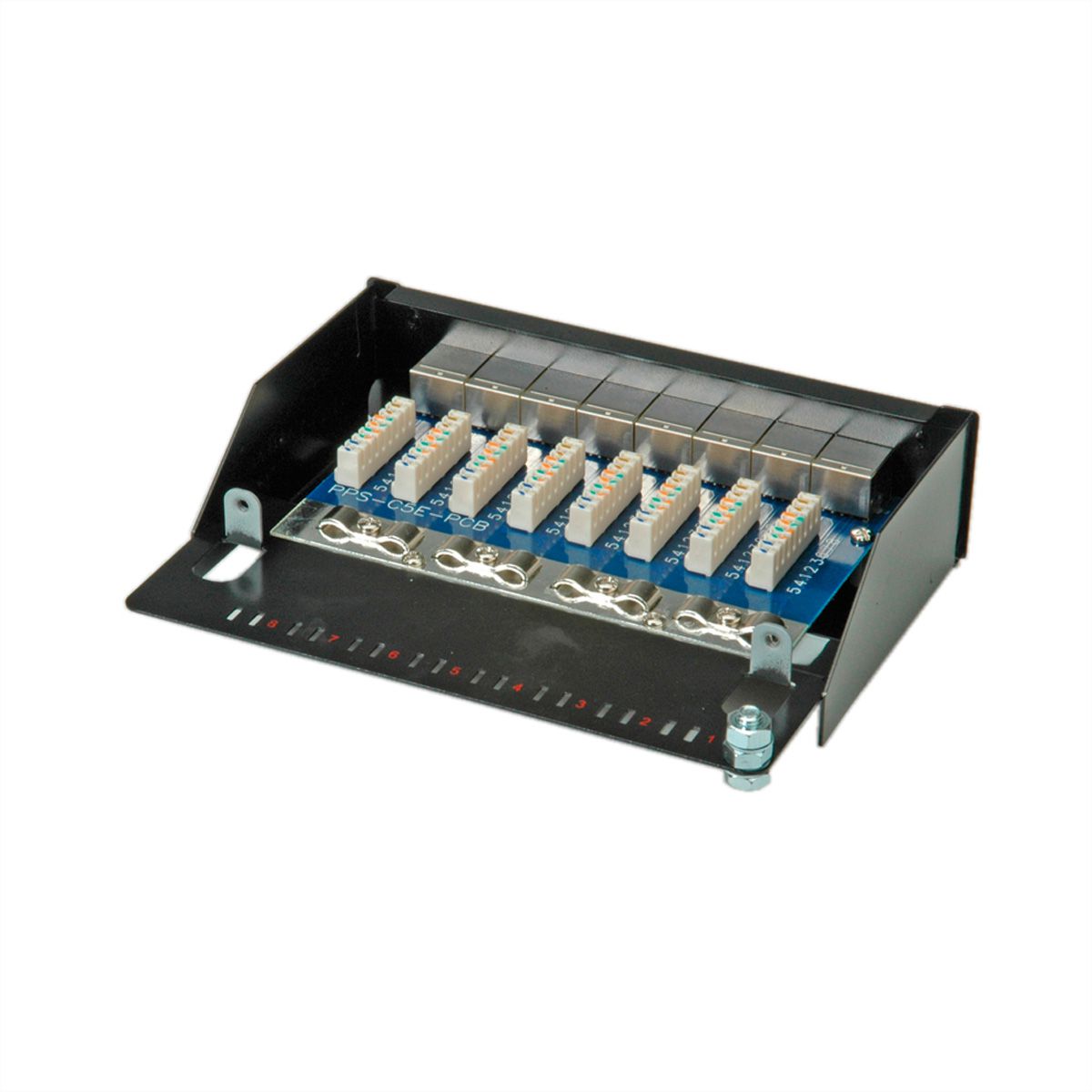

  • The ROLINE connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips.
  • The cable connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips
  • Housing and dust cover: metal
  • Colour: black

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
Patchpanel Cat.5e
Colour
black
Scope of delivery
1x patch panel, cable ties, installation instructions
Shield type
Screened
Transfer quality
Cat5e / Class D
Quantity of ports
8
Assembly cable connection
Krone LSAplus
Assignment
EIA/TIA 568A & 568B
Modular assembly
no
Shield contacts
Yes
separate strain relief
yes
Connection direction
Straight
Dimensions (HxWxD)
44 x 172 x 140 mm
Assembly depth
140 mm
Height units
1 U
Technical particularity
Wall mount
Height
44 mm
Width
172 mm
Depth
140 mm
Weight
623.6 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
240 mm
Depth of packaging (single piece)
320 mm
Package weight (single piece)
0.95 kg

Downloads

Product data sheet - English (49.5 KB) Manufacturer data sheet - English (682.5 KB)

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.

More about ROLINE
