The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s26/26110355_2020_m_0_hi.jpg "ROLINE Cat.6 (Class E) 19\" Patch Panel, 24 Ports, UTP, grey")
:strip_icc():strip_exif()/bilder/s26/26110355_2020_p_0_hi.jpg "ROLINE Cat.6 (Class E) 19\" Patch Panel, 24 Ports, UTP, grey")
:strip_icc():strip_exif()/bilder/s26/26110355_2000_p_1_lo.jpg "ROLINE Cat.6 (Class E) 19\" Patch Panel, 24 Ports, UTP, grey")

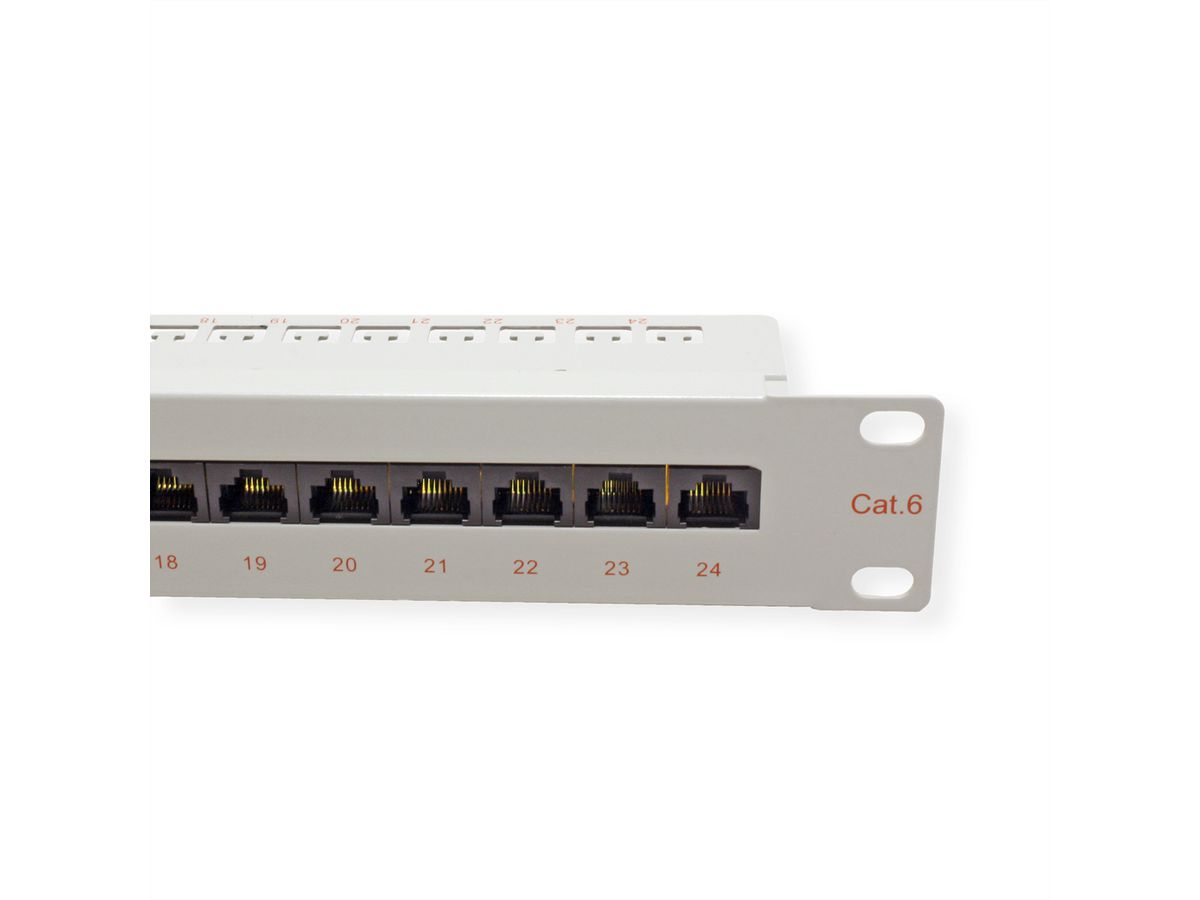

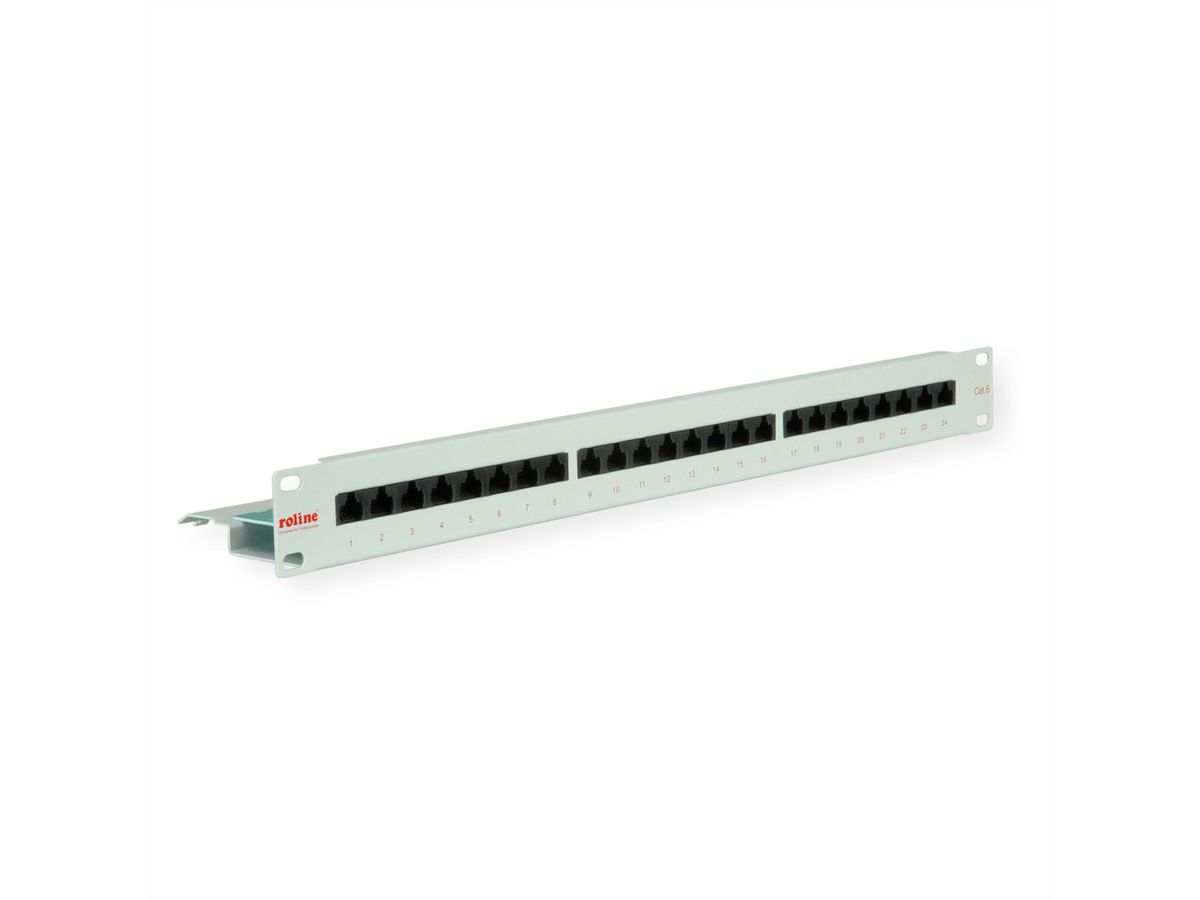

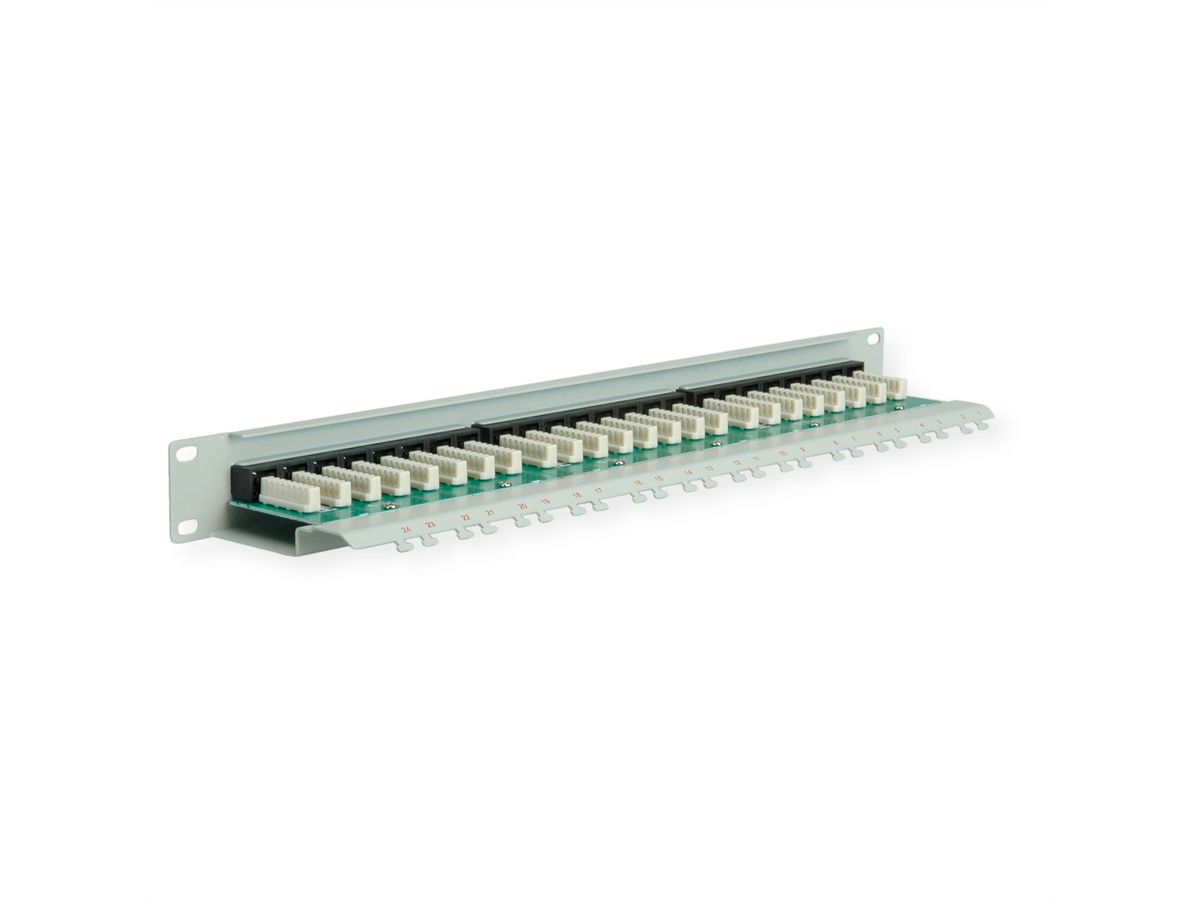

ROLINE Cat.6 (Class E) 19" Patch Panel, 24 Ports, UTP, grey
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 26.11.0355-3 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 26.11.0355 |
| EAN | 7611990956517 |
| Package weight | 2.2 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
- The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
- Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
- 24 ports
- Colour: Light grey
For a structured cabling system we recommend to use the following components:
ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | Patchpanel Cat.6 / Class E |
| Colour | grey |
| Shield type | Not screened |
| Transfer quality | Cat6 / Class E |
| Cabinet system | 19"-Technique |
| Quantity of ports | 24 |
| Assembly cable connection | Krone LSAplus |
| Assignment | EIA/TIA 568A & 568B |
| Modular assembly | no |
| Shield contacts | No |
| separate strain relief | yes |
| Connection direction | Straight |
| Height units | 1 U |
| Height | 44 mm |
| Width | 482.6 mm |
| Depth | 109 mm |
| Weight | 874.3 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 150 mm |
| Depth of packaging (single piece) | 490 mm |
| Package weight (single piece) | 2.2 kg |
