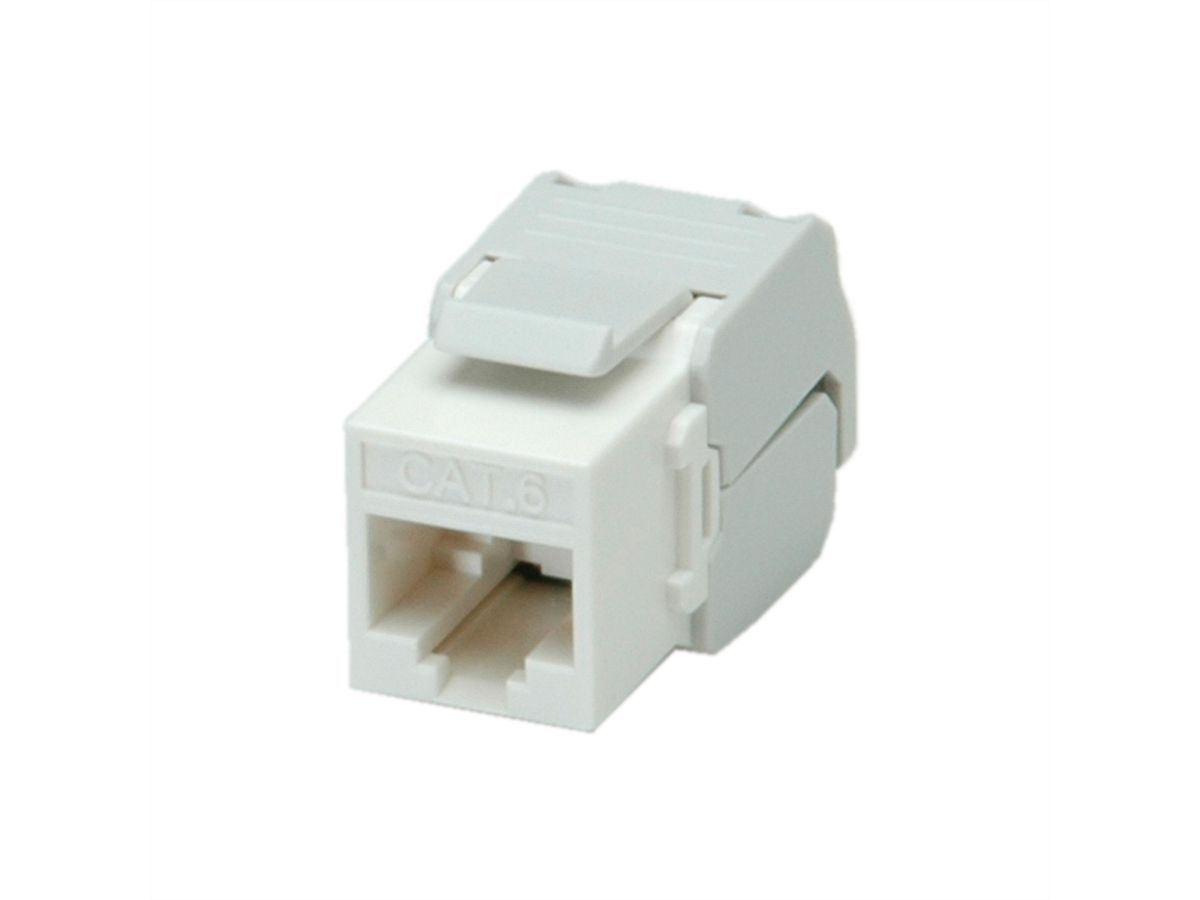

ROLINE Cat.6 (Class E) Keystone Jack, RJ-45, UTP, tool-free, white, white

Please log in to be able to use the shopping cart and then complete orders.

Available

Ordered until 3 pm - usually dispatched on the same day

Item no.	26.11.0353-60
Brand / Manufacturer	ROLINE
Manuf. no.	26.11.0353
EAN	7611990970568
Package weight	0.009 kg

Description

ROLINE Keystone in Cat.6 Quality for use in a Gigabit network

The system is composed of a 19" patch panel frame and the UTP Cat.6 RJ-45 keystone jacks

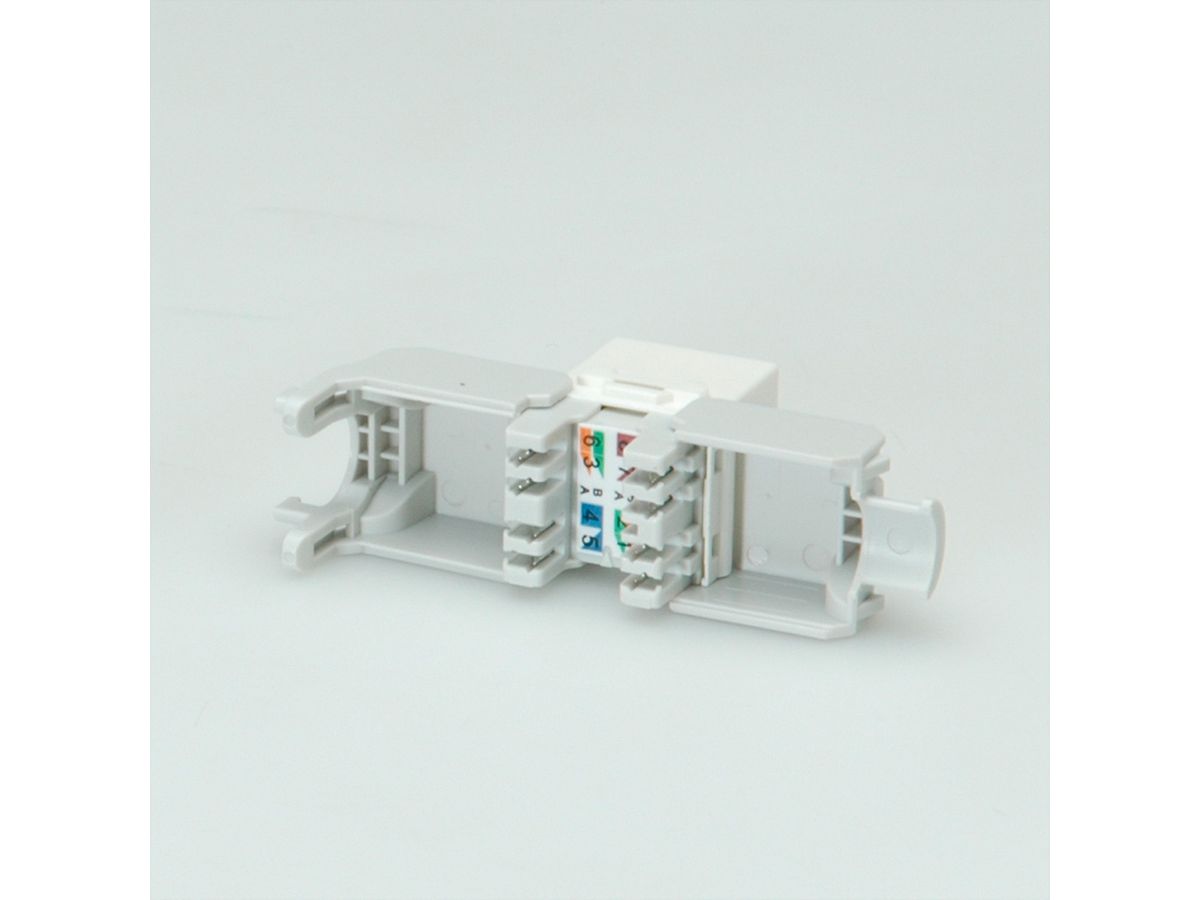

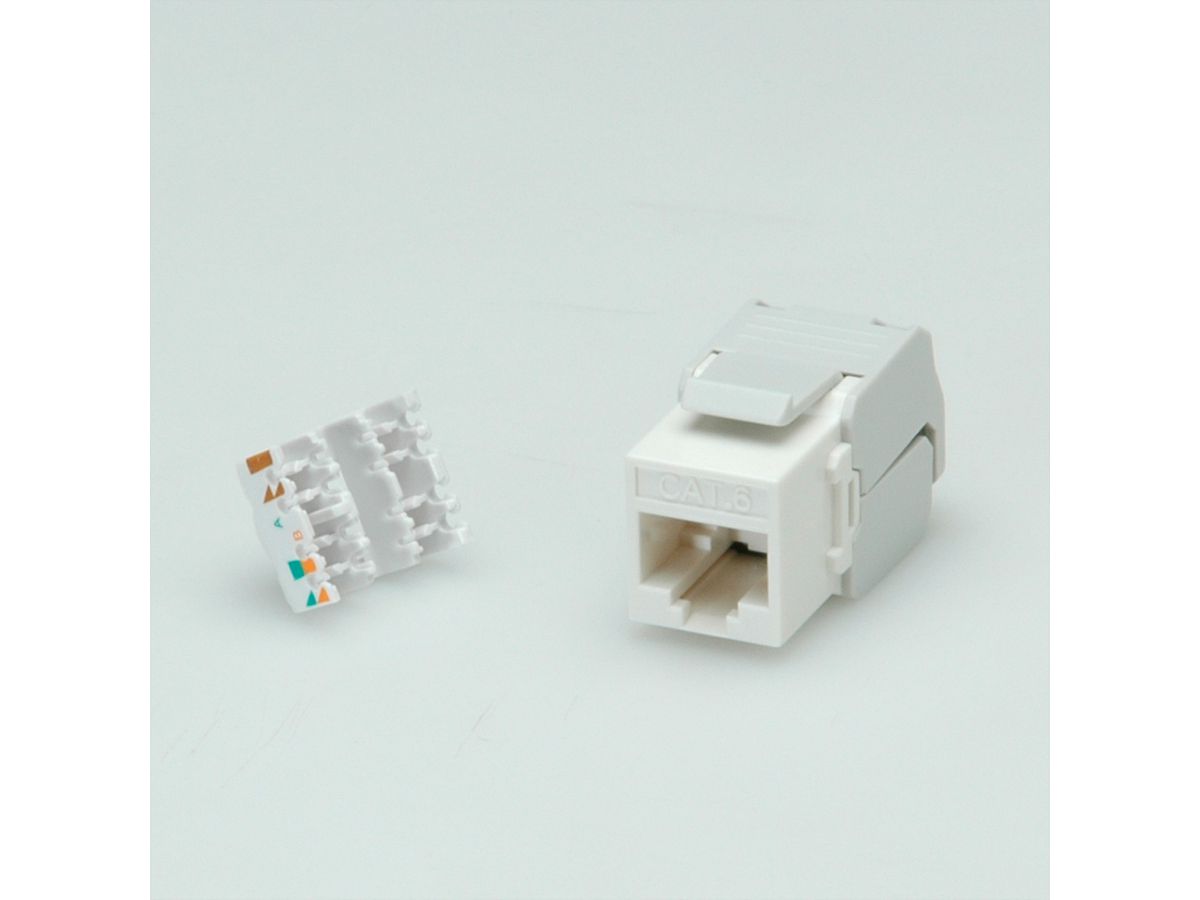

Assembling of cables and keystones takes place over LSA-plus or toolless
Colour code on the keystone jacks, based on the standard EIA/TIA 568 A and 568 B
Colour: White

For a structured unshielded Cat.6 cabling system we recommend to use the following components:

ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0989
Flush Mount Wall Jack for Keystones, unloaded: 25.16.8579
ROLINE Cat.6 Keystone, RJ-45, unshielded: 26.11.0352 (black), 26.11.0353 (white)
19" Keystone Patch Panel, 24 Ports, unshielded: 26.11.0356 (light grey), 26.11.0357 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ45 Keystone Jack
Colour	white
Shield type	Not screened
Transfer quality	Cat6 / Class E
Quantity of ports	1
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Connection direction	Straight
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	23 mm
Width	16 mm
Depth	38 mm
Weight	7.6 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	30 mm
Depth of packaging (single piece)	40 mm
Package weight (single piece)	0.009 kg
