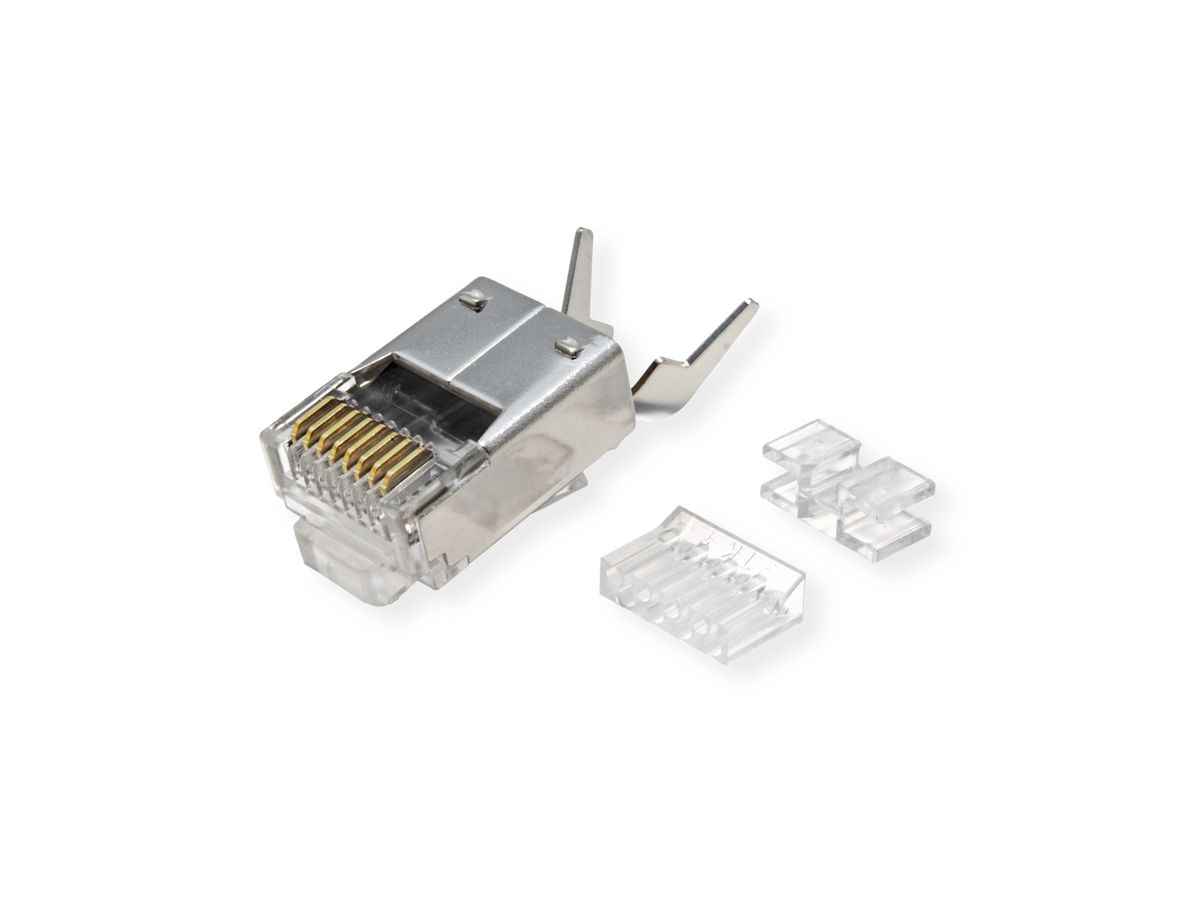

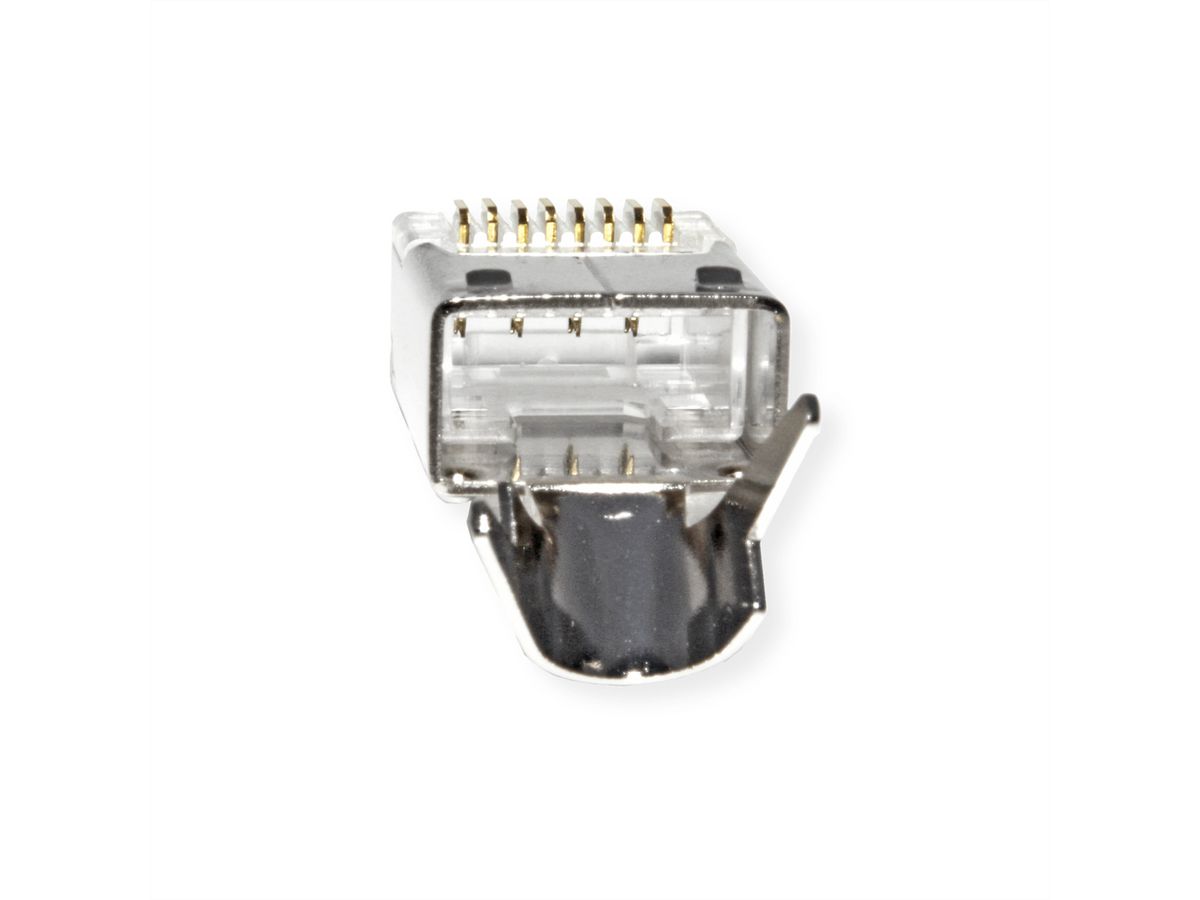

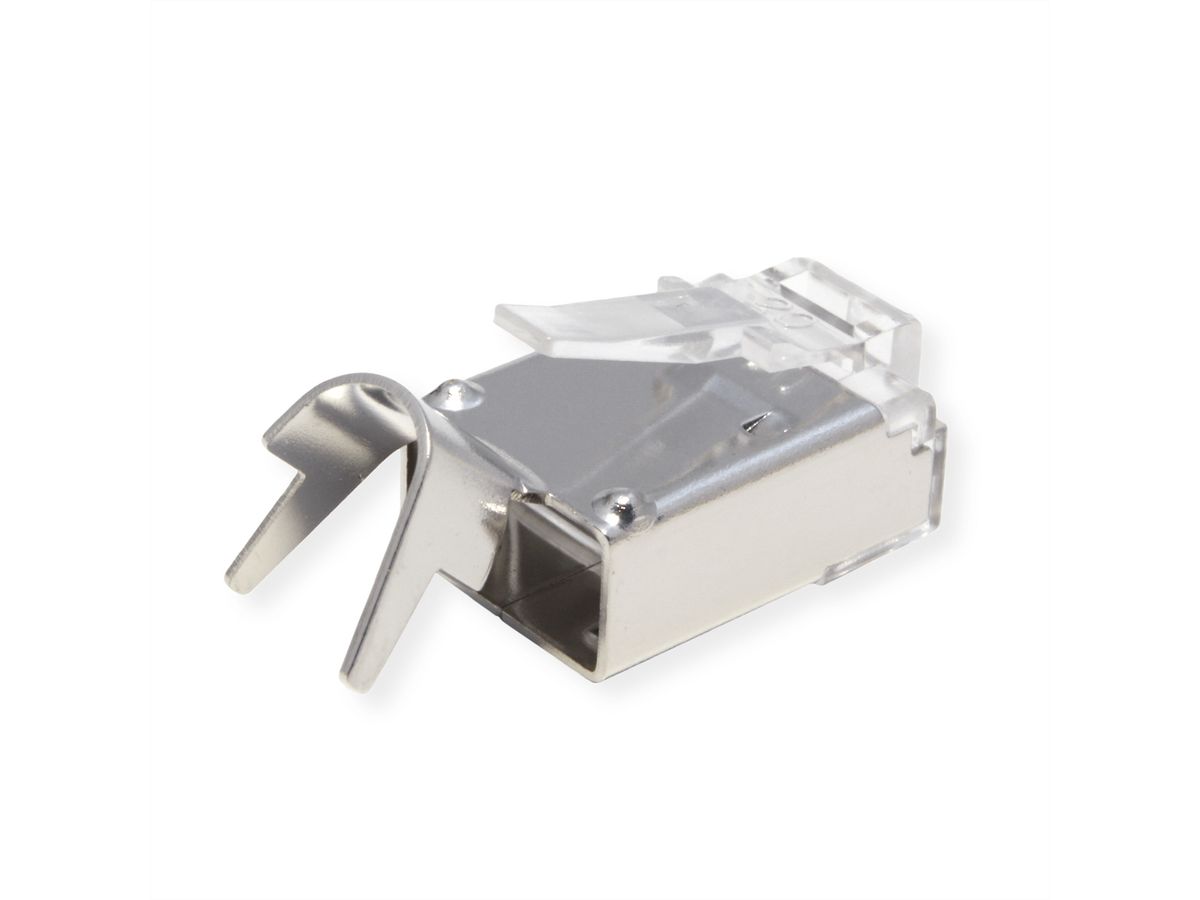

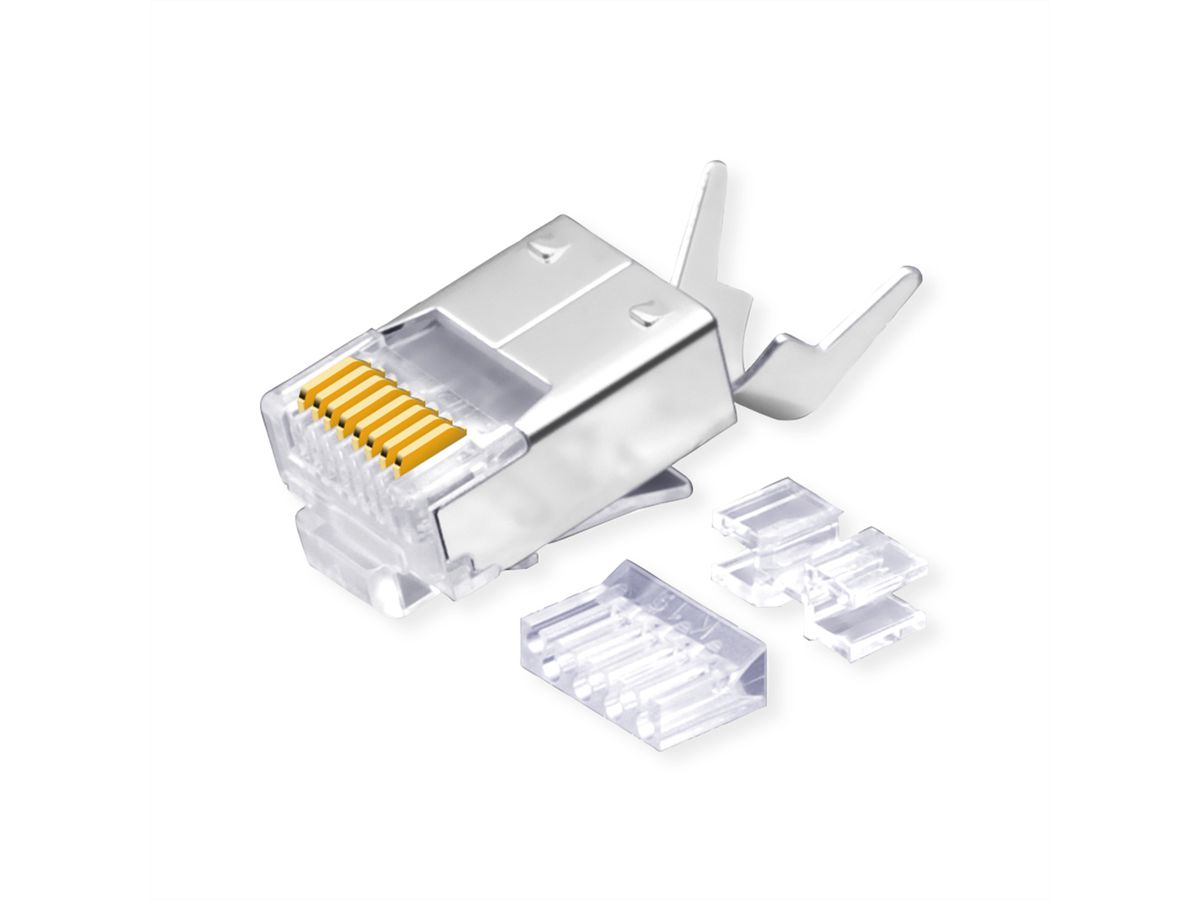

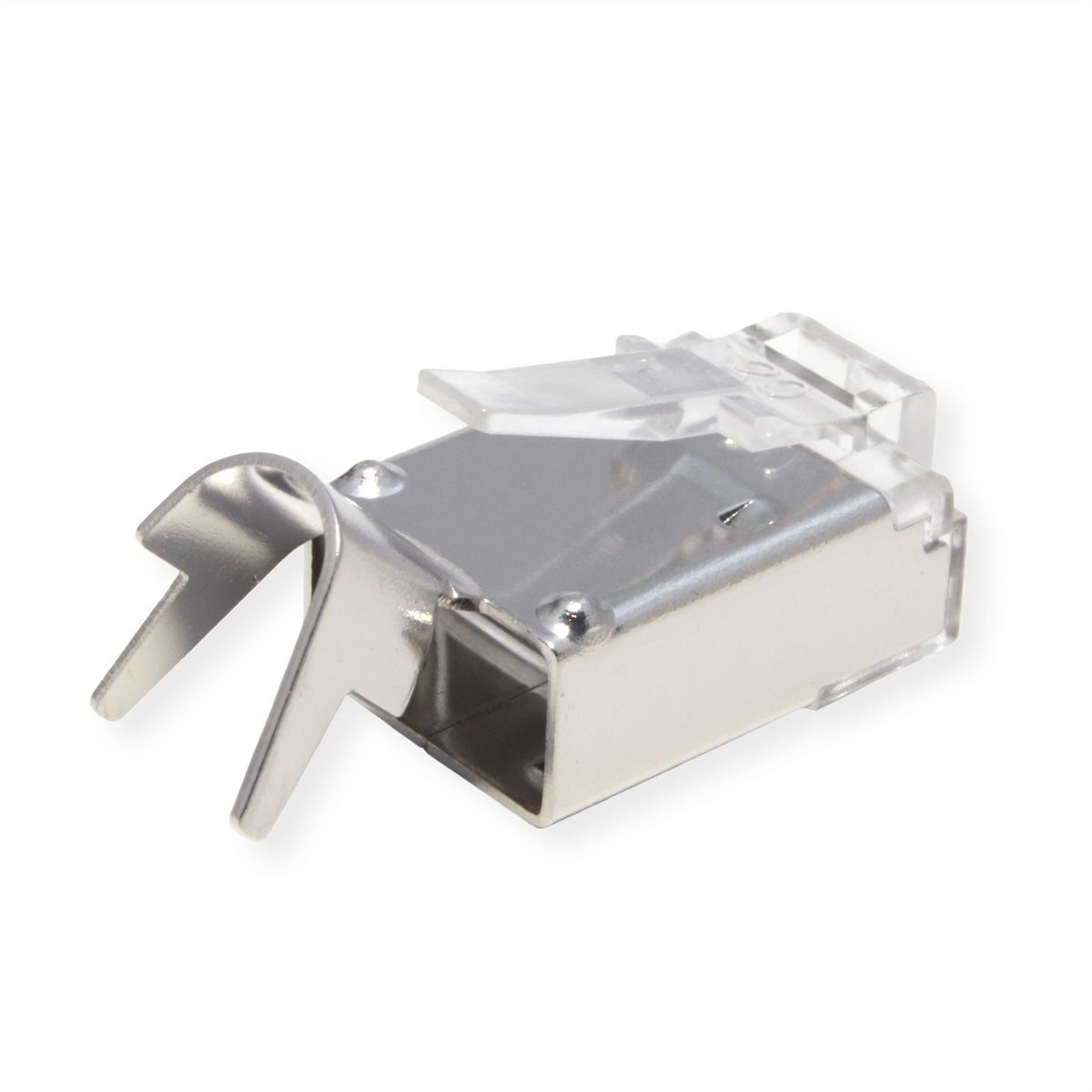

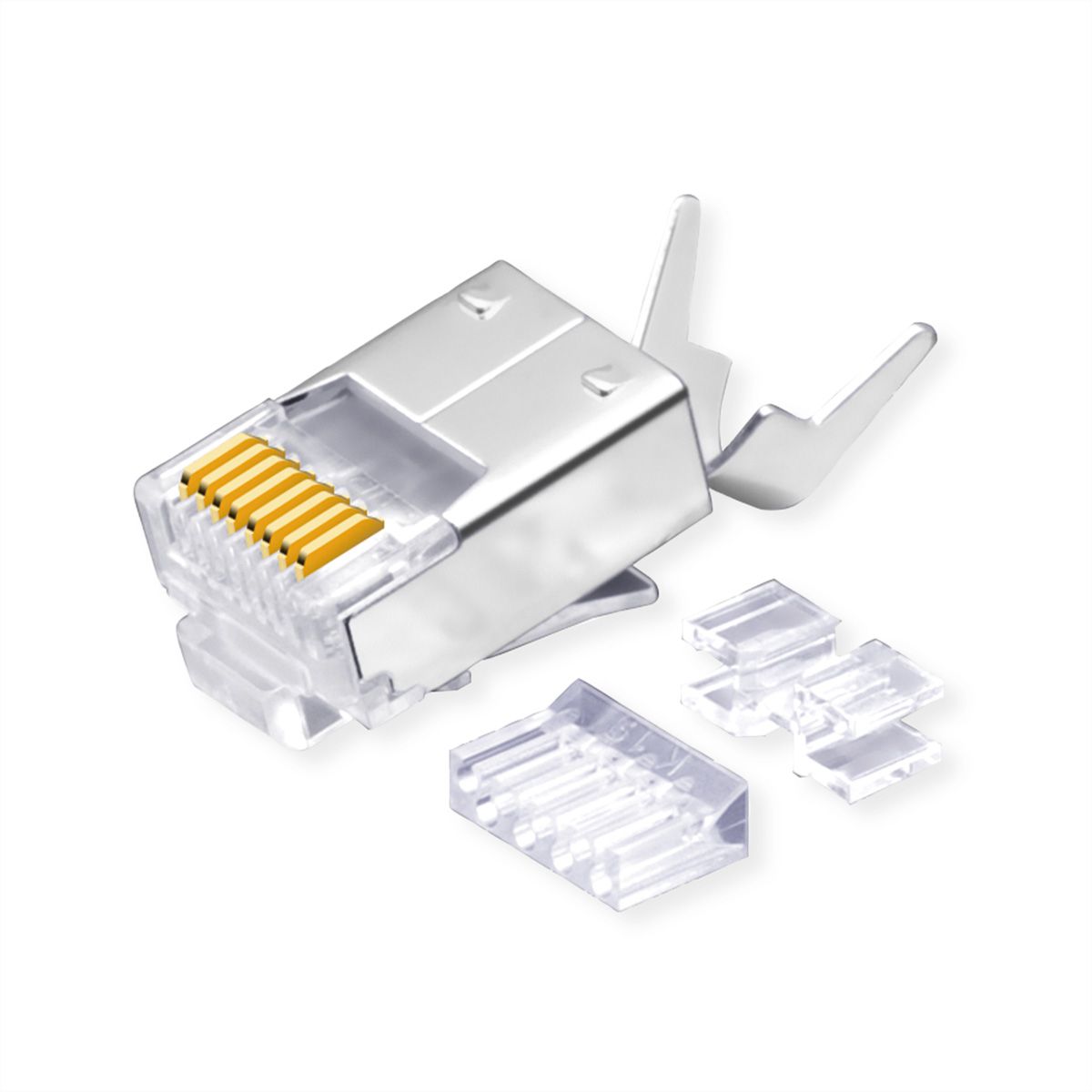

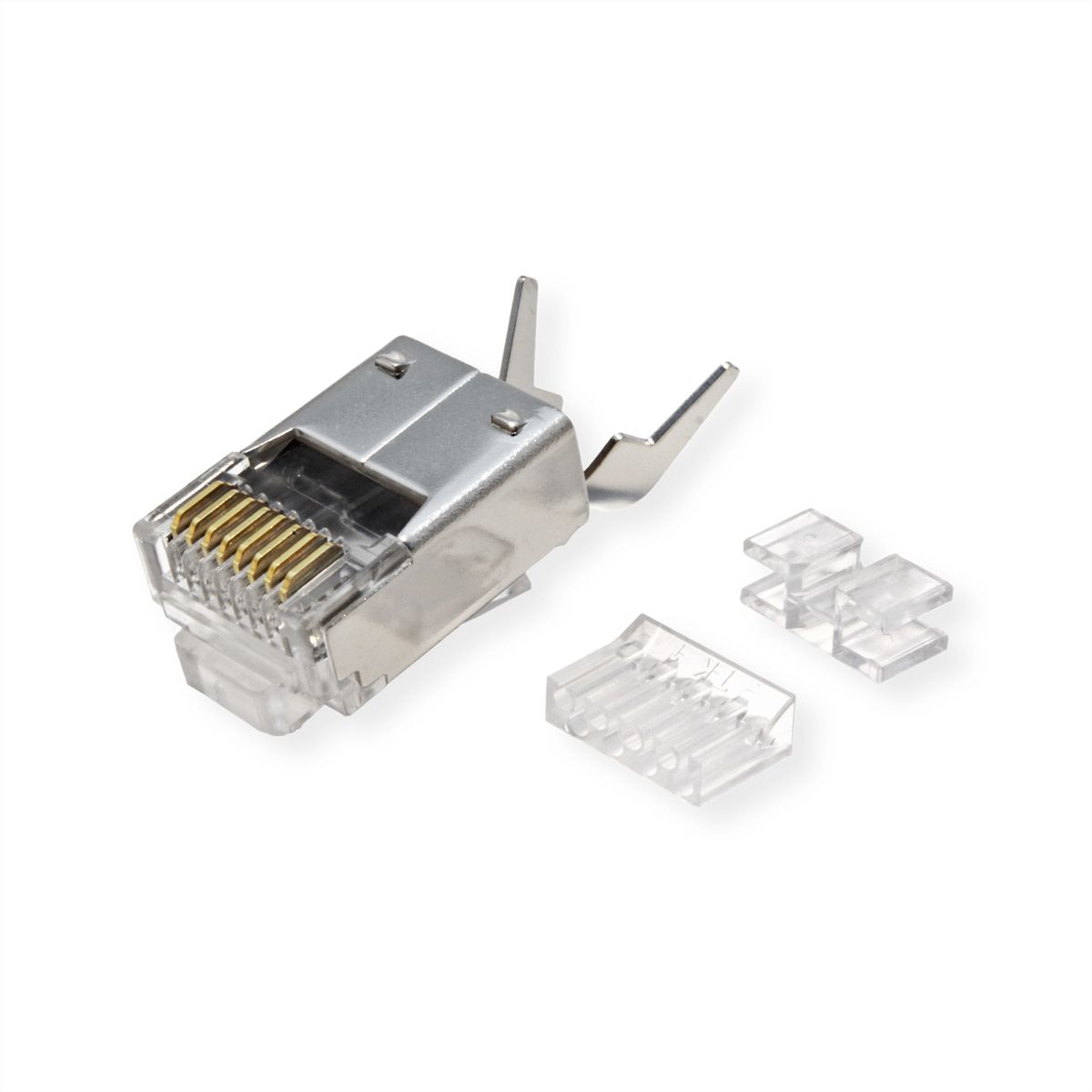

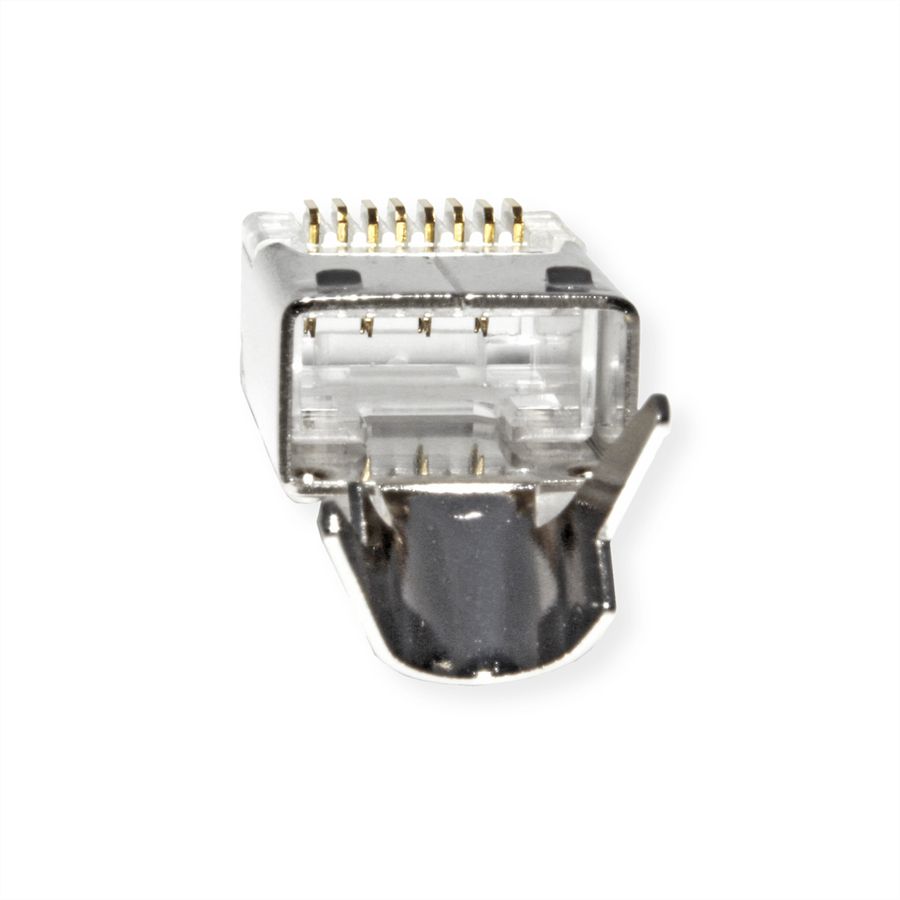

ROLINE Cat.6 (Class E) Modular Plug, STP, short body, 10 pcs.

ROLINE Cat.6 (Class E) Modular Plug, STP, short body, 10 pcs.

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.17.3095-50
Brand / Manufacturer ROLINE
Manuf. no. 21.17.3095
EAN 7630049687042

Description

Modular connector for twisted pair network cabling

  • Cat.6 modular plugs, 8p8c
  • Shielded
  • Gold plated contacts
  • Suitable for solid and stranded wire
  • For round cables
  • With insertion support
  • Package unit: 10 connectors

Specifications

Manufacturer ROLINE
Product group Connection technology TP
Product type RJ-45 Modular Plugs
Colour transparent
Scope of delivery 10 pcs
Shield type Screened
Transfer quality Cat6 / Class E
Modular assembly yes
Material (casing) Kunststoff / Metallschirmung
Shield contacts ja
separate strain relief no
Connection direction Straight
Operating temperature min. -10 °C
Operating temperature max. 60 °C
Height 12 mm
Width 11.7 mm
Depth 17.8 mm
Weight 31.1 g
Height of packaging (single piece) 10 mm
Width of packaging (single piece) 60 mm
Depth of packaging (single piece) 60 mm
Package weight (single piece) 1.8 kg

Downloads

Product data sheet - English (39.9 KB)

Download

Manufacturer data sheet - English (210.9 KB)

Download

Quick Installation Guide - Deutsch (477.4 KB)

Download

Quick Installation Guide - English (497.4 KB)

Download

Quick Installation Guide - Français (498.2 KB)

Download

Quick Installation Guide - Nederlands (497.5 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
