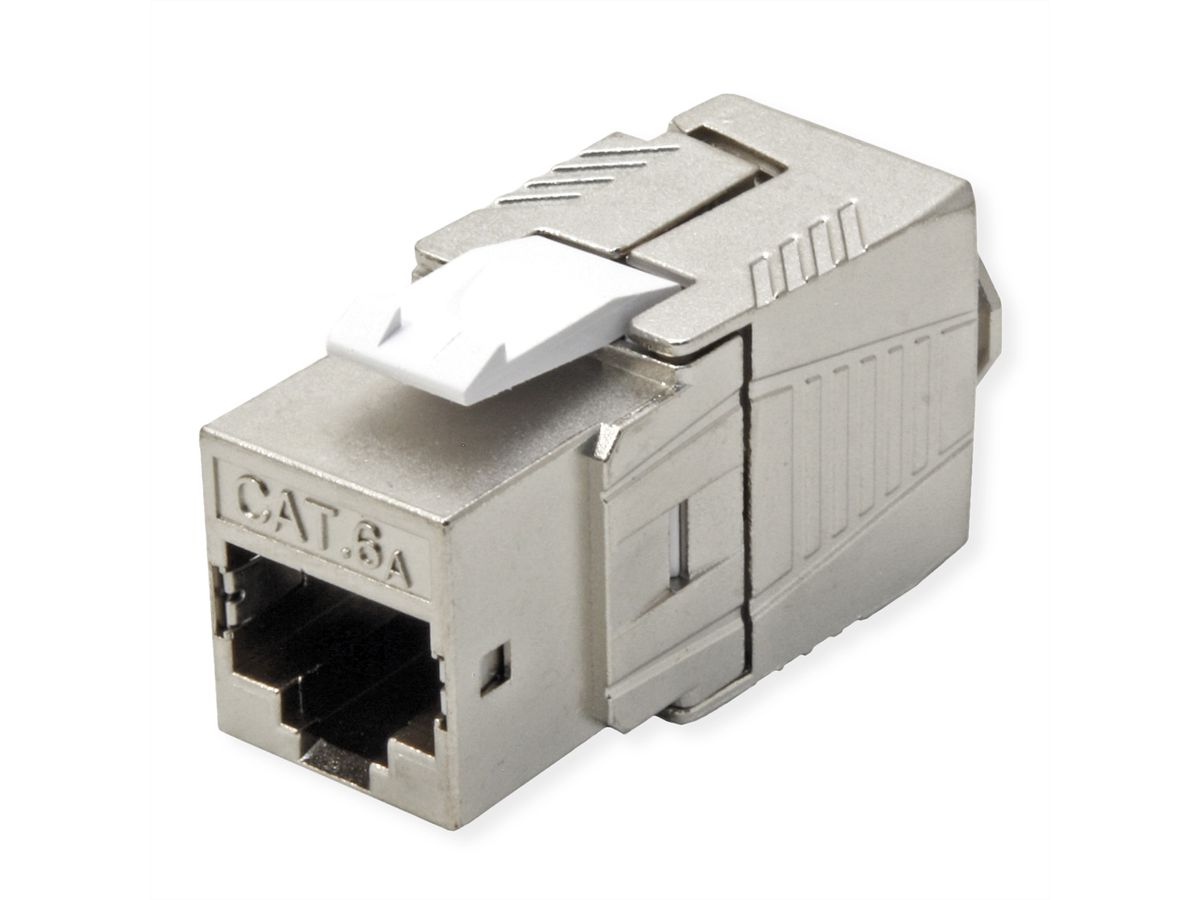

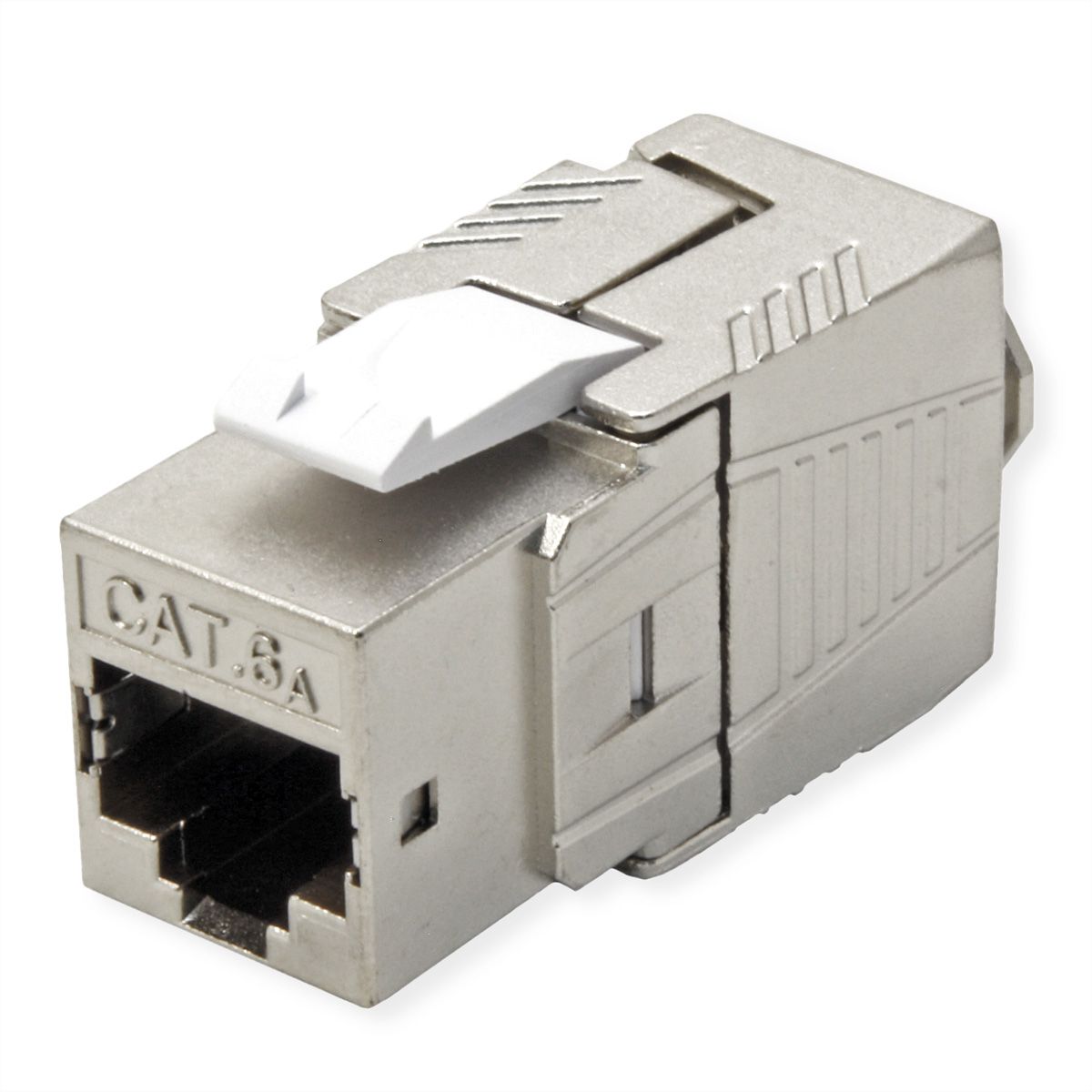

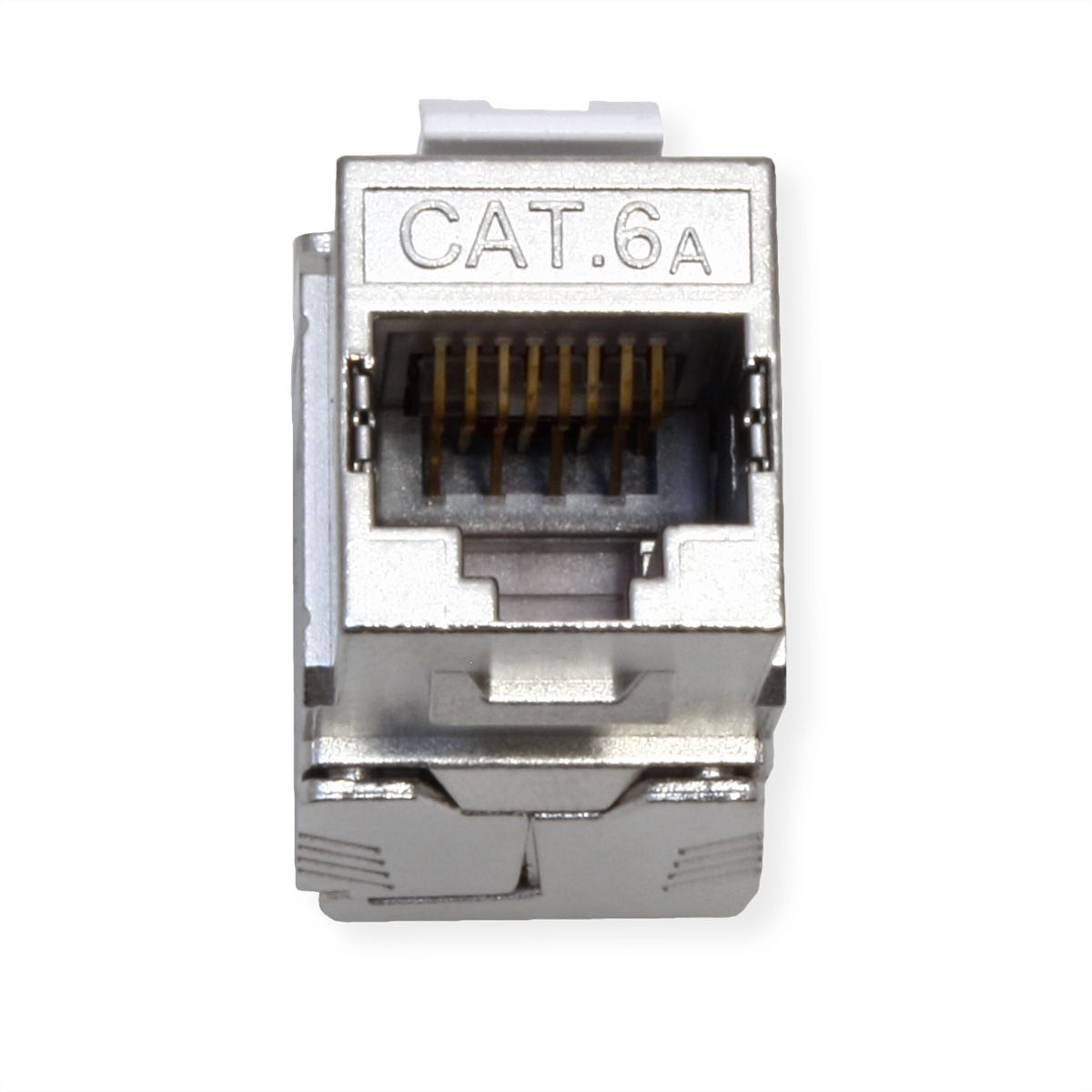

ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver

Item no. 21.17.0327-20 Brand / Manufacturer ROLINE Manuf. no. 21.17.0327 EAN 7630049688902 Package weight 0.02 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 03/15/2027

Description

The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified

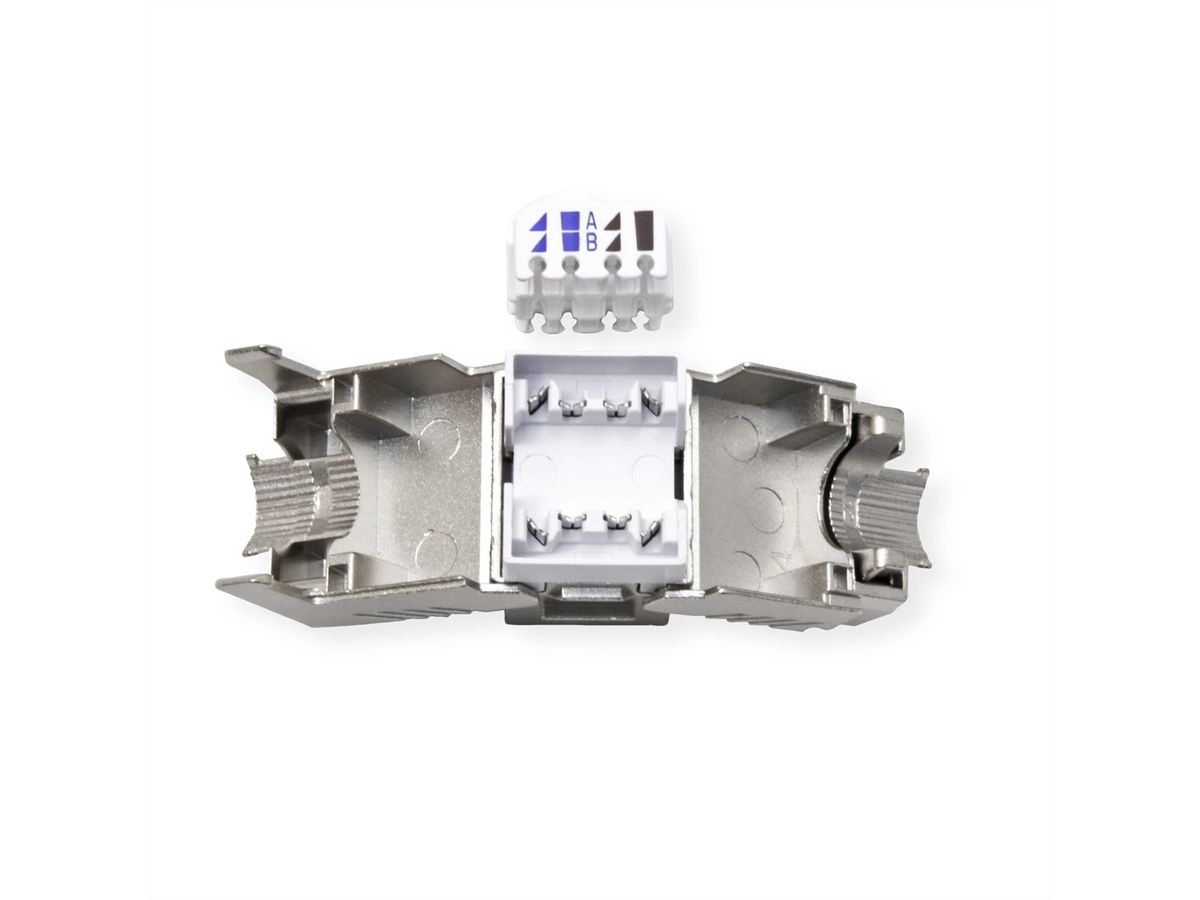

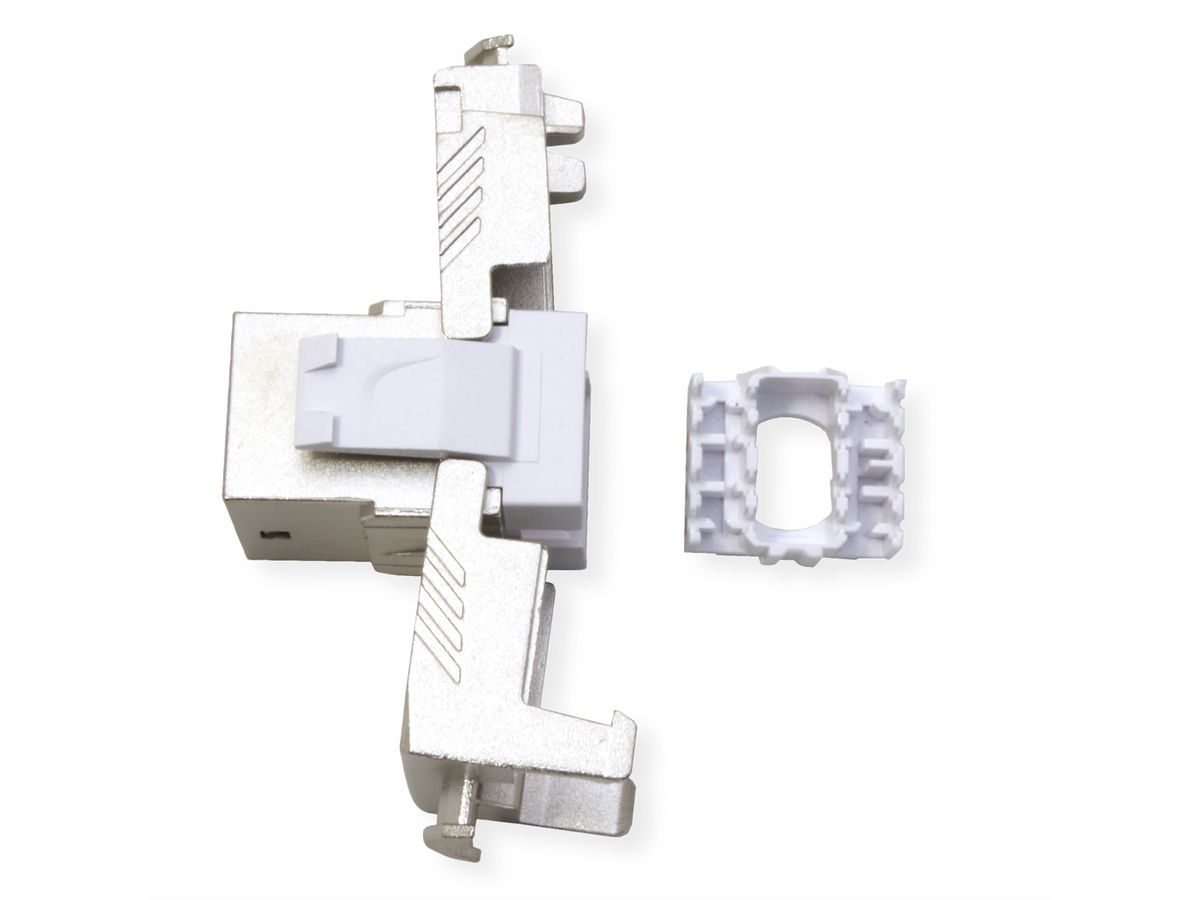

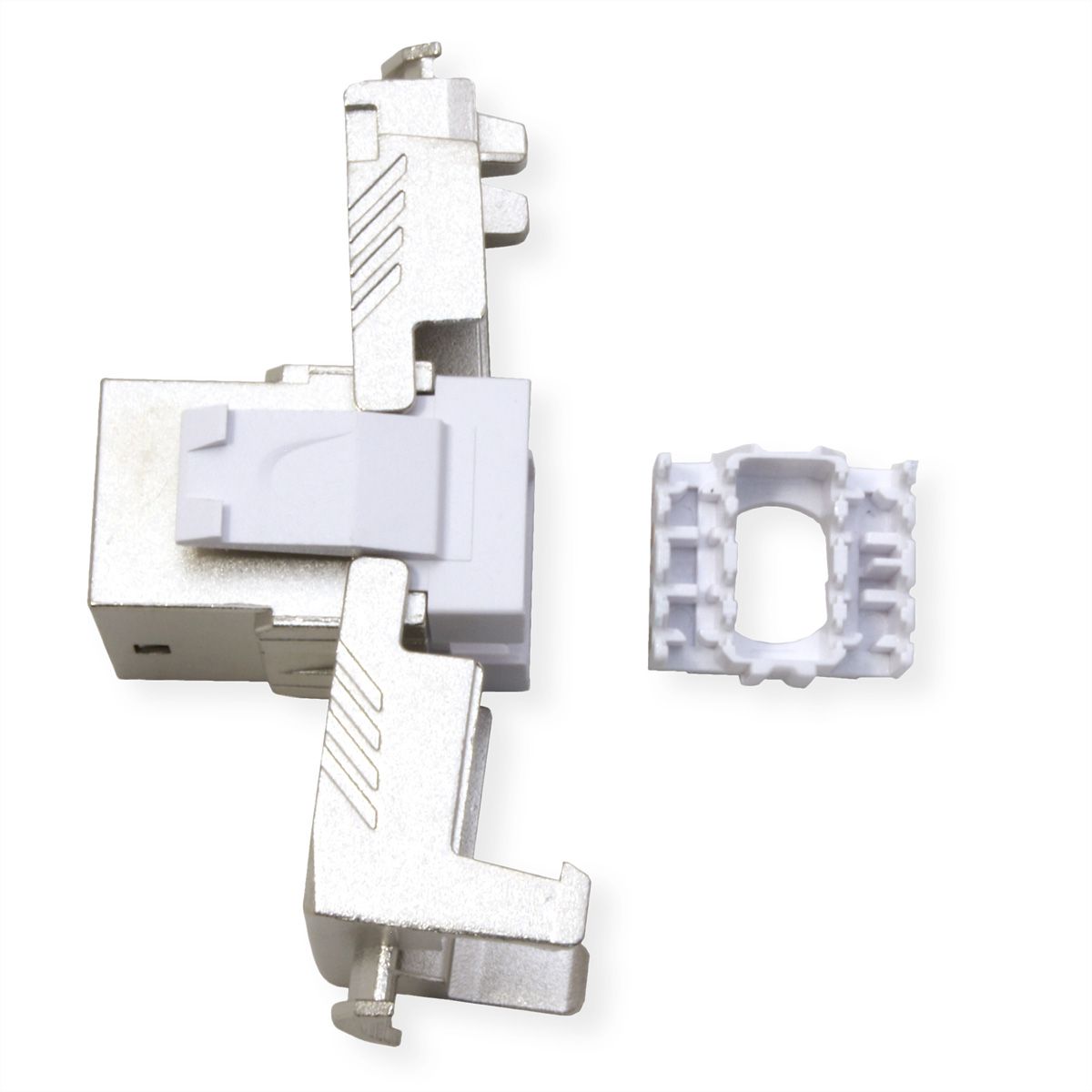

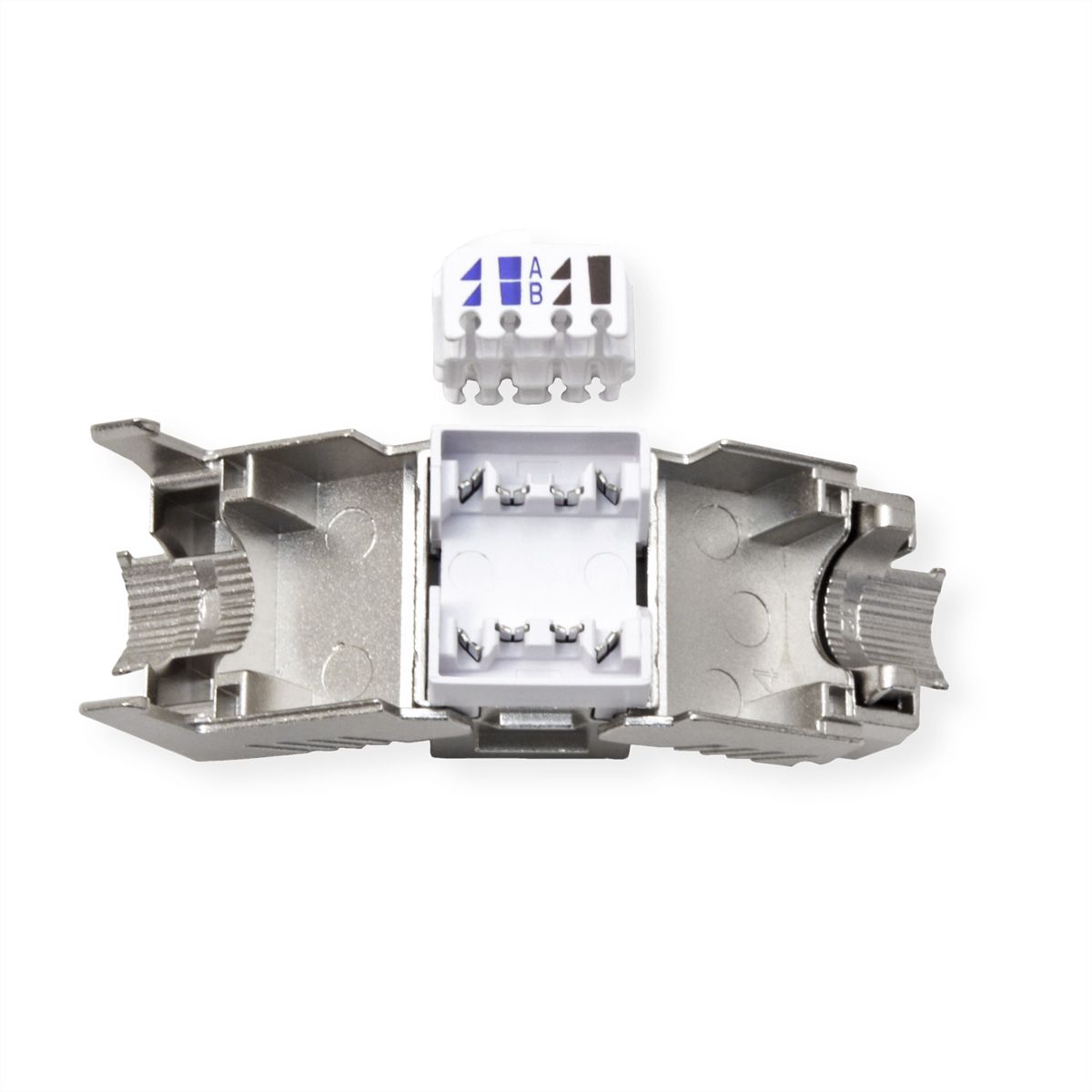

  • Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
  • Cat.6A Keystone Jack (Module) STP
  • Fully shielded Housing (zinc alloy)
  • 360 degree fully shielded
  • Slim type
  • 180 degree cable entry
  • Supports PoE per IEEE 802.3af,PoE+ per IEEE 802.3at
  • For cables with AWG 23-26
  • For cables with OD: 5.5-9.0 mm
  • Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
  • Dimensions (L x W x H): 41.6×16.5×20.3mm

GHMT certified

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
RJ45 Keystone Jack
Colour
silver
Shield type
Screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Assignment
EIA/TIA 568A & 568B
Connection direction
Straight
Technical particularity
GHMT certified
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Height
20.3 mm
Width
16.5 mm
Depth
41.6 mm
Weight
22 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
40 mm
Package weight (single piece)
0.02 kg

Downloads

Product data sheet - English (46.4 KB) User manual - Deutsch (355.1 KB) User manual - English (352.6 KB) User manual - Français (323.2 KB) Certificate - Deutsch (234.3 KB) Certificate - English (239.7 KB)
