The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21170328_2025_m_0_hi.jpg "ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver")
:strip_icc():strip_exif()/bilder/s21/21170328_2025_d_0_hi.jpg "ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver")
:strip_icc():strip_exif()/bilder/s21/21170328_2025_p_0_hi.jpg "ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver")

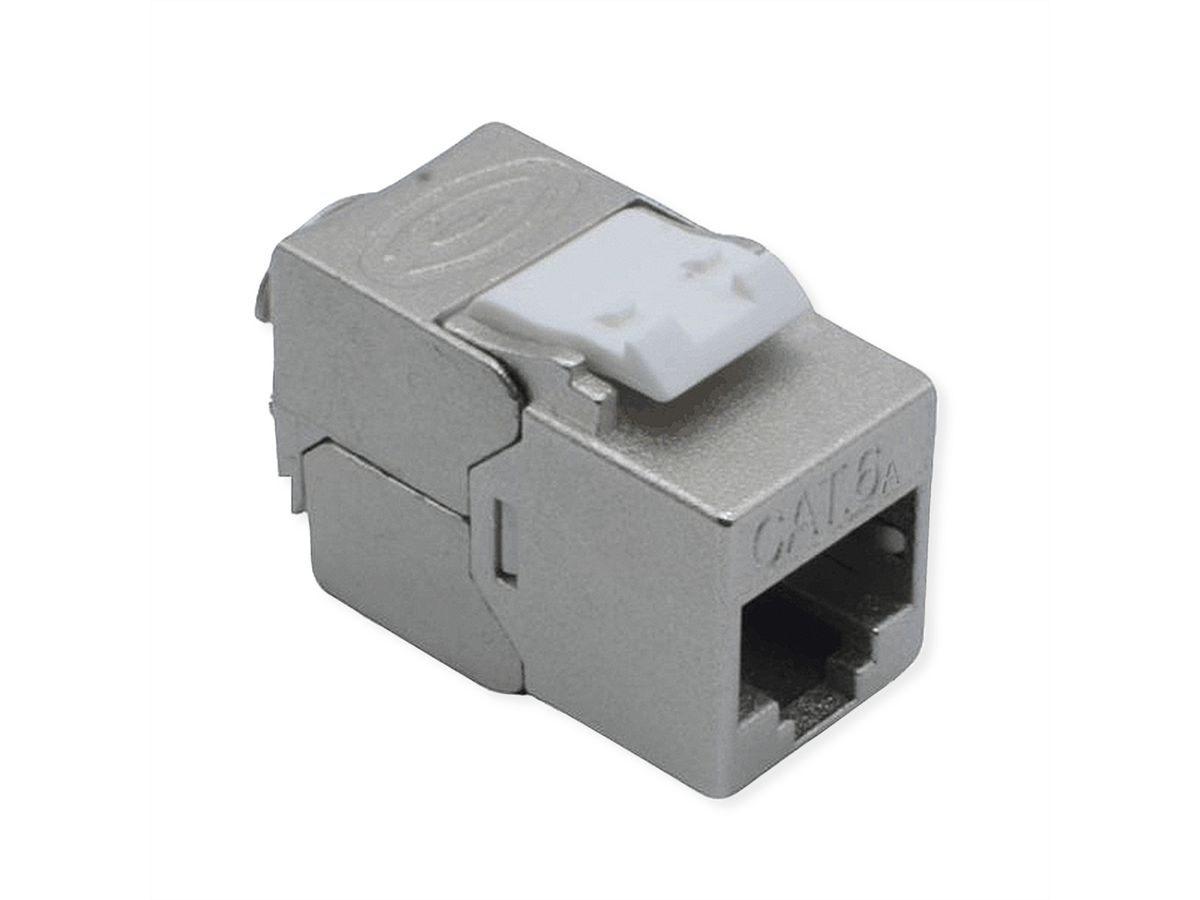

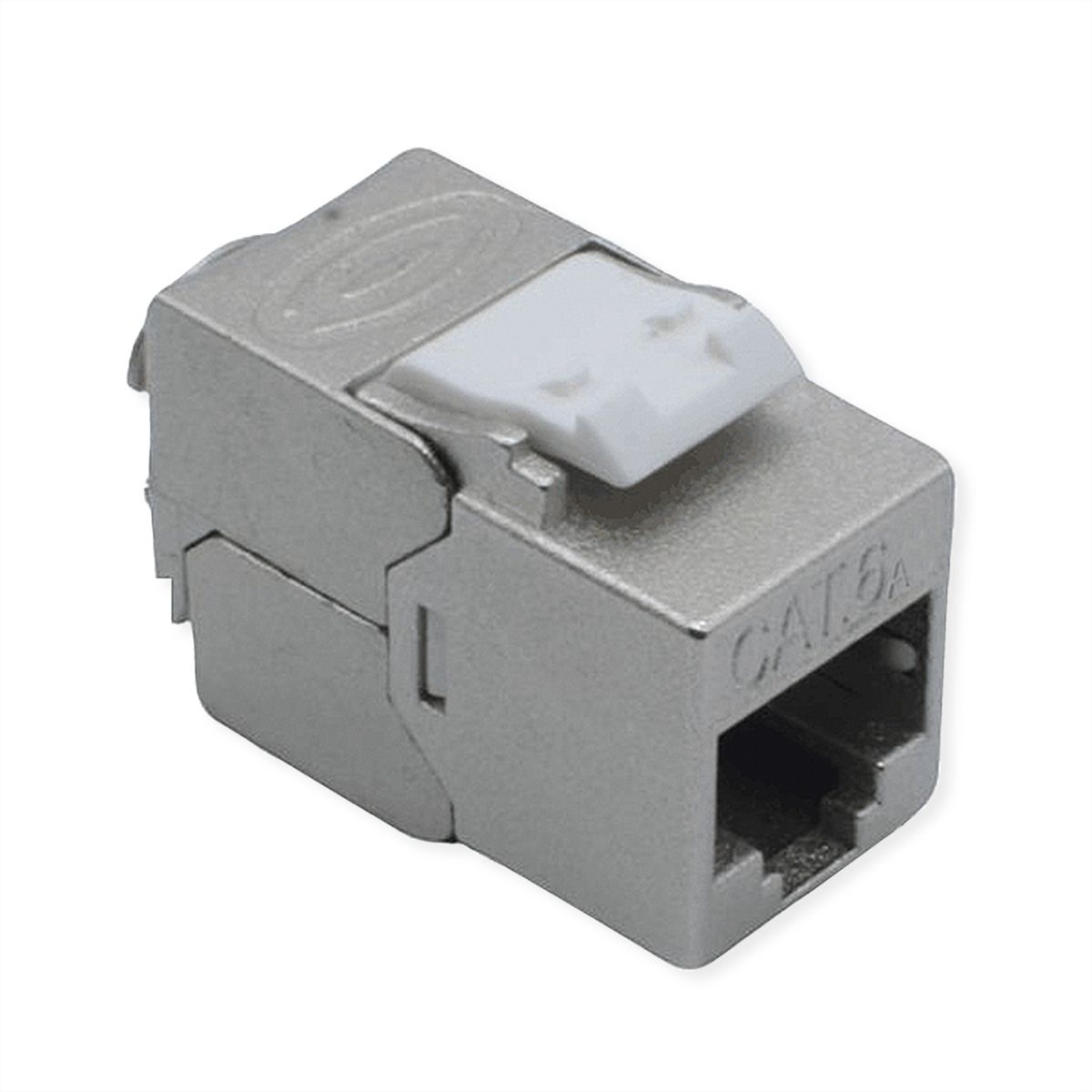

ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.17.0328-20 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.17.0328 |
| EAN | 7630049679252 |
| Package weight | 0.005 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified

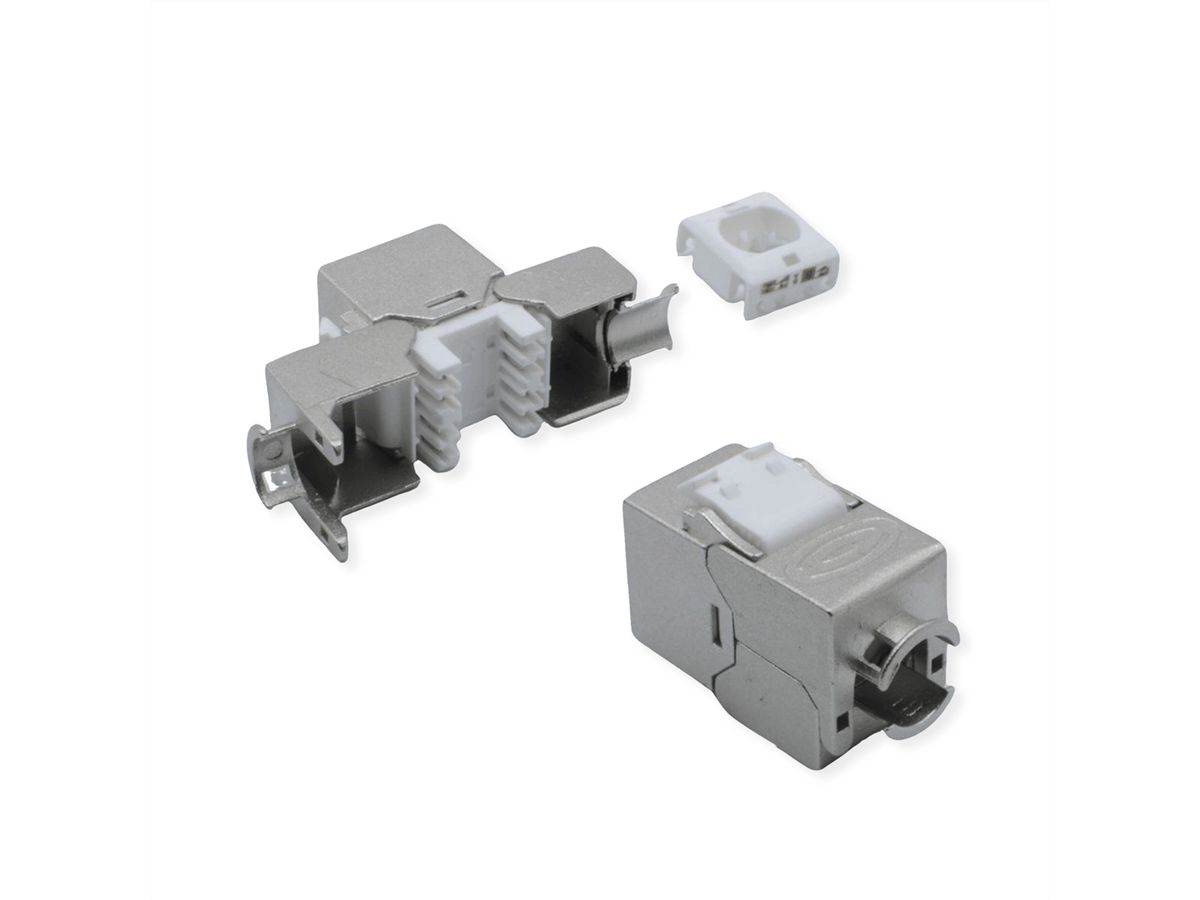

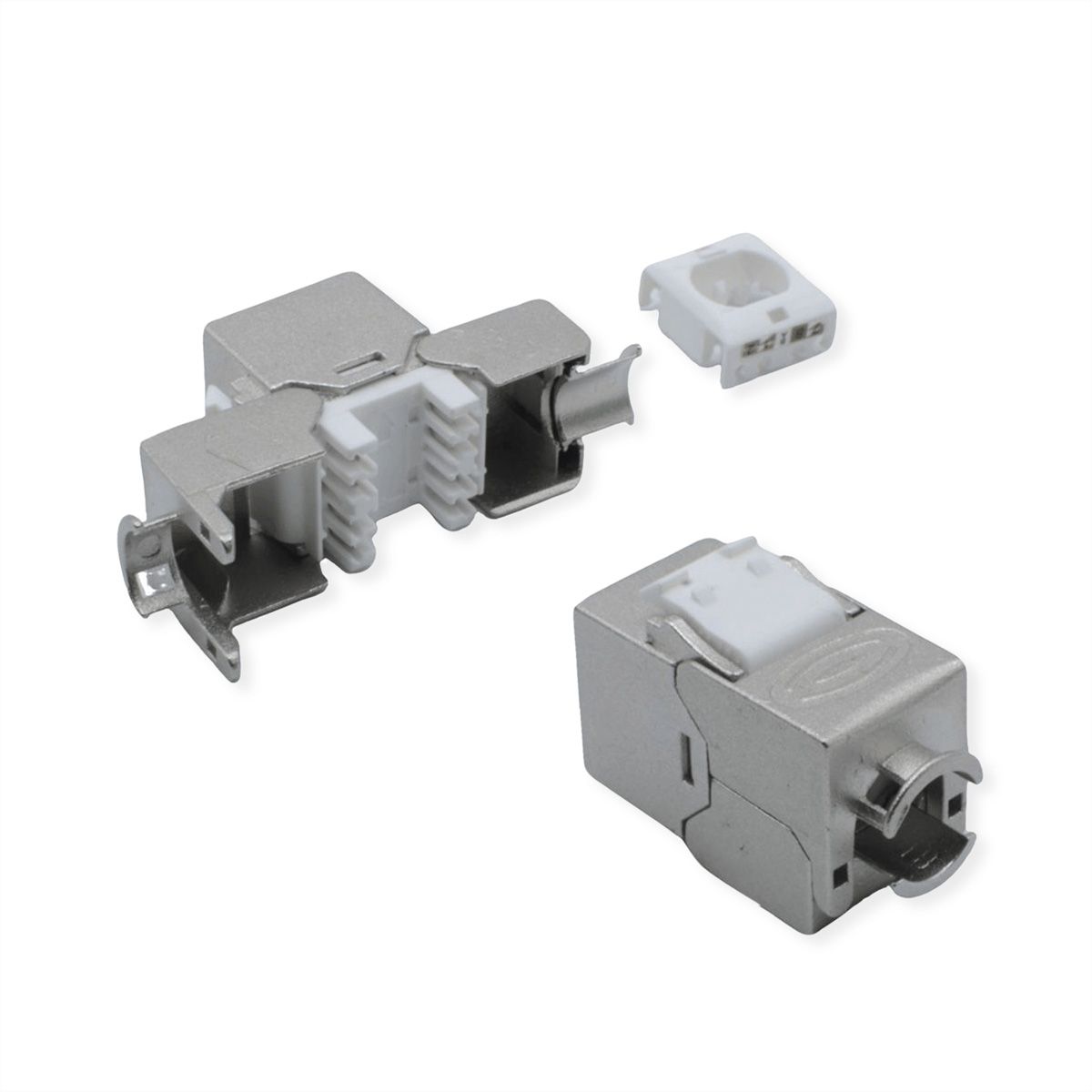

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module)
- Fully shielded Housing (zinc alloy)
- 360 degree fully shielded
- Slim type
- 180 degree cable entry
- Supports PoE per IEEE 802.3af, PoE+ per IEEE 802.3at and POE++ per IEEE 802.3bt
- For cables with AWG 22-26
- For cables with OD: 5.0-8.0 mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B

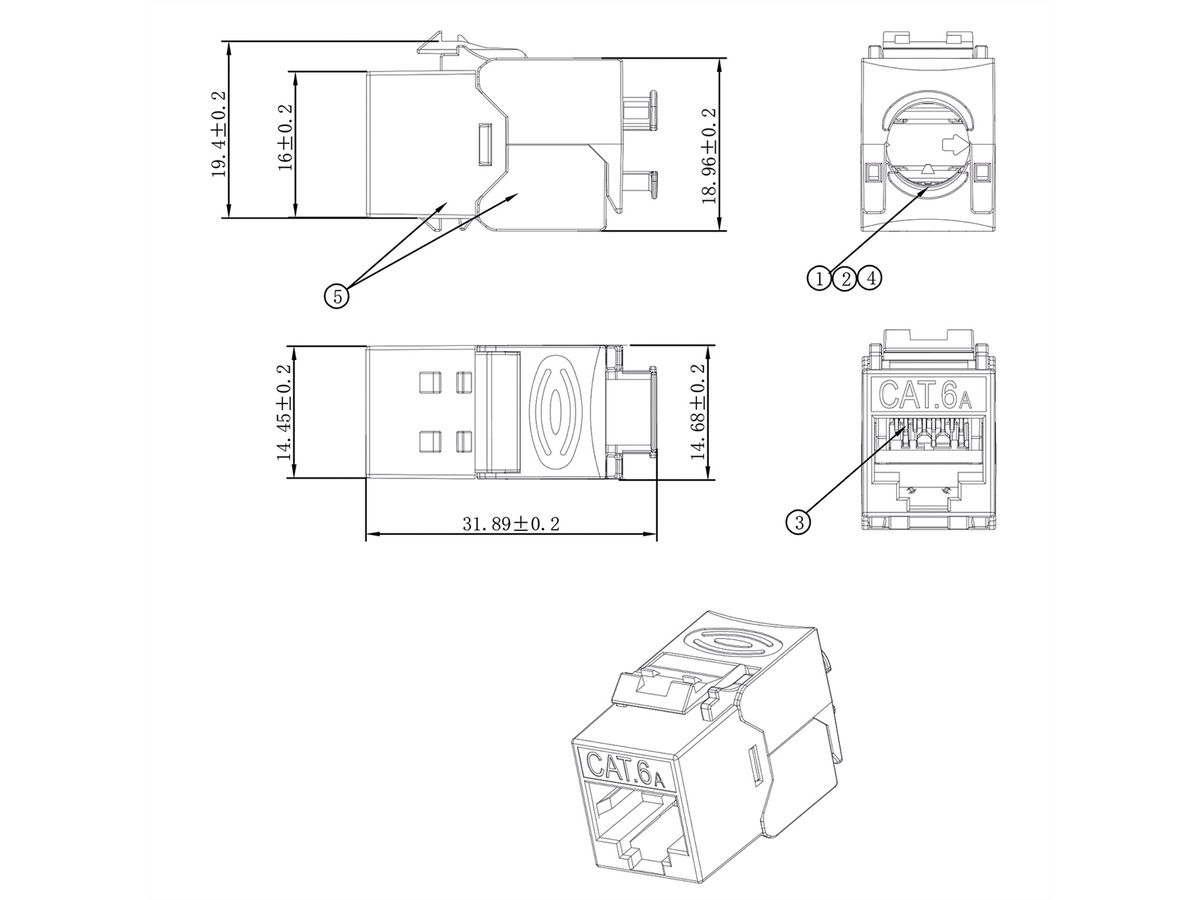

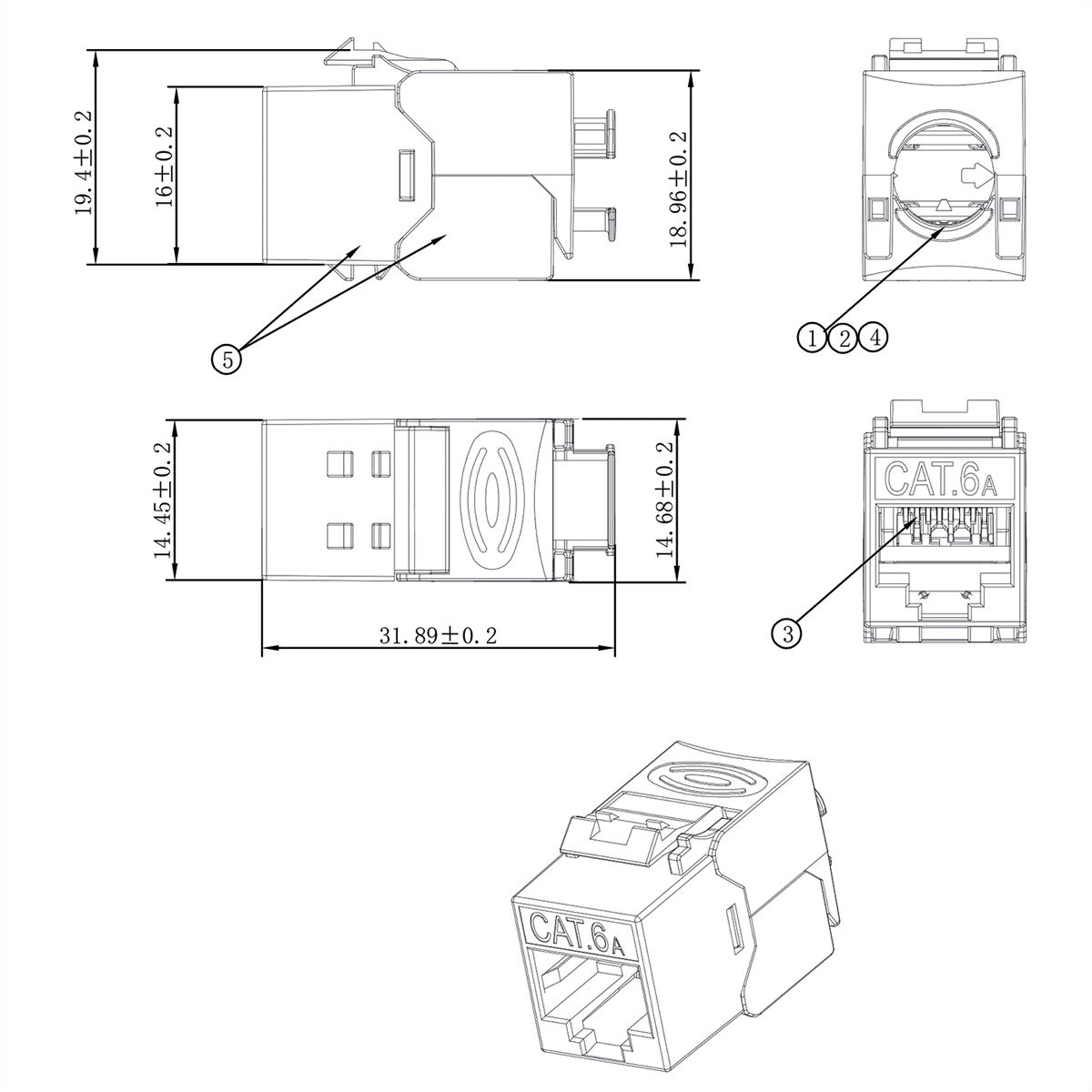

- Dimensions (H x W x D): 18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)
GHMT certified
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | silver |
| Scope of delivery | Keystone |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Component-Level certified | yes |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A & 568B |
| Connection direction | Straight |
| Dimensions (HxWxD) | 18.96 x 14.68 x 31.89 mm (+/- 0.2 mm) |
| Technical particularity | GHMT certified |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 70 °C |
| Height | 18.96 mm |
| Width | 14.68 mm |
| Depth | 31.89 mm |
| Weight | 16 g |
| Height of packaging (single piece) | 10 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 20 mm |
| Package weight (single piece) | 0.005 kg |
