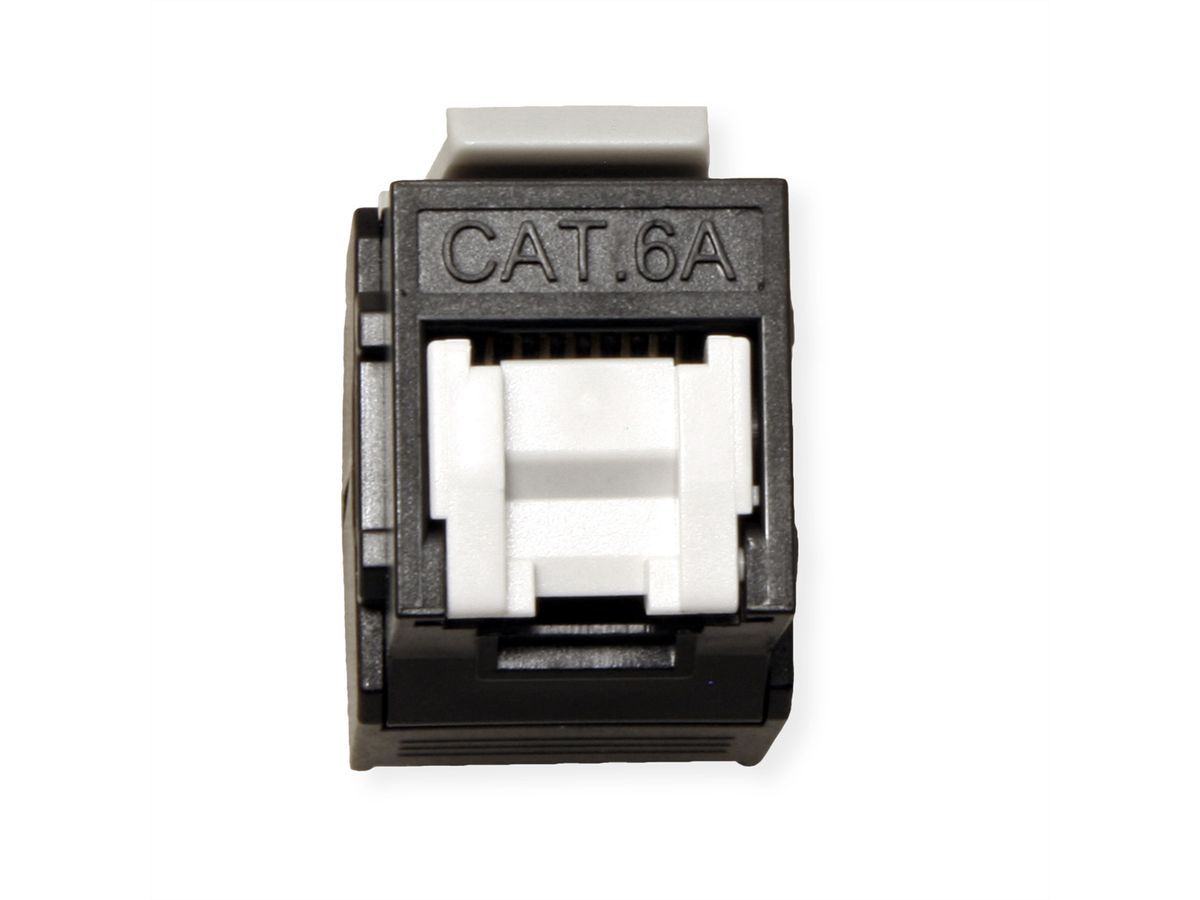

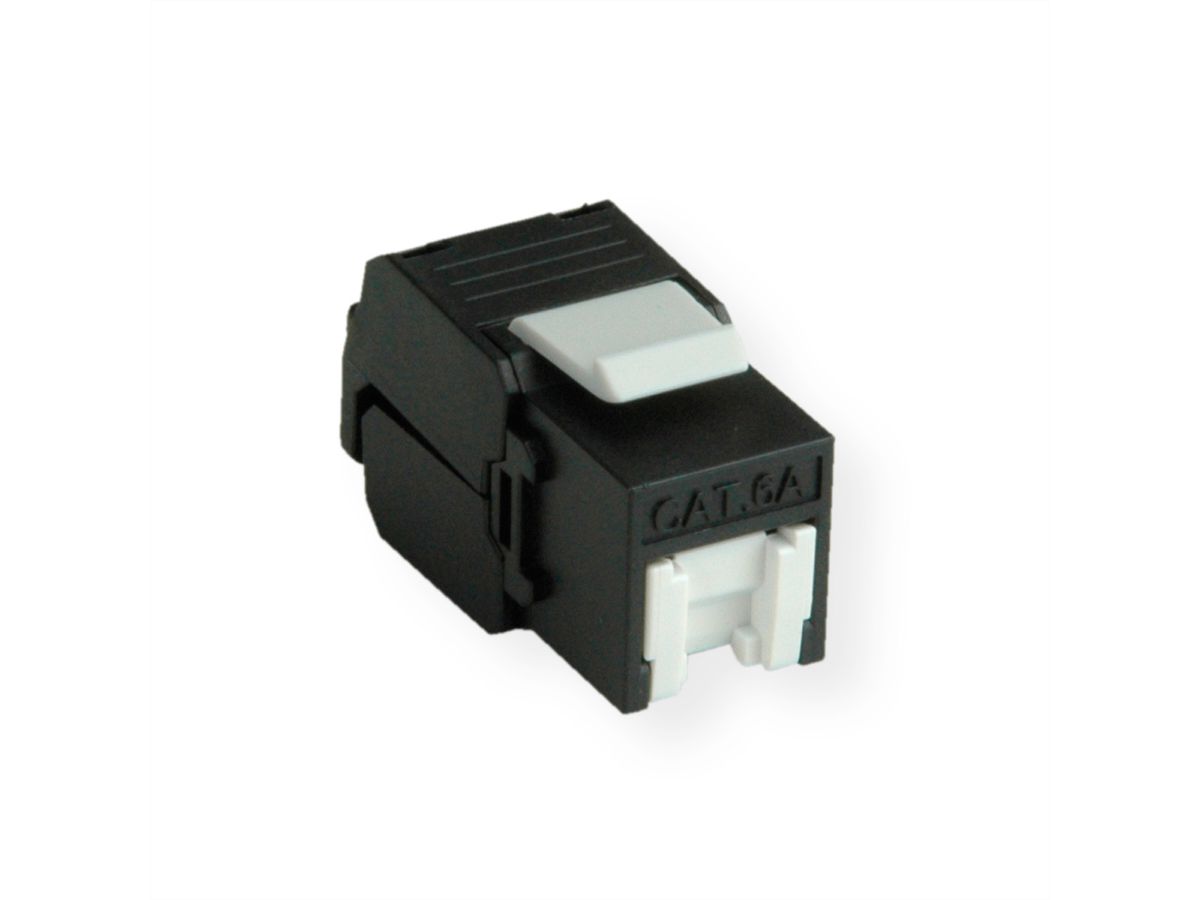

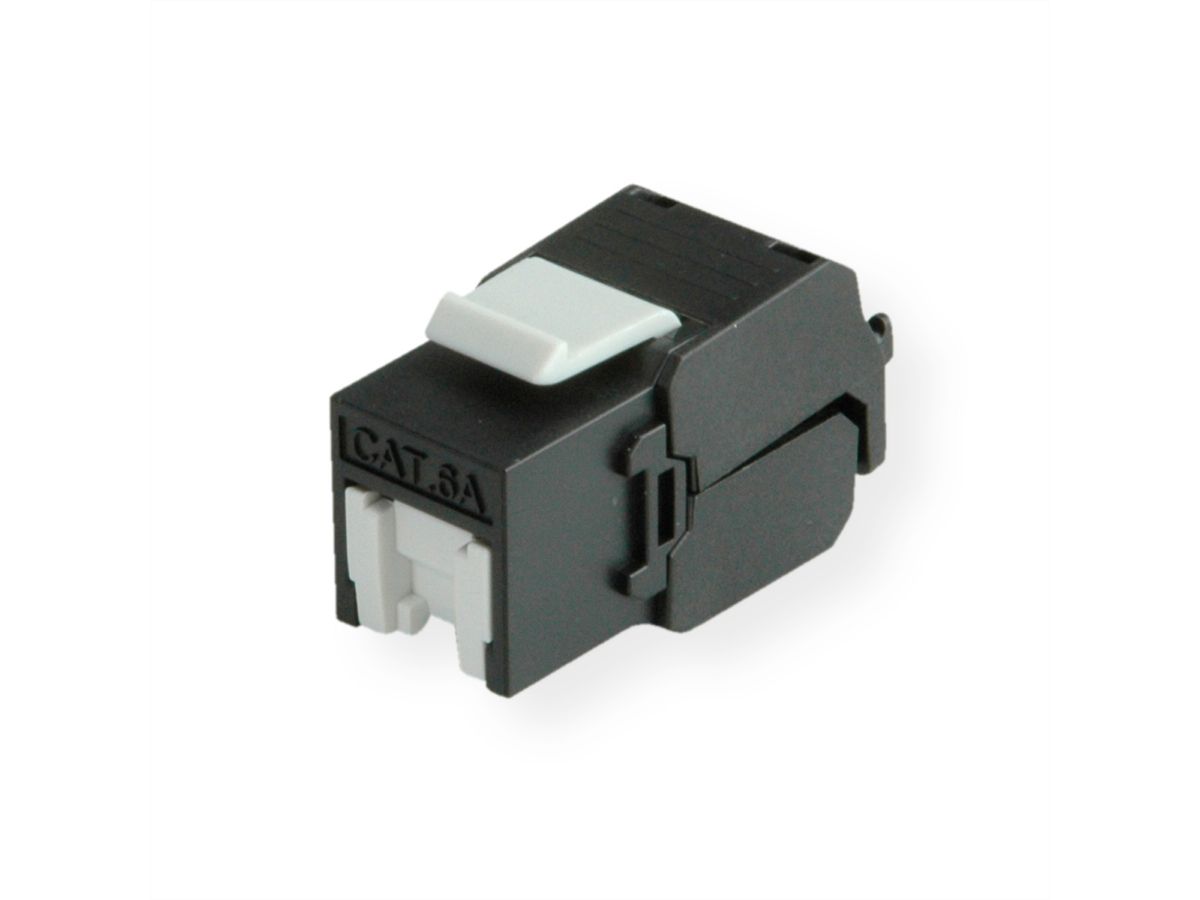

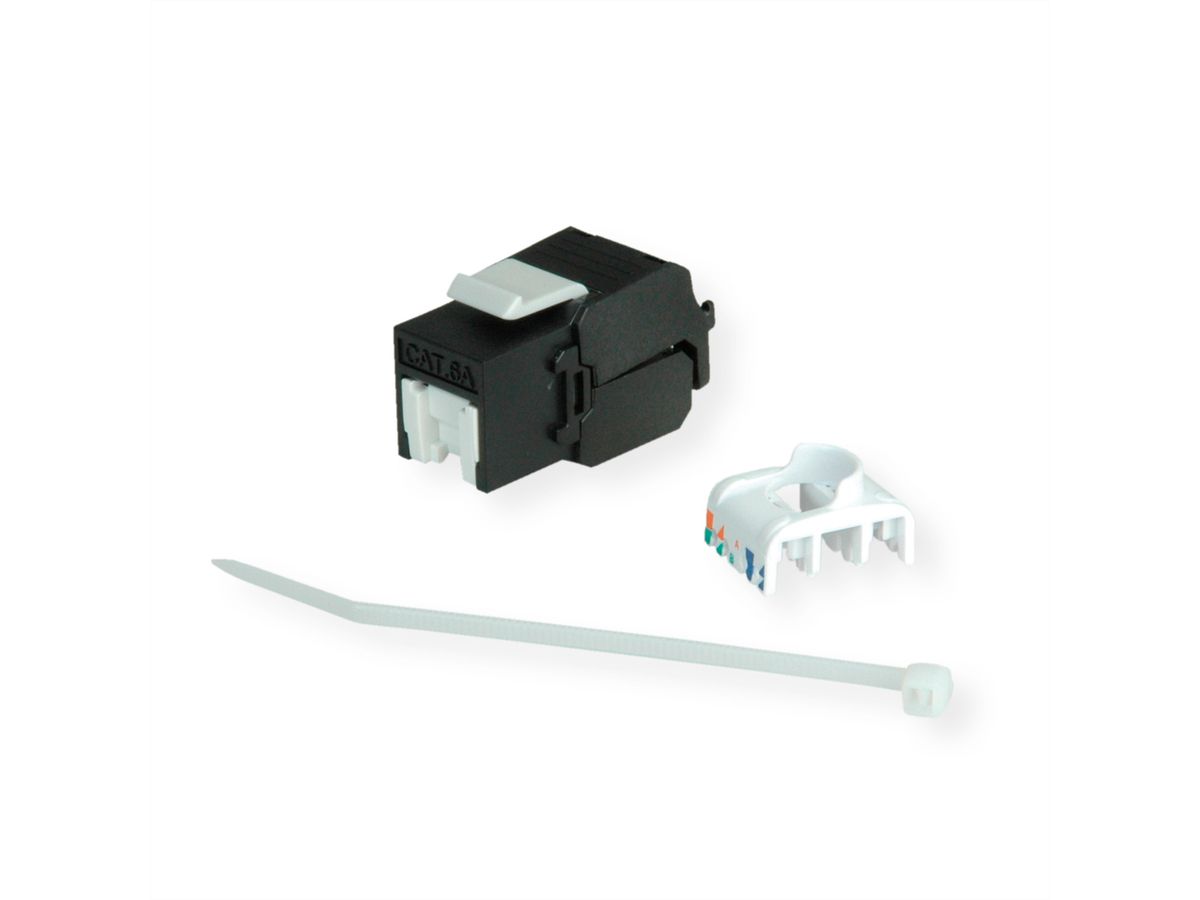

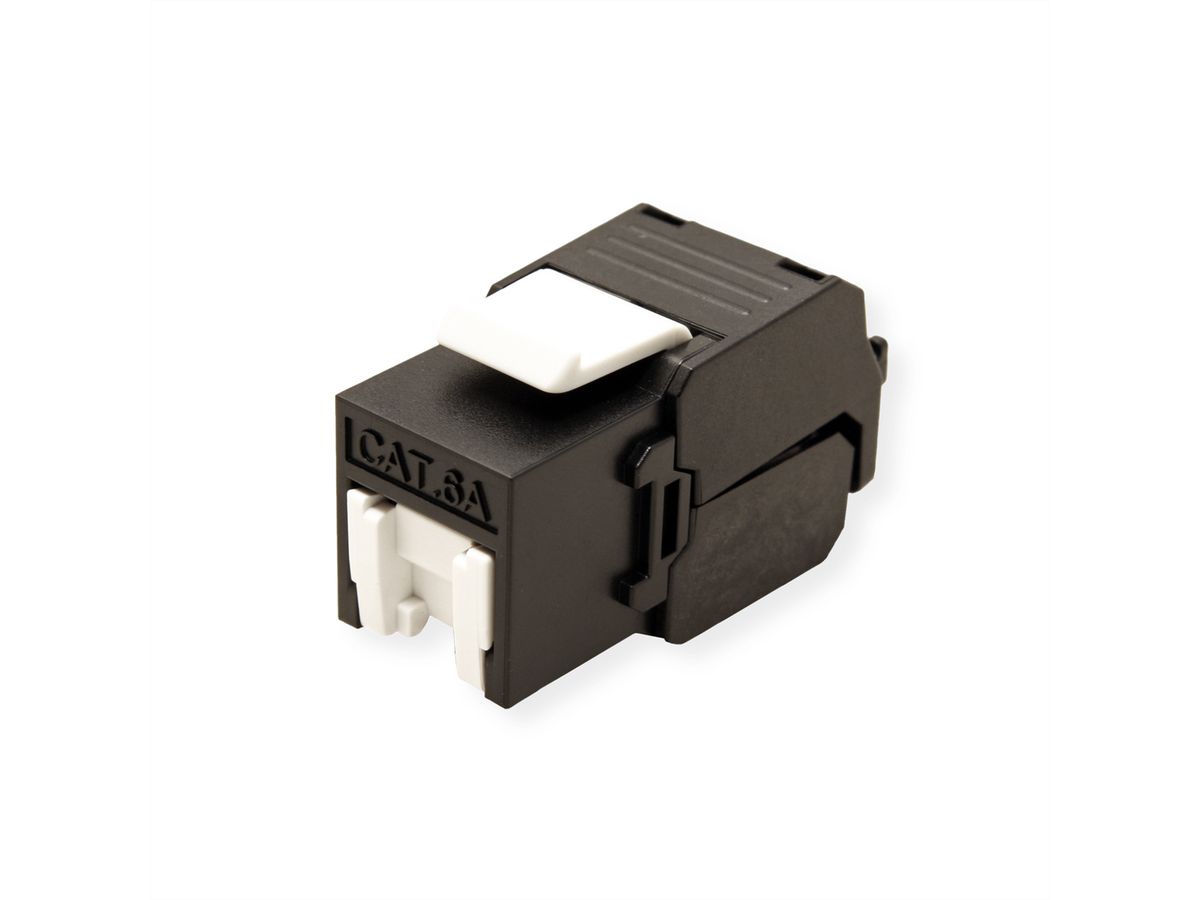

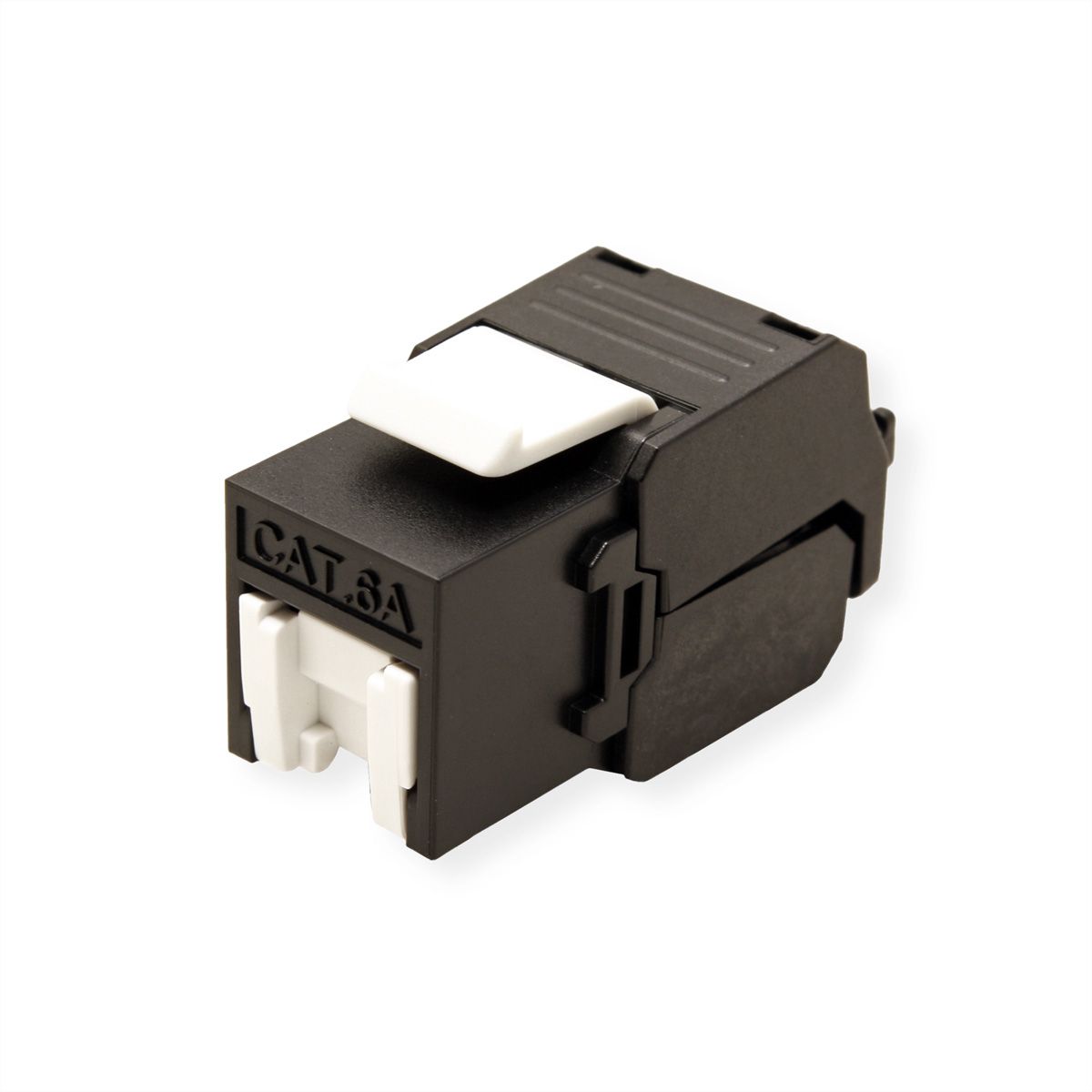

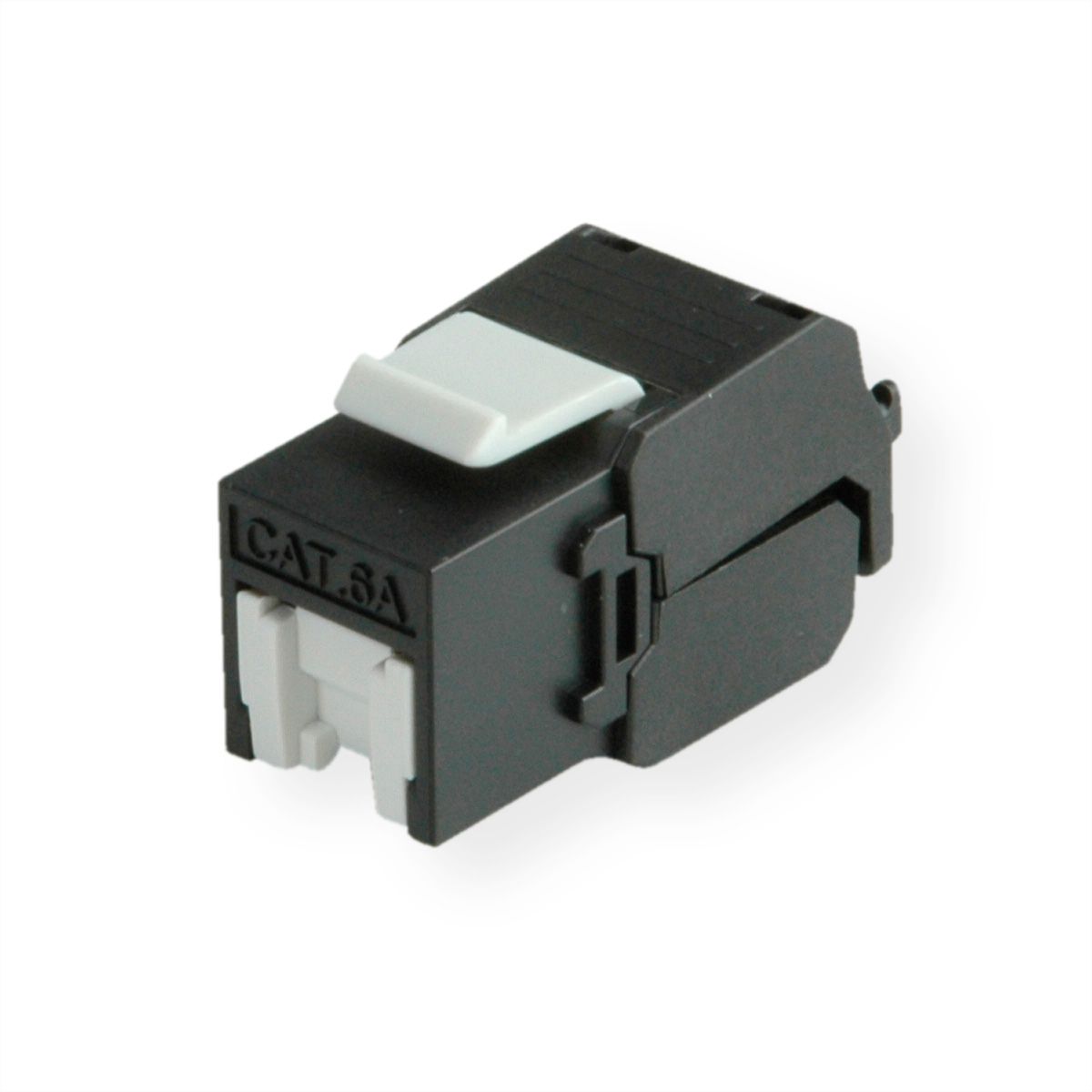

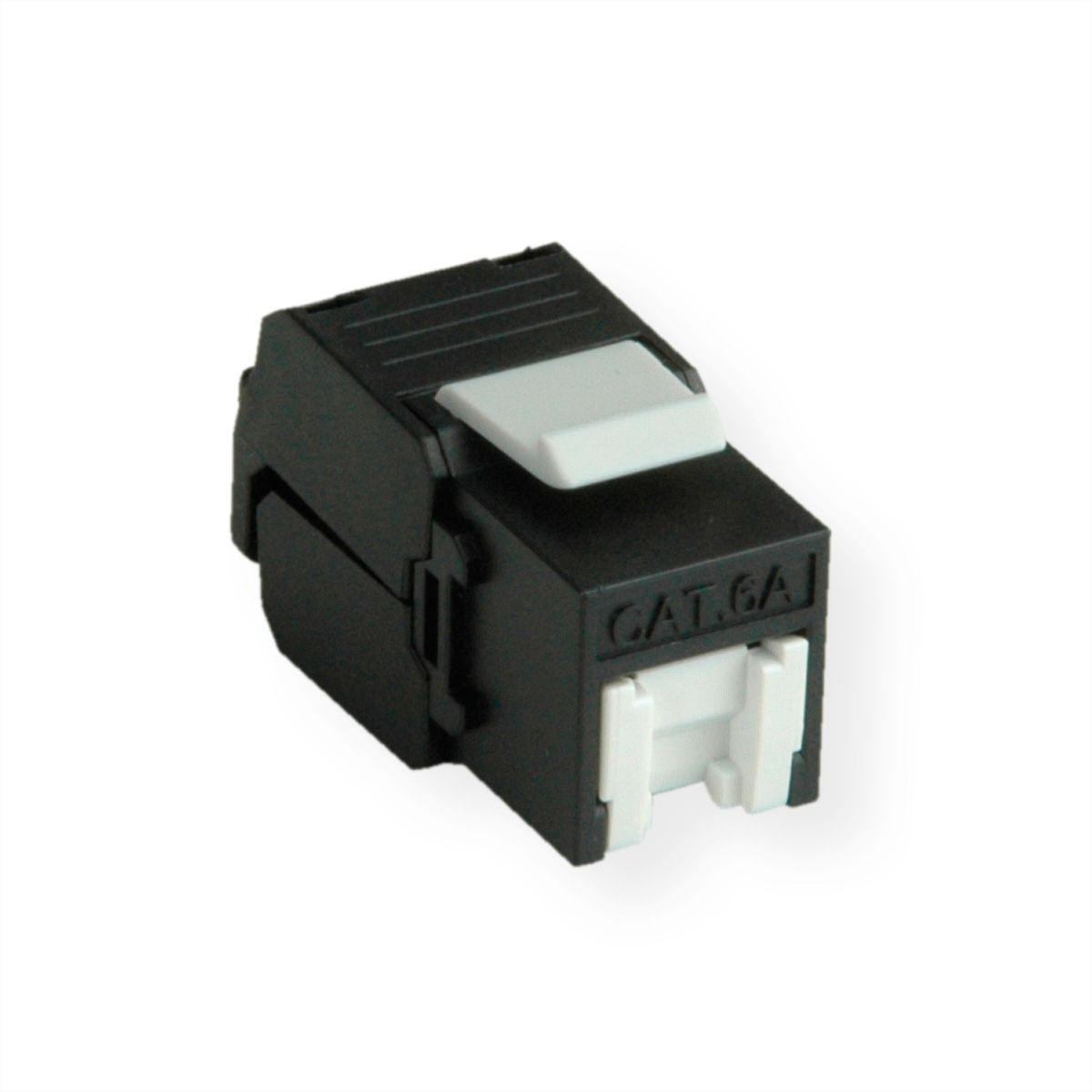

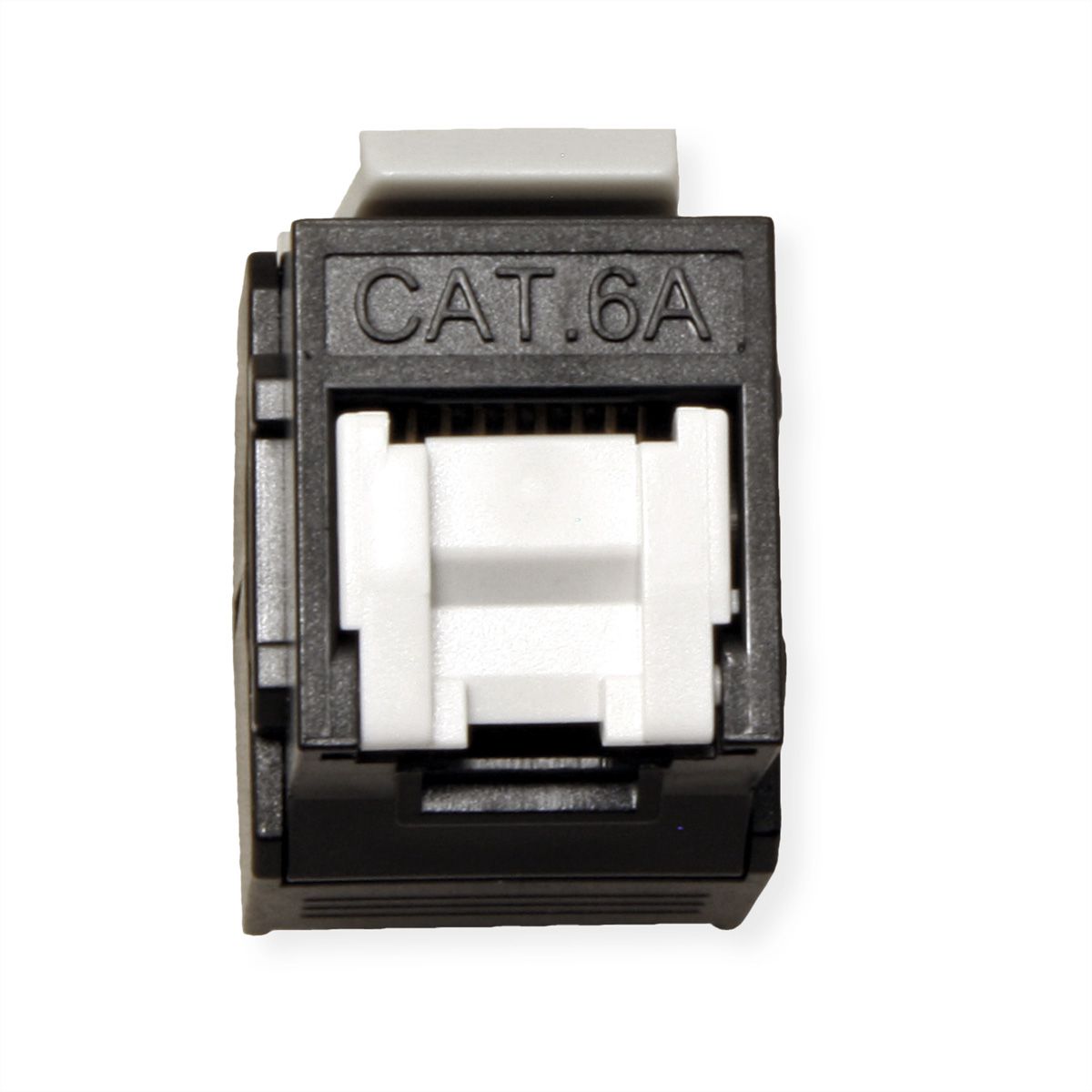

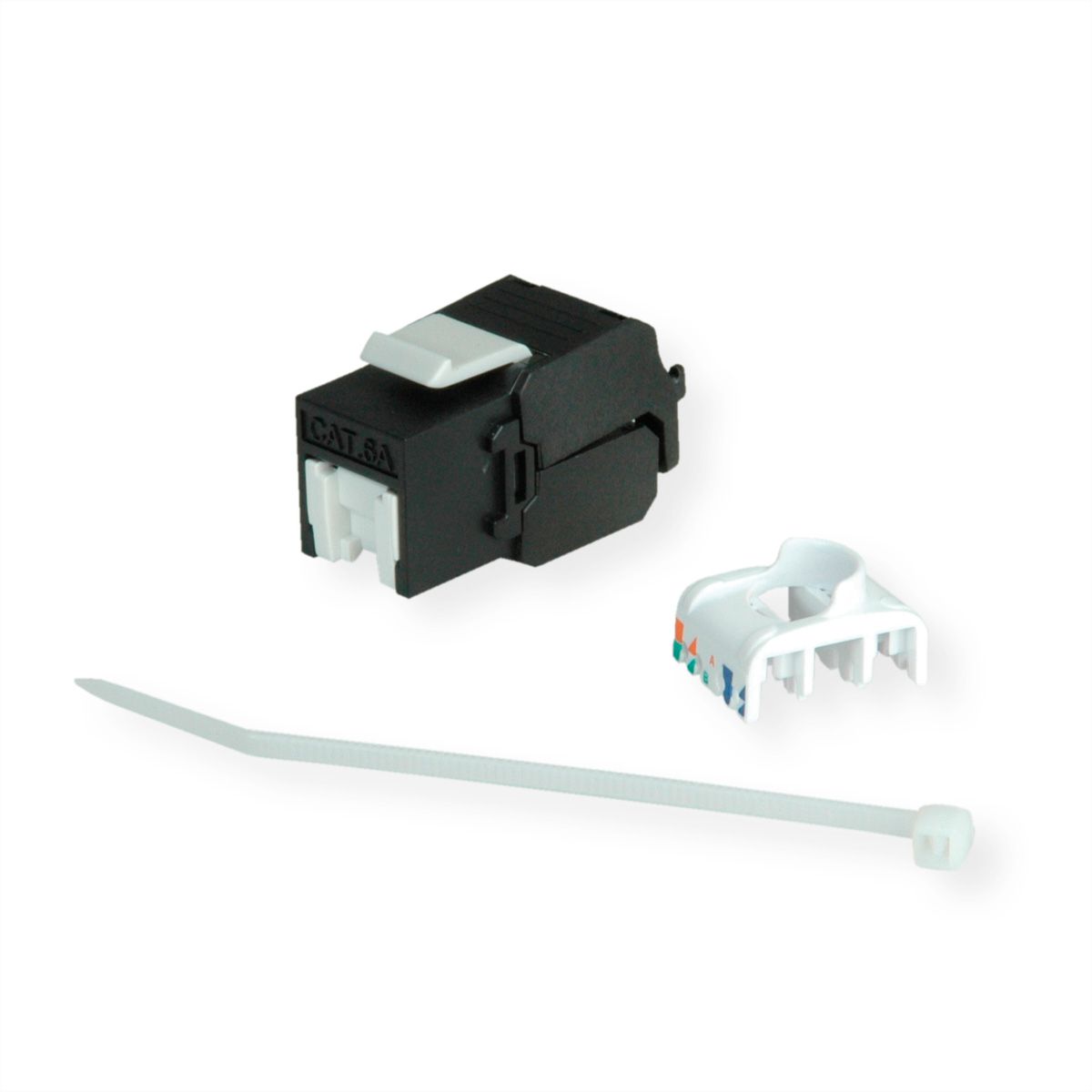

ROLINE Cat.6A (Class EA) Keystone, RJ-45, UTP, with shutter, Tool-free, black
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.17.0320-50 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.17.0320 |
| EAN | 7630049694637 |
| Package weight | 0.004 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s!
Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.

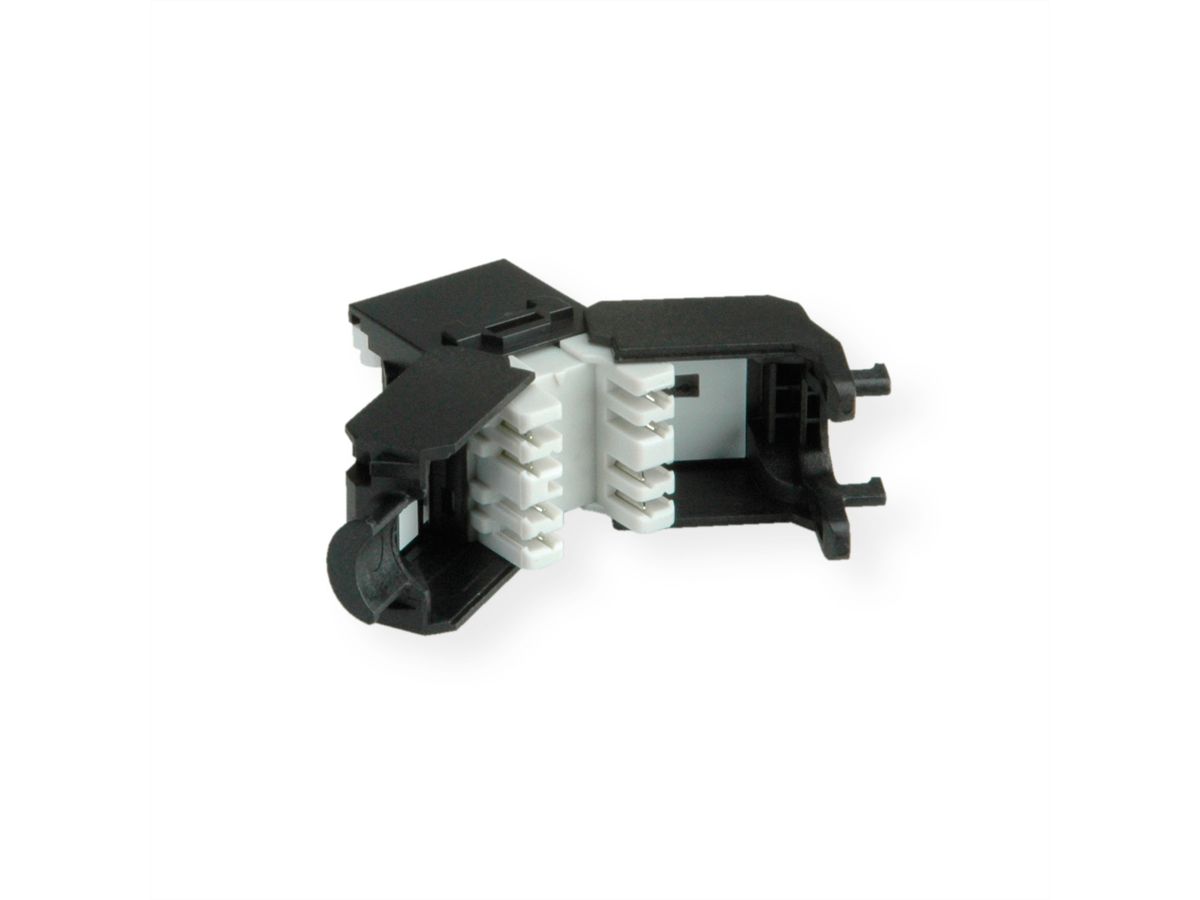

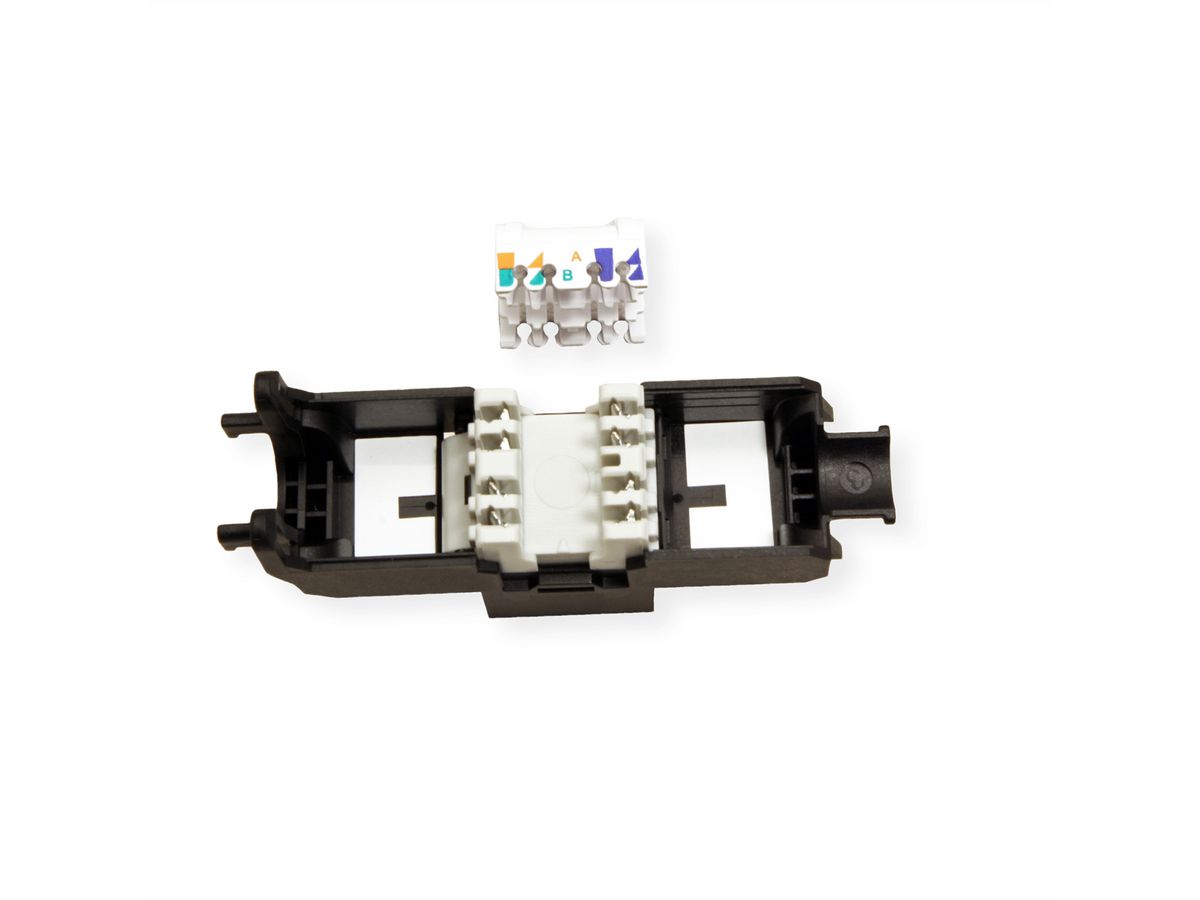

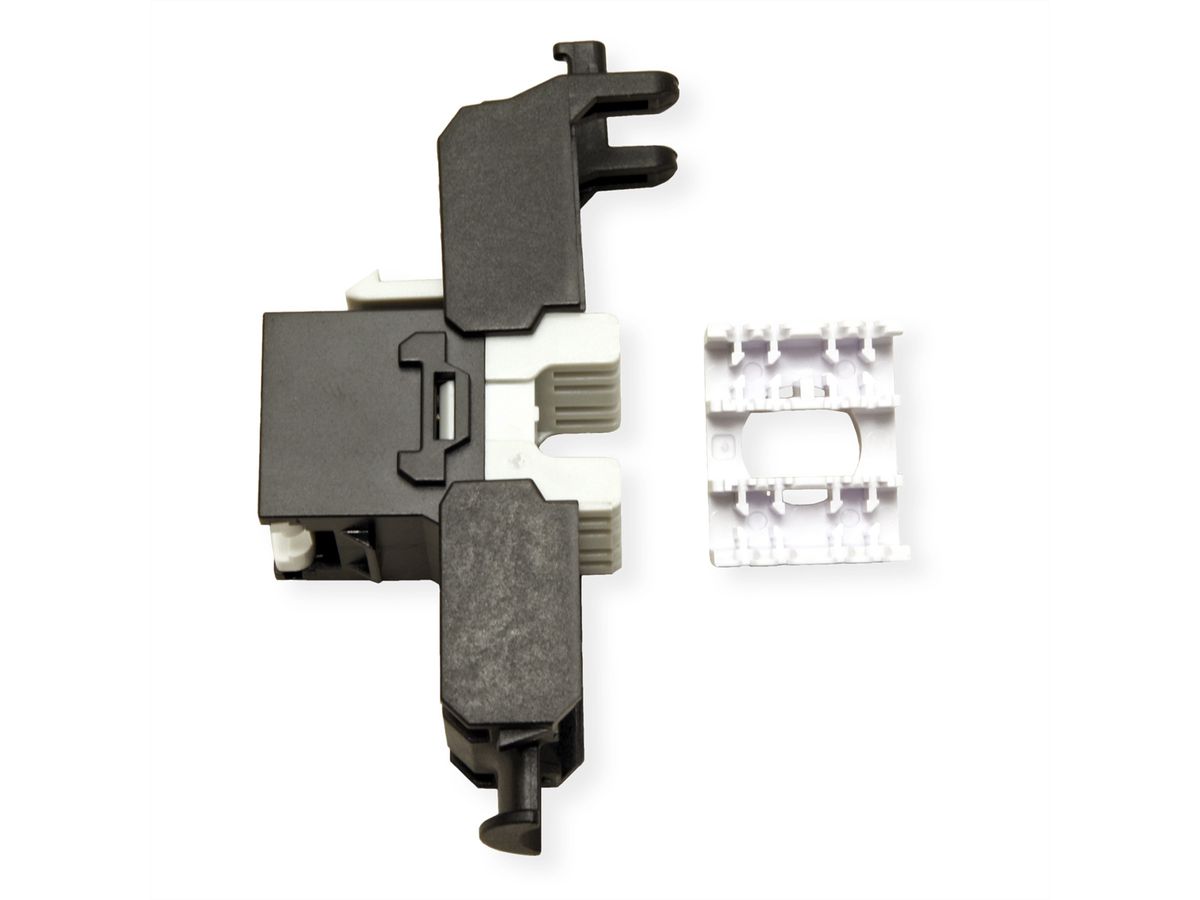

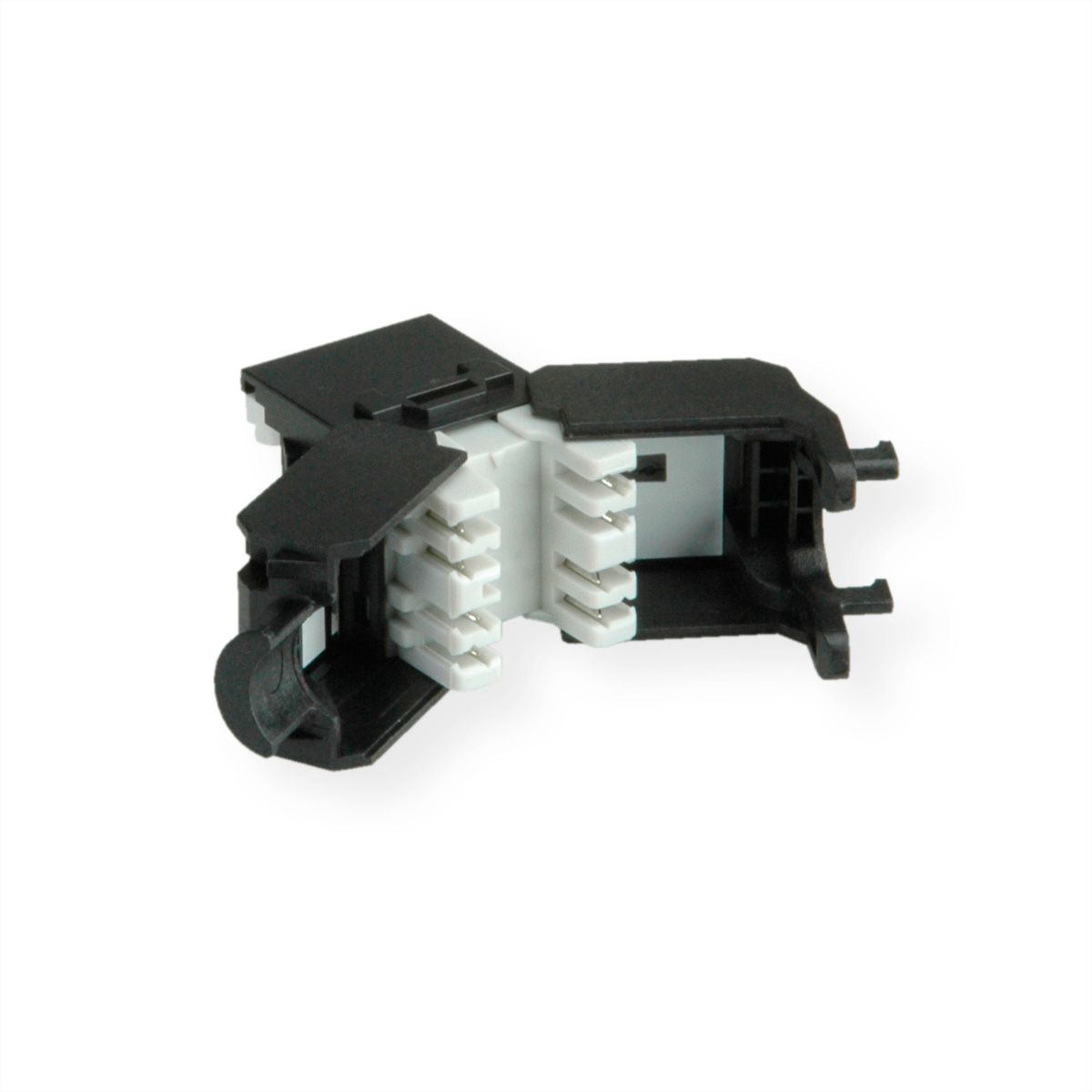

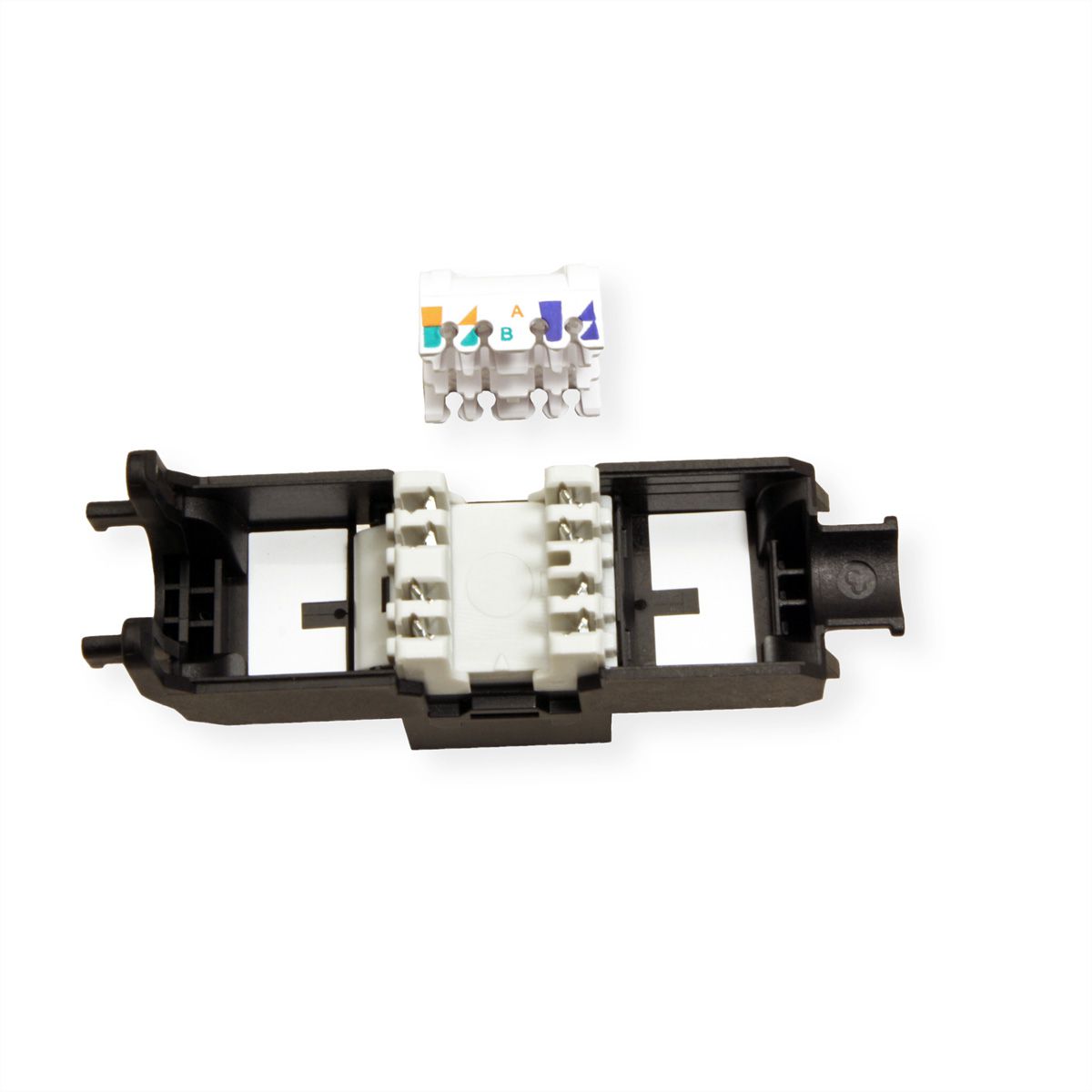

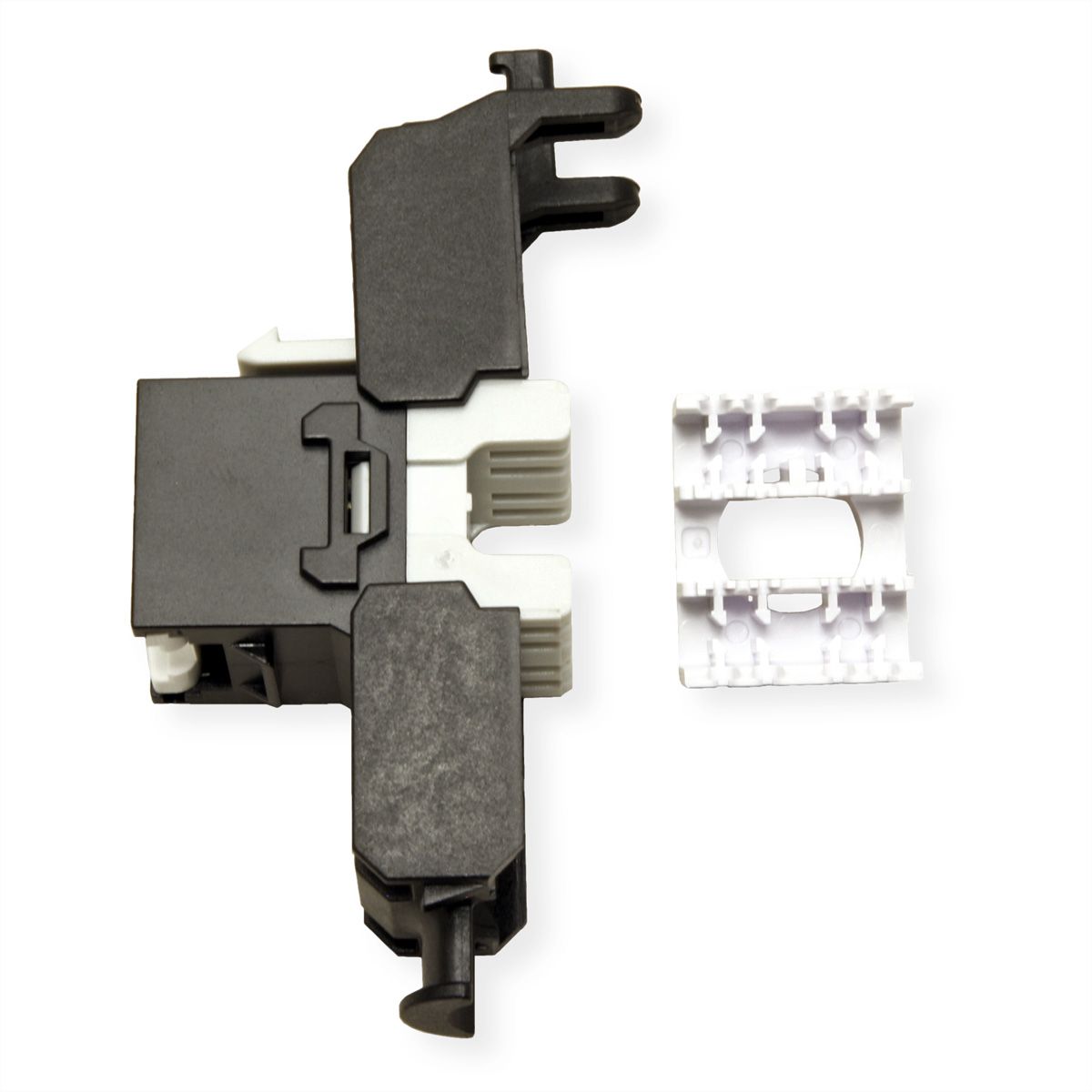

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) UTP
- Unshielded housing
- Contacts gold plated
- Slim type
- With plastic internal shutter
- 180 degree cable entry
- Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
- For cable AWG 22-24(0.45-0.65mm)
- For cable OD: 5.0-8.5mm
- Color code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 37.9× 15.8 × 22.2mm
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | black |
| Shield type | Not screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A & 568B |
| Connection direction | Straight |
| Height | 22.2 mm |
| Width | 15.8 mm |
| Depth | 37.9 mm |
| Weight | 7.9 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 200 mm |
| Package weight (single piece) | 0.004 kg |
