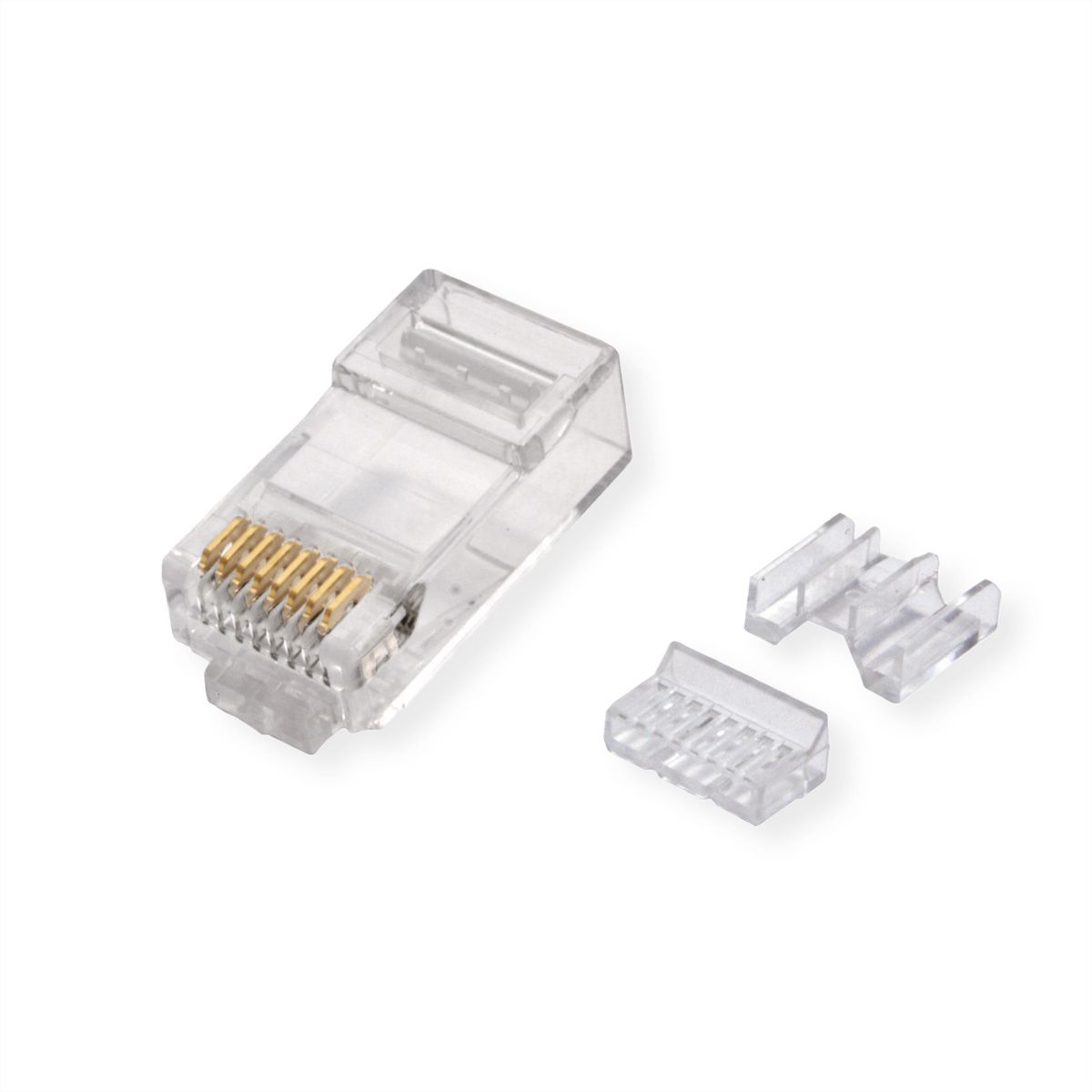

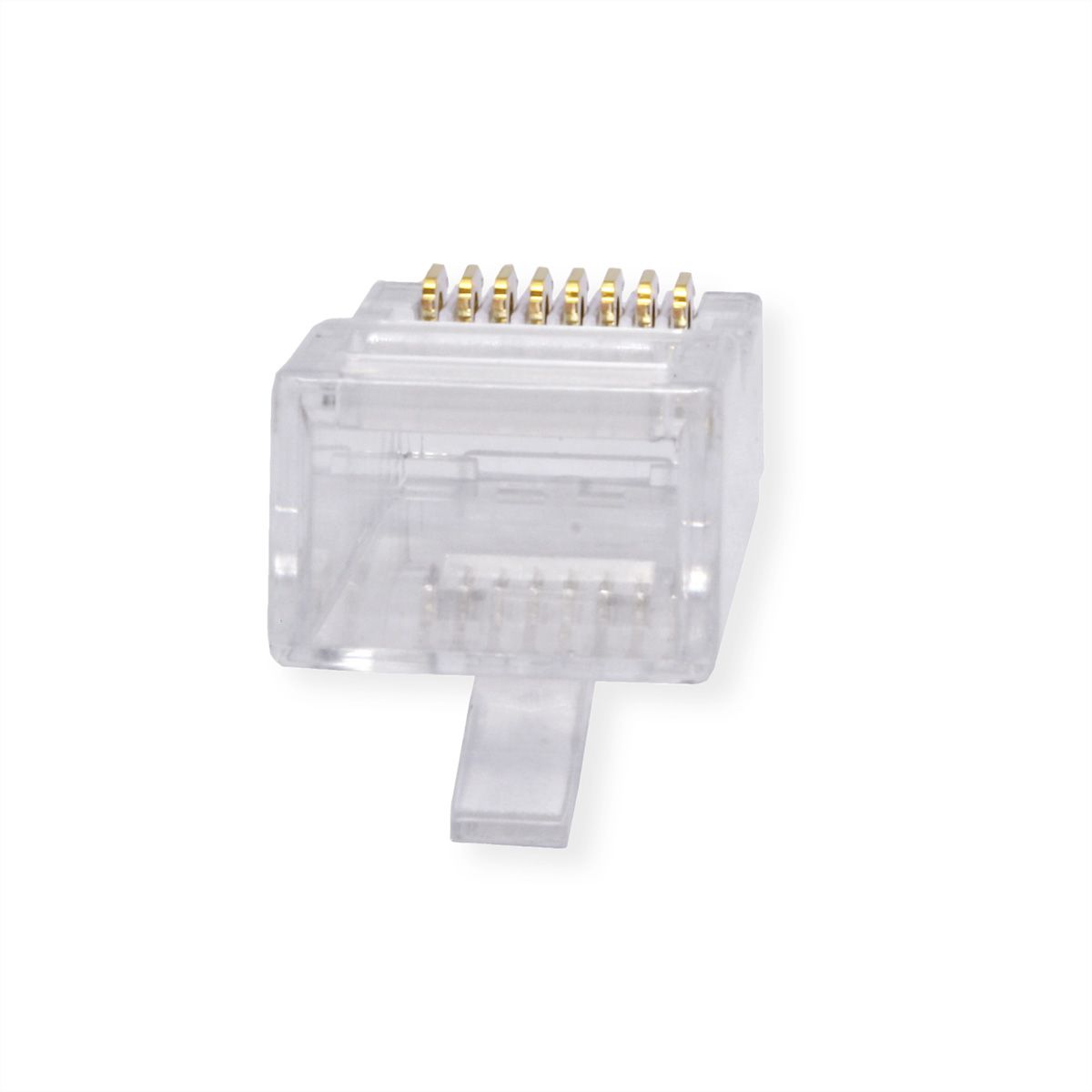

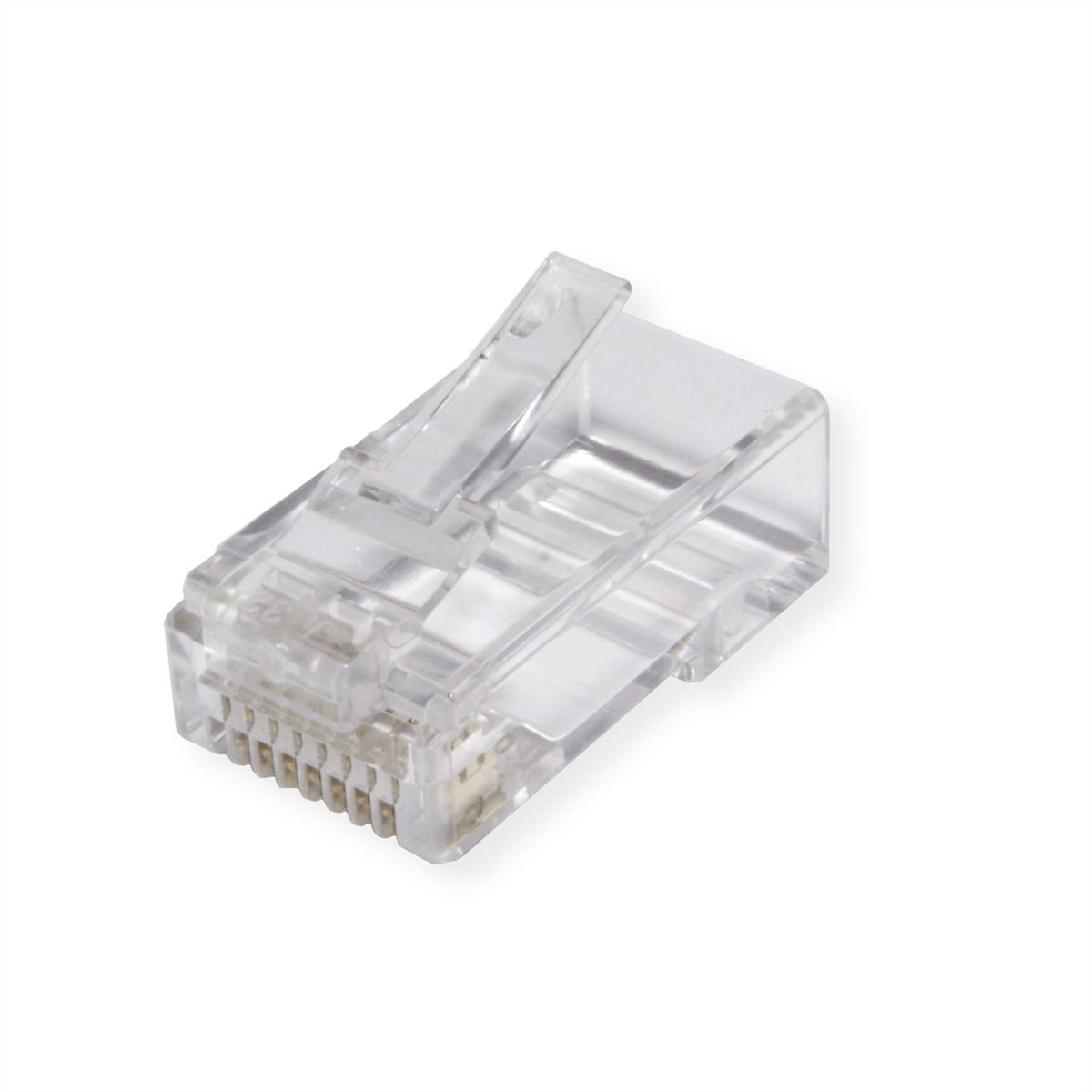

ROLINE Cat.6A (Class EA) RJ-45 Modular Plug, unshielded, for Solid/Stranded Wire, 10 pcs.

Item no. 21.17.3098-5 Brand / Manufacturer ROLINE Manuf. no. 21.17.3098 EAN 7630049674899 Package weight 0.027 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

10 unshielded Cat. 6A modular plugs for network cabling - suitable for stranded and solid wire.

  • Cat. 6A Modular Plugs, 8p8c
  • Unshielded
  • Gold plated contacts
  • For solid and stranded wire
  • Suitable for stranded and solid wire cables in AWG 23 - 26
  • With wire insertion aid
  • Package unit 10 plugs

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
RJ-45 Modular Plugs
Colour
transparent
Scope of delivery
10 Modular Plugs
Shield type
Not screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Material (casing)
Plastic
separate strain relief
no
Connection direction
Straight
Height
11 mm
Width
11.7 mm
Depth
21.5 mm
Weight
14.7 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
80 mm
Depth of packaging (single piece)
80 mm
Package weight (single piece)
0.027 kg
