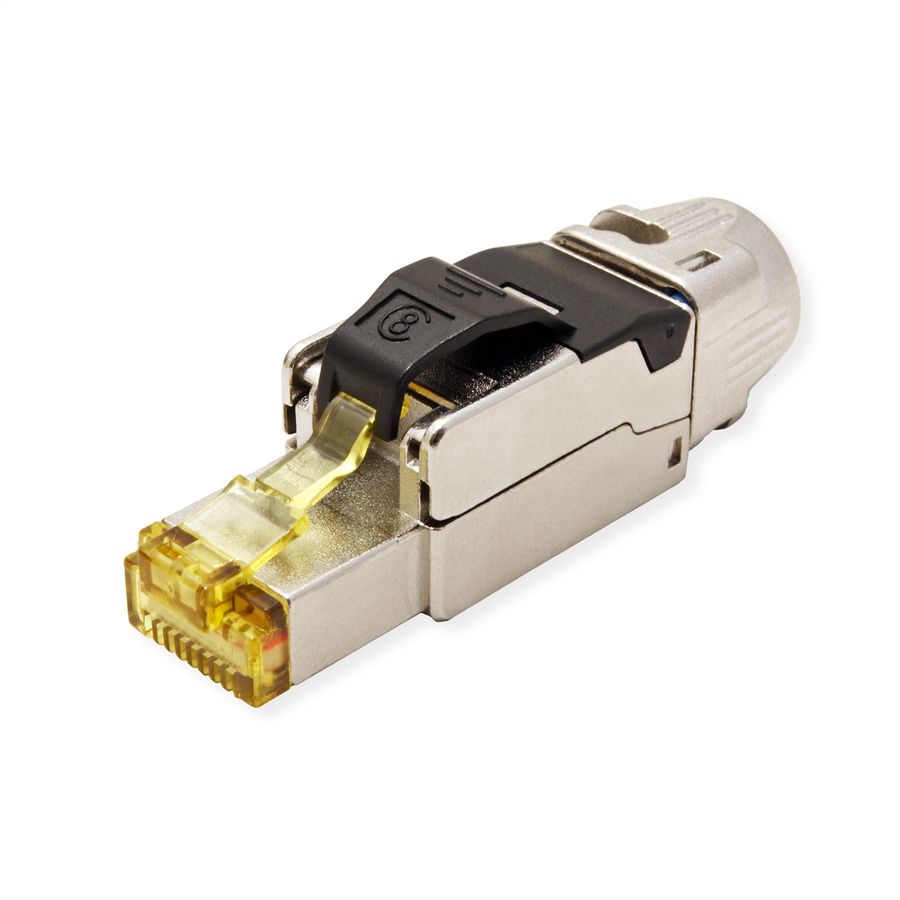

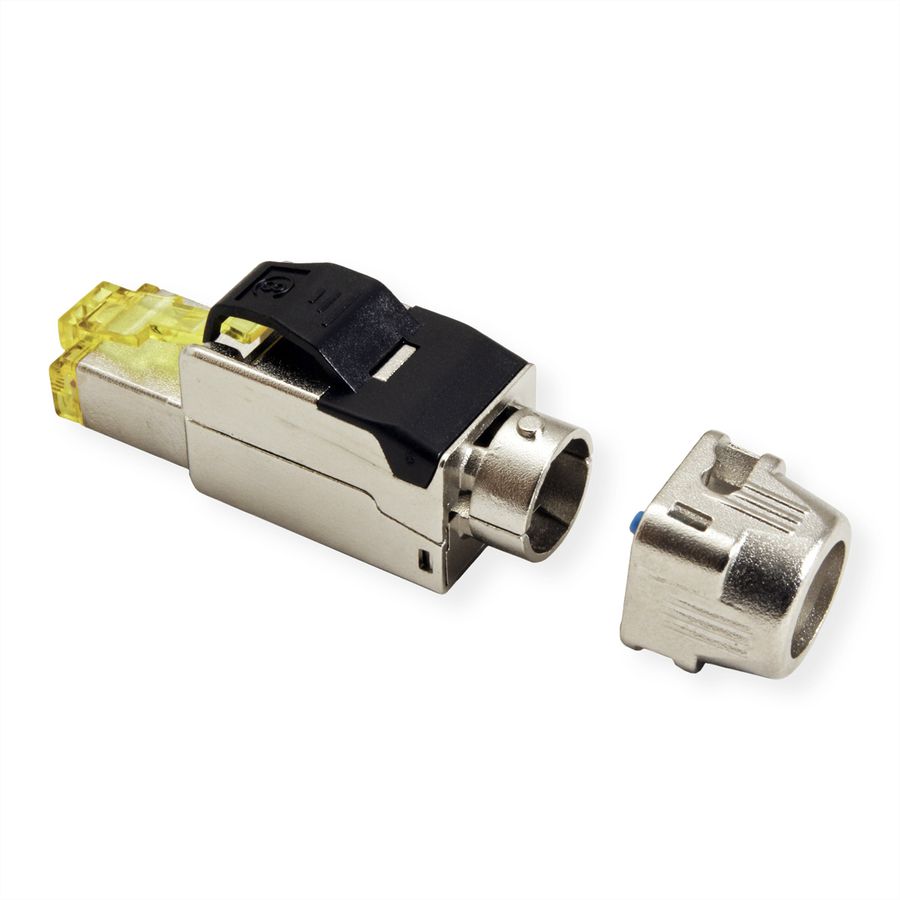

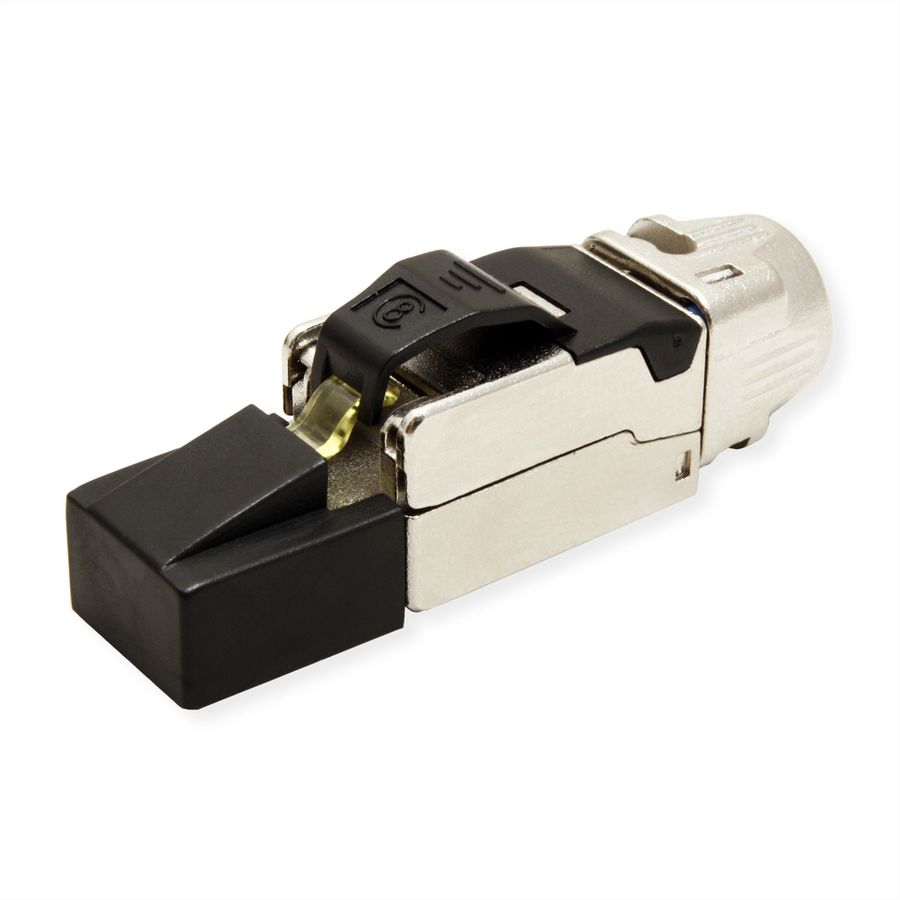

ROLINE Cat.8 (Class I) Field Connector Plug RJ45

ROLINE Cat.8 (Class I) Field Connector Plug RJ45

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.17.3086-50
Brand / Manufacturer ROLINE
Manuf. no. 21.17.3086
EAN 7630049691001

Description

  • Full shielded with zinc alloy housing
  • T568A & T568B wiring
  • C8 channel performance vertified
  • Cable wire gauge : 22AWG to 26AWG
  • Cable outer diameter : 7.0 to 8.5mm
  • Suitable for the PoE plus (IEEE 802.3at) applications
  • Easy, quick and reliable installation

Specifications

Manufacturer ROLINE
Product group Connection technology TP
Product type Connectors RJ-45
Colour silver
Shield type Screened
Transfer quality Cat8.1 / Class I
separate strain relief yes
Operating temperature min. -10 °C
Operating temperature max. 60 °C
Height 18.4 mm
Width 13.8 mm
Depth 50.2 mm
Weight 19.7 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 20 mm
Depth of packaging (single piece) 50 mm
Package weight (single piece) 0.02 kg

Downloads

Product data sheet - English (42.5 KB)

Download

Manufacturer data sheet - English (208.9 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
