ROLINE Converter RS232 to RS422/485, with Isolation, for DIN Rail

ROLINE Converter RS232 to RS422/485, with Isolation, for DIN Rail

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1005-4
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1005
EAN 7611990994854
Package weight 0.16 kg

Description

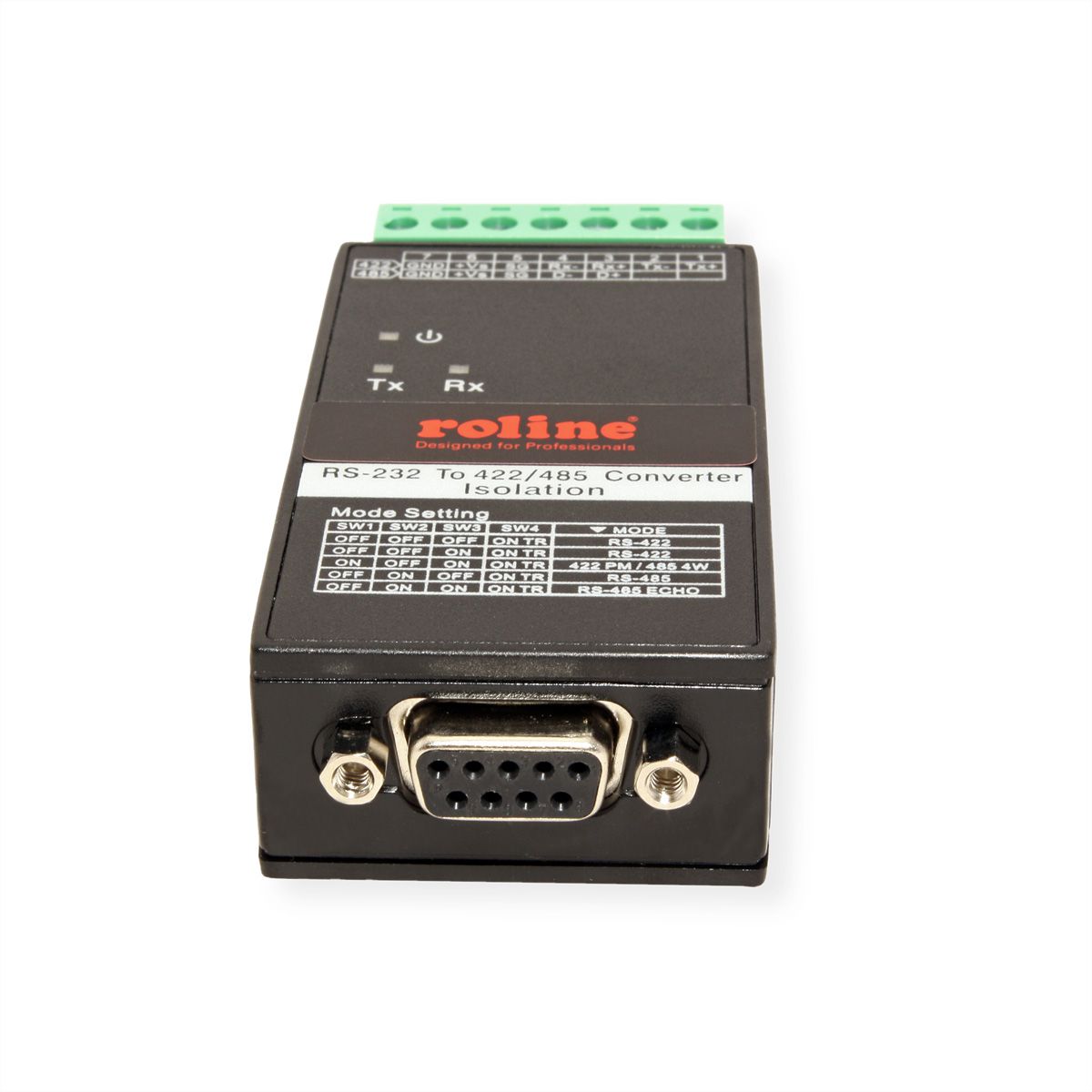

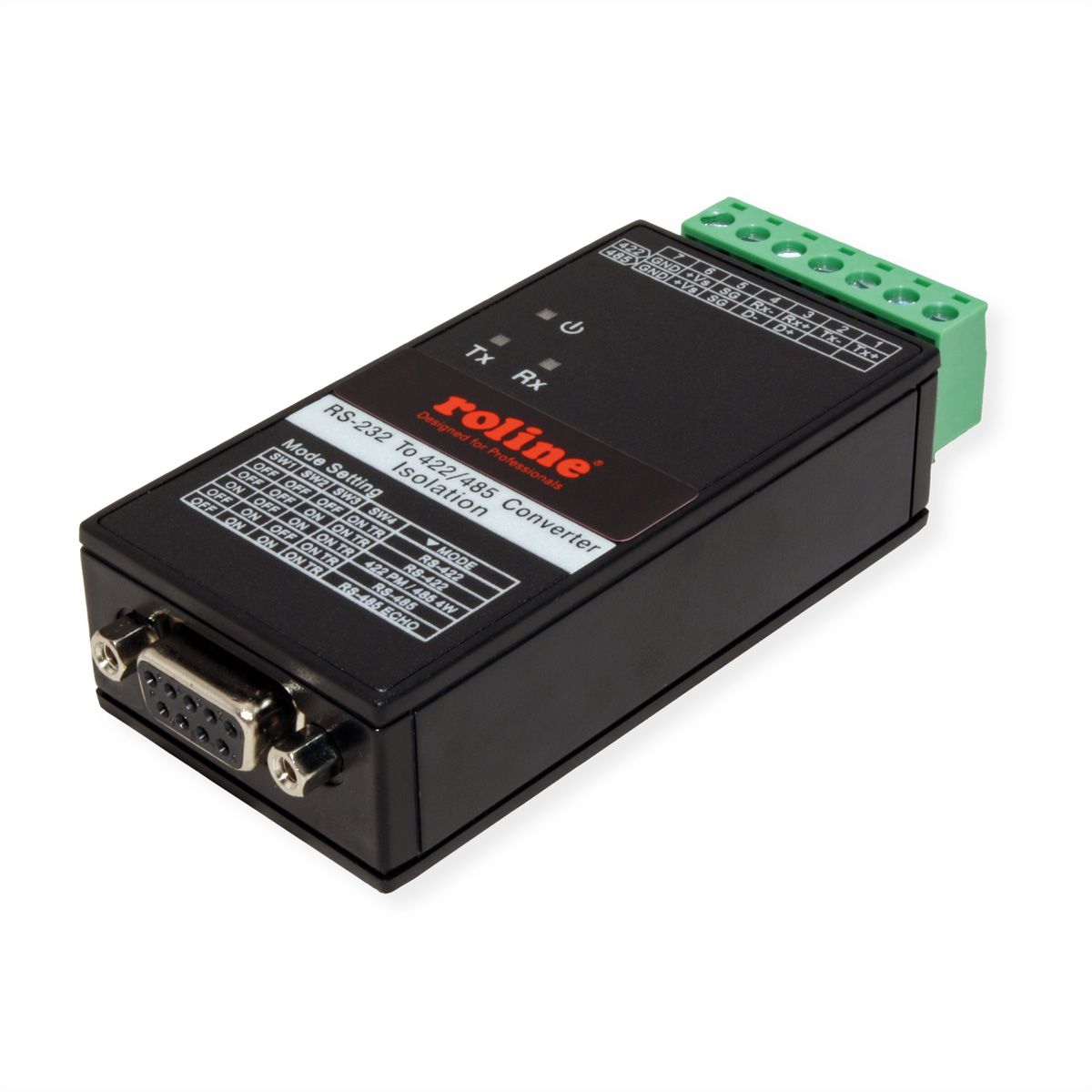

  • Converts RS-232 signals to RS-422 or RS-485
  • Fully compliant with PC serial COM ports

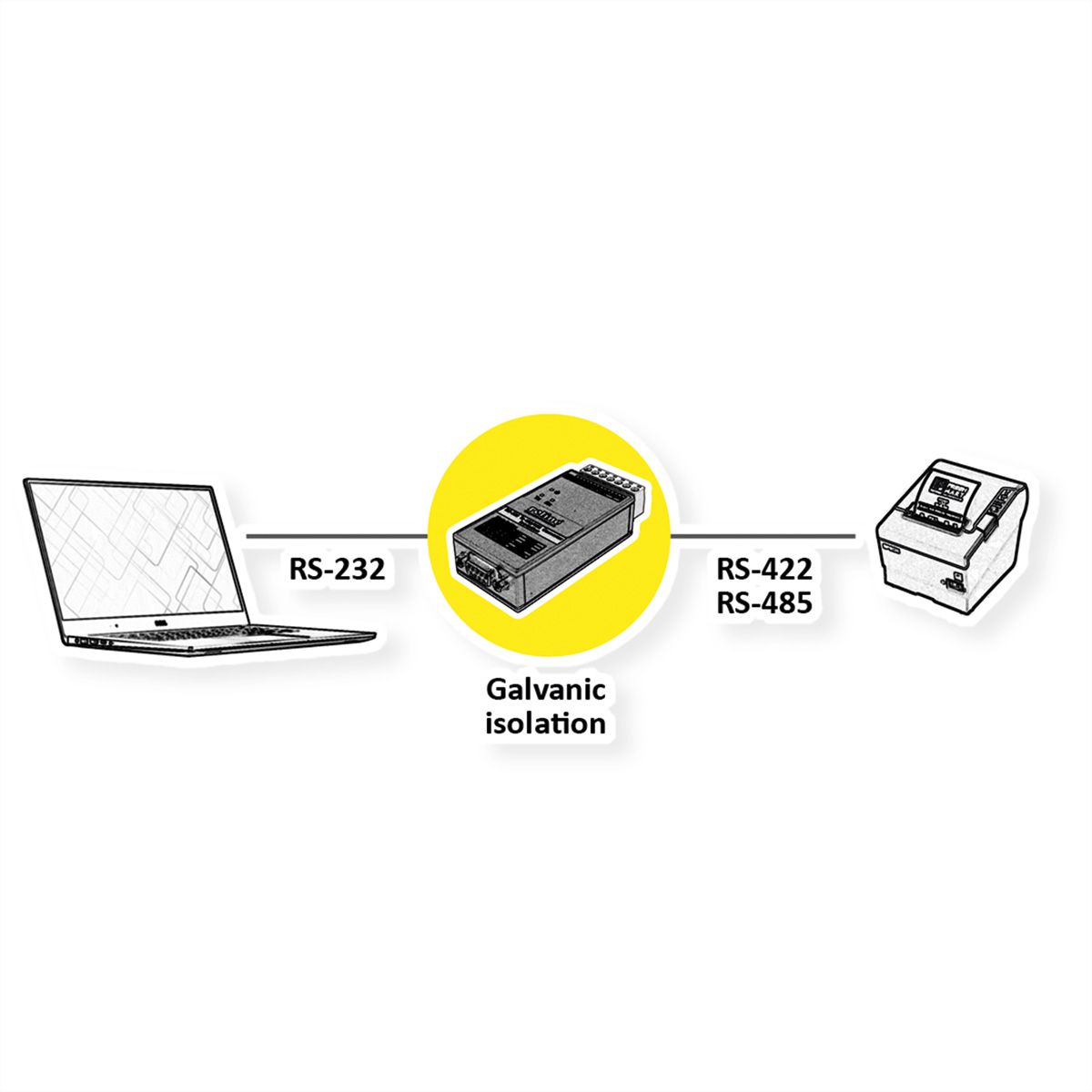

  • Isolation 3000 VDC (optical)
  • Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
  • Auto toggling by hardware
  • Data transfer rate of up to 115.2 Kbit/s
  • Terminal resistance and Echo mode
  • DIP switches for terminal settings
  • Signals: TXD, RXD, RTS, CTS, GND for RS-232
  • Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
  • Status LEDs

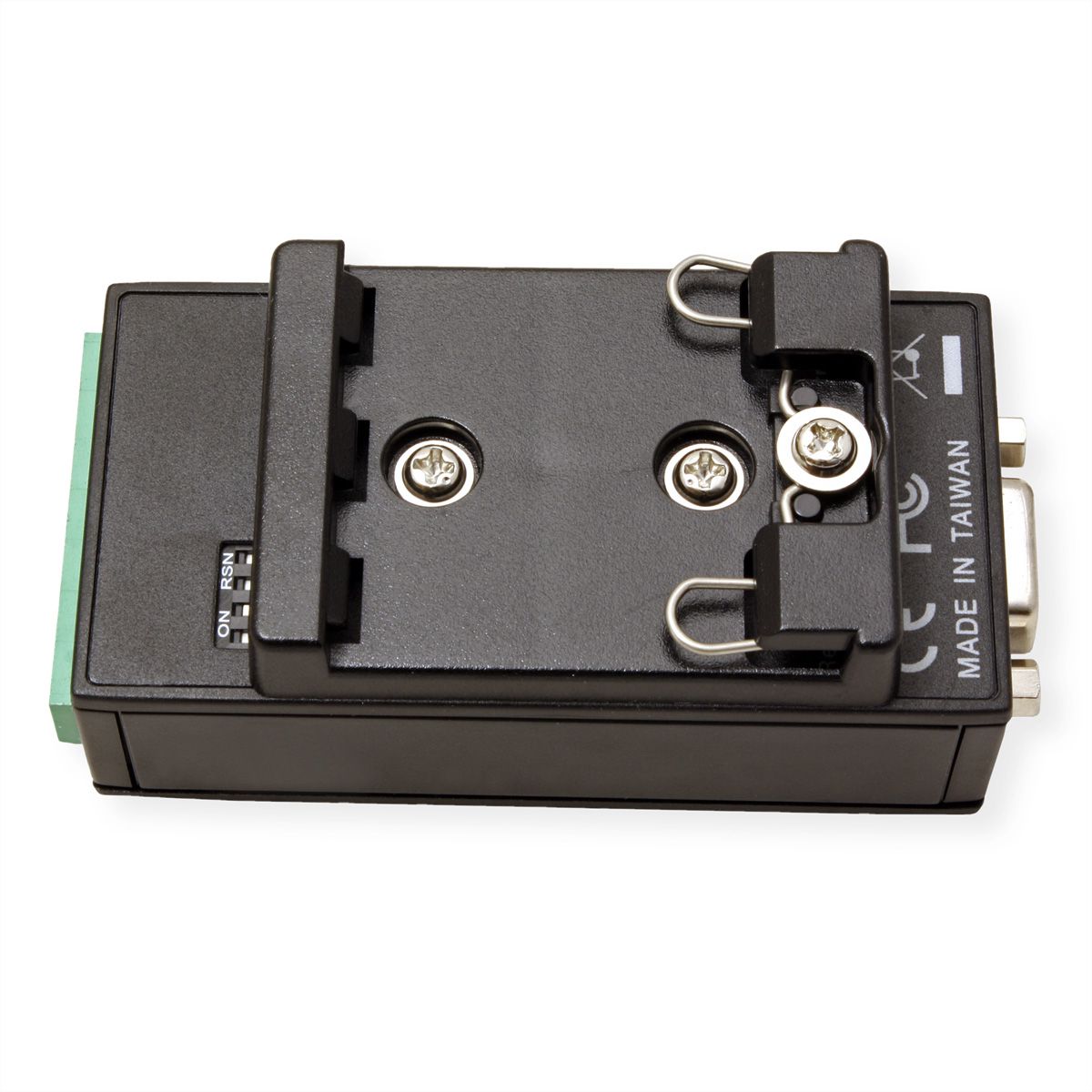

  • For DIN rail mounting
  • DC power supply 10~30 V (built-in surge protector)
  • Hardware solution, no software required

Environmental Limits:
Operating Temperature: -30 ~ 75°C
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 5 ~ 95% Non-Condensing

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Serial interface converter
Colour black
Scope of delivery converter, manual
Side 1 connection (PC) RS232
Side 2 connection (Peripherals) Terminal block
Side 1 Connector Type D-Sub 9-pin (DE-9)
Side 1 Connector Gender Female
Side 2 Connector Type Terminal block
Side 2 Connector Gender Female
Conversion direction RS422/RS485- RS232
Area of application External
Weight 65.7 g
Height of packaging (single piece) 45 mm
Width of packaging (single piece) 140 mm
Depth of packaging (single piece) 190 mm
Package weight (single piece) 0.16 kg

Downloads

Product data sheet - English (46.1 KB)

Download

Manufacturer data sheet - English (695.3 KB)

Download

User manual - Deutsch (298.9 KB)

Download

User manual - English (296.7 KB)

Download

User manual - Français (32.3 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
