The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s19/19401220_101.jpg "ROLINE DesignSecure 1200")
:strip_icc():strip_exif()/bilder/s19/19401212_back2_122.jpg "ROLINE DesignSecure 1200")

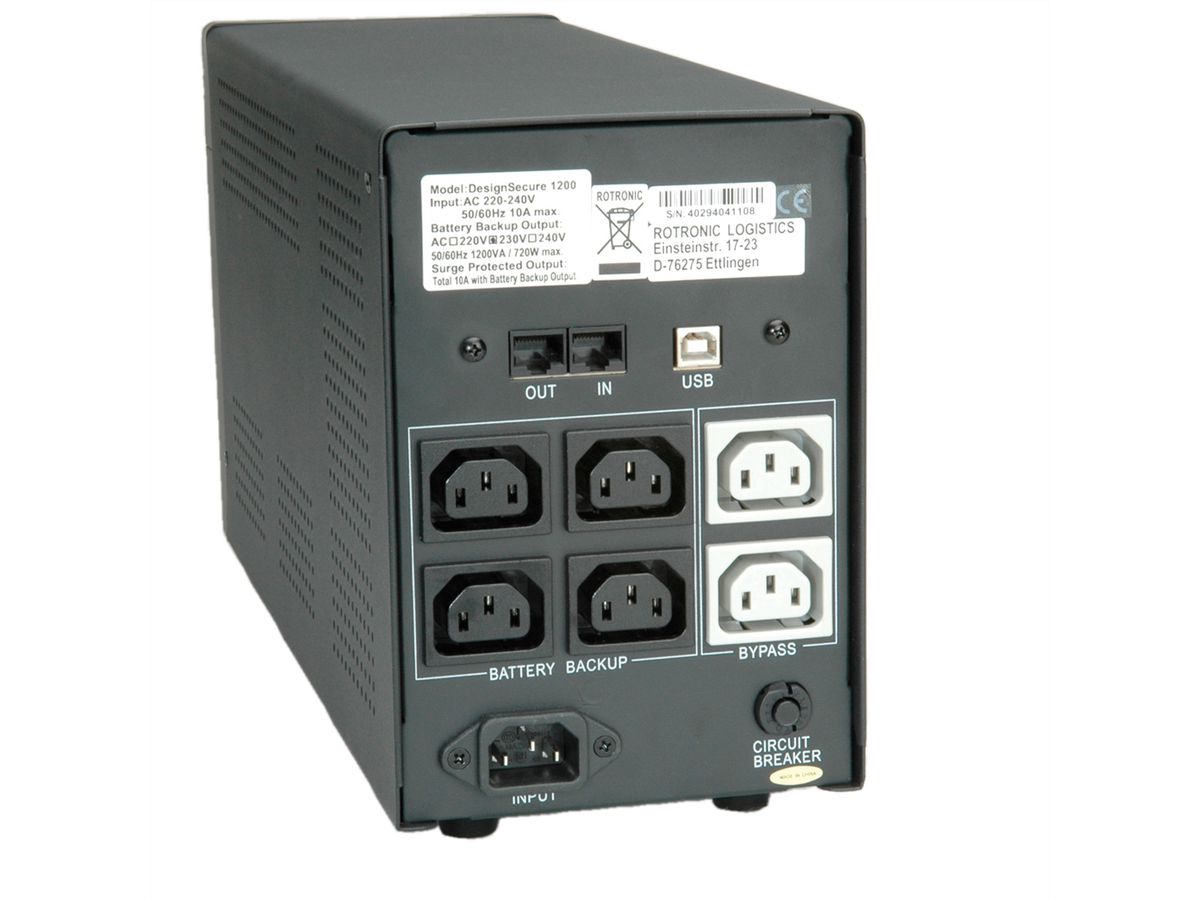

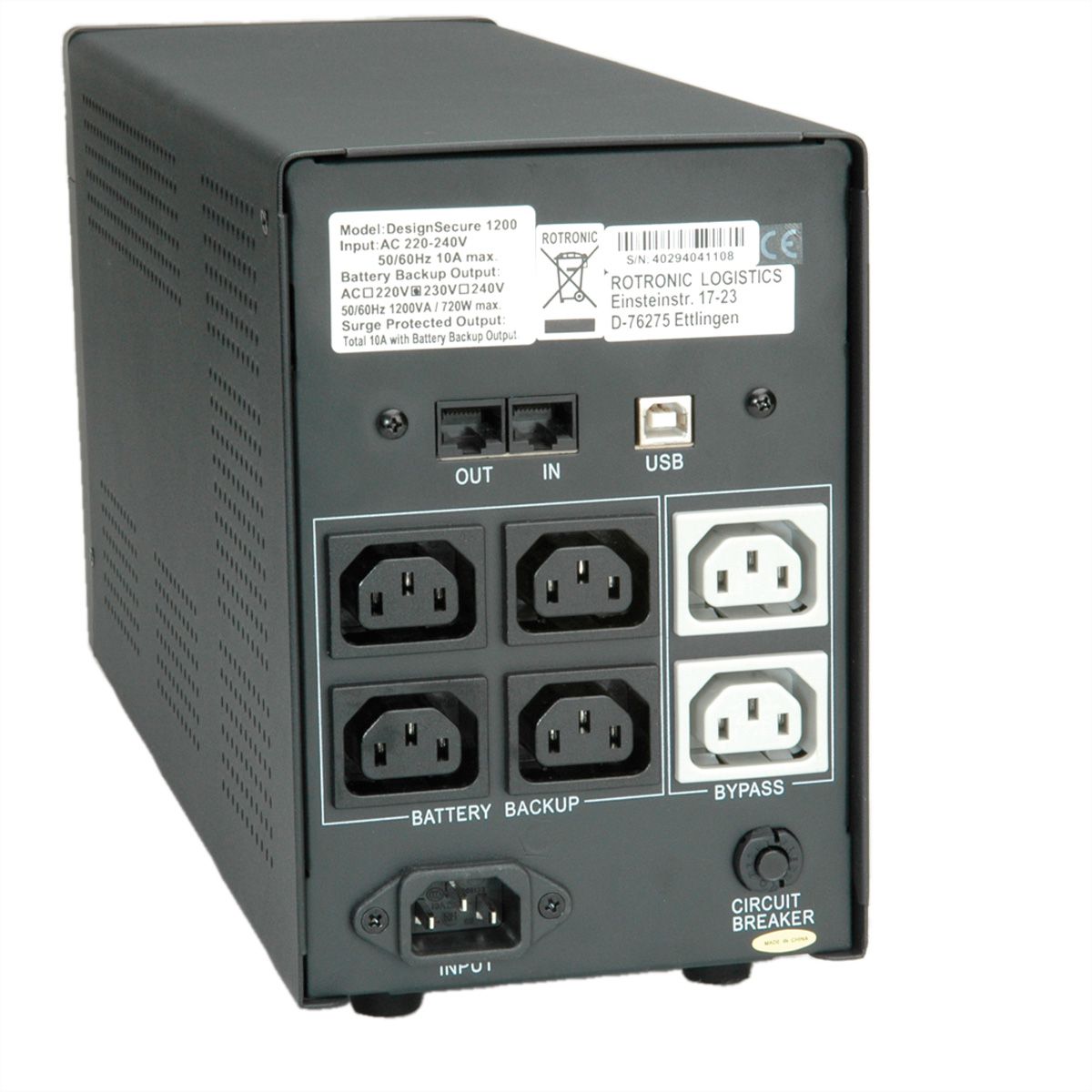

ROLINE DesignSecure 1200
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 19.40.1212 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 19.40.1212 |
| EAN | 7611990976768 |
| Package weight | 14.82 kg |
| Output (VA/W) | |
| Interface |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
- Compact designed UPS in futuristic design
- For Workstations and PCs
- LineInteractive UPS
- AVR (Automatic Voltage Regulation)
- Digital status display
- Integrated overvoltage protection
- Telephone/Modem connections
- USB Port for advanced Power Management Software (incl, in content of delivery)
- EMI/RFI Noise Filter
- Dimensions (HxLxW) 168 x 105 x 334 mm
- Weight: 6.3 kg
- Backup Time: up to 4 Minutes
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | UPS |
| Product type | UPS Line Interactive |
| Colour | black /silver |
| Scope of delivery | UPS, Software, Cable Set |
| Classification (IEC 62040-3) | VI-SS-333 |
| UPS technology | Line Interactive |
| Power class | 1000 ... 1900 VA |
| Output (VA/W) | 1200 / 720 |
| Backup time | 3 min |
| Backup time full/half-load | 3 / 6 min |
| Dimensions (HxWxD) | 168 x 105 x 334 mm |
| Mounting form | Turm |
| Voltage (input) | 230 V |
| Voltage (output) | 230 V |
| Output voltage regulation | yes |
| Frequency | 50 Hz |
| Connector type (input) | cold connector IEC320 C14 |
| Outputs | 4 |
| Connector type (output) | 4 cold connector IEC320 C13 |
| Phase in/output | 230V/230V / 50Hz |
| Over current protection | EMI,- RFI-Filter |
| Max. quantity of delay expansion units | 0 |
| Delay expansion unit | -- |
| Slots for adapter card | 0 |
| Slot for adapter card | -- |
| Interface | USB |
| USB 2.0 Interface | yes |
| Hot swap batteries | no |
| Bypass | no |
| Additional over current protector | Telephone/Fax |
| Activity | Display |
| Activity LED | -- |
| Activity Display | yes |
| incl.Management Software | Windows |
| Internal cooling | Passive |
| Ambient temperature | 0-40 °C |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 40 °C |
| Height | 192 mm |
| Width | 130 mm |
| Depth | 382 mm |
| Weight | 14 kg |
| Height of packaging (single piece) | 320 mm |
| Width of packaging (single piece) | 260 mm |
| Depth of packaging (single piece) | 500 mm |
| Package weight (single piece) | 14.82 kg |
Backup Time
| Capacity (VA / W) | minutes |
|---|---|
| 200/120 | 40 |
| 400/240 | 18 |
| 600/360 | 9 |
| 800/480 | 5 |
| 1000/600 | 3,5 |
| 1200/720 | 2,5 |
