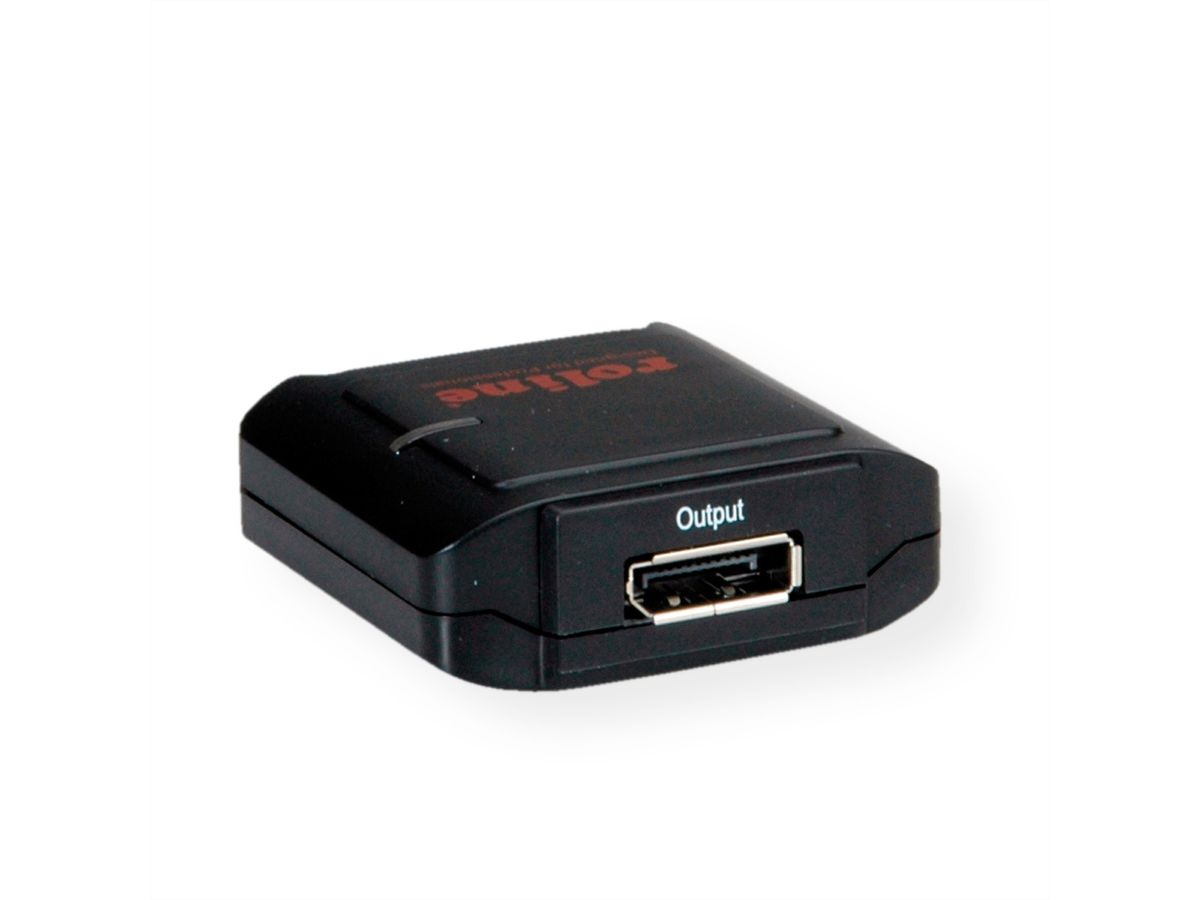

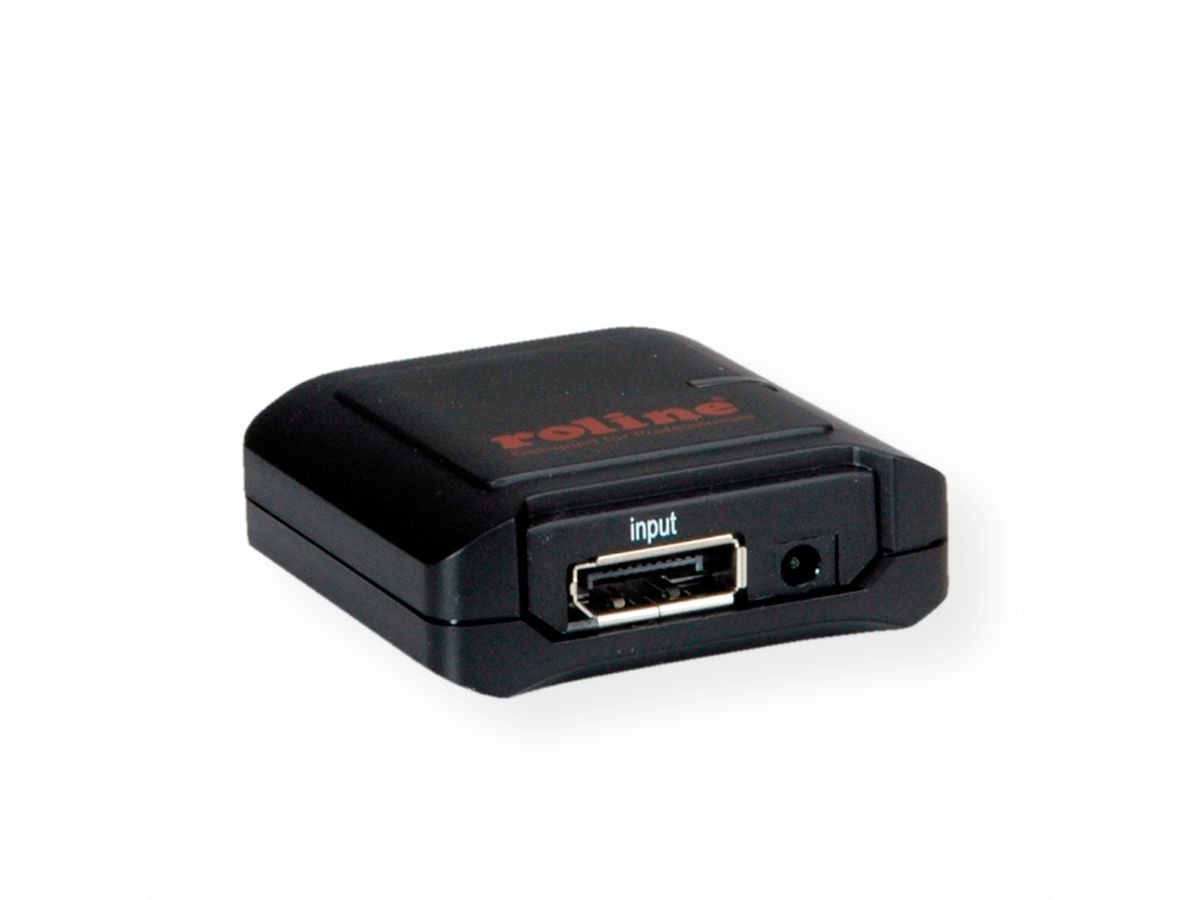

ROLINE DisplayPort Extender, 30m
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3473-12 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3473 |
| EAN | 7630049692954 |
| Package weight | 0.08 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

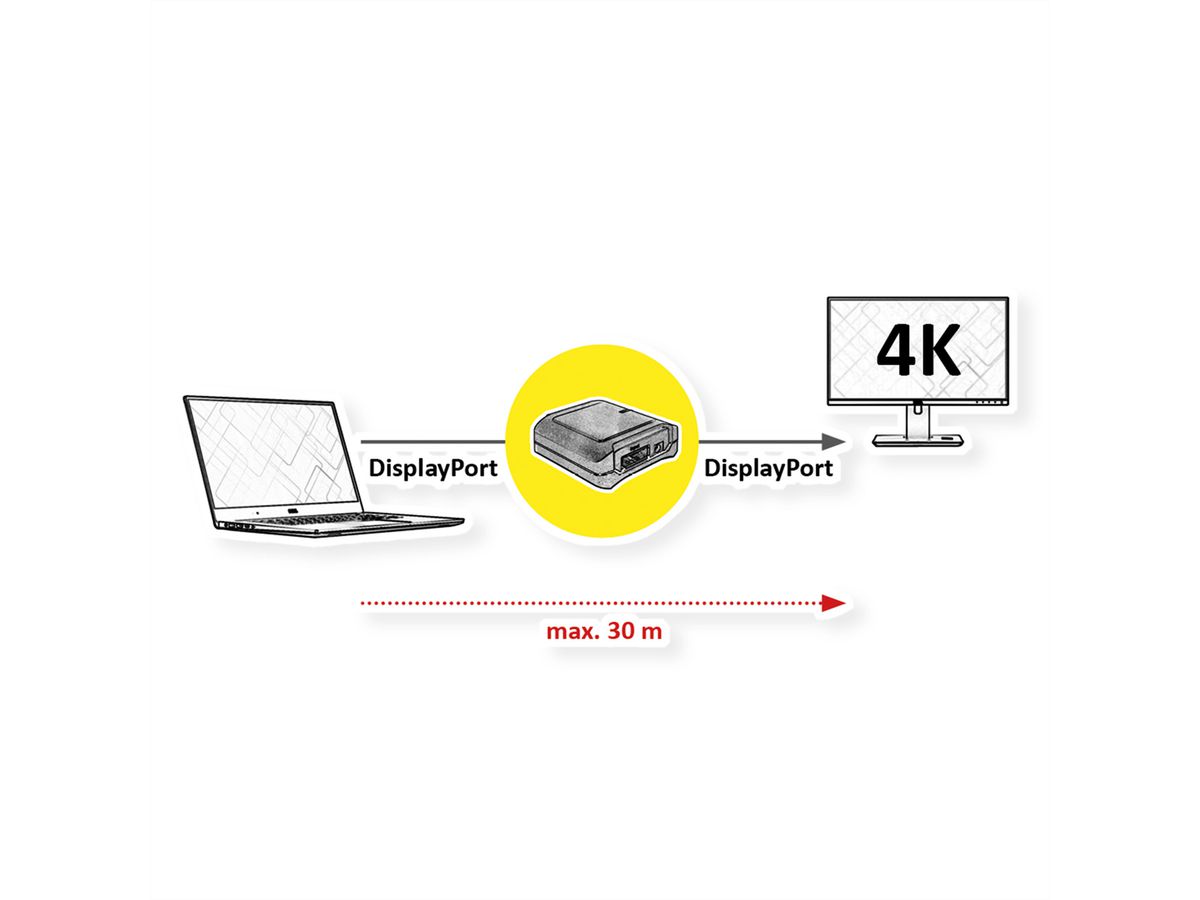

DisplayPort Repeater to create a point-to-point connection to reduce costs for applications that require a single DisplayPort input and output device over long distances - with up to 3840x2160 @60Hz resolution!
- Ideal for display applications in conference rooms, classrooms & training facilities etc.
- Extend the DisplayPort signal up to 30 meters
- Supports DisplayPort resolutions up to 4K @60Hz
- Compliant with DisplayPort specification v1.2
- Compliant with HDCP 2.2 & DPCP
- Supports 4K 60Hz (max. length: 5m in; 5m out); 4K 30Hz (max. length: 15m in; 15m out); 2560 x 1600 60Hz (max. length: 10m in; 20m out)
- Supports DP++ Dual Mode, compatible with HDMI, DVI or VGA adapters
- HDTV compatible
- LED Indicator
- Plug & Play
- Power supply included in the scope of delivery (5 VDC, 1A)
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Splitters and selectors |
| Product type | DisplayPort extension |
| Colour | black |
| Scope of delivery | DisplayPort v1.2 Repeater, Power Supply (5V 1A), Quick Installation Guide |
| Interface | DP |
| Max. distance | 30 m |
| Video input | HDMI |
| Video output | HDMI |
| Max. resolution (nom.) | 3840 x 2160 @60Hz |
| Max. resolution | 3840 x 2160 @60Hz (4K, UHD-1) |
| Dimensions (HxWxD) | 55 x 54 x 20 mm |
| Power supply unit | 1 |
| Power supply output | DC 5V; 1A |
| Operating temperature min. | 5 °C |
| Operating temperature max. | 40 °C |
| Height | 55 mm |
| Width | 54 mm |
| Depth | 20 mm |
| Weight | 31.1 g |
| Height of packaging (single piece) | 50 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 100 mm |
| Package weight (single piece) | 0.08 kg |
