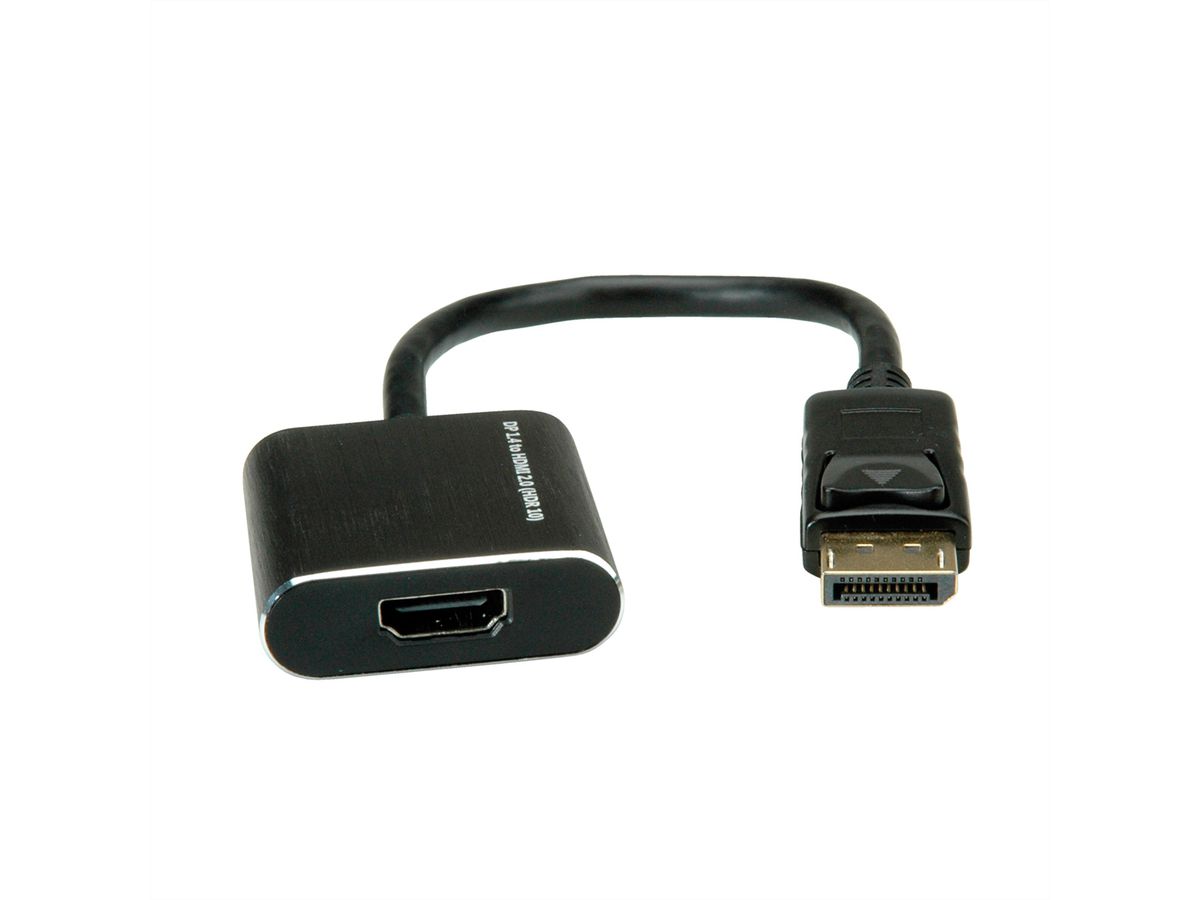

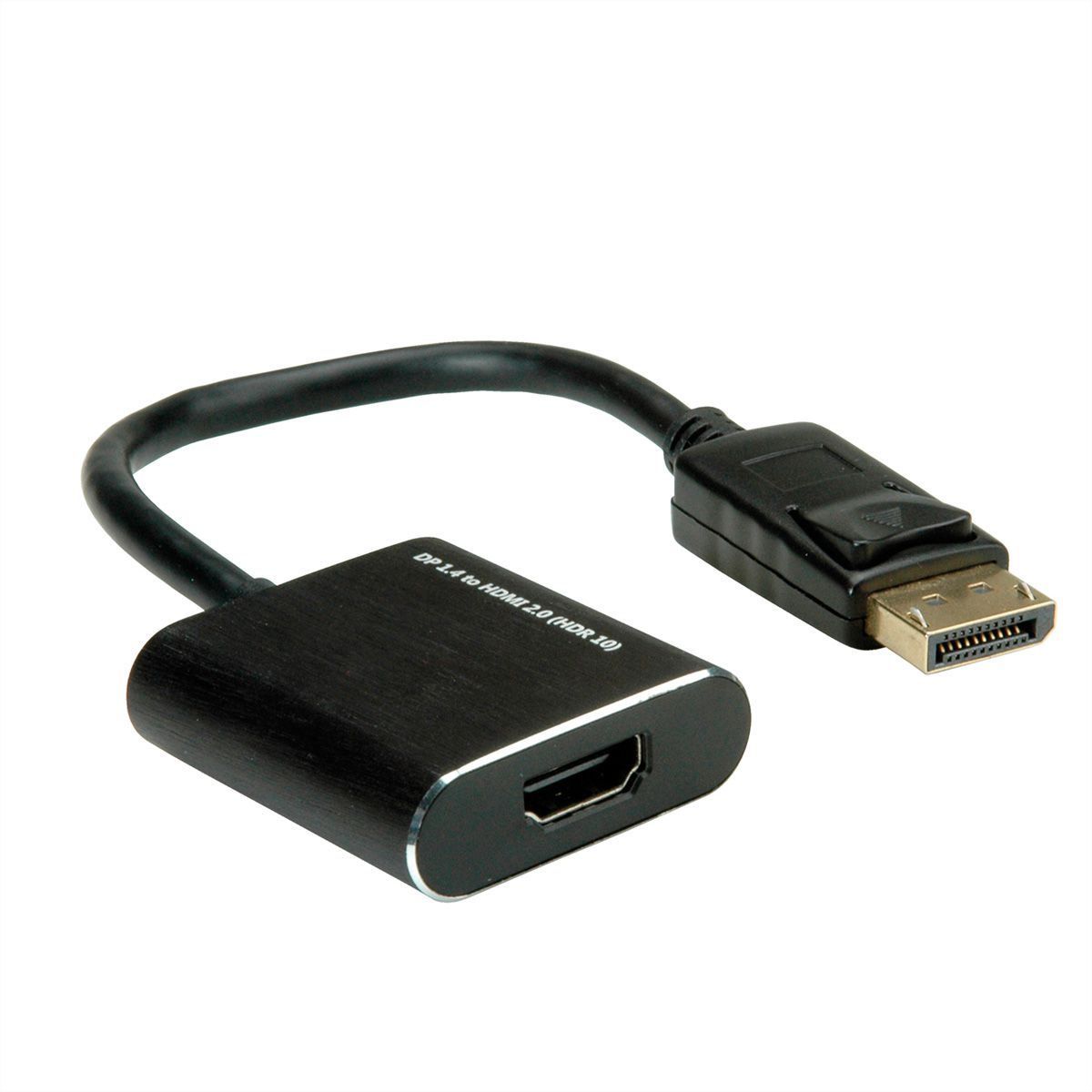

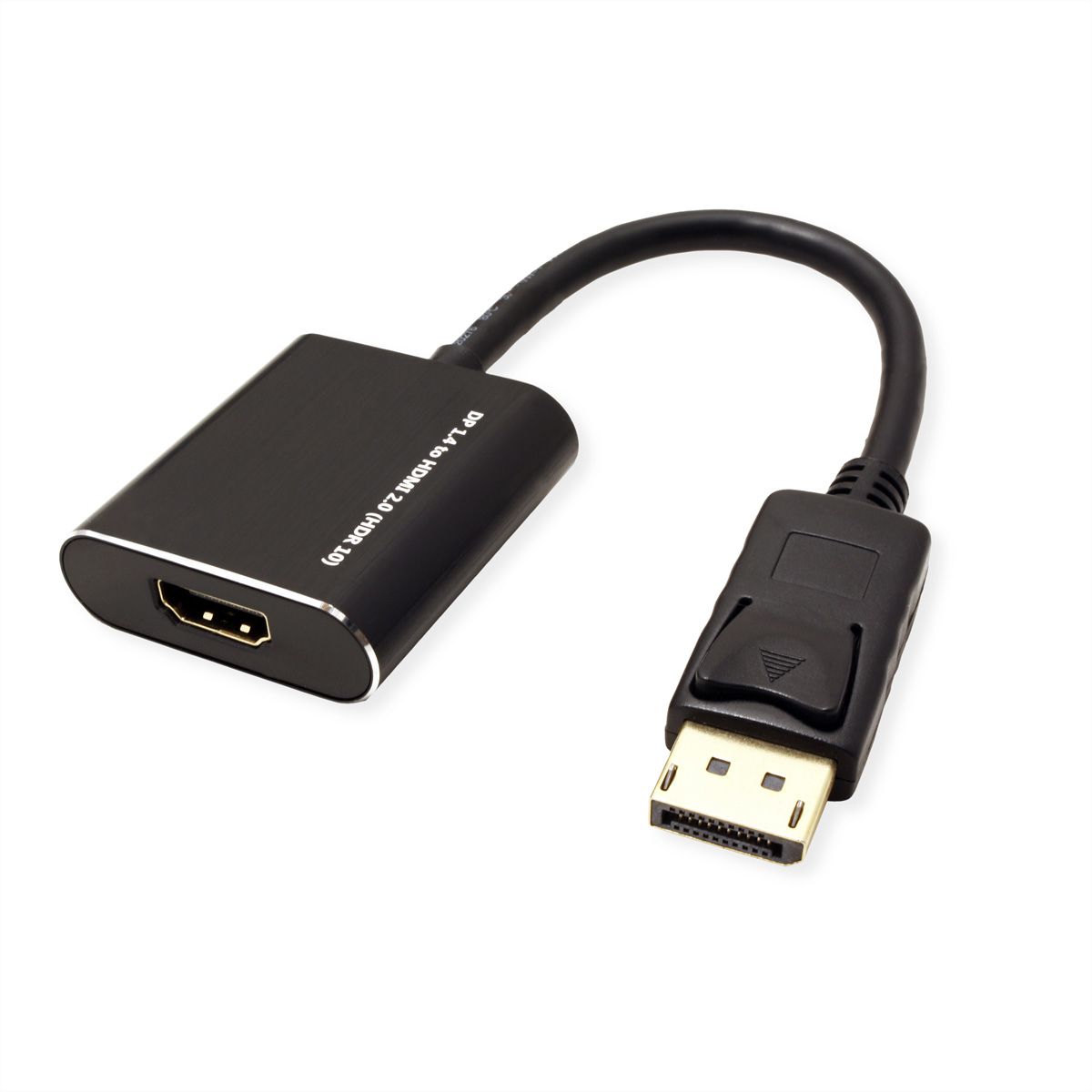

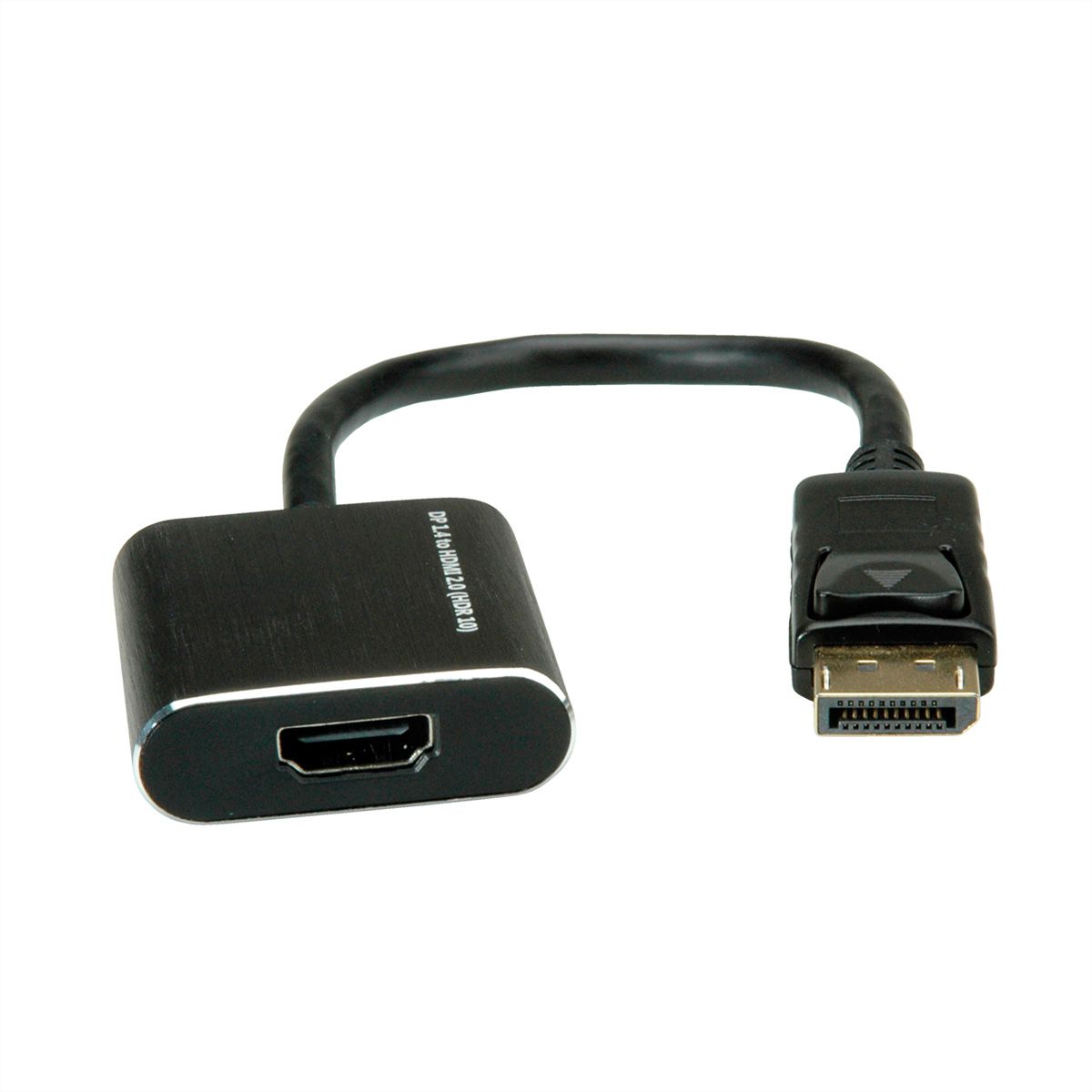

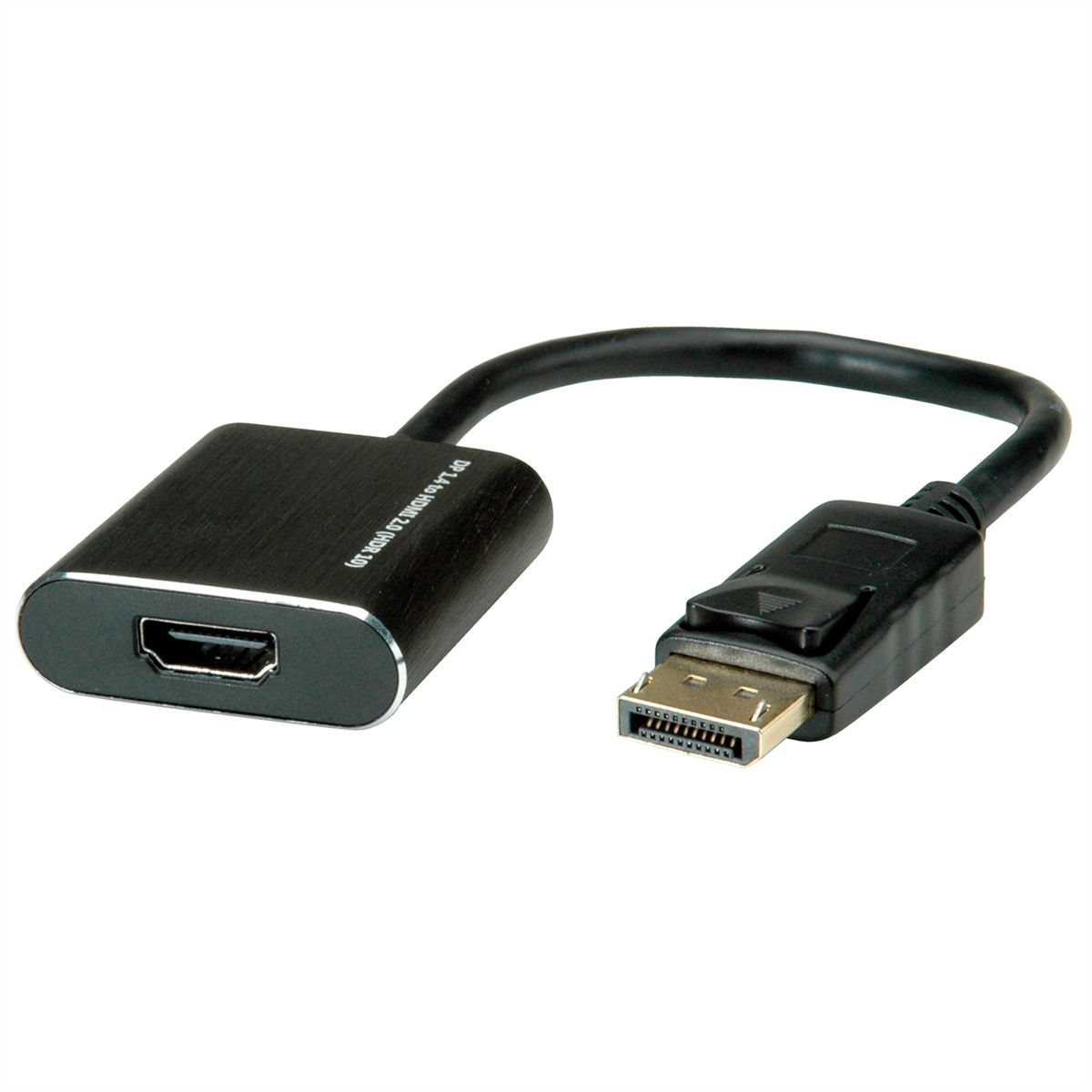

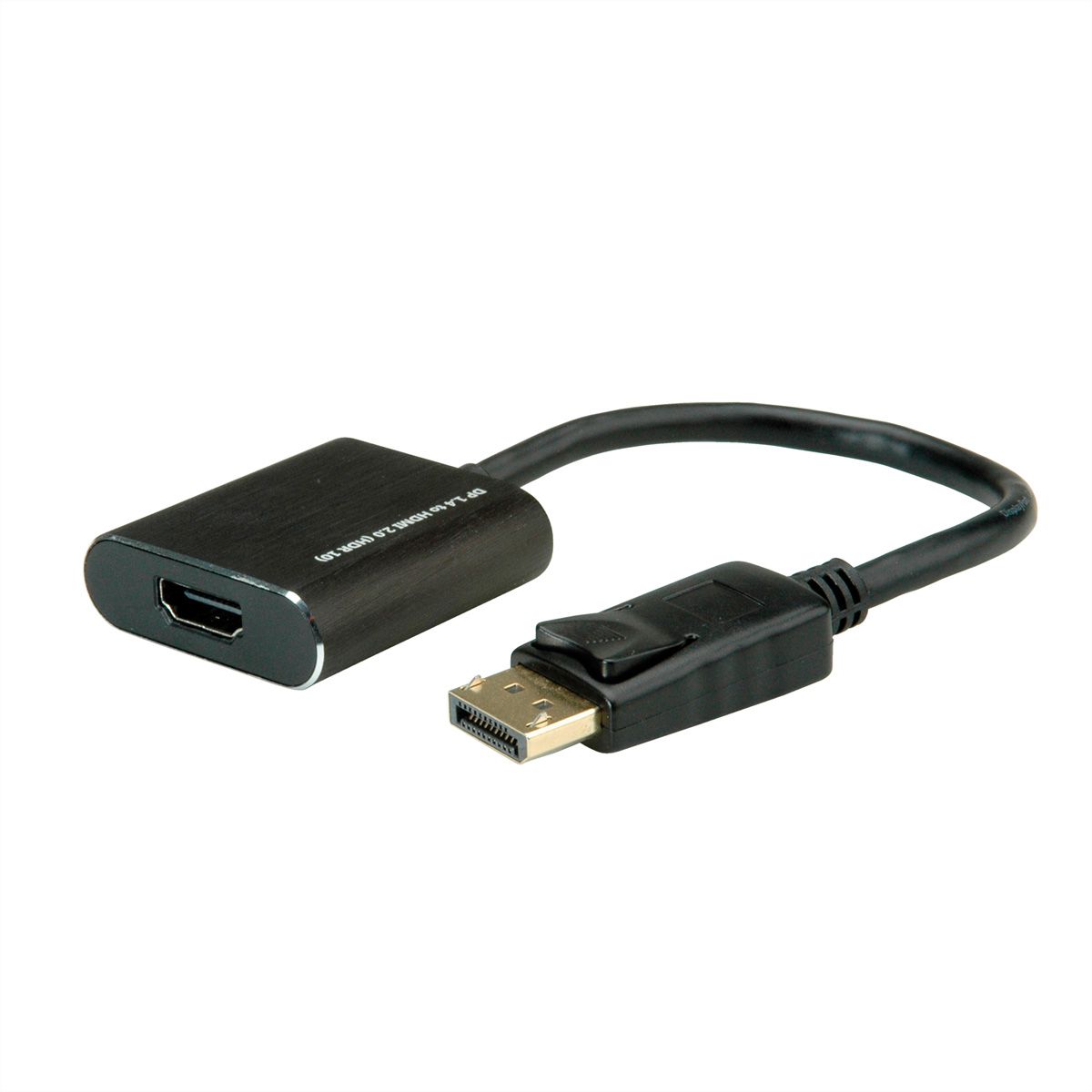

ROLINE DisplayPort-HDMI Adapter, 4K@60Hz, DP v1.4, DP M - HDMI F

ROLINE DisplayPort-HDMI Adapter, 4K@60Hz, DP v1.4, DP M - HDMI F

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.03.3164-10
Brand / Manufacturer ROLINE
Manuf. no. 12.03.3164
EAN 7611990948734
Package weight 0.05 kg

Description

For connecting an HDMI cable to a DisplayPort socket with a resolution of up to 3840x2160 @60Hz and HDR 10 support!

  • If you want to connect a graphic card with DisplayPort Female to a monitor by using a HDMI cable, you need this DisplayPort to HDMI adapter
  • Connectors: DisplayPort Male, HDMI Female
  • DisplayPort Version 1.4 allows increased resolutions, higher refresh rates, and greater color depth
  • Support HDR10 (High Dynamic Range 10 static)

  • Remark: The DisplayPort-HDMI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

What are the benefits of using Active adapters and converters?

Active products can have a huge advantage when working with long cable runs and video conversion applications. In terms of video converters, active units generally have hardware inside to improve your image.

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type DisplayPort-HDMI Adapter
Colour black
Length 0.15 m
Transfer quality DisplayPort v1.4
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC) DisplayPort Male
Side 2 connection (Peripherals) HDMI Female
Side 1 Connector Type DisplayPort
Side 1 Connector Gender Male
Side 2 Connector Type HDMI Type A
Side 2 Connector Gender Female
Active / Passive Active
Area of application External
Technical particularity DisplayPort Version 1.4
Weight 33.8 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 110 mm
Depth of packaging (single piece) 140 mm
Package weight (single piece) 0.05 kg
