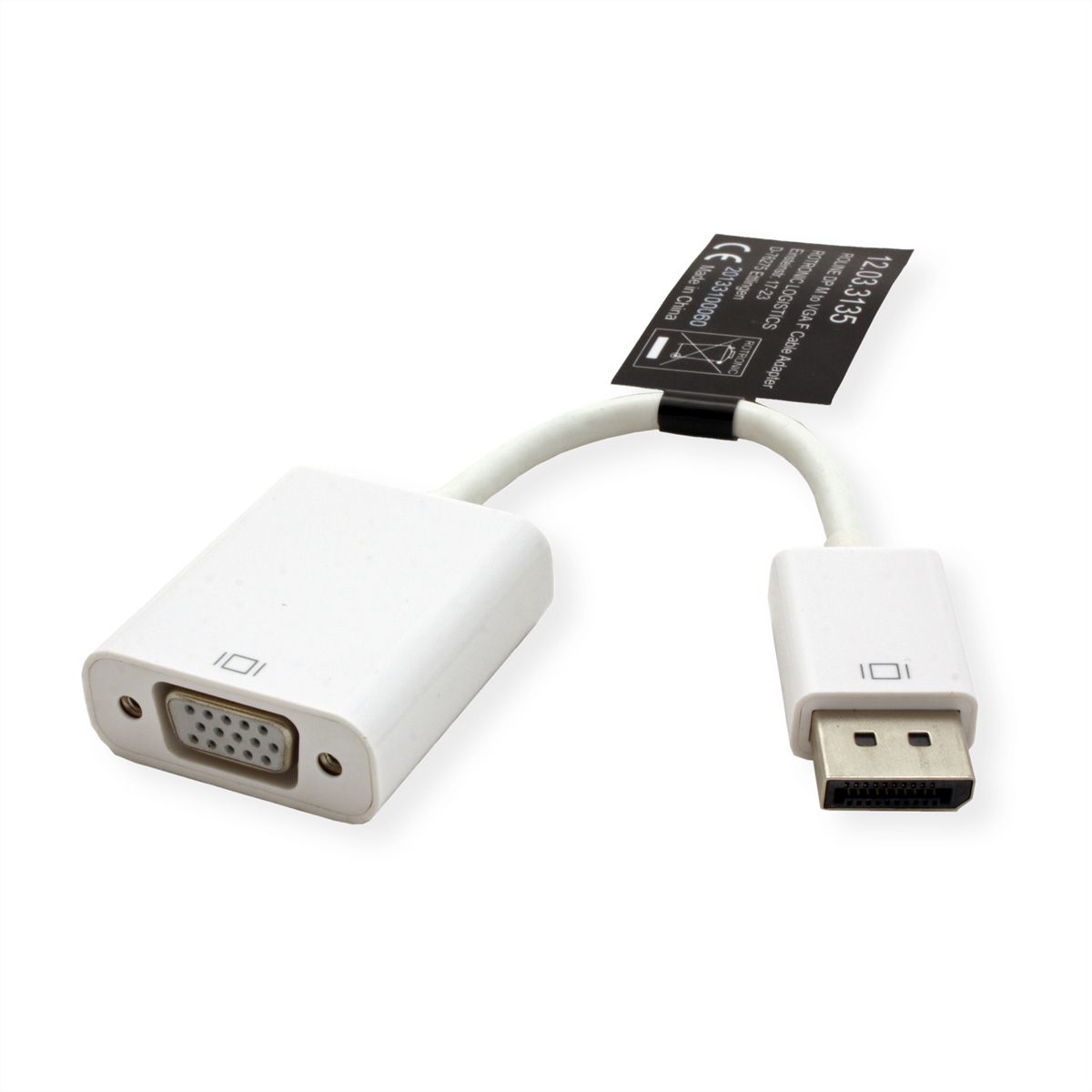

ROLINE DisplayPort-VGA Adapter, DP M - VGA F

Item no. 12.03.3135-10 Brand / Manufacturer ROLINE Manuf. no. 12.03.3135 EAN 7611990921096 Package weight 0.038 kg
ROLINE
Product recommendations

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

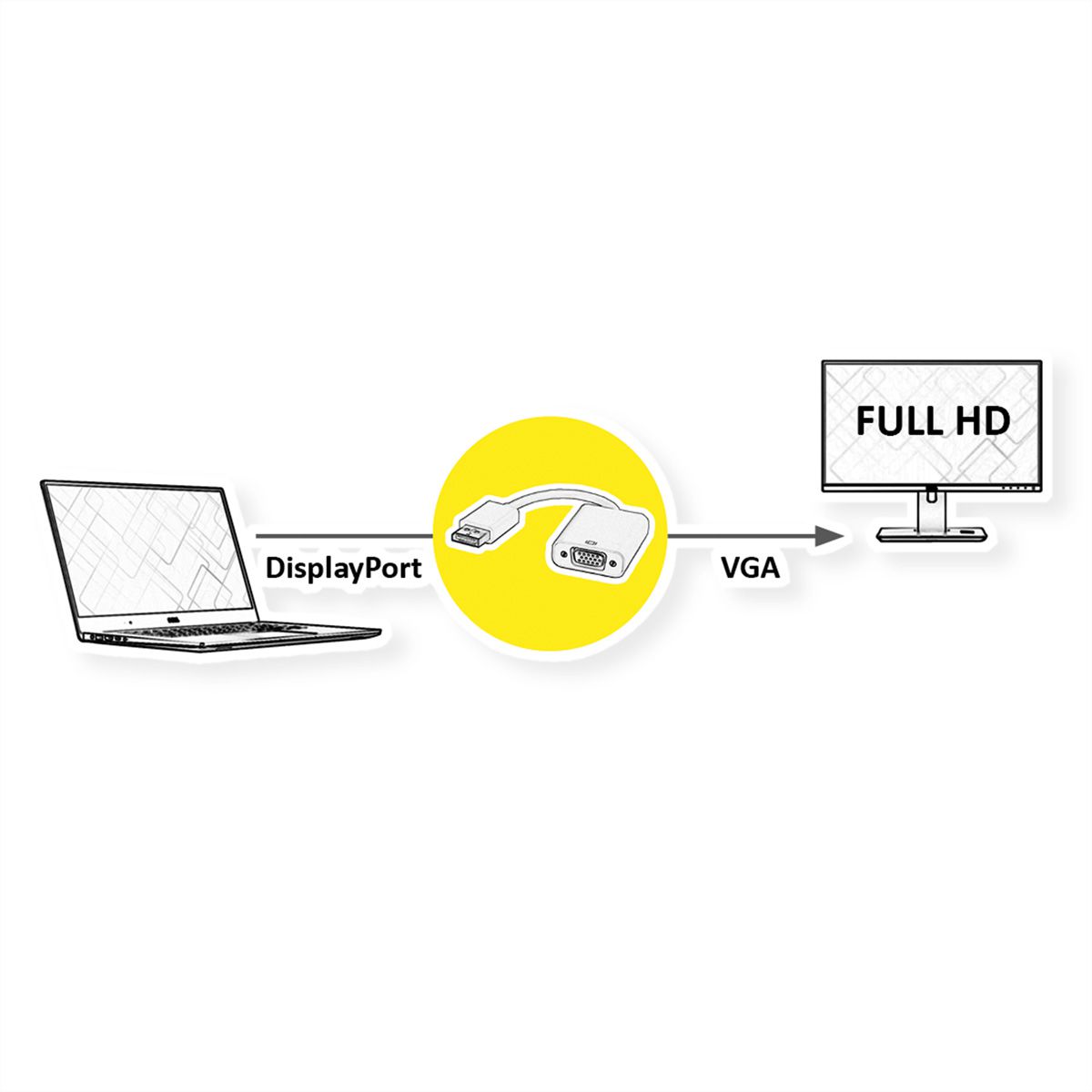

DisplayPort to VGA cable adapter for connecting a graphics card with DP to a monitor with VGA connector - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

  • For connecting a graphic card with DisplayPort connector to a VGA monitor by using a VGA M-M cable
  • Connectors: DisplayPort Male and VGA Female
  • Cable length: ca. 10 cm
  • Remark: The DisplayPort-VGA adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
DisplayPort-VGA Adapter
Colour
grey
Length
0.15 m
Max. resolution
1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)
DisplayPort Male
Side 2 connection (Peripherals)
VGA Female
Side 1 Connector Type
DisplayPort
Side 1 Connector Gender
Male
Side 2 Connector Type
HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender
Female
Active / Passive
Active
Area of application
External
Weight
33.9 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
110 mm
Depth of packaging (single piece)
210 mm
Package weight (single piece)
0.038 kg

Downloads

Product data sheet - English (47.1 KB) Manufacturer data sheet - English (168.0 KB)
