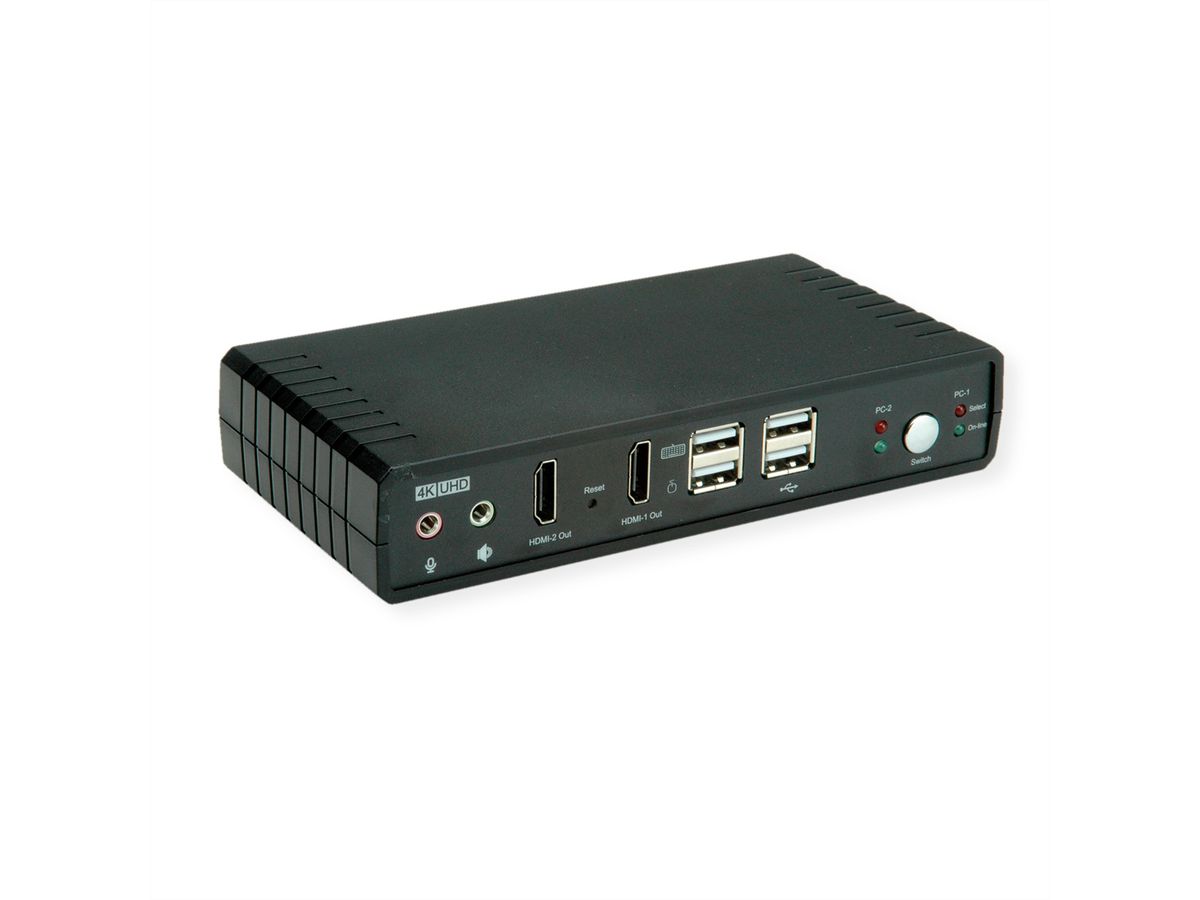

ROLINE Dual-Head 4K@60Hz HDMI KVM Switch, 2 PCs, DP/HDMI, Audio, with 2 Port USB 2.0 Hub
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3047-1 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3047 |
| EAN | 7630049634794 |
| Package weight | 1 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

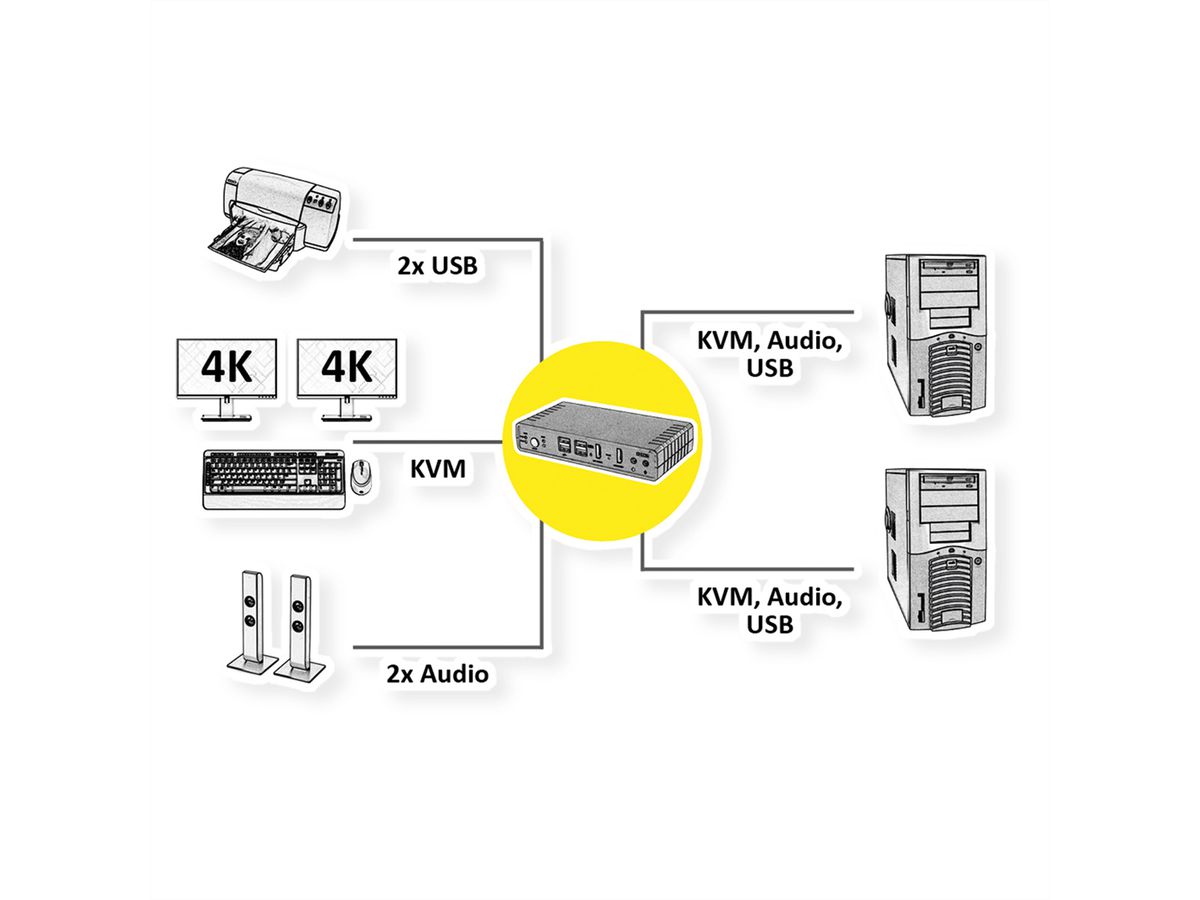

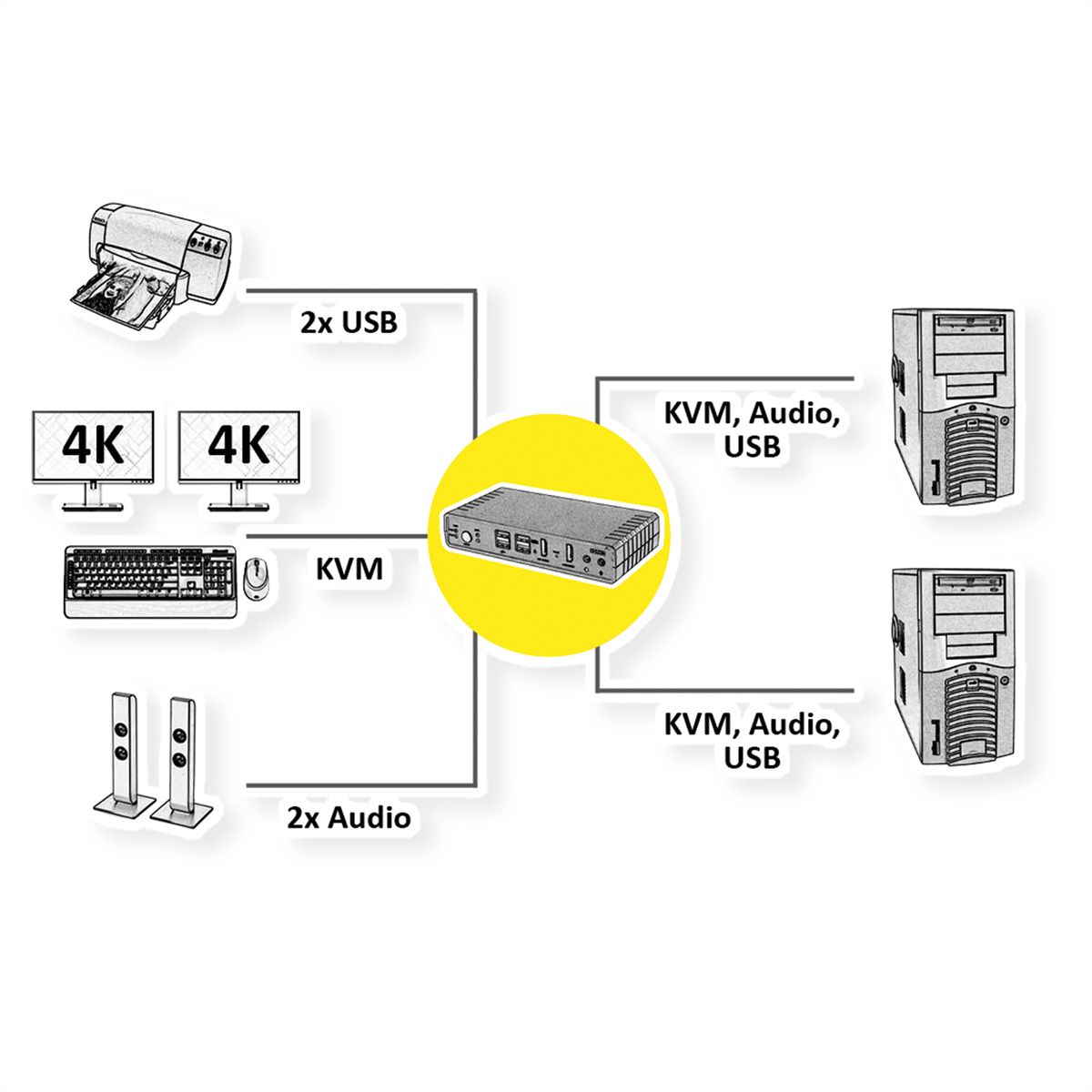

This ROLINE Dual-Head 4K@60Hz HDMI KVM Switch allows you to control two computers with DP/HDMI video output via one console with USB Keyboard, USB Mouse, 2x HDMI 4K@60Hz, 2 Port USB 2.0 Hub, Microphone and Speaker.
- Supports video resolution up to 4K@60Hz, 3840x2160@60Hz
- One Console controls two PC
- Supports 2x DisplayPort-/HDMI-in (PC side) and 2x HDMI-out (Console side)
- HDMI 2.0, Displayport 1.2 and HDCP 2.2 compliant
- 2x USB for Keyboard and Mouse and 2 port USB 2.0 Hub
- Audio/Microphone enabled
- Switching can be done with buttons and keyboard hotkeys
- LED status indication
- No software needed
- Supported Operating Systems: Windows, Mac, Linux

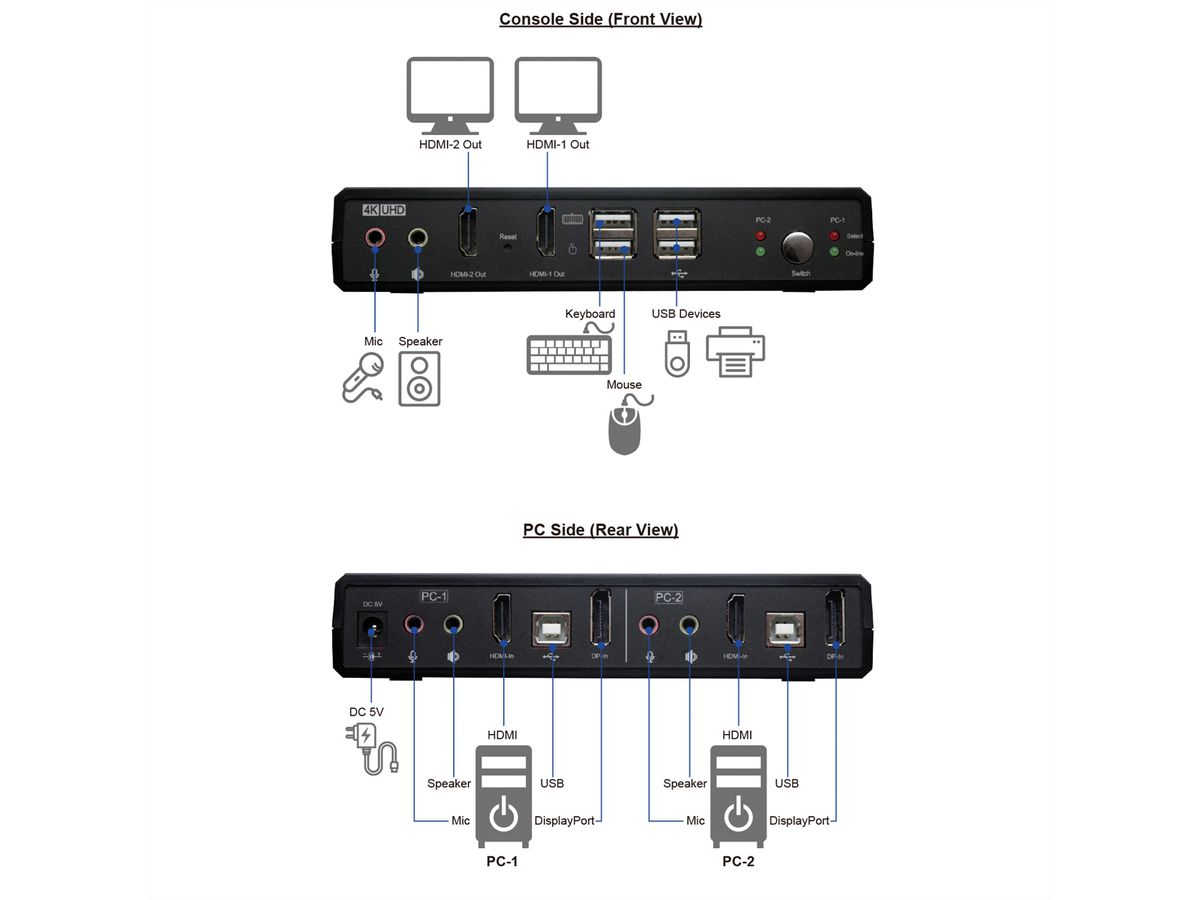

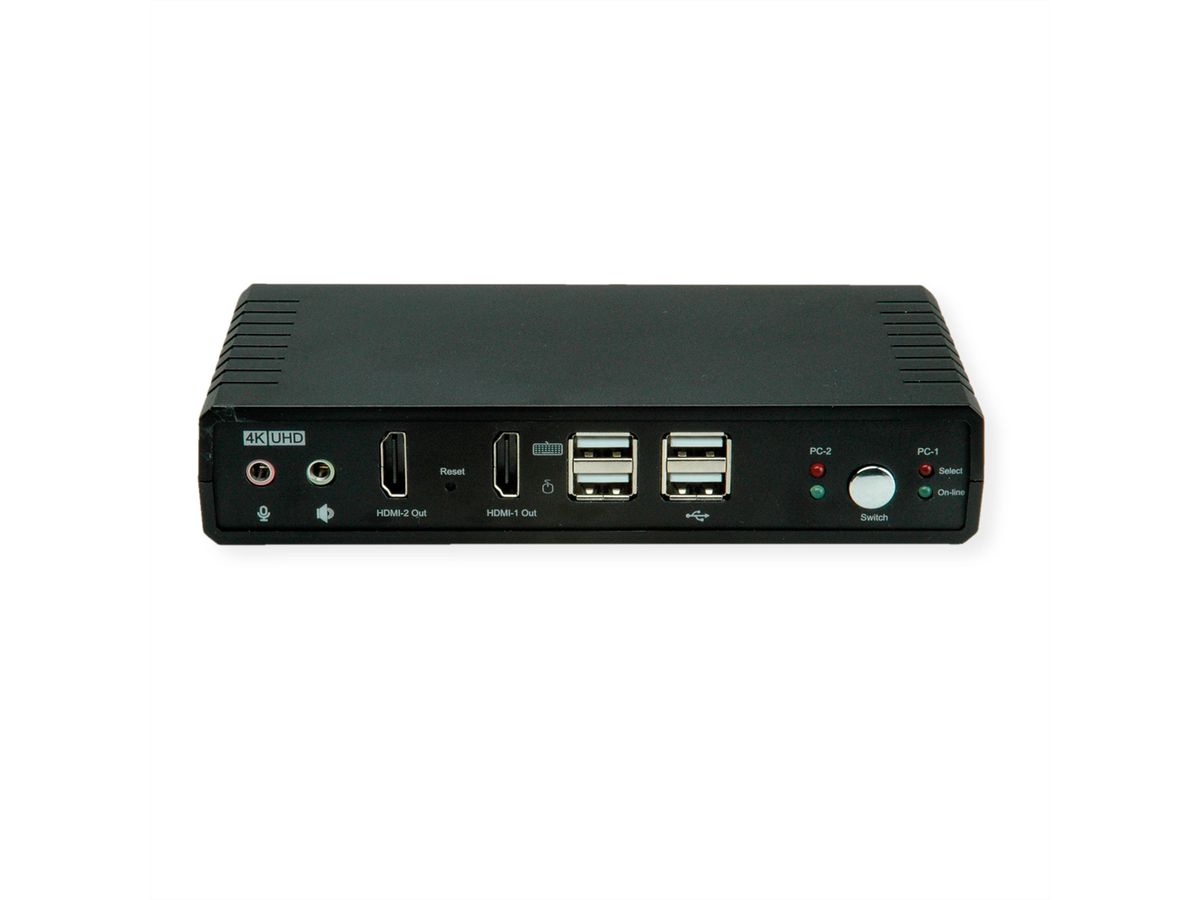

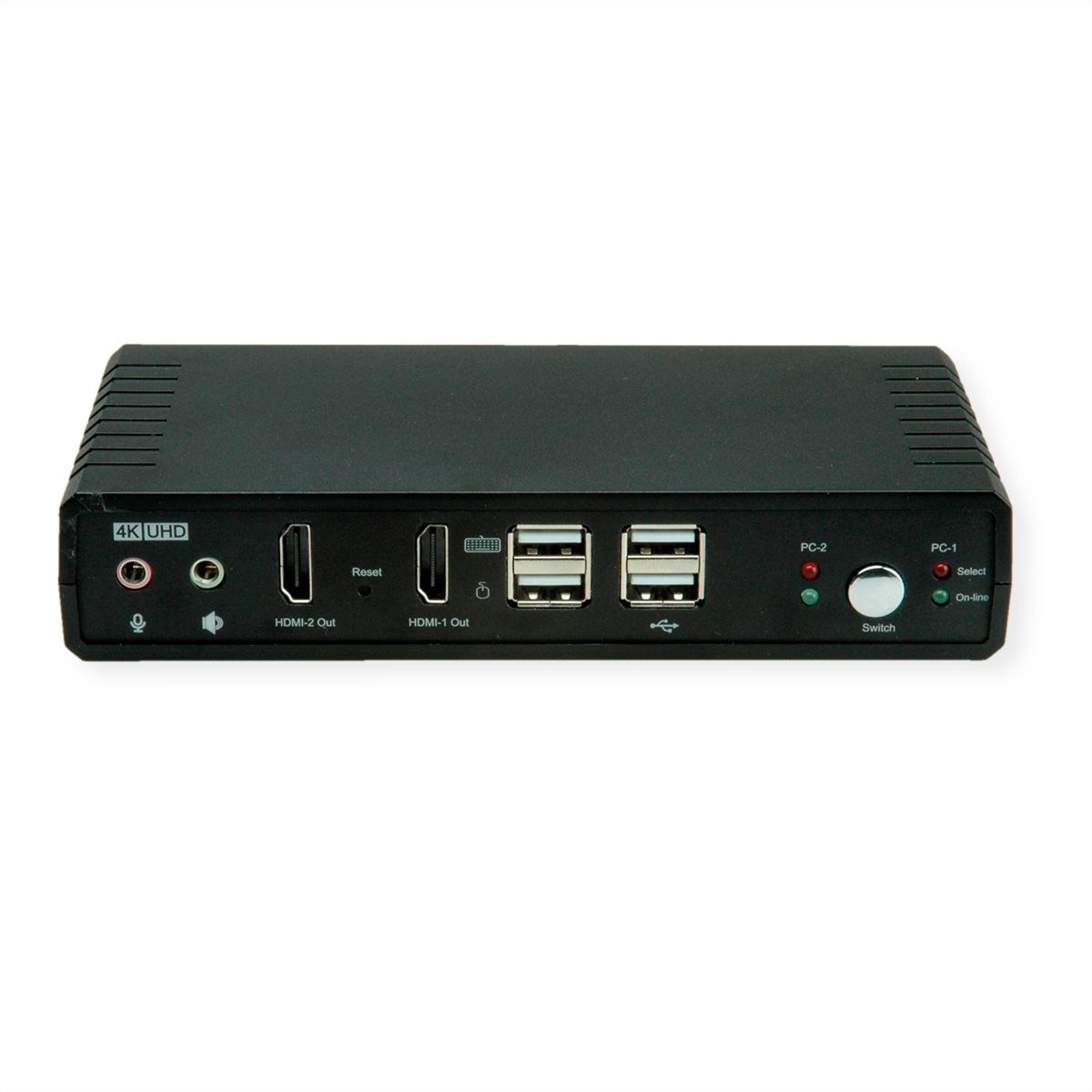

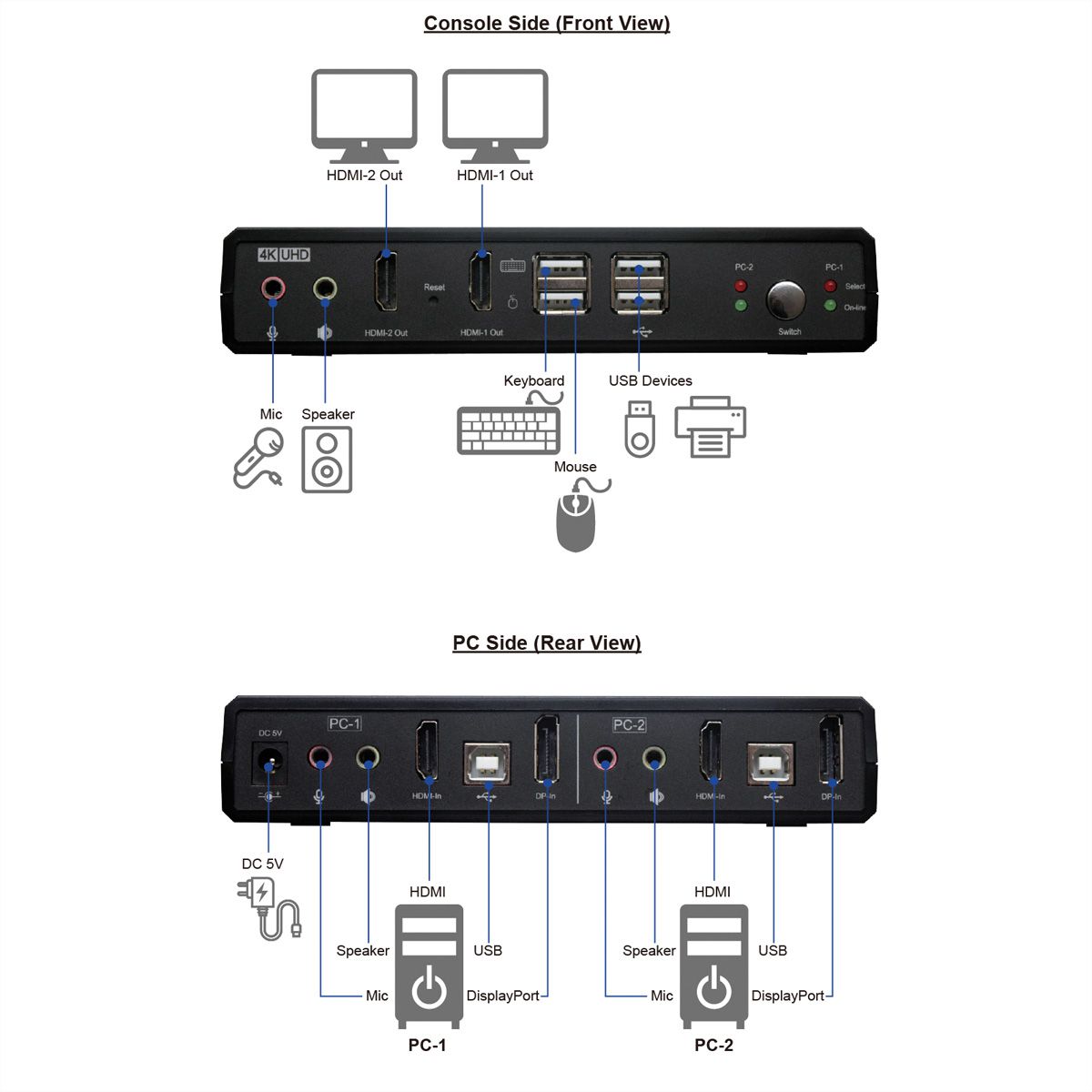

Console Side:
2x HDMI female for video output
2x USB Type A female for keyboard and mouse
2x USB Type A female for USB 2.0 hub
2x 3.5-mm audio phone jack

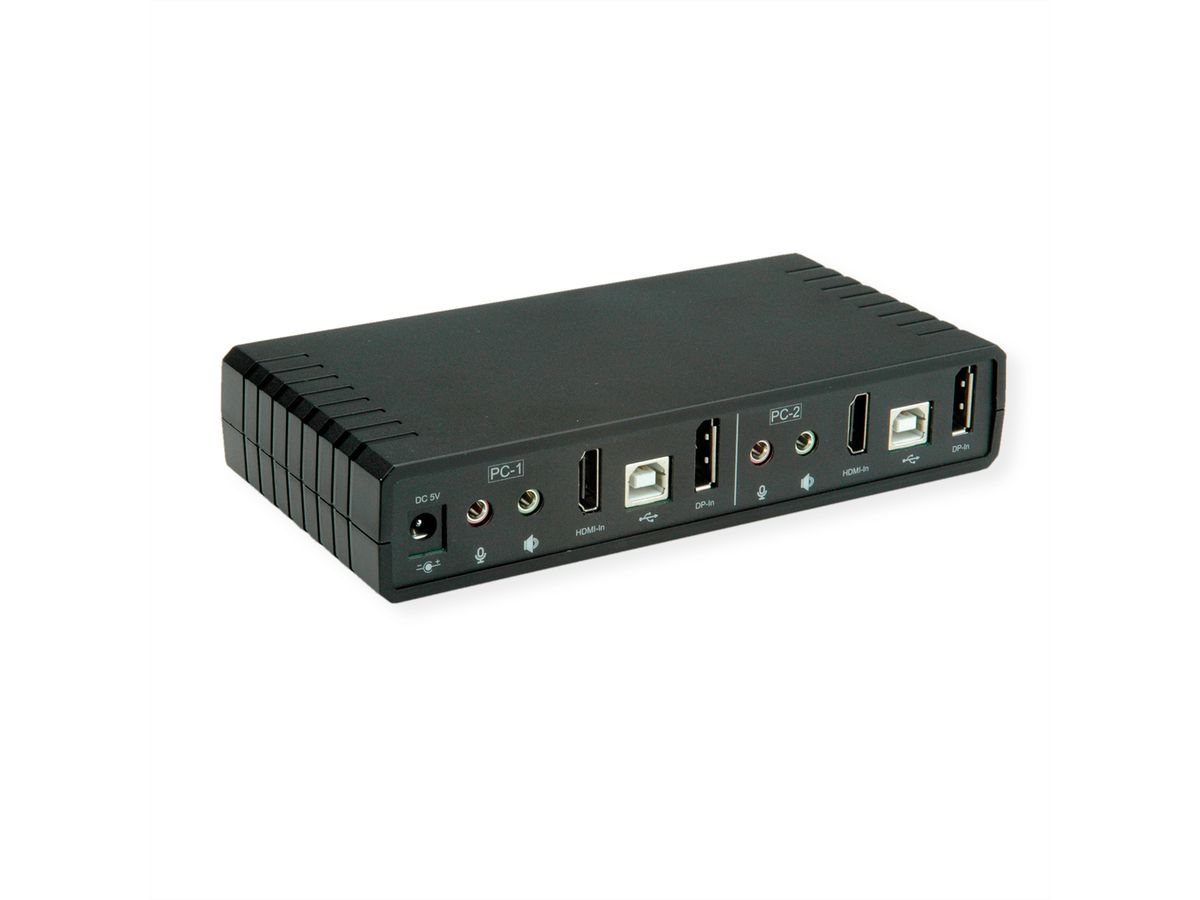

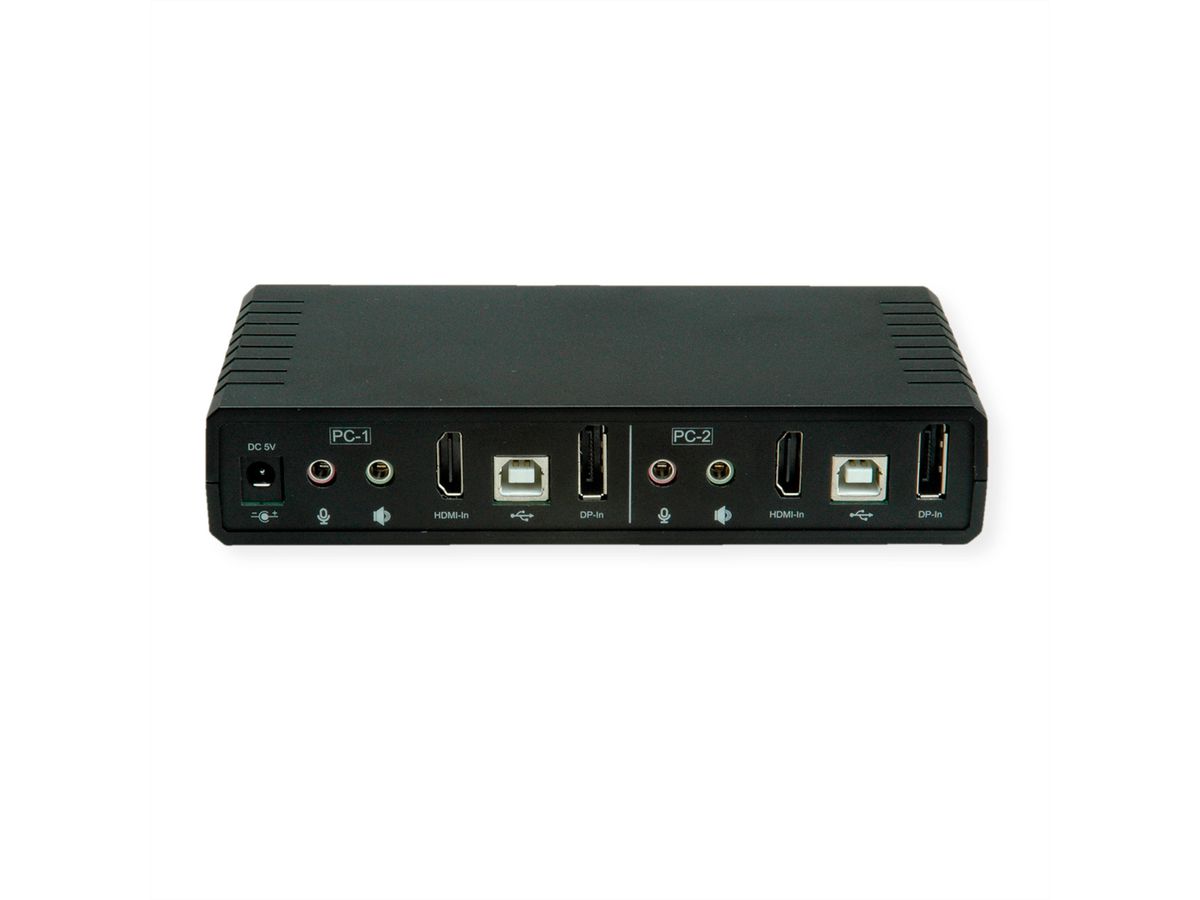

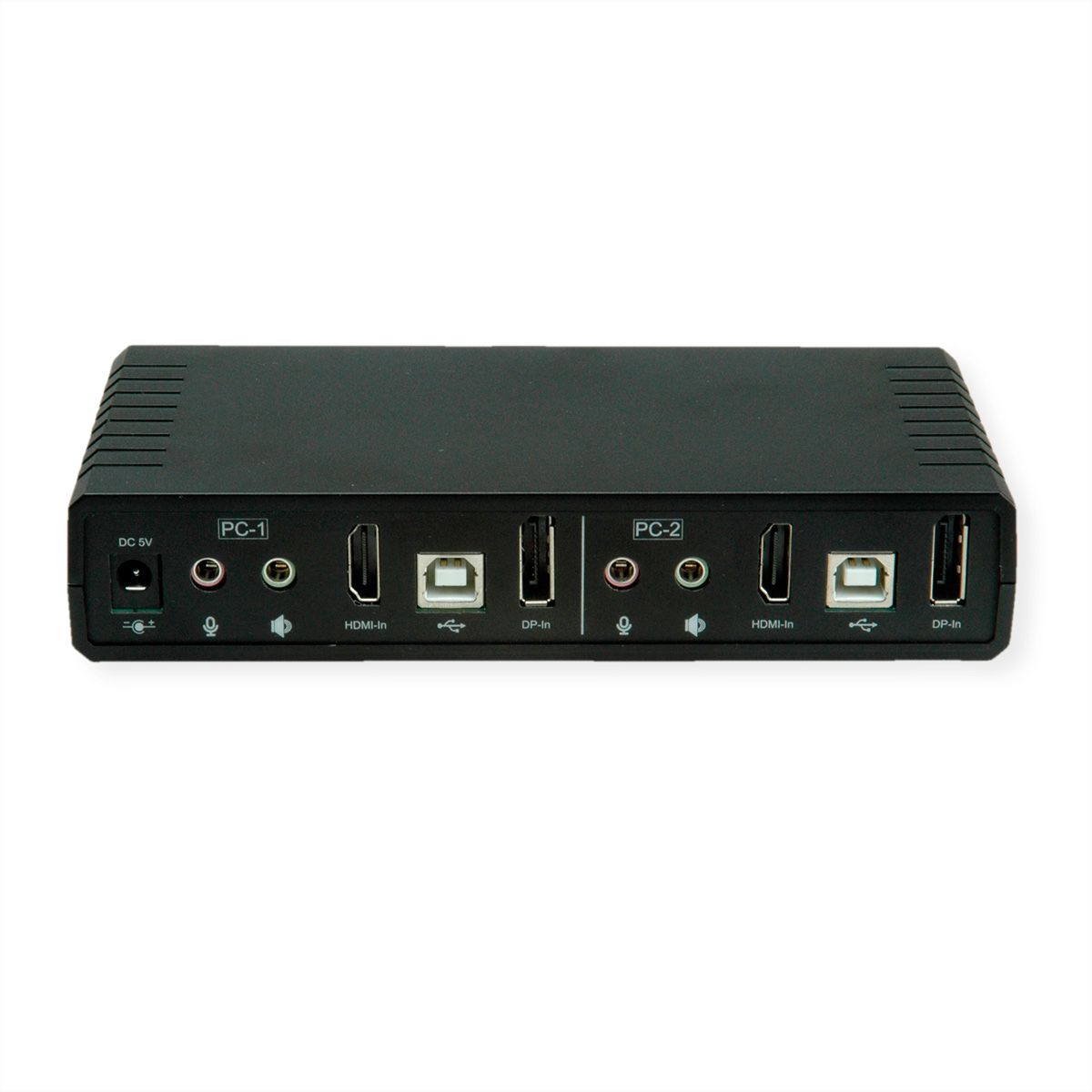

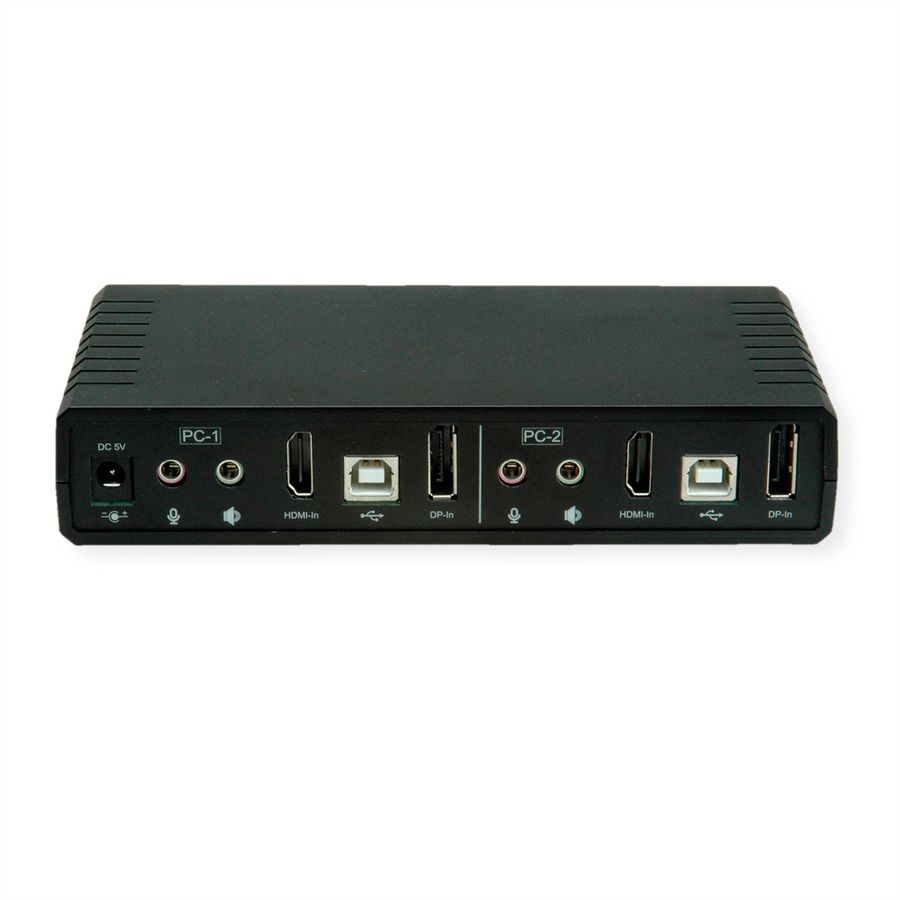

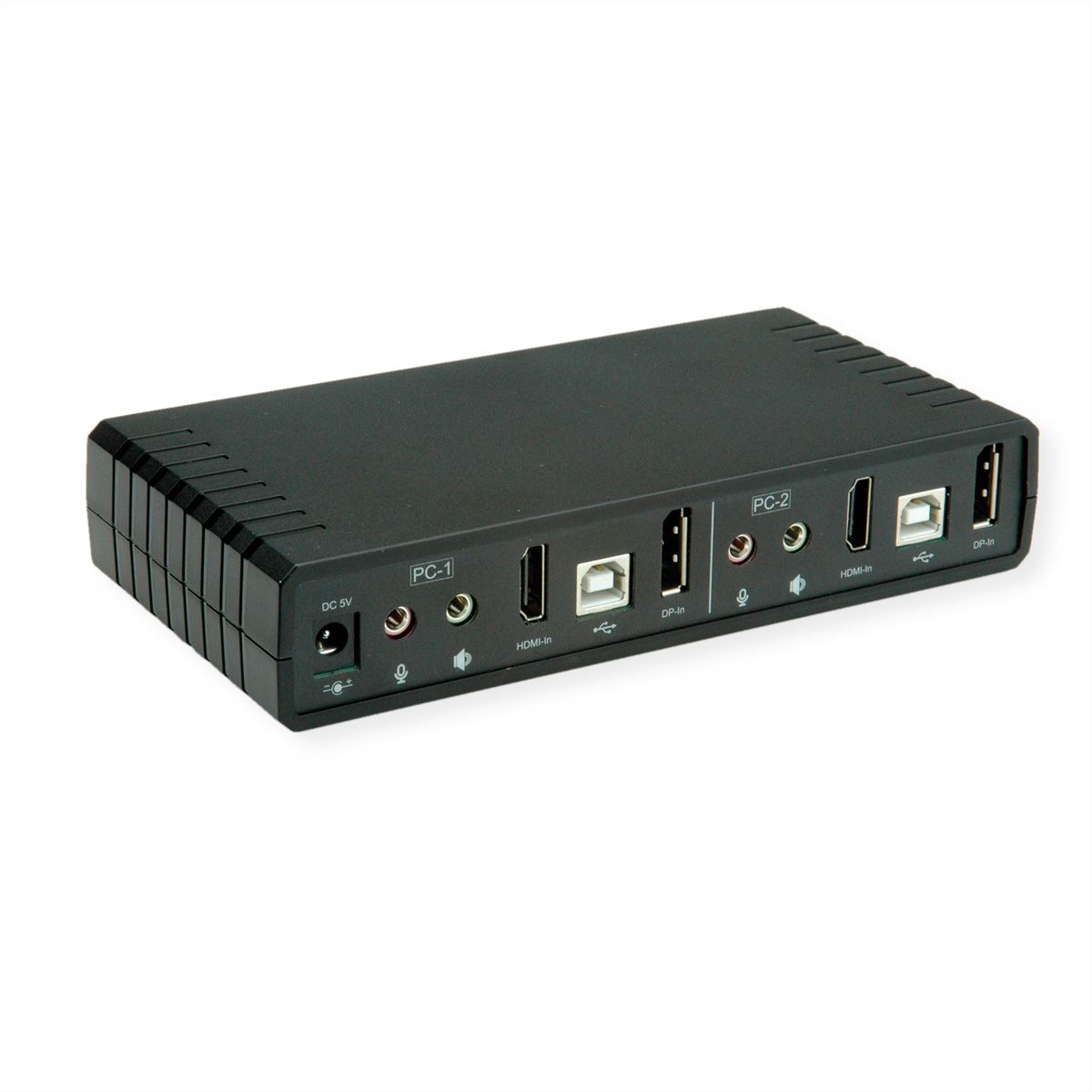

PC Side:
2x HDMI female for video input
2x DisplayPort female for video input
2x USB Type B female
4x 3.5-mm audio phone jack
Other: 2.1-mm barrel plug for power
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | KVM switches / PC shares |
| Product type | KVM-Switch, HDMI |
| Colour | black |

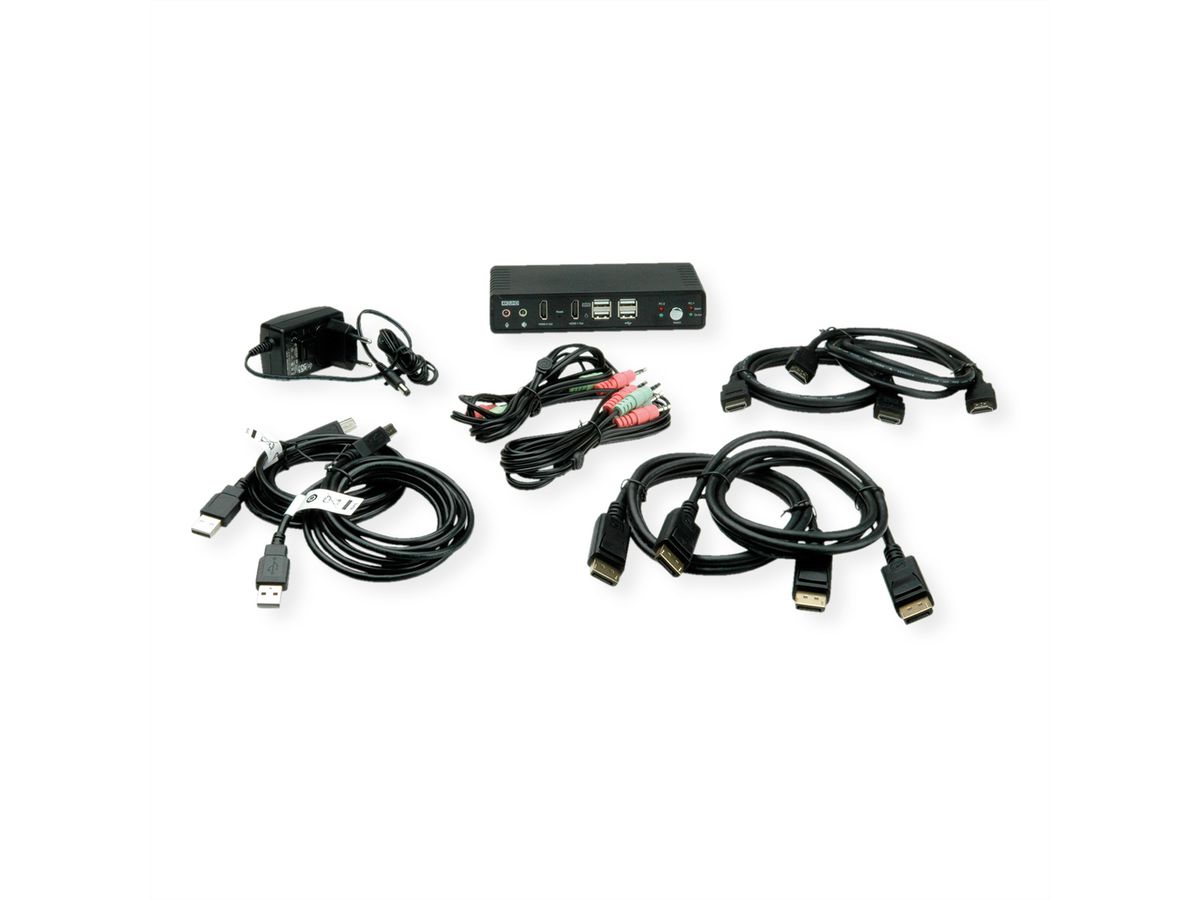

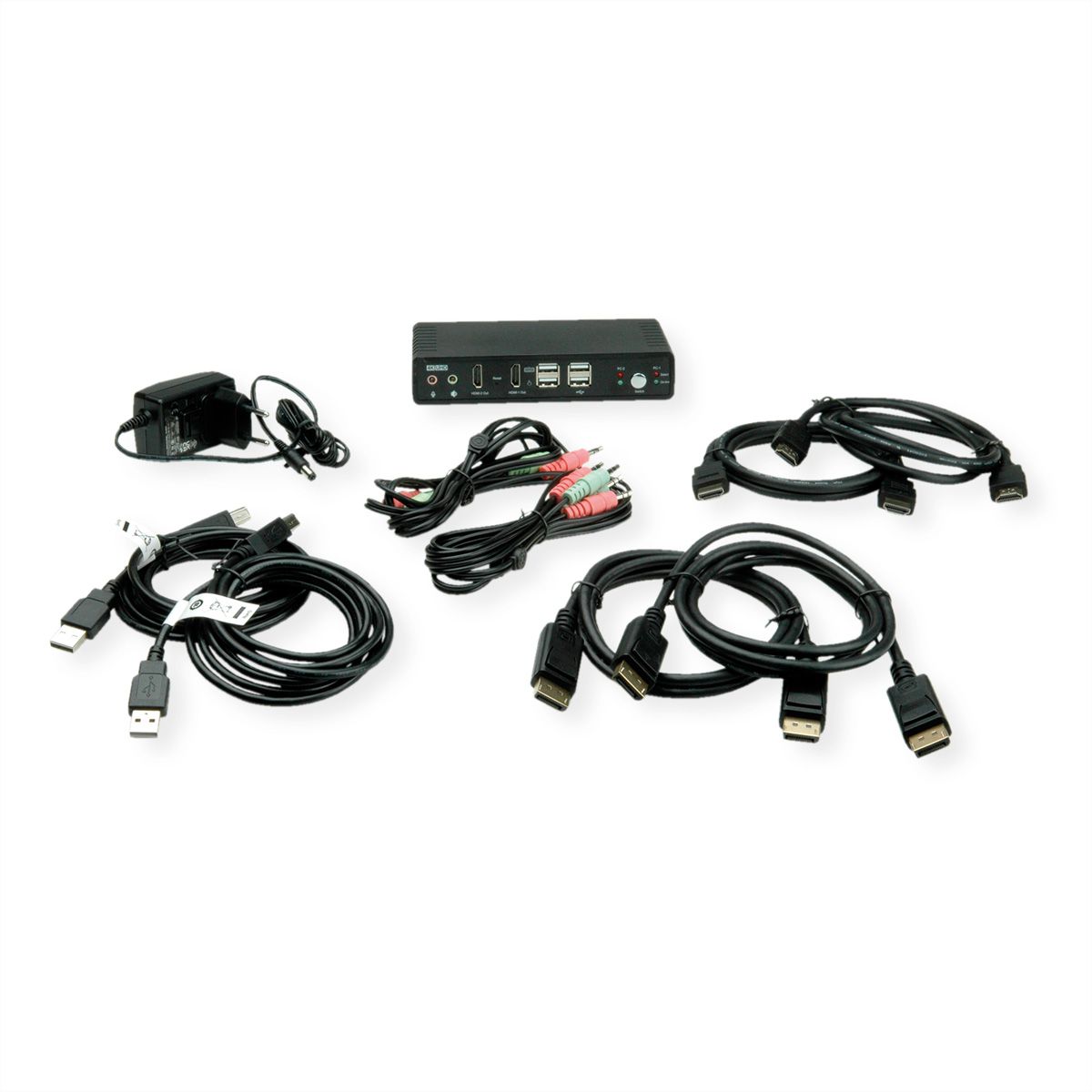

| Scope of delivery | KVM Switch, Power Supply, 2x HDMI Cable, 2x DisplayPort Cable, 2x USB A-B Cable, 2x Audio-/Mic-Cable, User Manual |
| Interface | HDMI |
| Audio | Stereo Audio |
| Inputs | 2 |
| Outputs | 2 |
| Quantity of PCs | 2 |
| Supported PC-Systems | USB |
| PC: monitor connection | 2x HDMI, 2x DP |
| PC: mouse/keyboard connection | 2x USB Type B |
| Analogue Console: Monitor connection | 2x HDMI |
| Analogue Console: Mouse/Keyboard connection | 2x USB Type A |
| Analogue Console: Combi connection | 2x USB 2.0 Type A |
| Print button on device | yes |
| Switching over Hot Keys | Keyboard |
| Integrated Hub | yes |
| Quantity of USB-Hub ports | 2 |
| 19" compatible | no |
| Cascadable | no |
| Hot plug compatible | yes |
| Max. resolution (nominal) | 3840 x 2160@60Hz |
| Colour (Design profile) | black |
| Material (casing) | metal |
| Dimensions (HxWxD) | 32 x 167 x 84 mm |
| Power supply unit required | yes |
| Power supply output | 5V 2A DC |
| Technical particularity | LEDs for easy status monitoring |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 60 °C |
| Height | 32 mm |
| Width | 167 mm |
| Depth | 84 mm |
| Weight | 227 g |
| Height of packaging (single piece) | 70 mm |
| Width of packaging (single piece) | 210 mm |
| Depth of packaging (single piece) | 320 mm |
| Package weight (single piece) | 1 kg |
