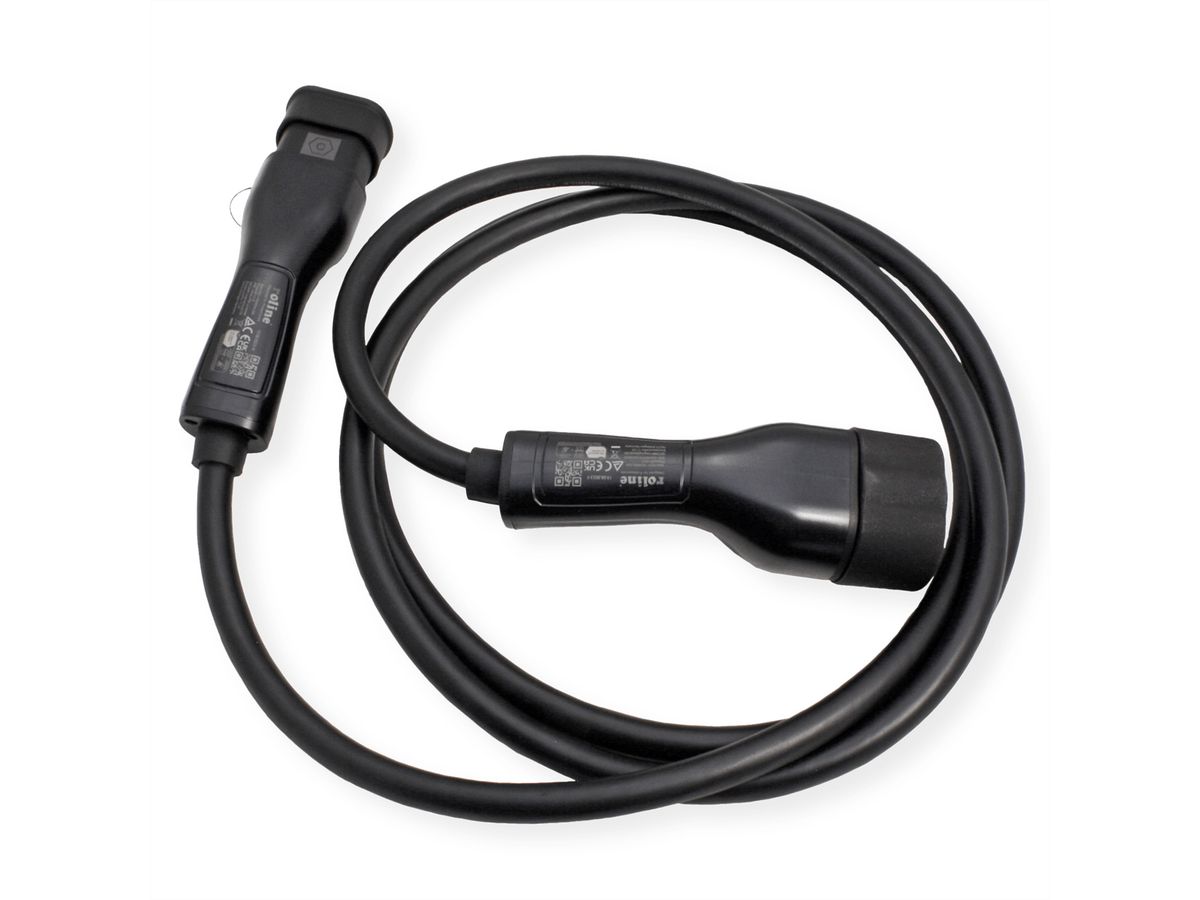

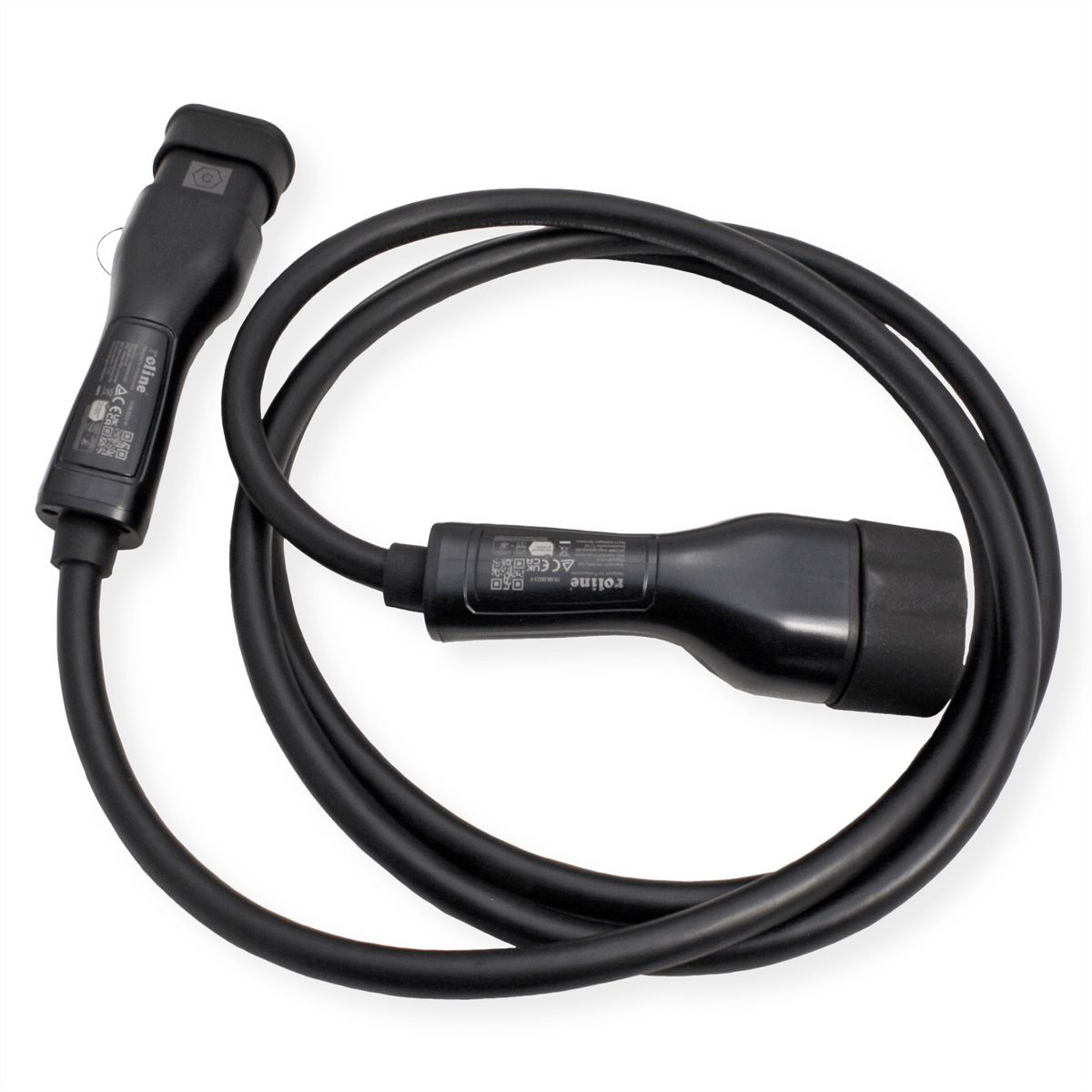

ROLINE EV Charging Cable Assembly Type2, 3-Phase, 480VAC (3P+N+E), 32 A, 22 kW, 3 m

ROLINE EV Charging Cable Assembly Type2, 3-Phase, 480VAC (3P+N+E), 32 A, 22 kW, 3 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 19.08.0023-4
Brand / Manufacturer ROLINE
Manuf. no. 19.08.0023
EAN 7630049688124
Package weight 2.6 kg
Colour
Length

Description

Type2 charging cable for electric and hybrid cars with 22 kW, 3-phase, 480 V AC

  • Enables easy / fast charging at public charging stations and private wall boxes (wallbox)
  • Suitable for charging electric and hybrid vehicles
  • Mode 3 / Type 2 car charging cable
  • Connections: Type 2 on both sides
  • For all electric cars with type 2 connection
  • Ergonomically shaped plug and coupler
  • Moisture protection (IP65 - connected state, IP54 - unconnected cable with protective caps attached)
  • 32 A / 3- phase (480 VAC)
  • Max. Charging power: 22 kW

Specifications

Manufacturer ROLINE
Product group Power Cables
Product type Electric car charging cable
Colour black
Length 3 m
Scope of delivery E-car charging cable, carrying bag
Charging power 22 kW
Current 32 A
Number of phases 3-phase
Supported charging technology Mode-3
Side 1 Connector Type IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
Side 1 Connector Gender Male
Side 2 Connector Type IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
Side 2 Connector Gender Female
Cable LSOH flame retardant
Protection class (IP Code)
  • IP65
  • IP54
Mains connection IEC 62196-2 Type 2 plug, 3Ph.
Operating temperature min. -30 °C
Operating temperature max. 50 °C
Storage temperature min. -40 °C
Storage temperature max. 85 °C
Height 40 mm
Width 390 mm
Depth 390 mm
Weight 2.6 kg
Height of packaging (single piece) 40 mm
Width of packaging (single piece) 390 mm
Depth of packaging (single piece) 390 mm
Package weight (single piece) 2.6 kg
